Mute Signal Circuit Between Radio Receiver and Multi-Display Controller
Mute Signal Circuit between Radio Receiver and Multi-display ControllerDESCRIPTION
The multi-display controller controls the volume according to the mute signal from the radio receiver.
The mute signal is sent to reduce noise and a popping sound generated when switching the mode, etc.

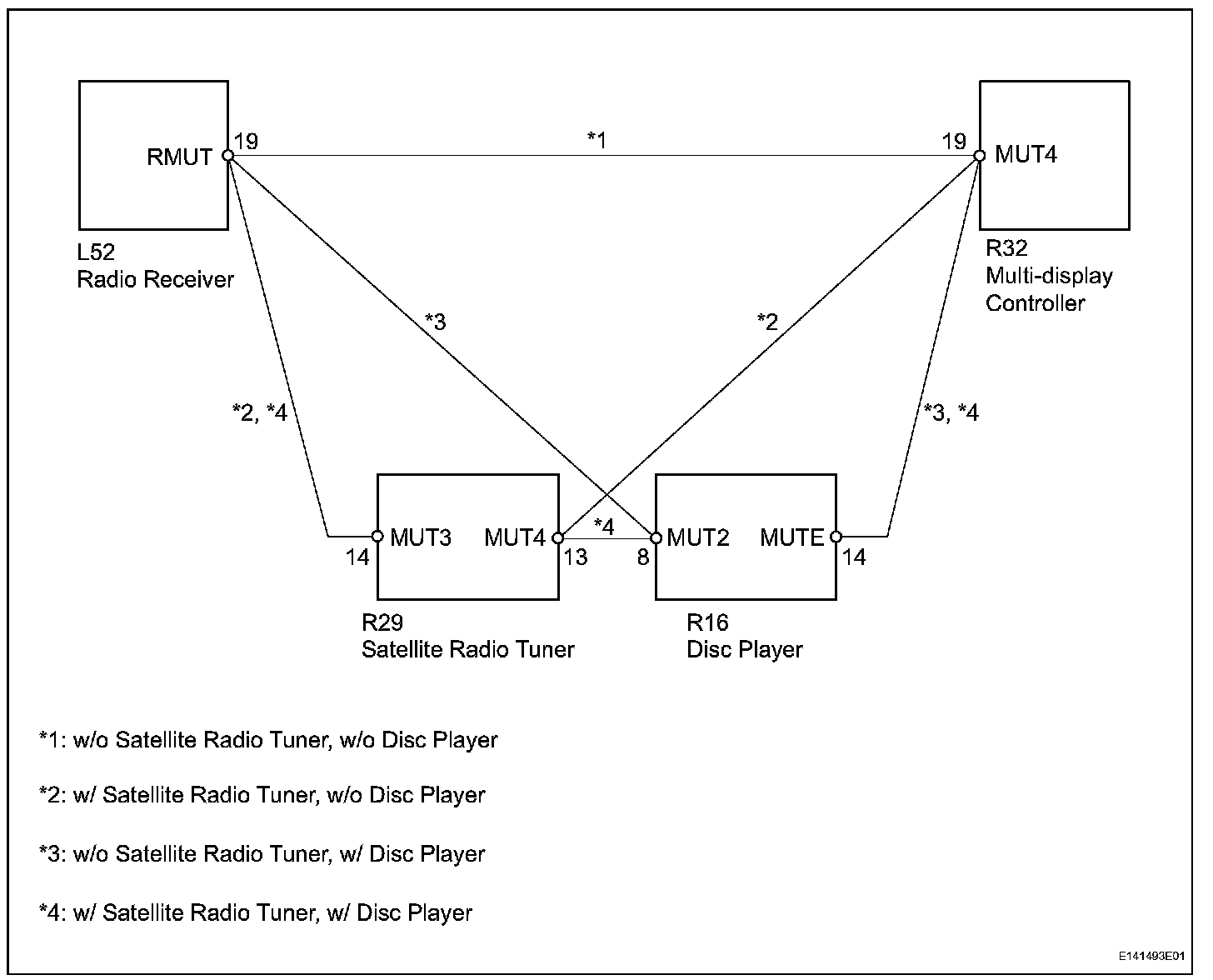

Wiring Diagram:

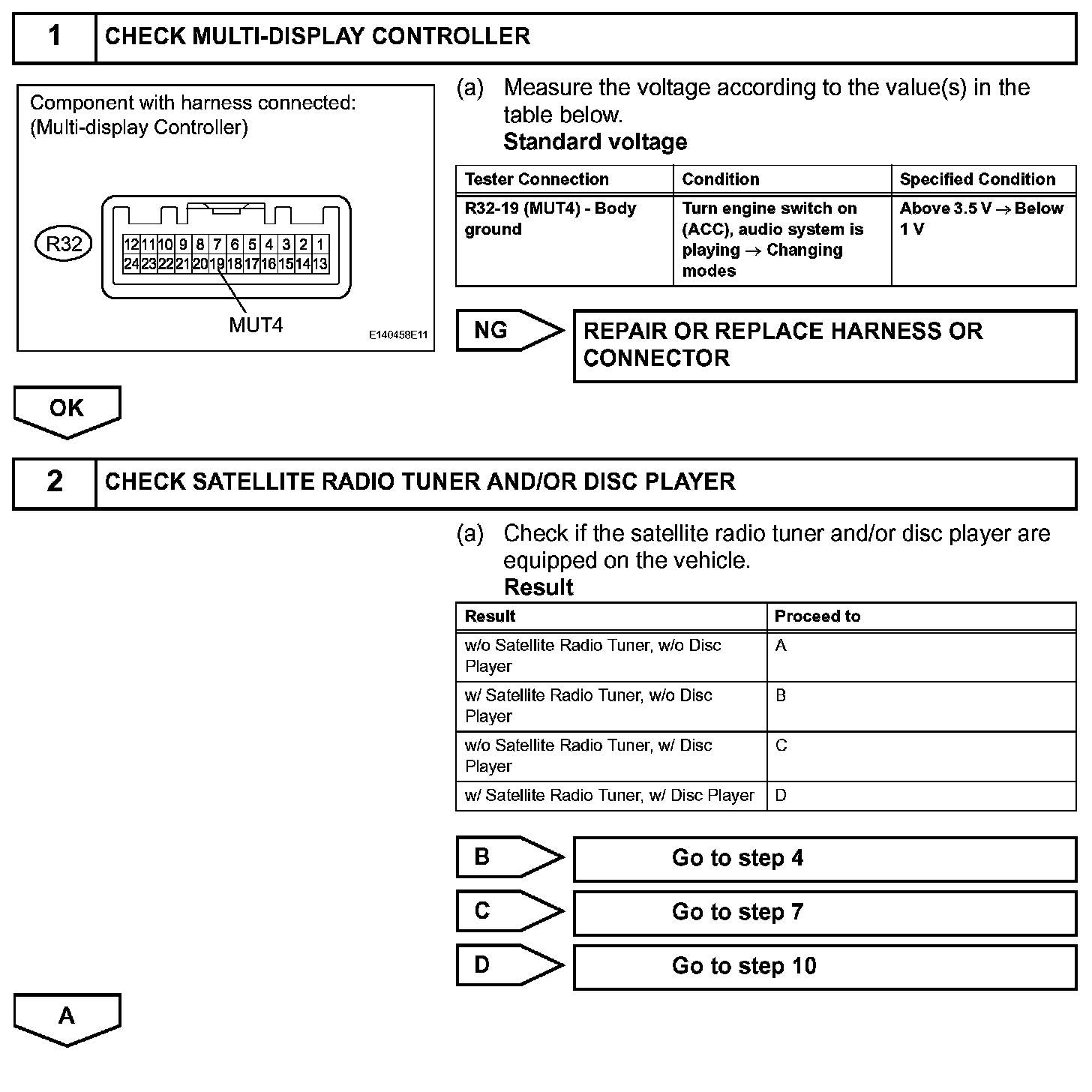

Step 1-2:

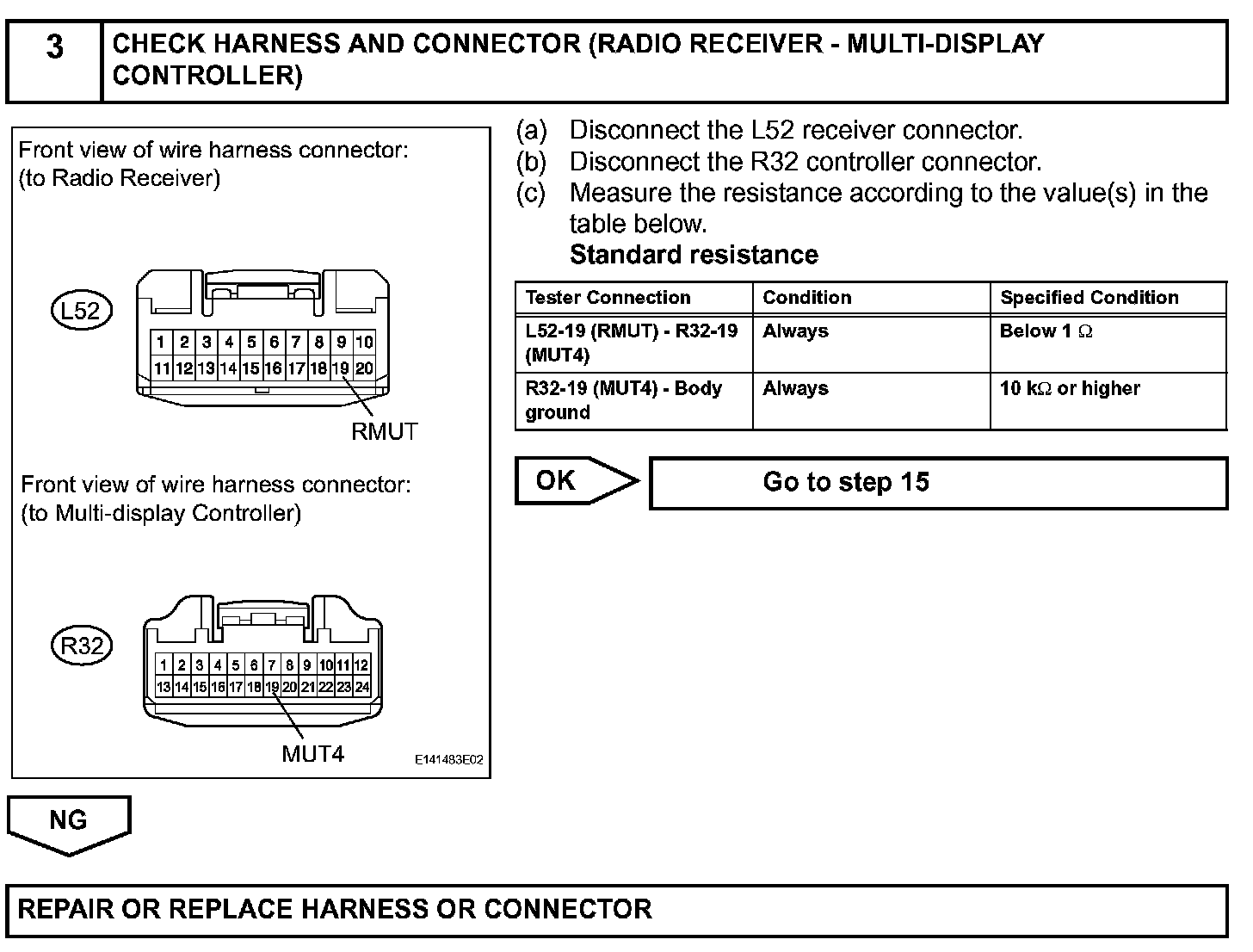

Step 3:

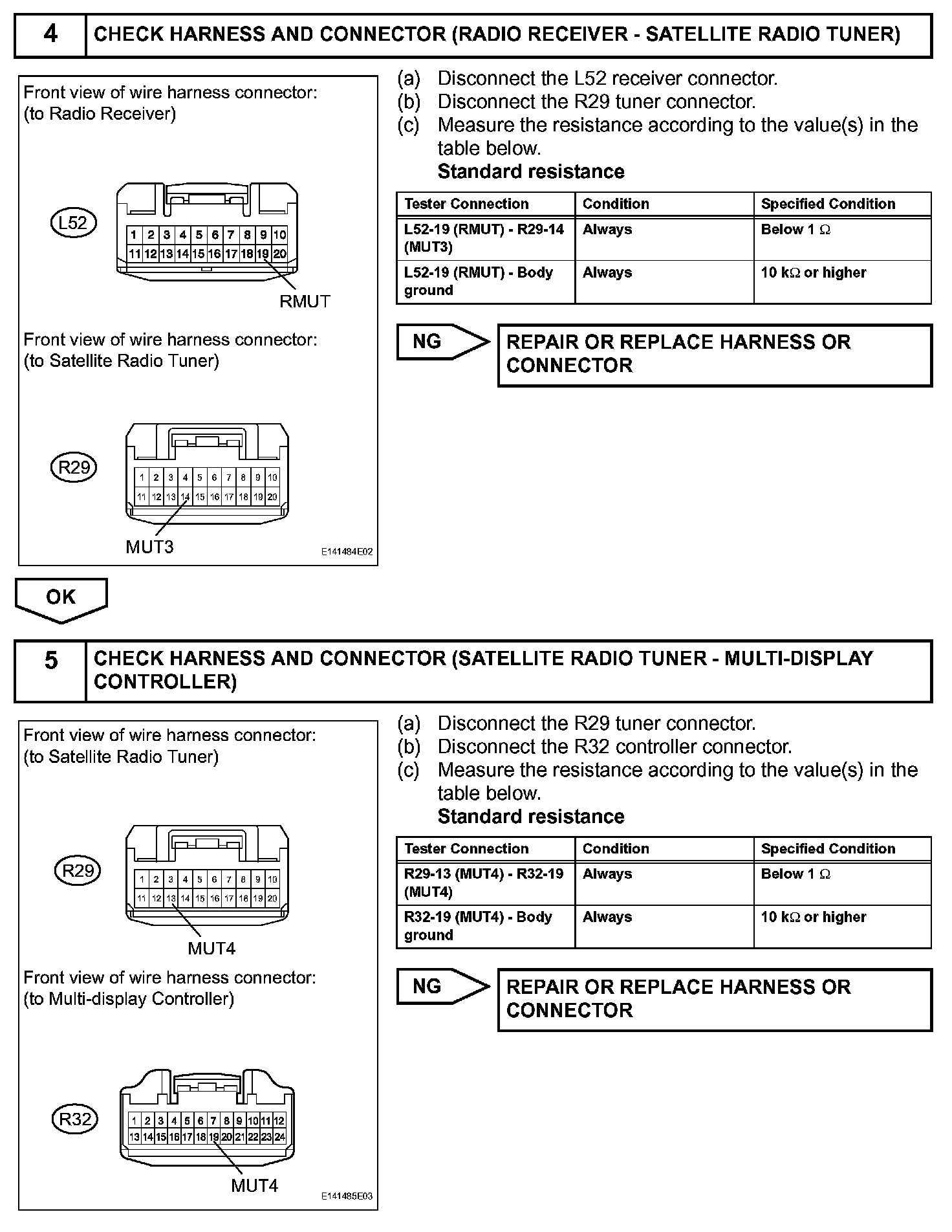

Step 4-5:
Step 5 (Continued)-7:

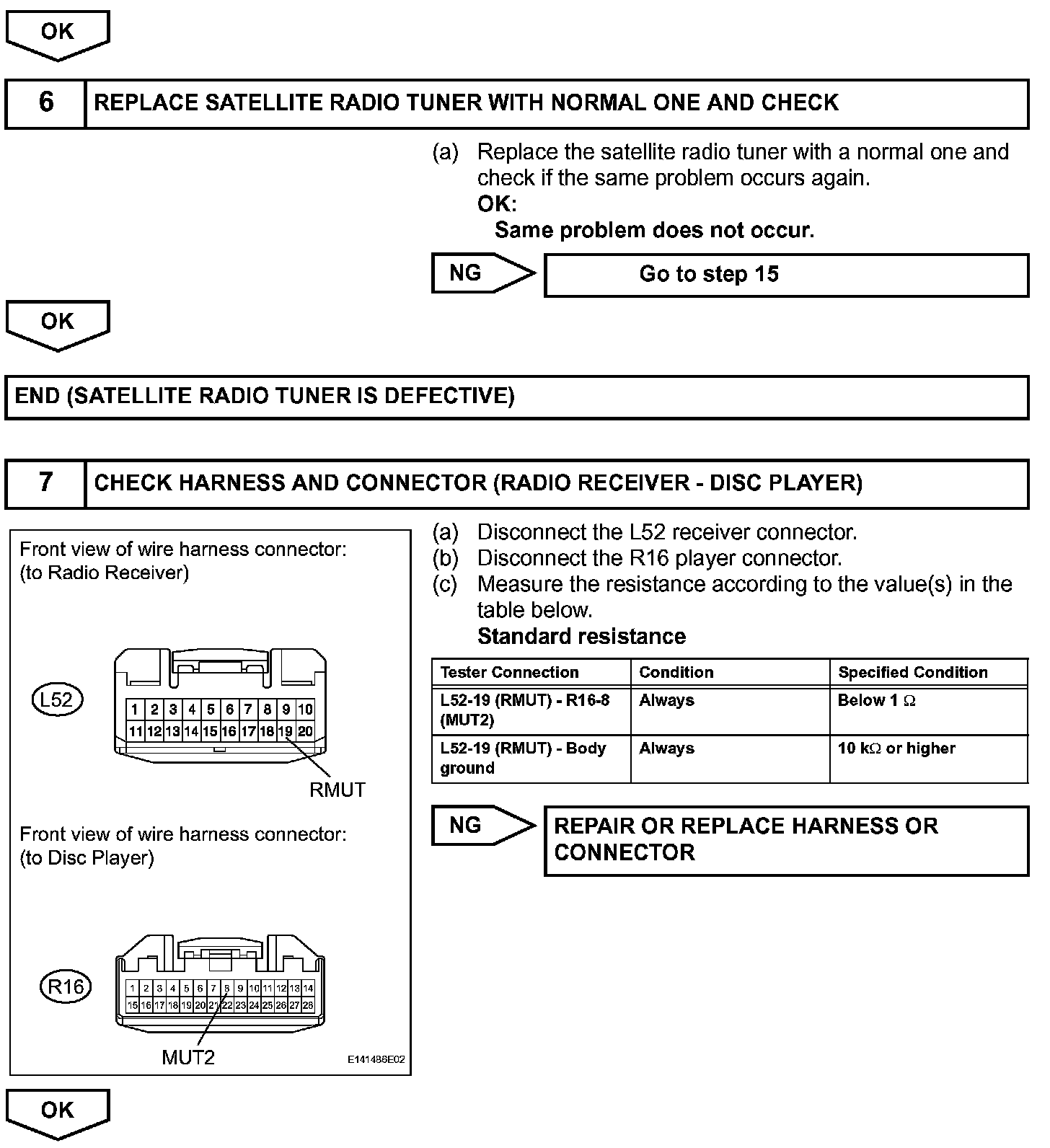

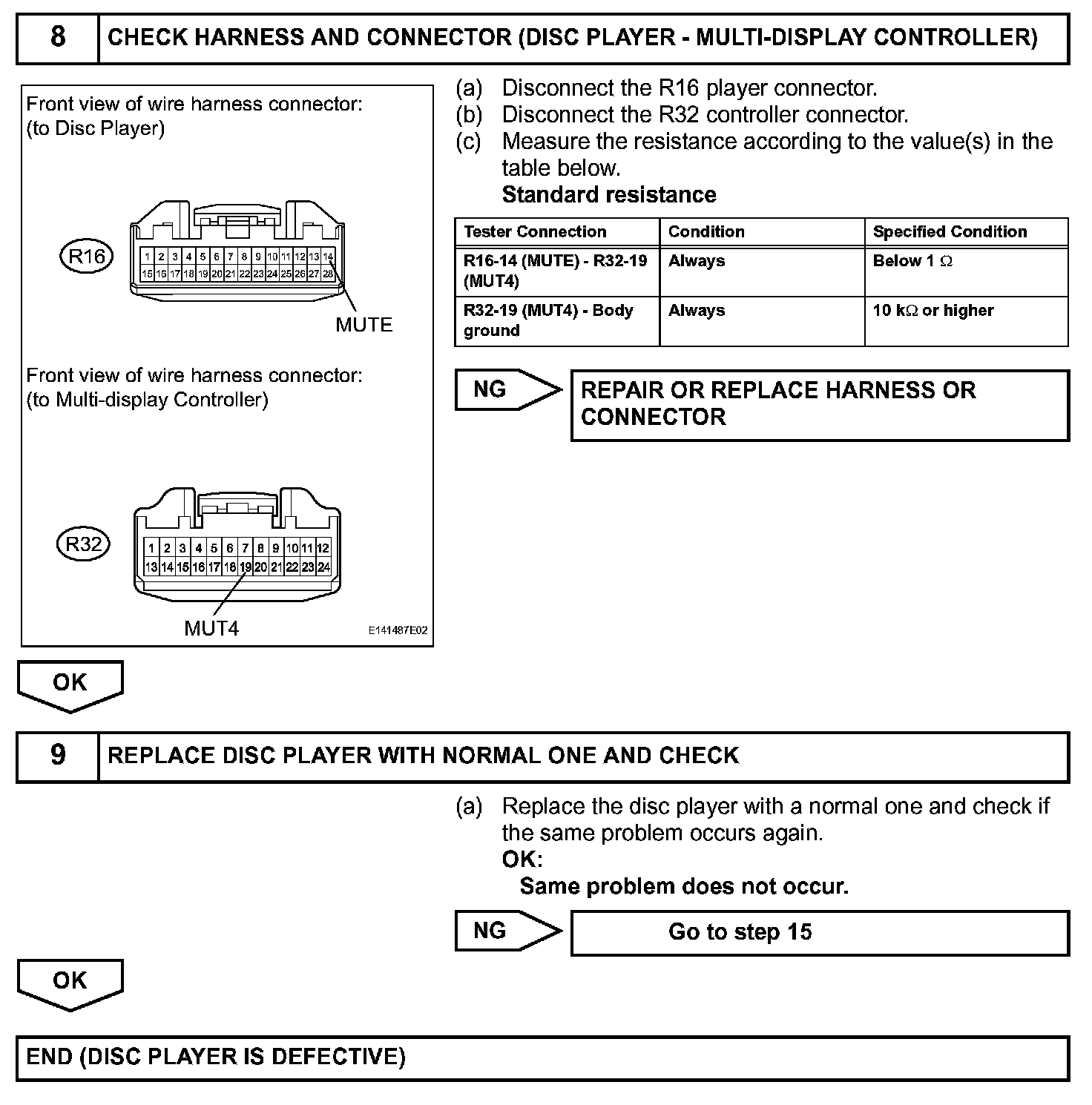

Step 8-9:

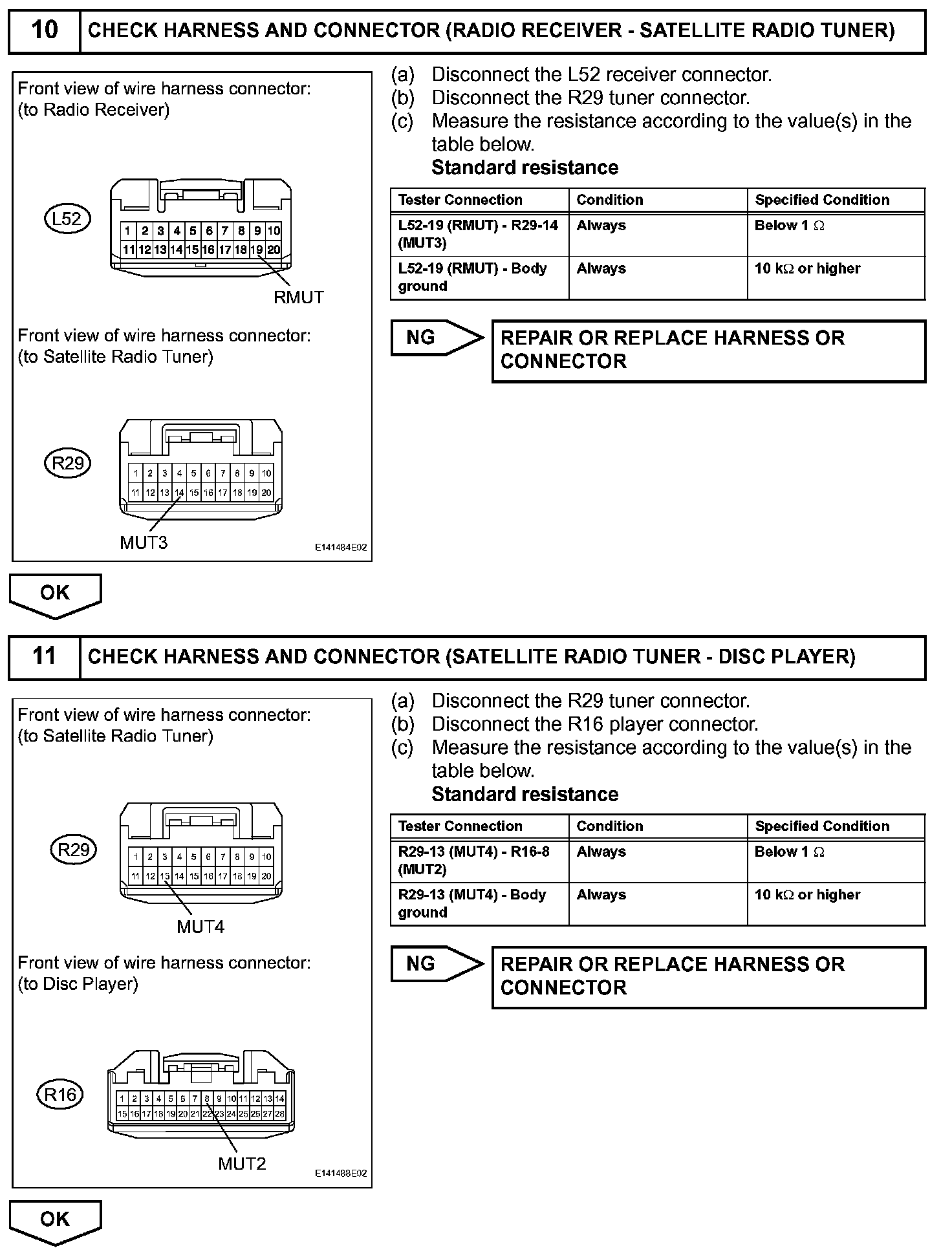

Step 10-11:

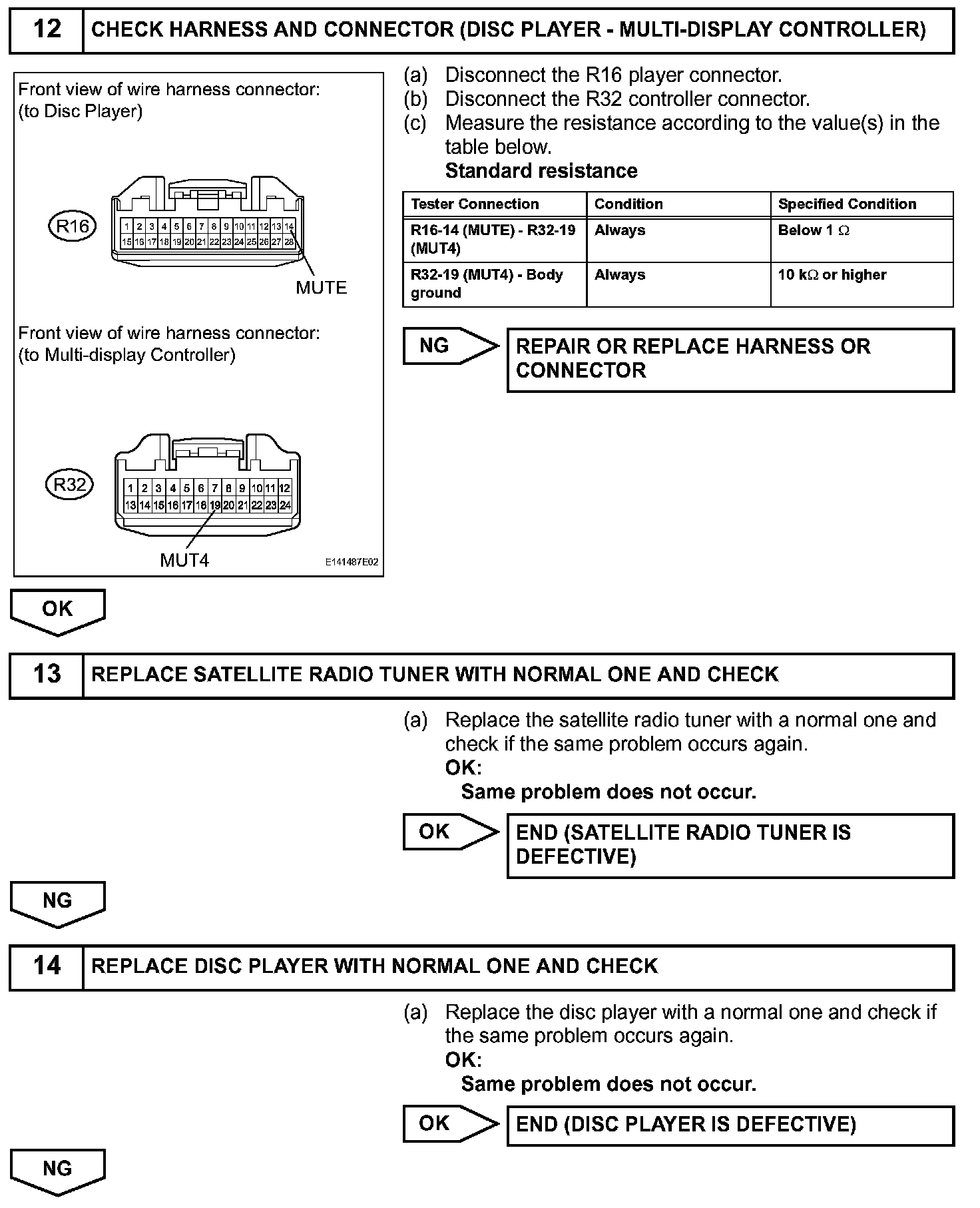

Step 12-14:

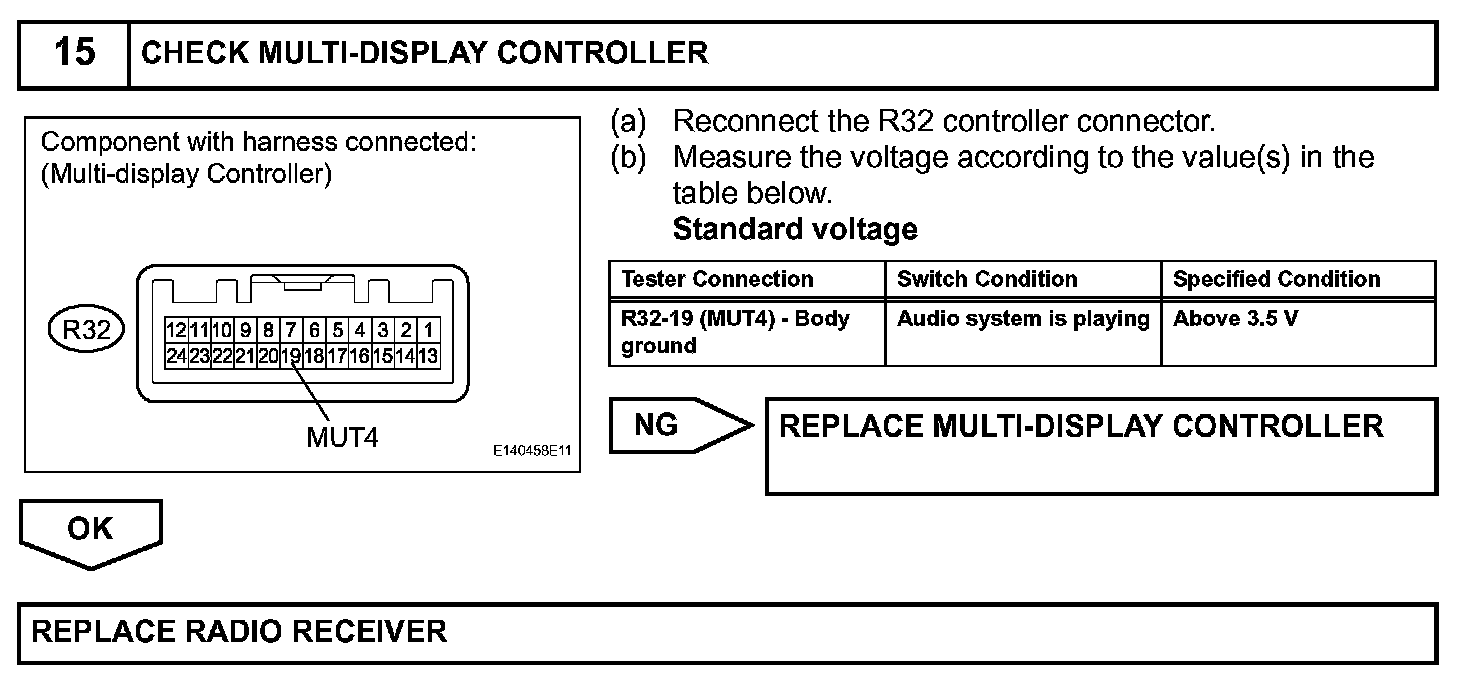

Step 15:
INSPECTION PROCEDURE
