Mute Signal Circuit Between Navigation Assembly and Multi-Display Controller
Mute Signal Circuit between Navigation Assembly and Multi-display ControllerDESCRIPTION
The multi-display controller controls the volume according to the mute signal from the radio and navigation assembly.
The mute signal is sent to reduce noise and a popping sound generated when switching the mode, etc.
HINT: Only vehicles with a navigation system (for HDD) have this circuit.

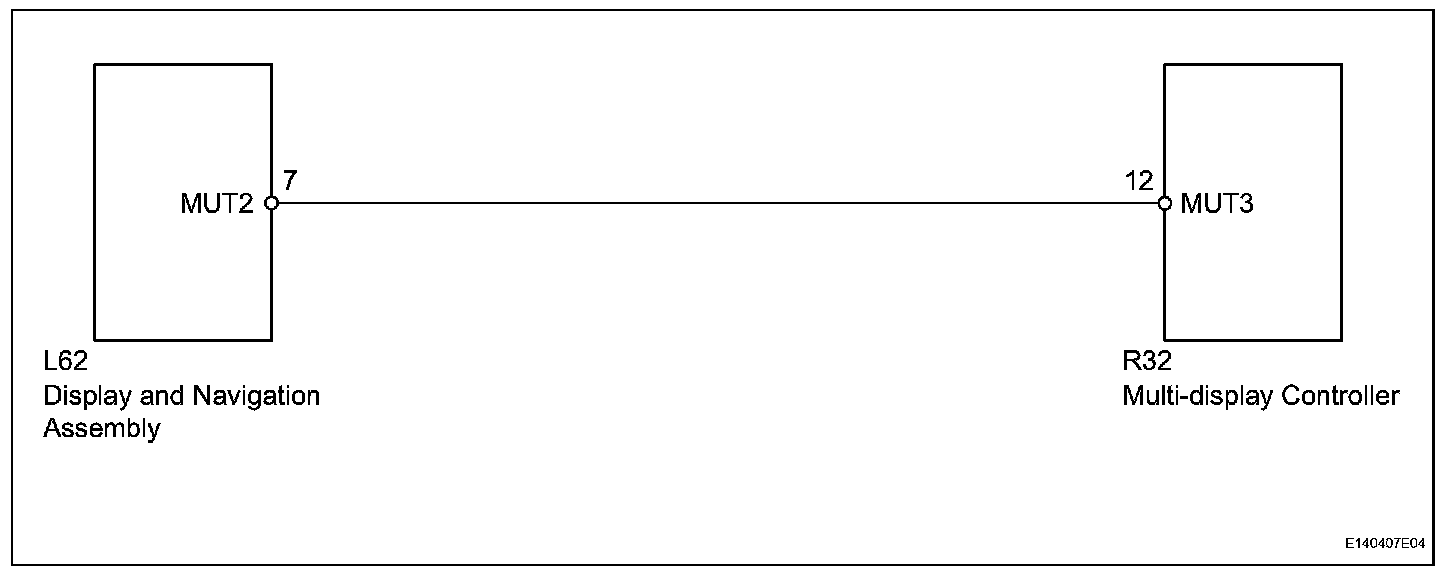

Wiring Diagram:

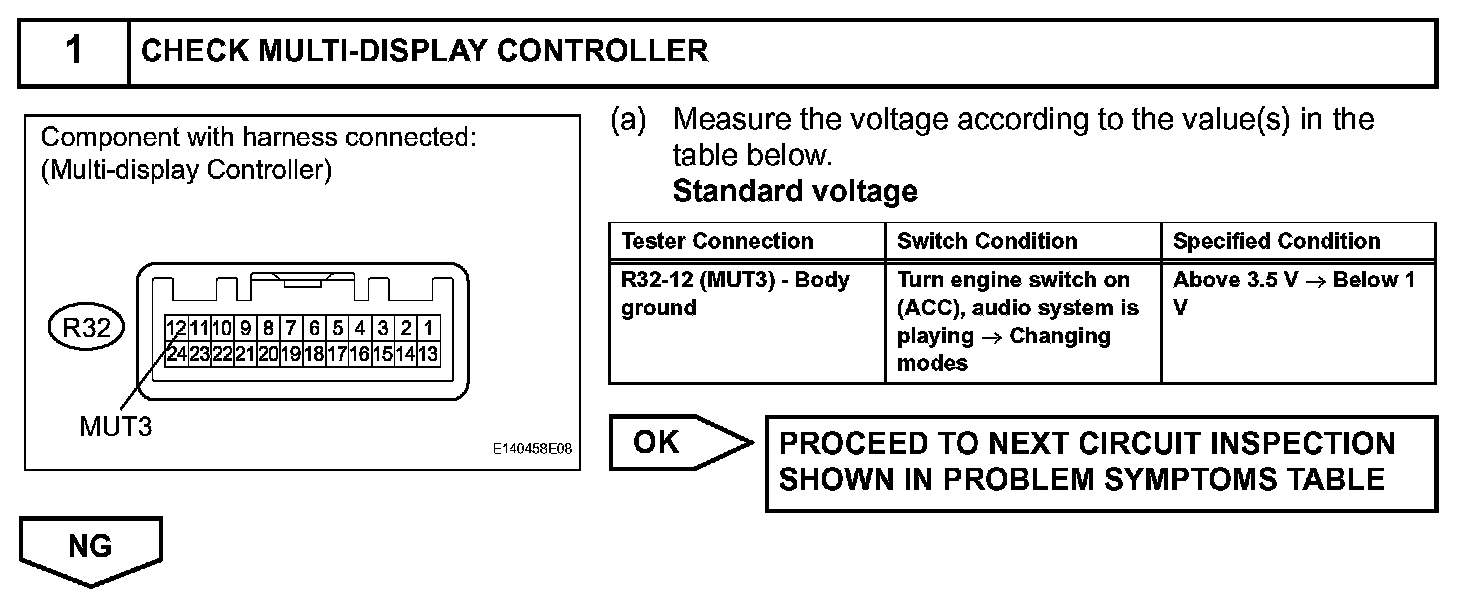

Step 1:

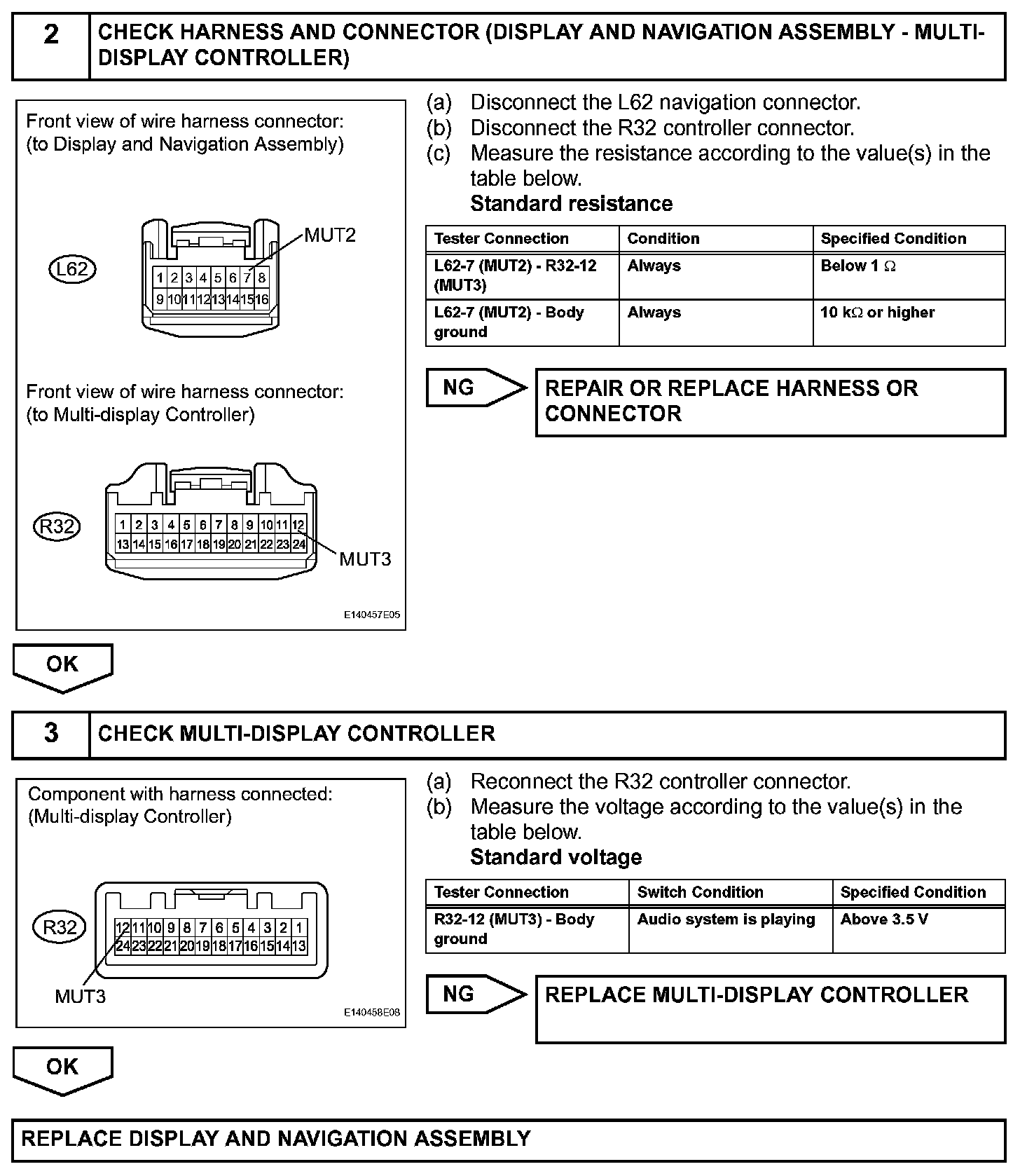

Step 2-3:
INSPECTION PROCEDURE
