Display Signal Circuit Between Video Terminal and Television Display

Display Signal Circuit between Video Terminal and Television Display

DESCRIPTION
This is the display signal circuit from the video terminal to the television display.

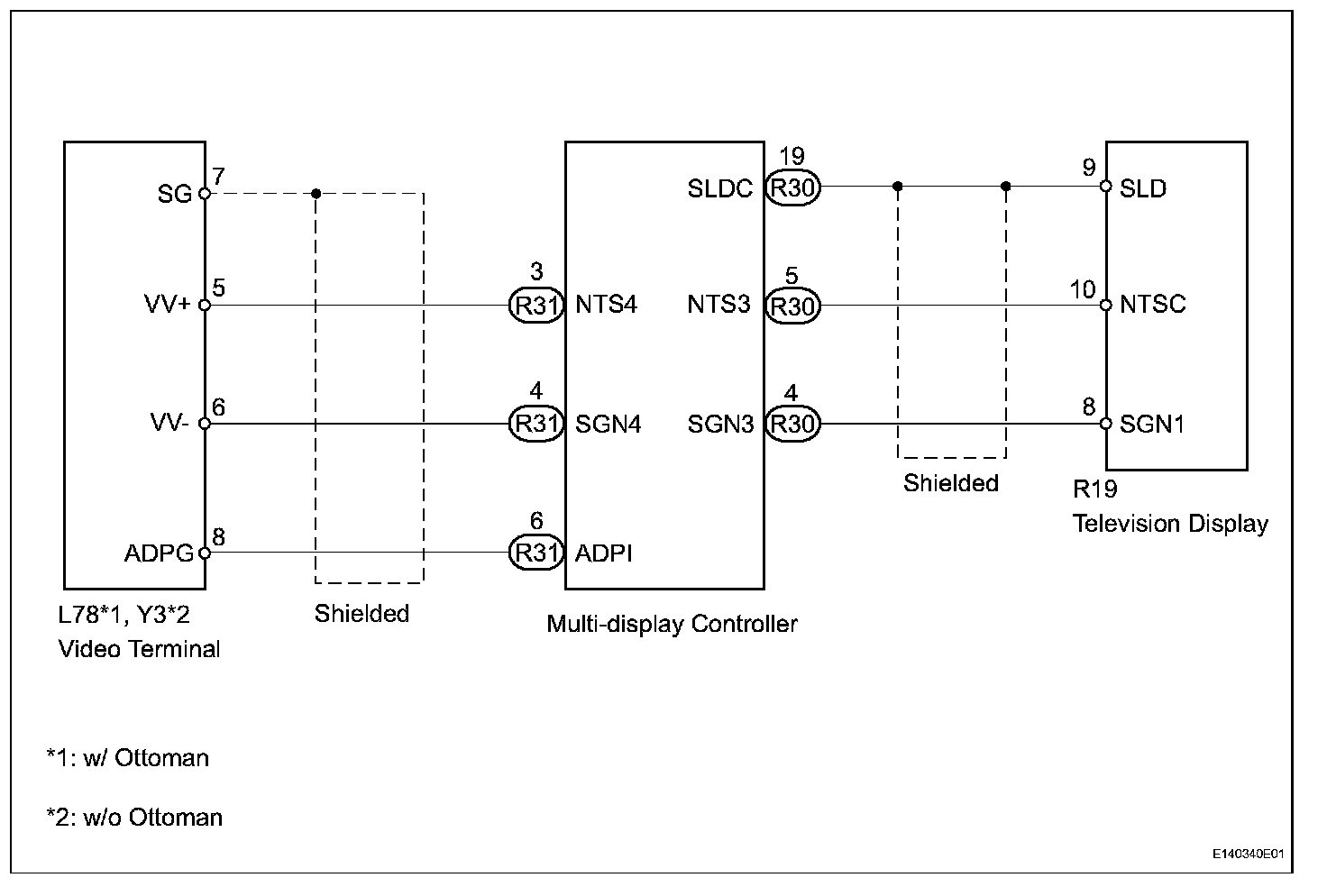

Wiring Diagram:

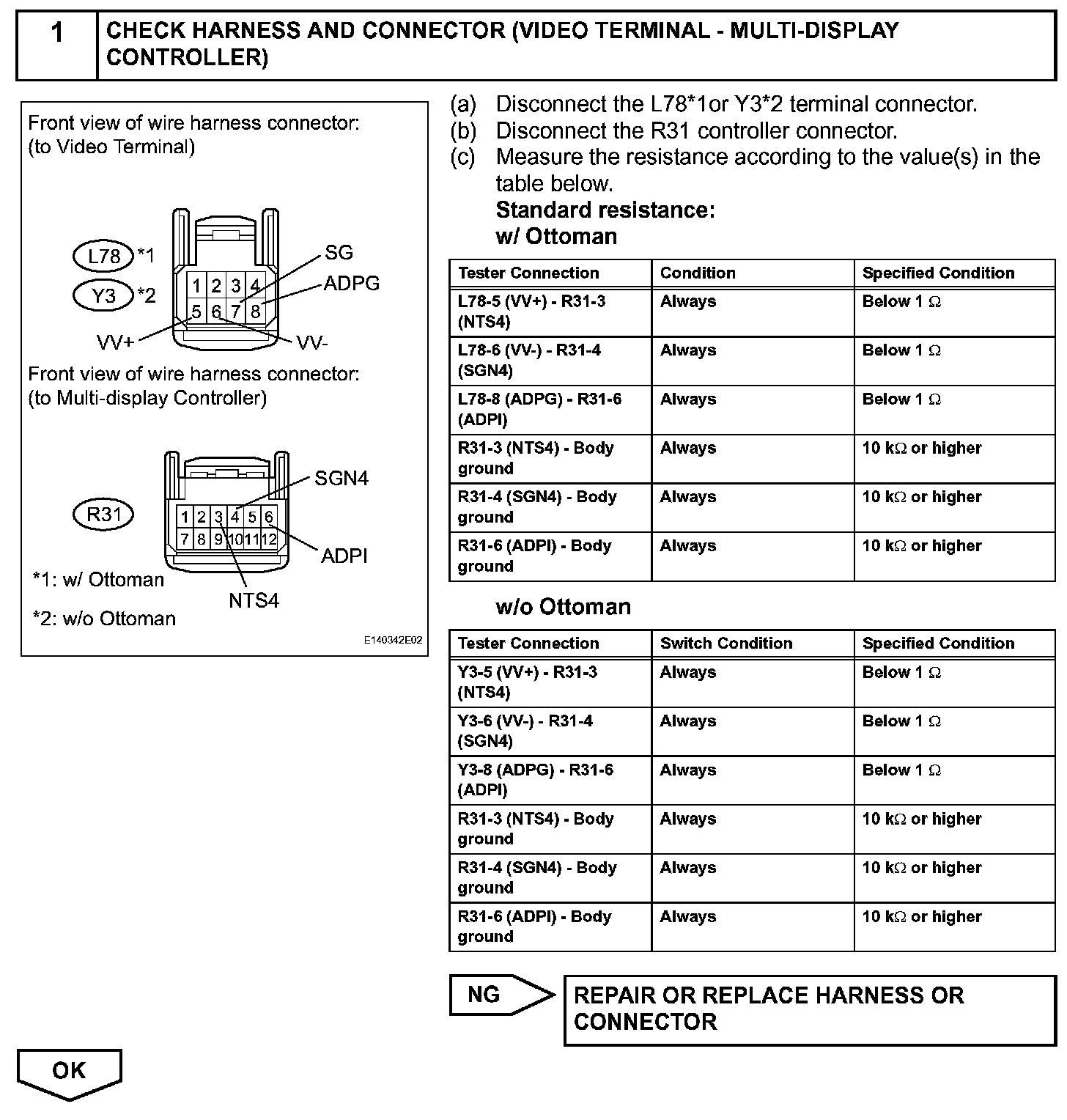

Step 1:

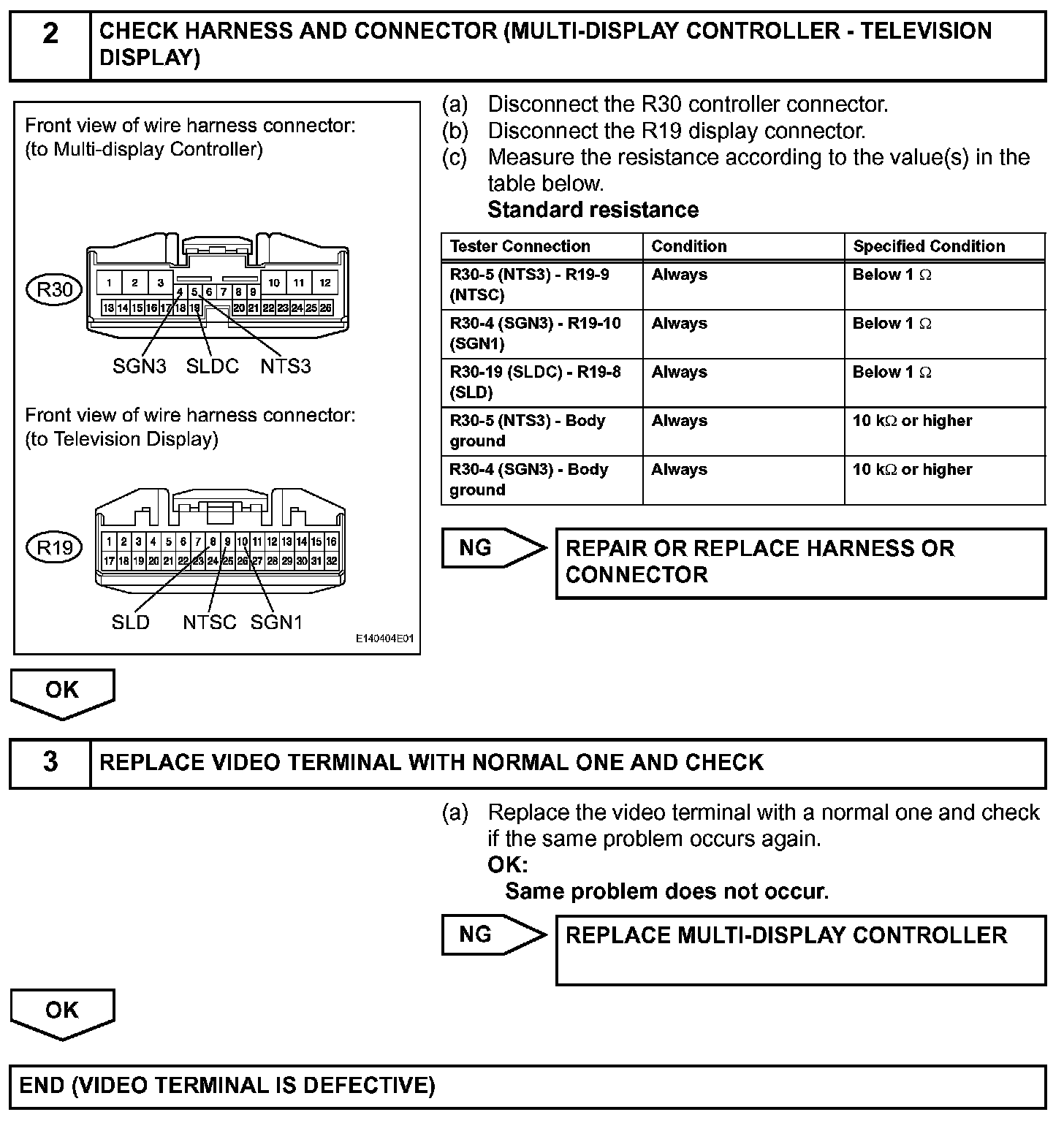

Step 2-3:




INSPECTION PROCEDURE
