Display Signal Circuit Between Radio Receiver and Television Display Assembly

Display Signal Circuit between Radio Receiver and Television Display Assembly

DESCRIPTION
This is the display signal circuit from the radio receiver to the television display.

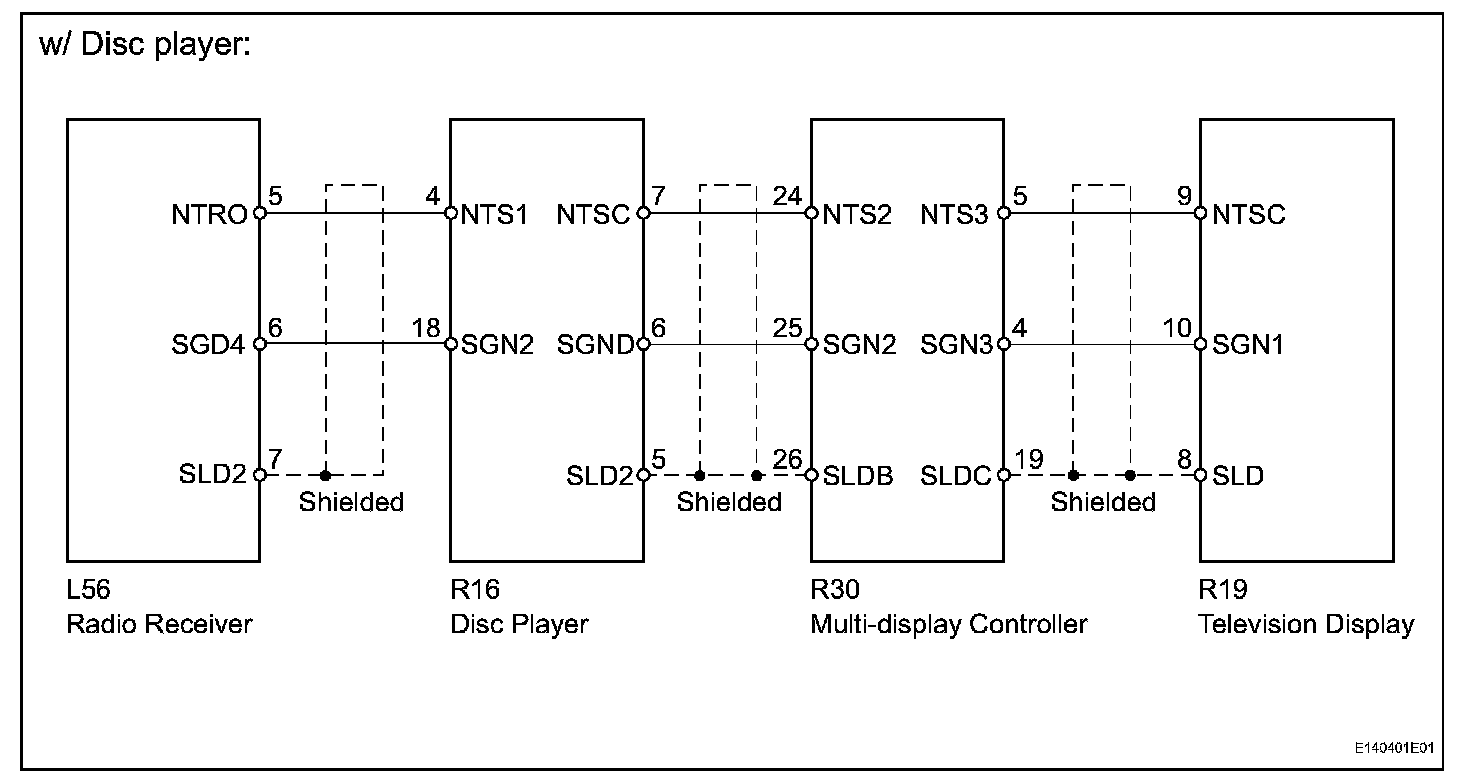

Wiring Diagram (Part 1):

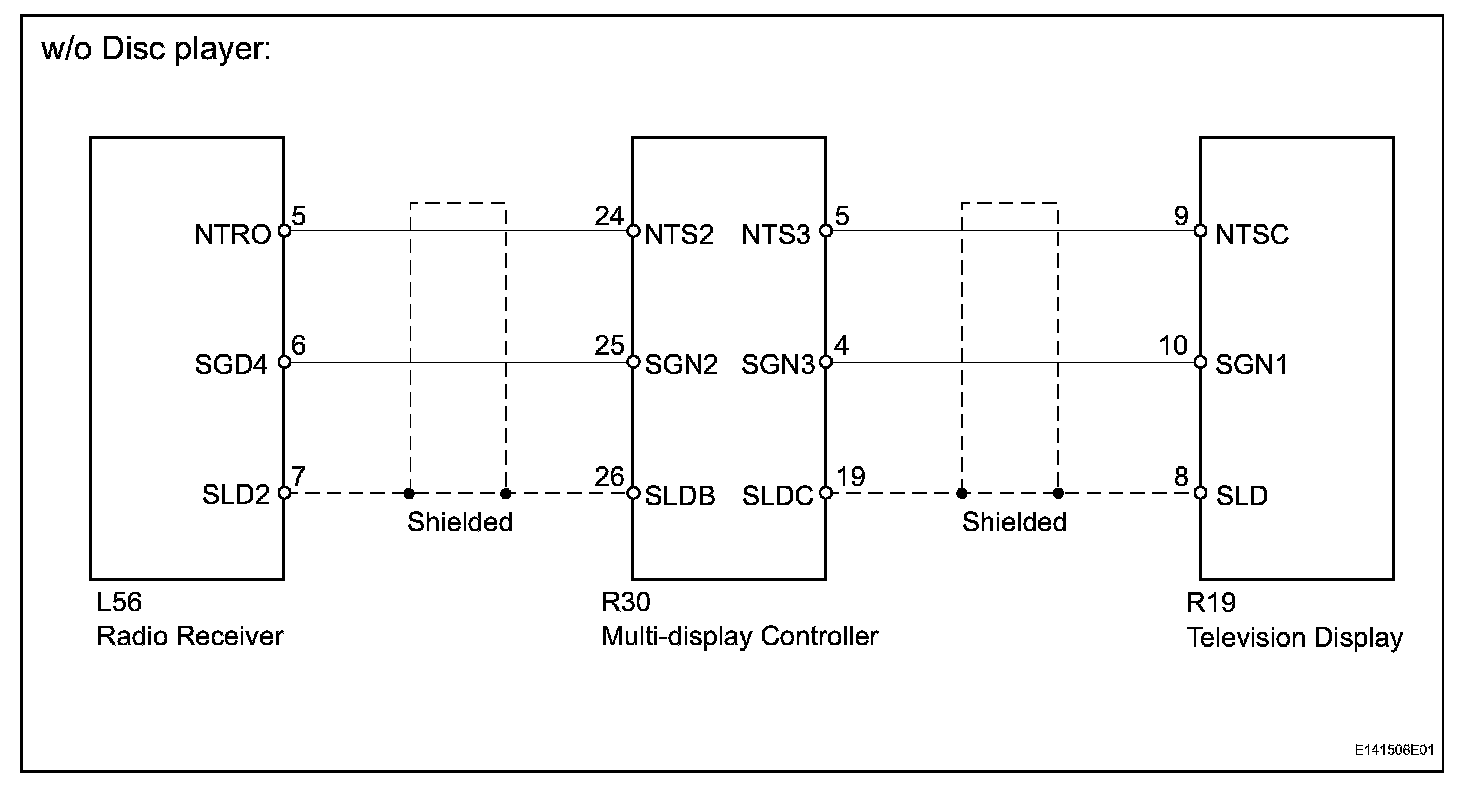

Wiring Diagram (Part 2):

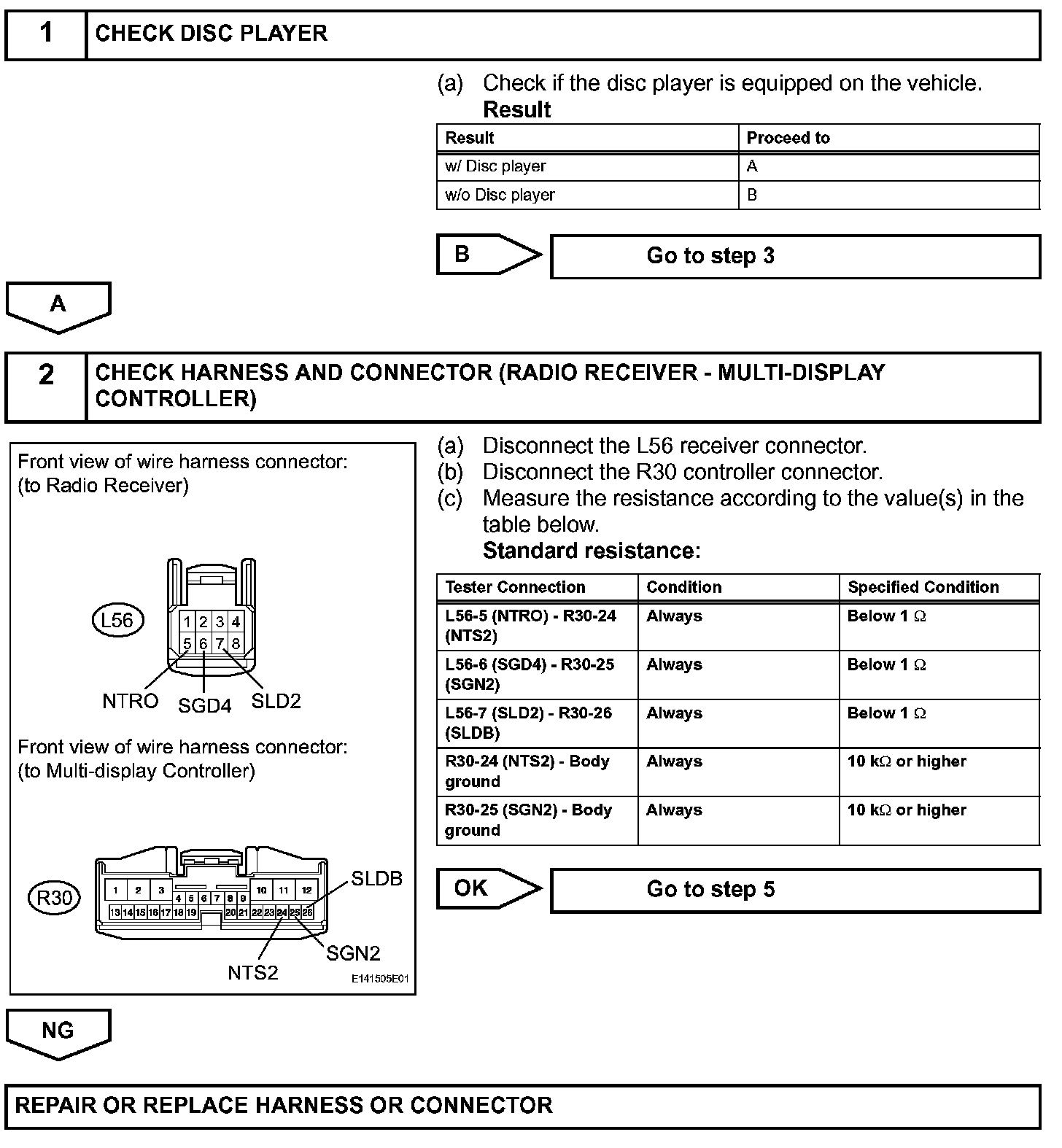

Step 1-2:

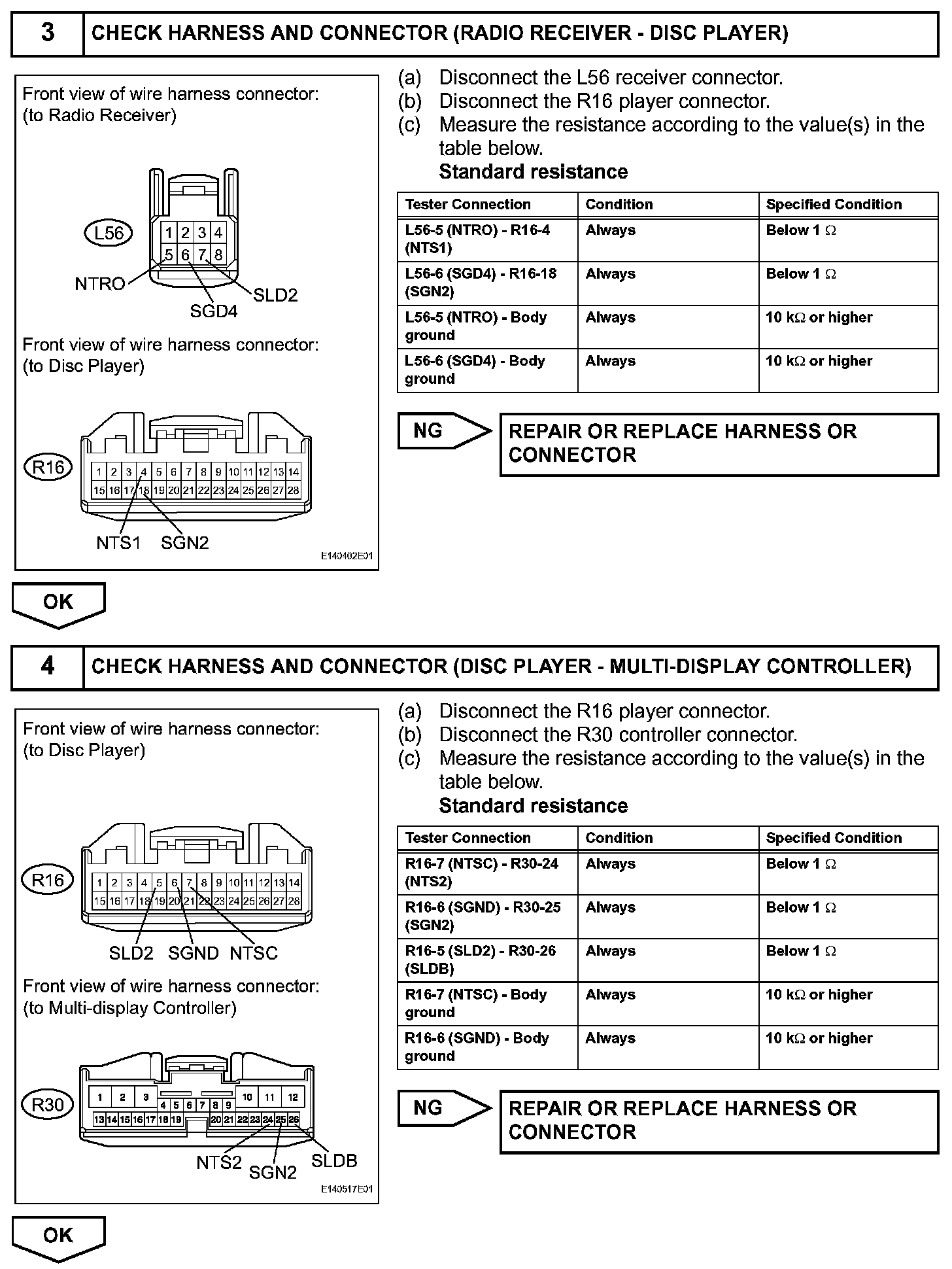

Step 3-4:

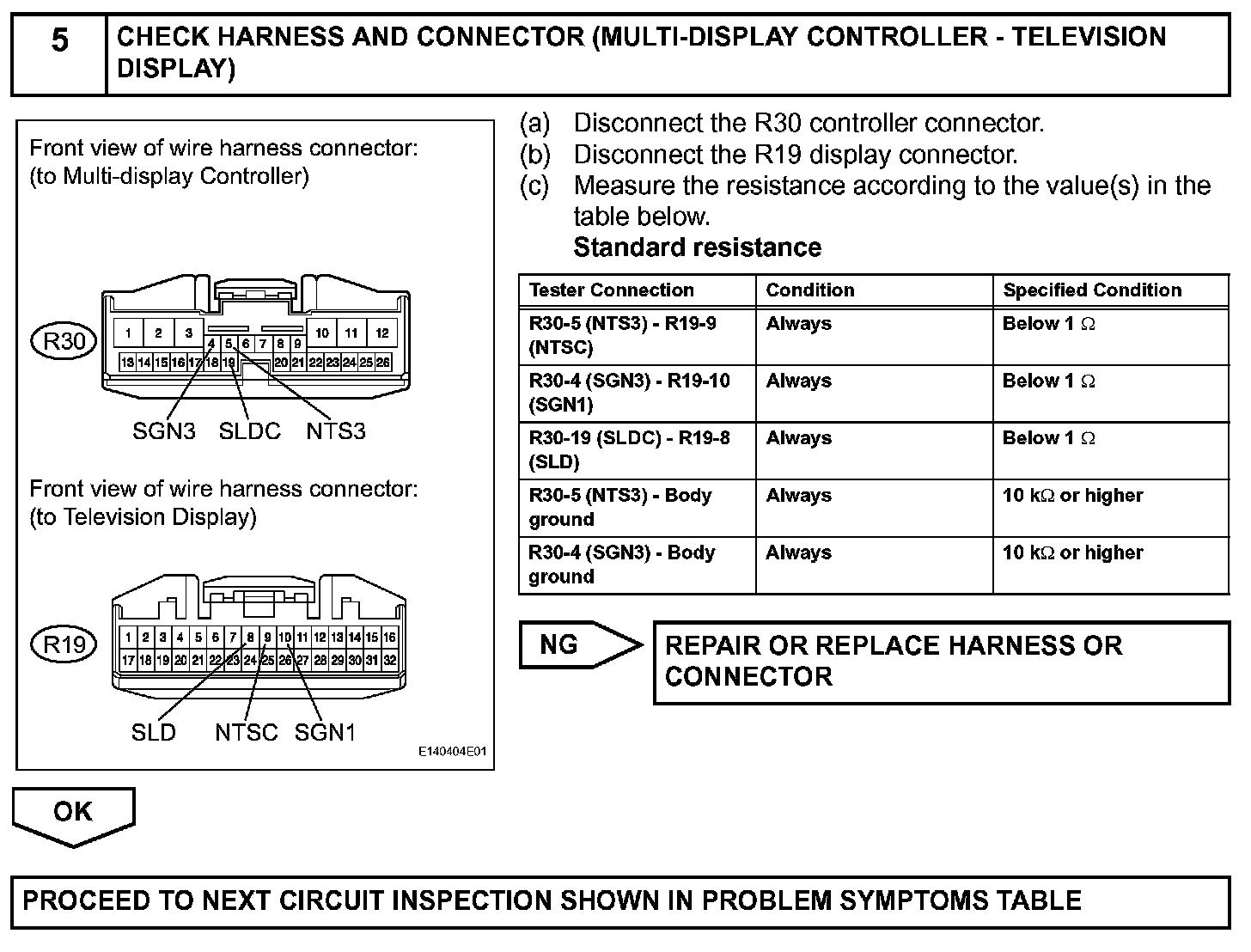

Step 5:

INSPECTION PROCEDURE
