Display Signal Circuit Between Multi-Display and Television Display Assembly

Display Signal Circuit between Multi-display and Television Display Assembly

DESCRIPTION
This is the display signal circuit from the multi-display to the television display.

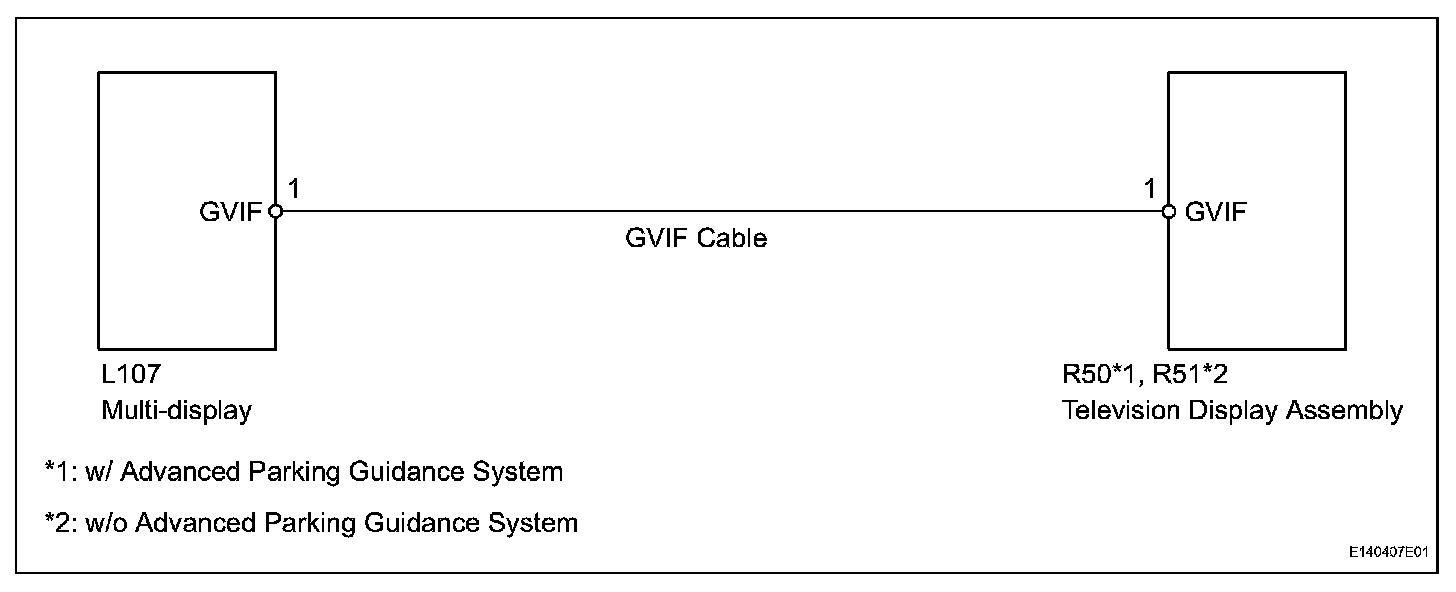

Wiring Diagram:

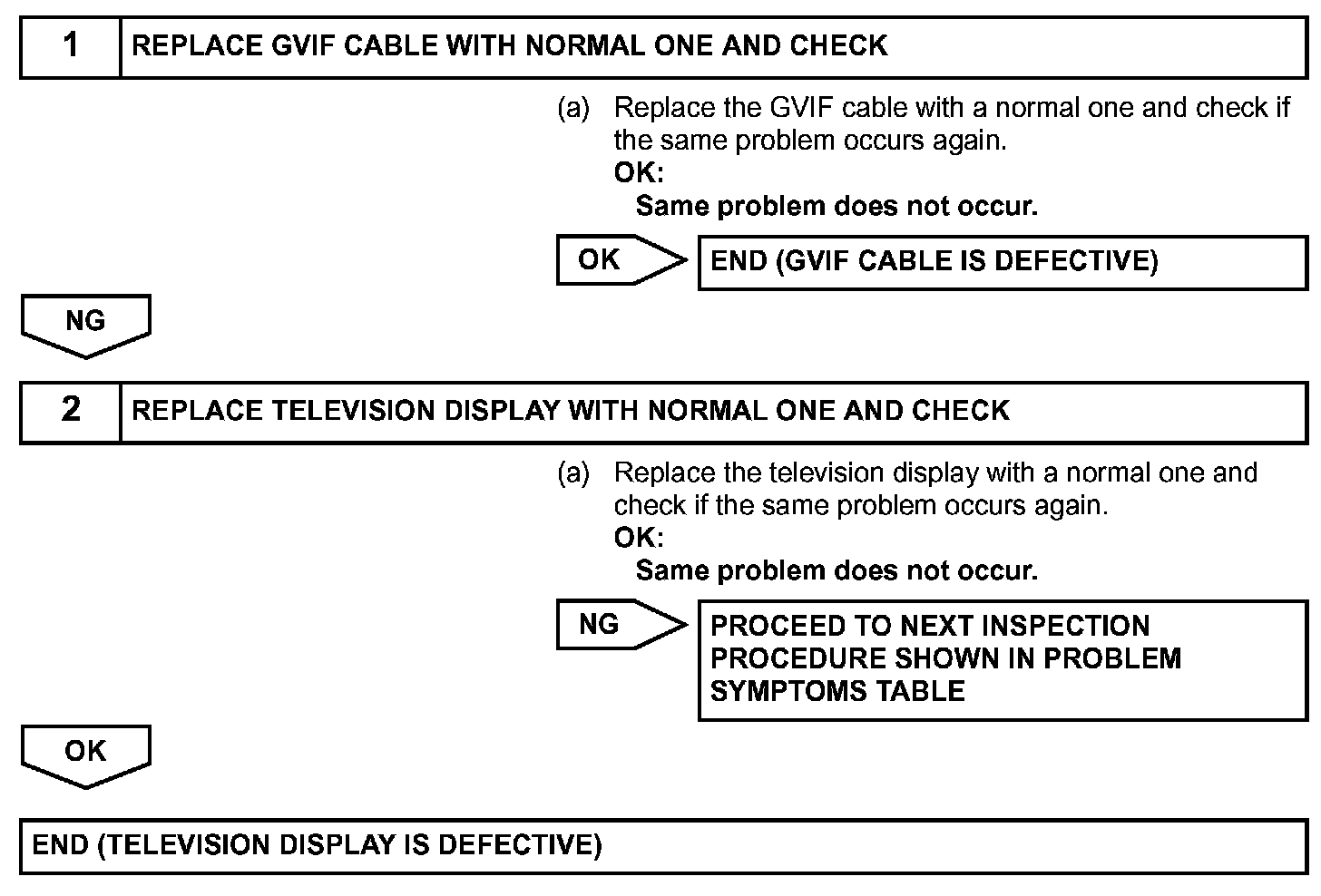

Step 1-2:




INSPECTION PROCEDURE
