Display Signal Circuit Between Multi-Display Controller and Television Display

Display Signal Circuit between Multi-display Controller and Television Display

DESCRIPTION
This is the display signal circuit from the multi-display controller to the television display.

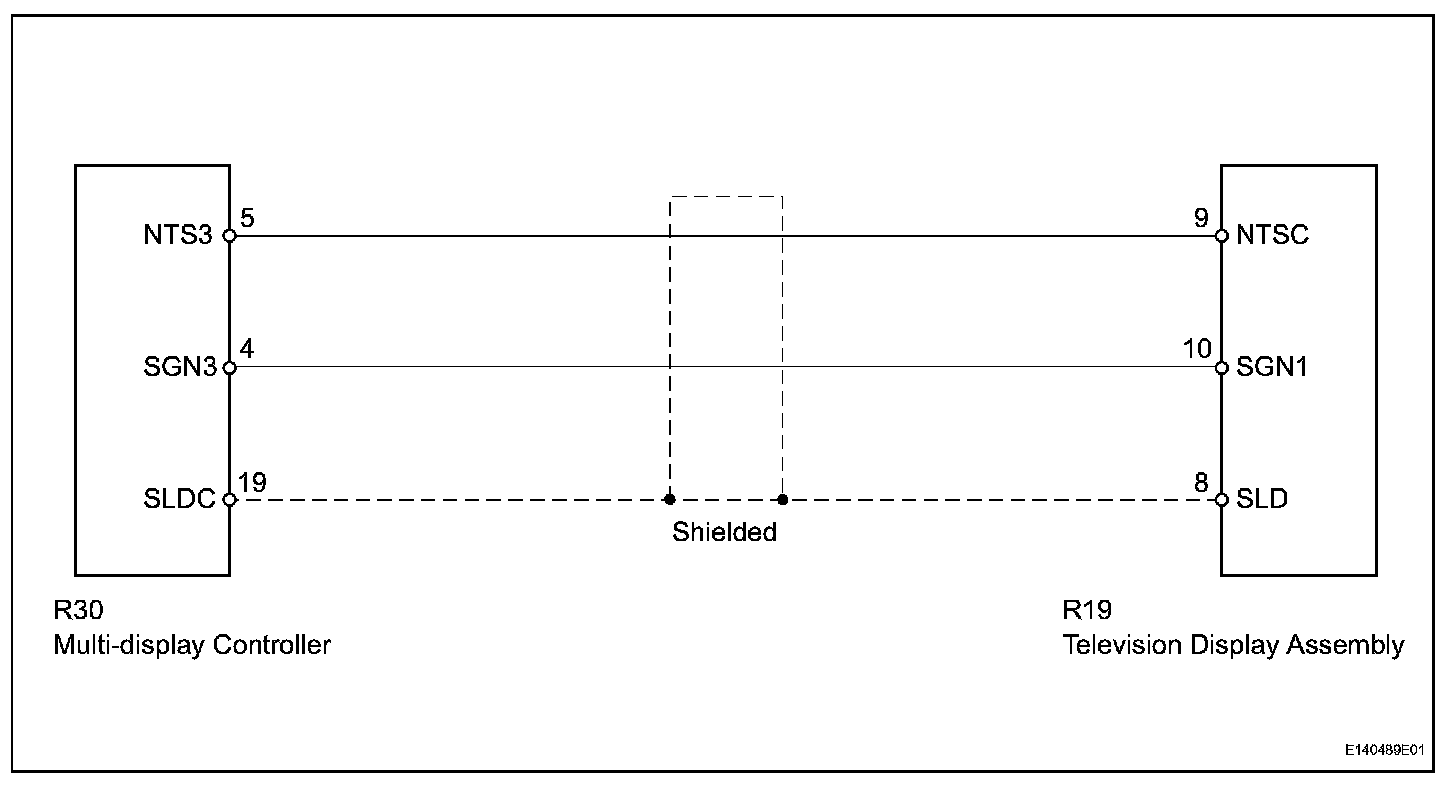

Wiring Diagram:

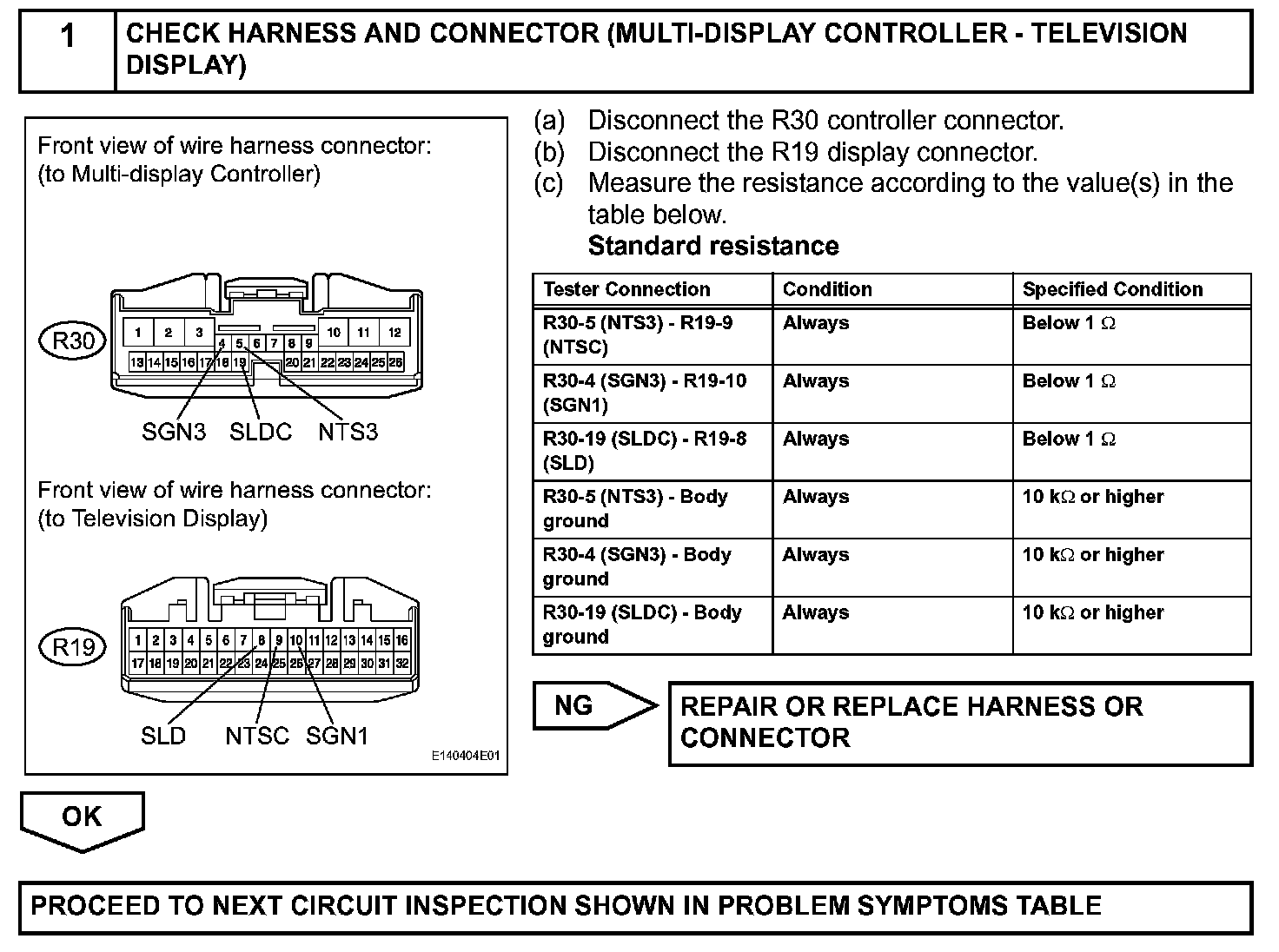

Step 1:




INSPECTION PROCEDURE
