Data List

REAR DATA LIST

HINT: Using the intelligent tester or Techstream to read the Data List allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may by discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTE: In the table, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

a. Warm up the engine.
b. Turn the engine switch off.
c. Connect the intelligent tester or Techstream to the DLC3.
d. Turn the engine switch on (IG).
e. Turn ON the intelligent tester or Techstream.

f. Enter the following menus:
1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / (desired menu) / DATA LIST / ALL /
2. Techstream - Select: Body or Powertrain / (desired menu) / Data List/

g. According to the display on tester, read "Data List".

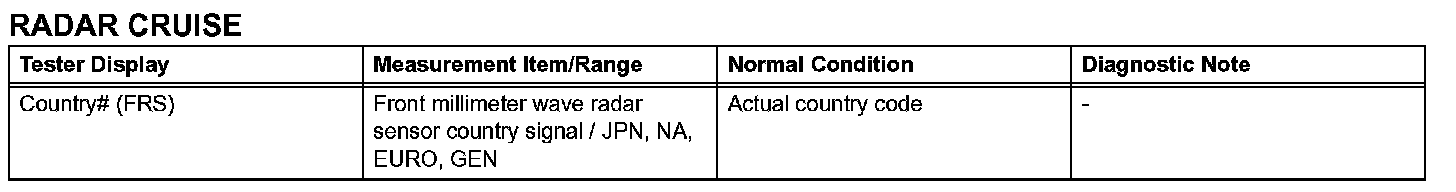

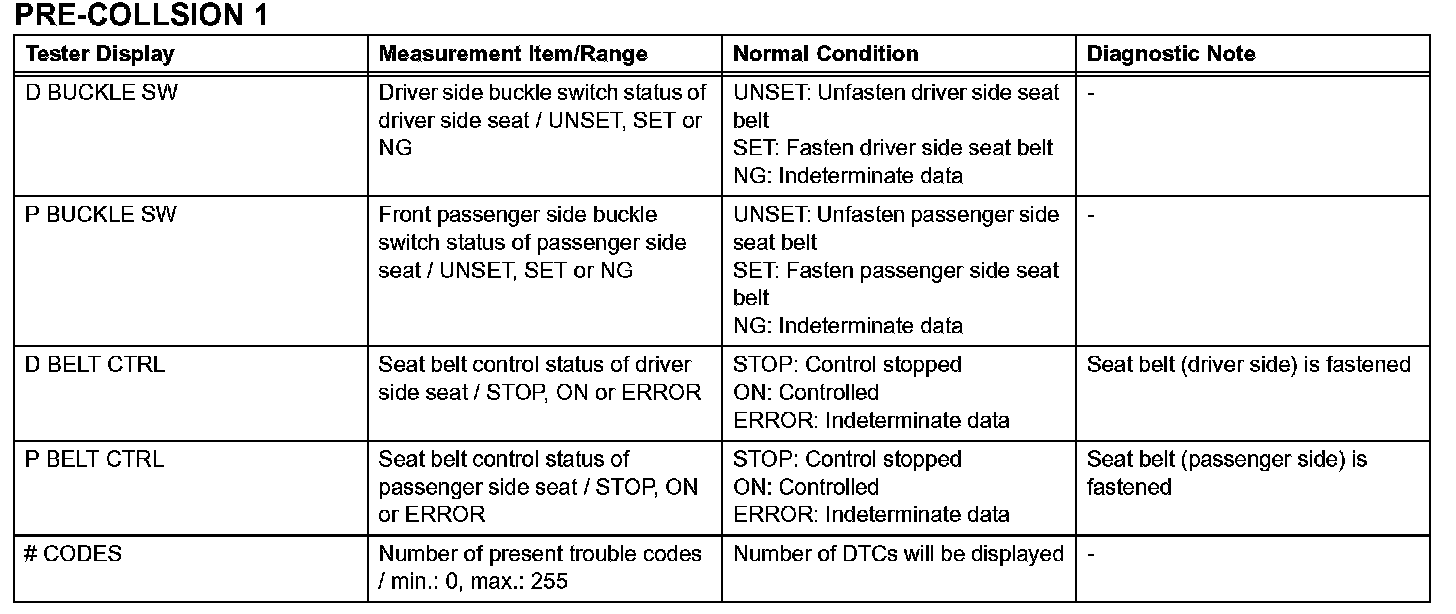

1. Intelligent tester

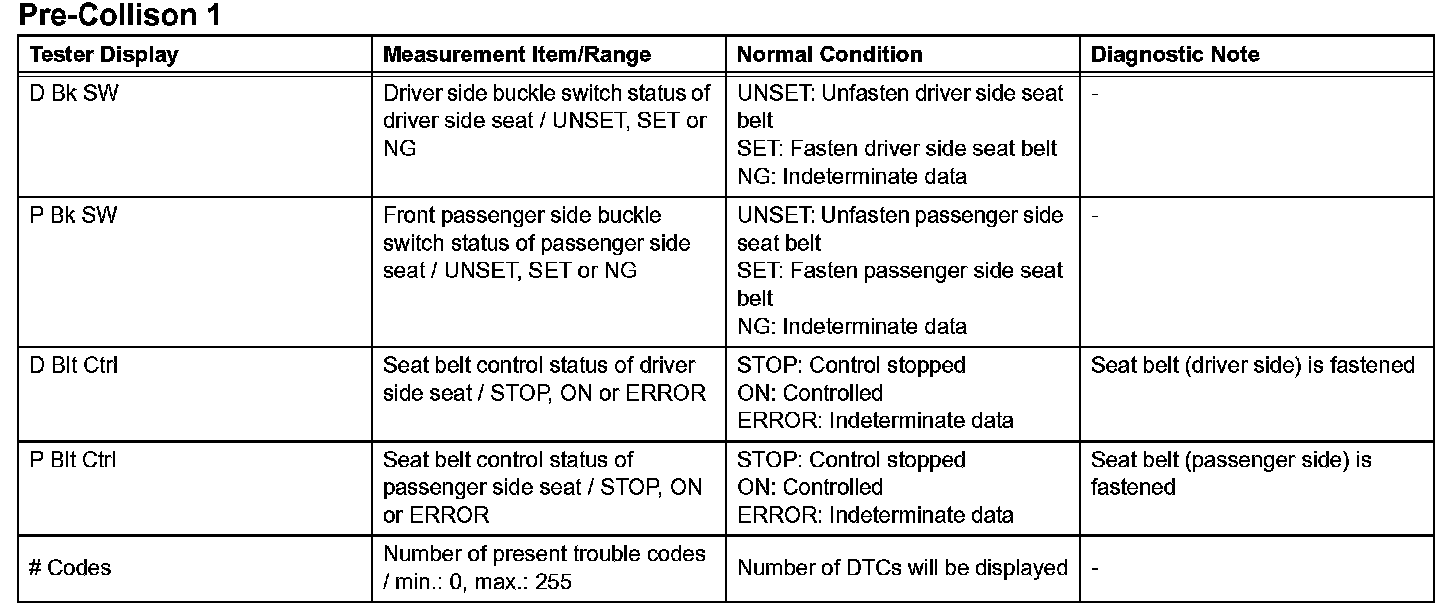

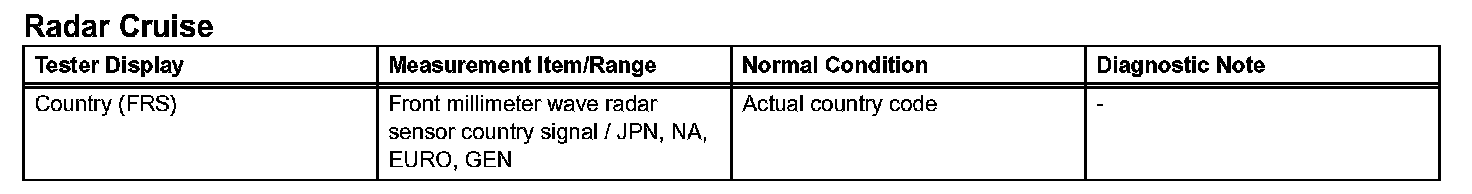

2. Techstream
