Display Signal Circuit Between Multi-Display and Television Camera Assembly

Display Signal Circuit between Multi-display and Television Camera Assembly

DESCRIPTION
This is the display signal circuit of the television camera assembly.

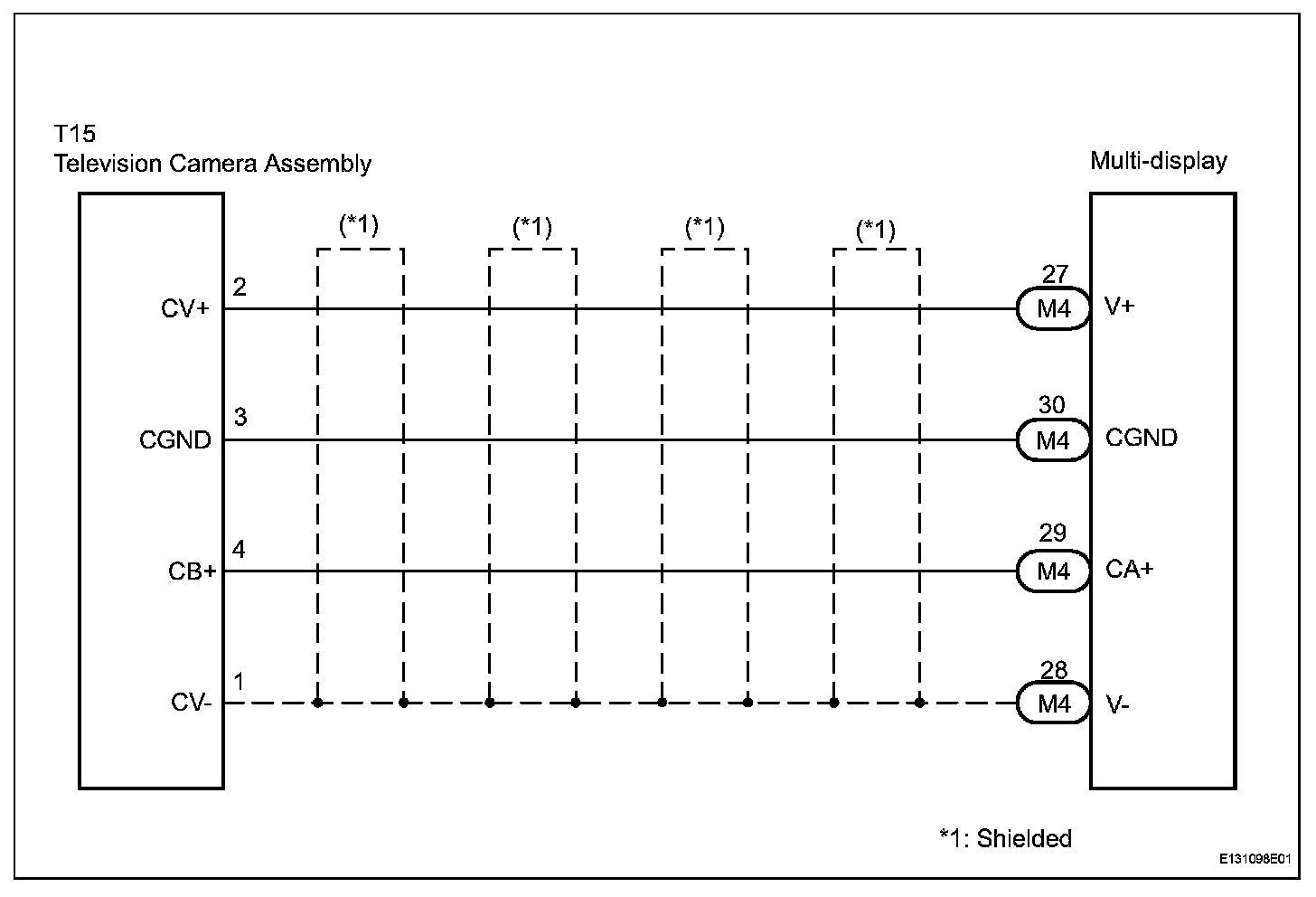

Wiring Diagram:

Step 1:

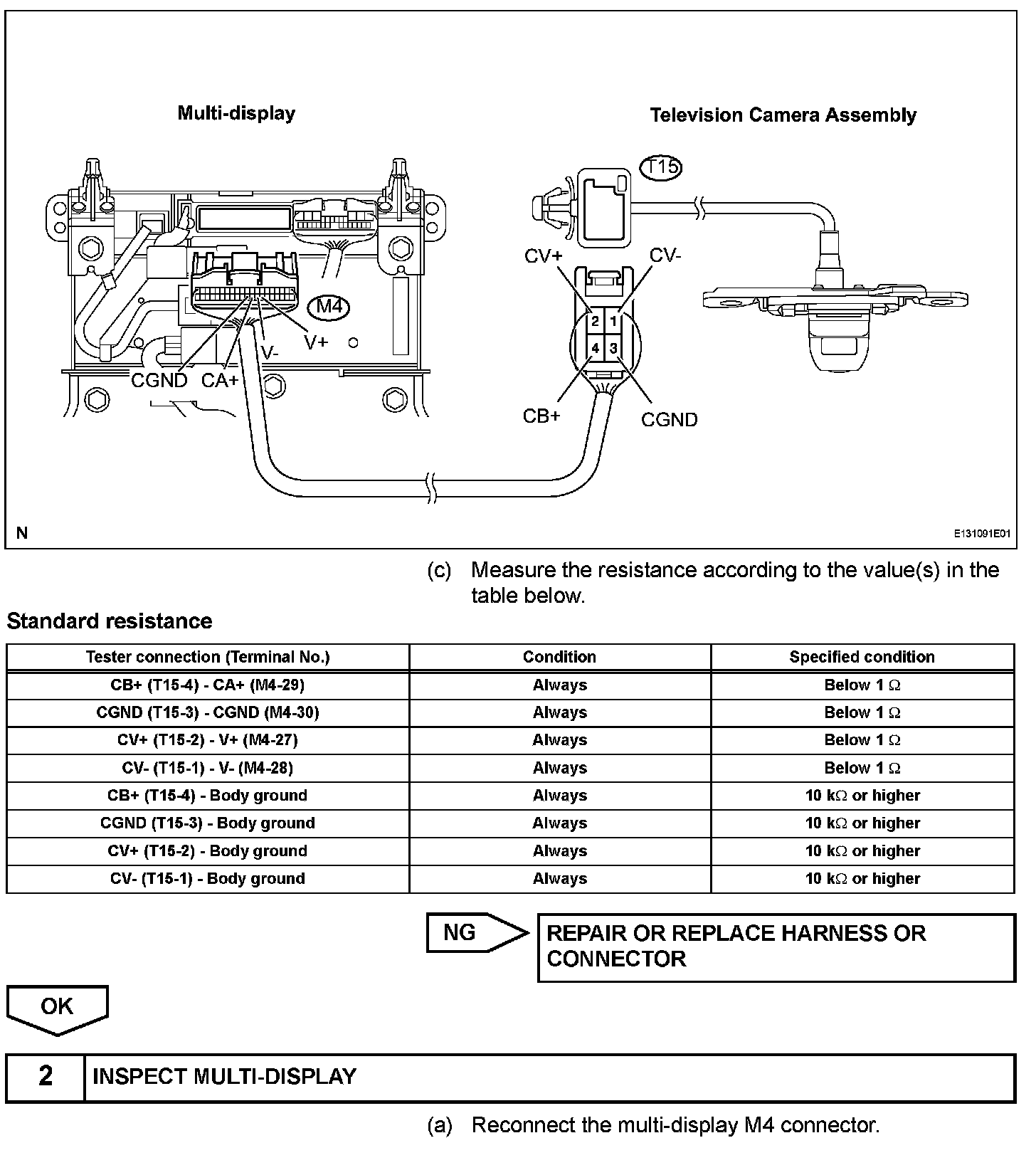

Step 1 (Continued)-2:

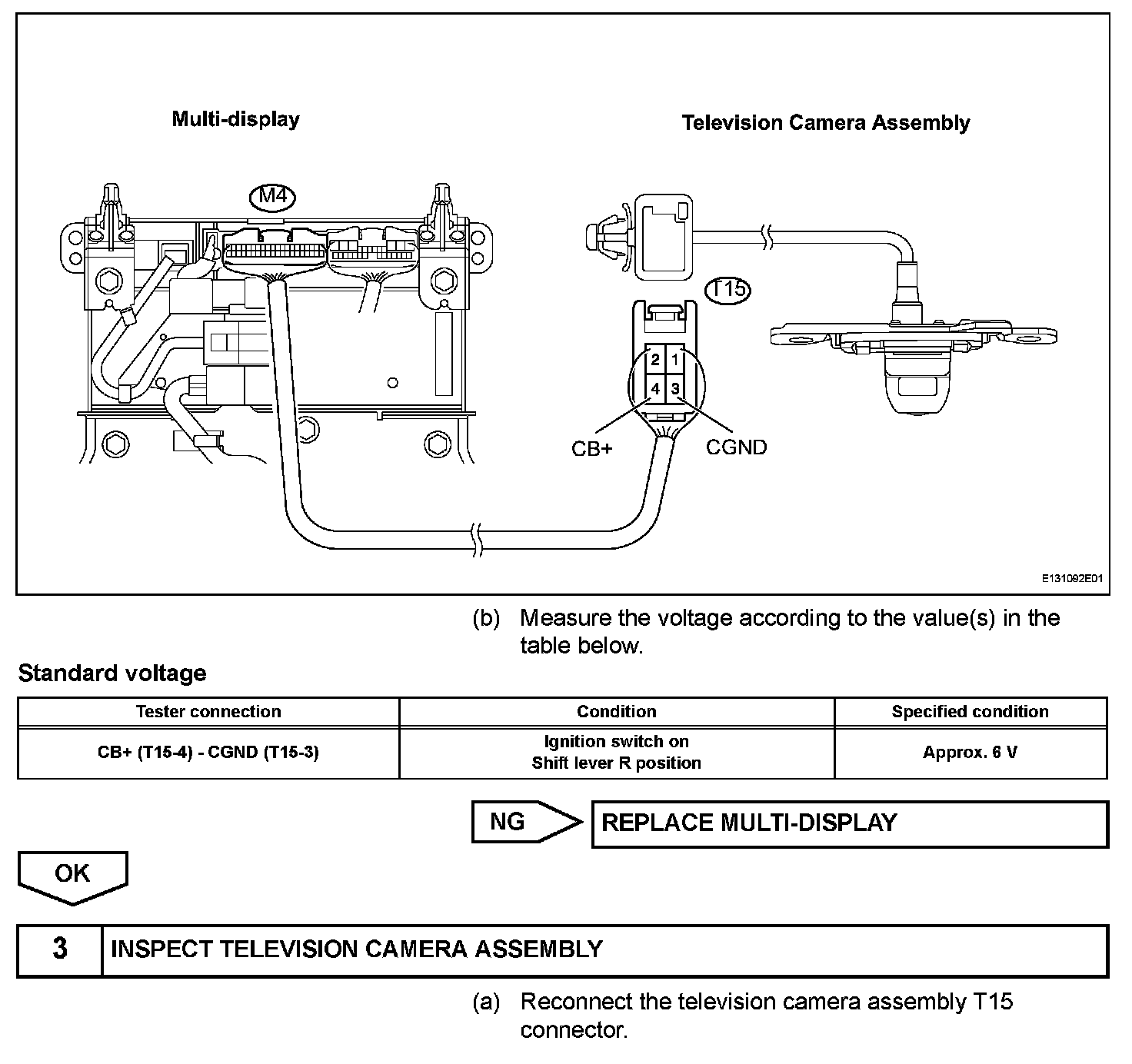

Step 2 (Continued)-3:

Step 3 (Continued):

INSPECTION PROCEDURE
