Pinout Values and Diagnostic Parameters

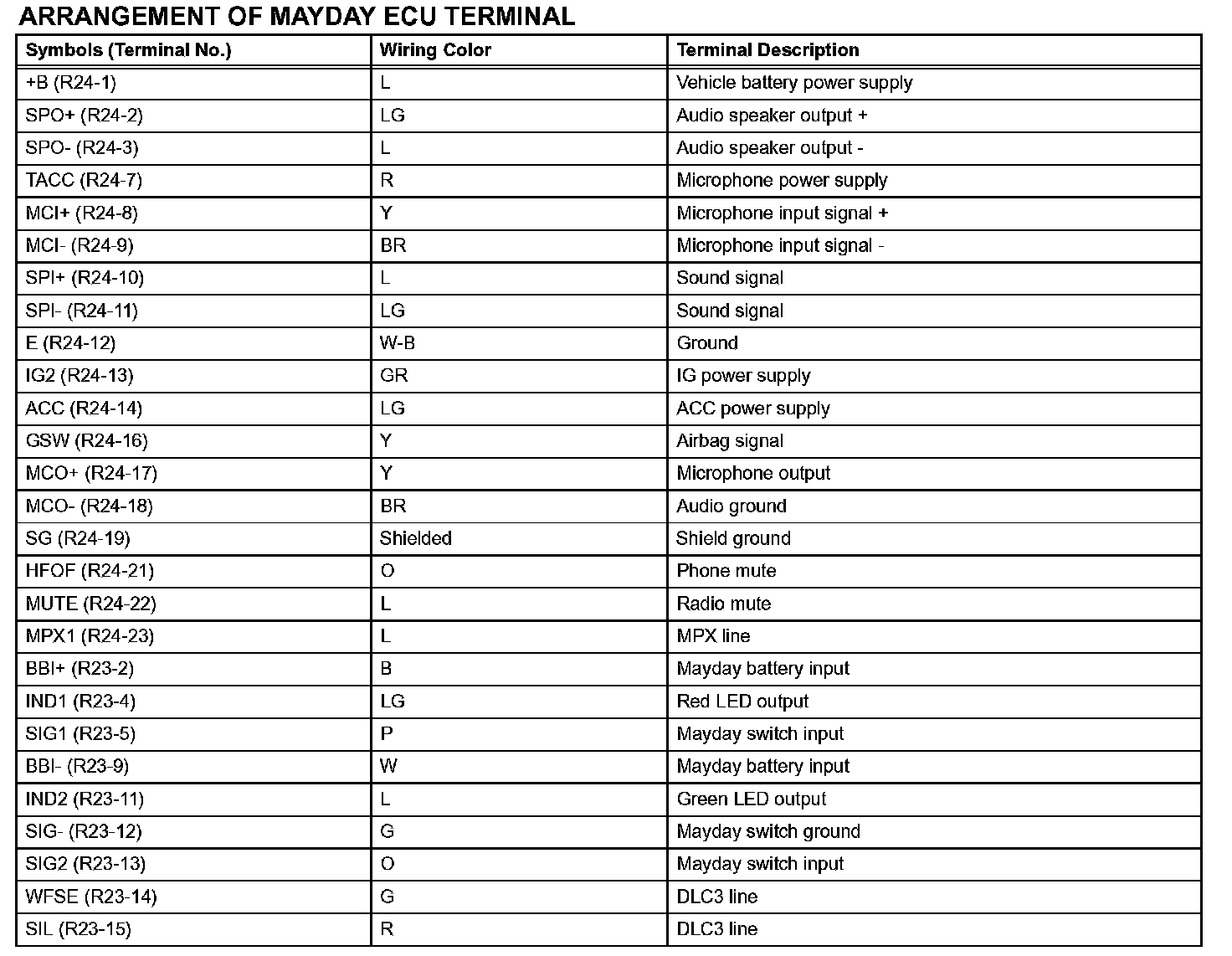

Terminals Of Control Module/Pinouts - Arrangement Of Mayday ECU Terminal:

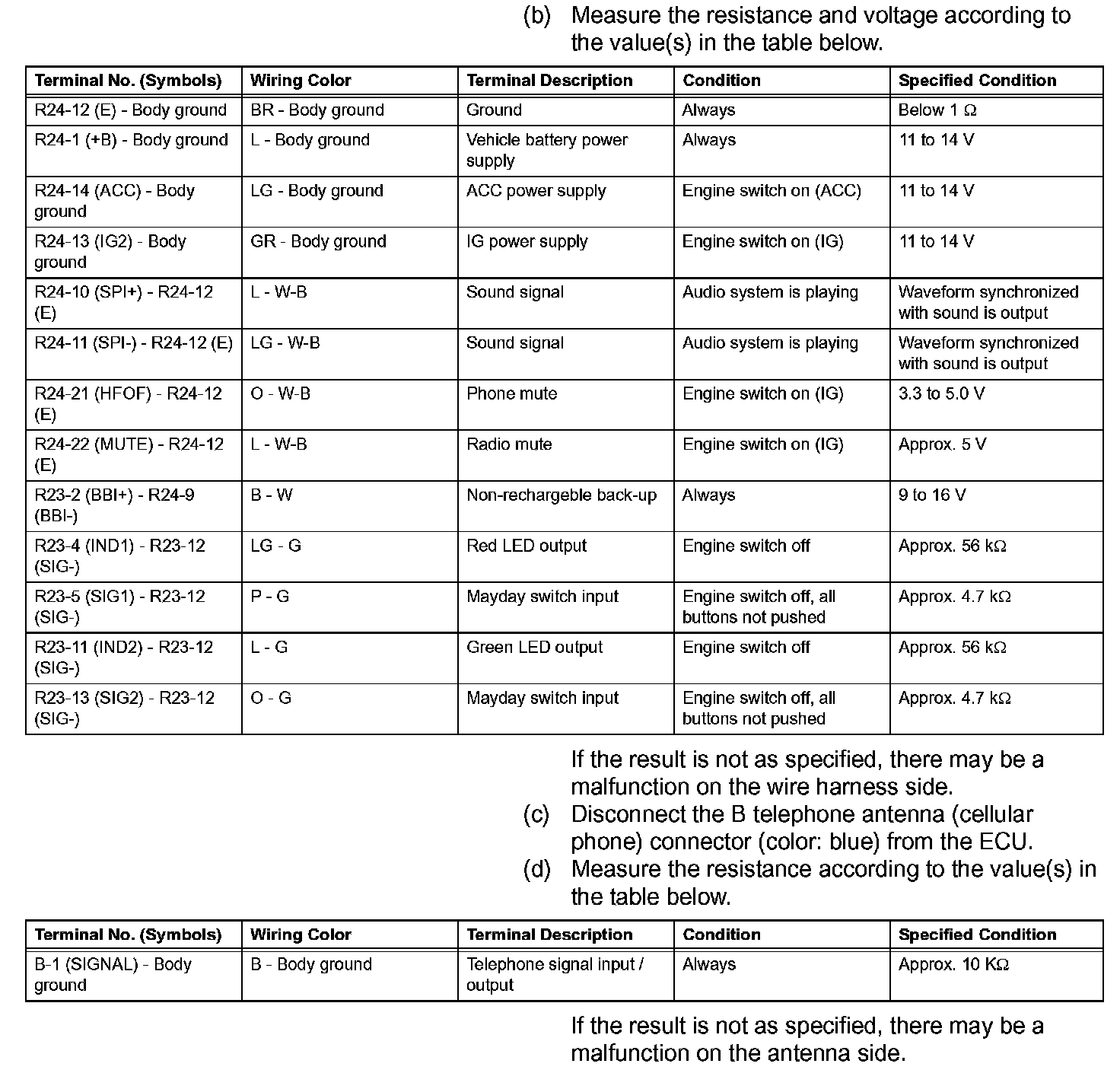

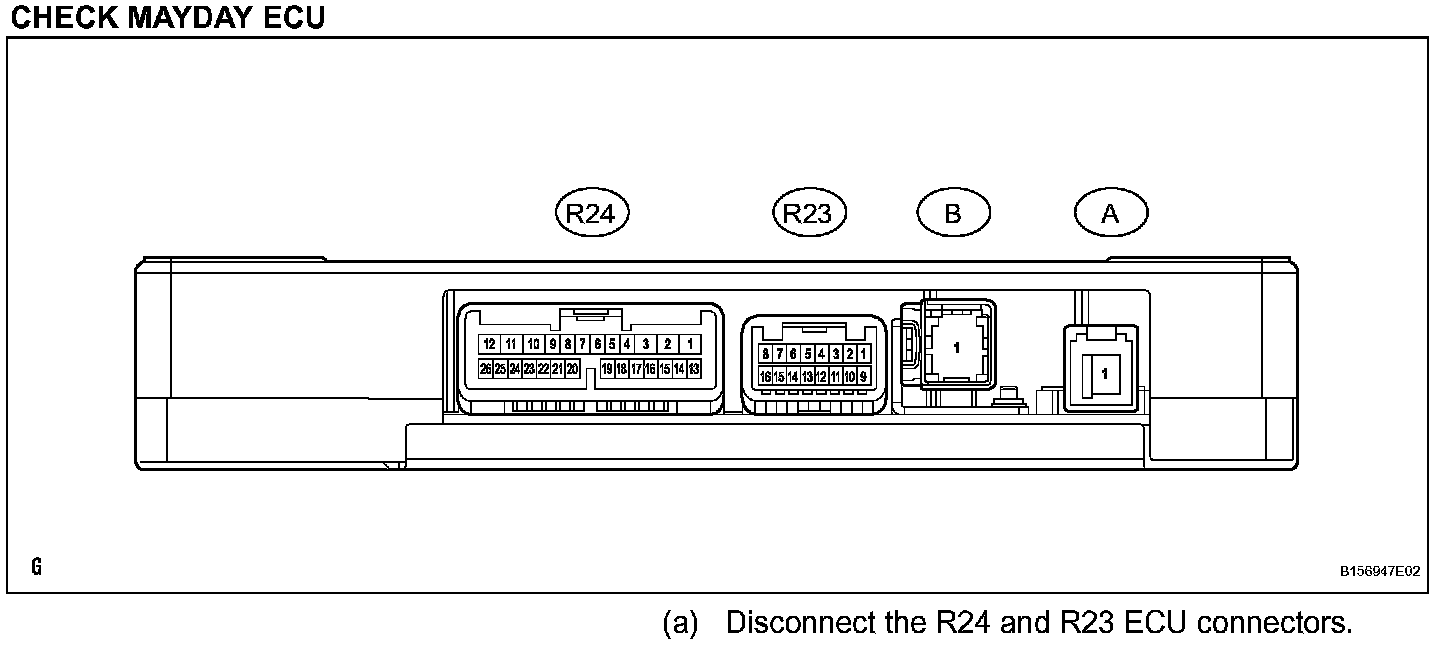

Terminals Of Control Module/Pinouts - Check Mayday ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Mayday ECU (Part 2):

Terminals Of Control Module/Pinouts - Check Bus Buffer ECU:
