Component Tests and General Diagnostics

ECU Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the mayday ECU.

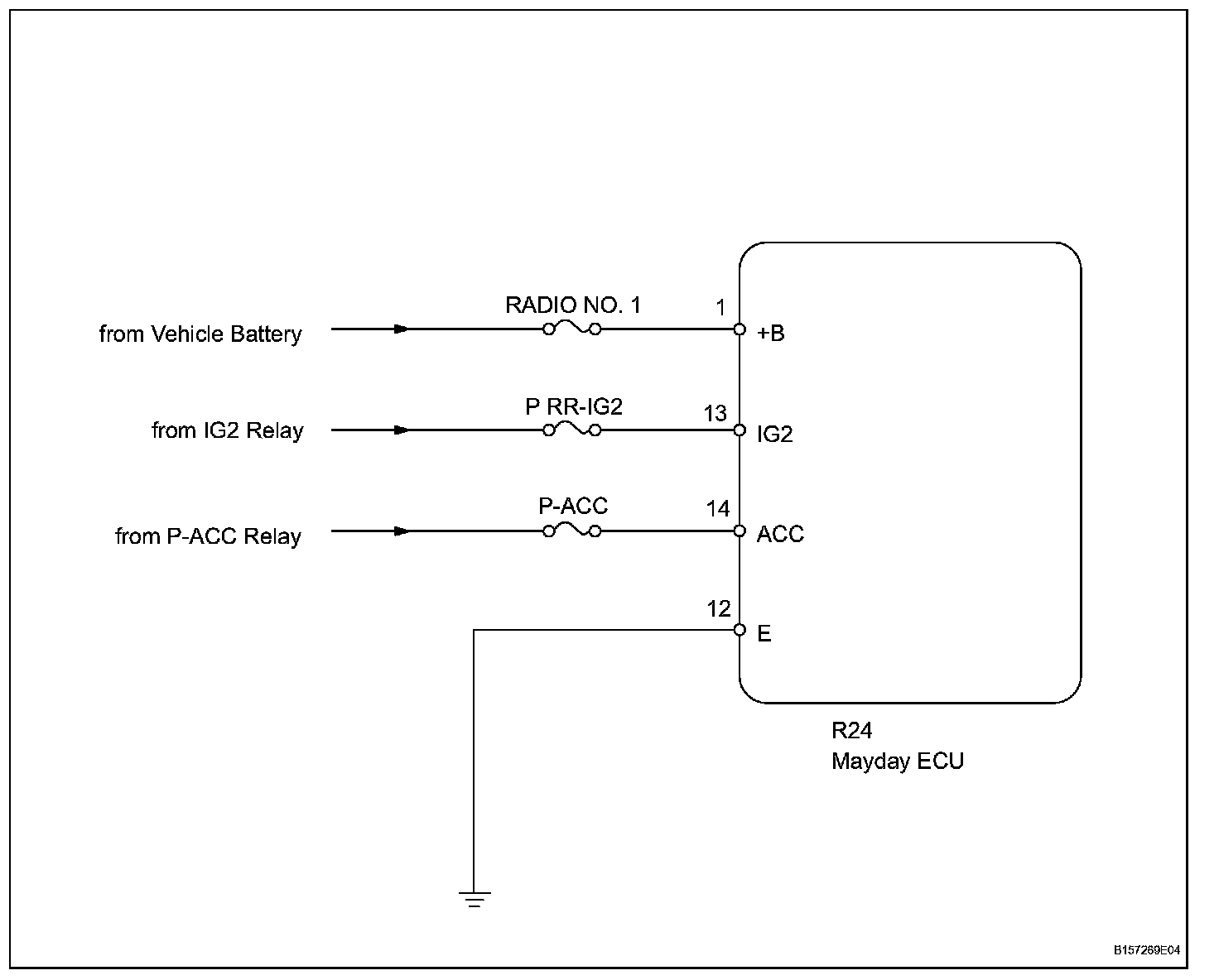

Wiring Diagram:

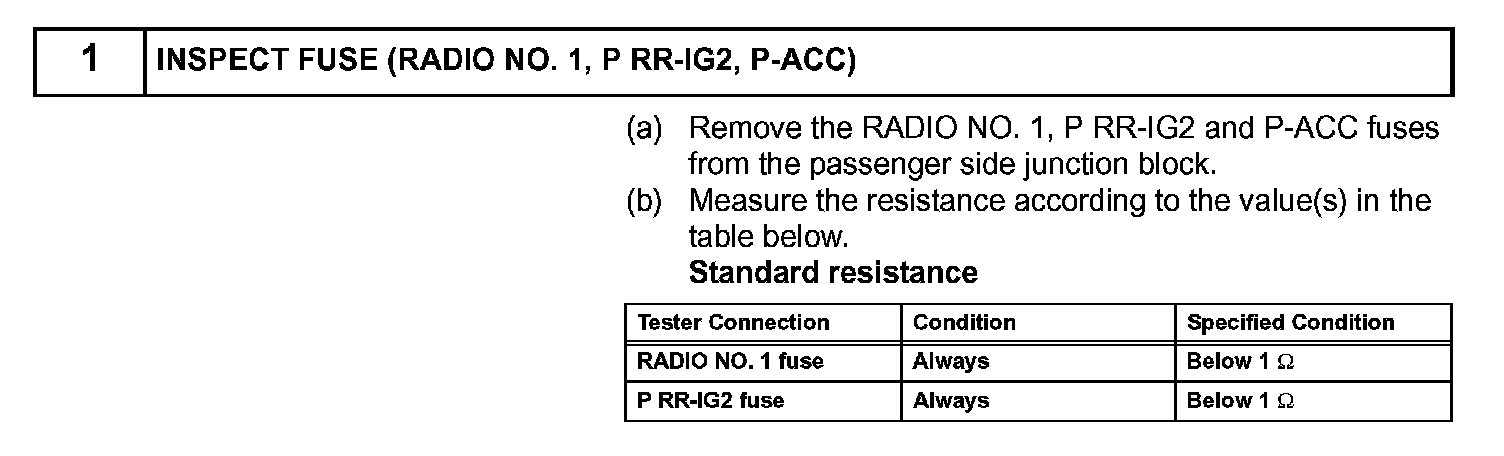

Step 1:

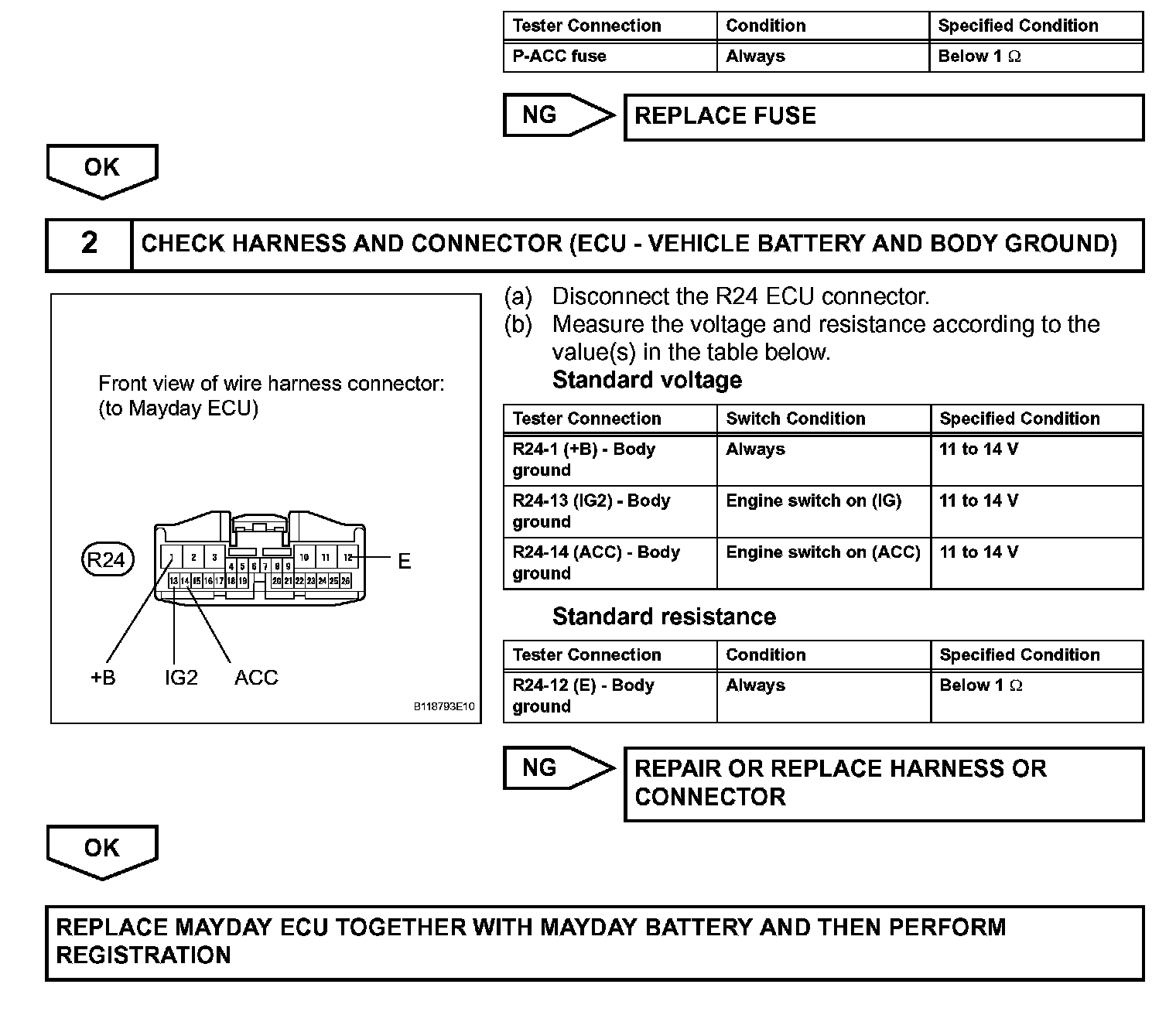

Step 1 (Continued)-2:

INSPECTION PROCEDURE
