Pinout Values and Diagnostic Parameters

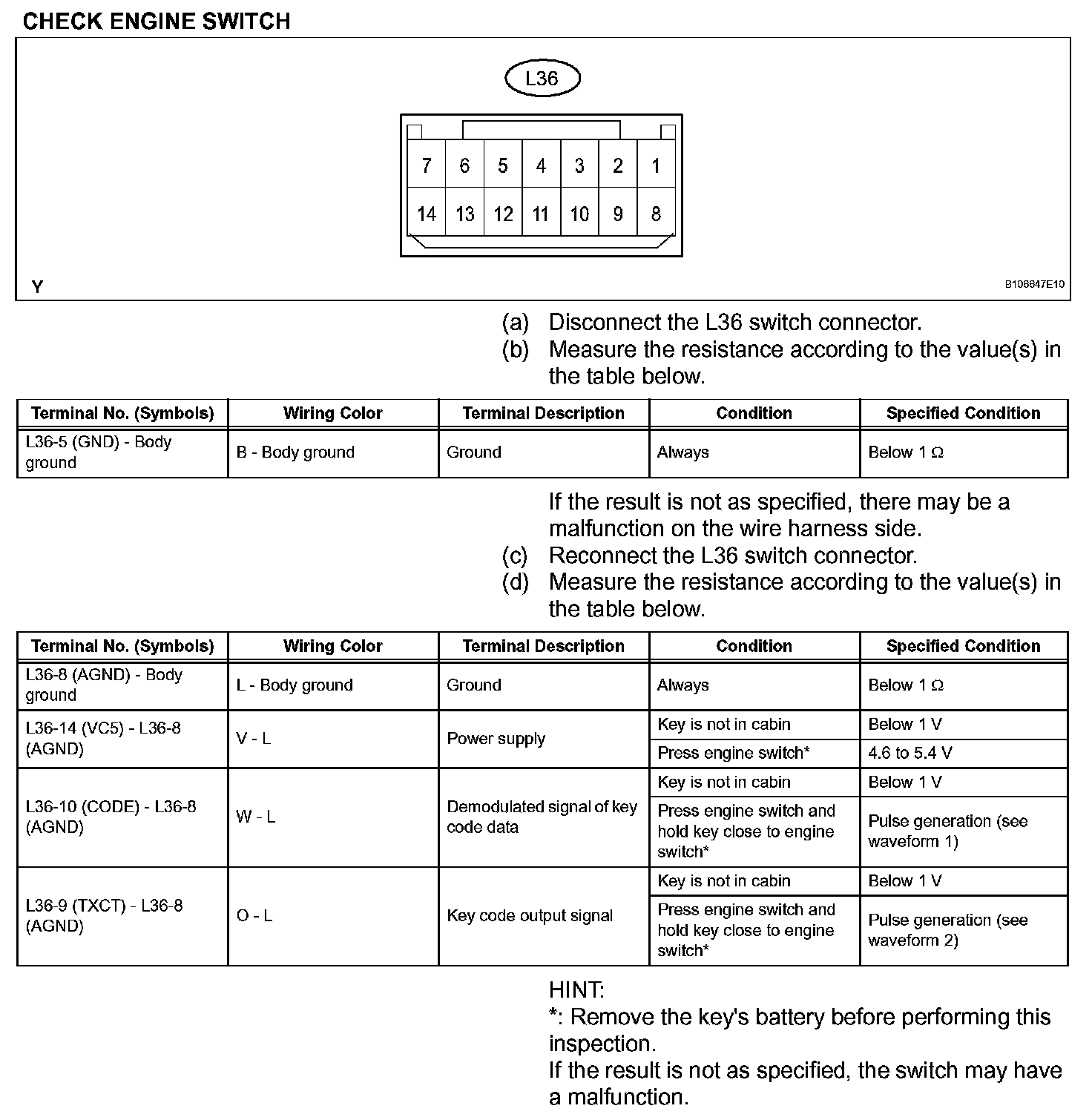

Terminals Of Control Module/Pinouts - Check Engine Switch:

Oscilloscope Waveform:

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 1):

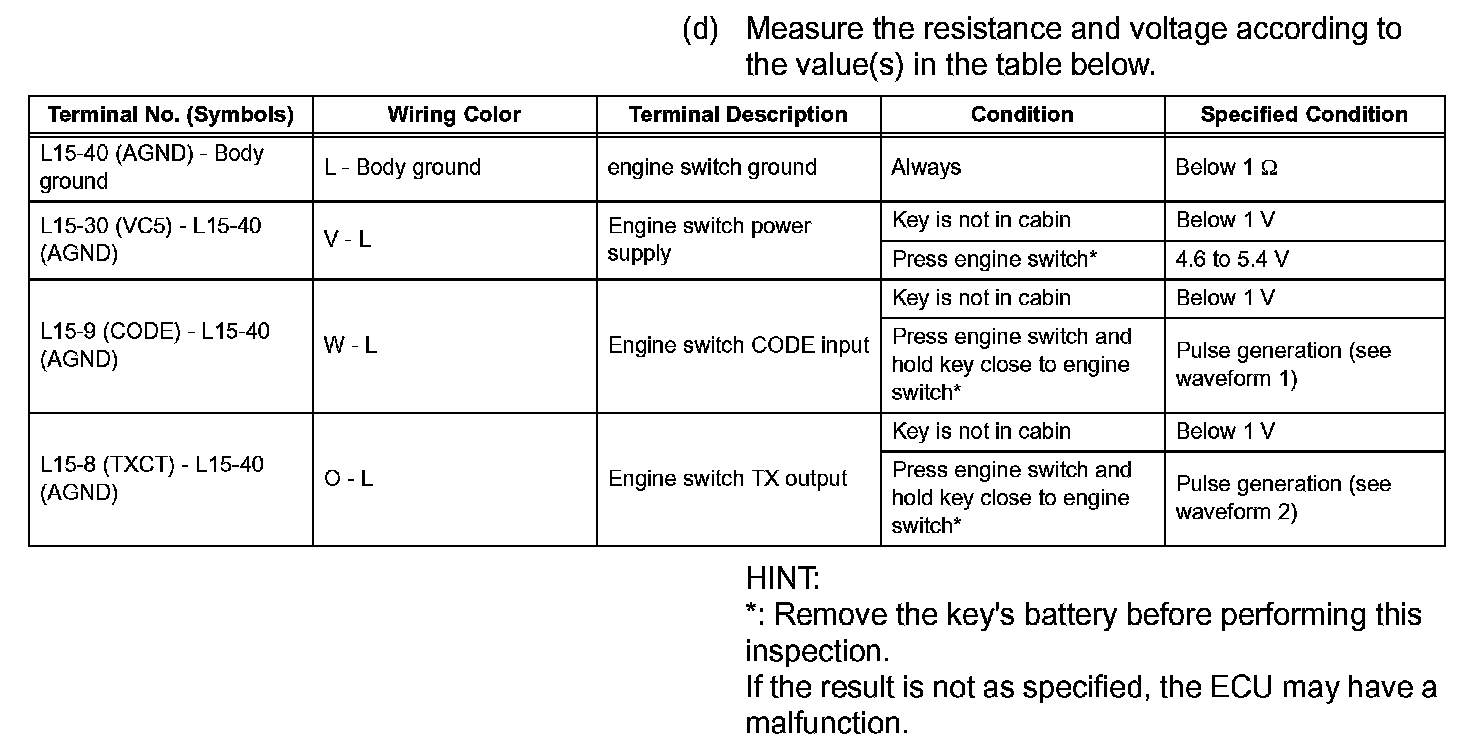

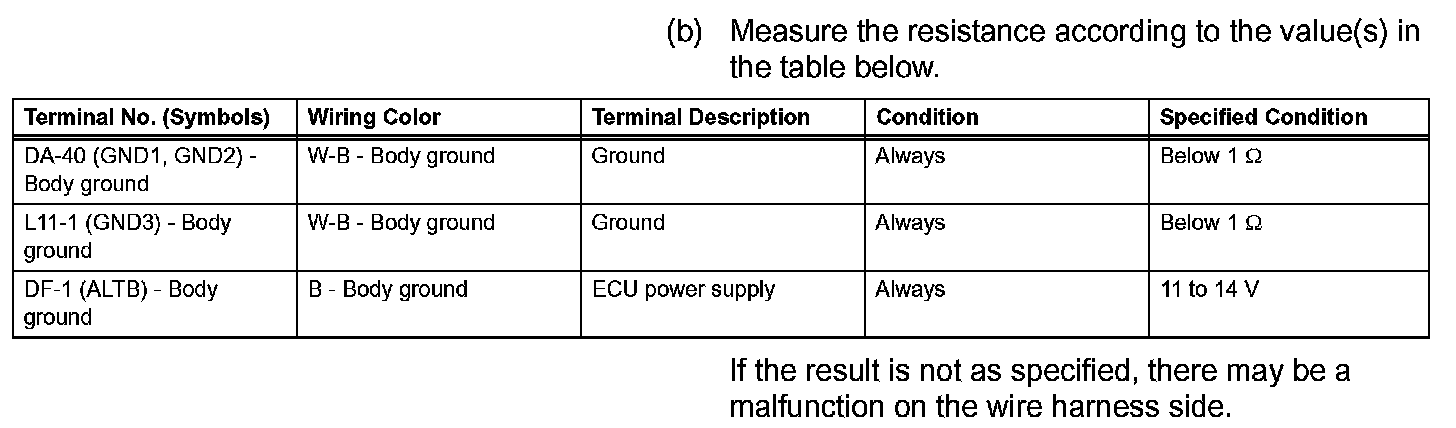

Terminals Of Control Module/Pinouts - Check Certification ECU (Part 2):

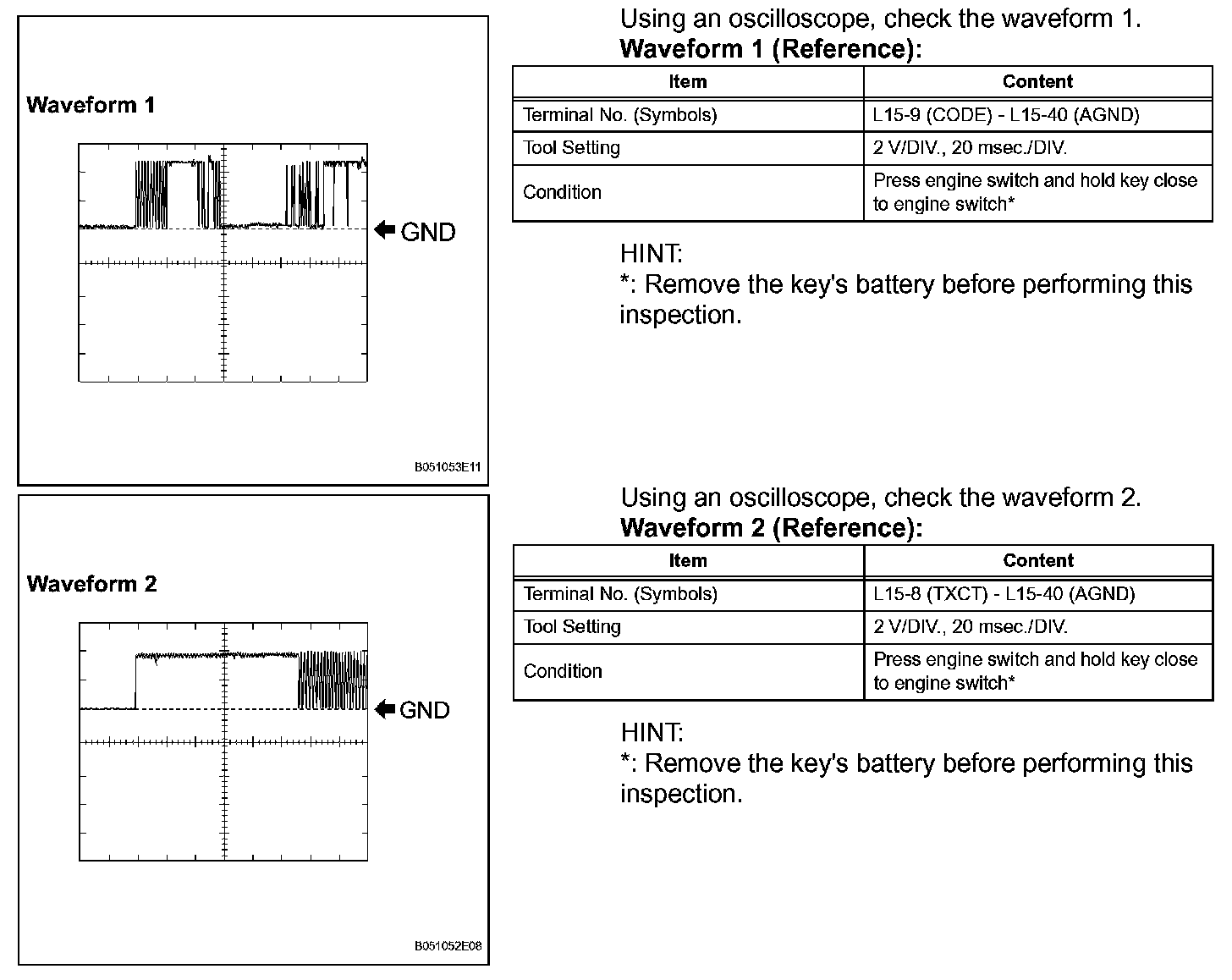

Oscilloscope Waveform:

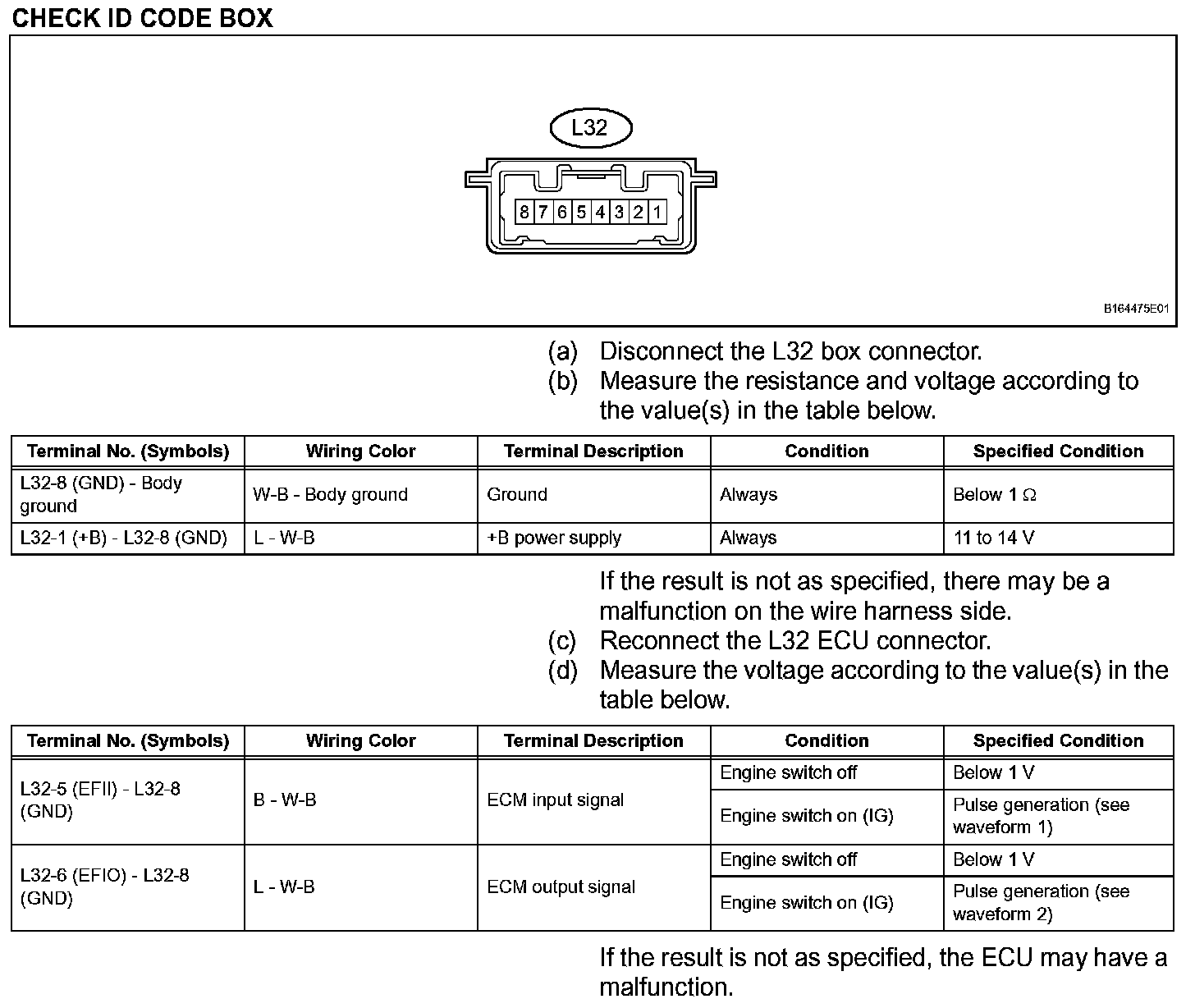

Terminals Of Control Module/Pinouts - Check ID Code Box:

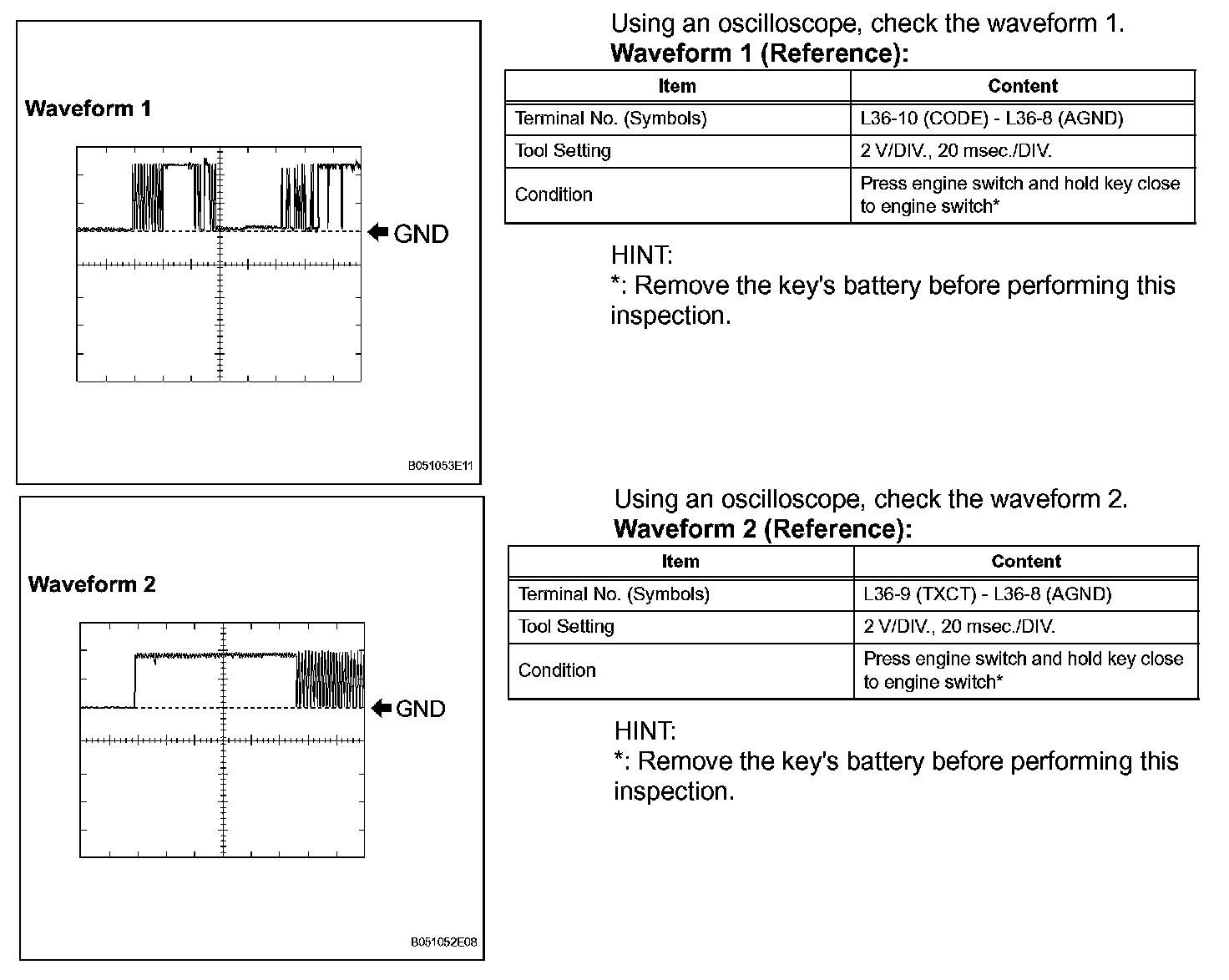

Oscilloscope Waveform:

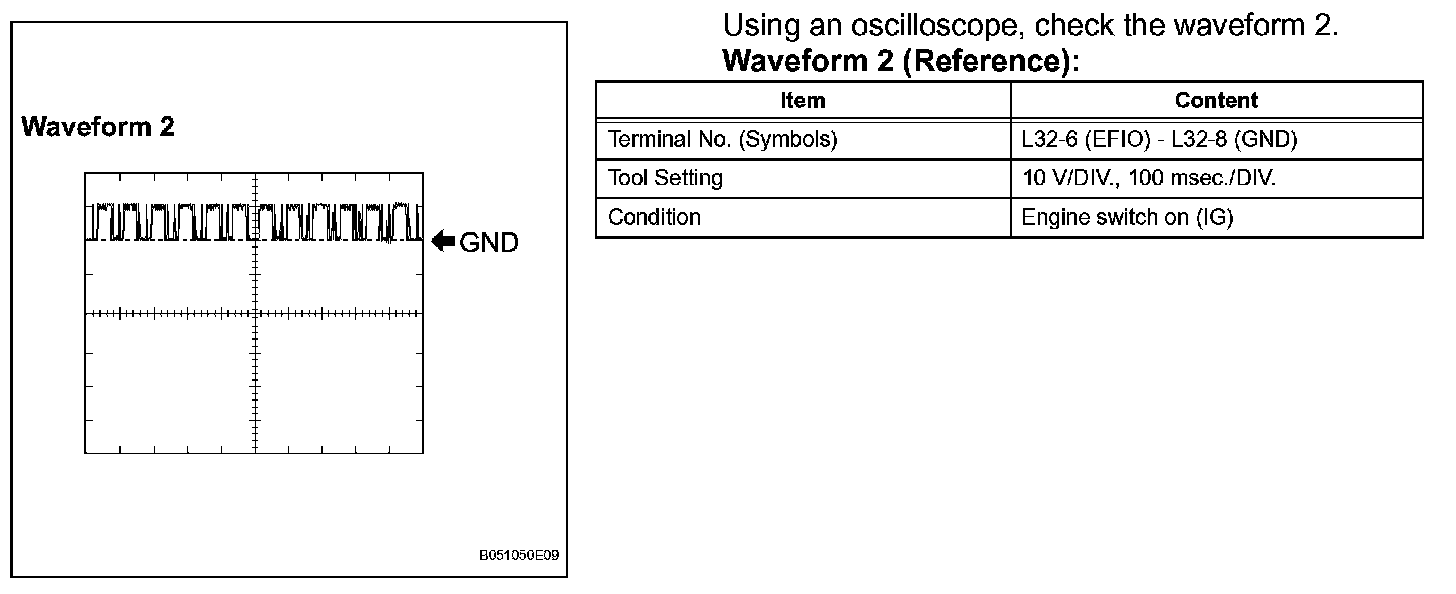

Oscilloscope Waveform:

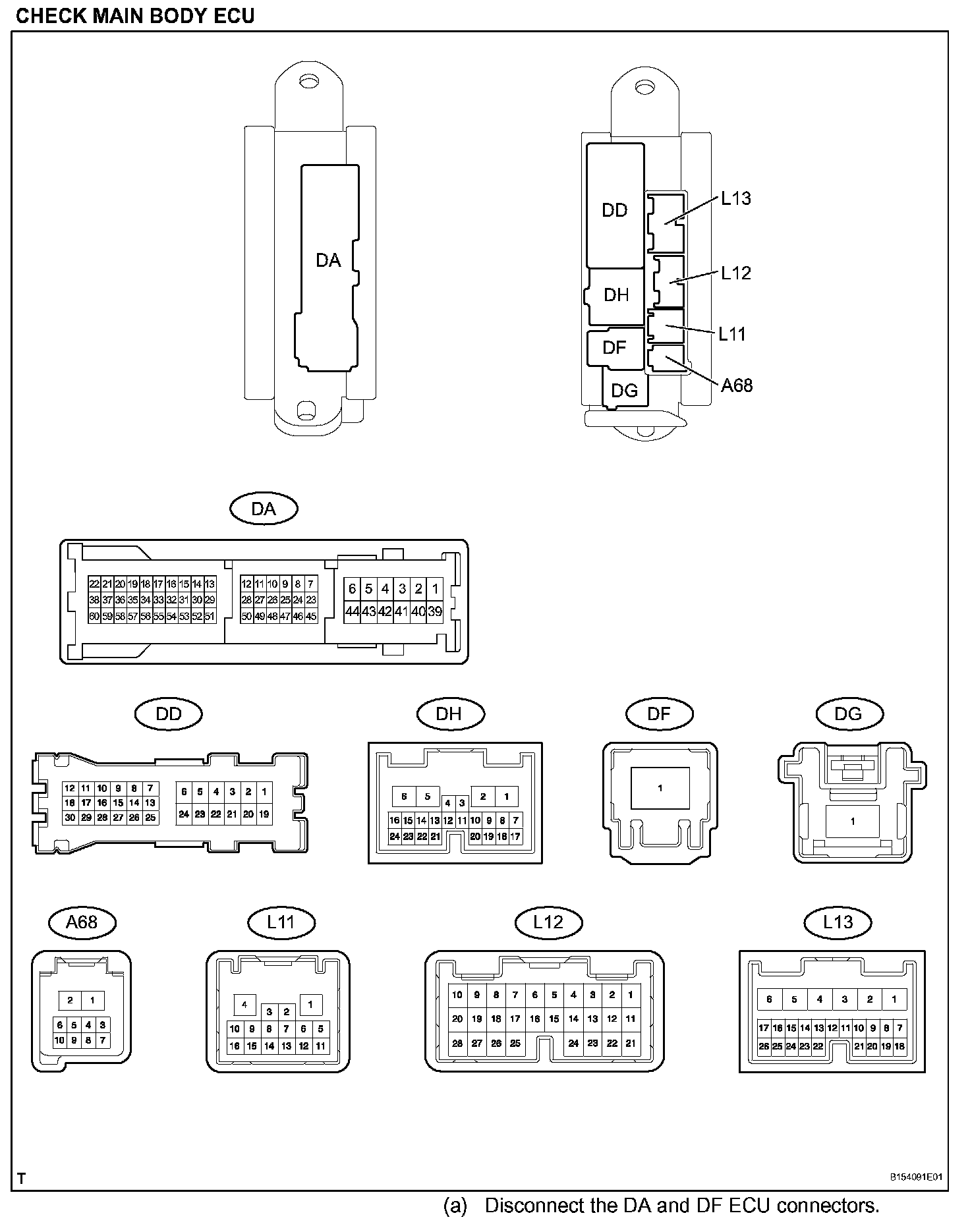

Terminals Of Control Module/Pinouts - Check Main Body ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Main Body ECU (Part 2):

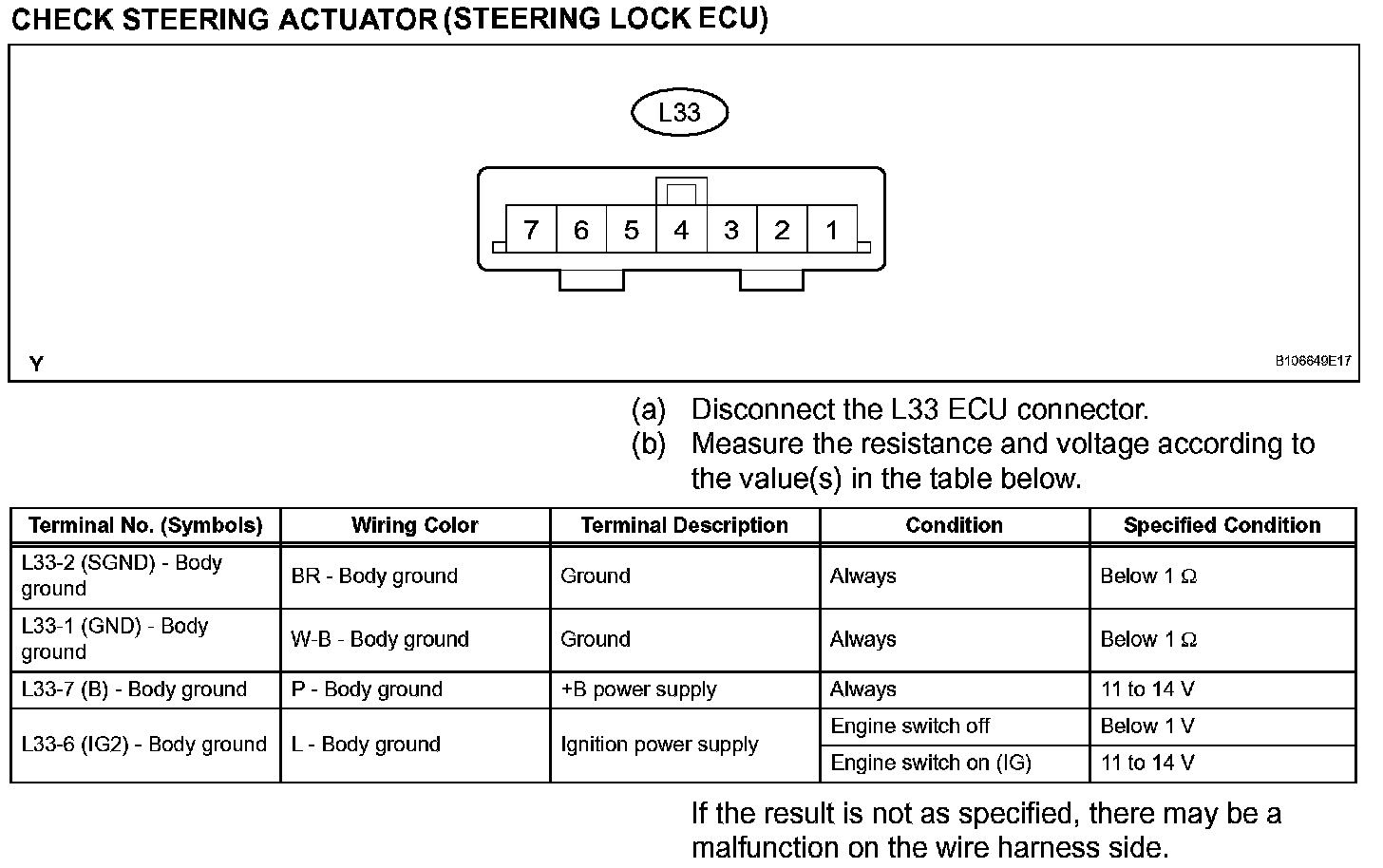

Terminals Of Control Module/Pinouts - Check Steering Actuator (Steering Lock ECU):

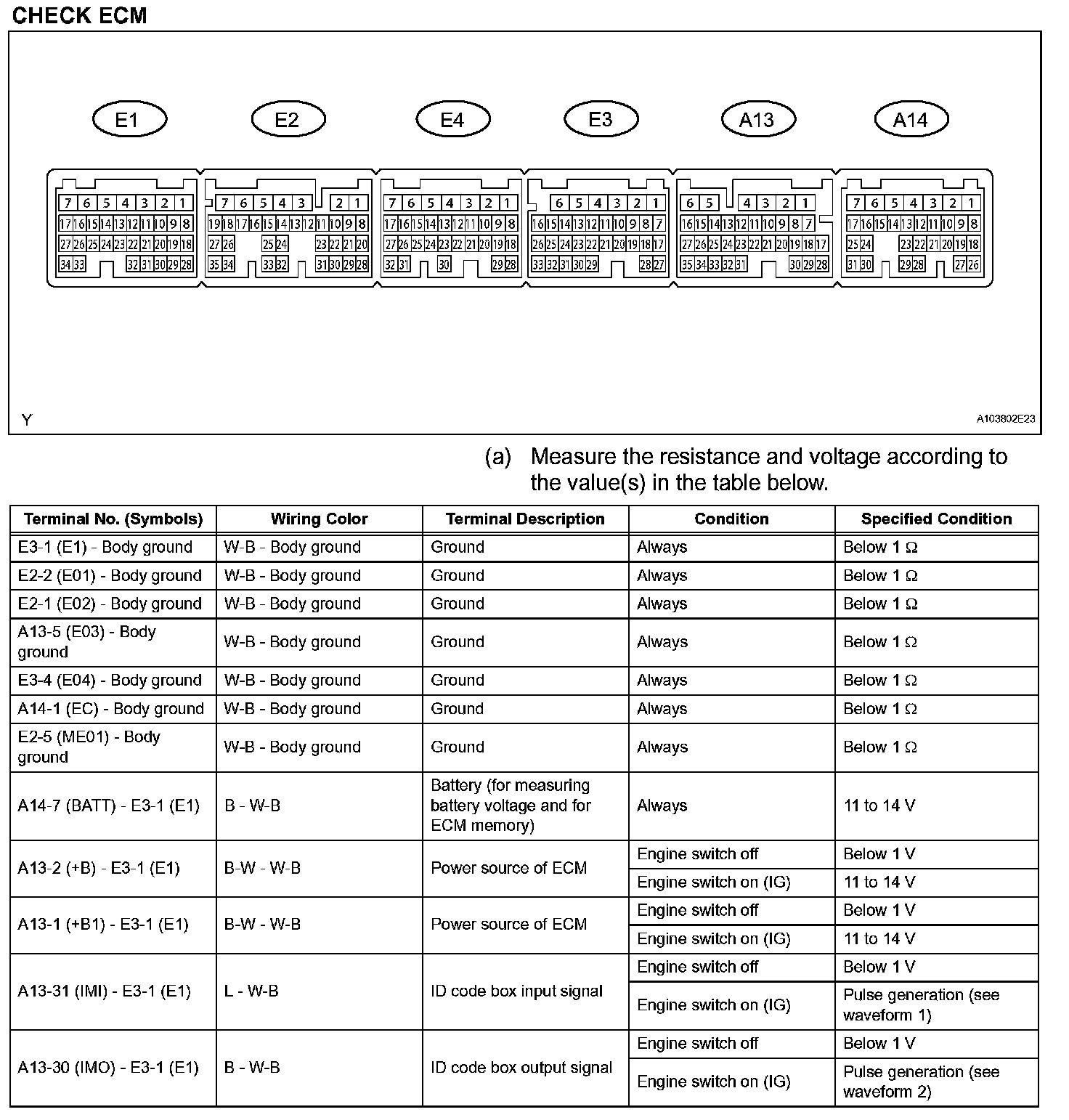

Terminals Of Control Module/Pinouts - Check ECM:

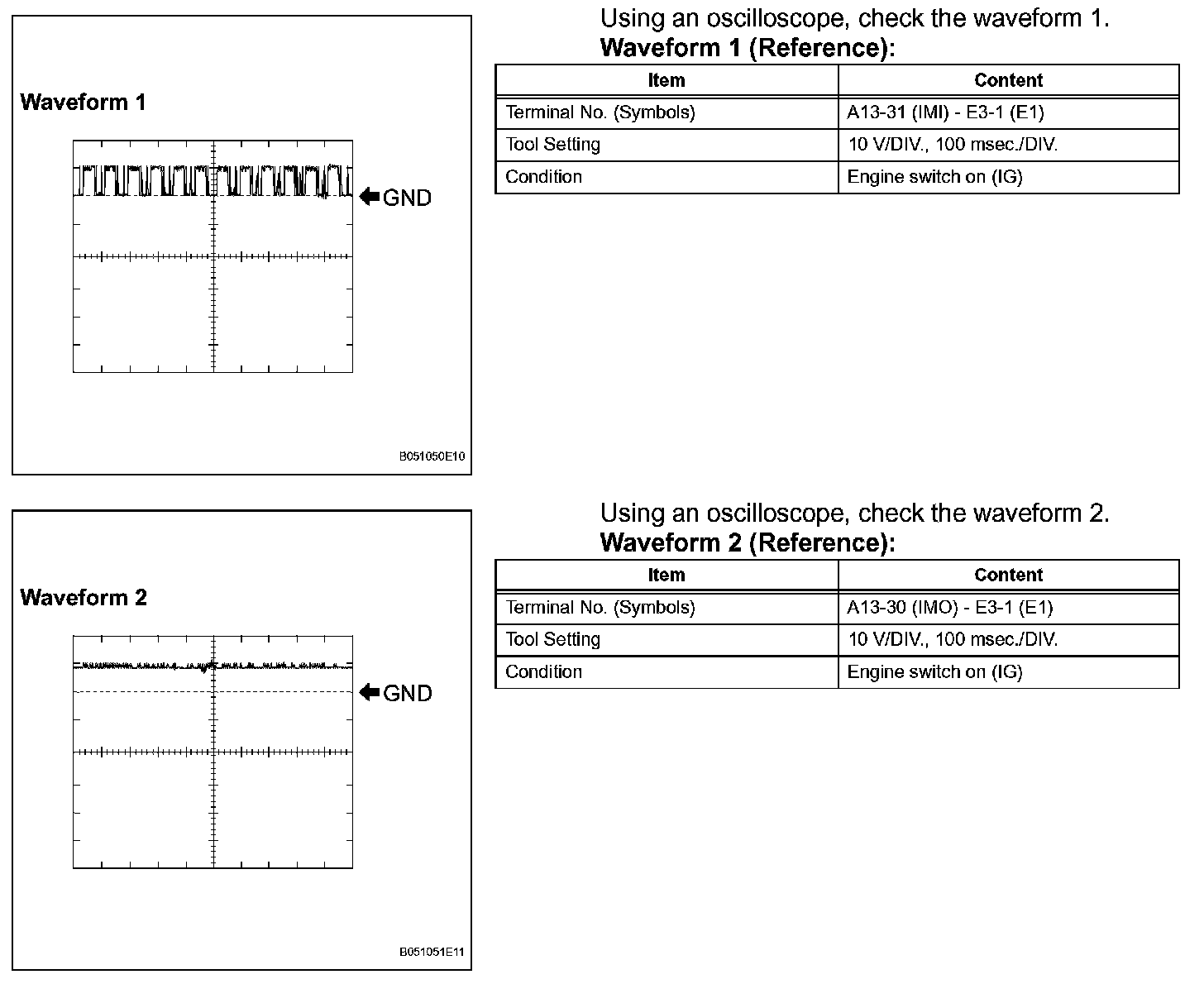

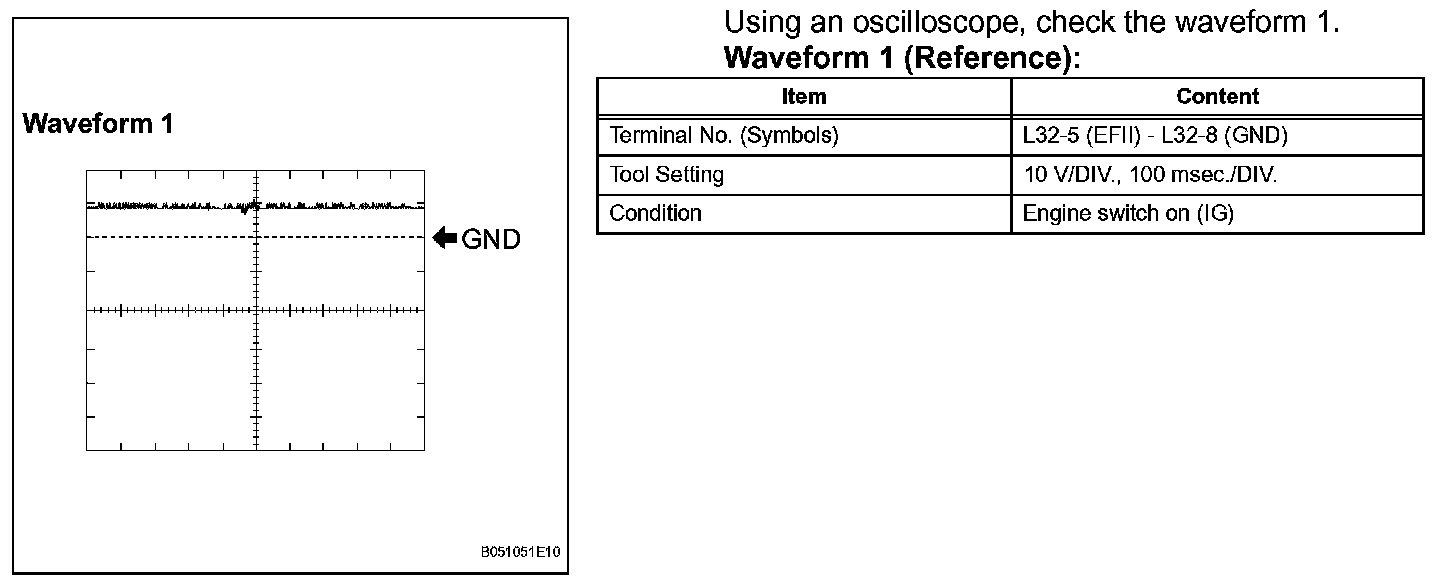

Oscilloscope Waveform:

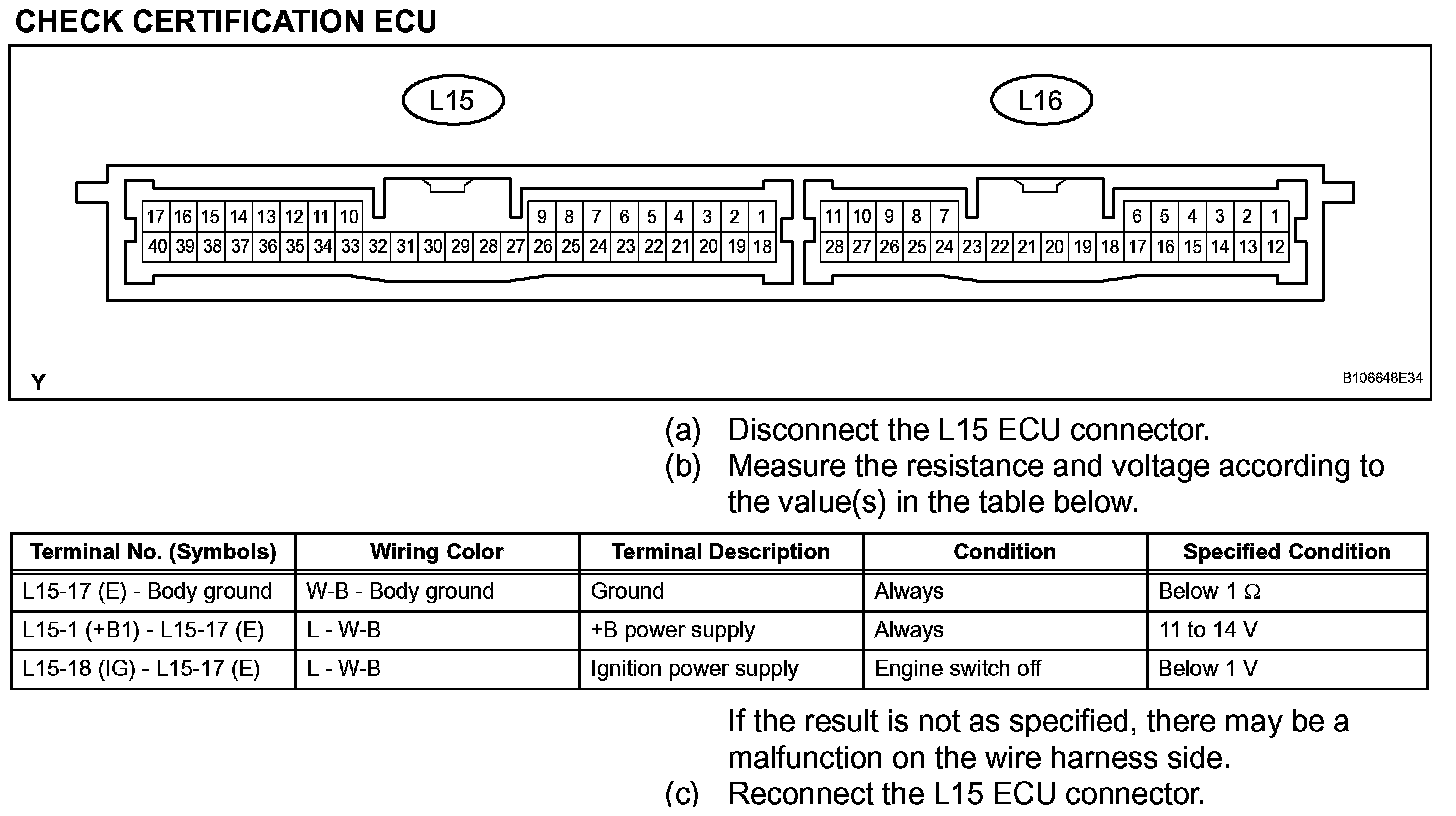

Terminals Of Control Module/Pinouts-Check Certification ECU:

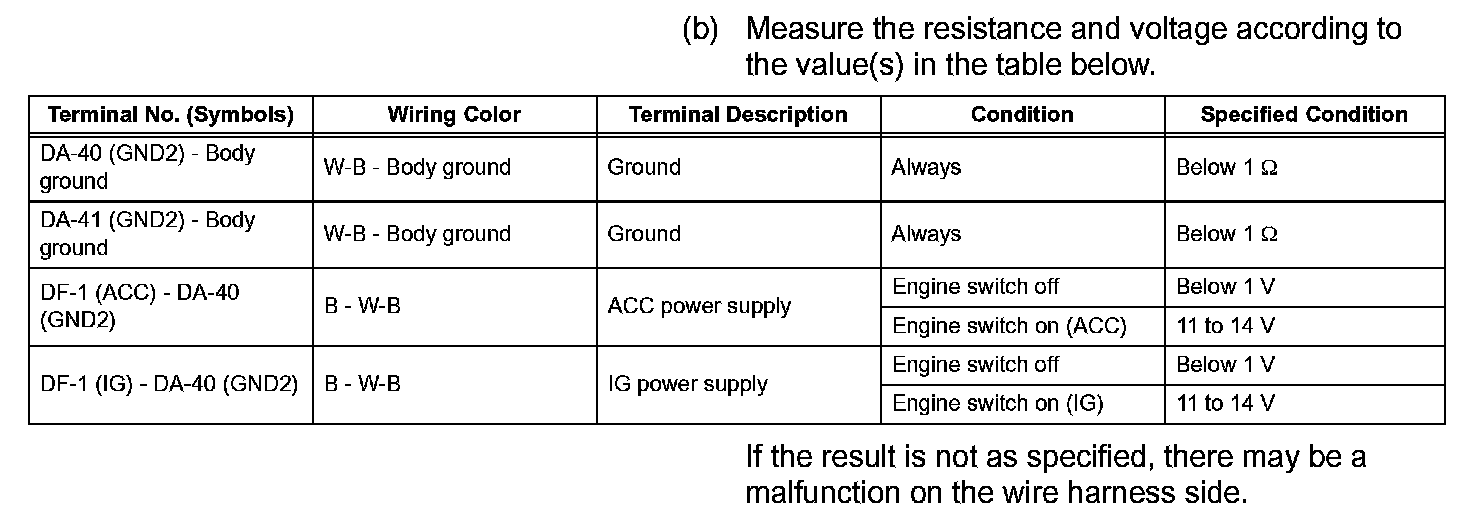

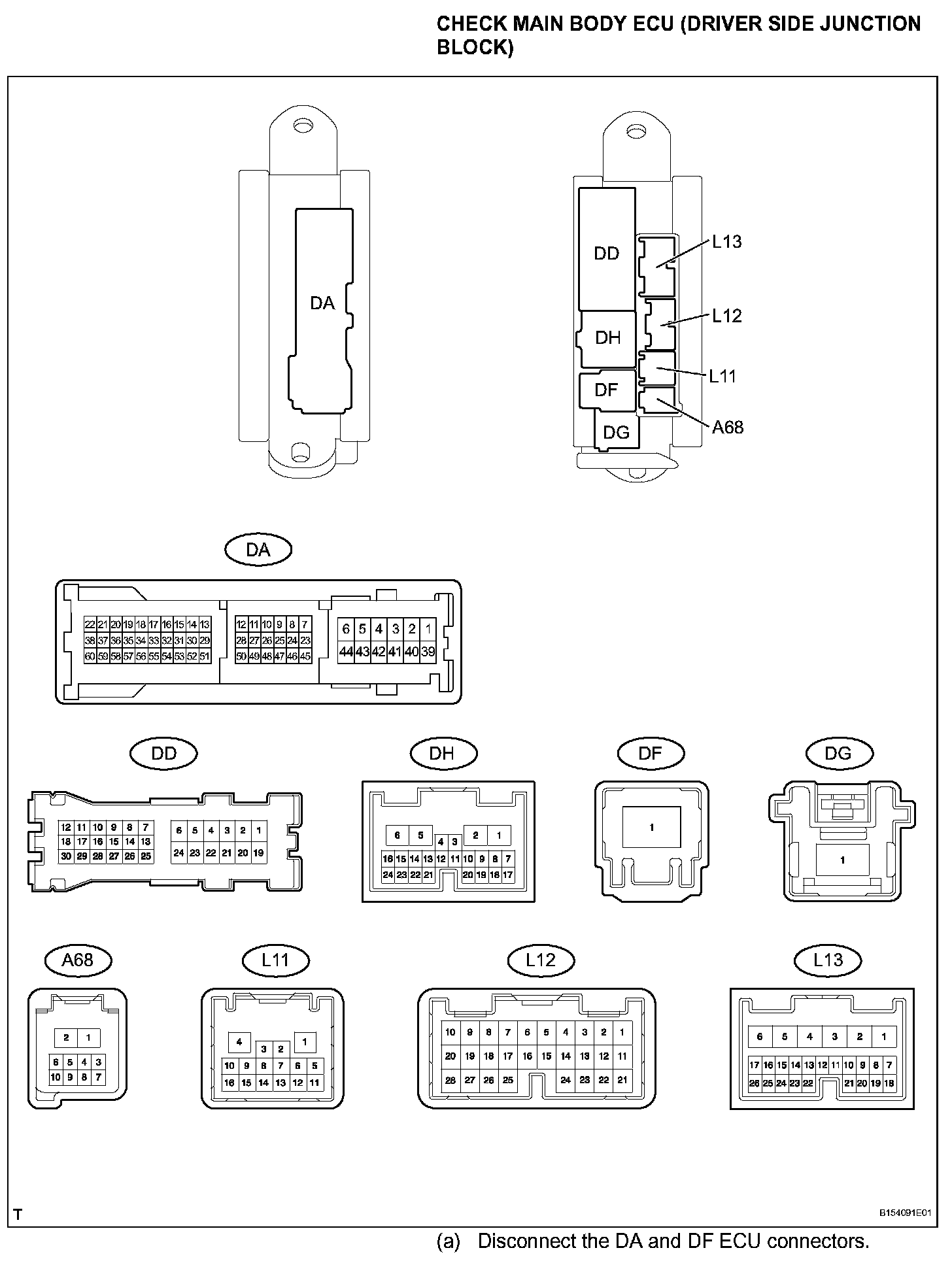

Terminals Of Control Module/Pinouts-Check Main Body ECU (Driver Side Junction Block) (Part 1):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Driver Side Junction Block) (Part 2):

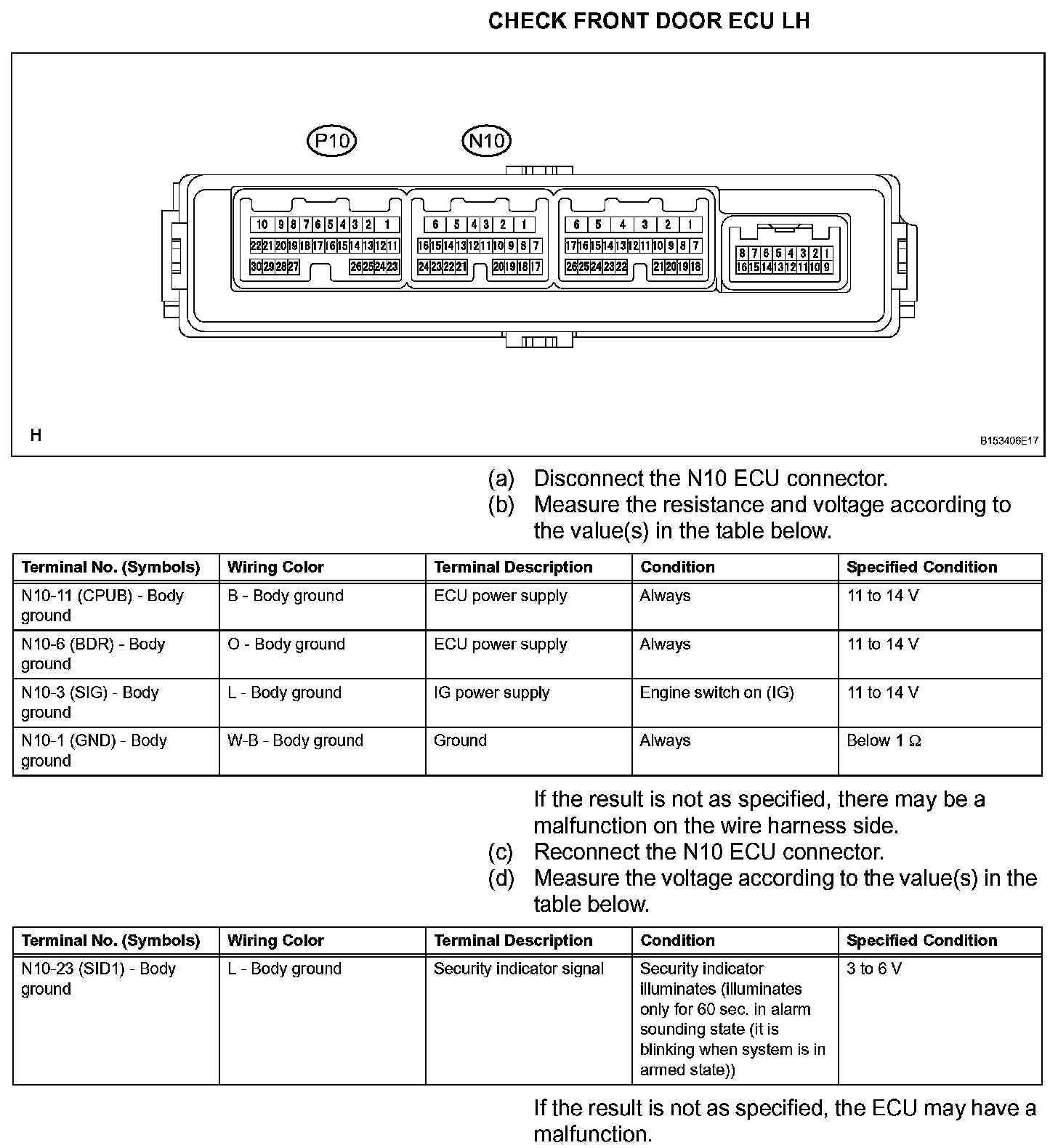

Terminals Of Control Module/Pinouts-Check Front Door ECU LH:

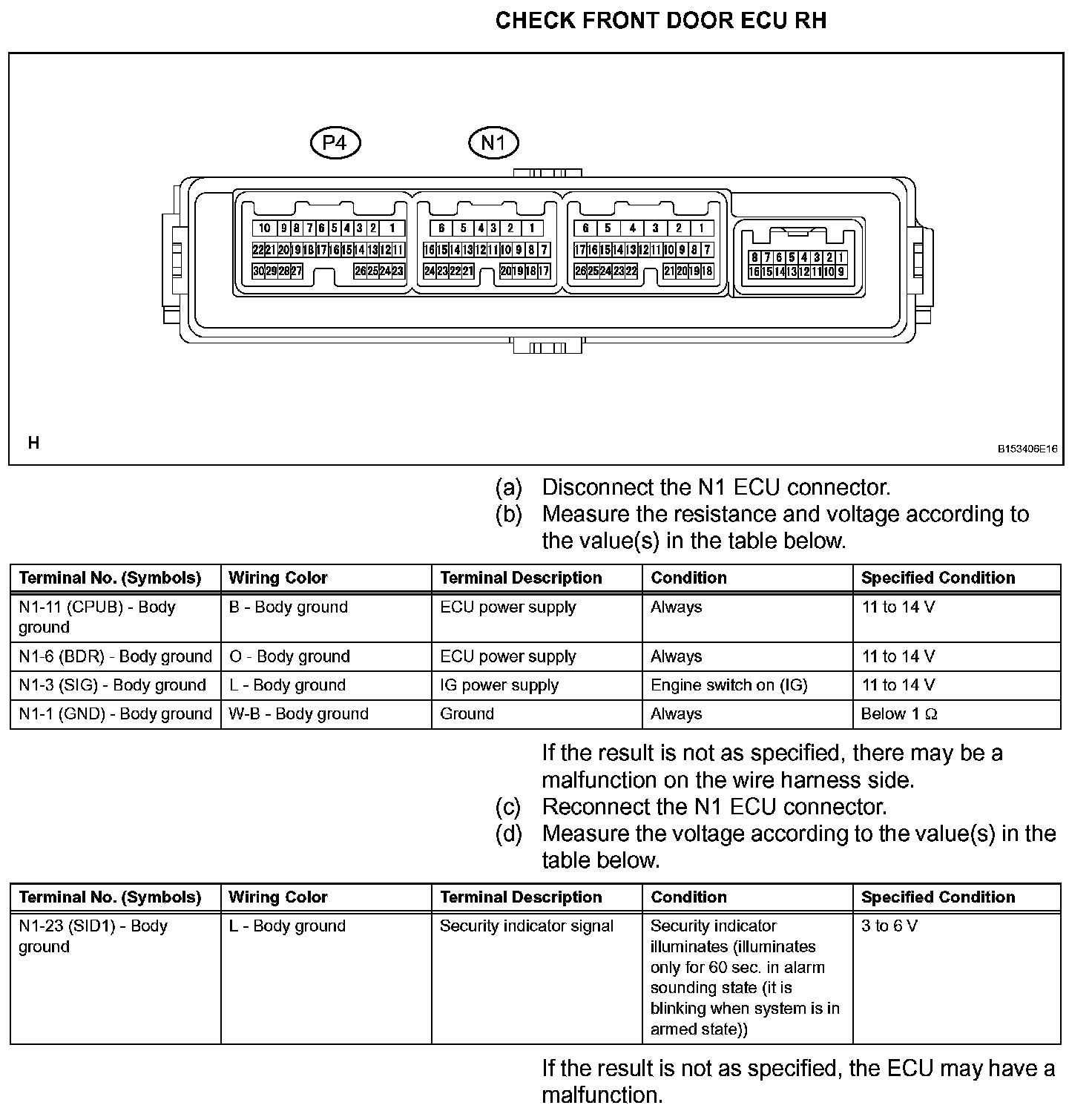

Terminals Of Control Module/Pinouts-Check Front Door ECU RH:

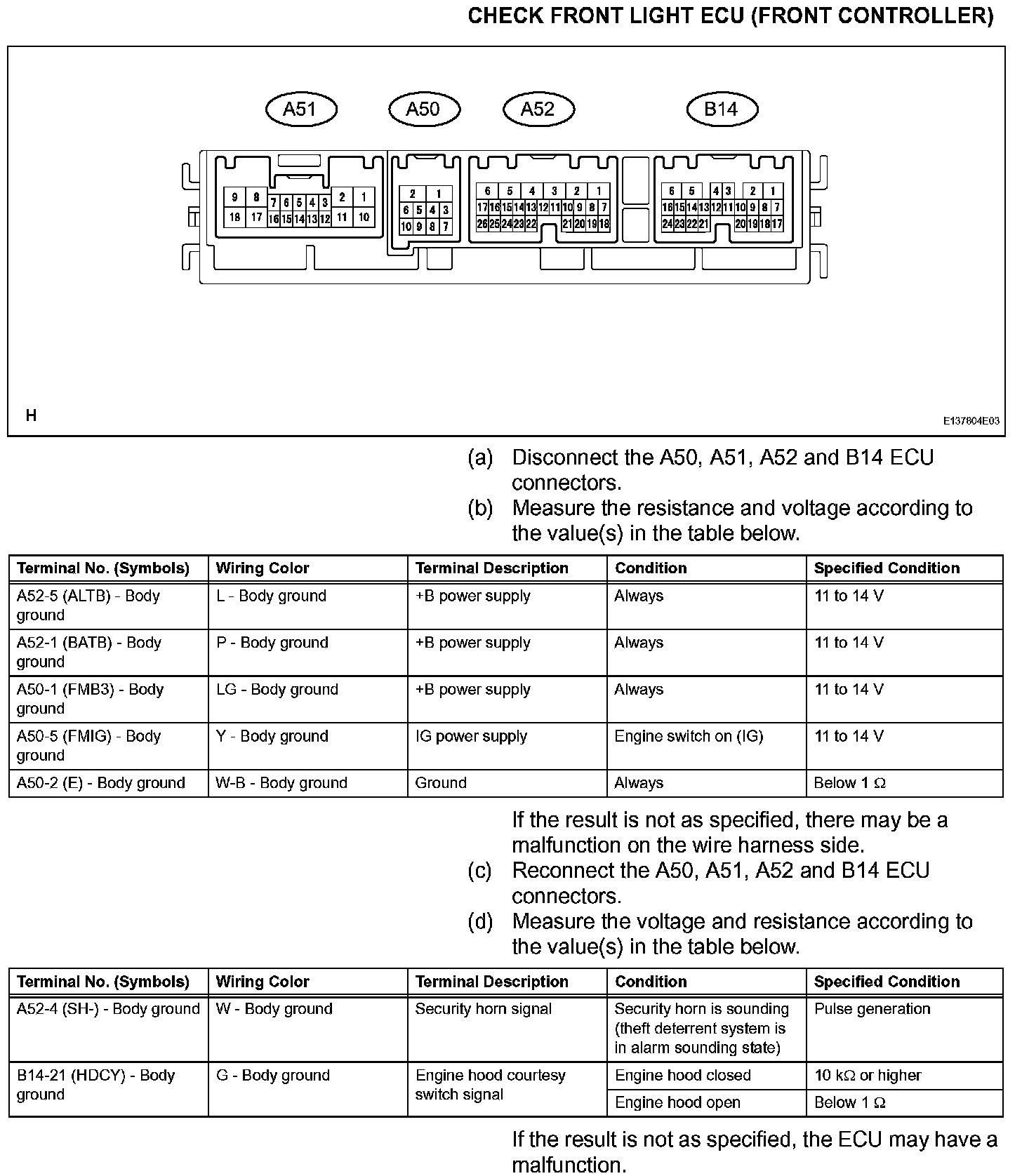

Terminals Of Control Module/Pinouts-Check Front Light ECU (Front Controller):
