Wireless Door Lock Buzzer Controller

Wireless Door Lock Buzzer Controller:

WIRELESS DOOR LOCK BUZZER CONTROLLER

REMOVAL

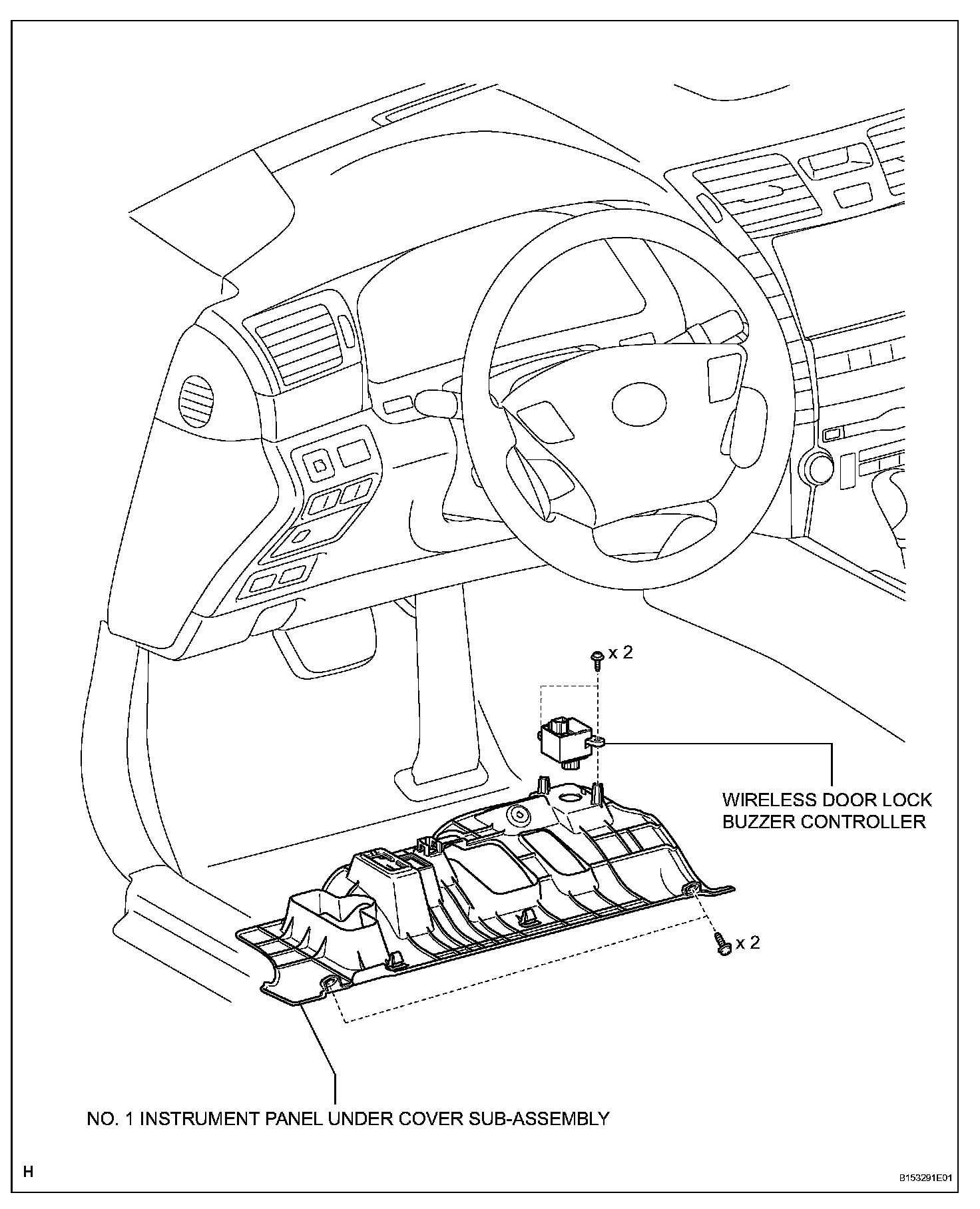

1. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY




2. REMOVE WIRELESS DOOR LOCK BUZZER CONTROLLER

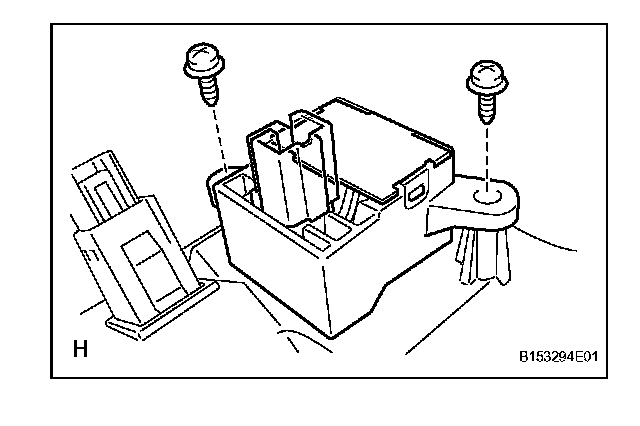

a. Remove the 2 screws and buzzer controller.

INSTALLATION




1. INSTALL WIRELESS DOOR LOCK BUZZER CONTROLLER

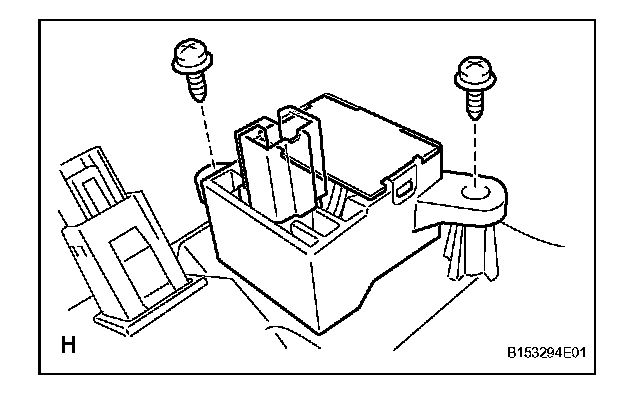

a. Install the buzzer controller with the 2 screws.

2. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
