Wireless Door Lock Buzzer

Wireless Door Lock Buzzer:

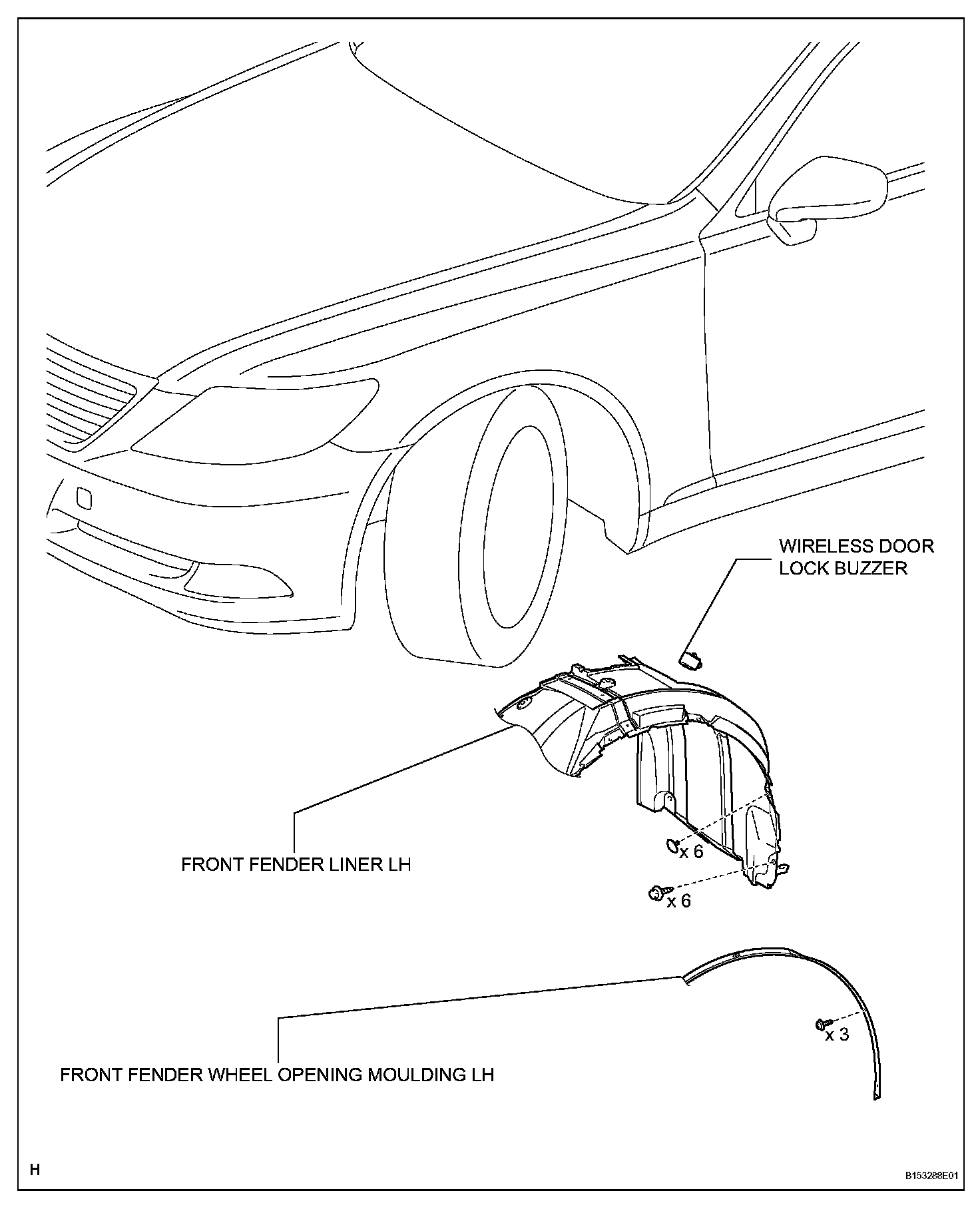

WIRELESS DOOR LOCK BUZZER

REMOVAL

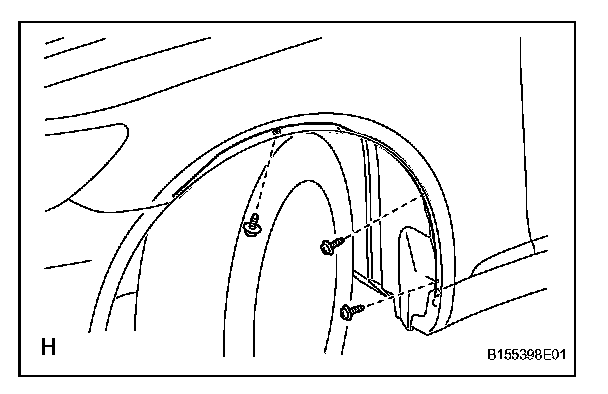

1. REMOVE FRONT FENDER WHEEL OPENING MOULDING LH
a. Remove the 3 screws, and partially remove the moulding.

2. REMOVE FRONT FENDER LINER LH

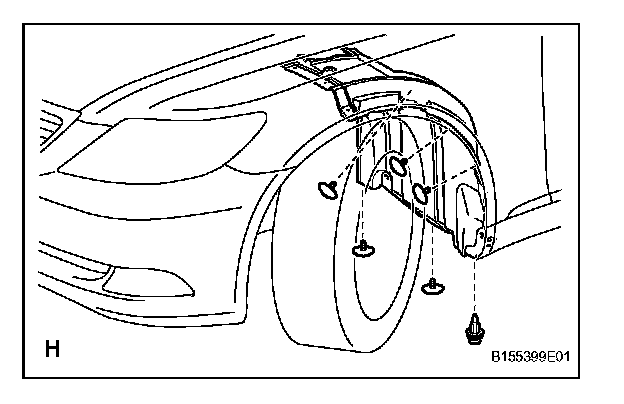

a. Remove the 6 clips from the fender liner.

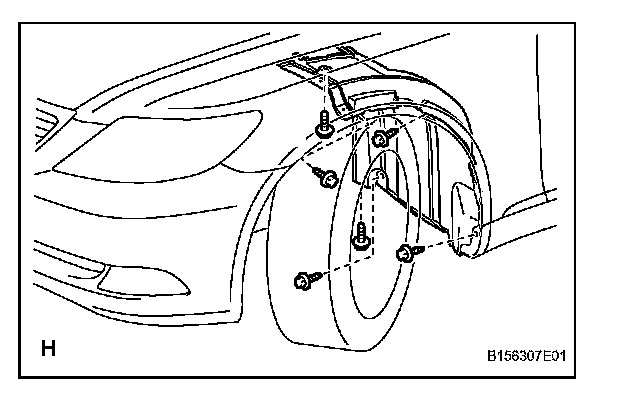

b. Remove the 6 screws.




3. REMOVE WIRELESS DOOR LOCK BUZZER

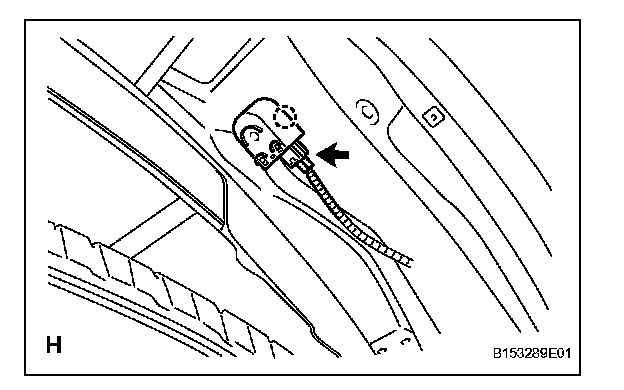

a. Pull away the fender liner, and disconnect the connector.
b. with the fender pulled away, detach the claw and remove the buzzer.

INSTALLATION




1. INSTALL WIRELESS DOOR LOCK BUZZER

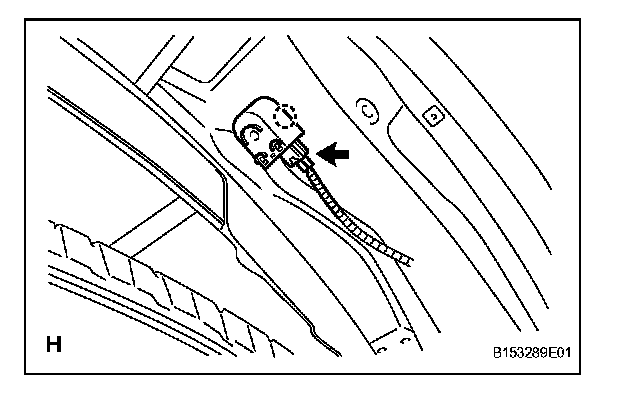

a. Attach the claw to install the buzzer.
b. Connect the connector.

2. INSTALL FRONT FENDER LINER LH

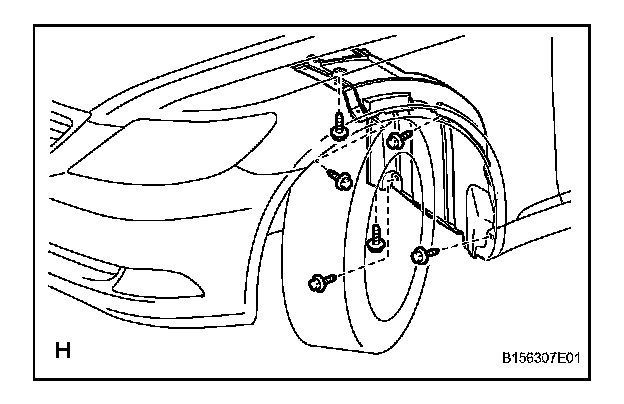

a. Install the 6 screws to the fender liner.

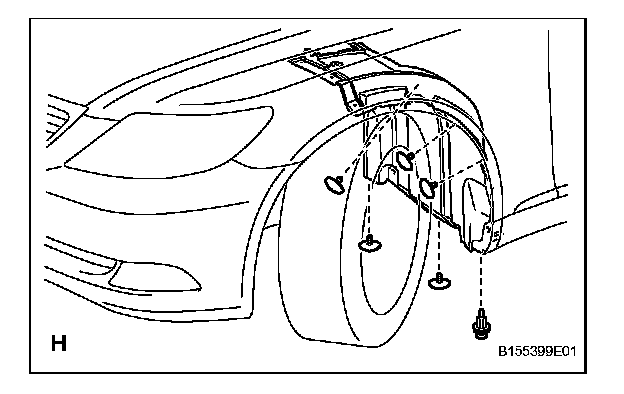

b. Install the 6 clips.




3. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH
a. Install the moulding with the 3 screws.
