Front Door Lock

Front Door Lock:

FRONT DOOR LOCK

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

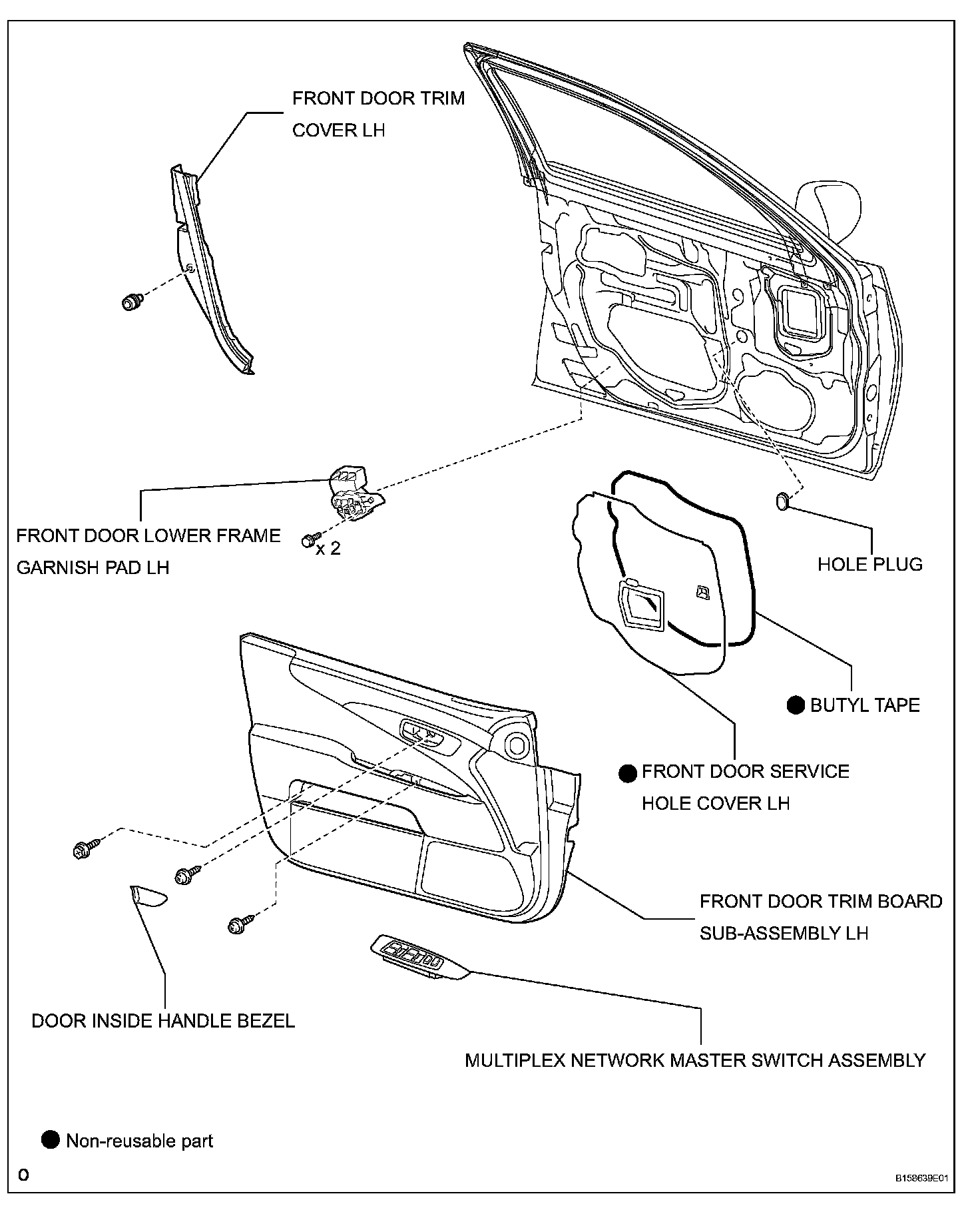

3. REMOVE DOOR INSIDE HANDLE BEZEL
4. REMOVE FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
6. REMOVE FRONT DOOR TRIM COVER LH
7. REMOVE FRONT DOOR SERVICE HOLE COVER LH
8. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH
9. REMOVE FRONT DOOR FRAME SUB-ASSEMBLY REAR LOWER LH
10. REMOVE FRONT DOOR OUTSIDE HANDLE COVER LH
11. REMOVE FRONT DOOR LOWER FRAME GARNISH PAD LH
12. REMOVE FRONT DOOR LOCK ASSEMBLY LH
13. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
14. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH
2. INSTALL FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
3. INSTALL FRONT DOOR LOCK ASSEMBLY LH
4. INSTALL FRONT DOOR LOWER FRAME GARNISH PAD LH
5. INSTALL FRONT DOOR OUTSIDE HANDLE COVER LH
6. INSTALL FRONT DOOR FRAME SUB-ASSEMBLY REAR LOWER LH
7. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH
8. INSTALL FRONT DOOR SERVICE HOLE COVER LH
9. INSTALL FRONT DOOR TRIM COVER LH
10. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
11. INSTALL FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH
12. INSTALL DOOR INSIDE HANDLE BEZEL
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. INSTALL COWL TOP VENTILATOR LOUVER RH
15. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
