ELECTRICAL KEY OSCILLATOR (for Front Floor)

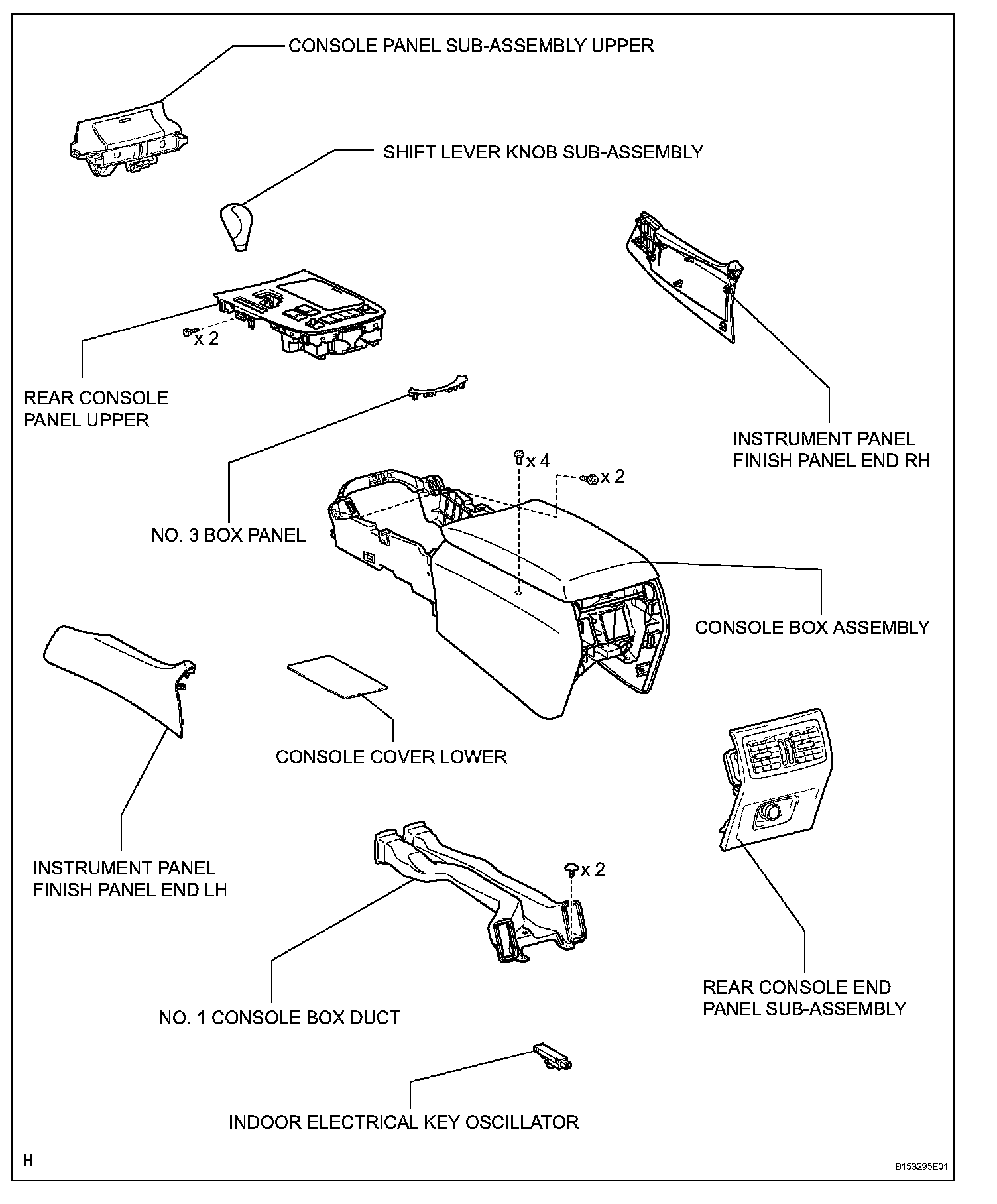

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
4. REMOVE NO.3 BOX PANEL
5. REMOVE REAR CONSOLE PANEL UPPER
6. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
7. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY
8. REMOVE CONSOLE COVER LOWER
9. REMOVE CONSOLE BOX ASSEMBLY
10. REMOVE NO.1 CONSOLE BOX DUCT

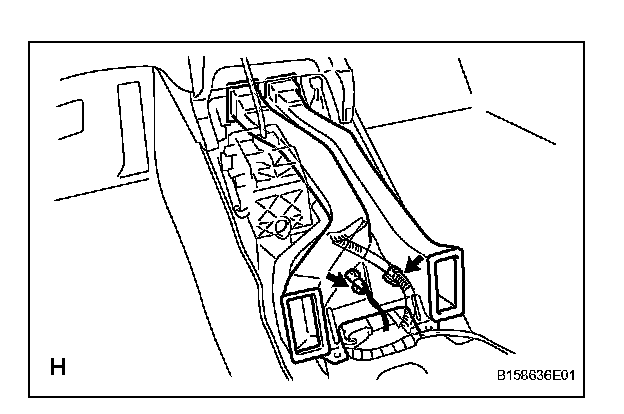

a. Using a clip remover, remove the 2 clamps.




b. Using a clip remover, remove the 2 clips and duct.




11. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR

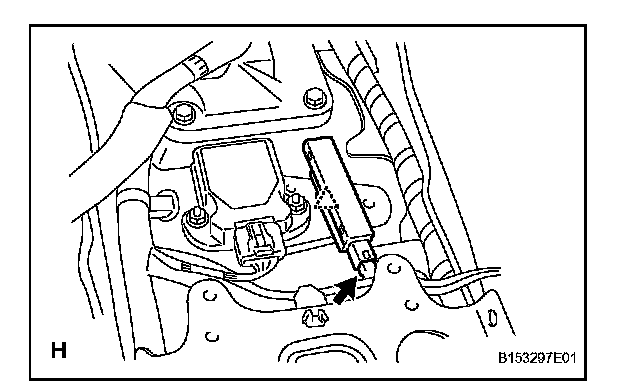

a. Disconnect the connector.
b. Using a clip remover, remove the clamp and electrical key.

INSTALLATION

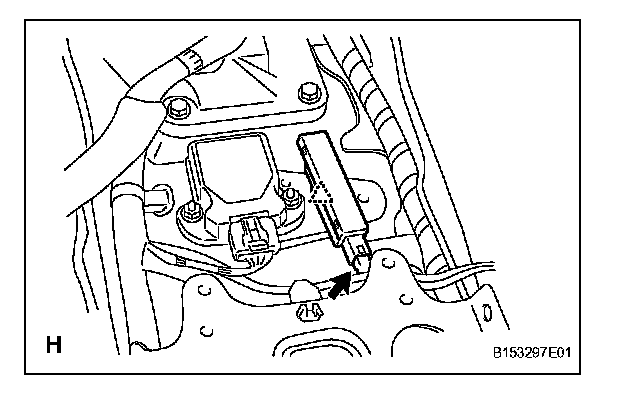

1. INSTALL INDOOR ELECTRICAL KEY OSCILLATOR
a. Install the electrical key with the clamp.
b. Connect the connector.

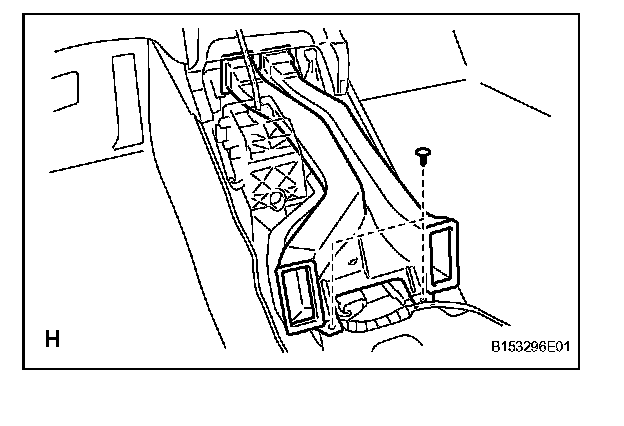

2. INSTALL NO.1 CONSOLE BOX DUCT




a. Install the duct with the 2 clips.

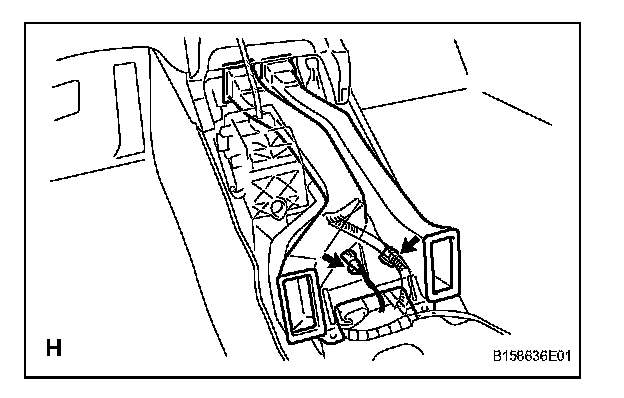

b. Attach the 2 clamps.

3. INSTALL CONSOLE BOX ASSEMBLY
4. INSTALL CONSOLE COVER LOWER
5. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY
6. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
7. INSTALL REAR CONSOLE PANEL UPPER
8. INSTALL NO.3 BOX PANEL
9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
