Electrical Key Antenna (For Luggage Room)

Electrical Key Antenna(for Luggage Room):

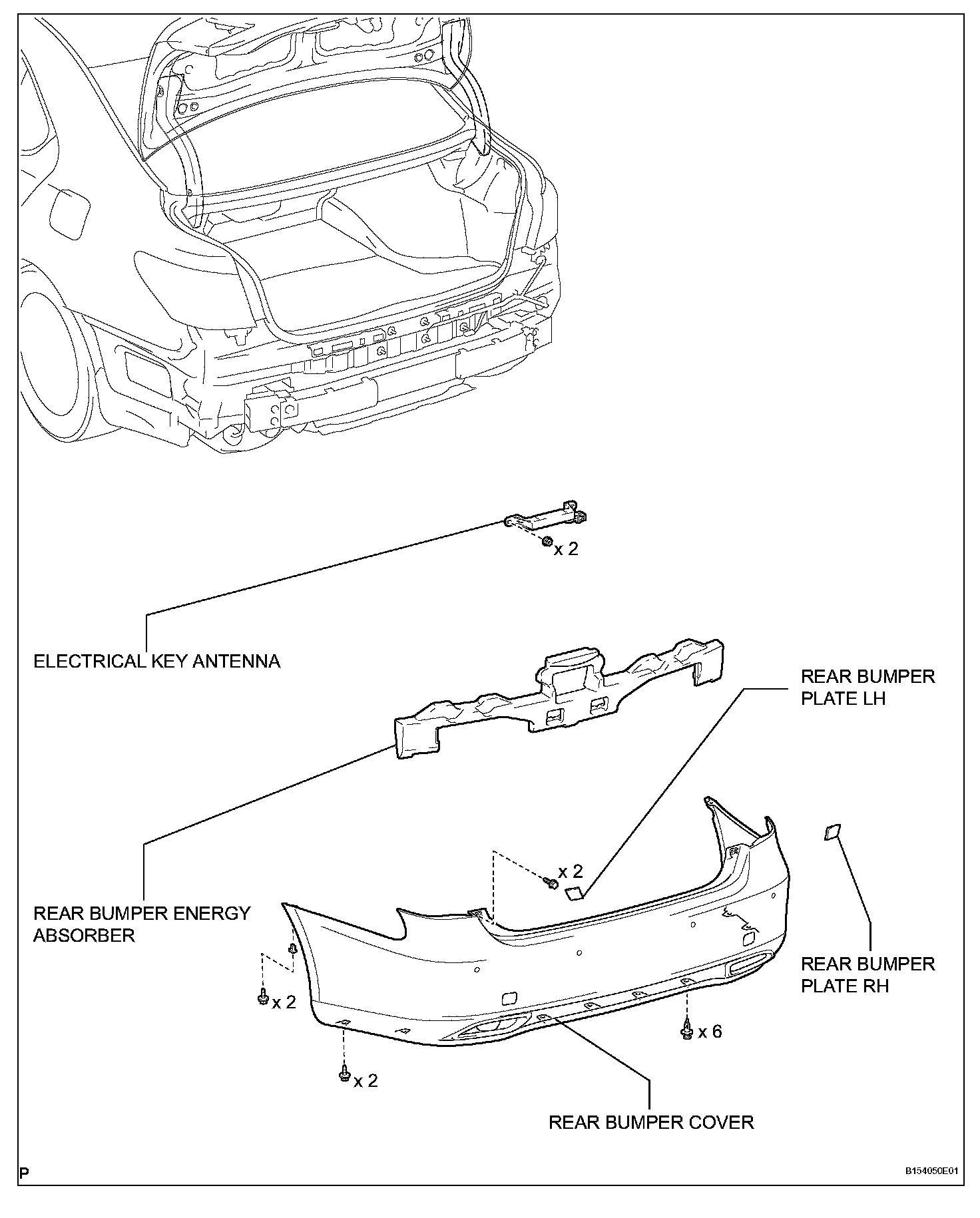

ELECTRICAL KEY ANTENNA (for Luggage Room)

REMOVAL

1. REMOVE REAR BUMPER PLATE LH
2. REMOVE REAR BUMPER PLATE RH
3. REMOVE REAR BUMPER COVER
4. REMOVE REAR BUMPER ENERGY ABSORBER

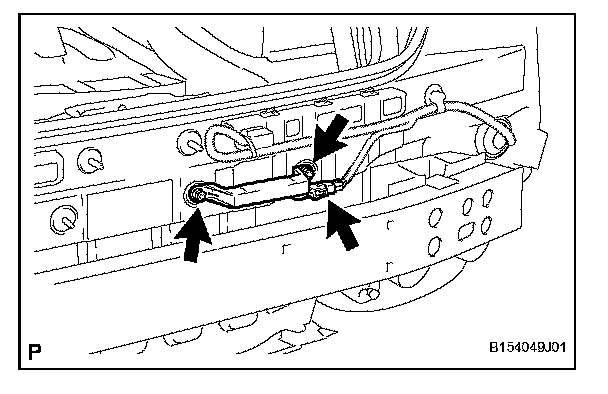

5. REMOVE ELECTRICAL KEY ANTENNA
a. Disconnect the connector.
b. Remove the 2 nuts and antenna.

INSTALLATION

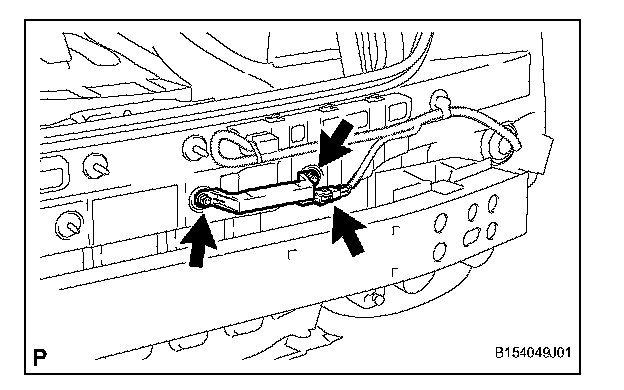

1. INSTALL ELECTRICAL KEY ANTENNA
a. Install the antenna with the 2 nuts.
b. Connect the connector.

2. INSTALL REAR BUMPER ENERGY ABSORBER
3. INSTALL REAR BUMPER COVER
4. INSTALL REAR BUMPER PLATE LH
5. INSTALL REAR BUMPER PLATE RH
