Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations

Keyless Entry: Locations

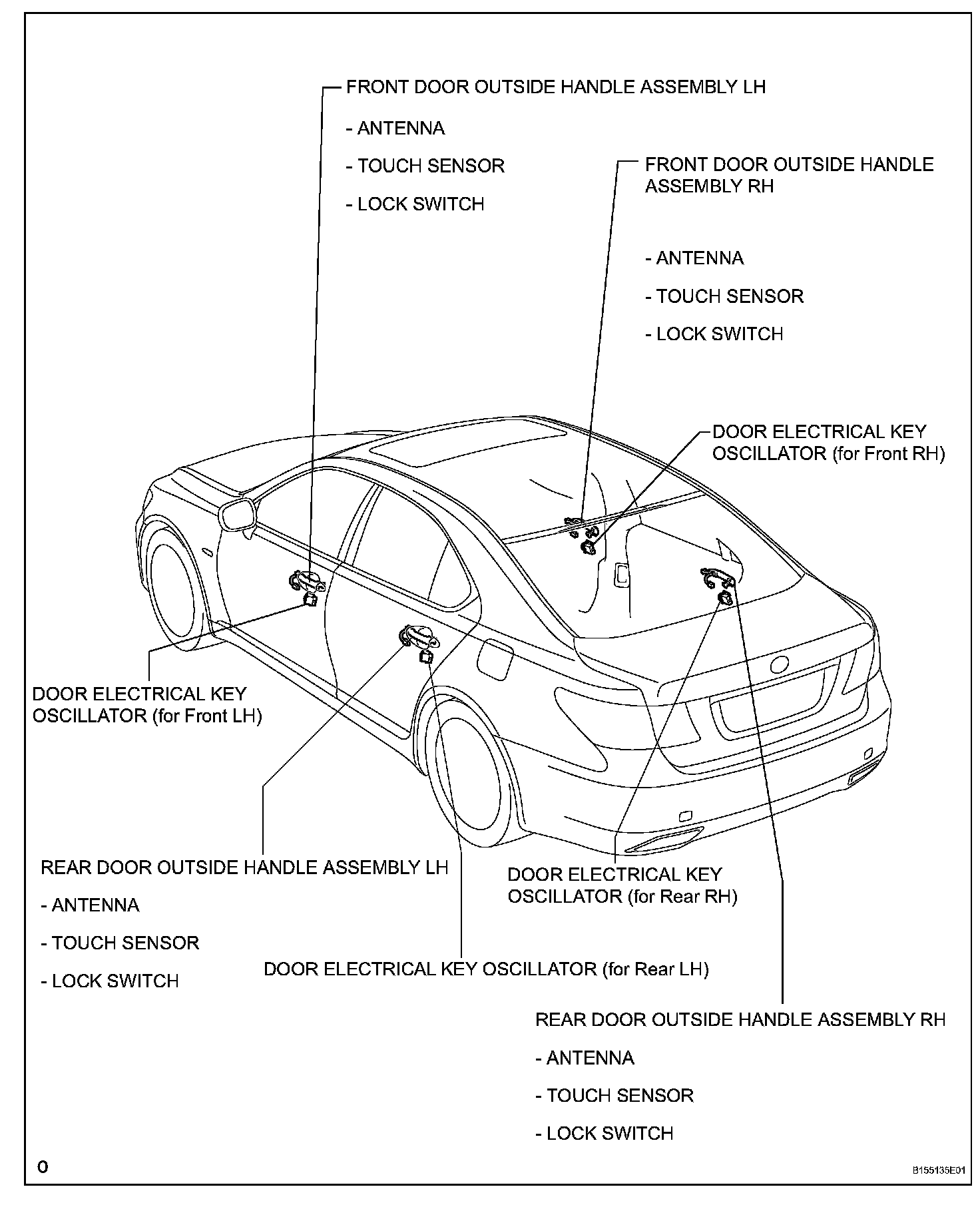

Wireless Door Lock Control System:

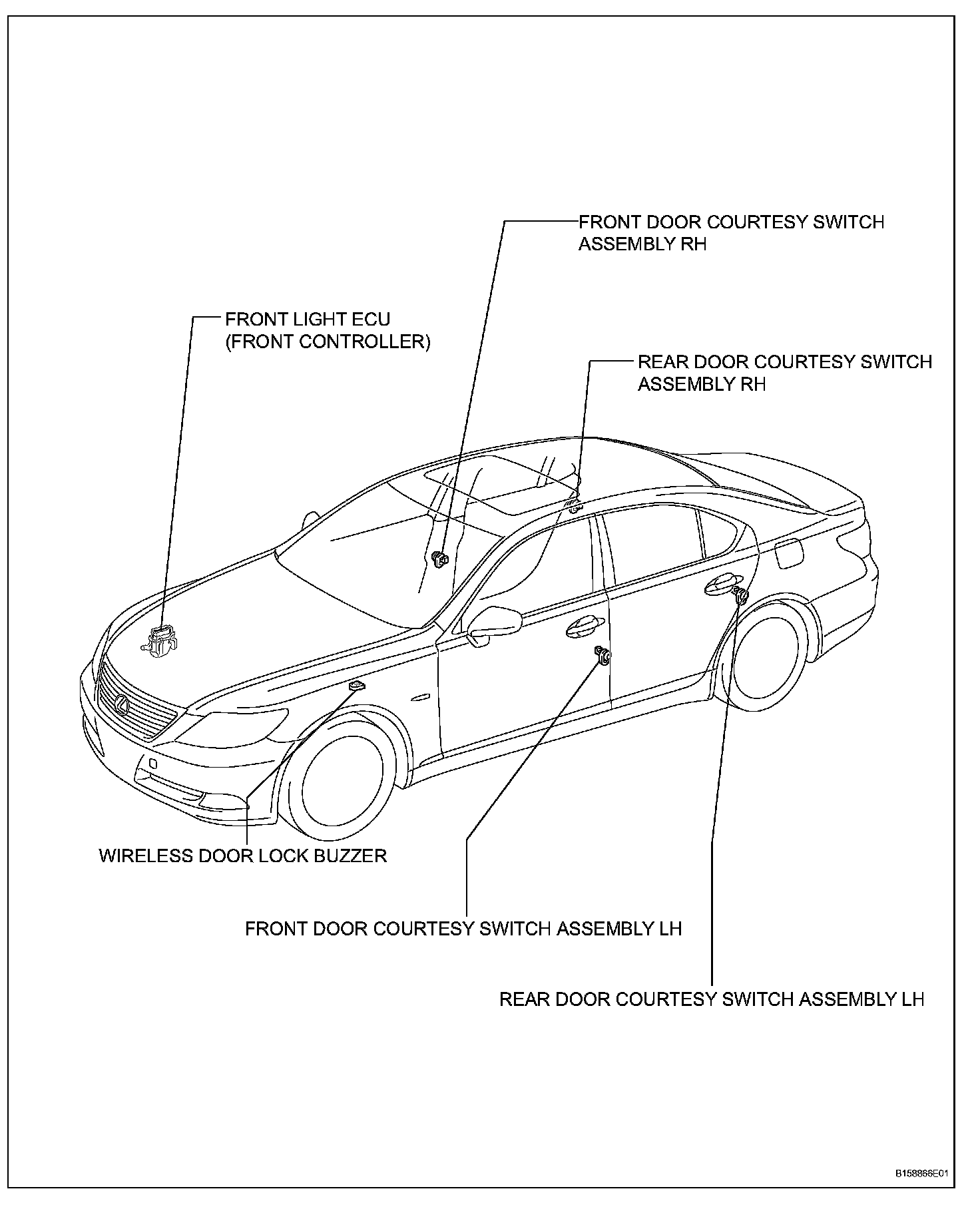

Wireless Door Lock Control System:

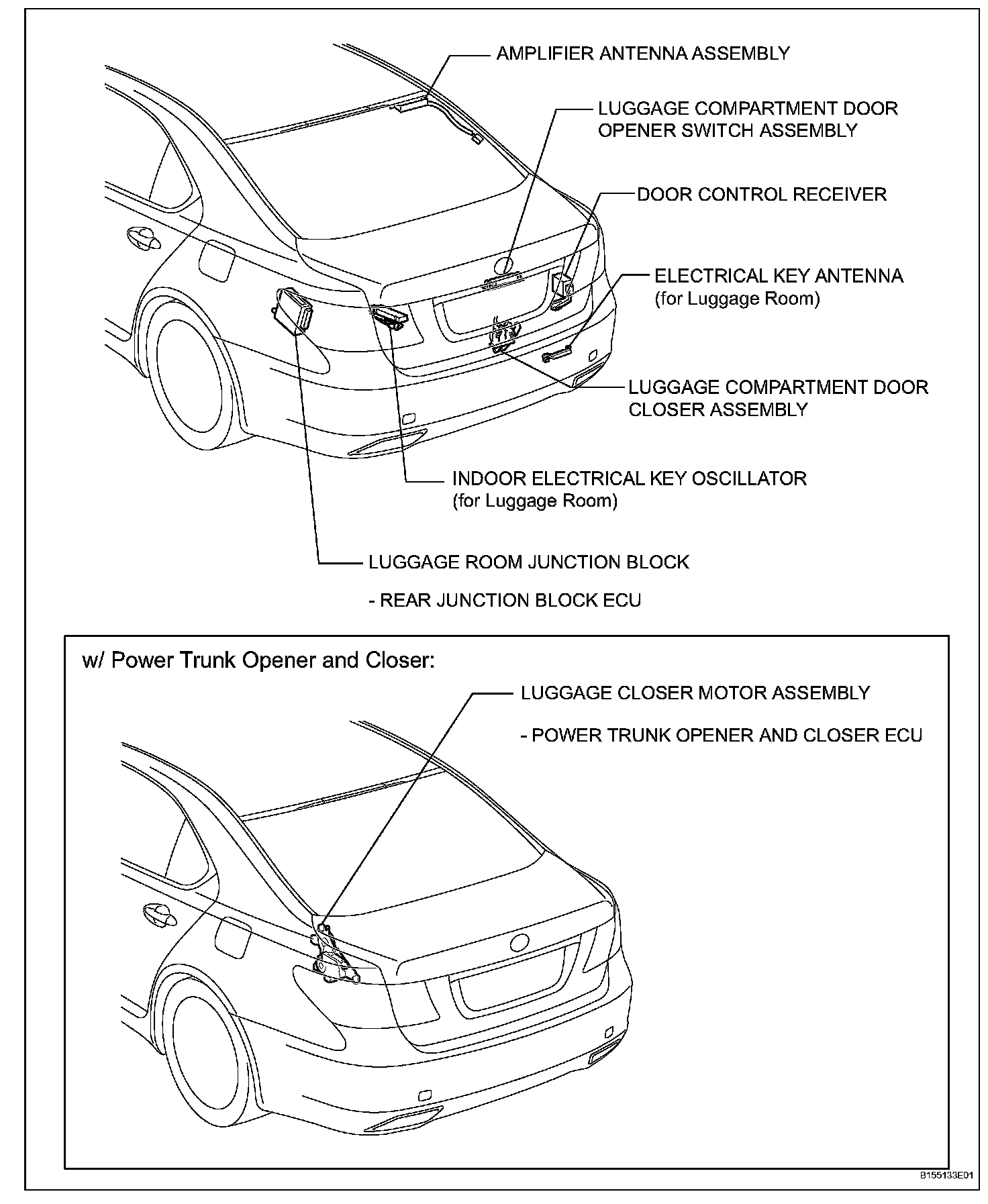

Wireless Door Lock Control System:

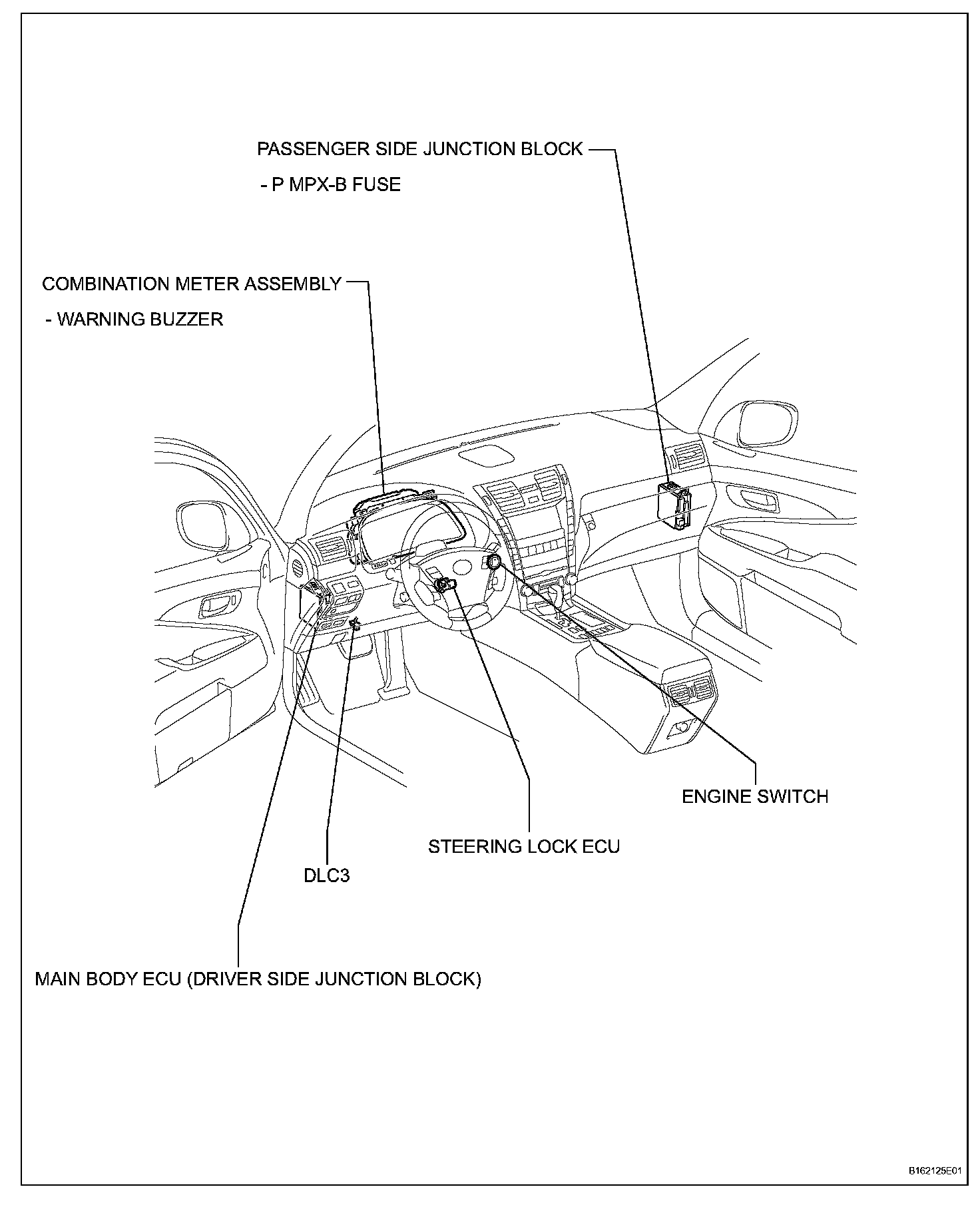

Wireless Door Lock Control System:



Wireless Door Lock Control System:



Wireless Door Lock Control System:

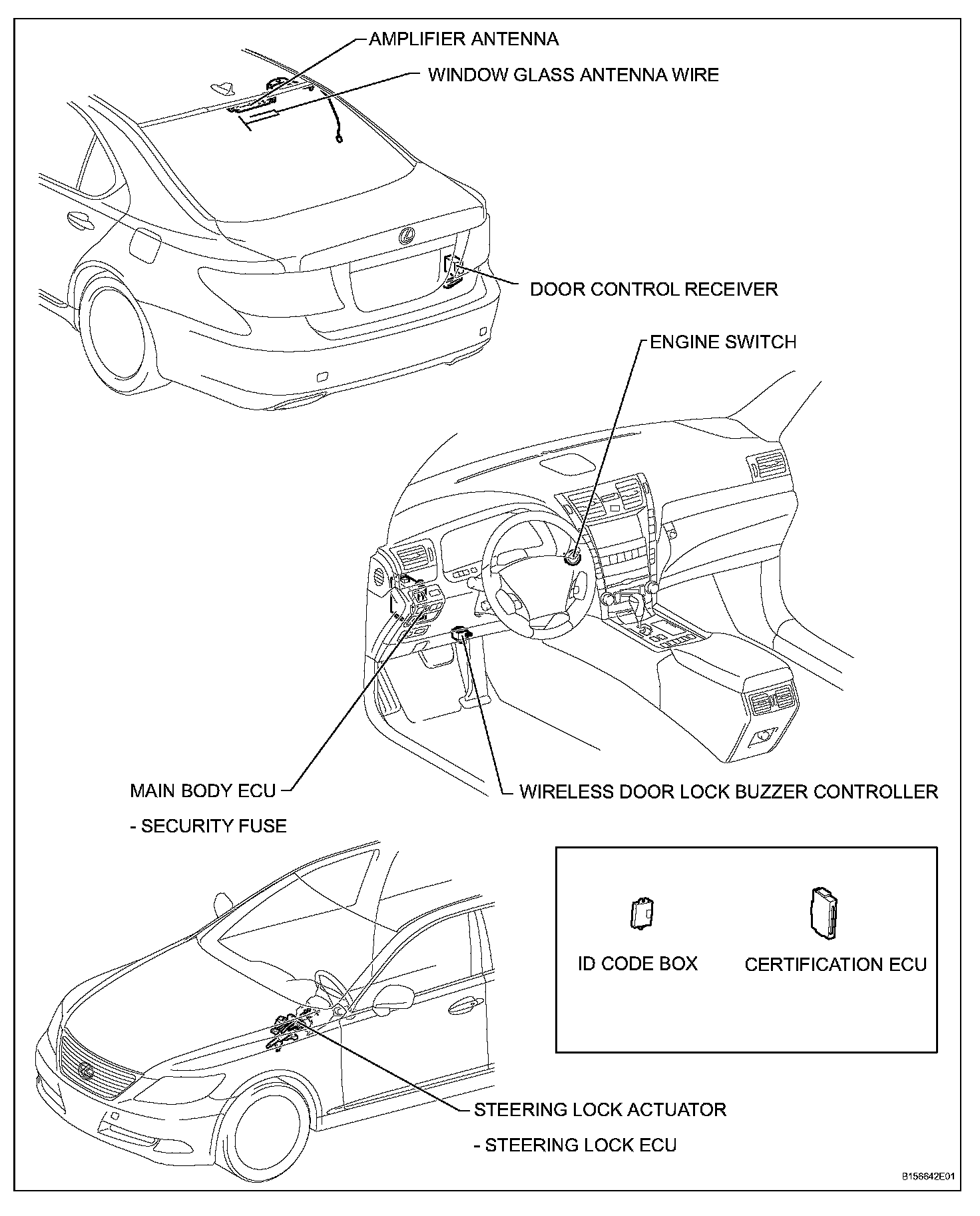

Smart Access System With Push-button Start:

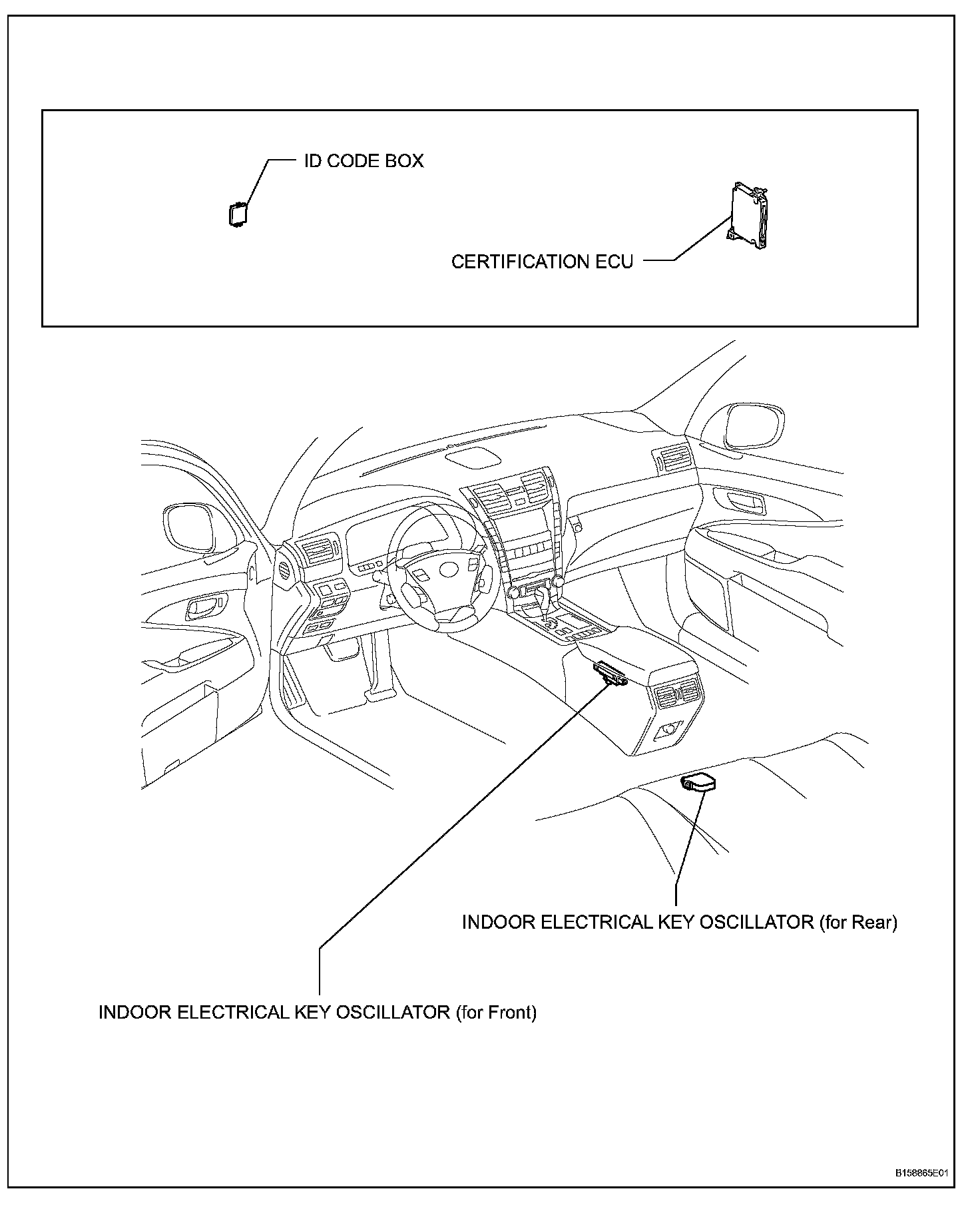

Smart Access System With Push-button Start:

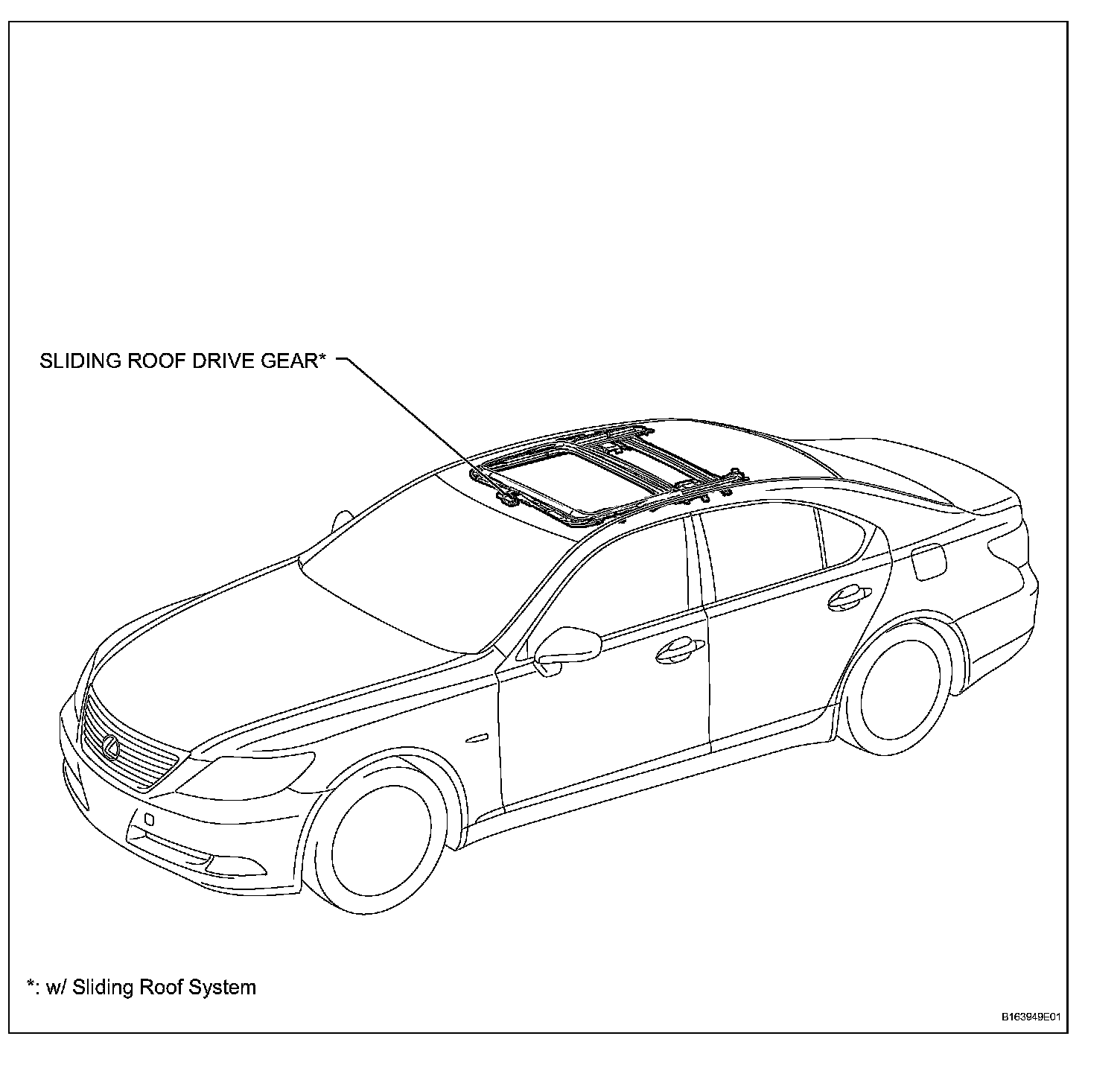

Smart Access System With Push-button Start:



Smart Access System With Push-button Start:



Smart Access System With Push-button Start:



Smart Access System With Push-button Start:
