Alarm Horn: Testing and Inspection

INSPECTION

1. INSPECT SECURITY HORN ASSEMBLY

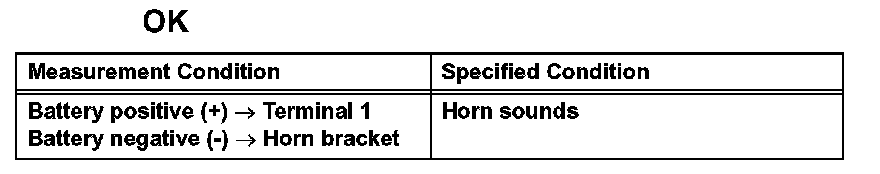

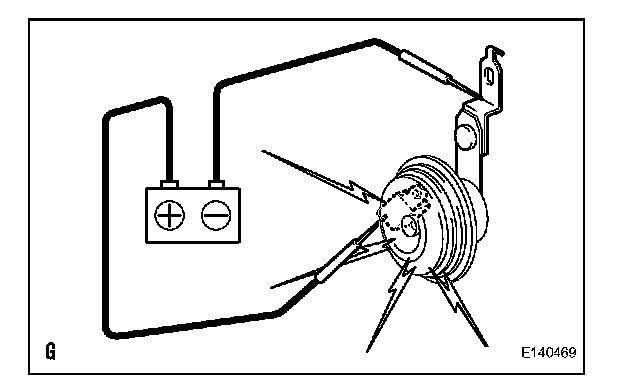

a. Apply battery voltage and check operation of the horn.

If the result is not as specified, replace the horn assembly.
