Alarm Horn: Service and Repair

Security Horn Assembly:

Security Horn Assembly:

Security Horn Assembly:

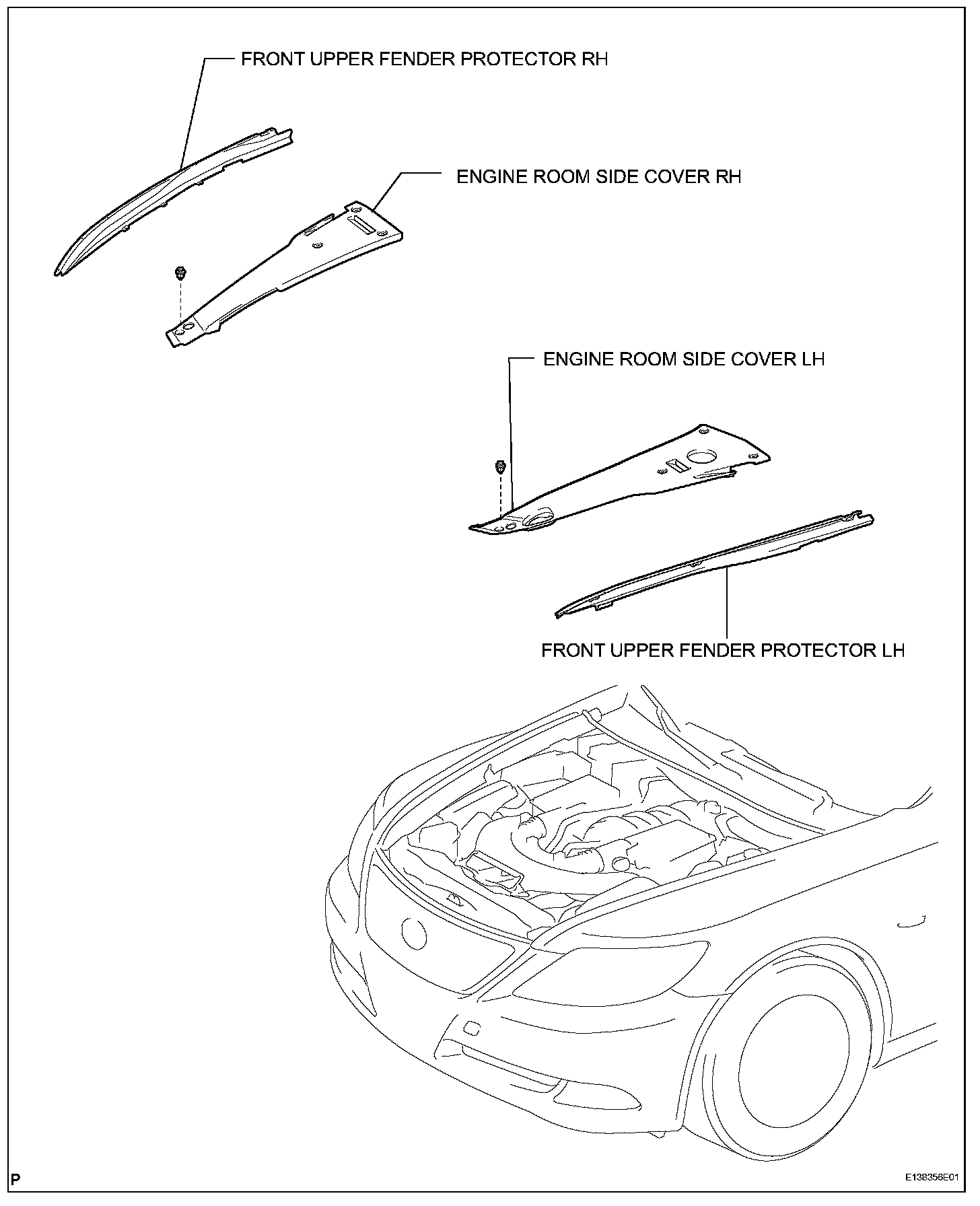

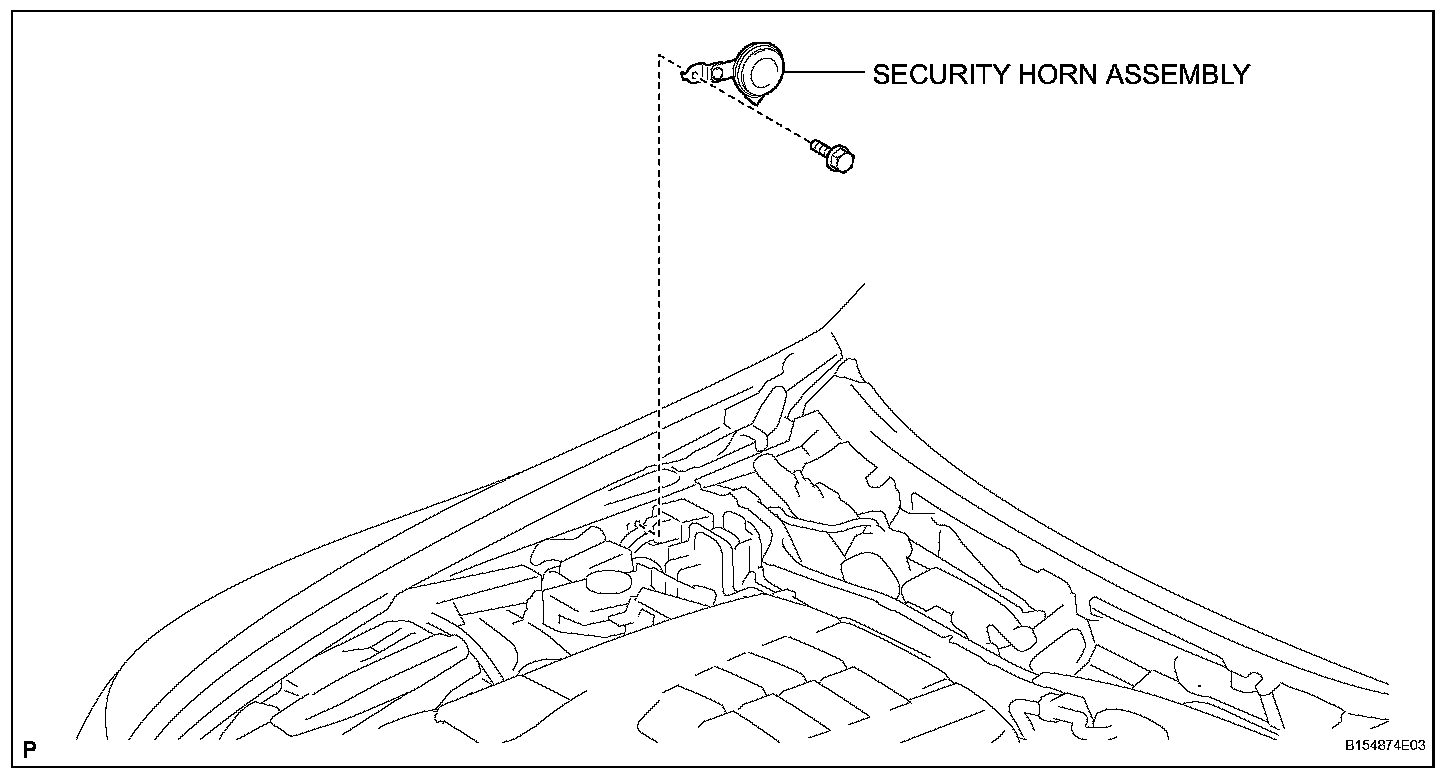

SECURITY HORN ASSEMBLY

REMOVAL

1. REMOVE FRONT WIPER ARM LH
2. REMOVE FRONT WIPER ARM RH
3. REMOVE ENGINE ROOM SIDE COVER LH
4. REMOVE ENGINE ROOM SIDE COVER RH
5. REMOVE FRONT UPPER FENDER PROTECTOR LH
6. REMOVE FRONT UPPER FENDER PROTECTOR RH
7. REMOVE HOOD TO COWL TOP SEAL
8. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
9. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
10. REMOVE COWL TOP VENTILATOR LOUVER LH

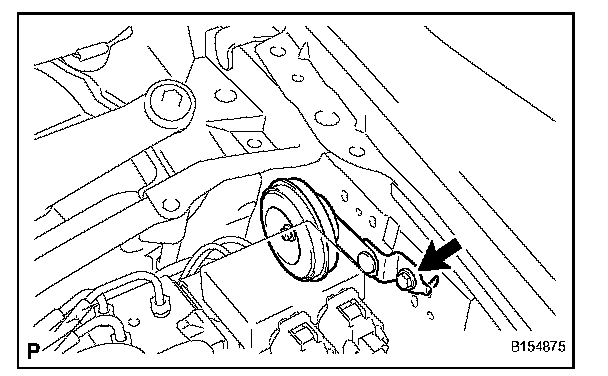

11. REMOVE SECURITY HORN ASSEMBLY




a. Disconnect the connector.
b. Remove the bolt and horn.

INSTALLATION

HINT: A bolt without a torque specification is shown in the standard bolt chart.

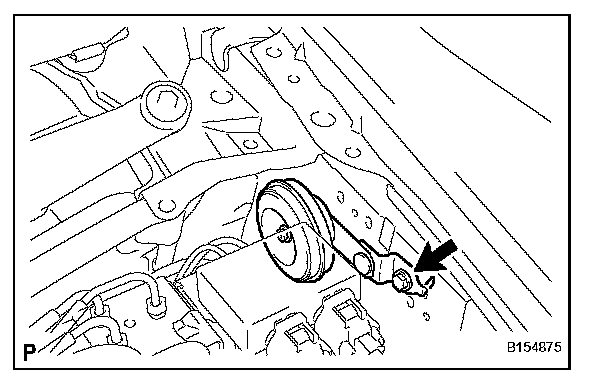

1. INSTALL SECURITY HORN ASSEMBLY




a. Install the horn with the bolt.
b. Connect the connector.

2. INSTALL COWL TOP VENTILATOR LOUVER LH
3. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
4. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
5. INSTALL HOOD TO COWL TOP SEAL
6. INSTALL FRONT UPPER FENDER PROTECTOR LH
7. INSTALL FRONT UPPER FENDER PROTECTOR RH
8. INSTALL ENGINE ROOM SIDE COVER LH
9. INSTALL ENGINE ROOM SIDE COVER RH
10. INSTALL FRONT WIPER ARM LH
11. INSTALL FRONT WIPER ARM RH
