U1115
U1115
DTC U1115 Lost Communication with Tilt and Telescopic Module

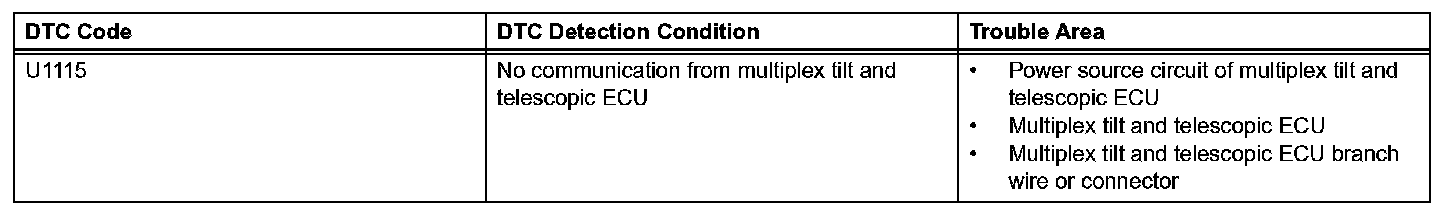

DTC Detection Condition:
DESCRIPTION

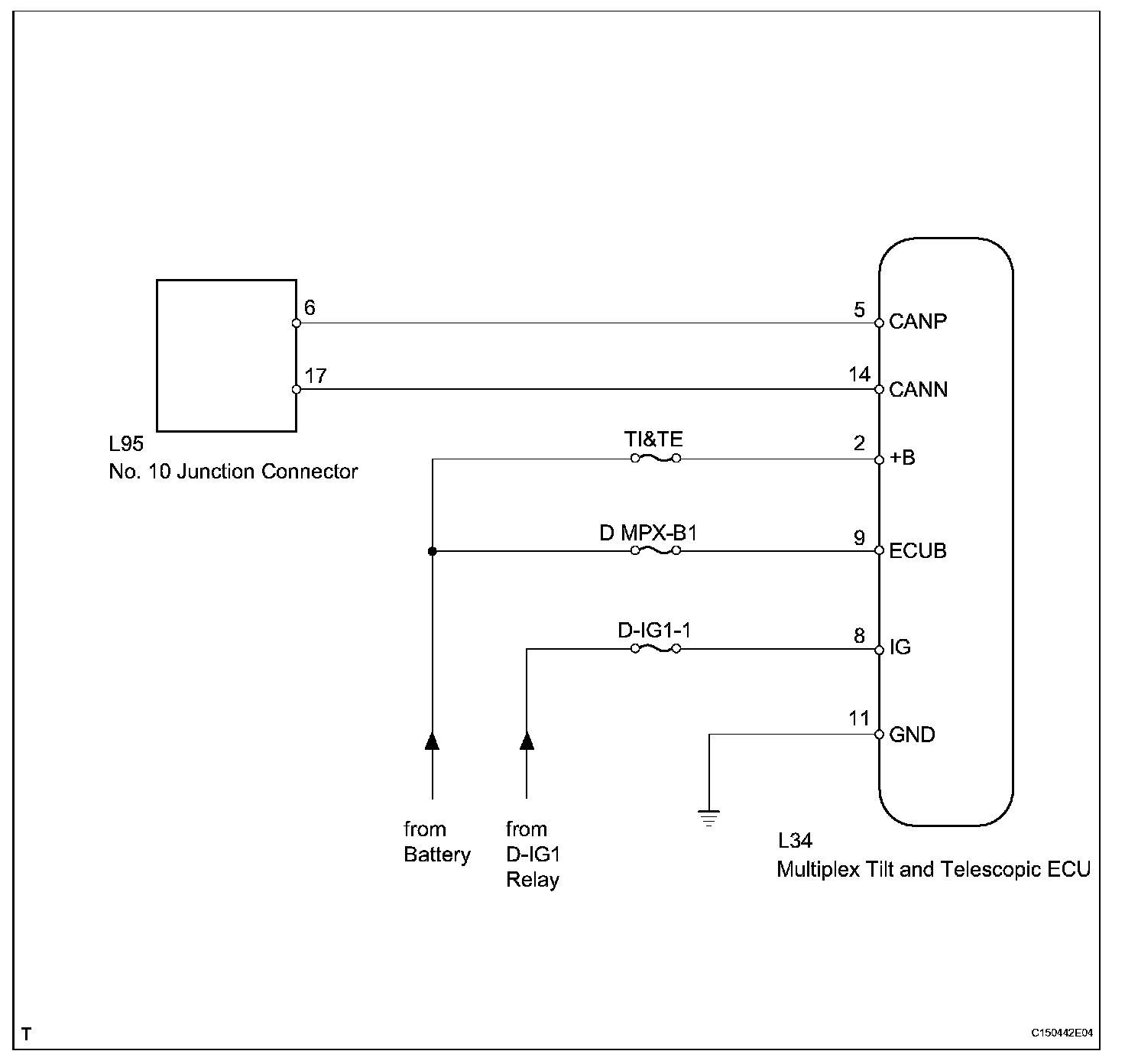

Wiring Diagram:
Step 1-2:

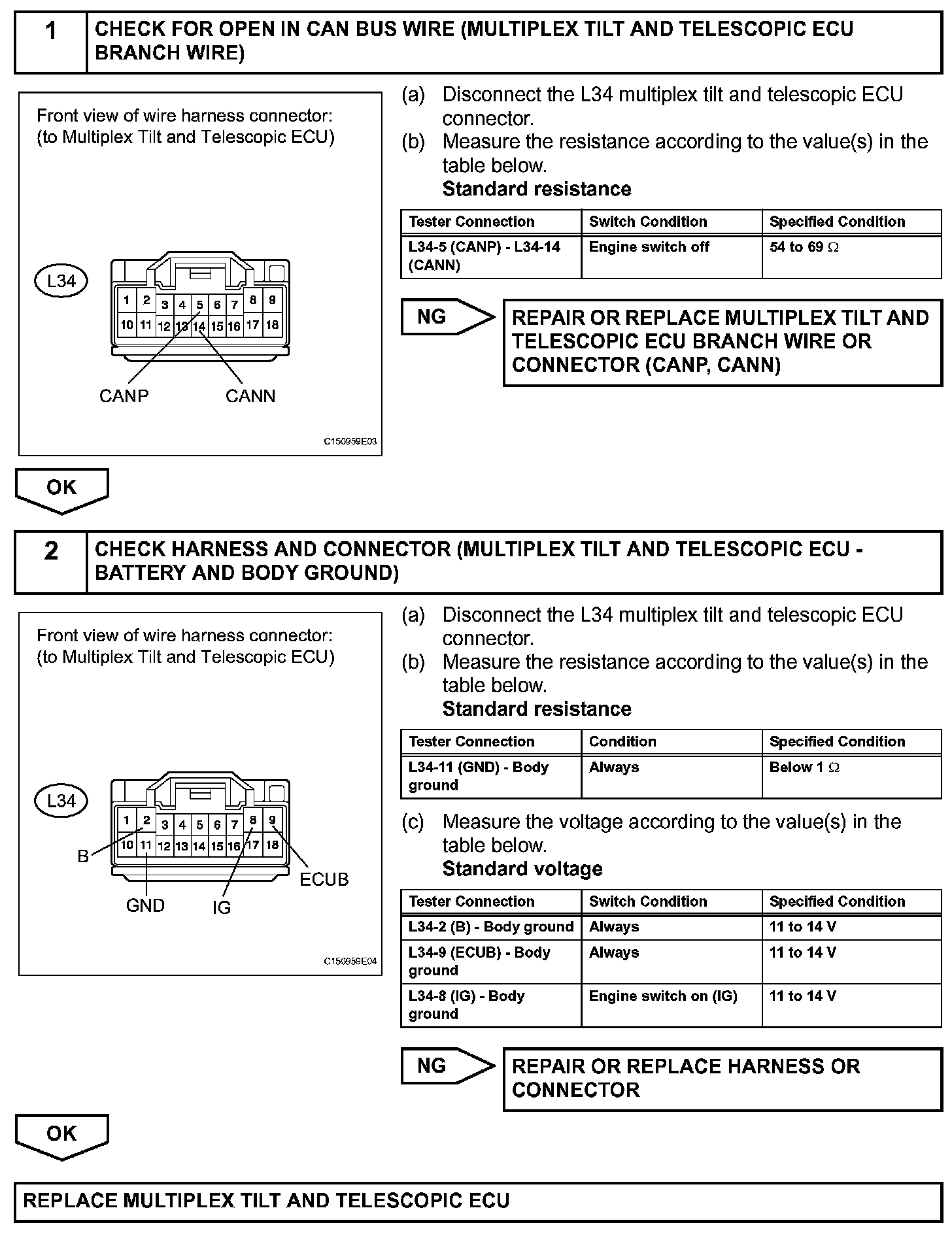

INSPECTION PROCEDURE
