CAN Communication System
CAN Communication System
DTC U1114 Lost Communication with Main Switch Module

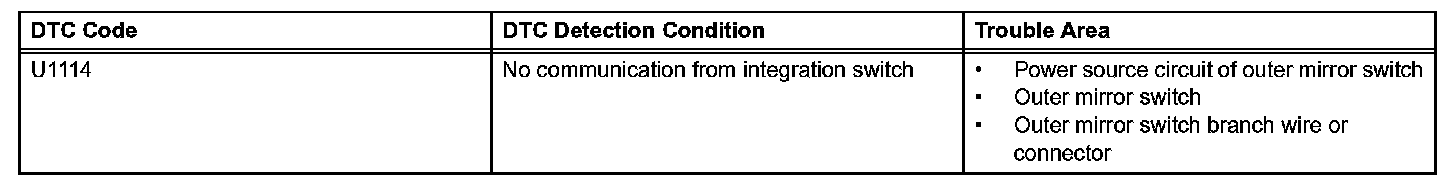

DTC Detection Condition:
DESCRIPTION
Wiring Diagram:

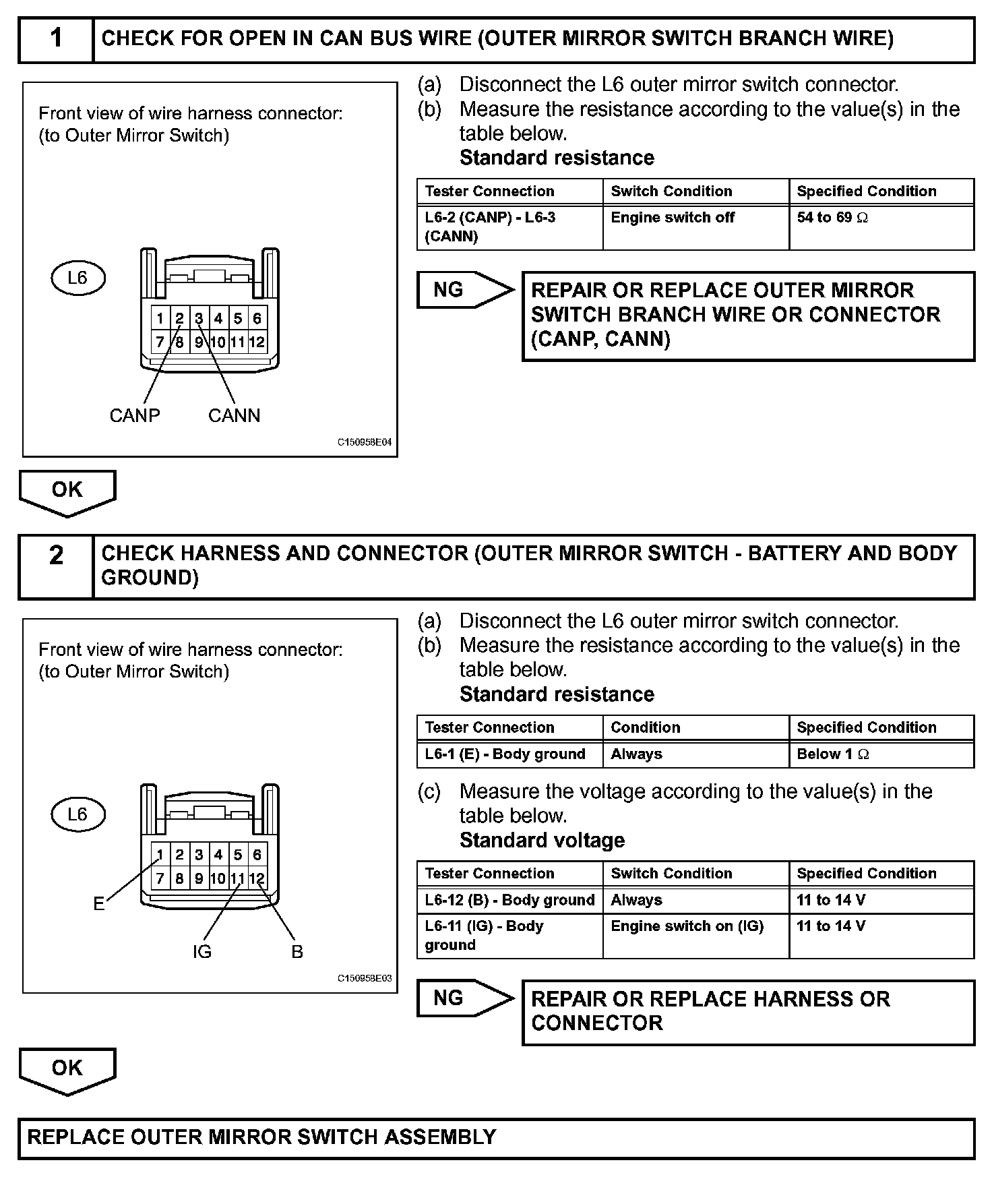

Step 1-2:
INSPECTION PROCEDURE
