U1111
>>
Lost Communication Body No. 5 Module
Lost Communication Body No. 5 Module
DTC U1111 Lost Communication with Body No. 5 Module

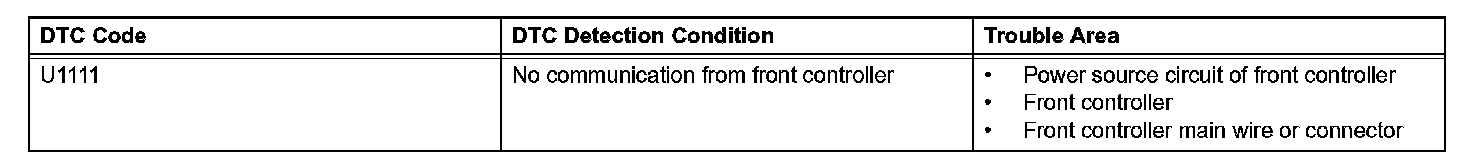

DTC Detection Condition:
DESCRIPTION

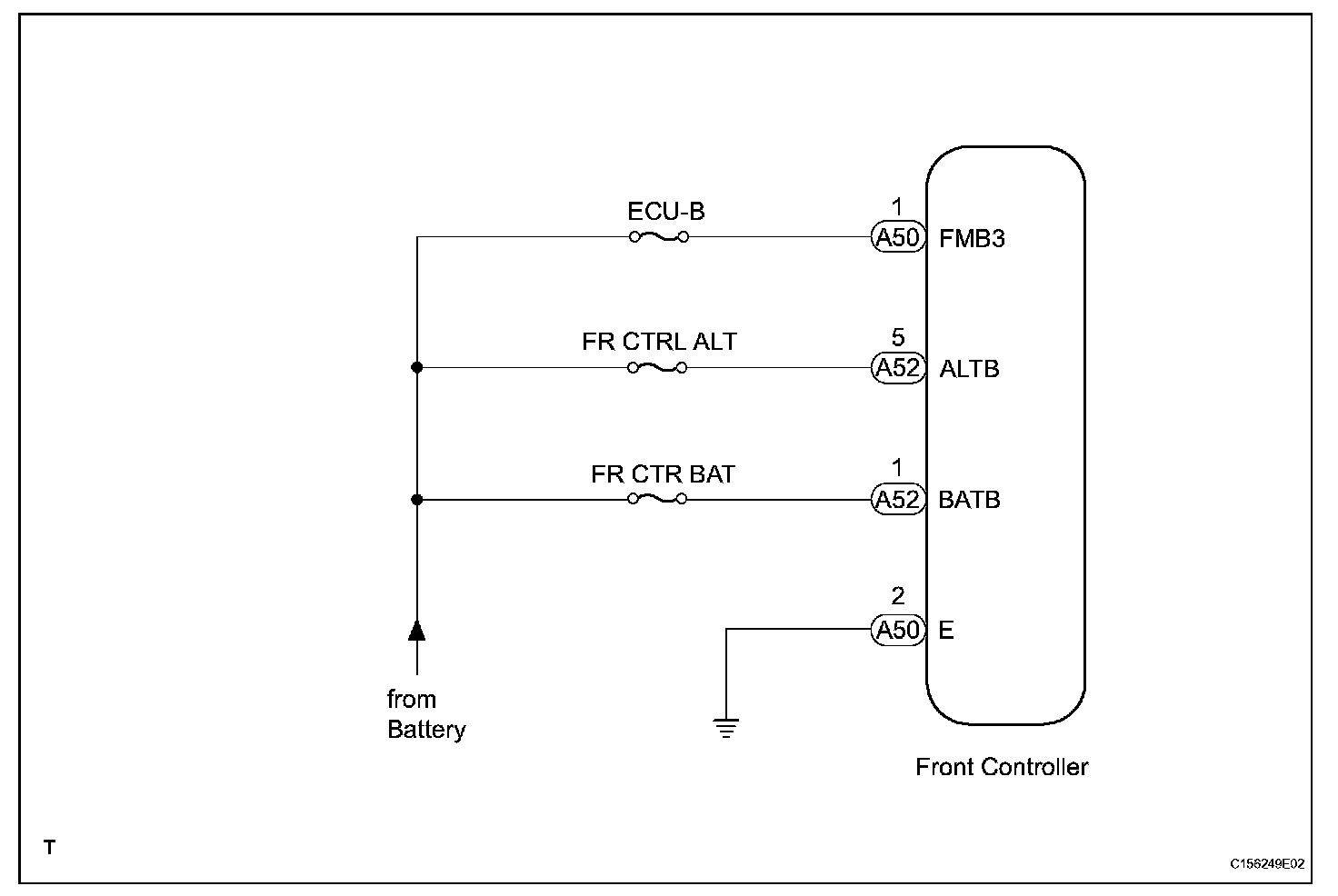

Wiring Diagram:

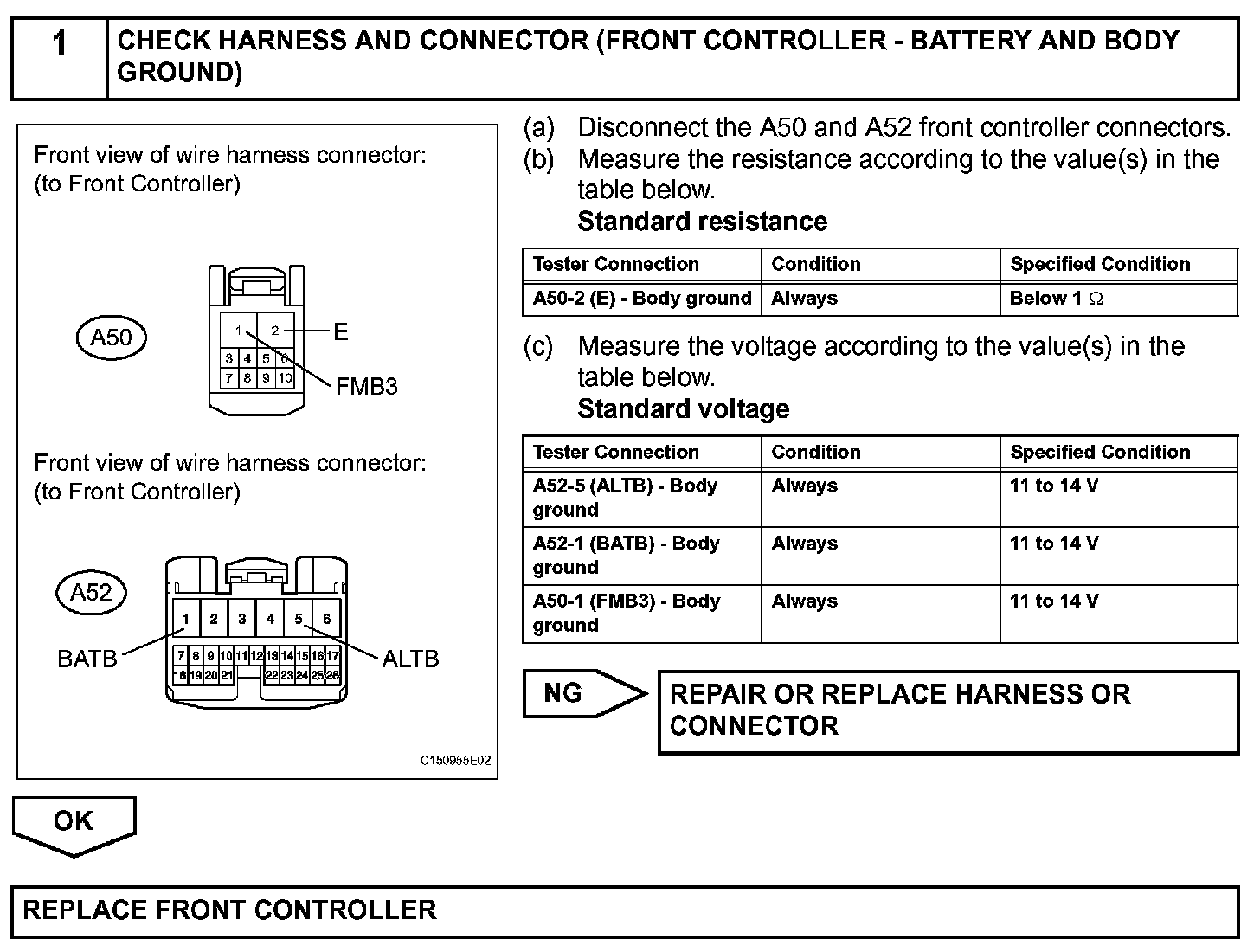

Step 1:
INSPECTION PROCEDURE
