U1110
U1110
DTC U1110 Lost Communication with Clearance Sonar Module

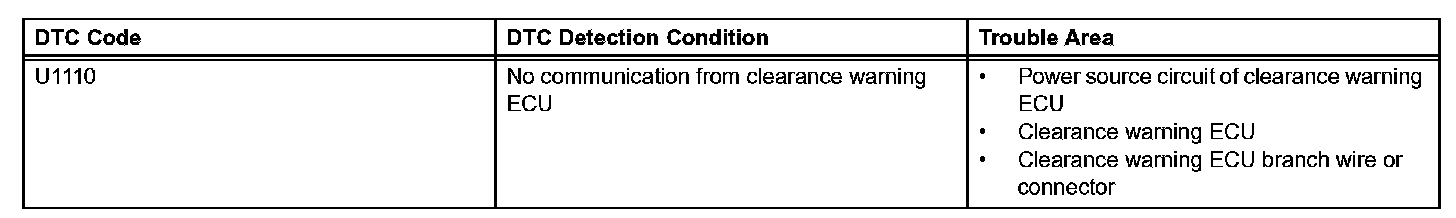

DTC Detection Condition:
DESCRIPTION

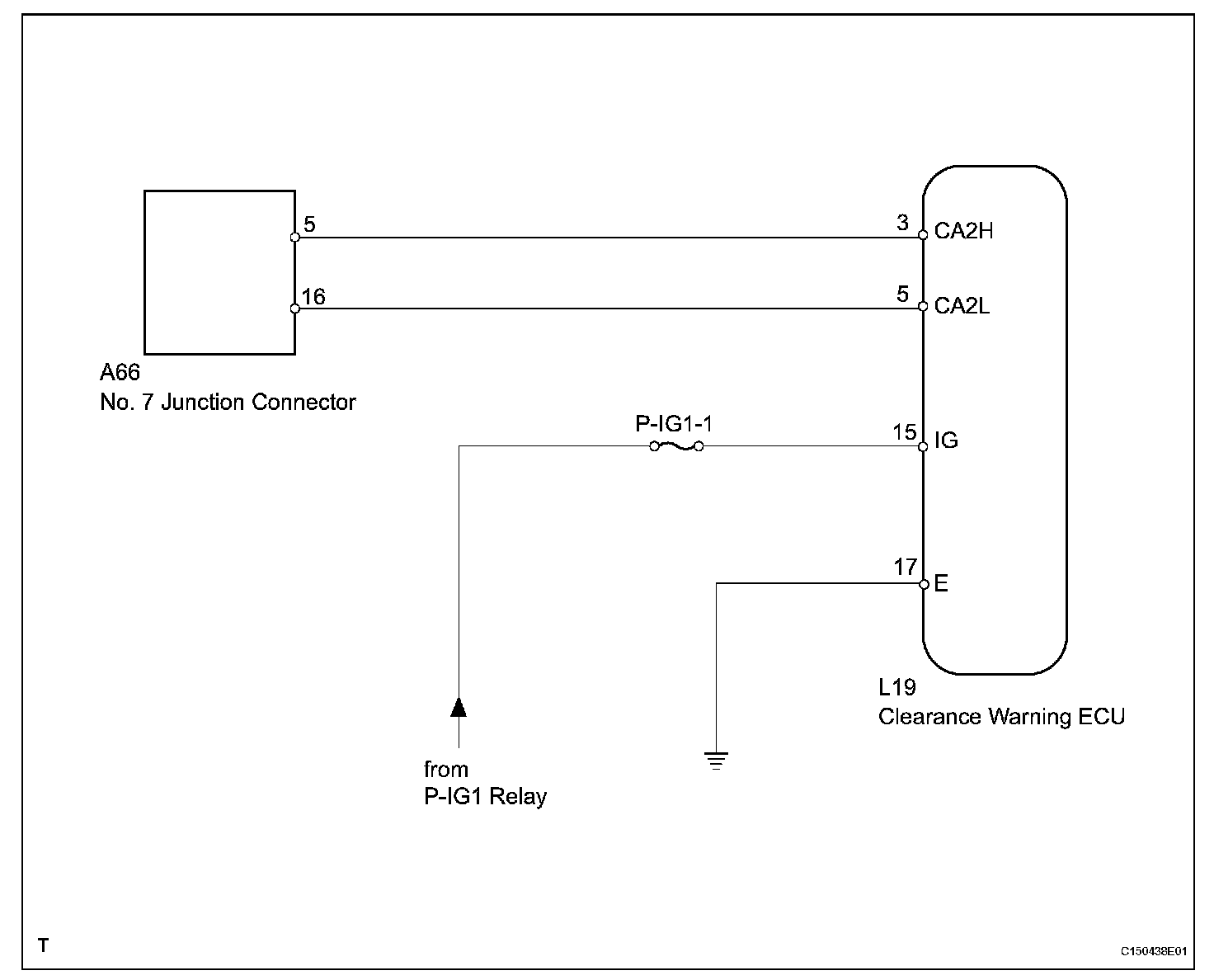

Wiring Diagram:

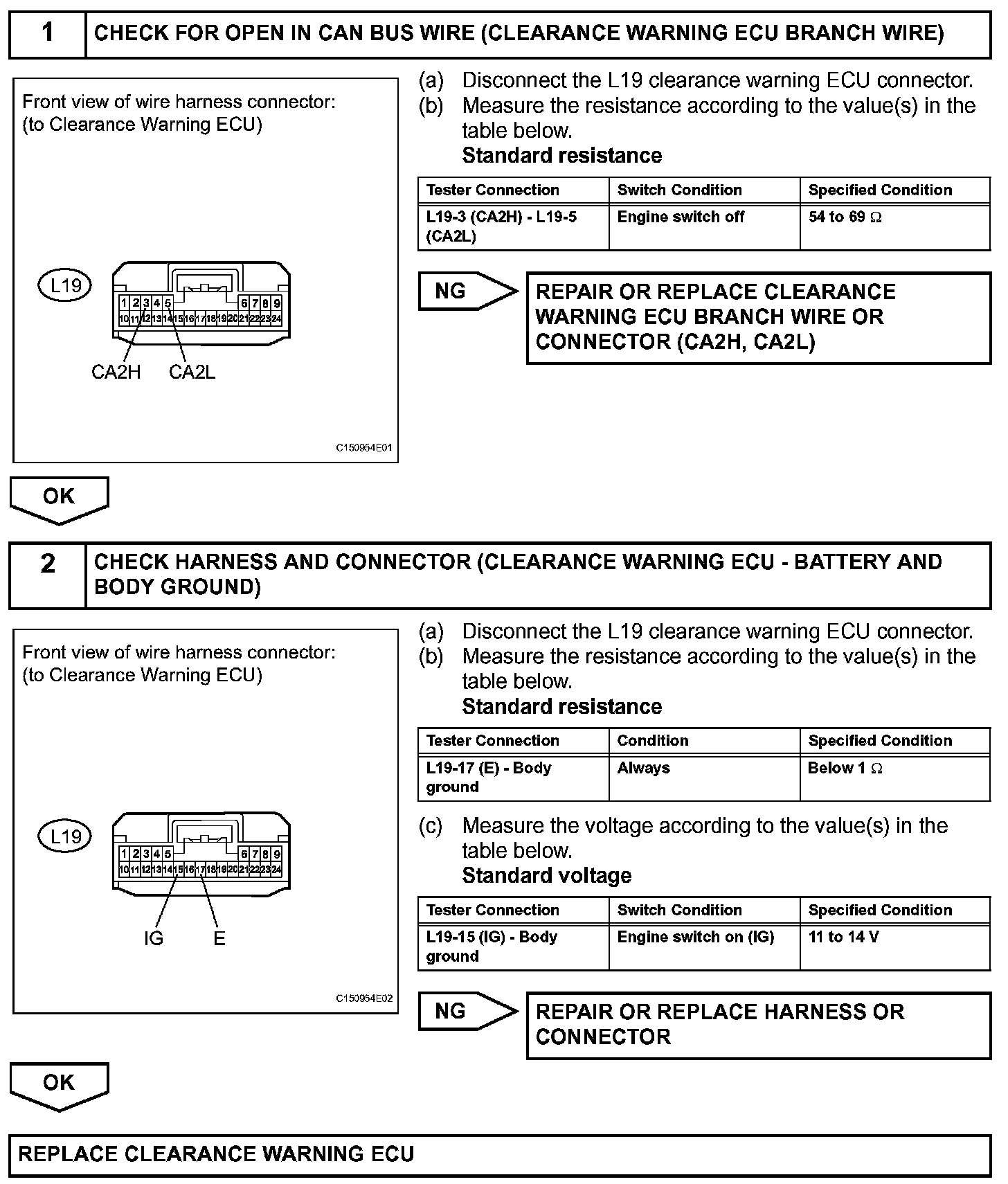

Step 1-2:
INSPECTION PROCEDURE
