U1100

DTC U1100 Lost Communication with Seat Belt Control ECU

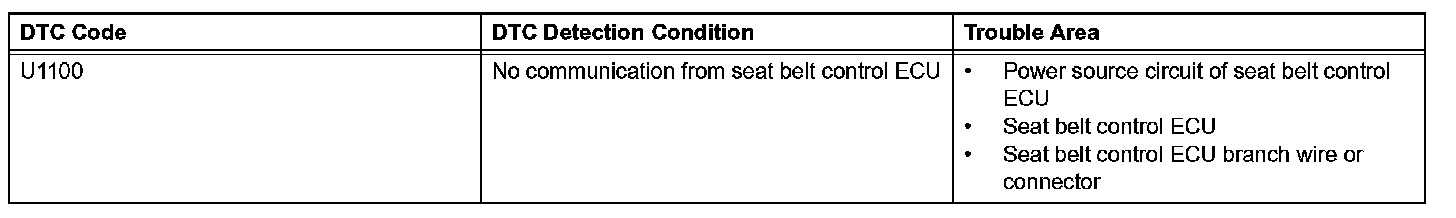

DTC Detection Condition:

DESCRIPTION

HINT: For vehicles with pre-collision system only.

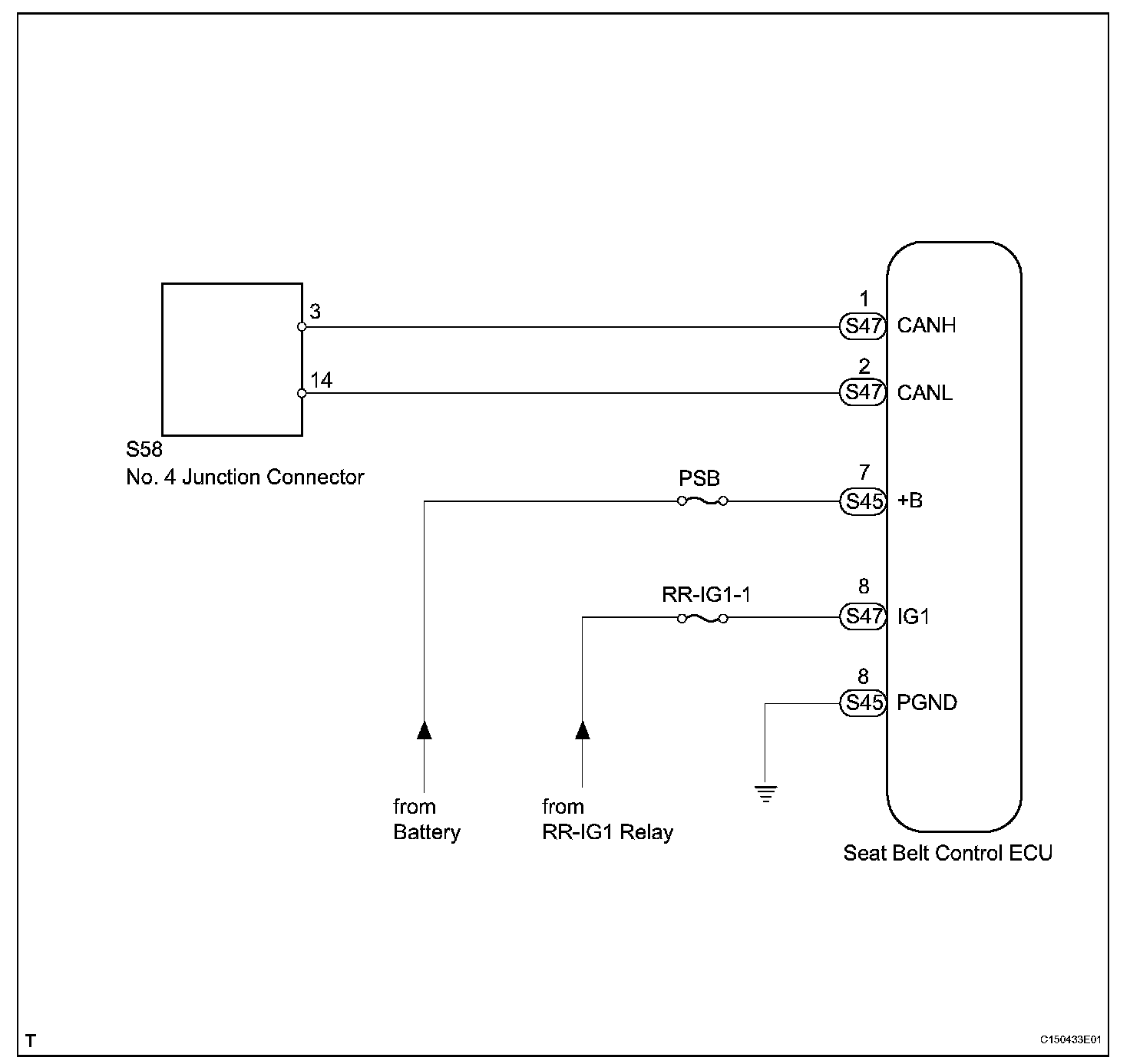

Wiring Diagram:

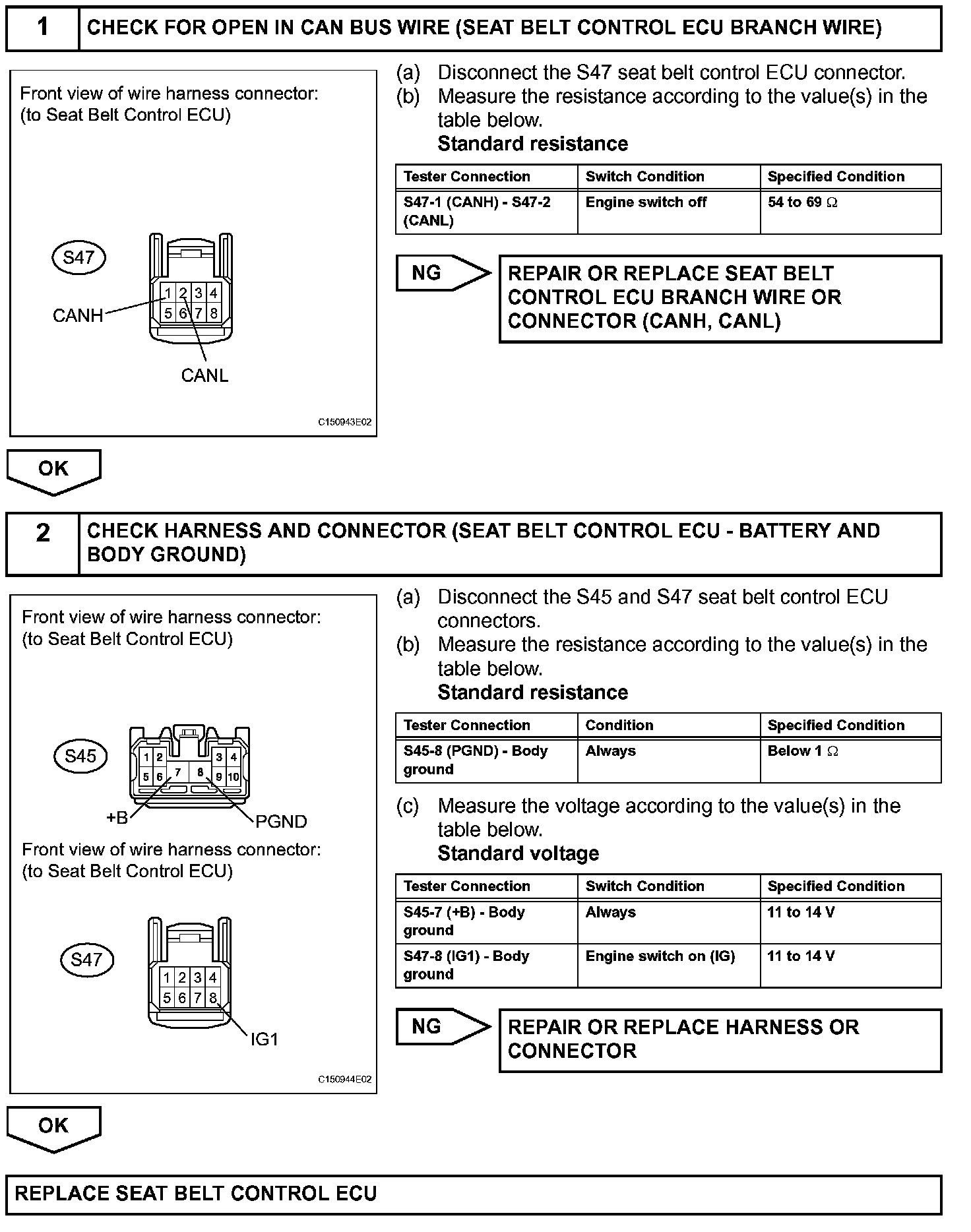

Step 1-2:

INSPECTION PROCEDURE
