U1005

DTC U1005 Lost Communication with Electronically Controlled Brake Gateway Module

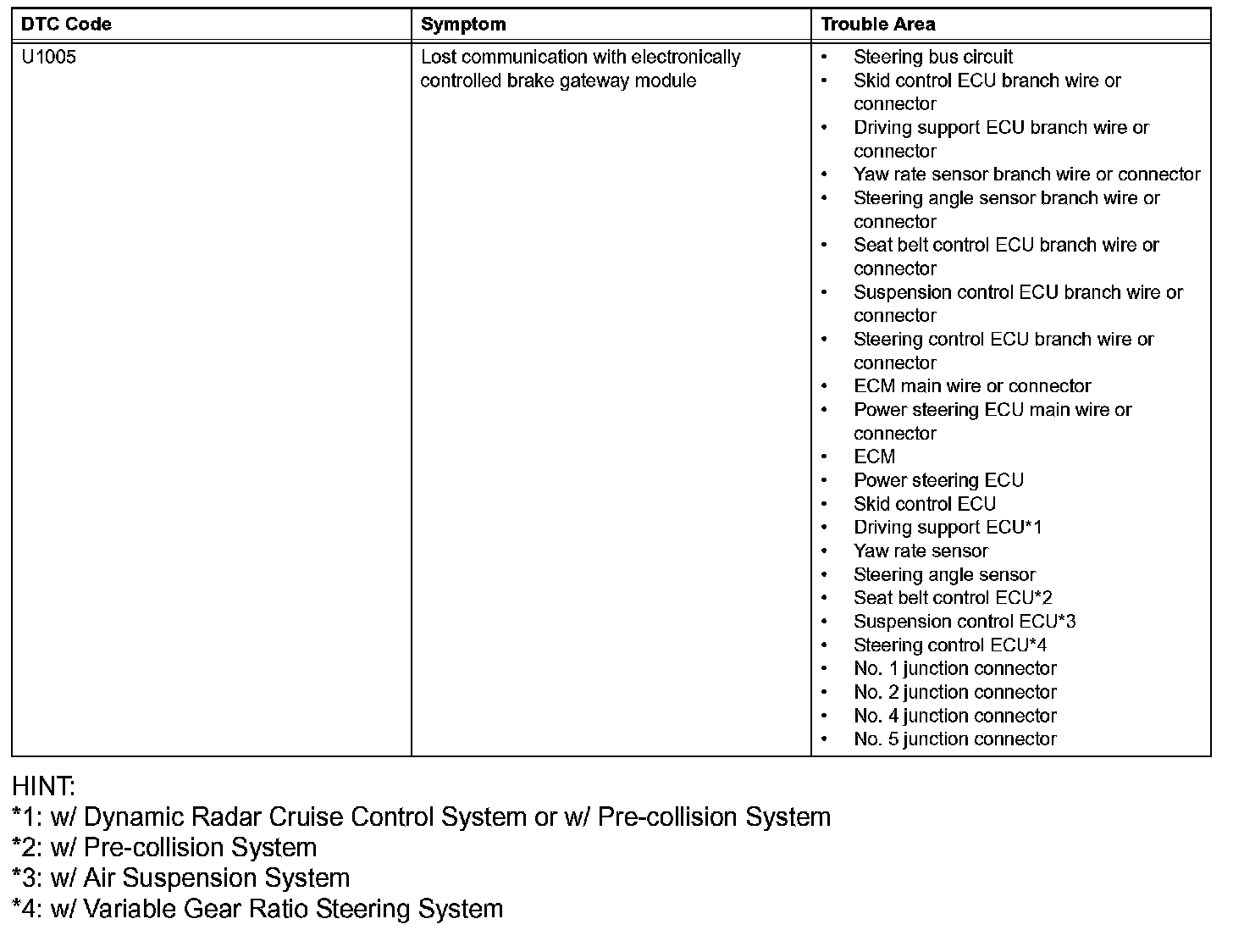

DESCRIPTION




If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire] /CANL [branch wire] of the ECU and/or sensor is open.)

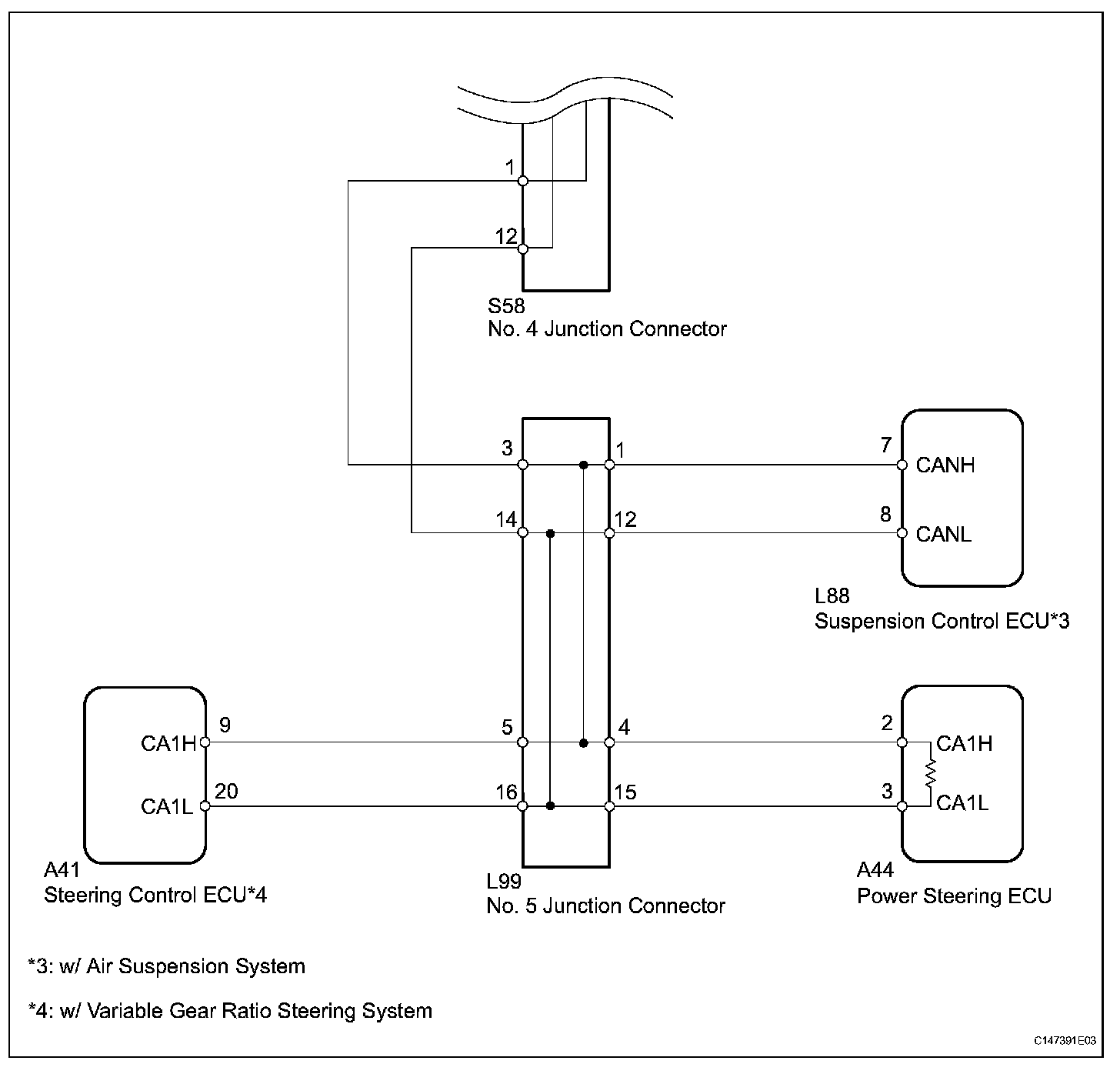

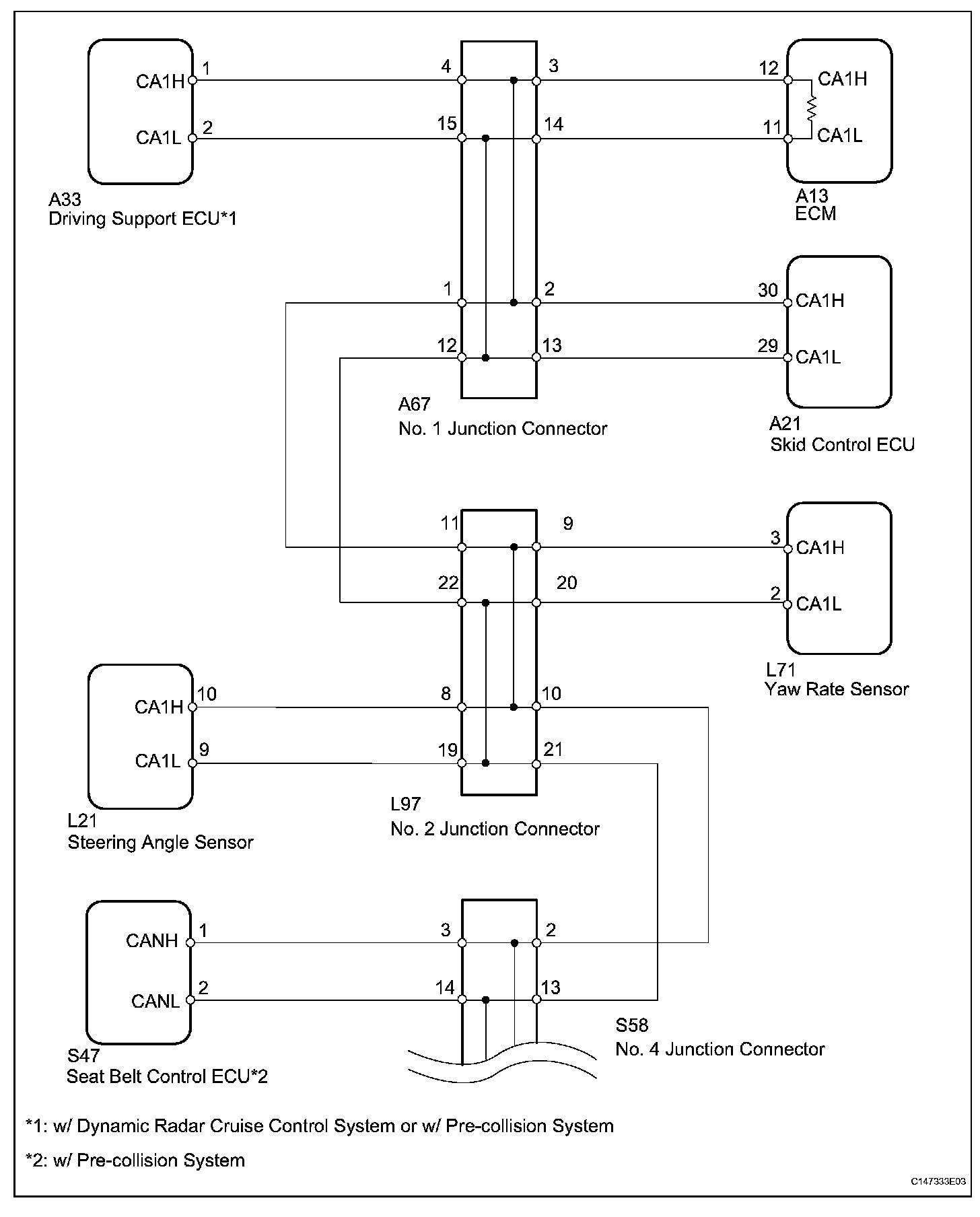

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

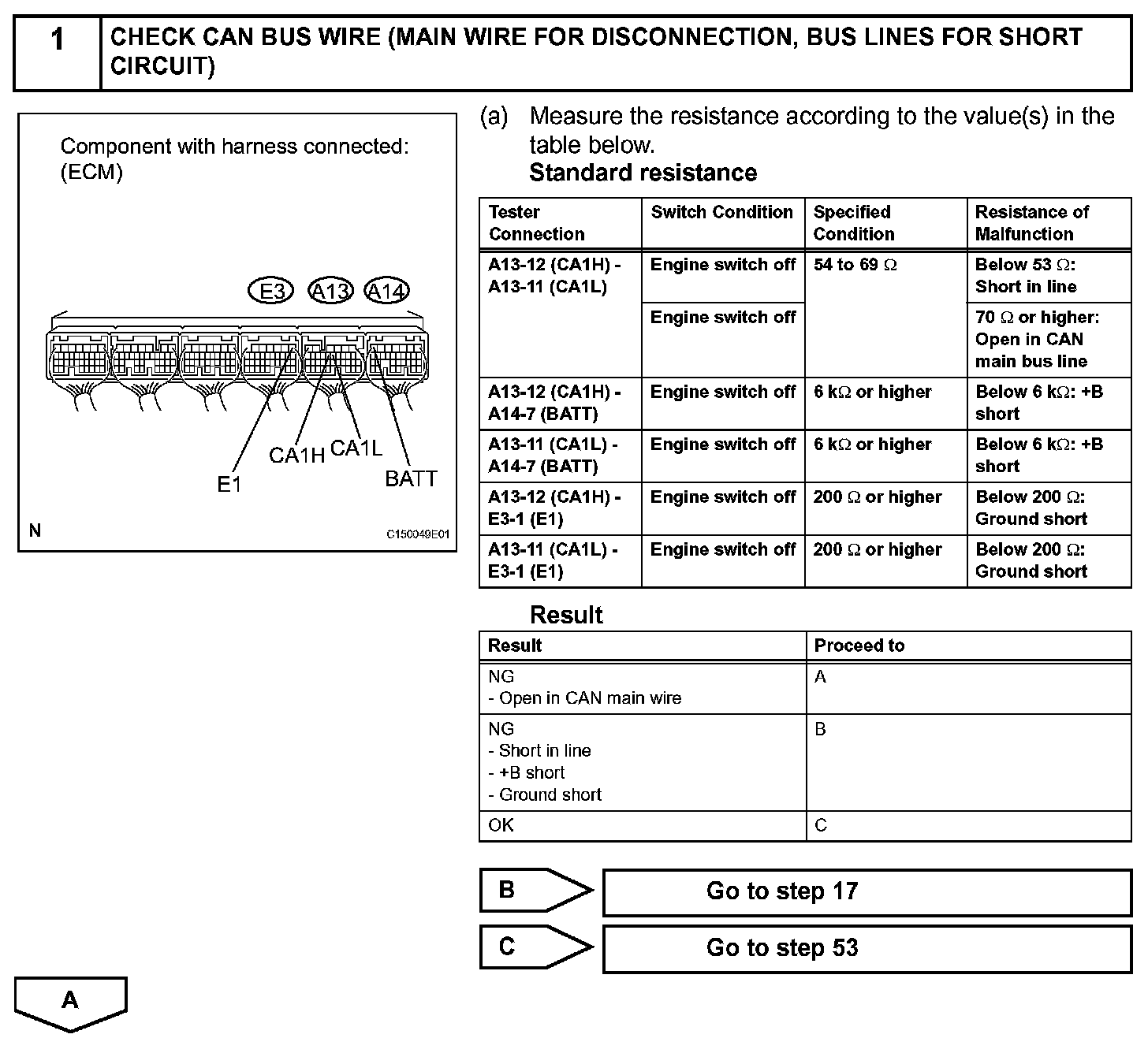

Step 1:

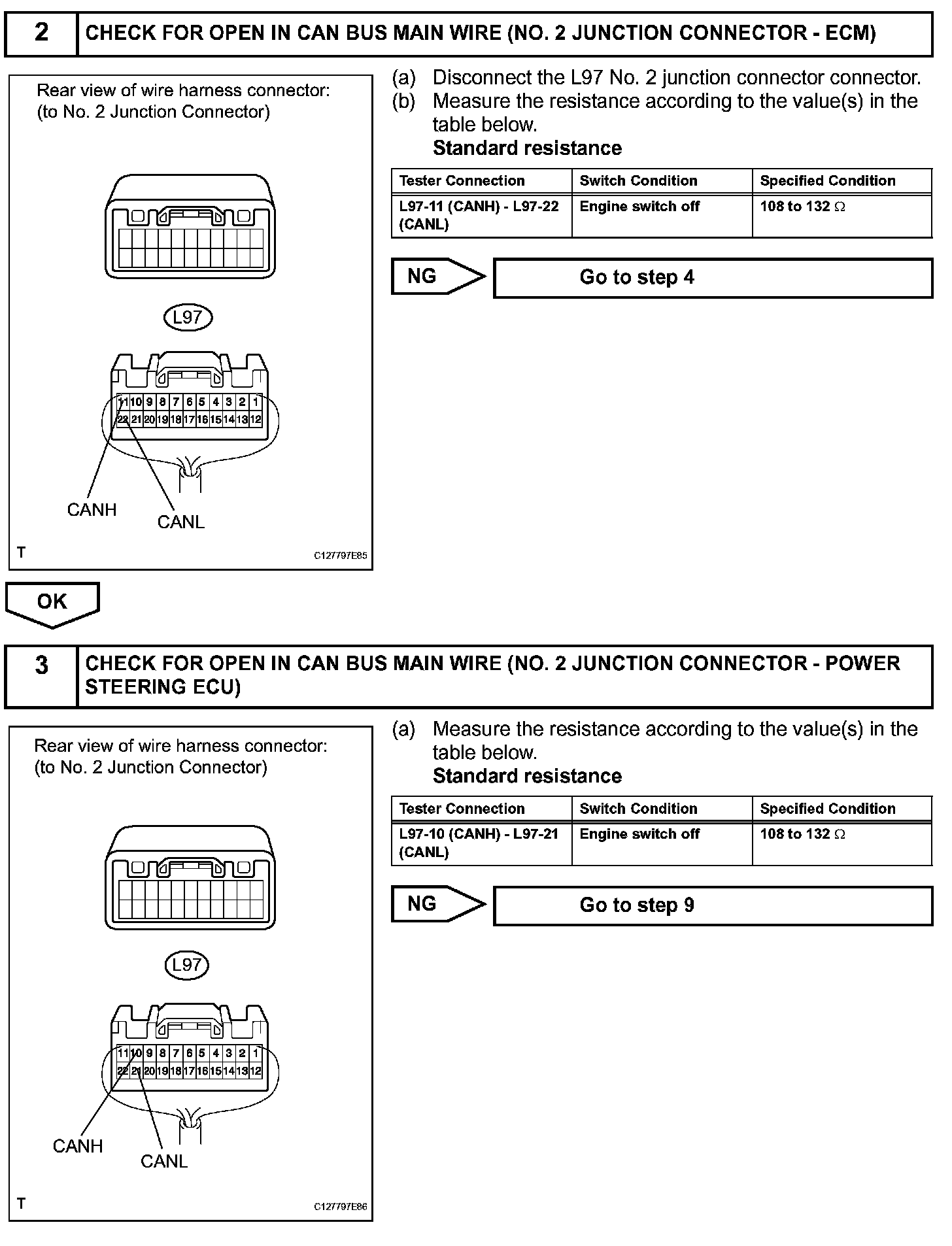

Step 2-3:

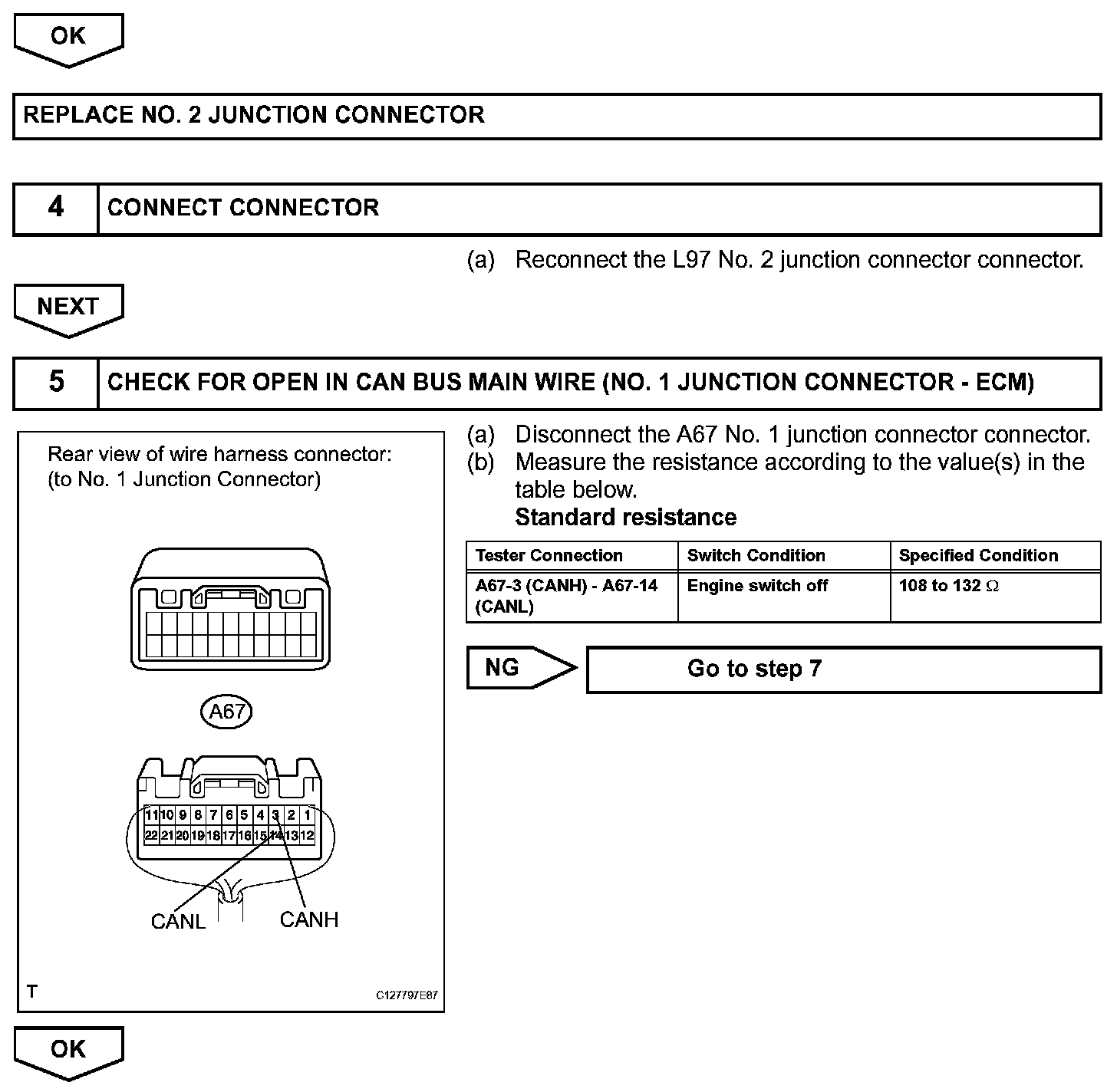

Step 3 (Continued)-5:

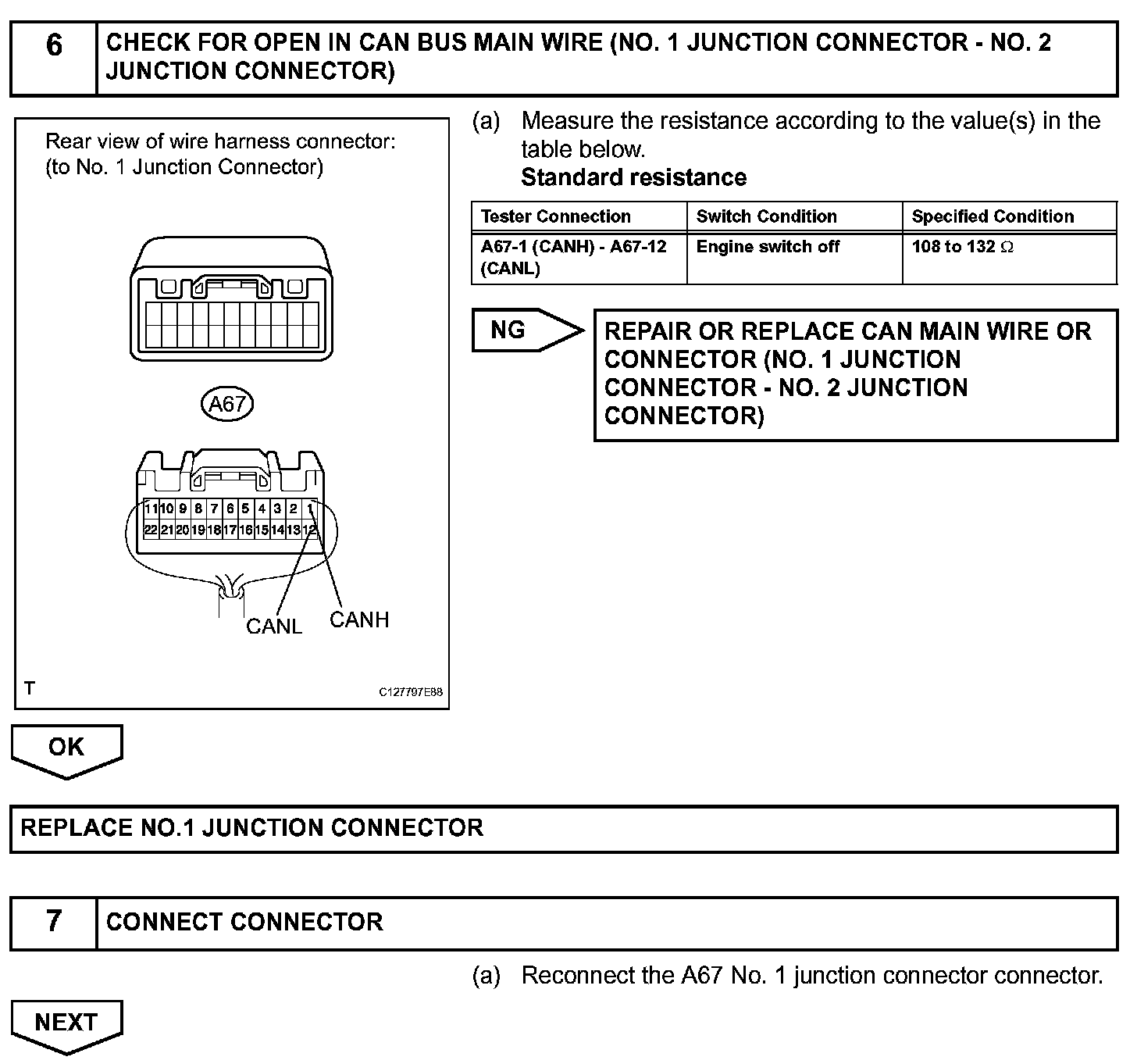

Step 6-7:

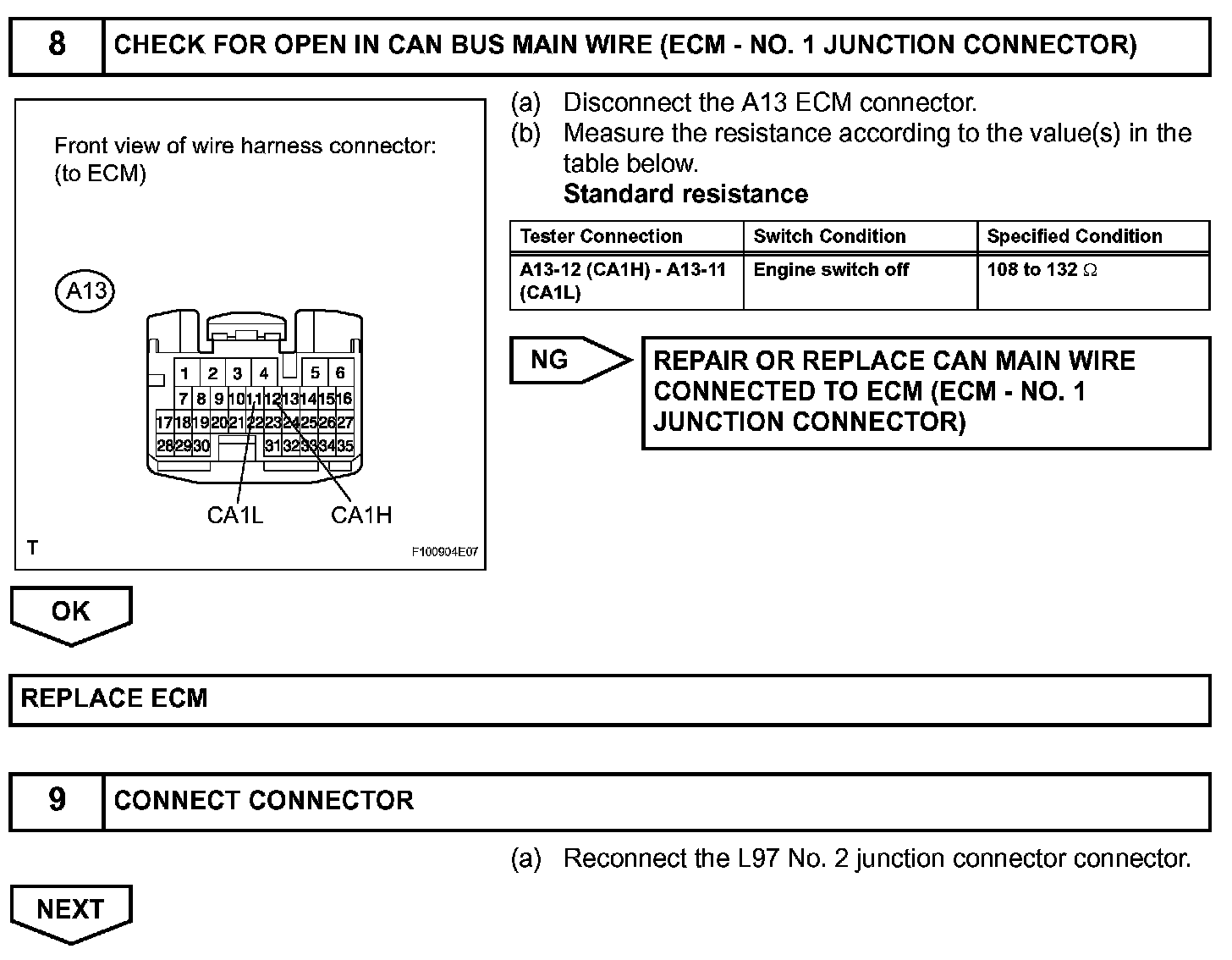

Step 8-9:

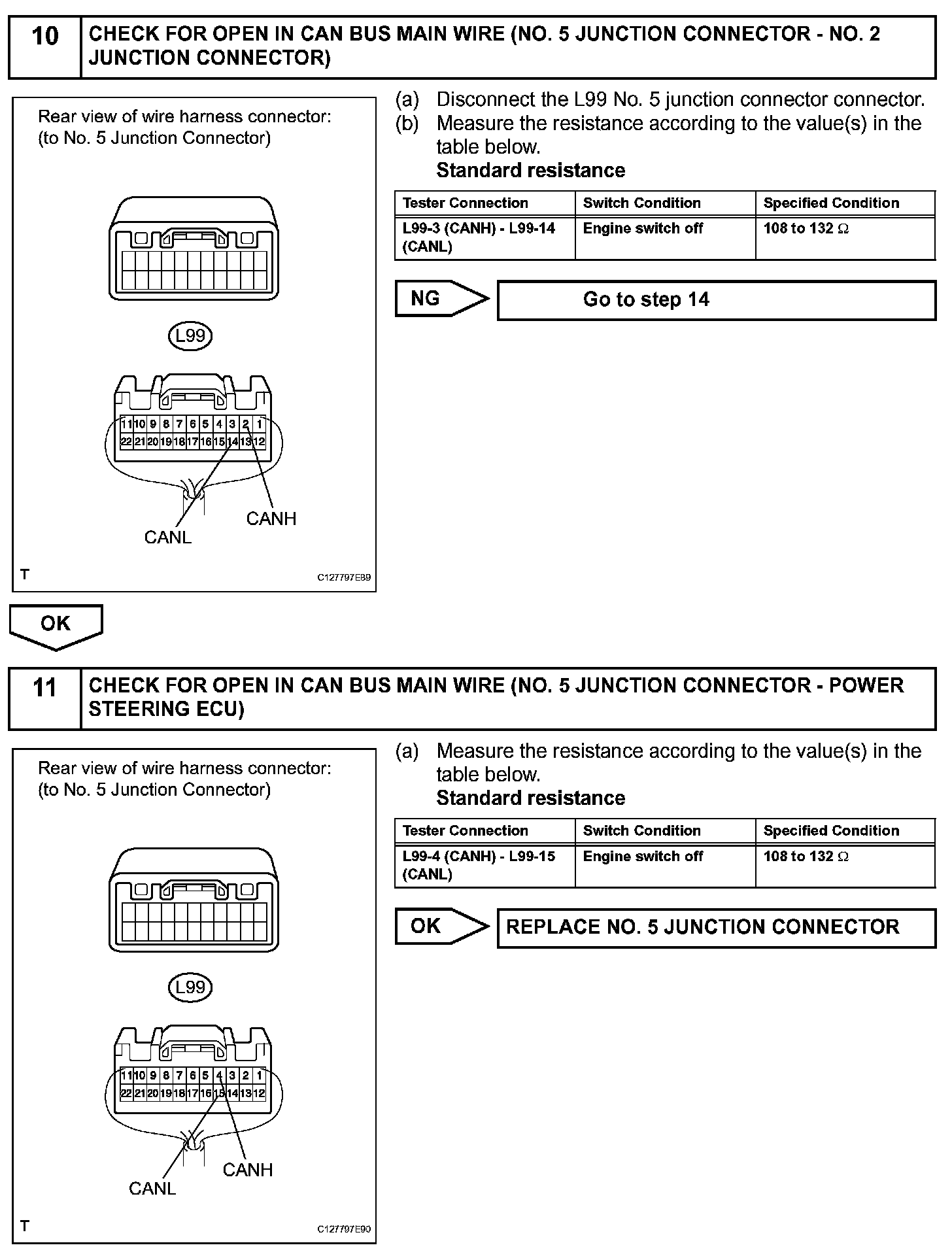

Step 10-11:

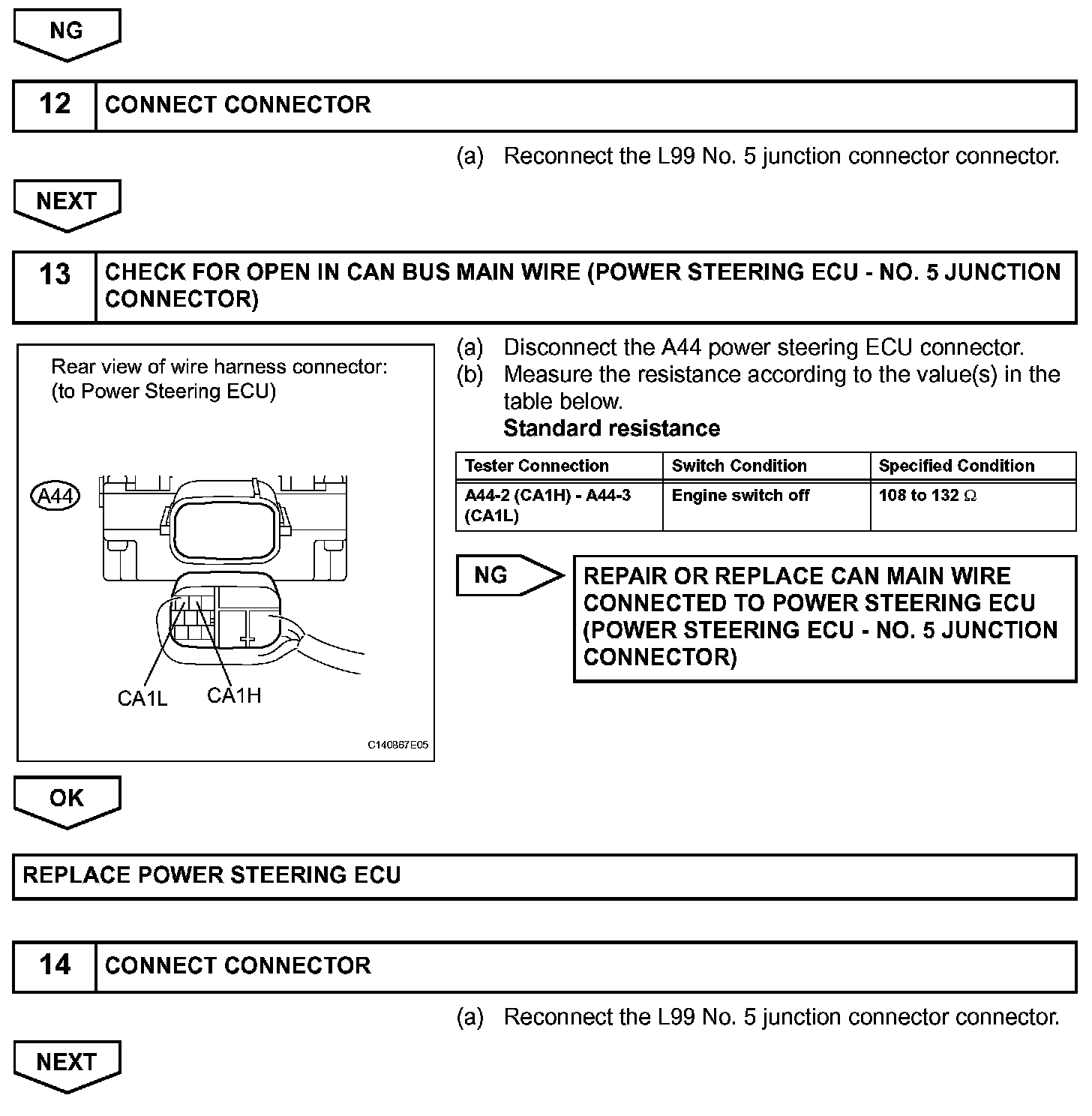

Step 11(Continued)-14:

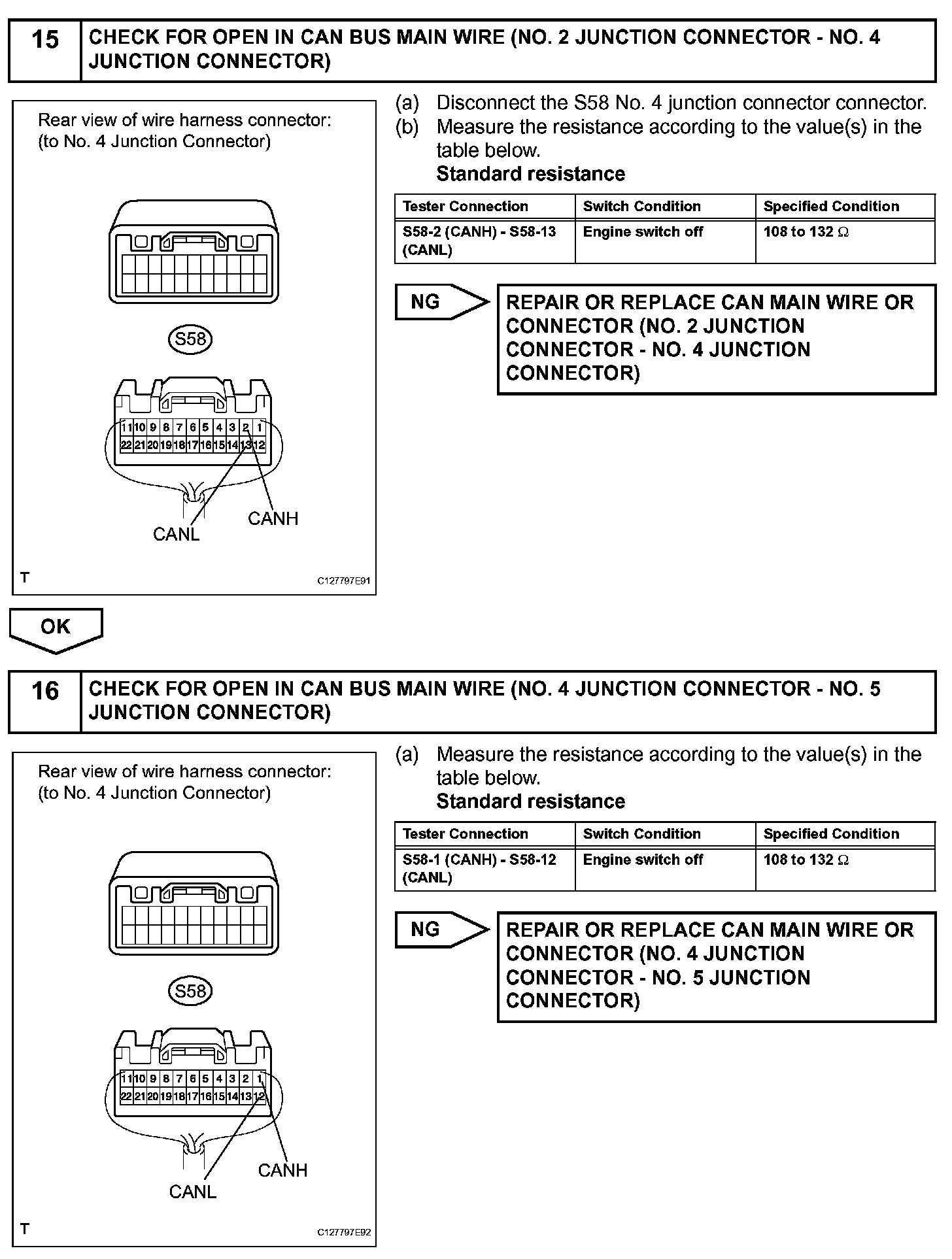

Step 15-16:

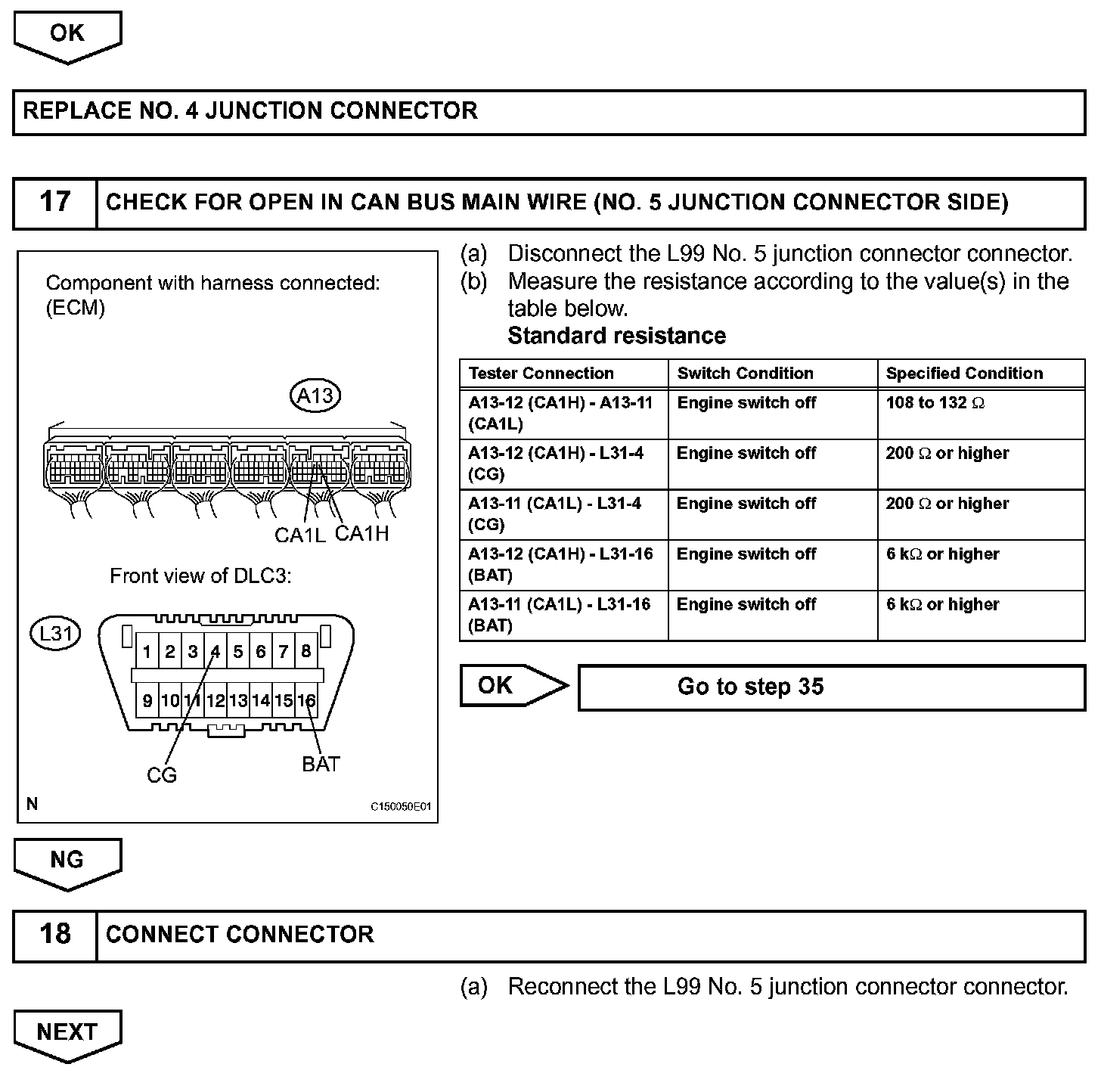

Step 16 (Continued)-18:

Step 19-20:

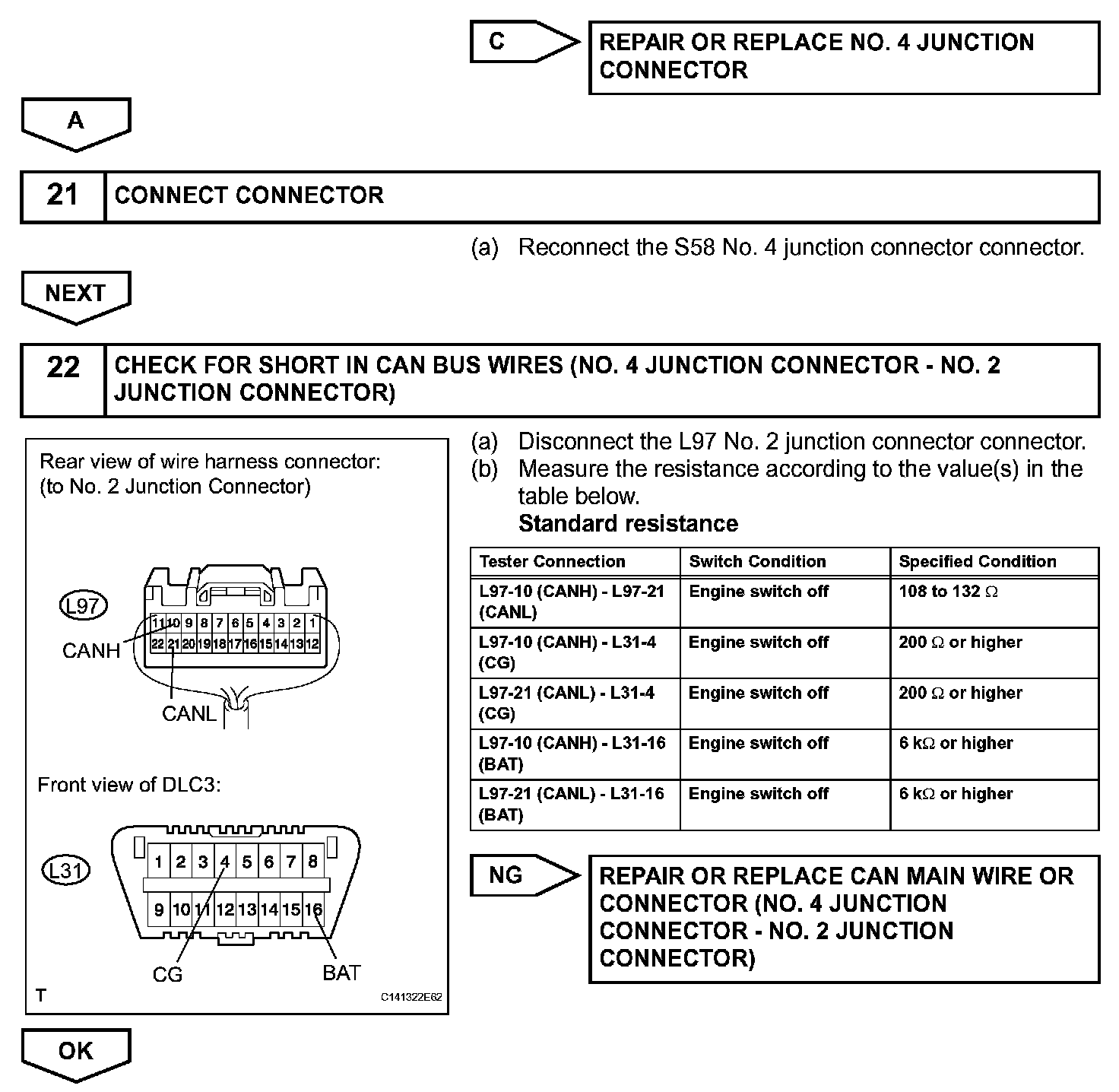

Step 20 (Continued)-22:

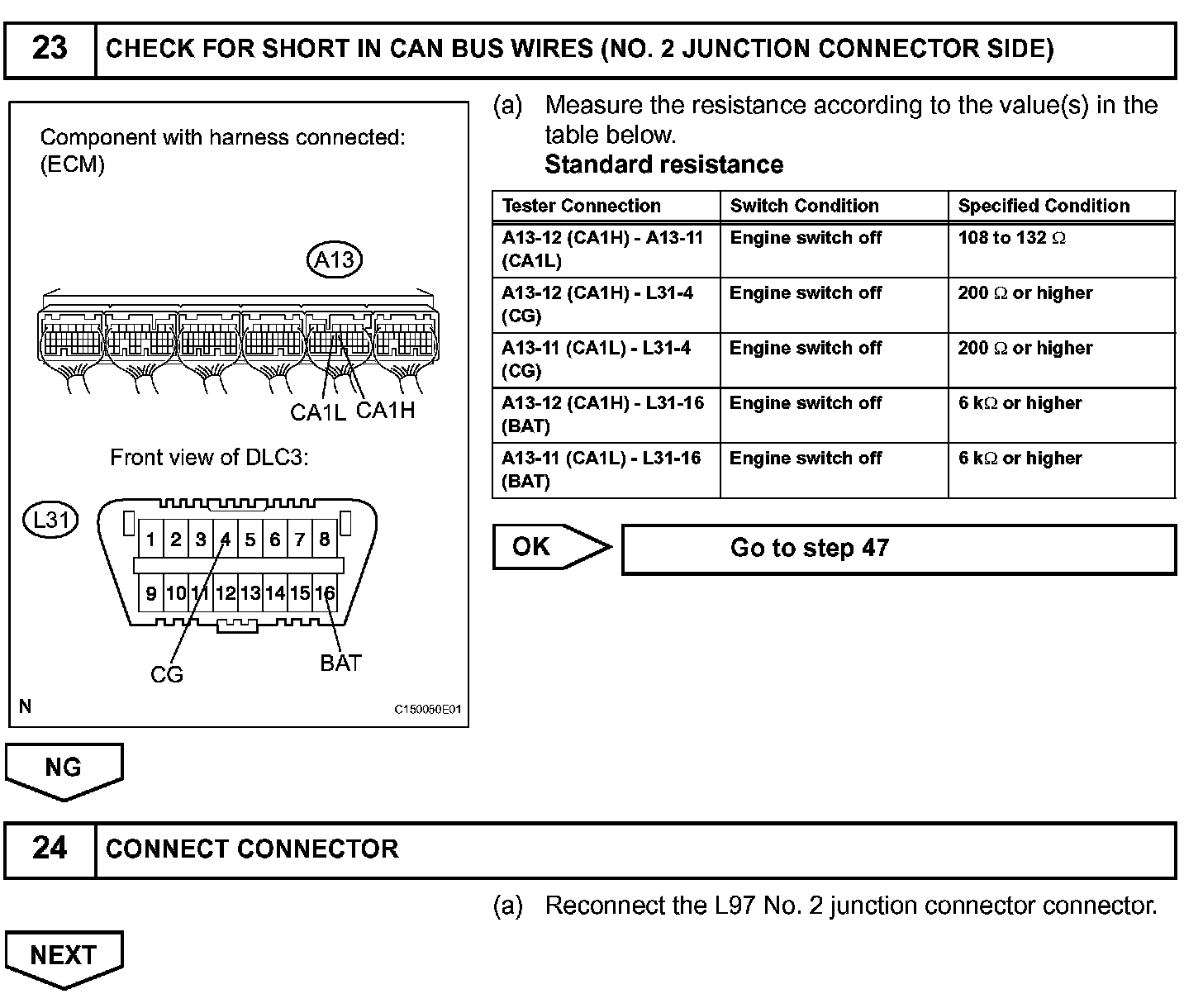

Step 23-24:

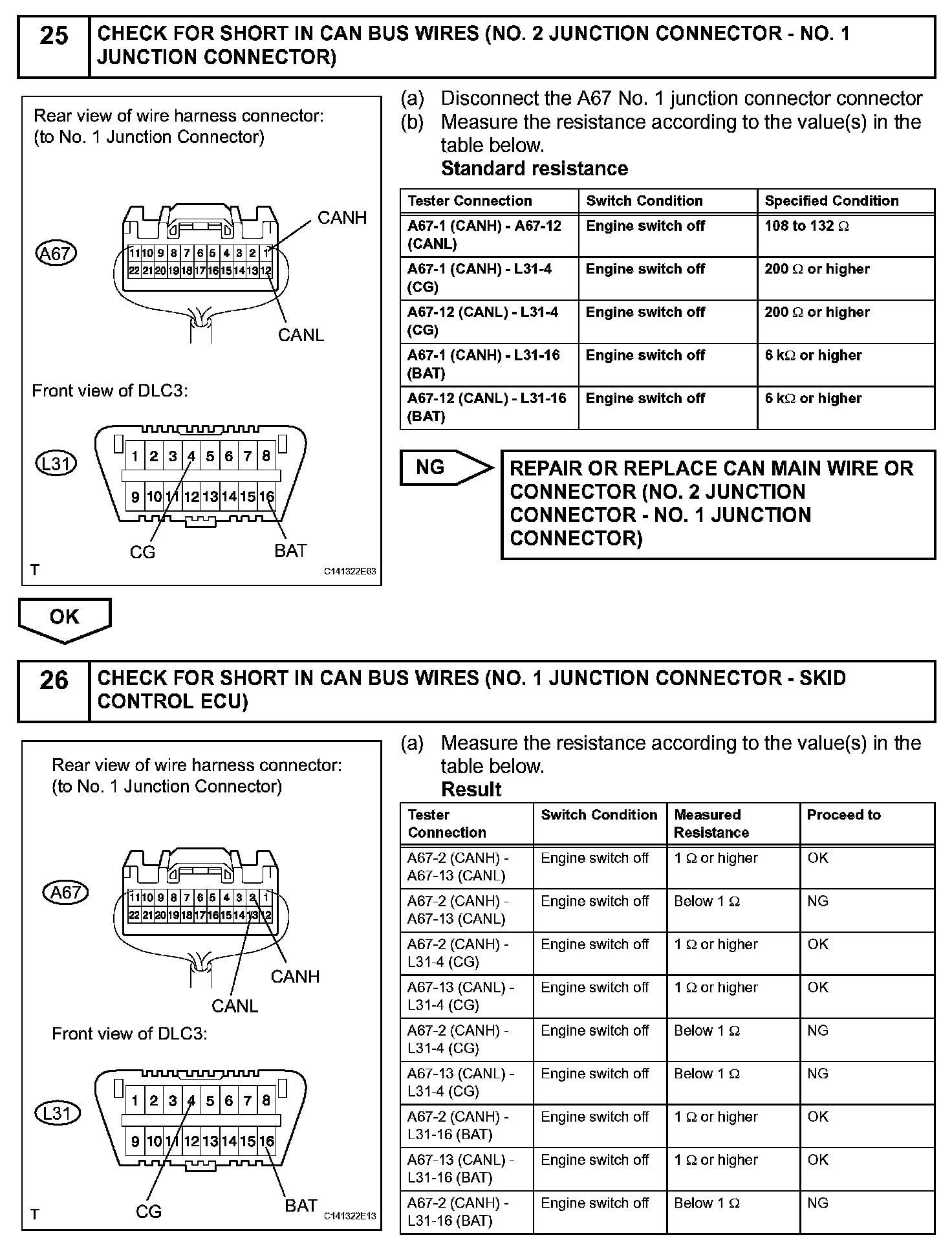

Step 25-26:

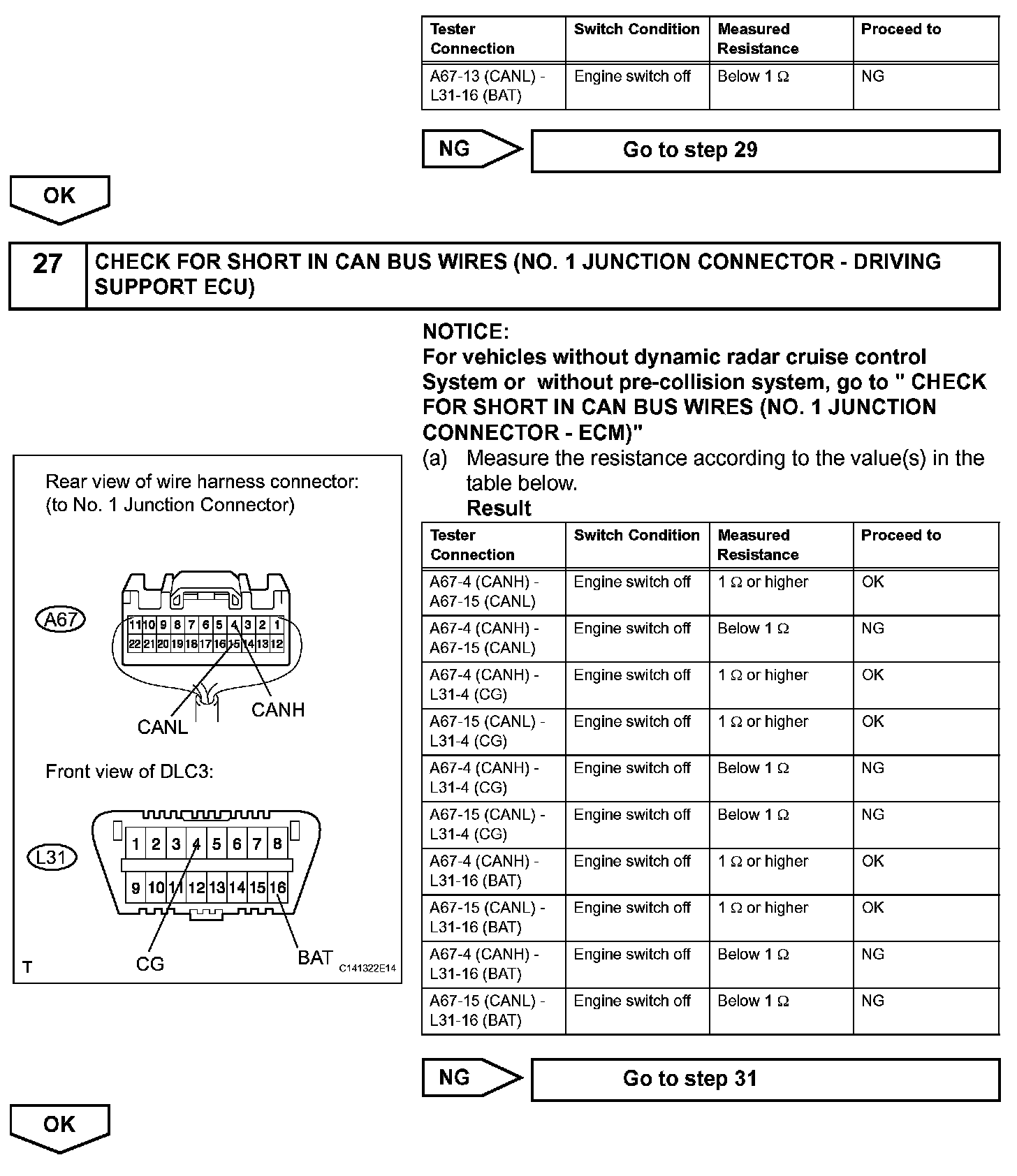

Step 26 (Continued)-27:

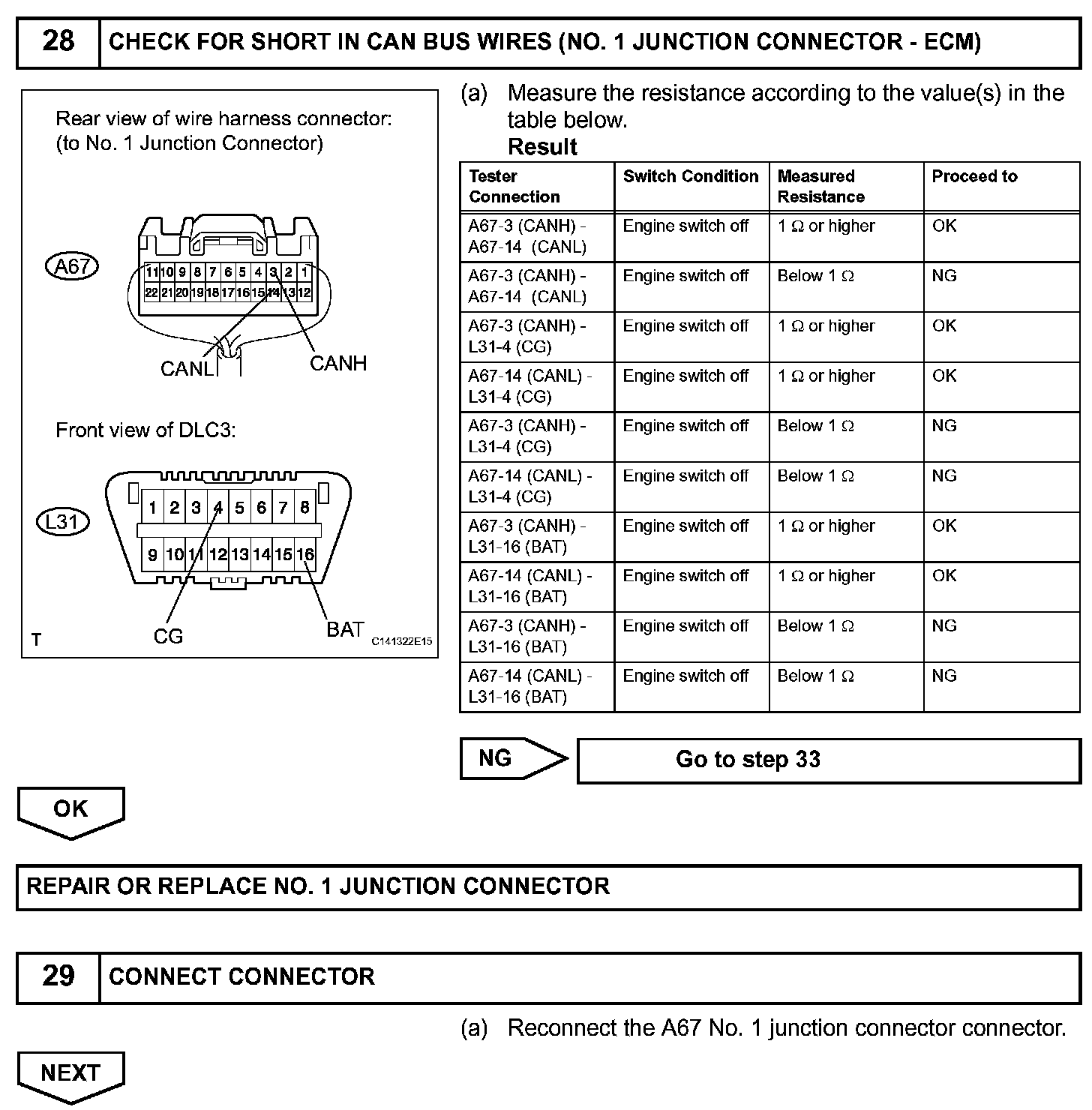

Step 28-29:

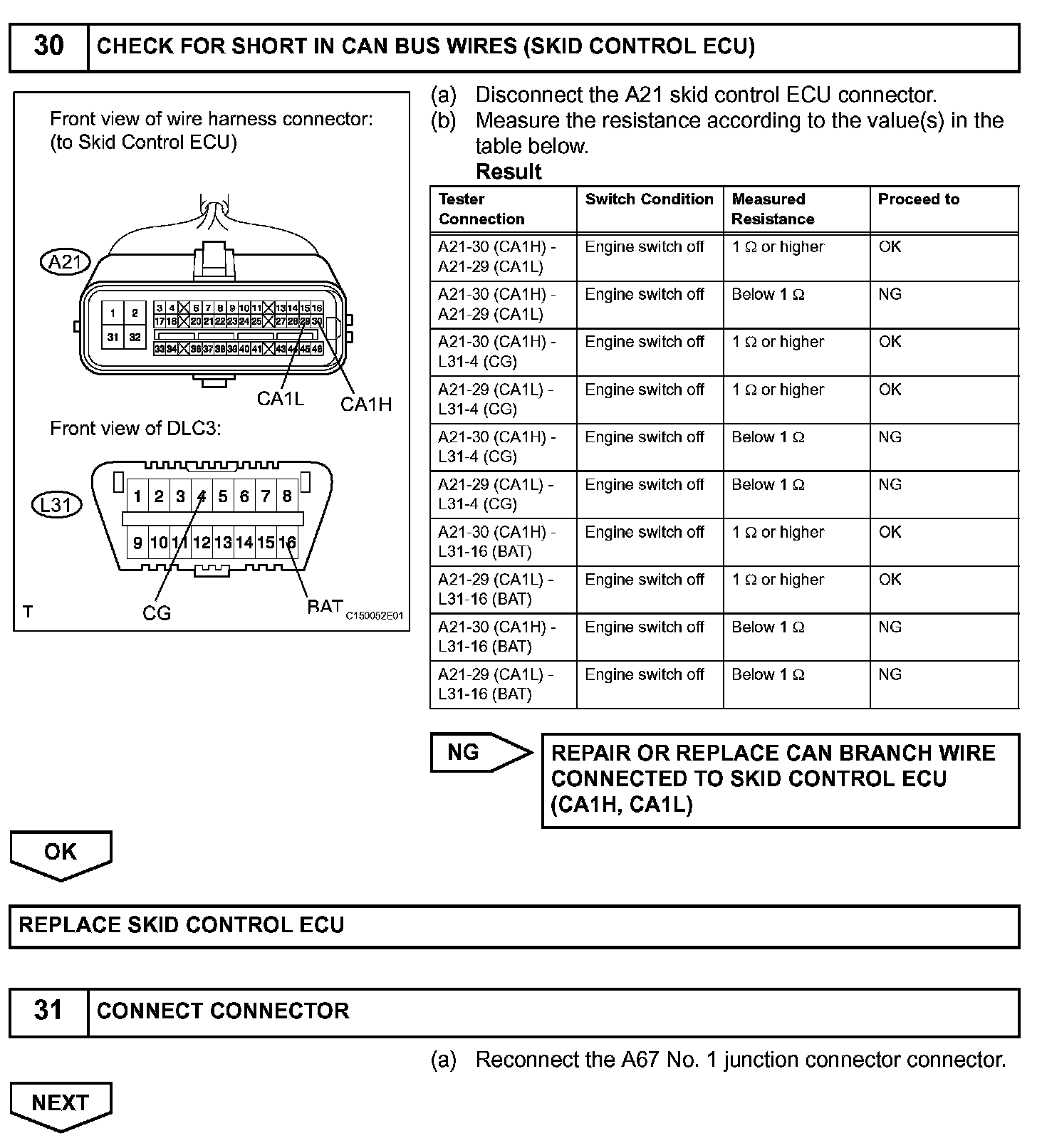

Step 30-31:

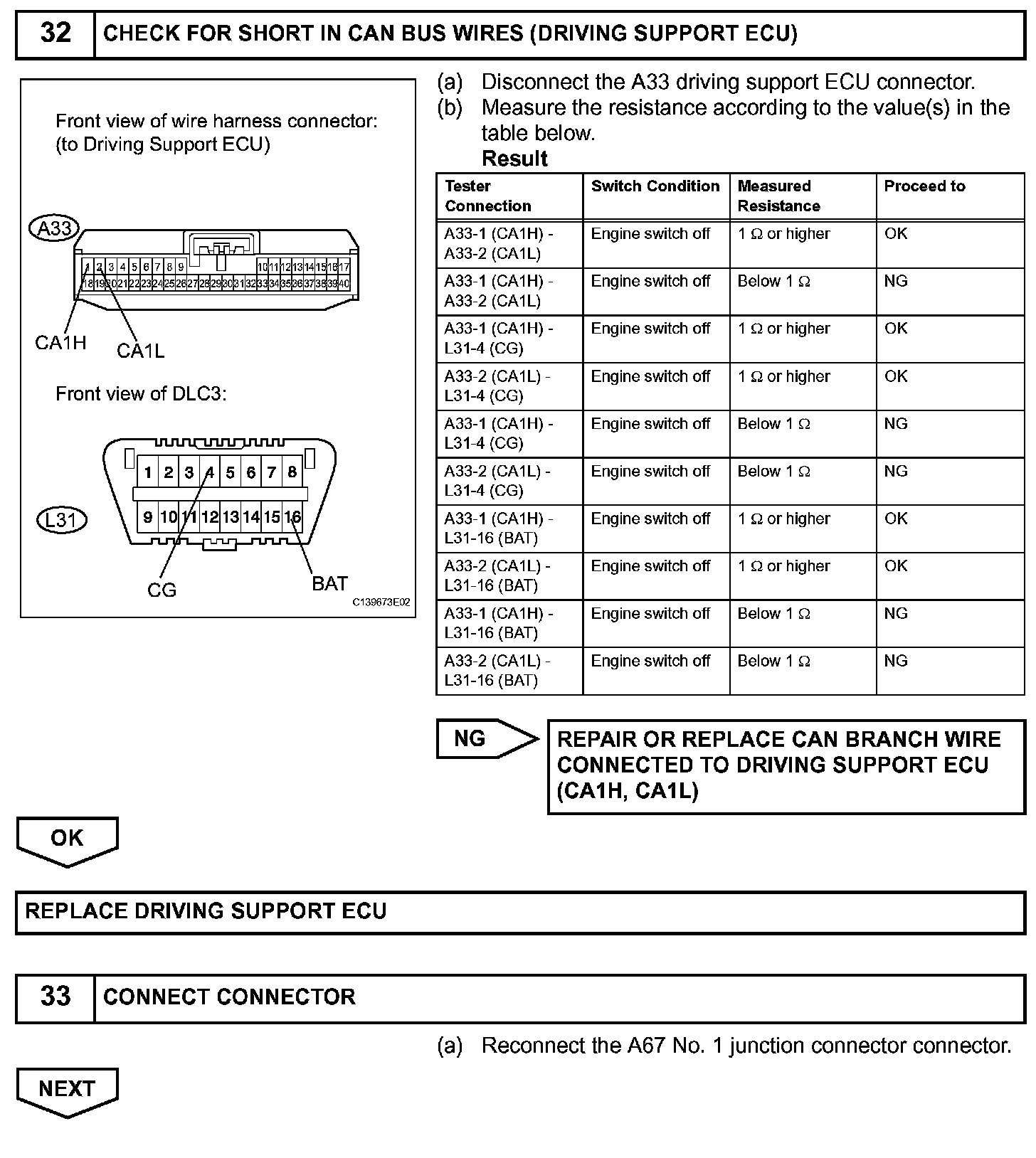

Step 32-33:

Step 34-35:

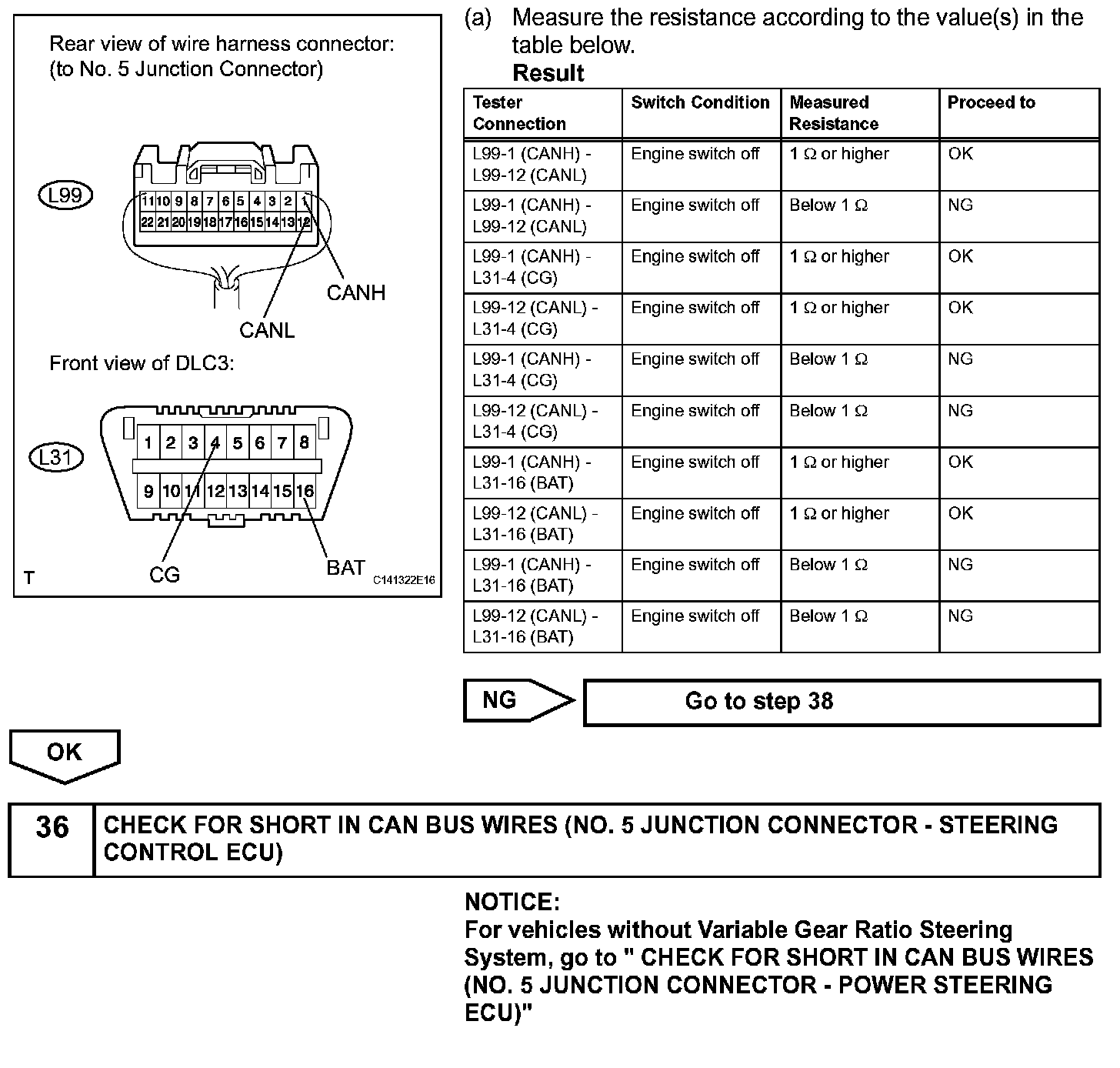

Step 35 (Continued)-36:

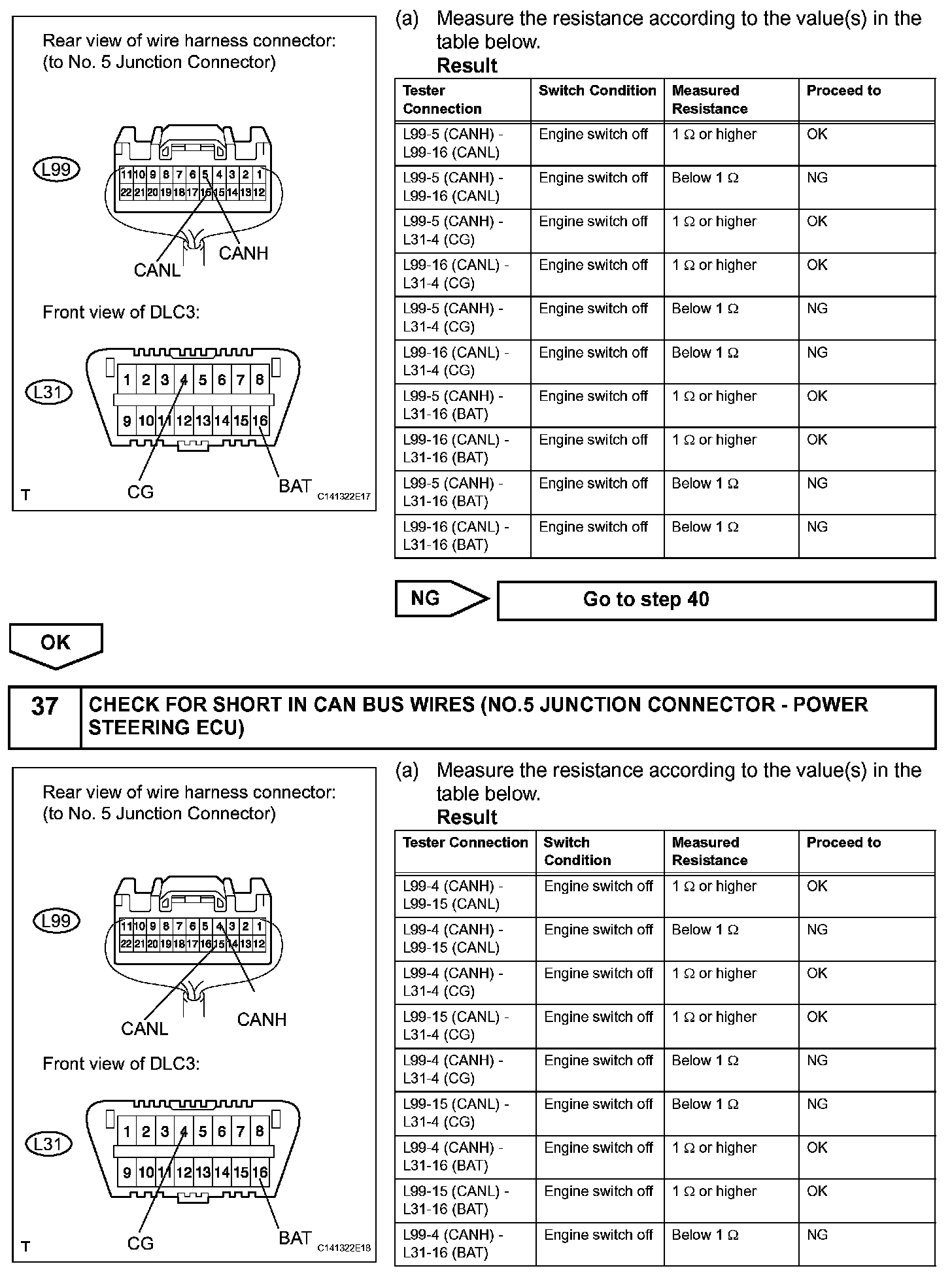

Step 36 (Continued)-37:

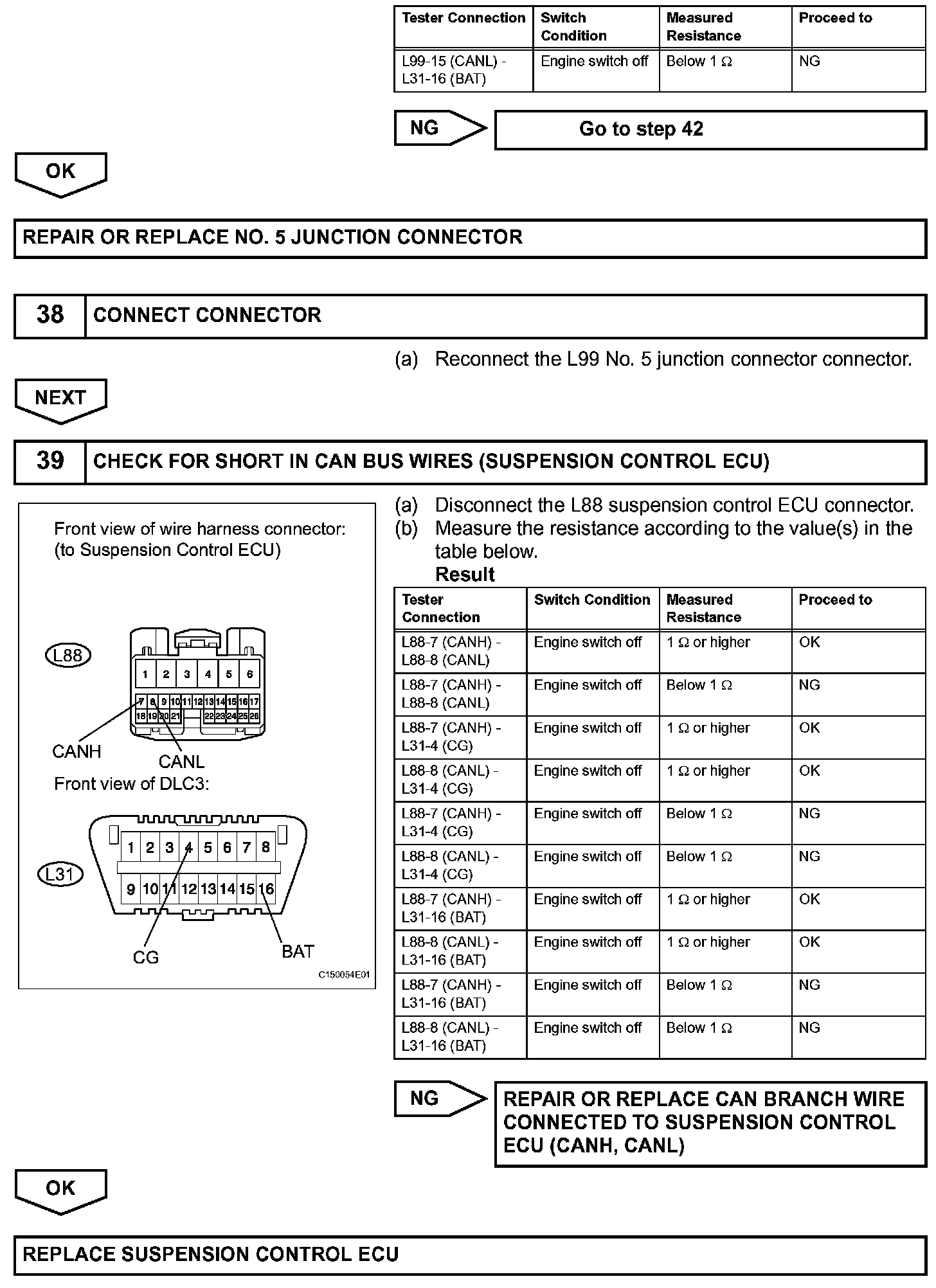

Step 37 (Continued)-39:

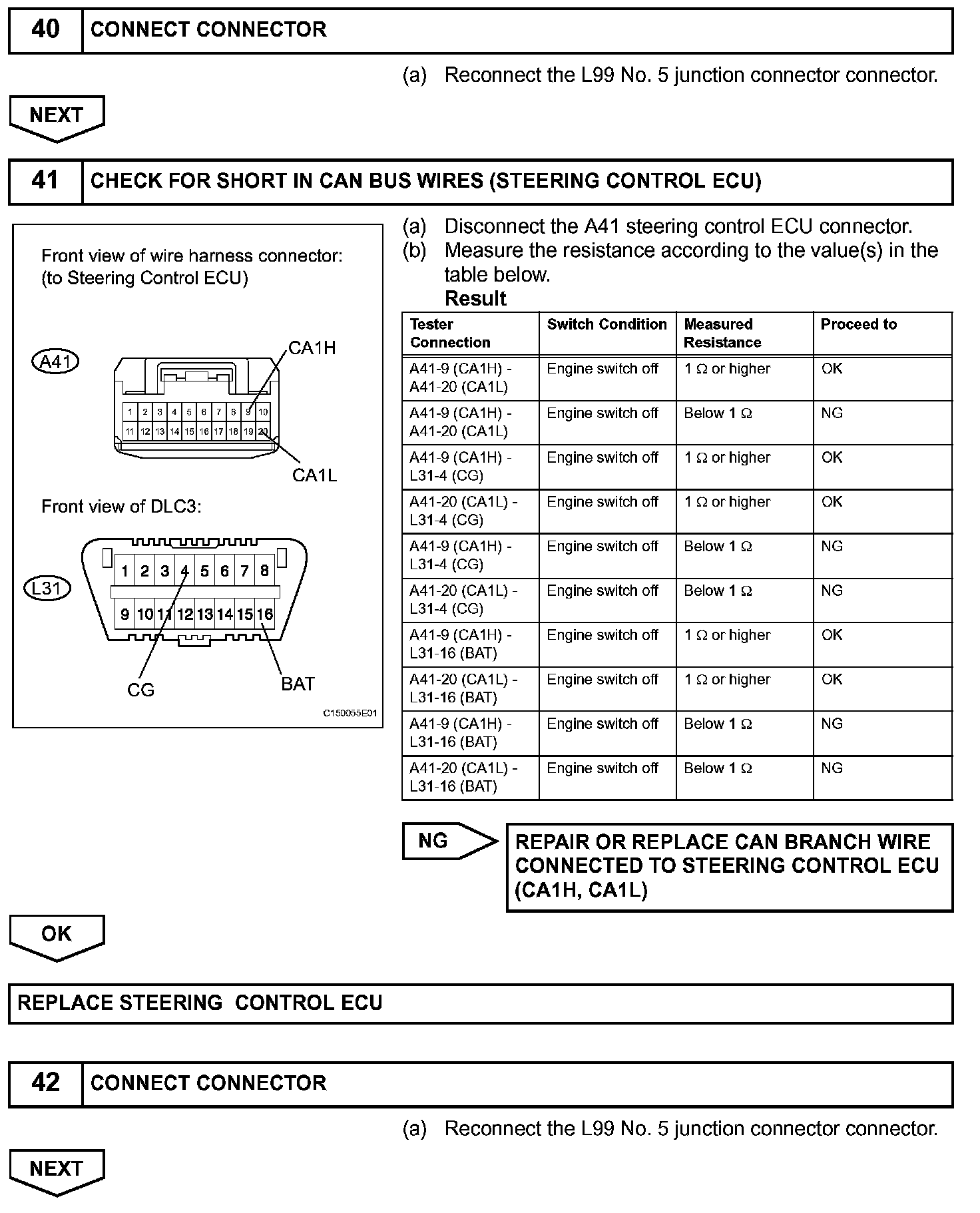

Step 40-42:

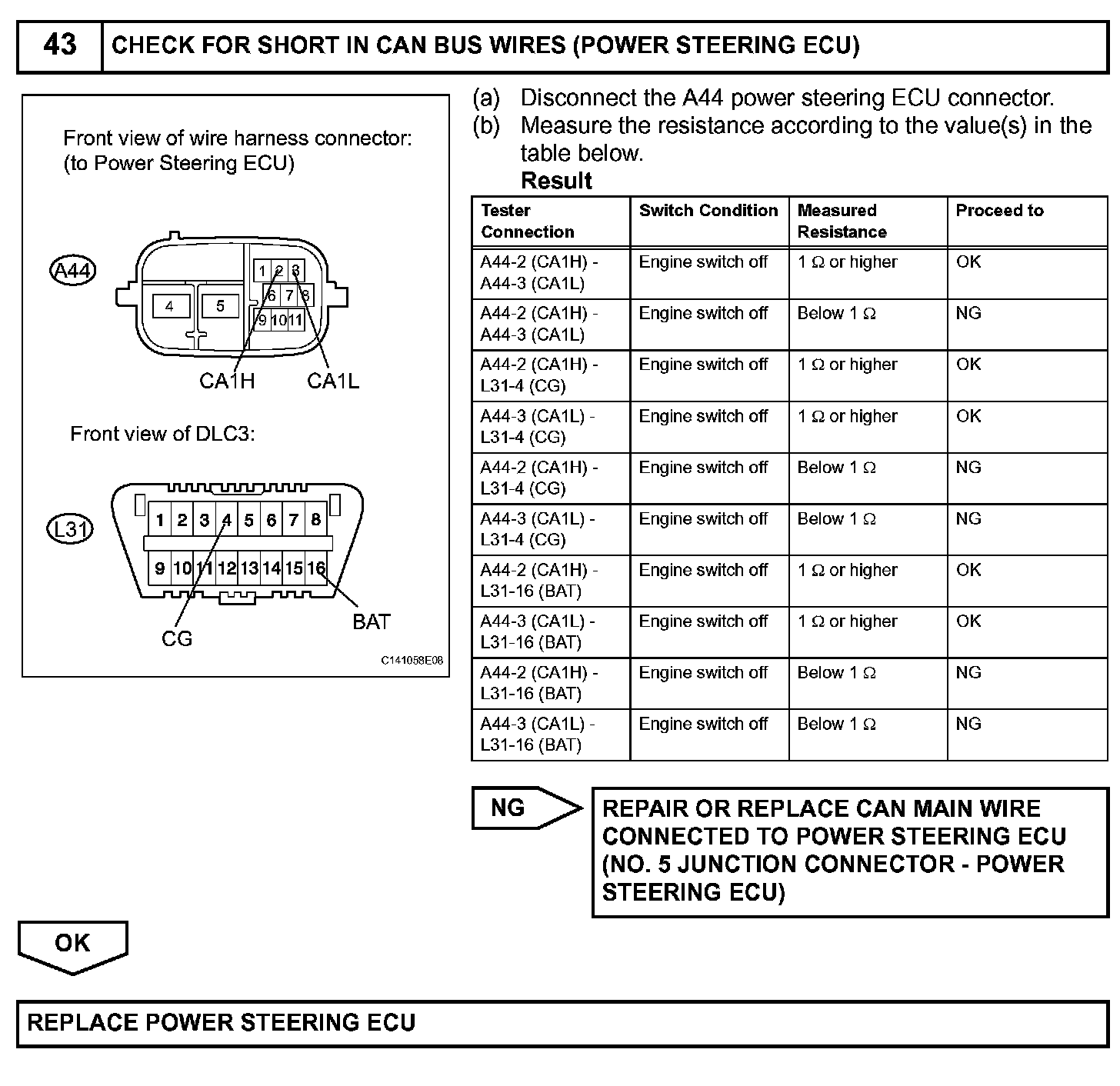

Step 43:

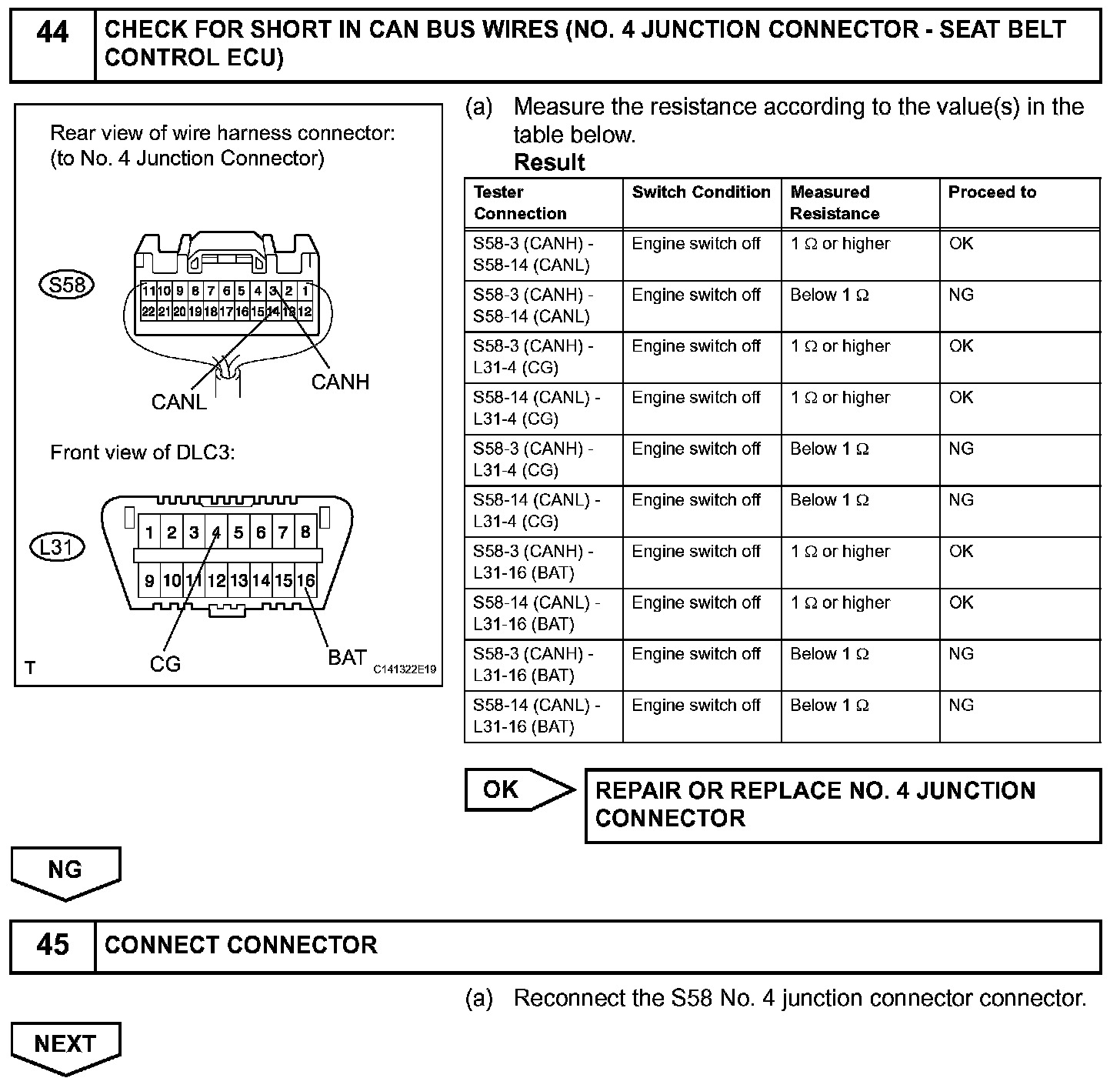

Step 44-45:

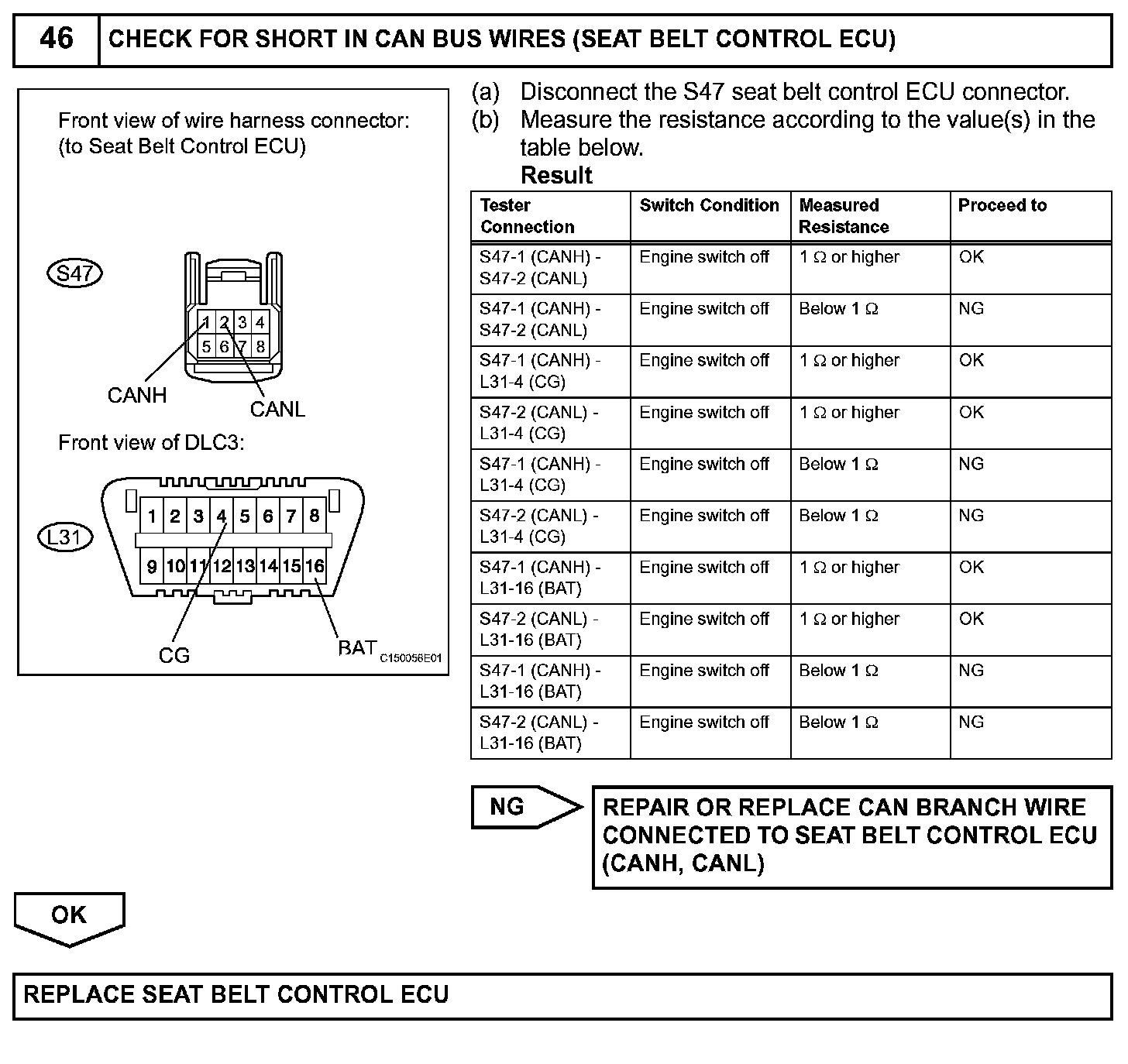

Step 46:

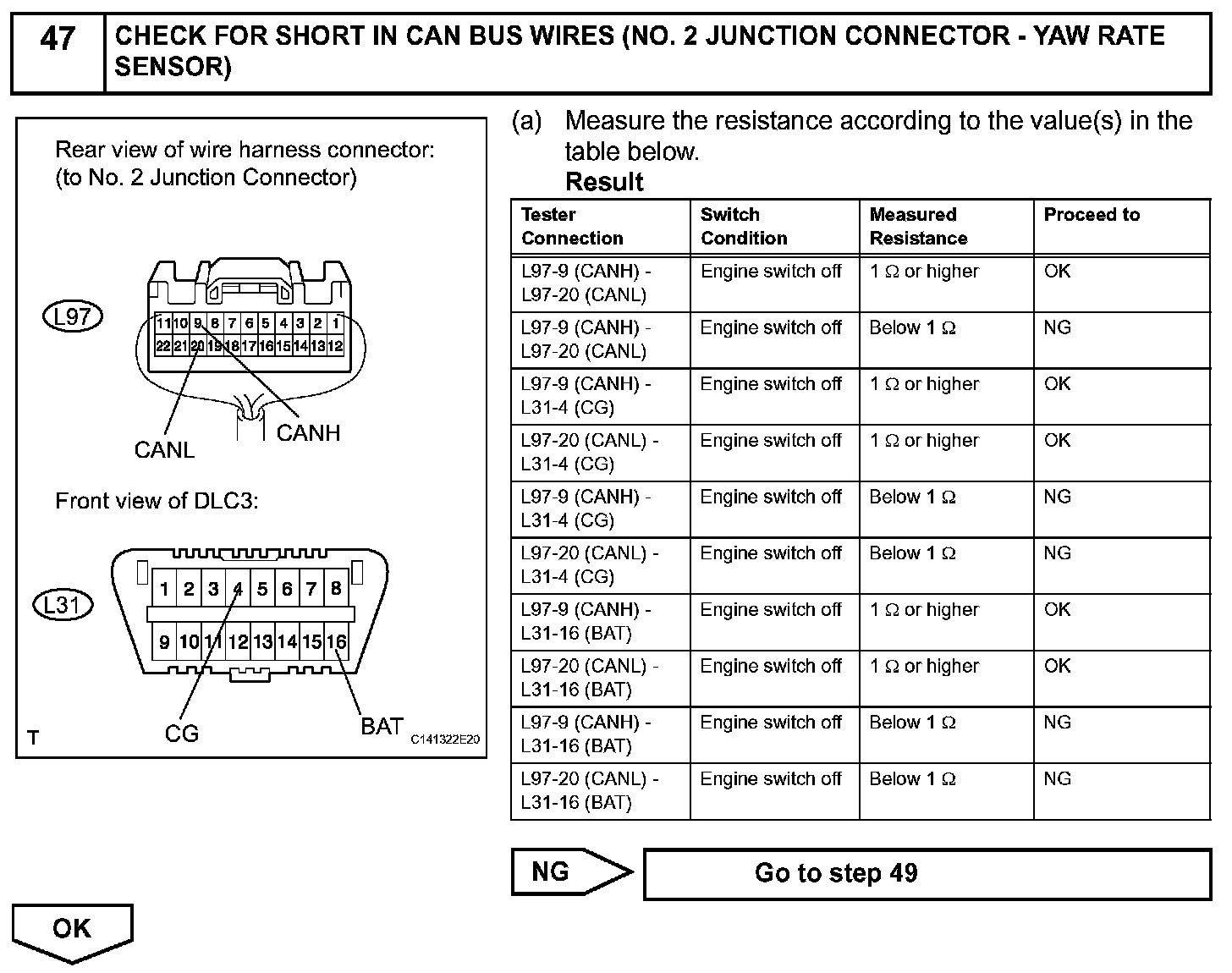

Step 47:

Step 48-49:

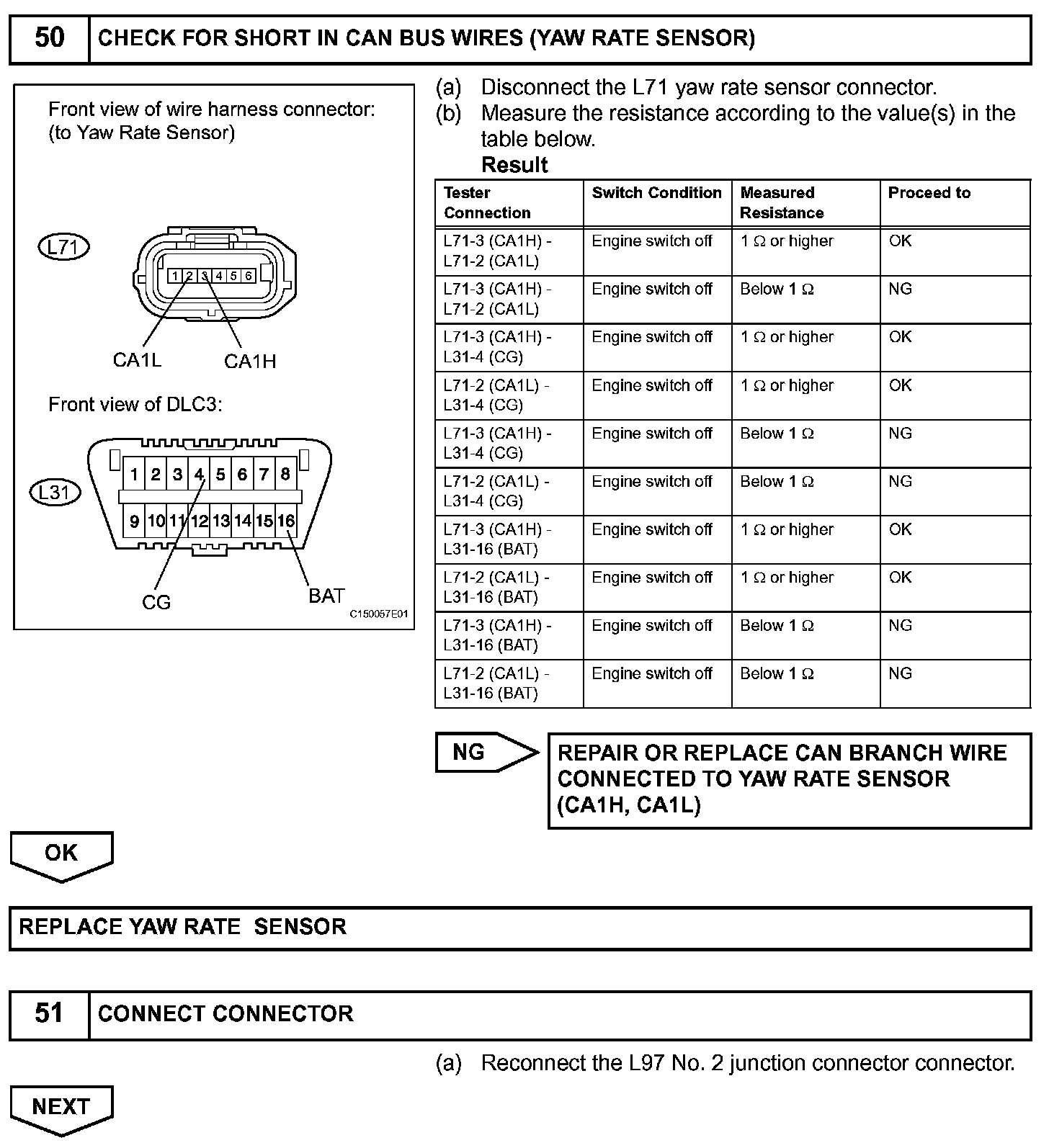

Step 50-51:

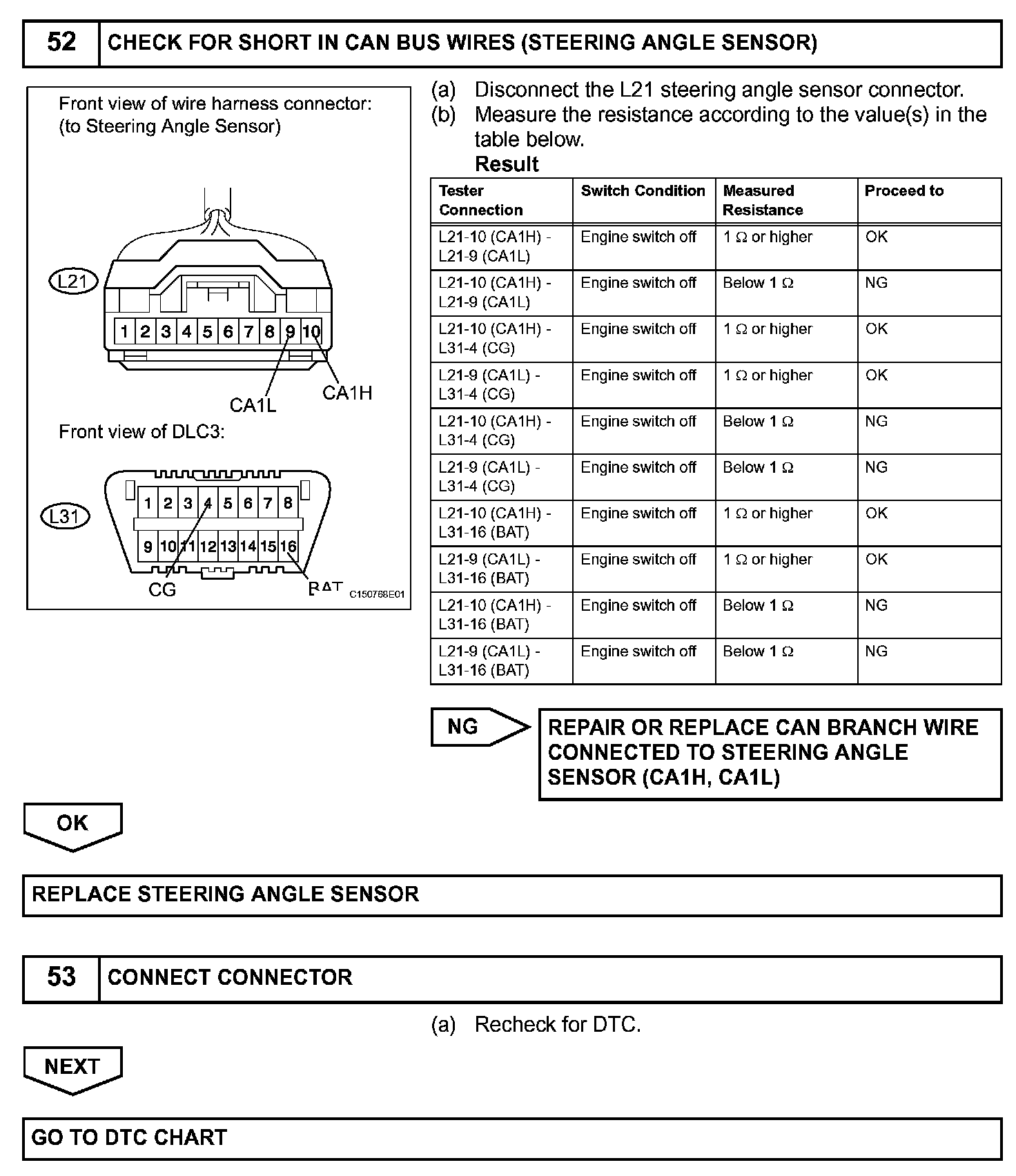

Step 52-53:

INSPECTION PROCEDURE
