U1004

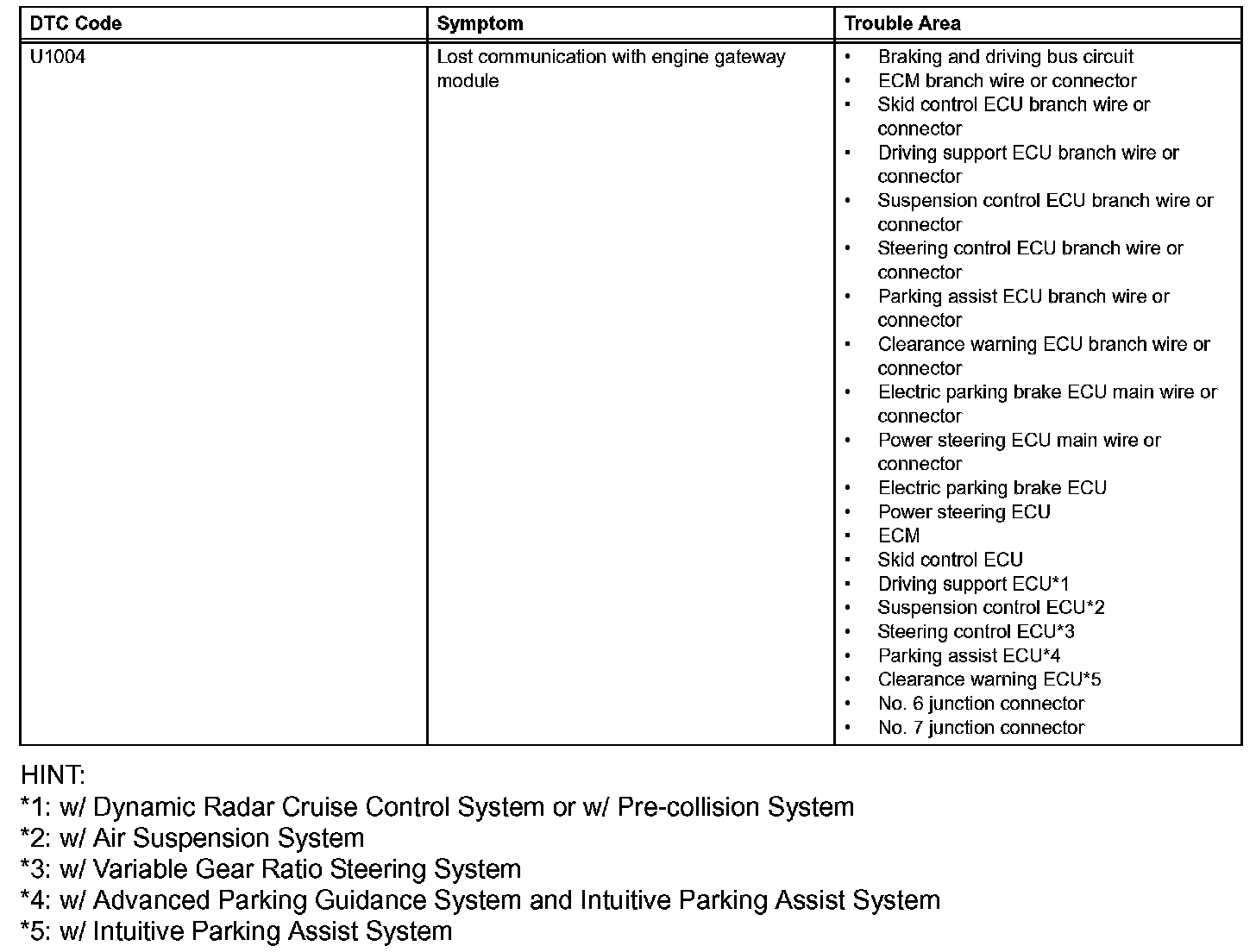

DTC U1004 Lost Communication with Engine Gateway ModuleDESCRIPTION
If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire] /CANL [branch wire] of the ECU and/or sensor is open.)

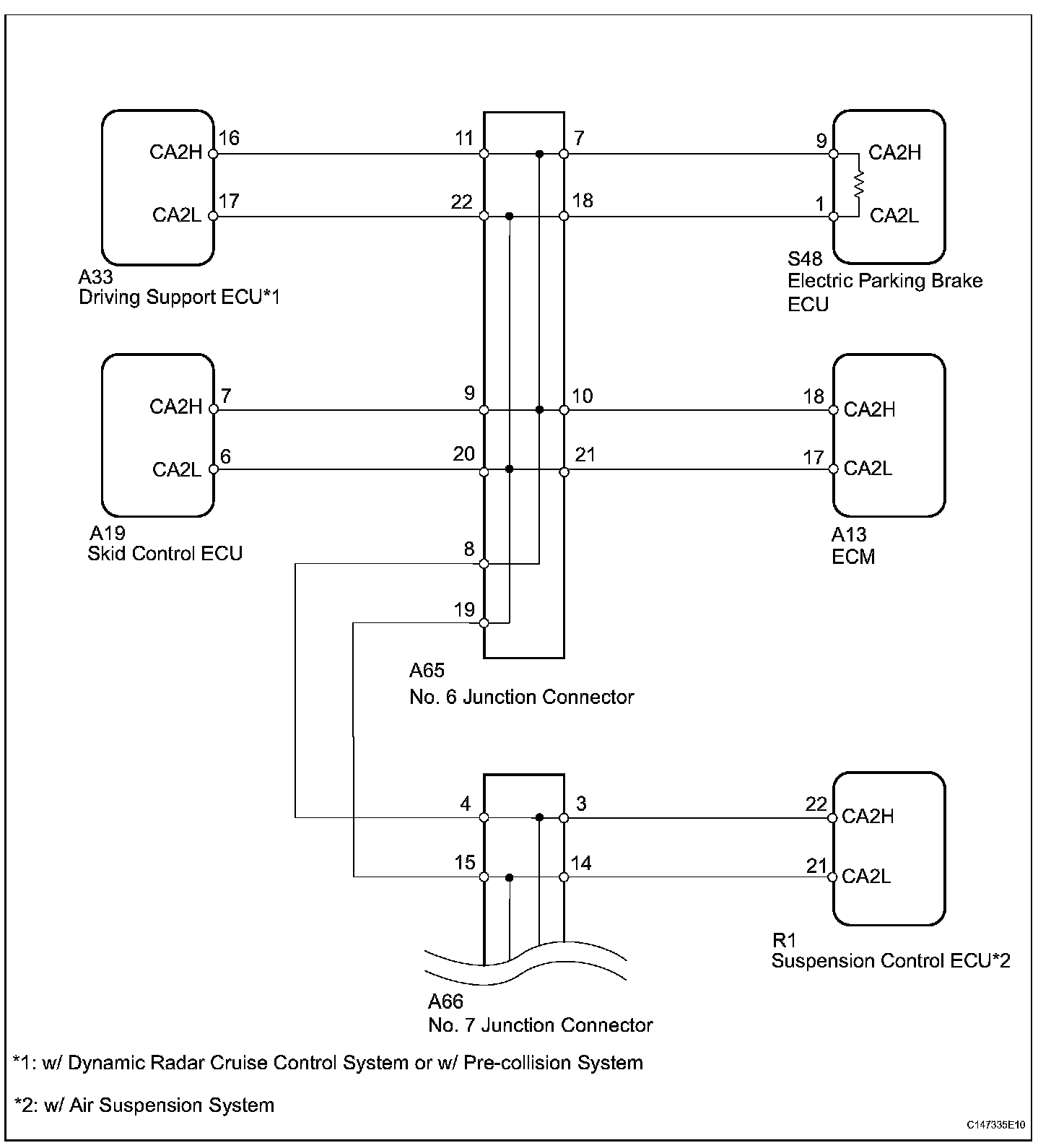

Wiring Diagram (Part 1):

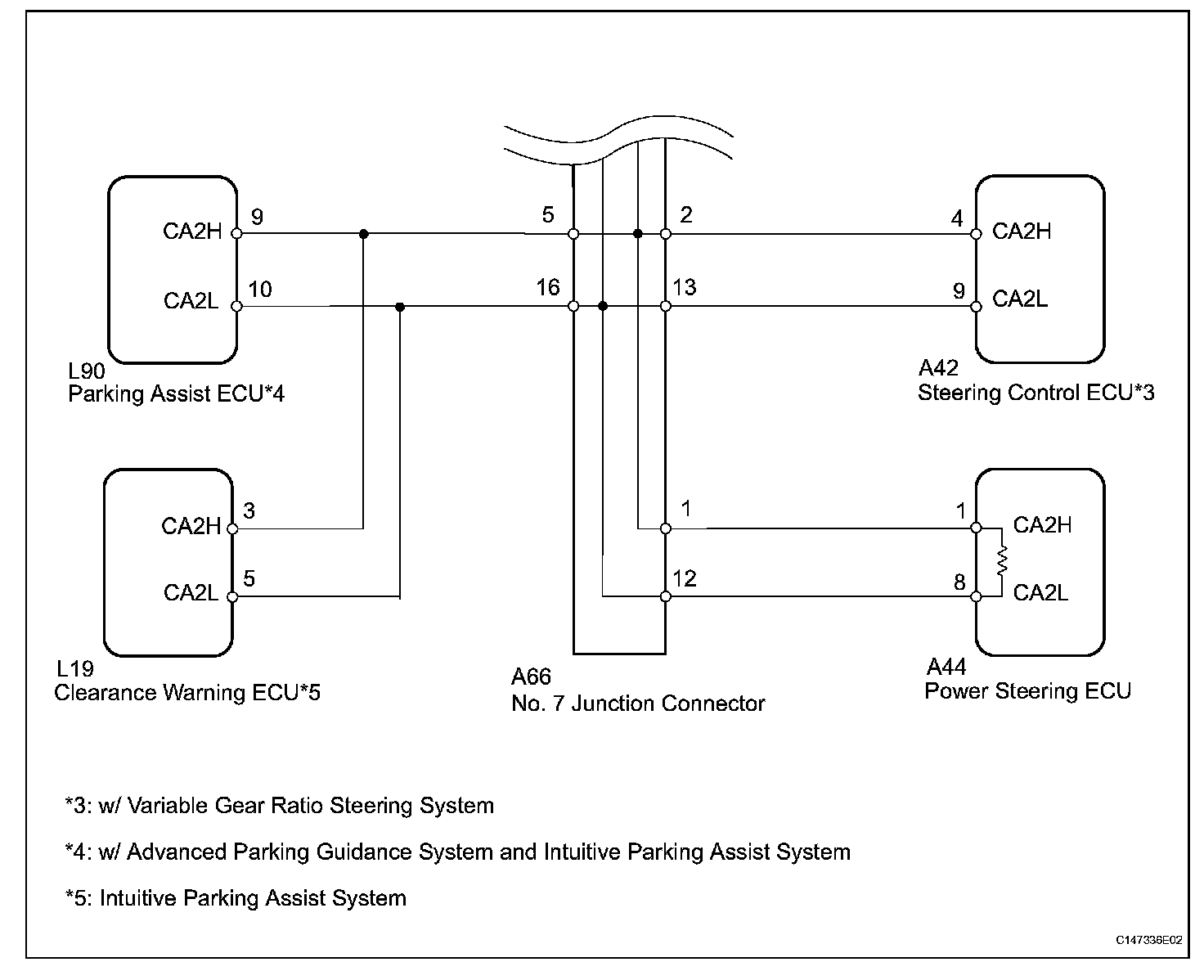

Wiring Diagram (Part 2):

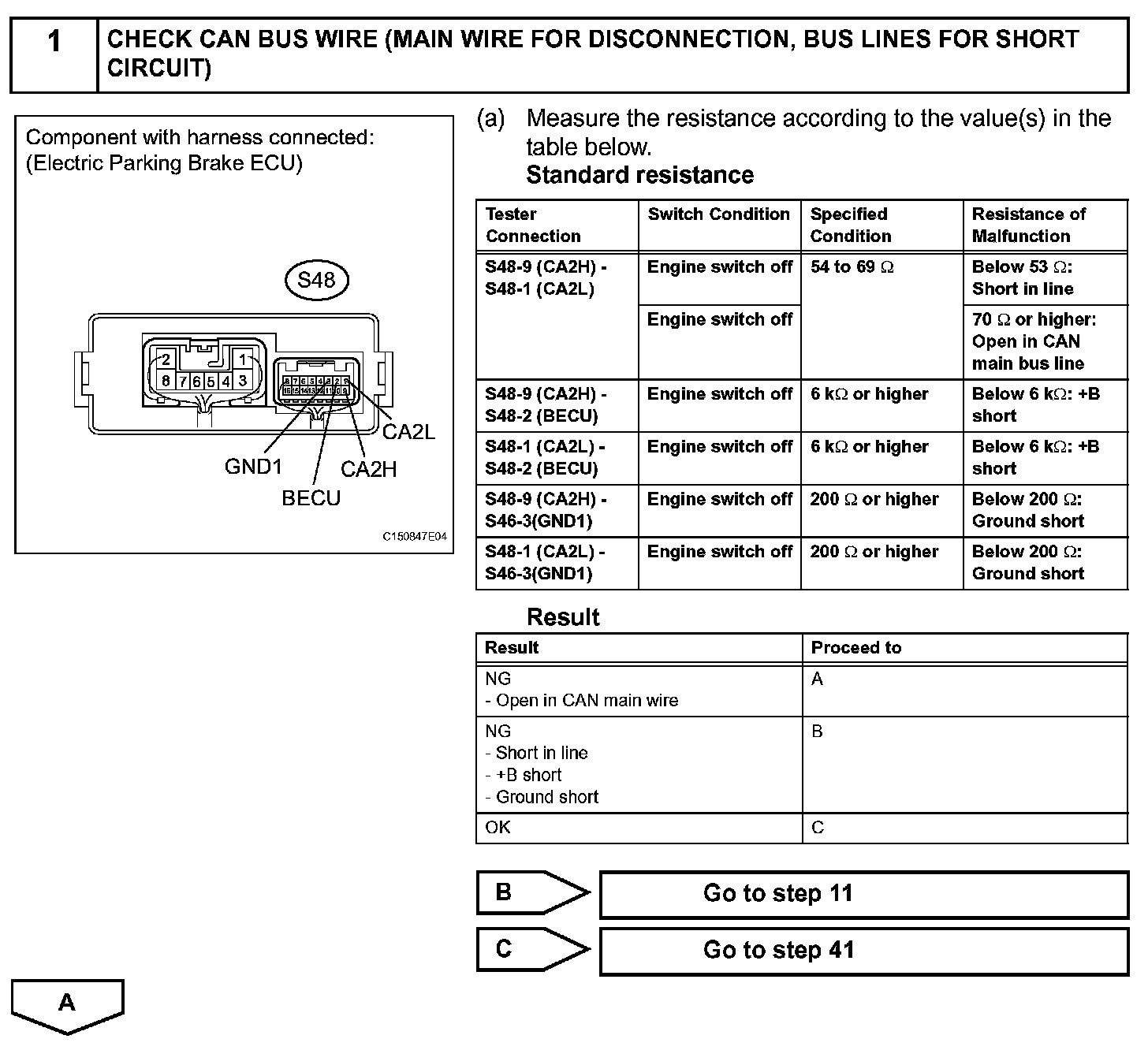

Step 1:
Step 2-3:

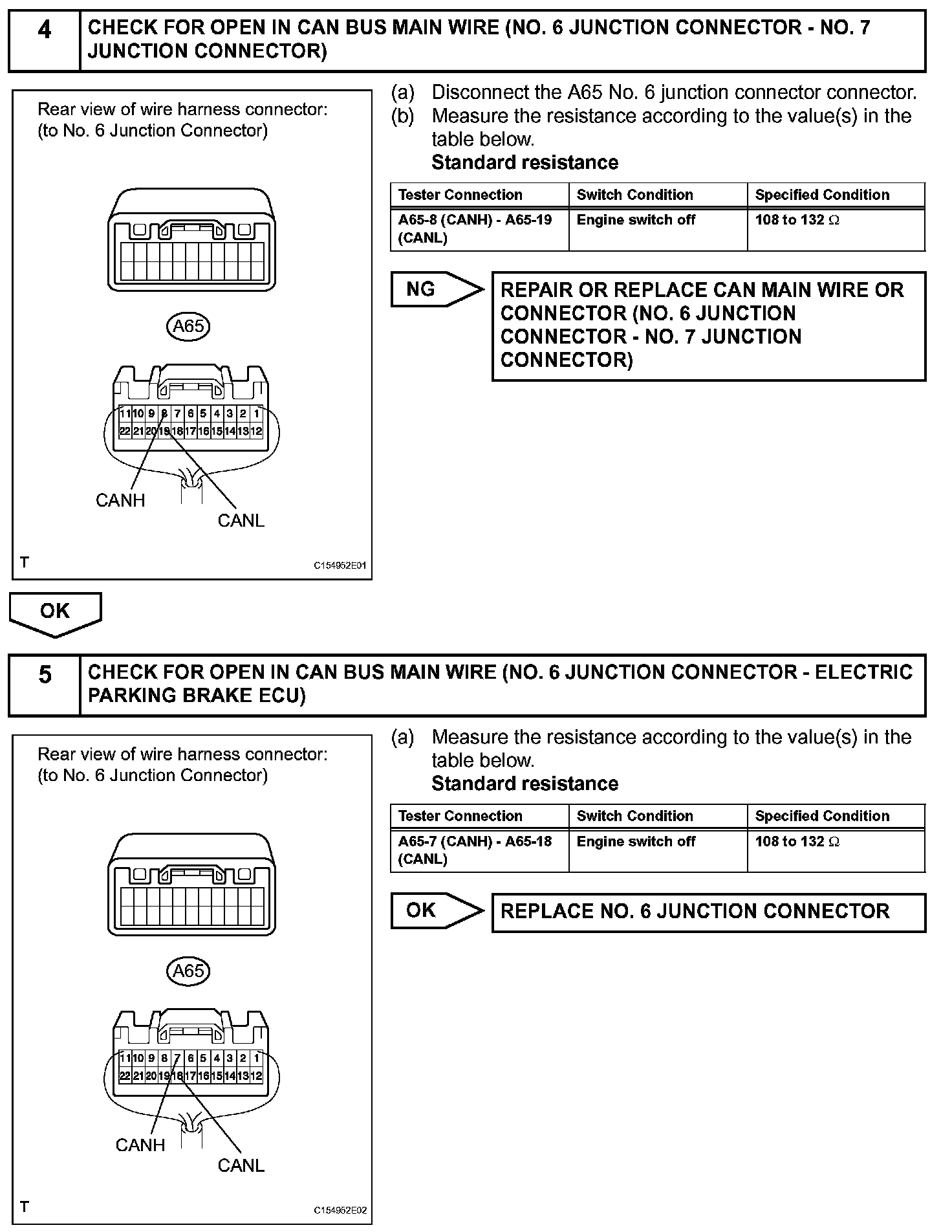

Step 4-5:

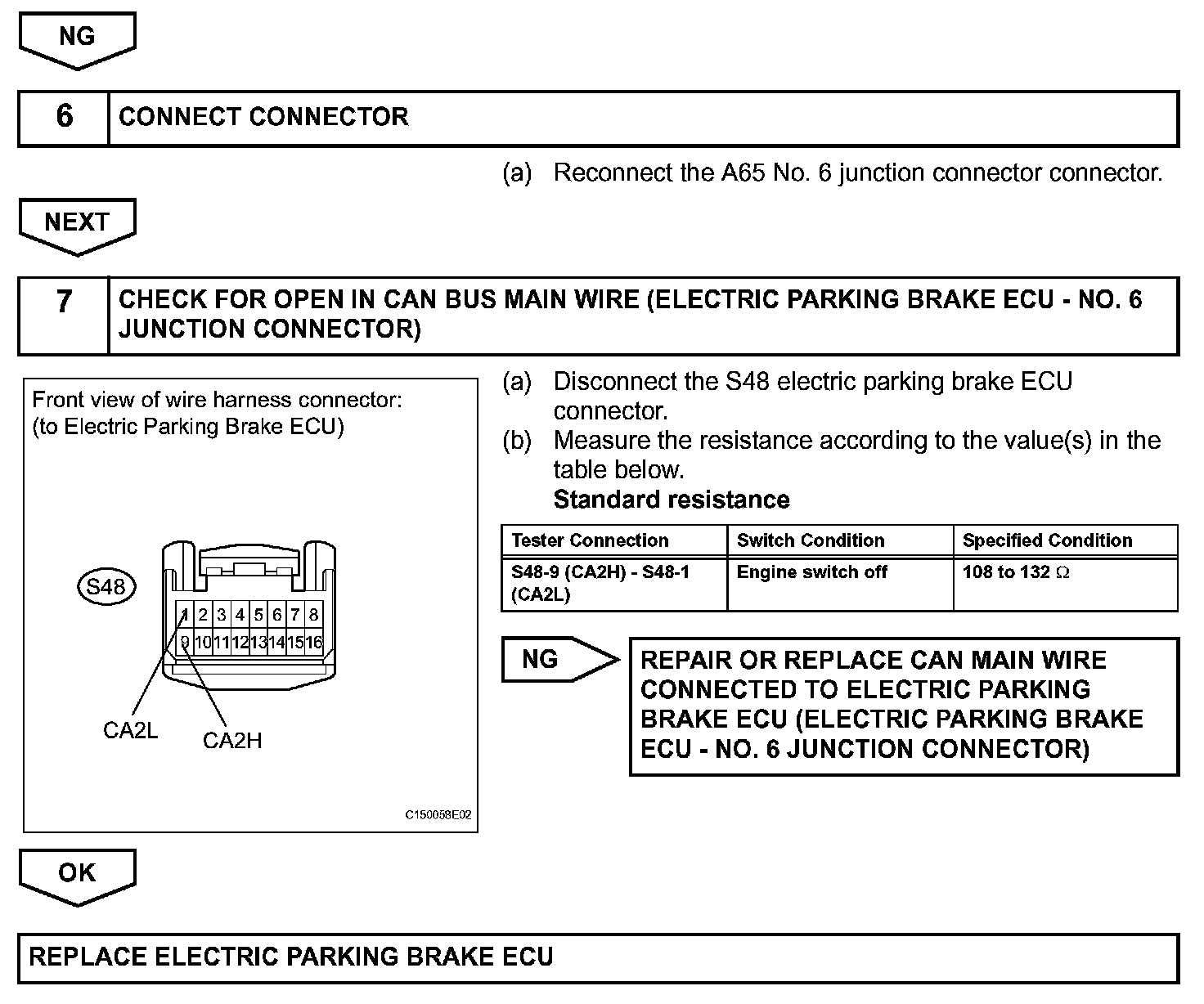

Step 5 (Continued)-7:

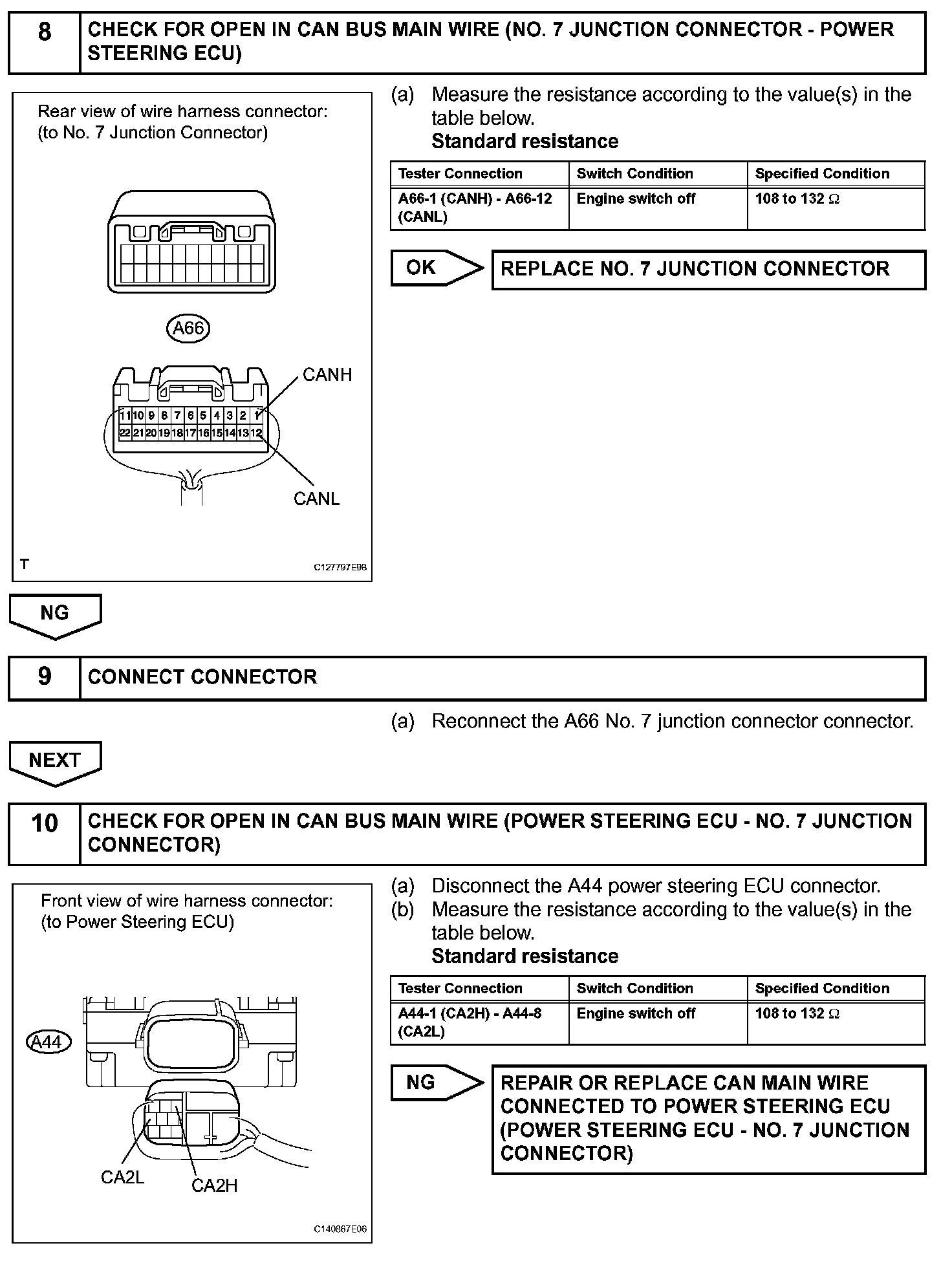

Step 8-10:

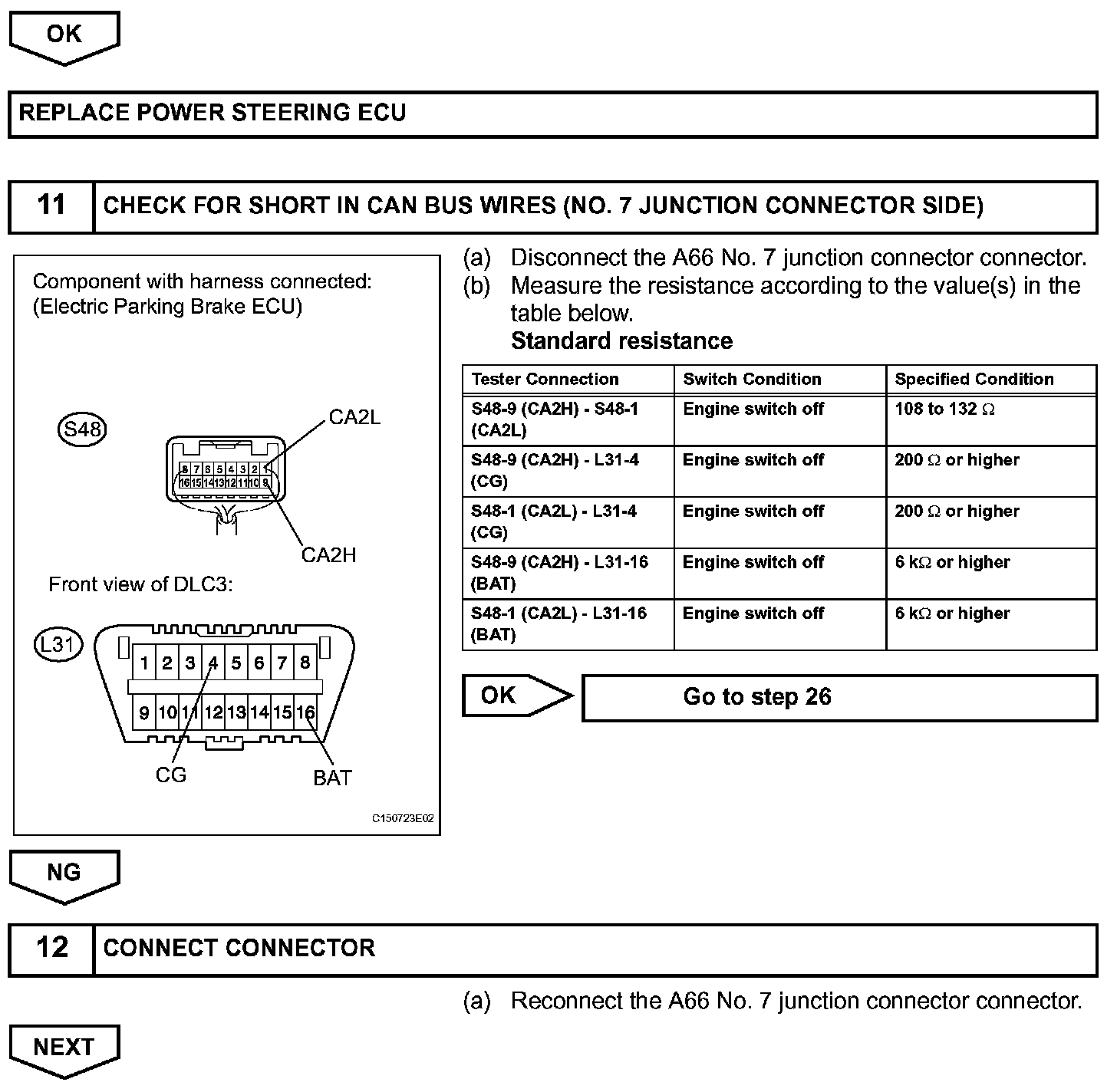

Step 10 (Continued)-12:

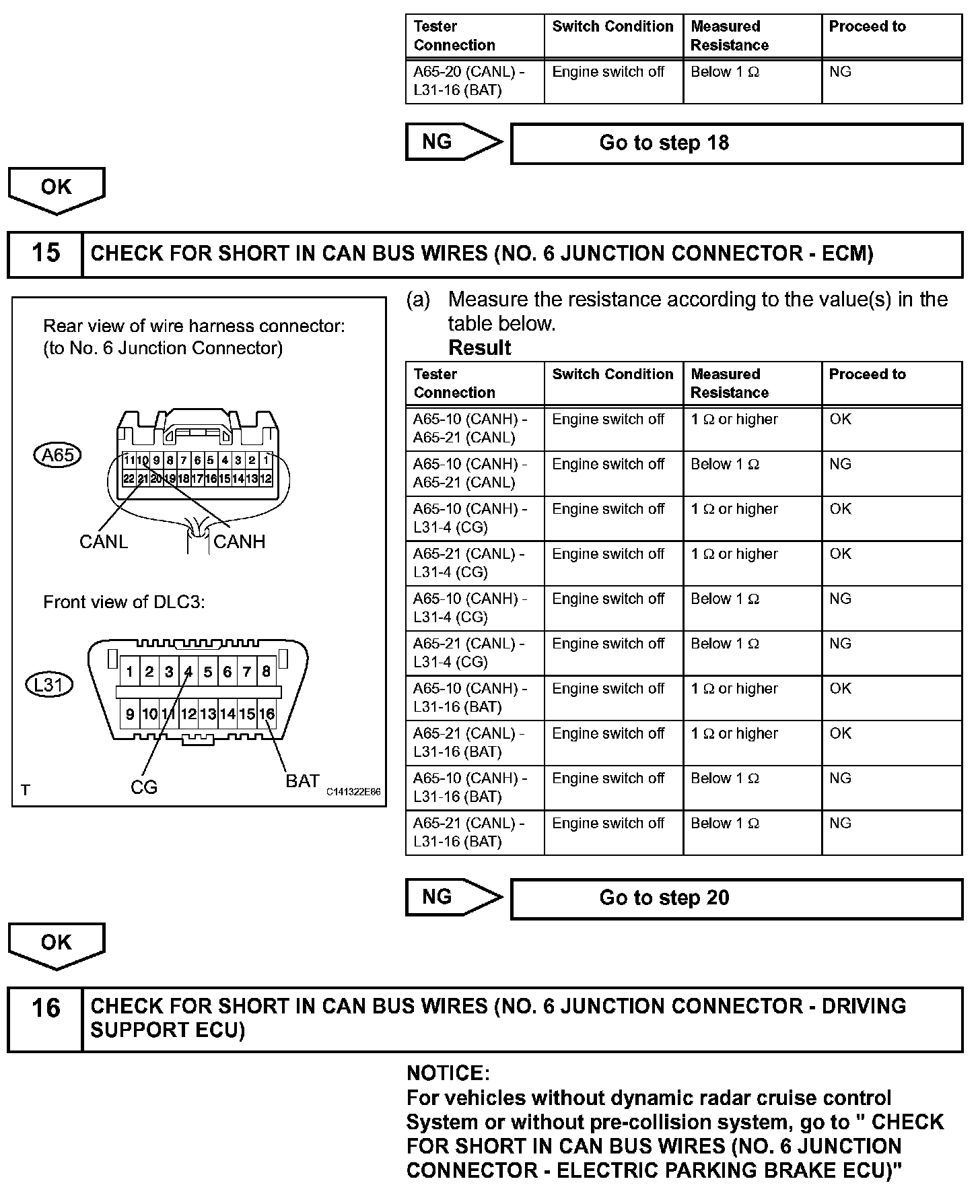

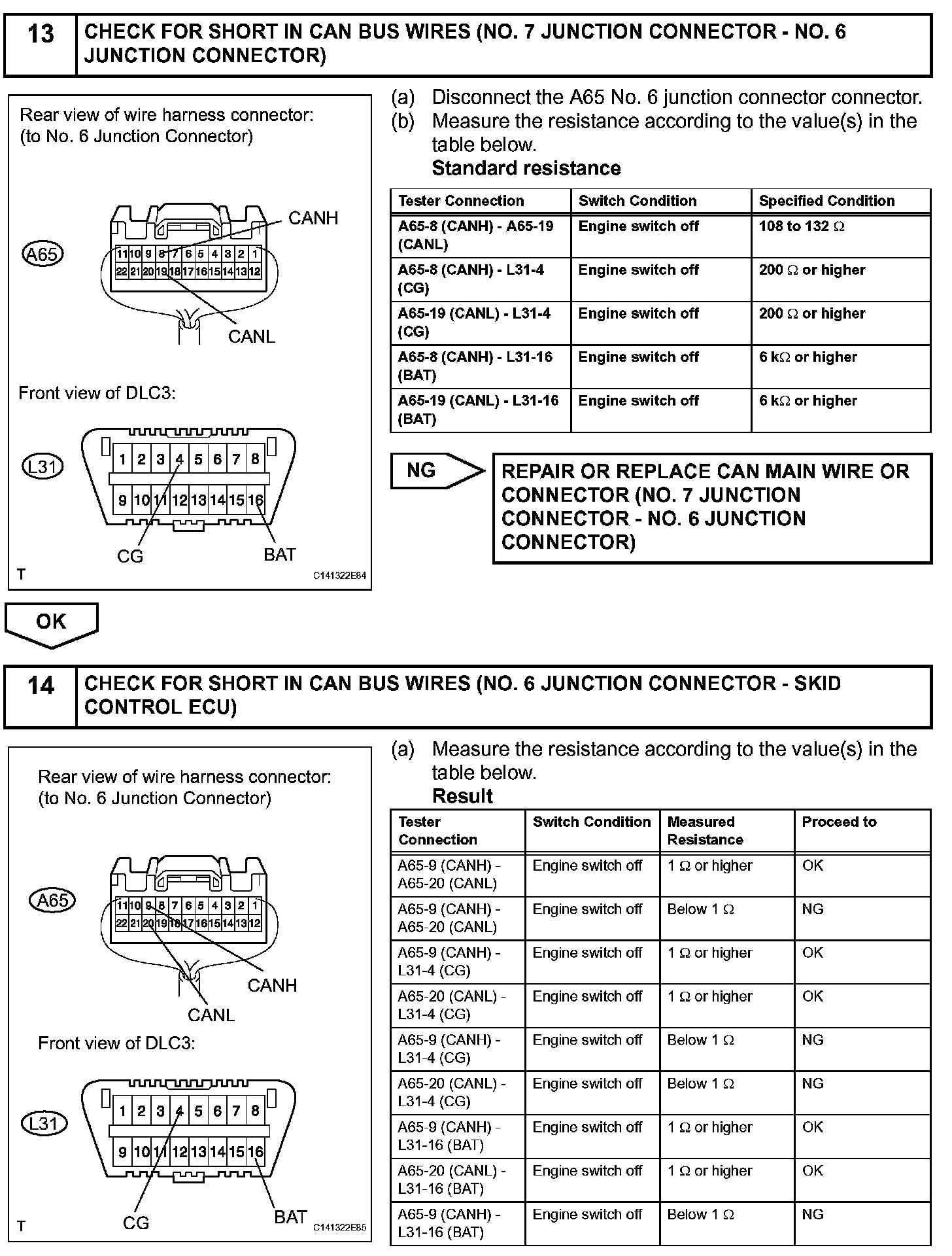

Step 13-14:
Step 14 (Continued)-16:

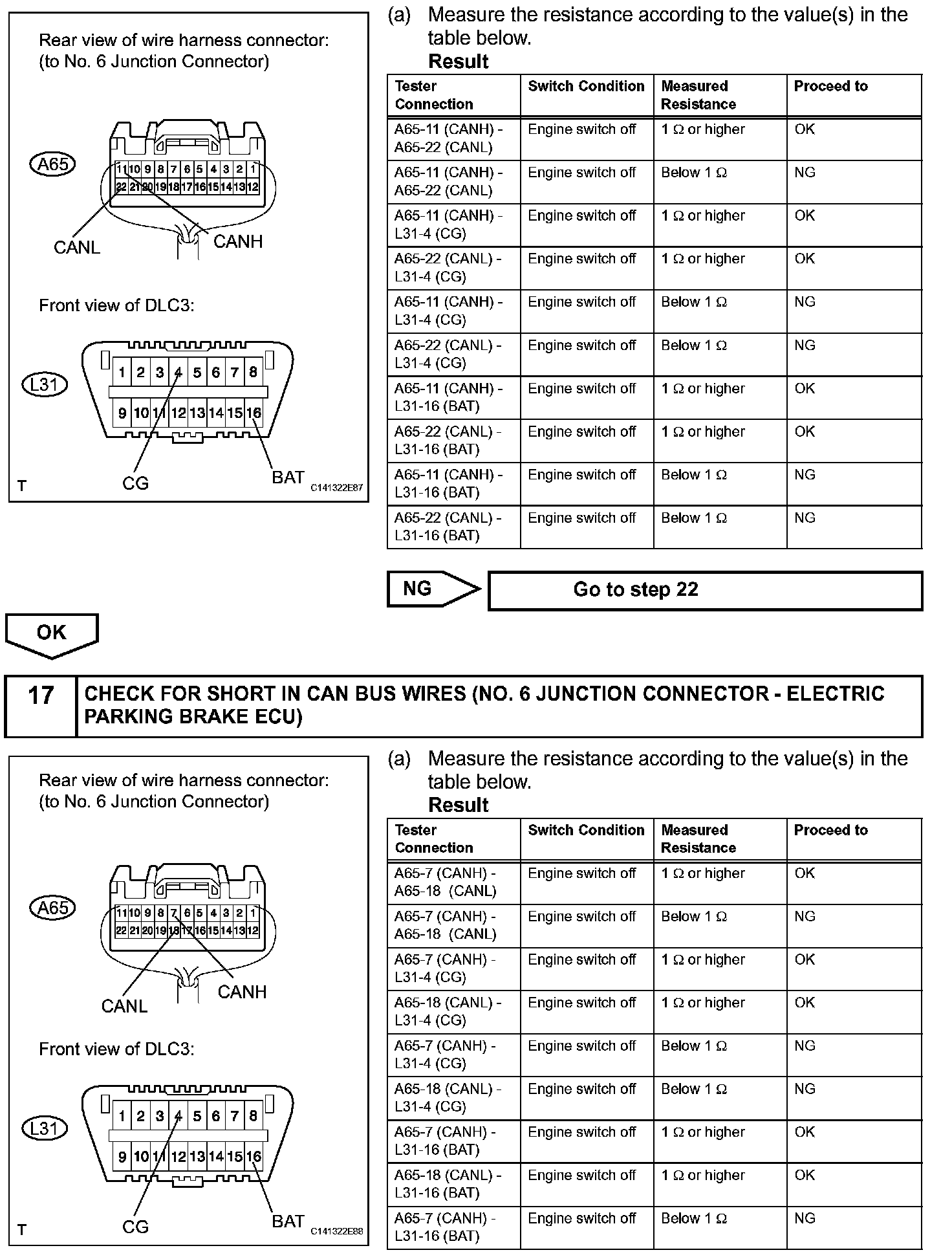

Step 16 (Continued)-17:

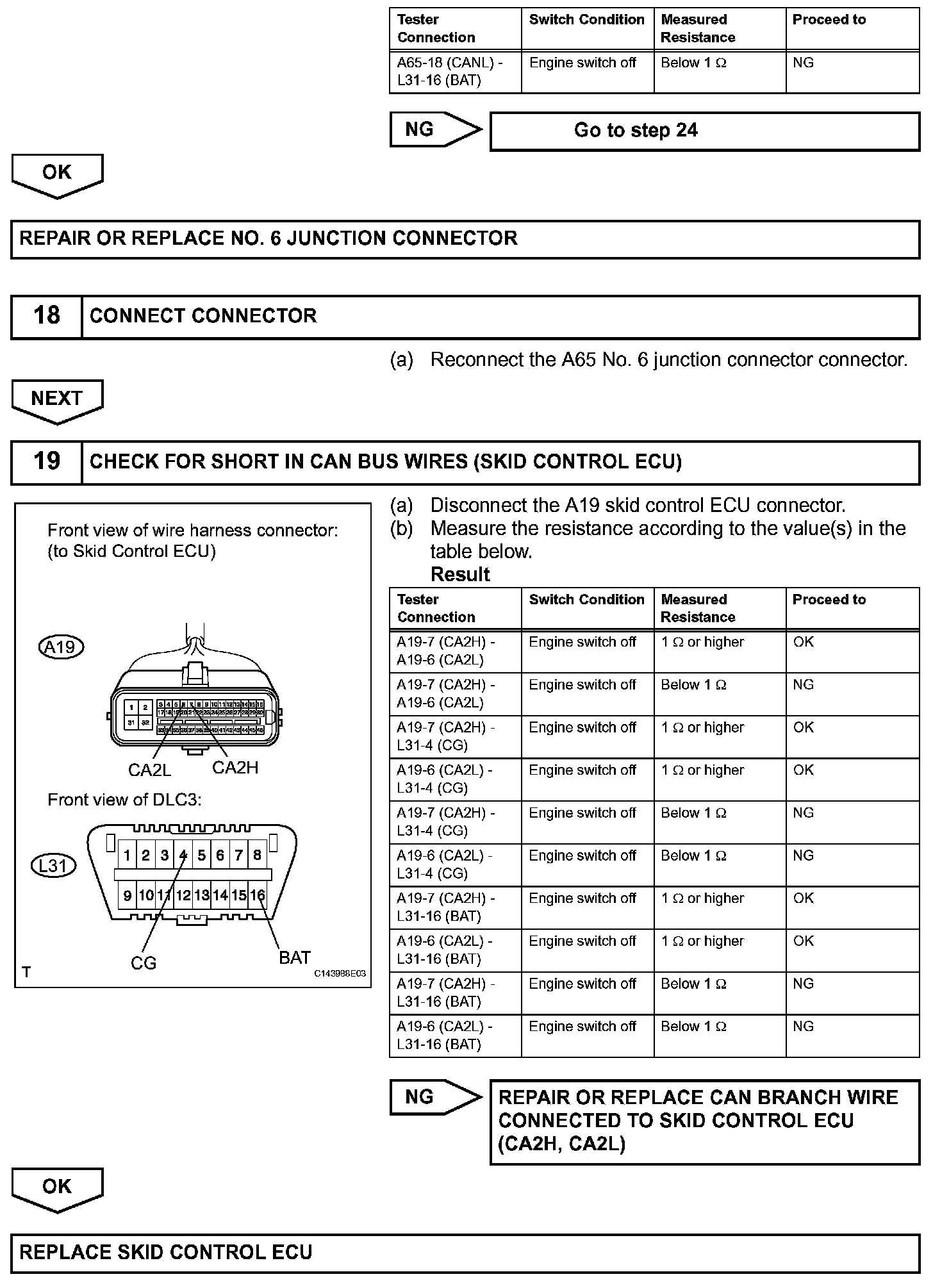

Step 17 (continued)-19:

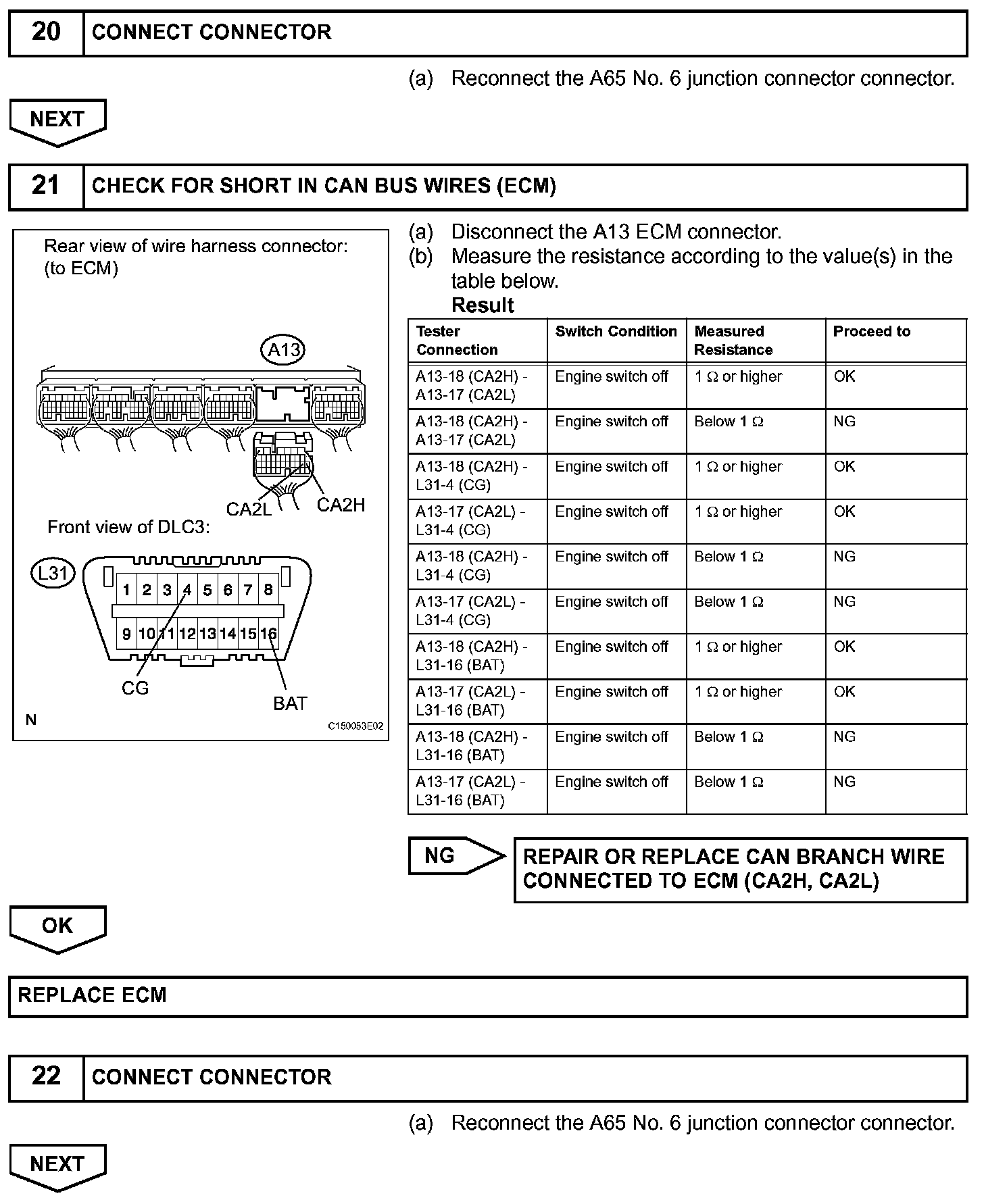

Step 20-22:

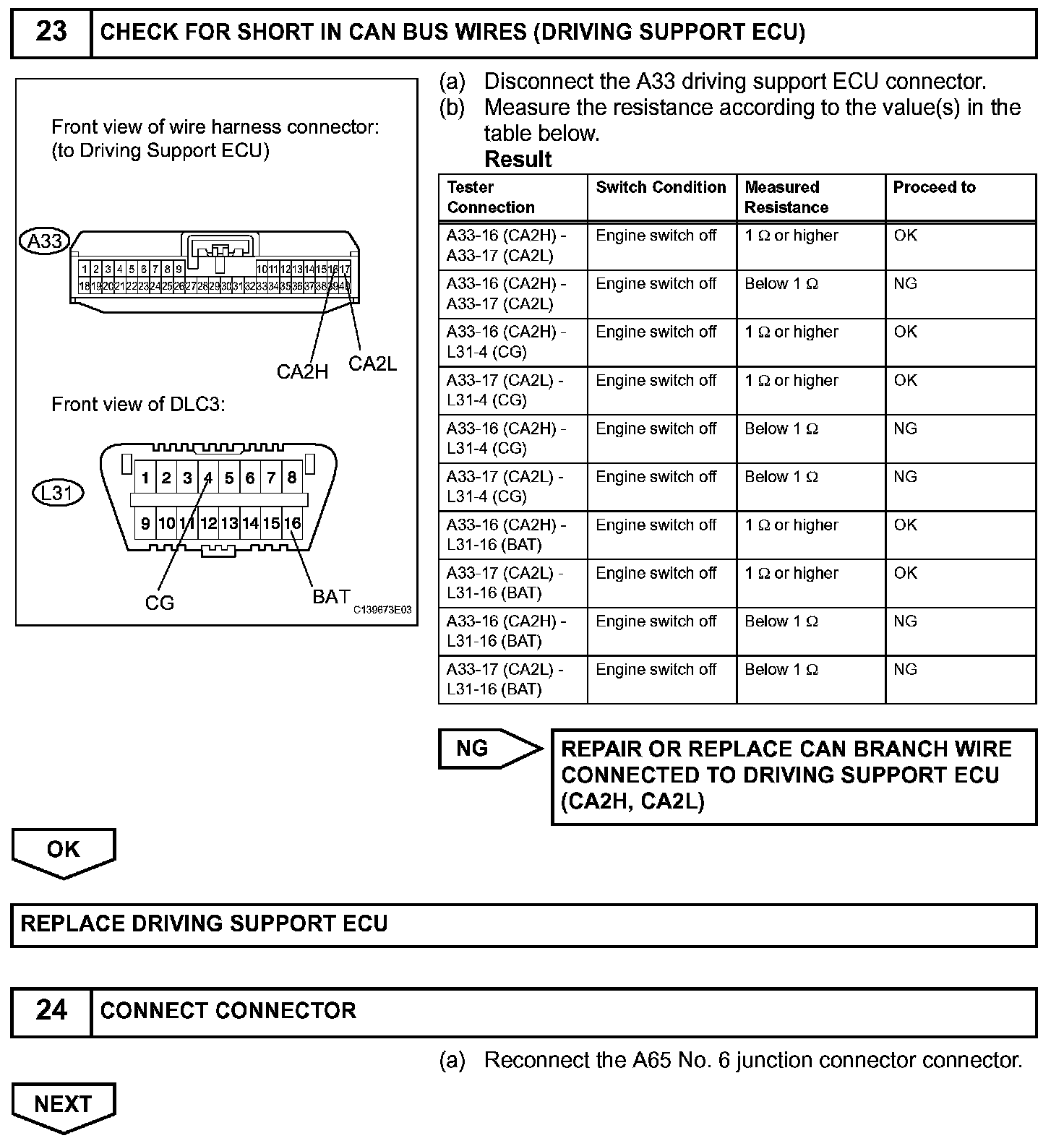

Step 23-24:

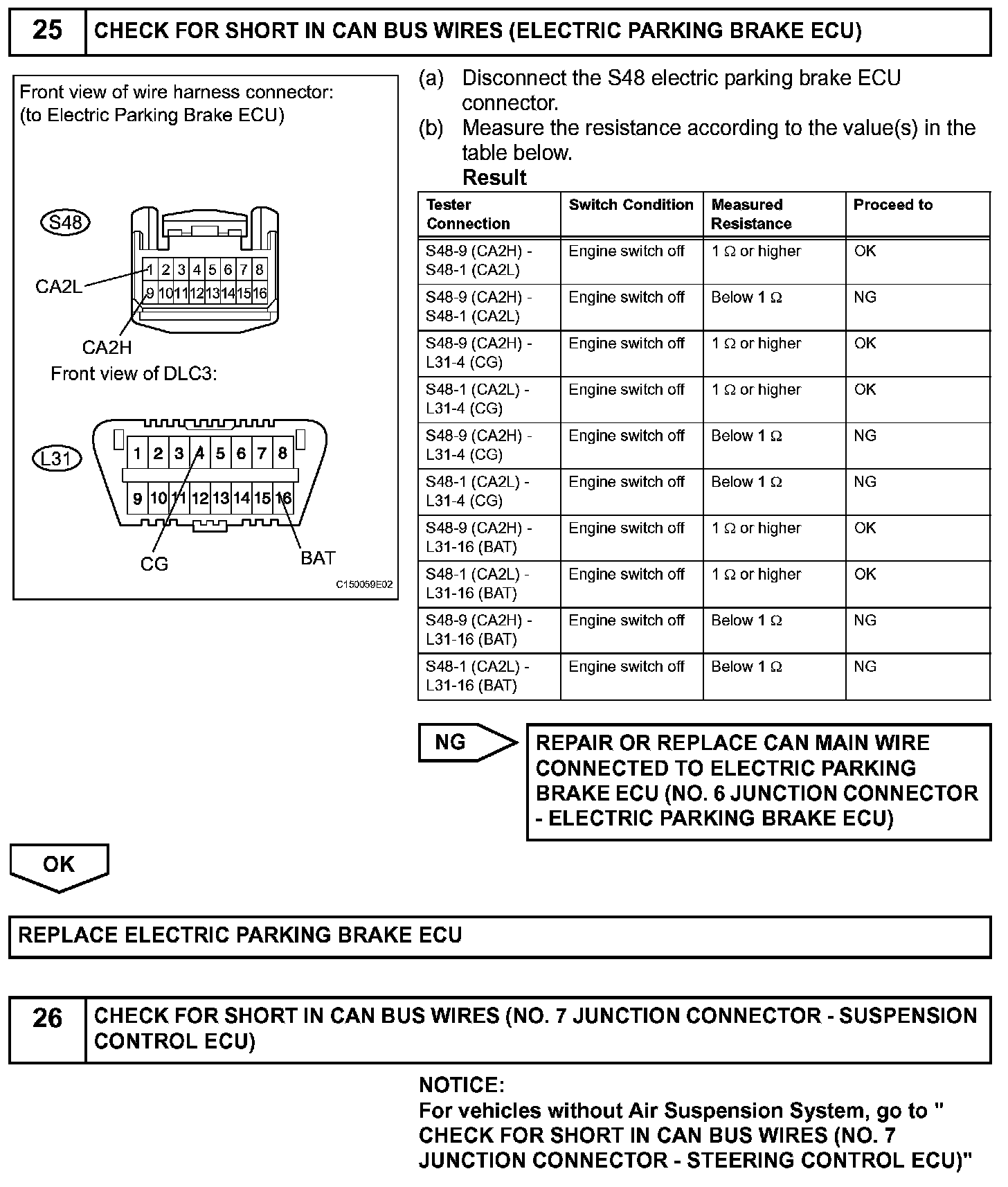

Step 25-26:

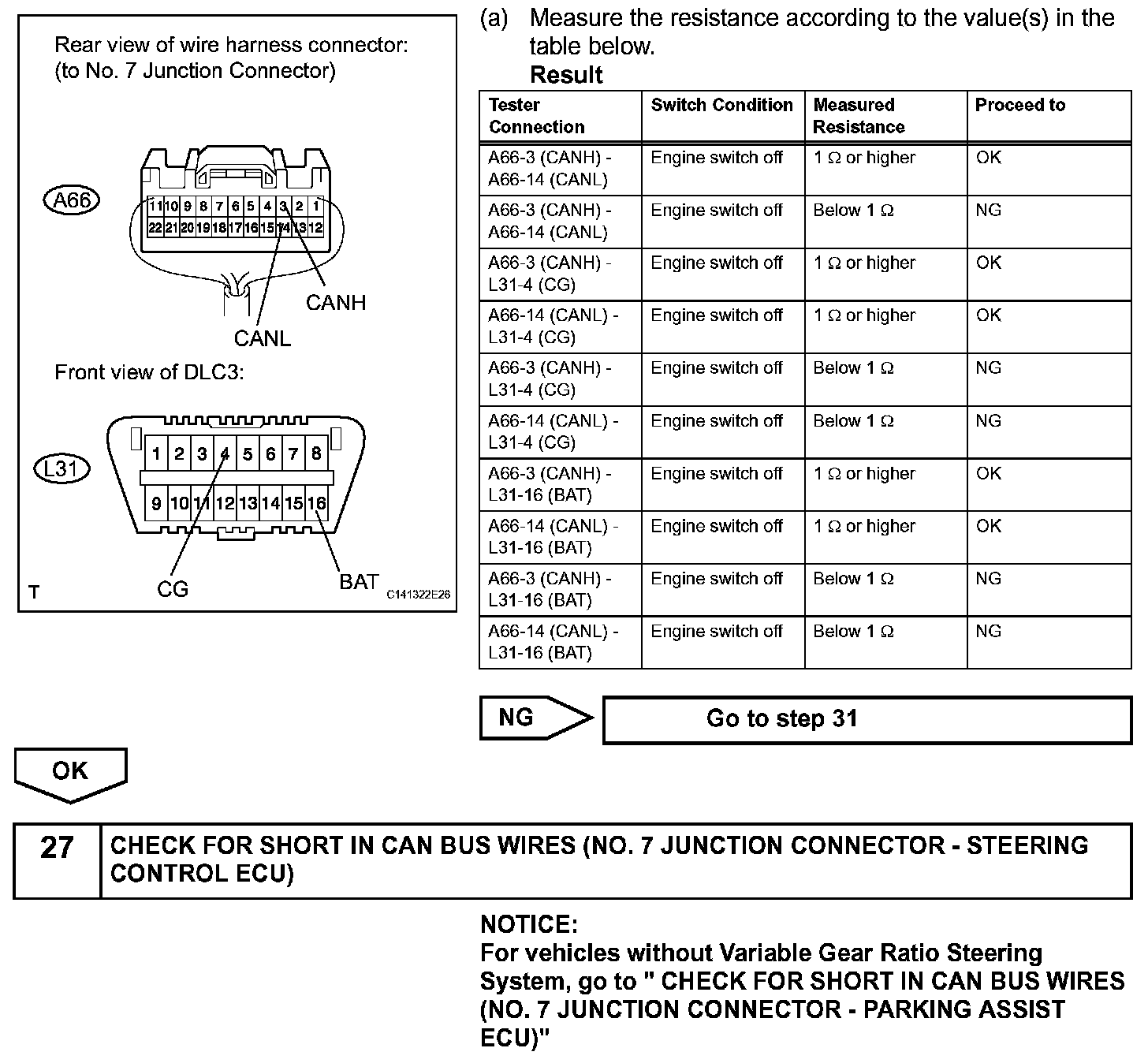

Step 26 (Continued)-27:

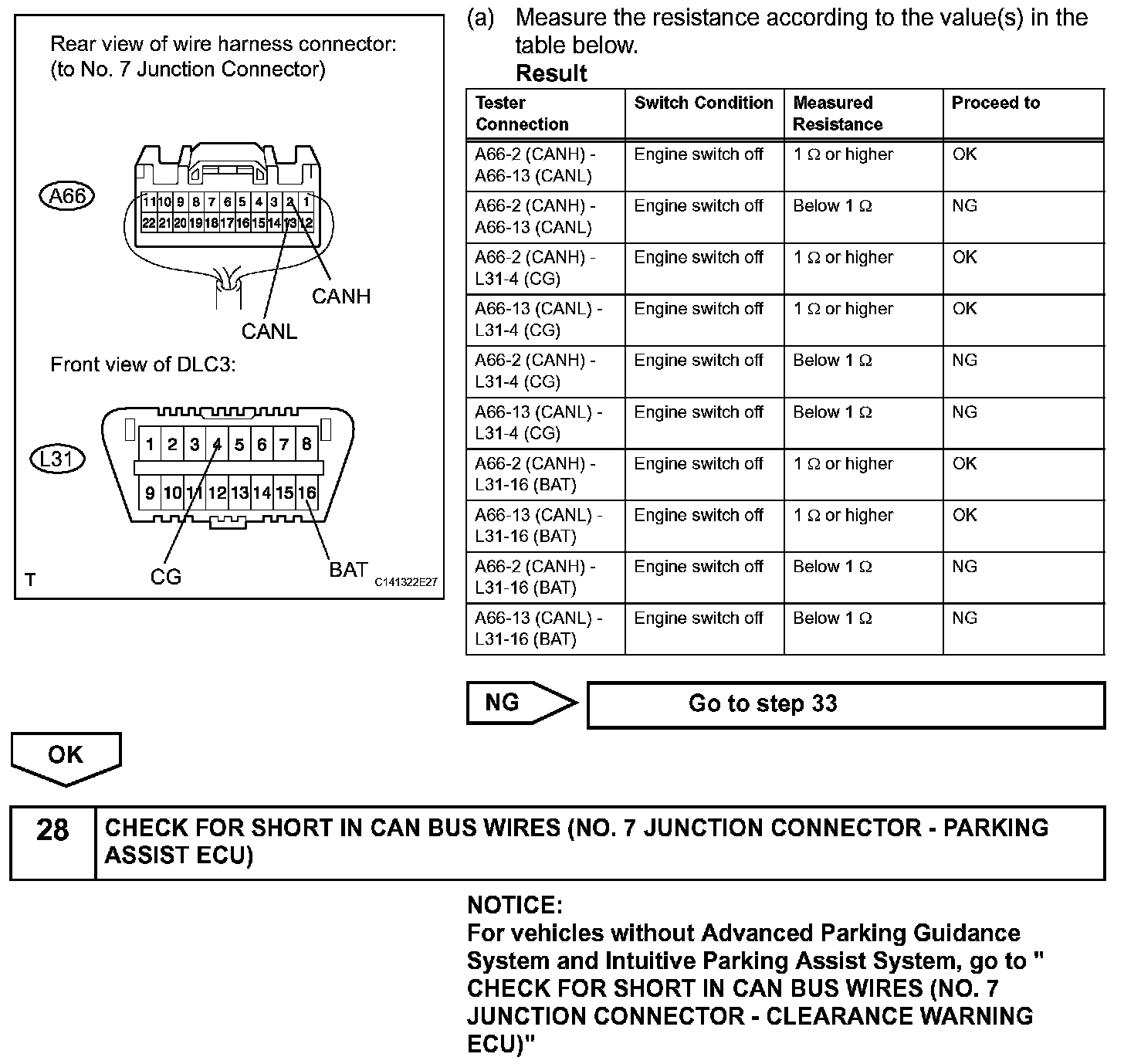

Step 27 (Continued)-28:
Step 28 (Continued)-29:
Step 29 (Continued)-30:

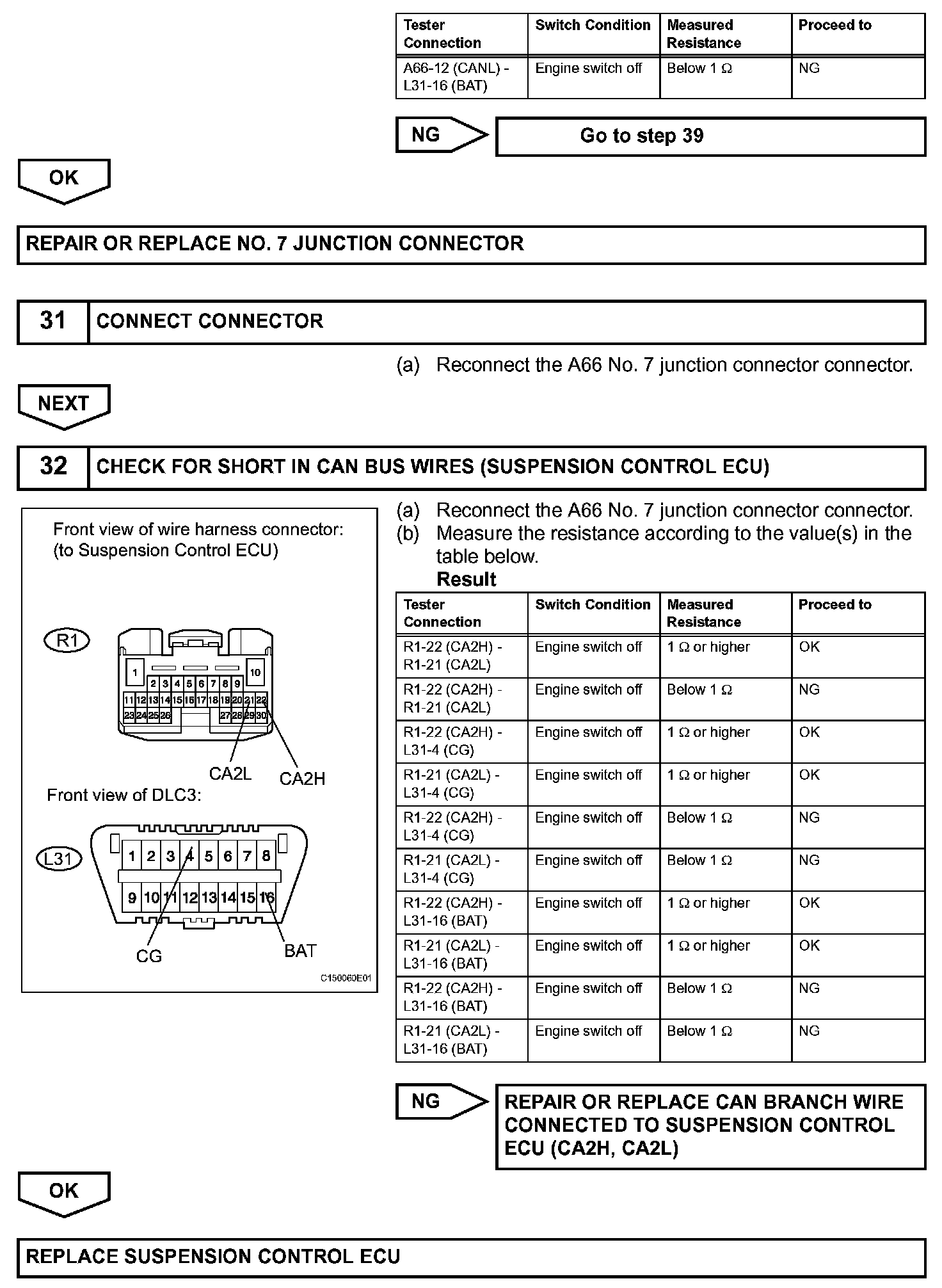

Step 30 (Continued)-32:

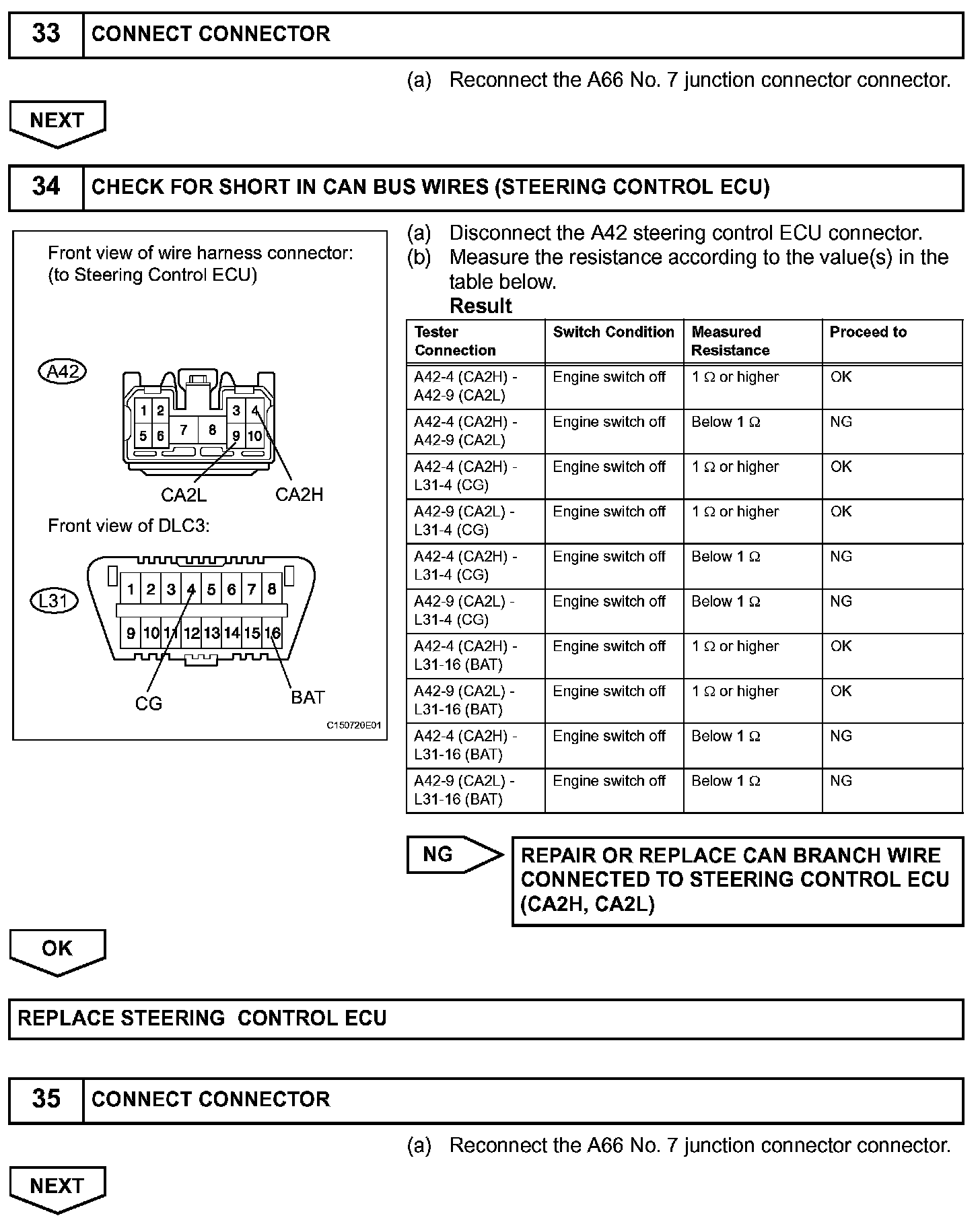

Step 33-35:

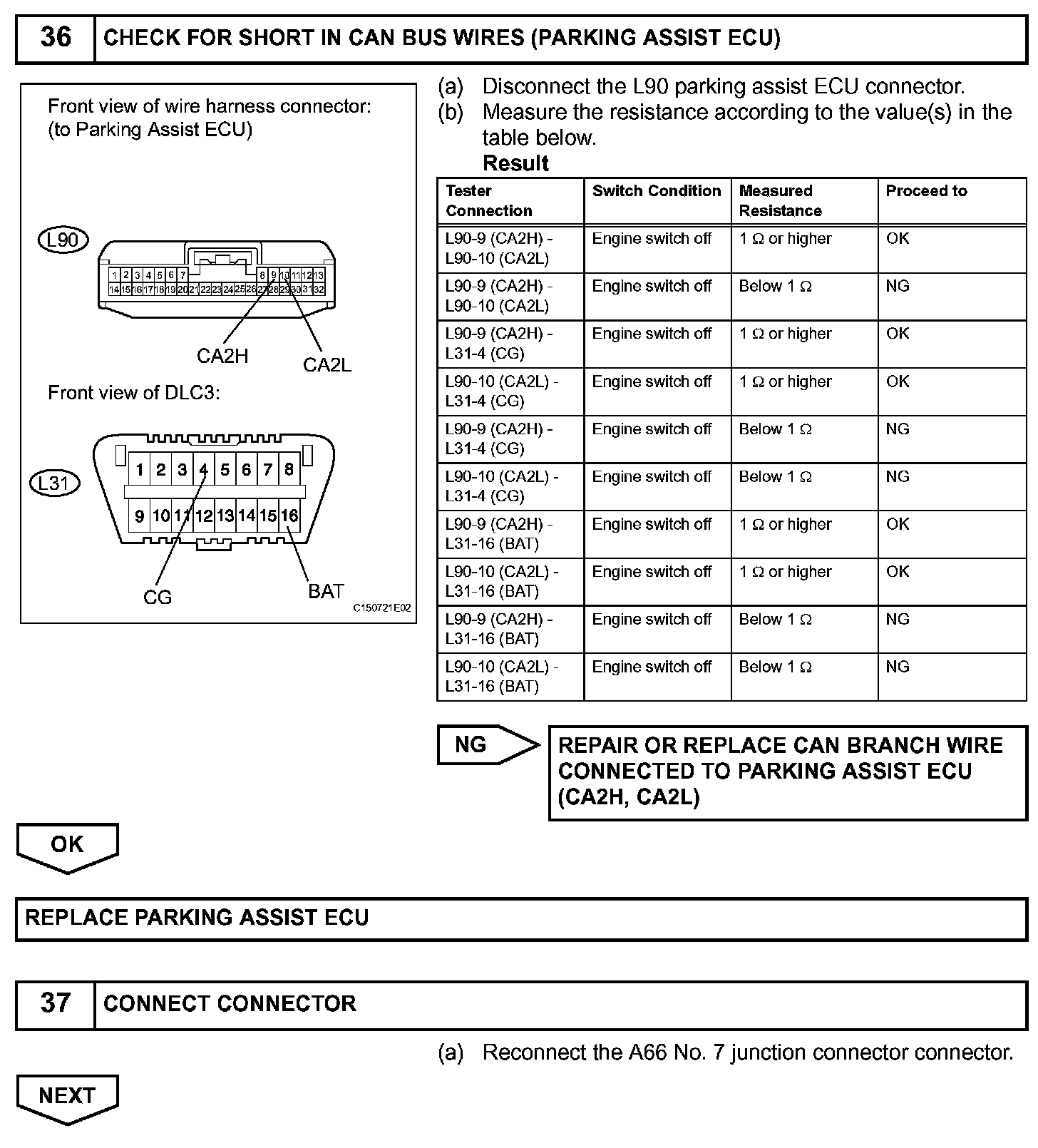

Step 36-37:

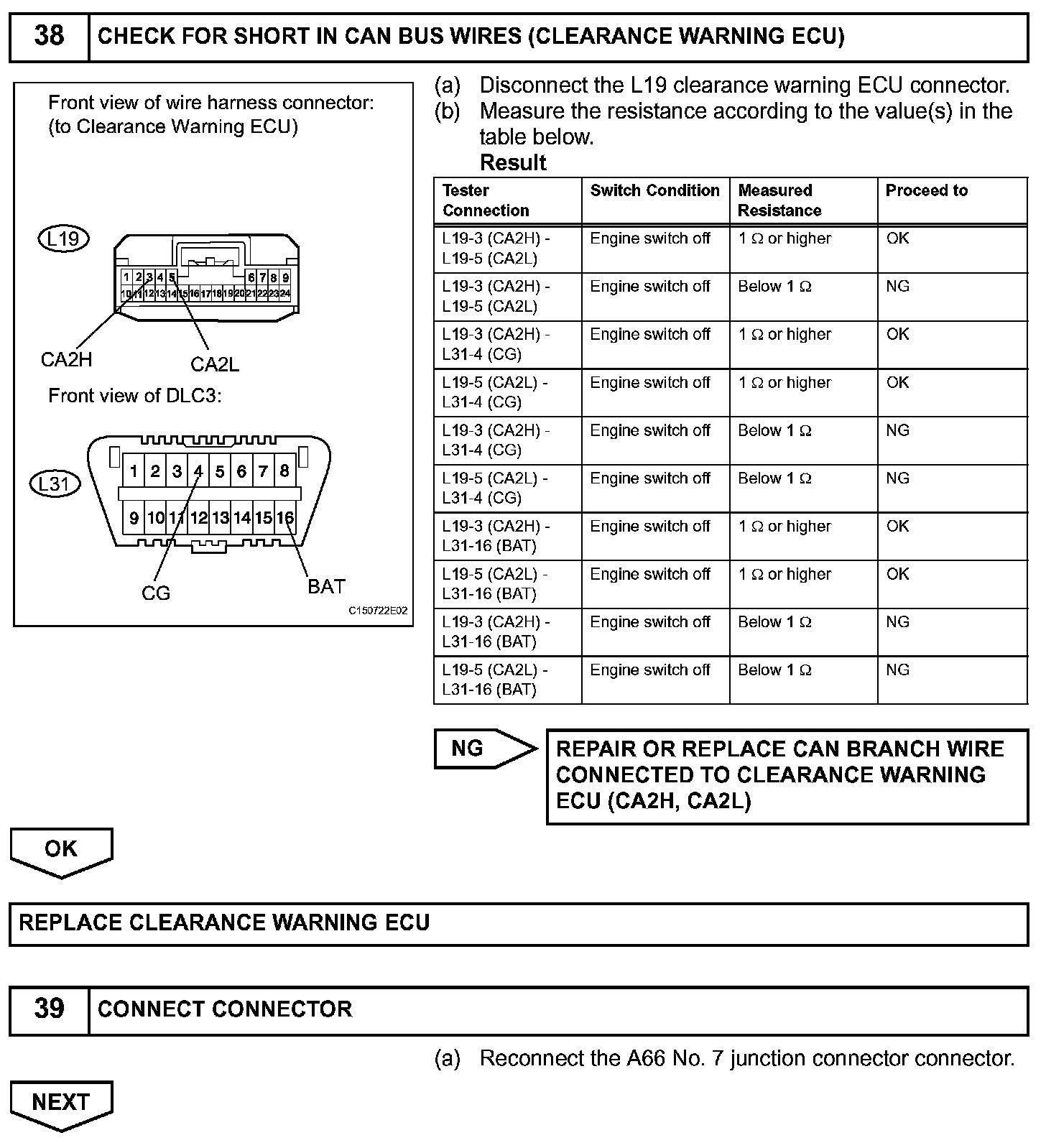

Step 38-39:

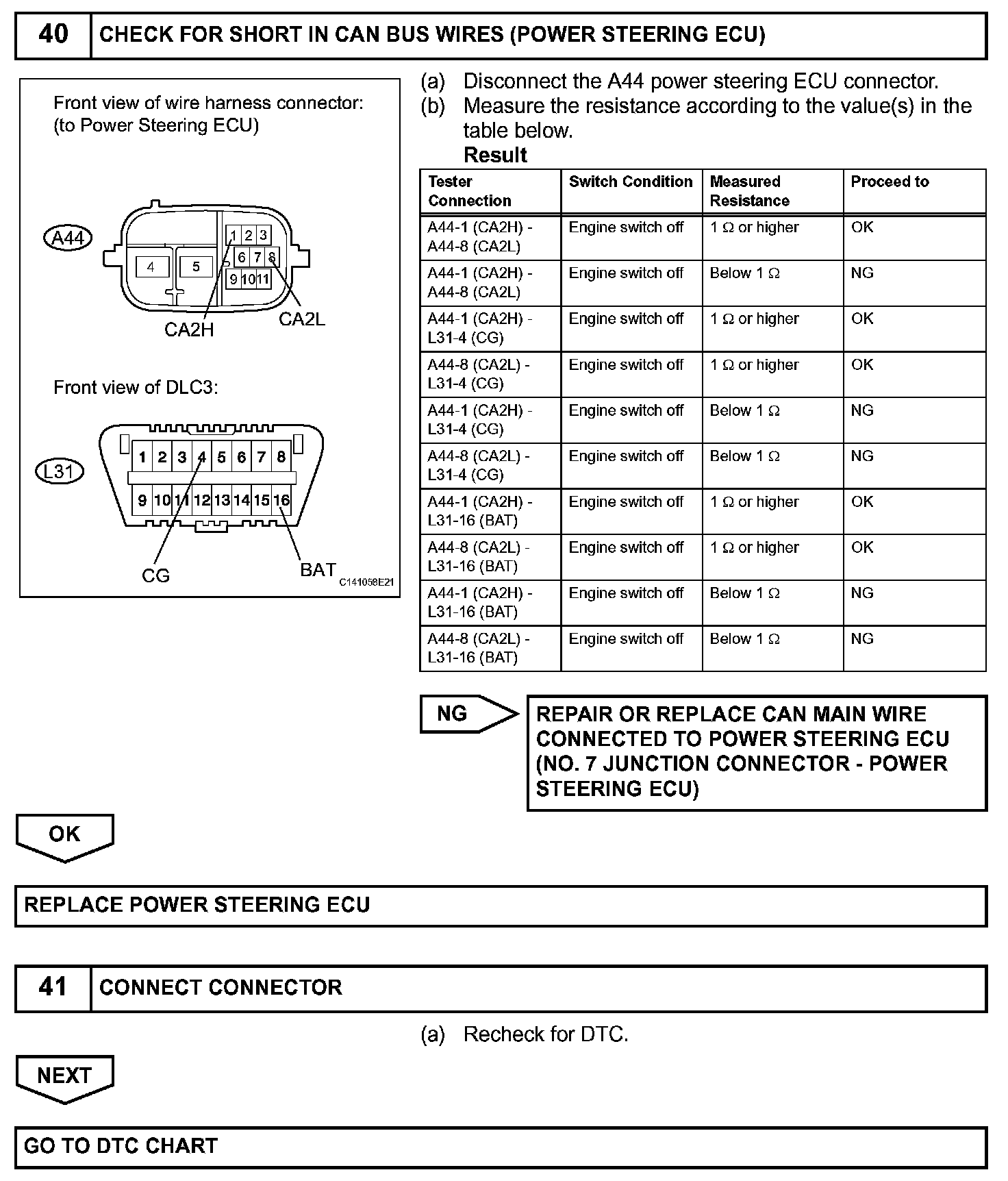

Step 40-41:
INSPECTION PROCEDURE
