U1002

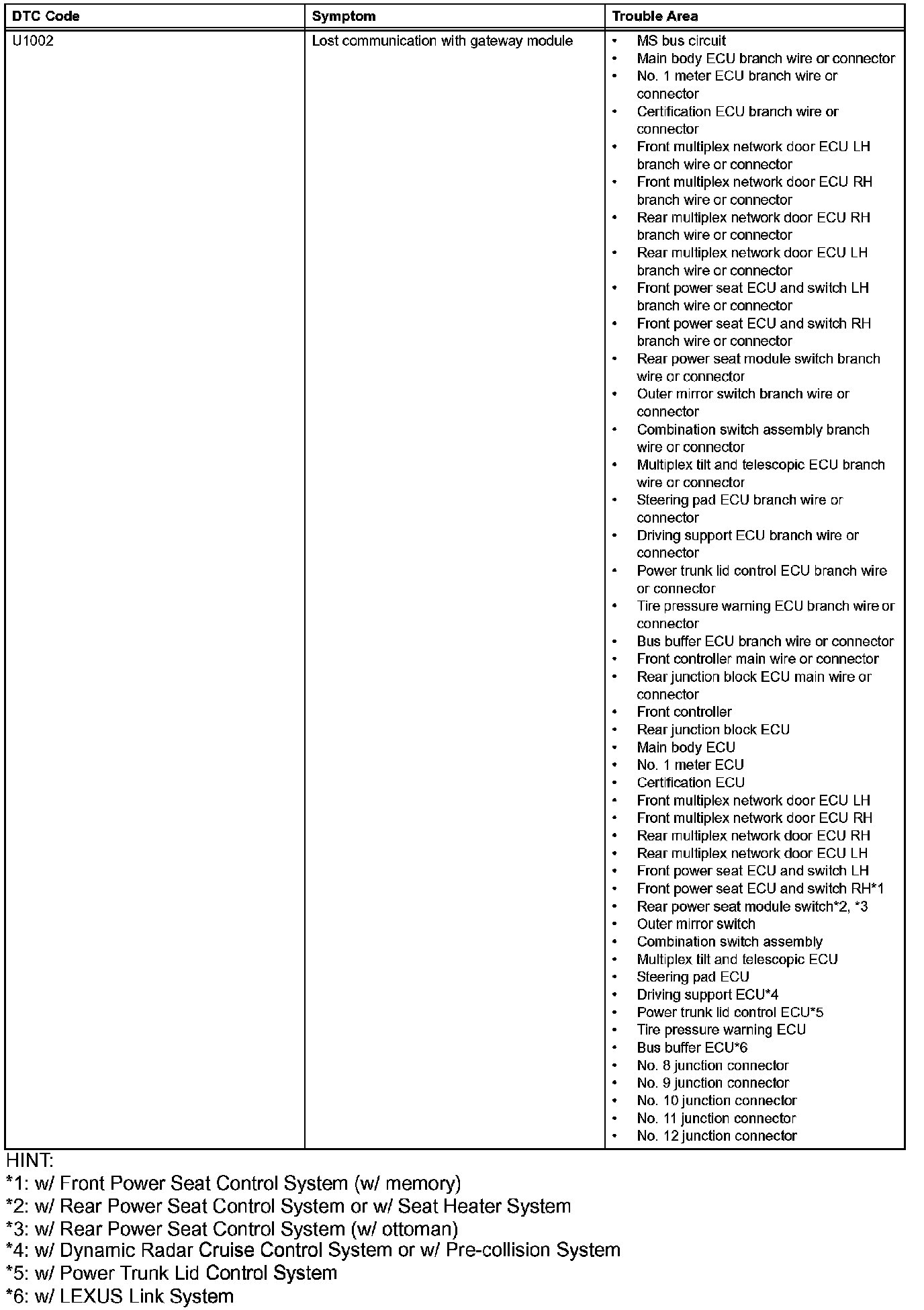

DTC U1002 Lost Communication with Gateway Module

DESCRIPTION




If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire] /CANL [branch wire] of the ECU and/or sensor is open.)

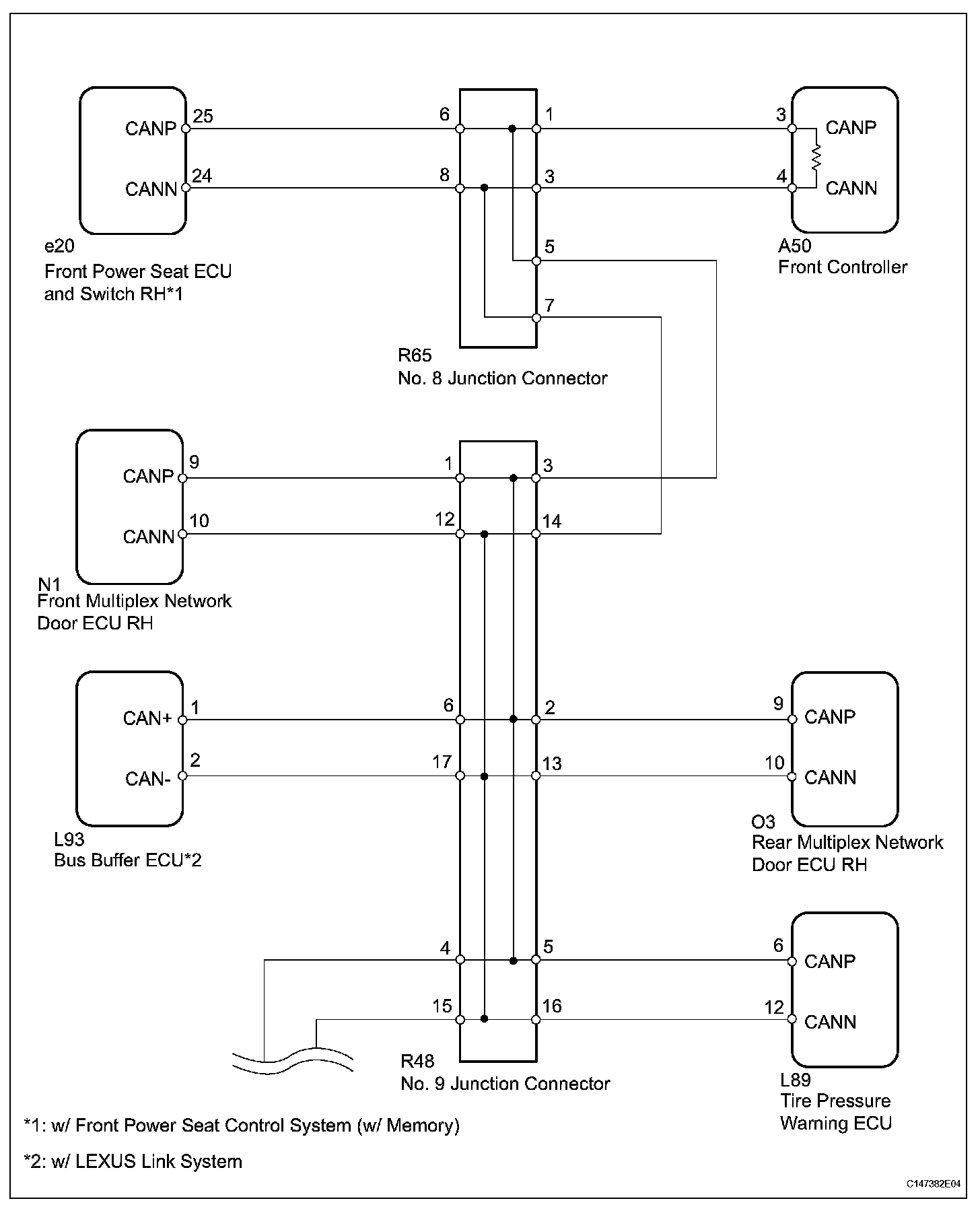

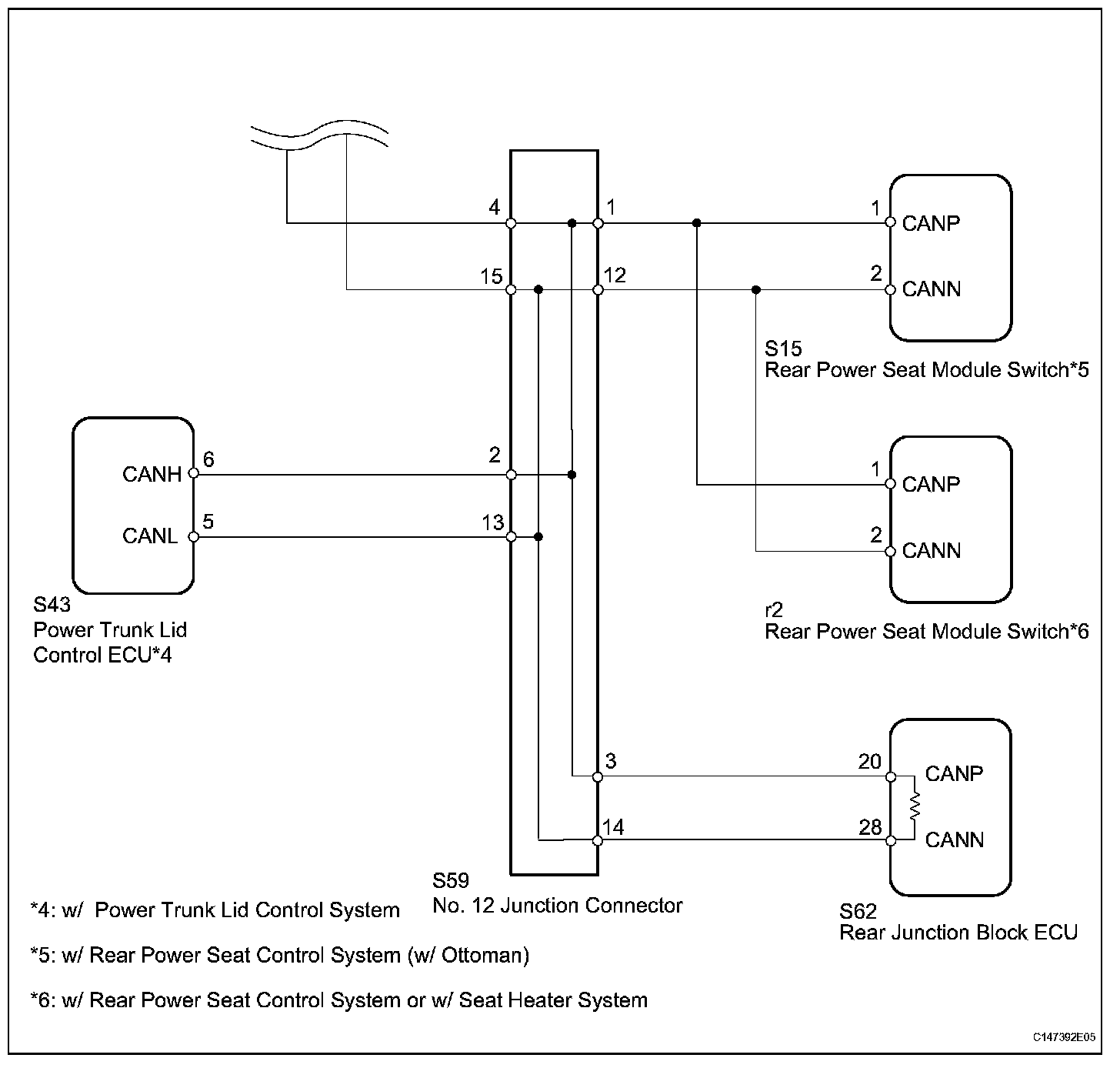

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

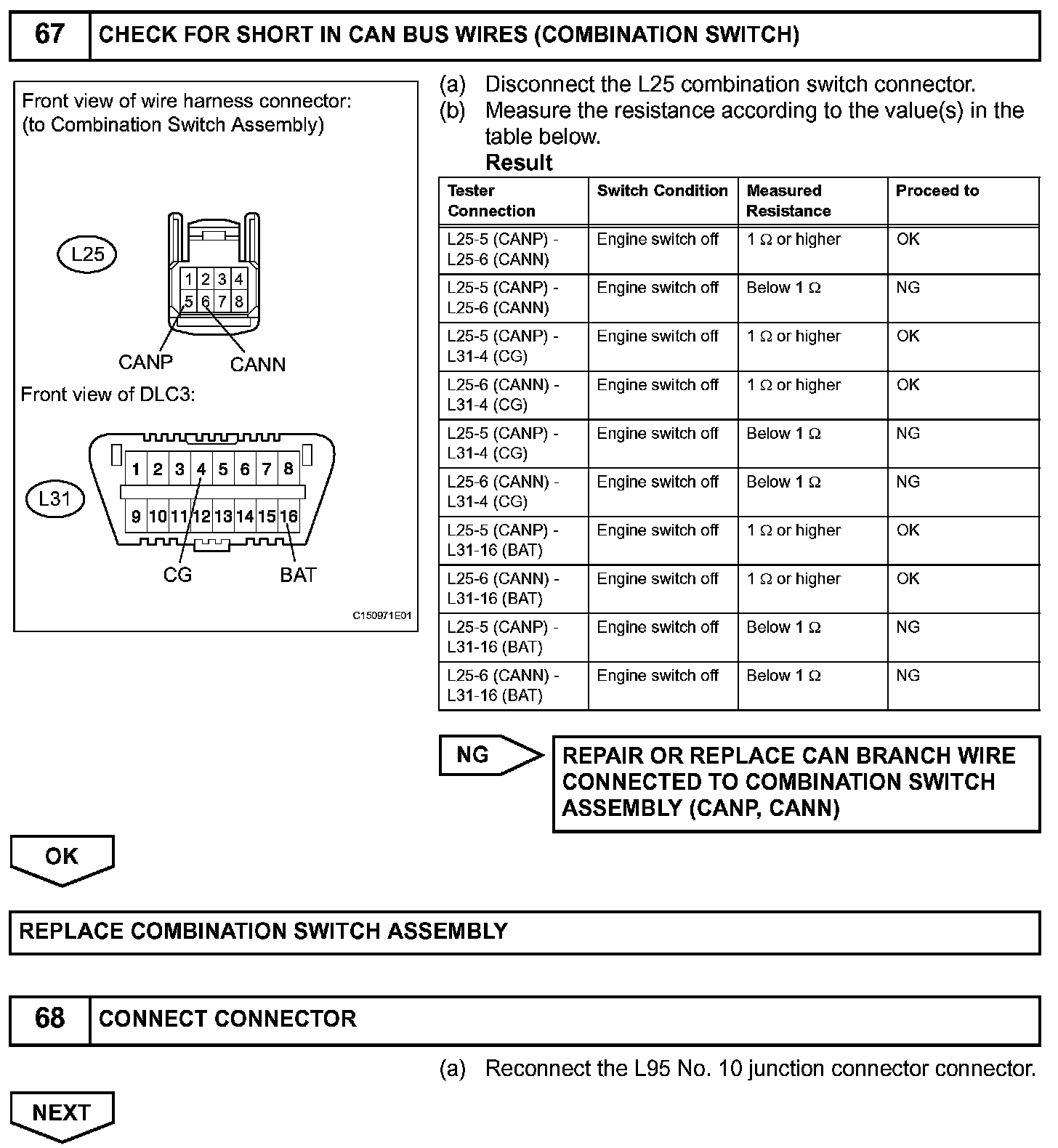

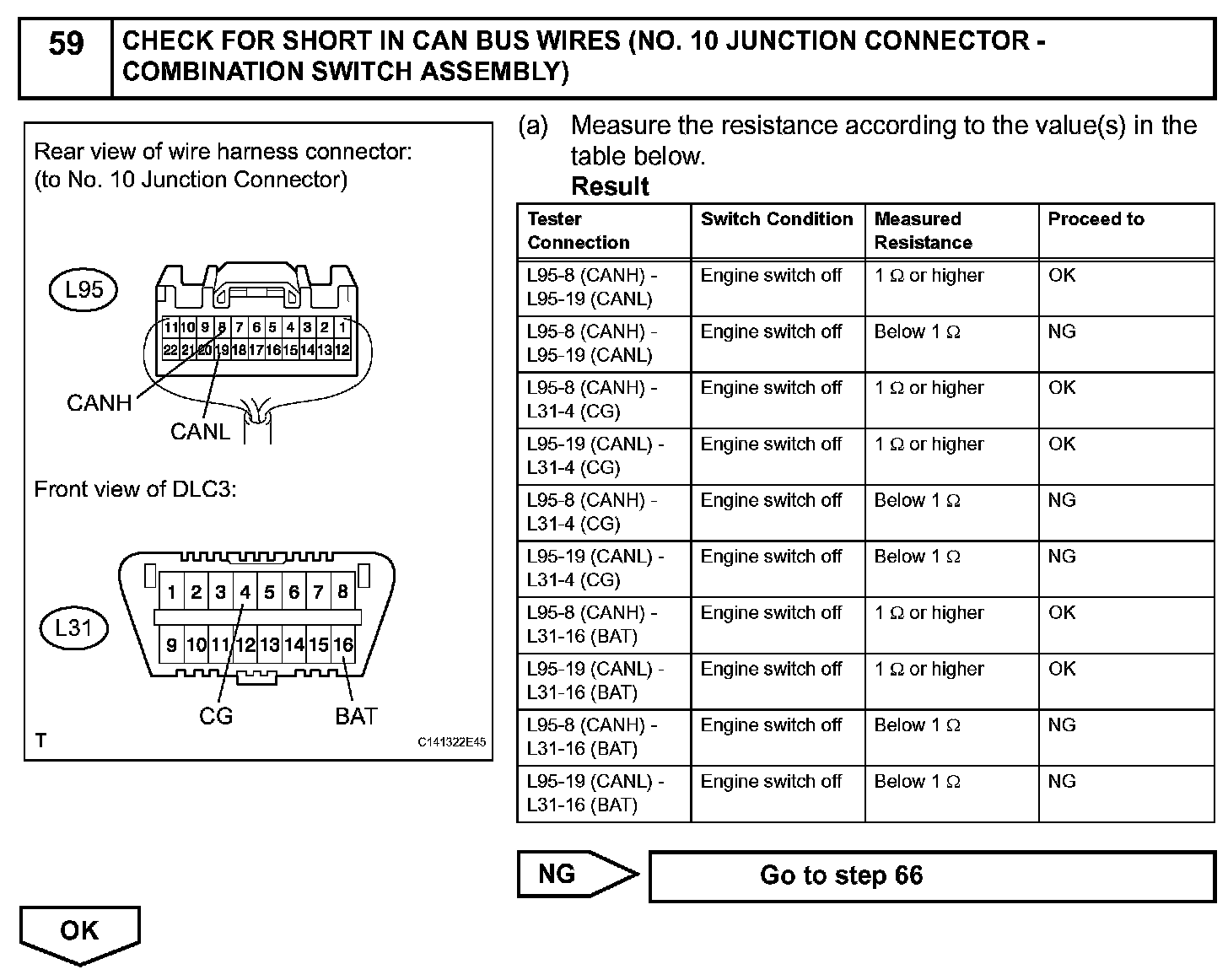

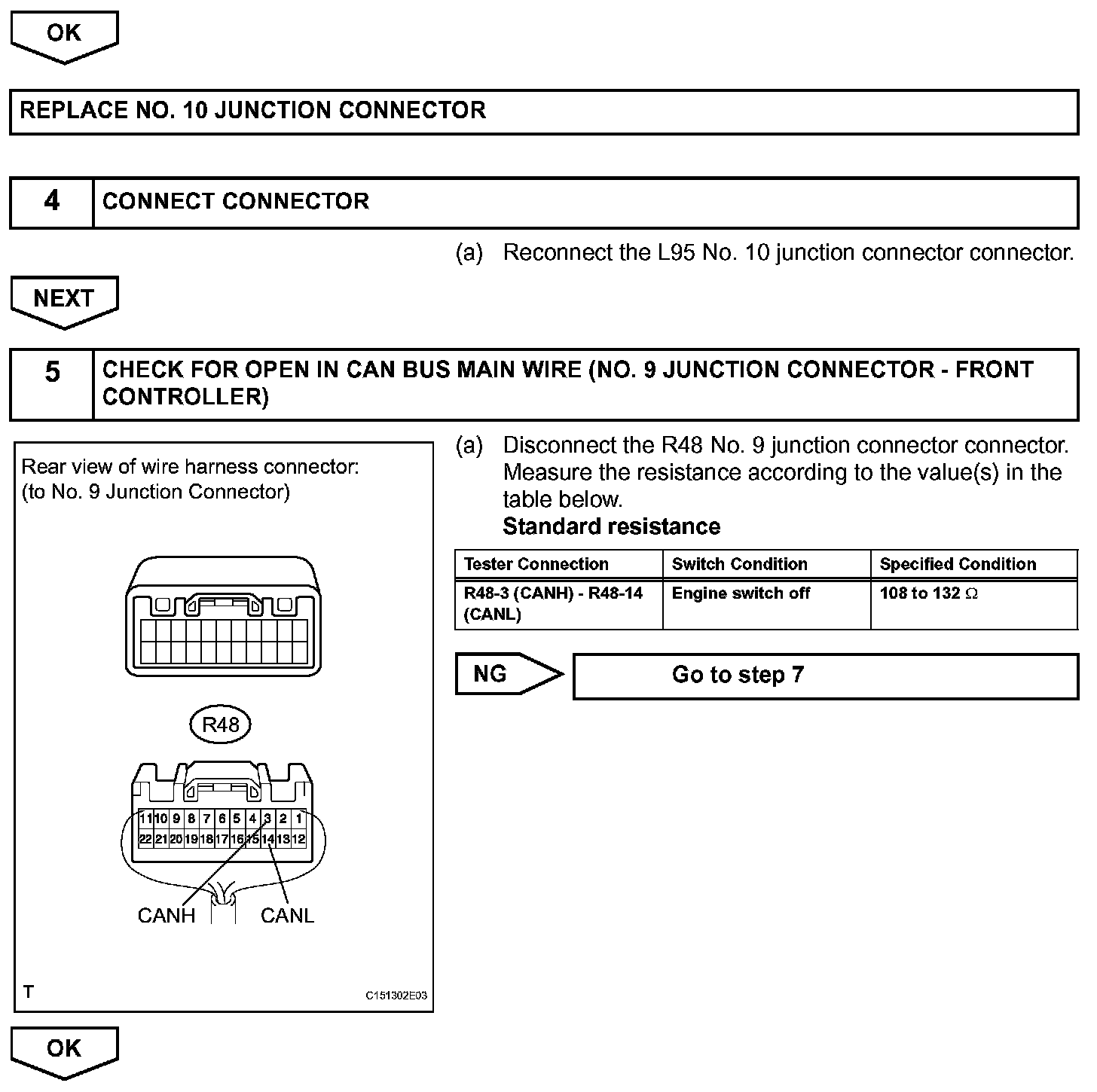

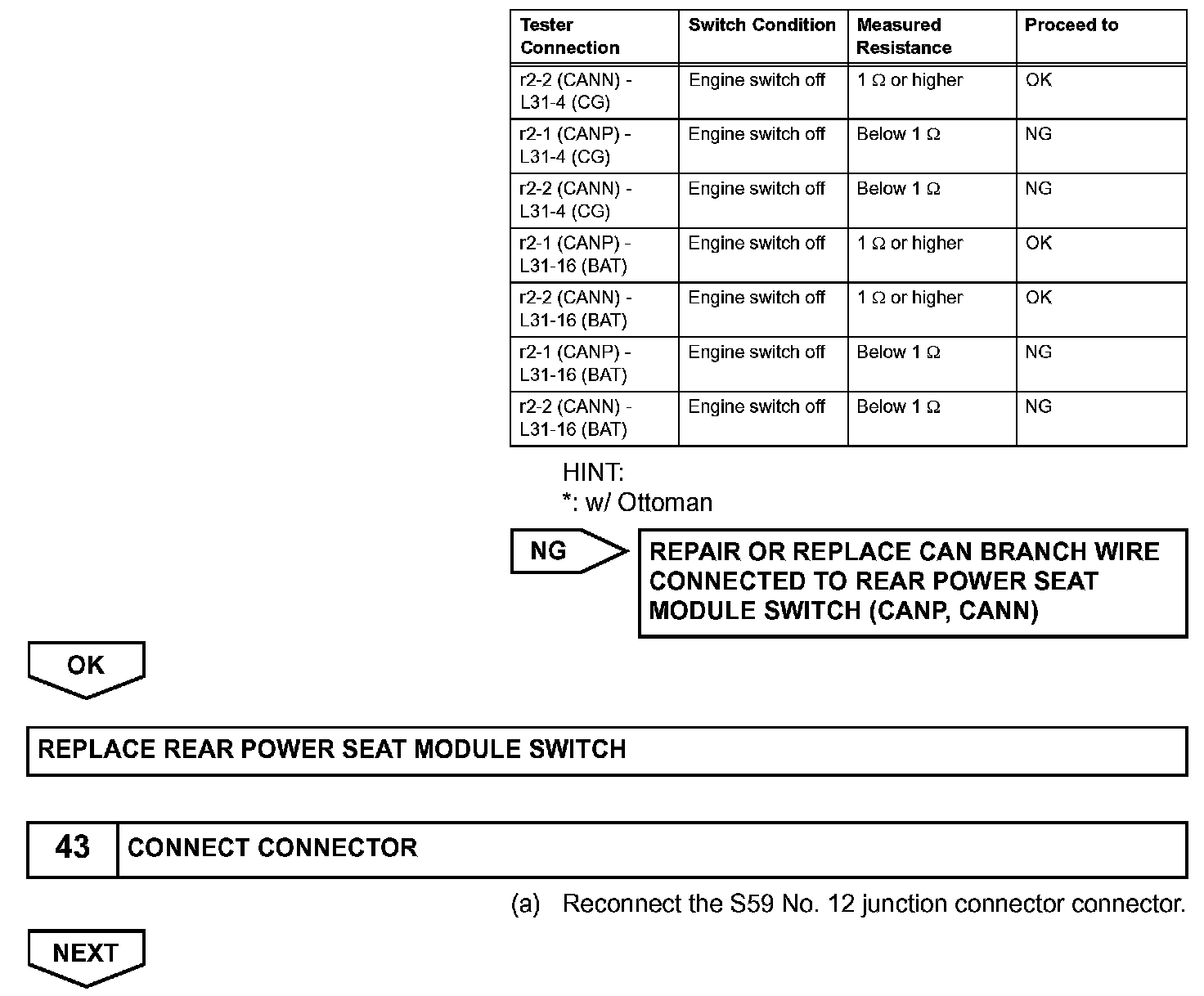

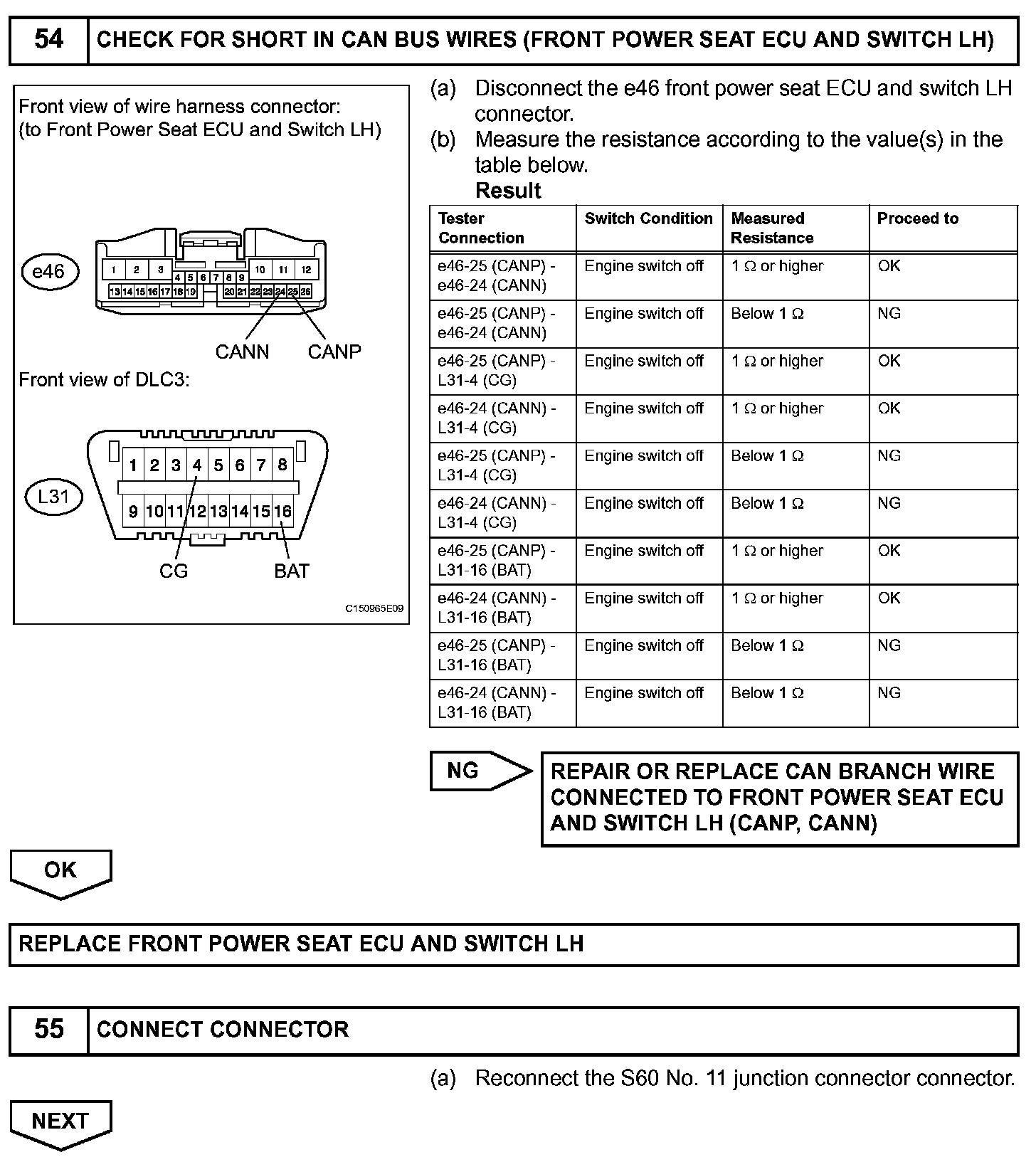

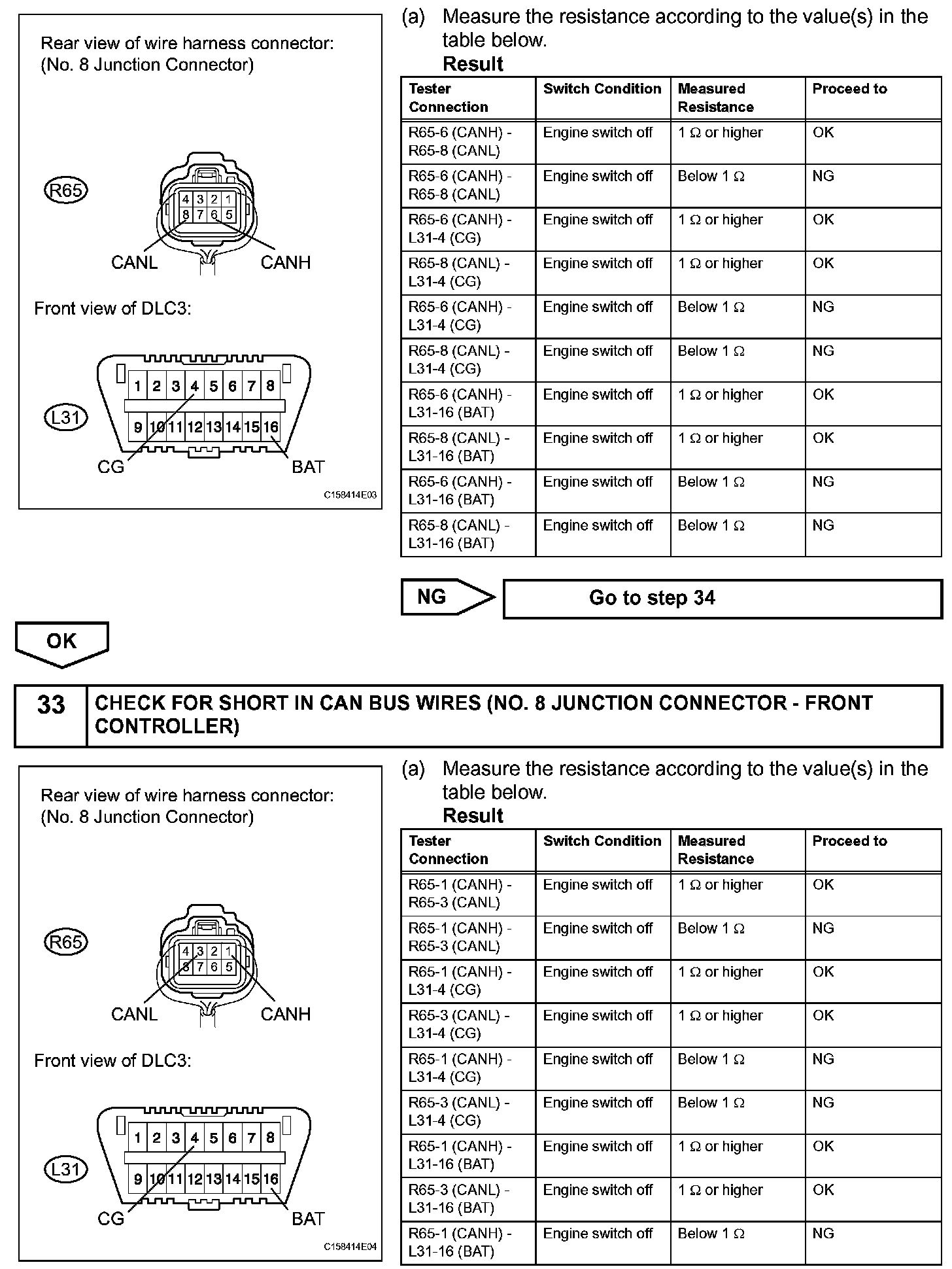

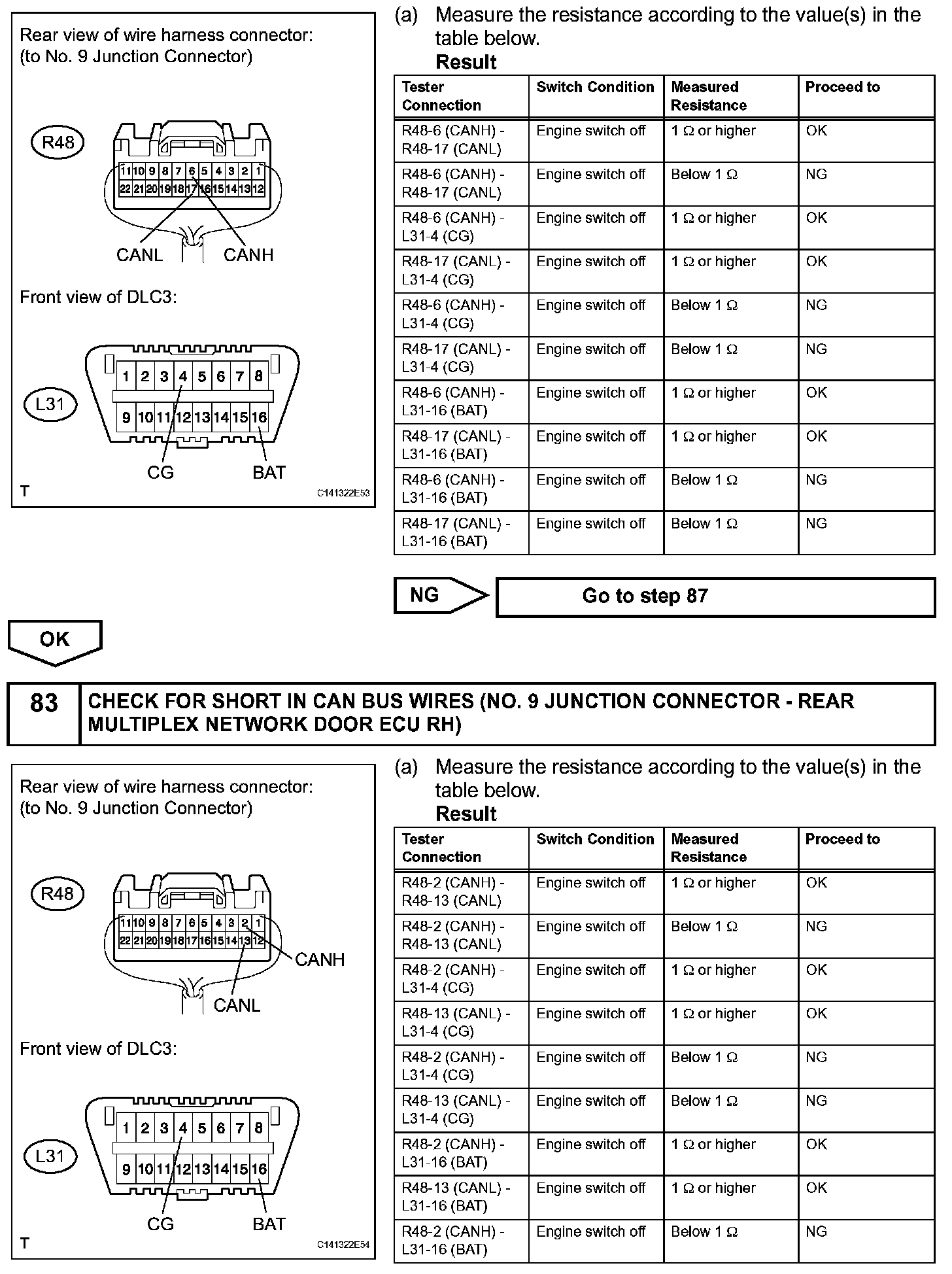

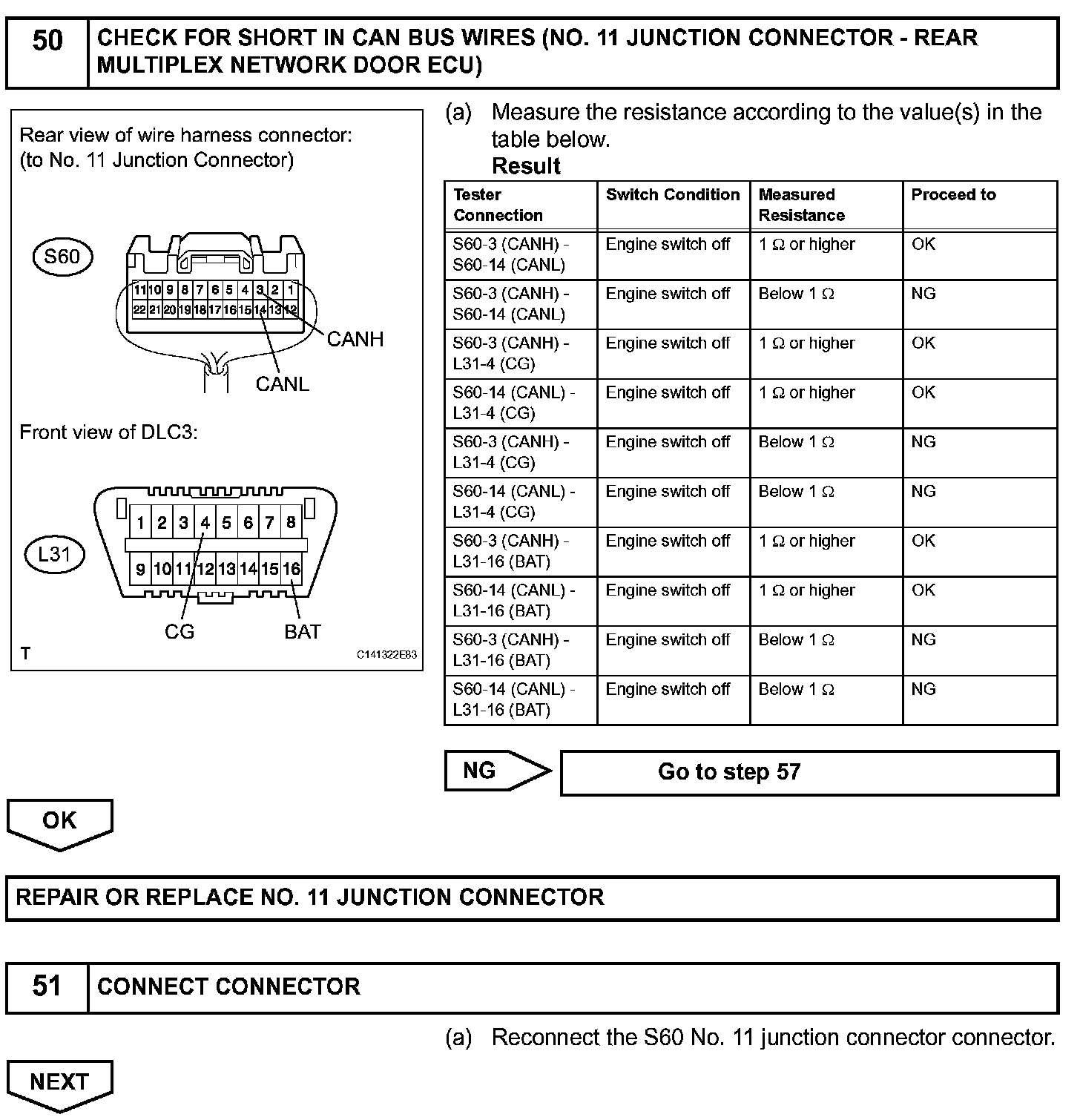

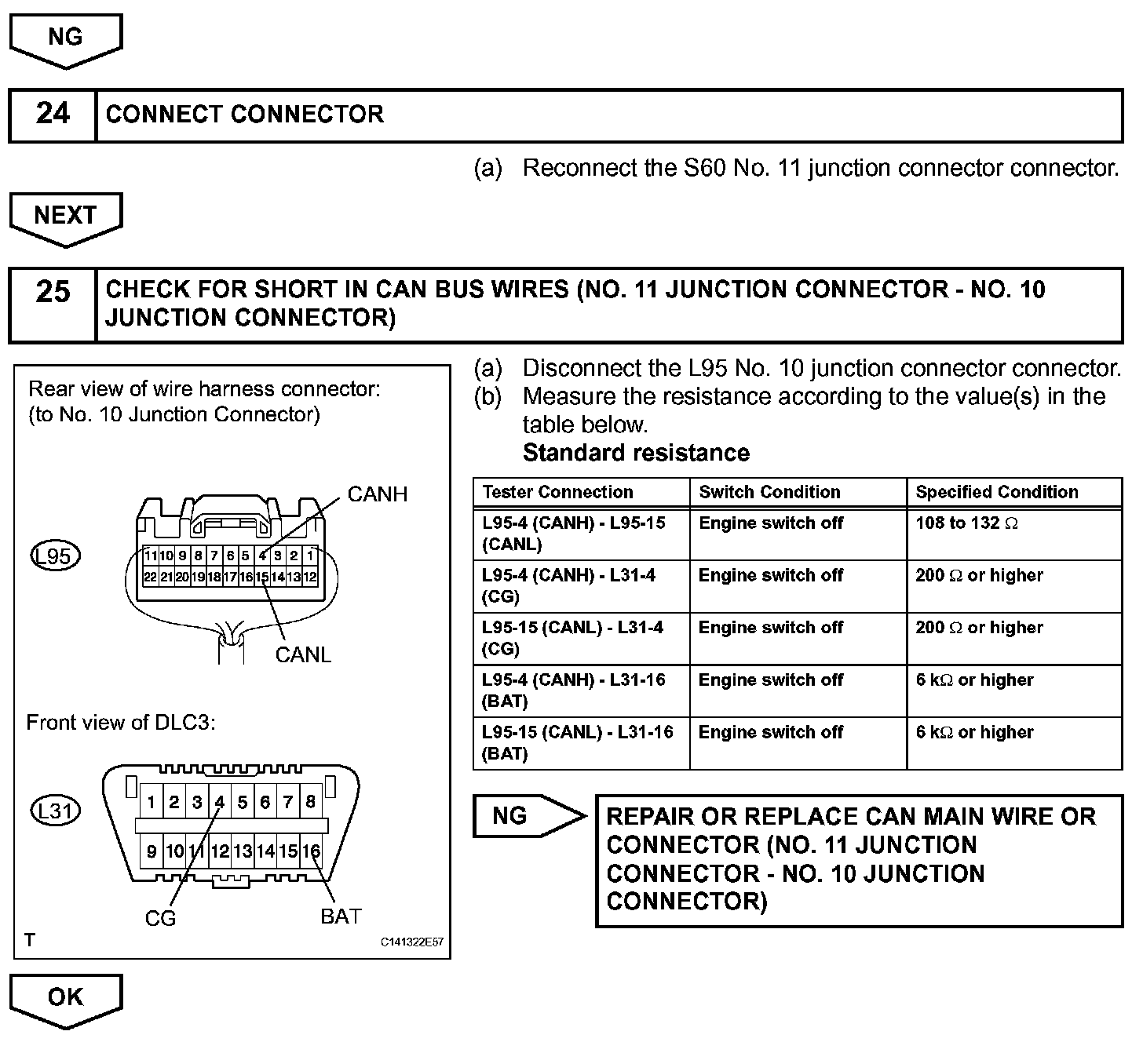

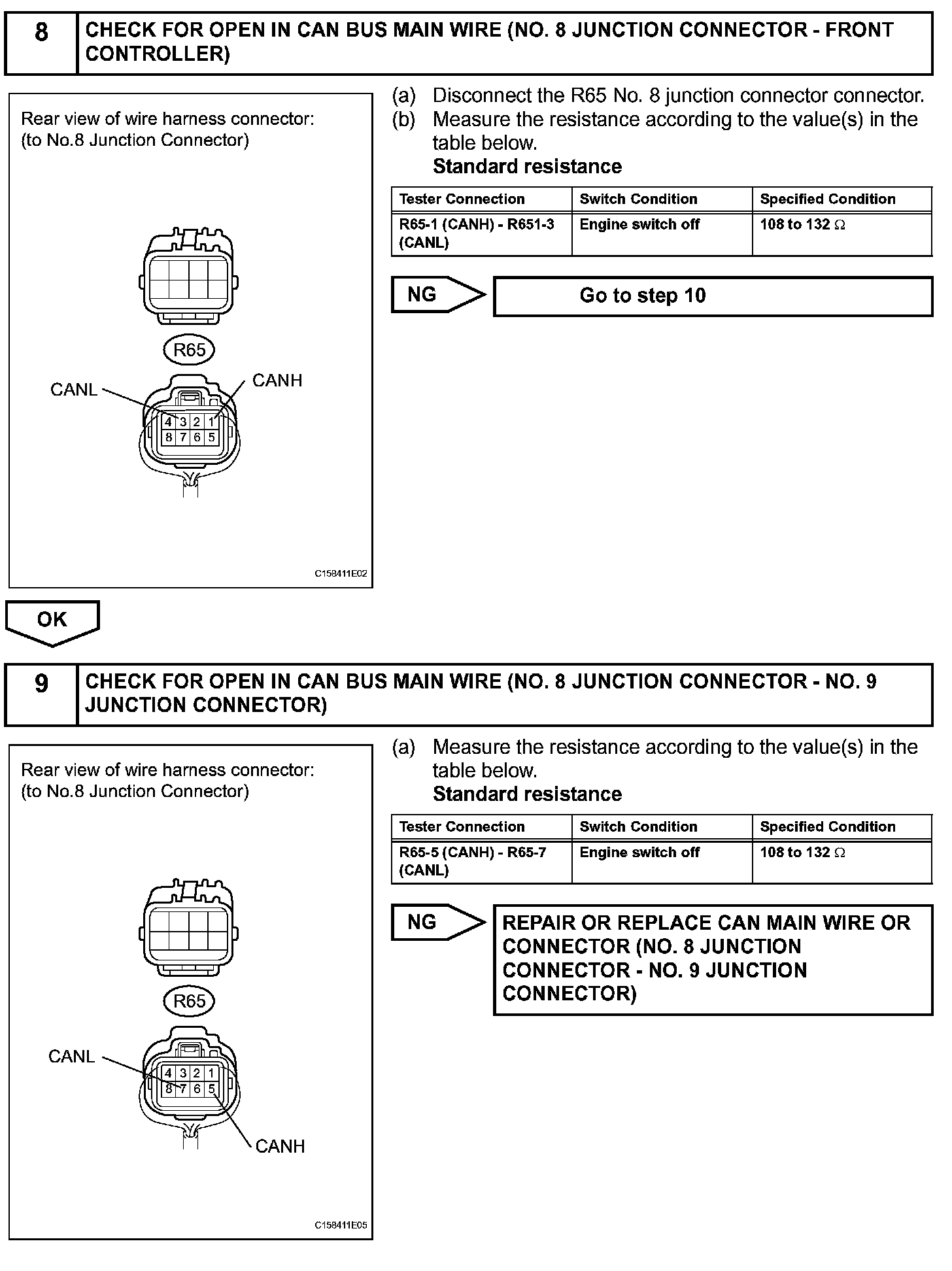

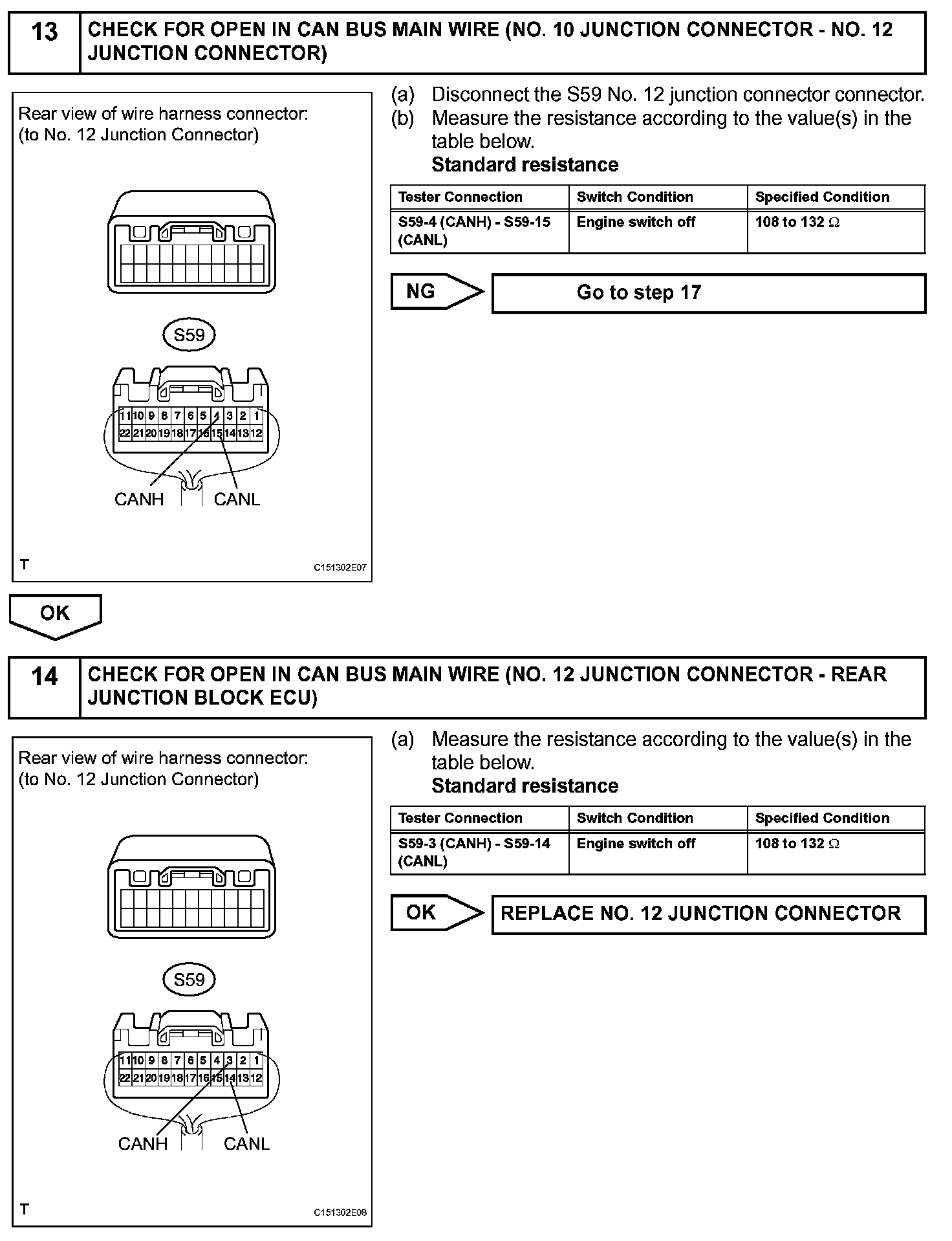

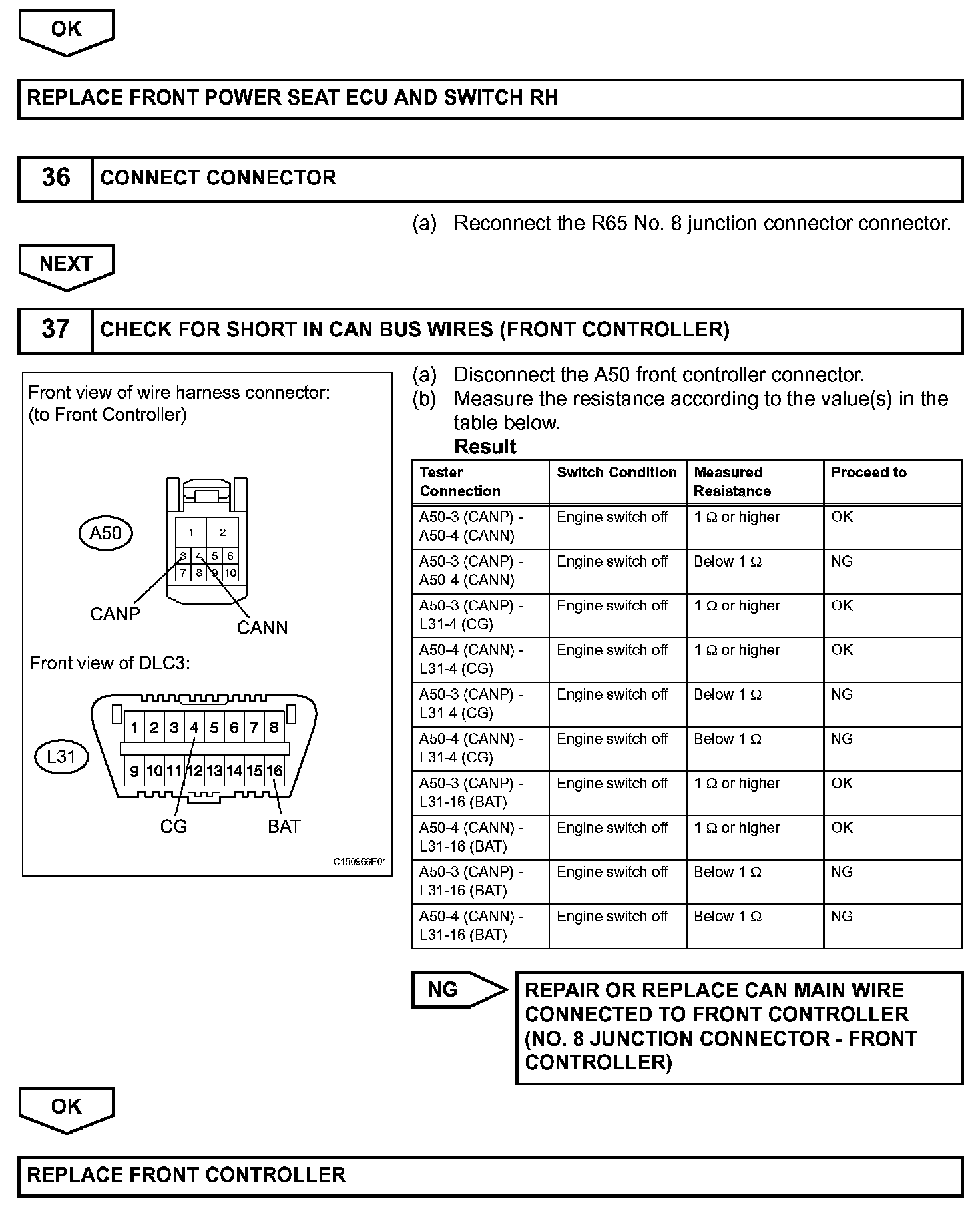

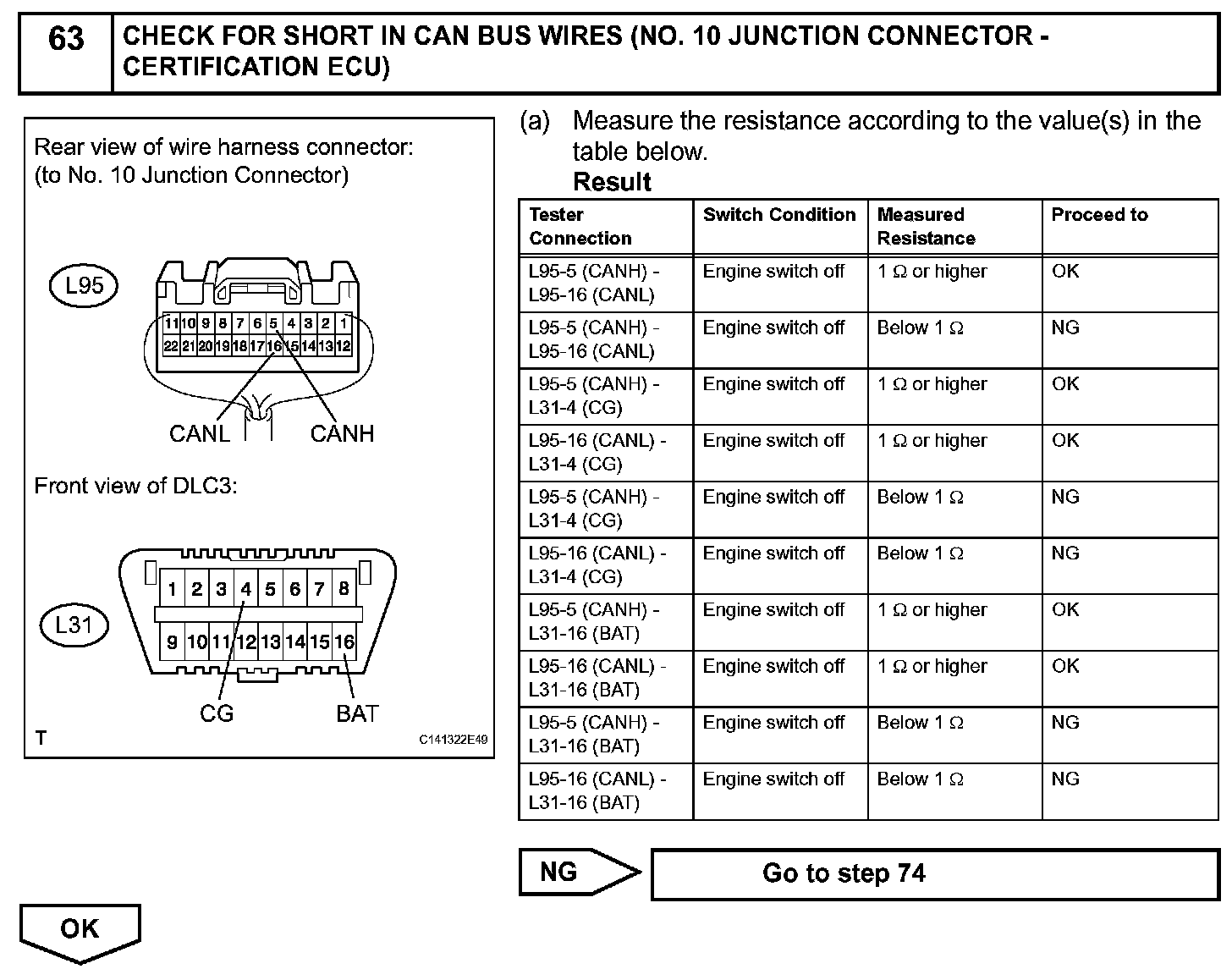

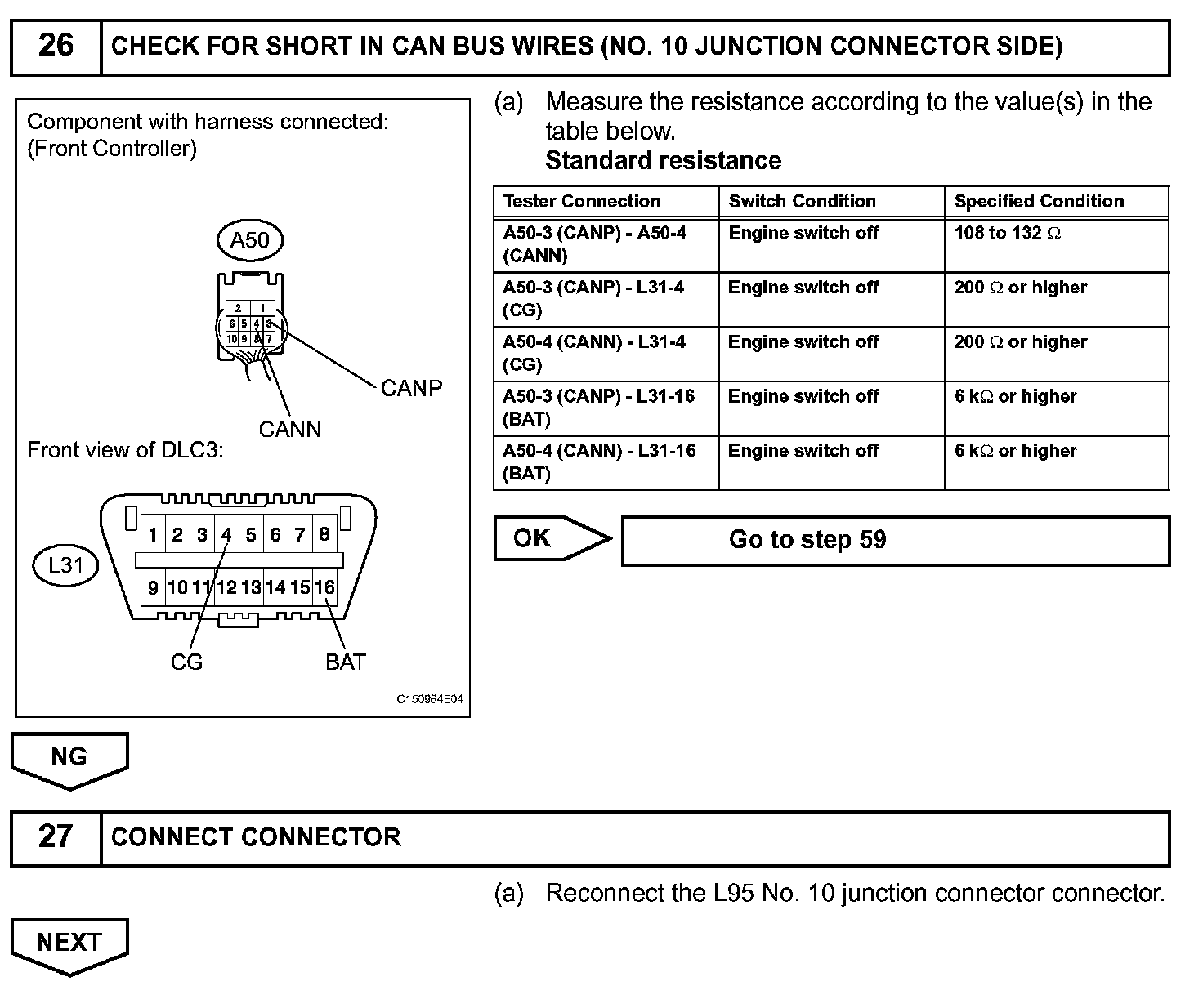

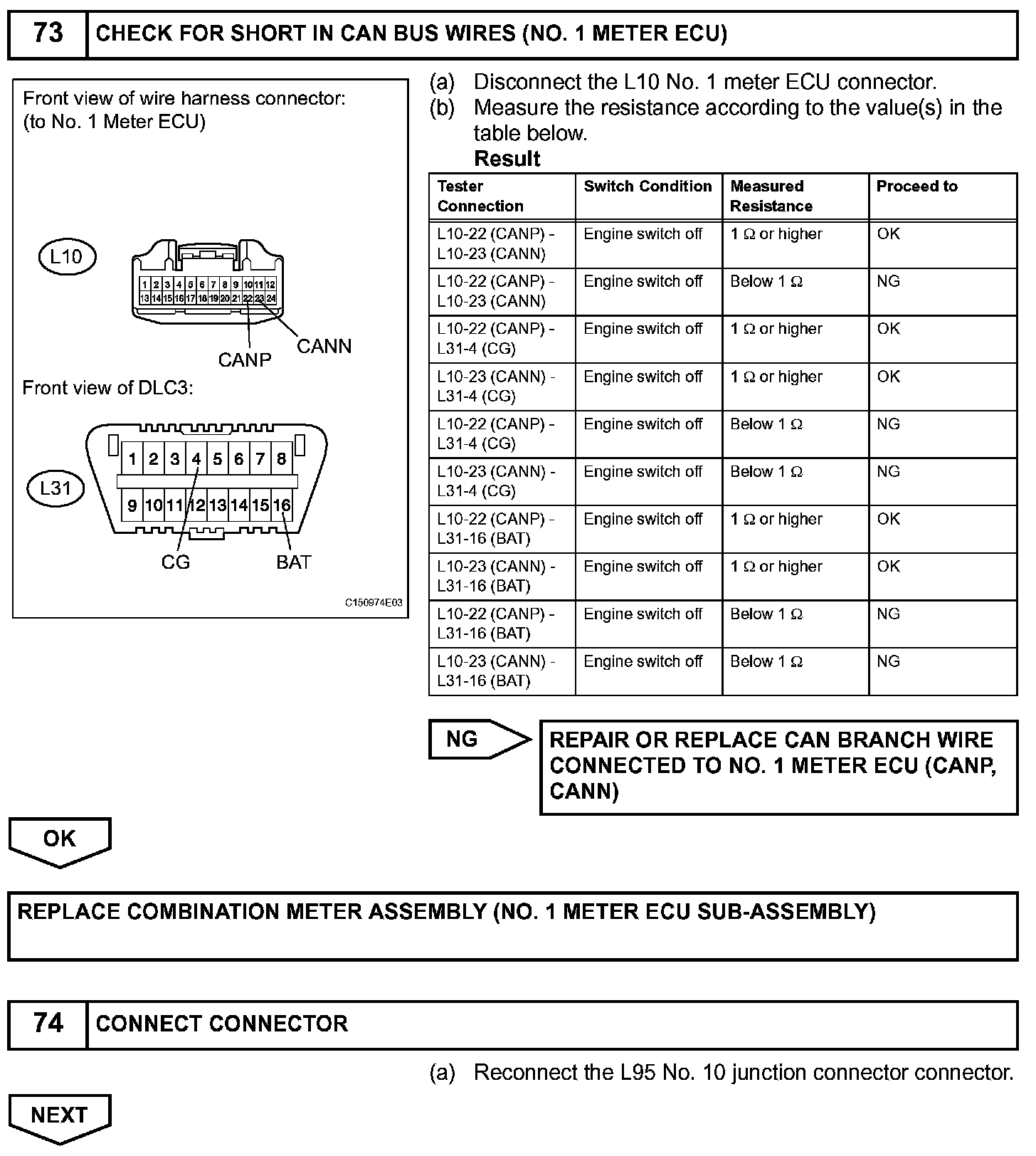

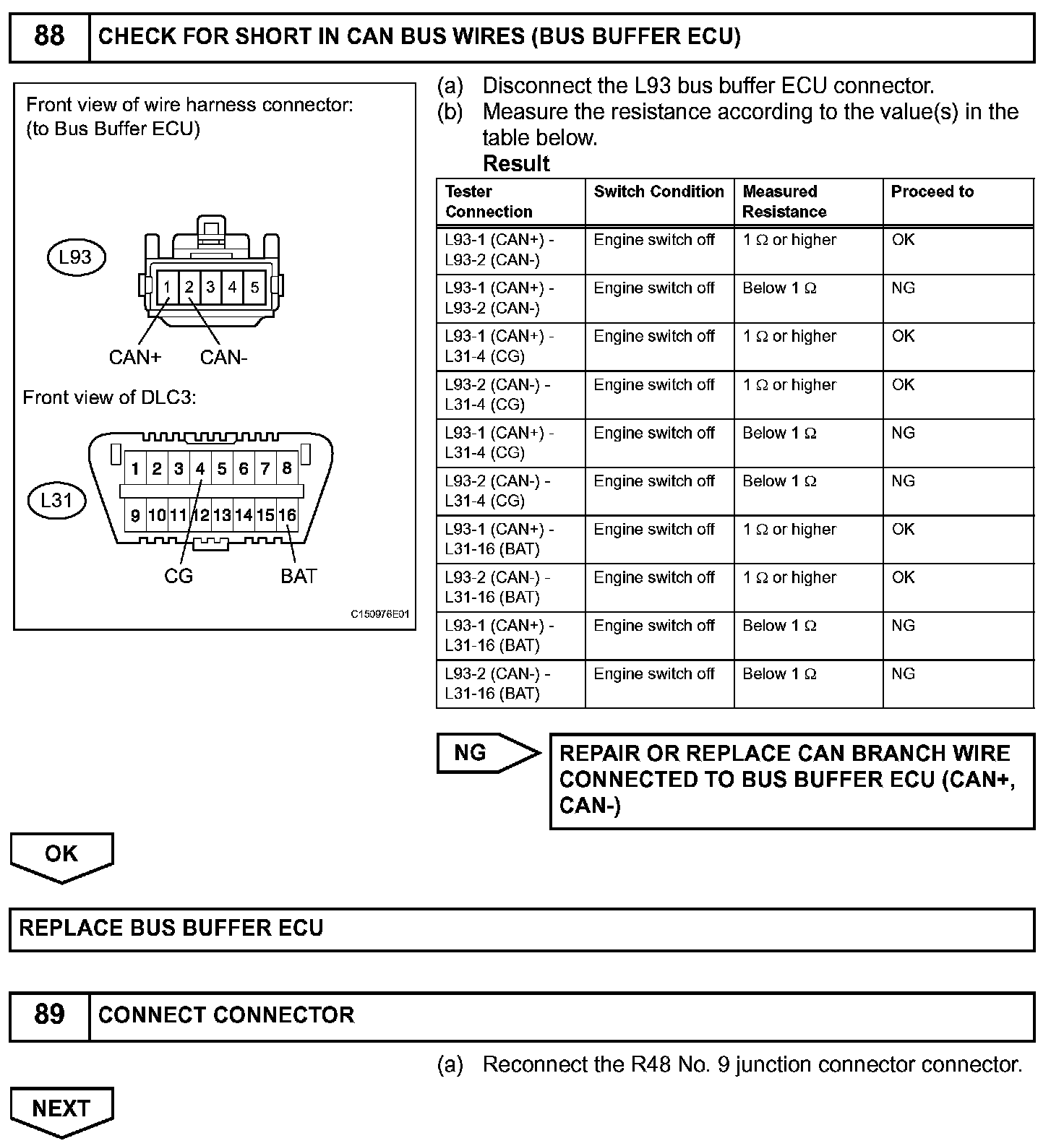

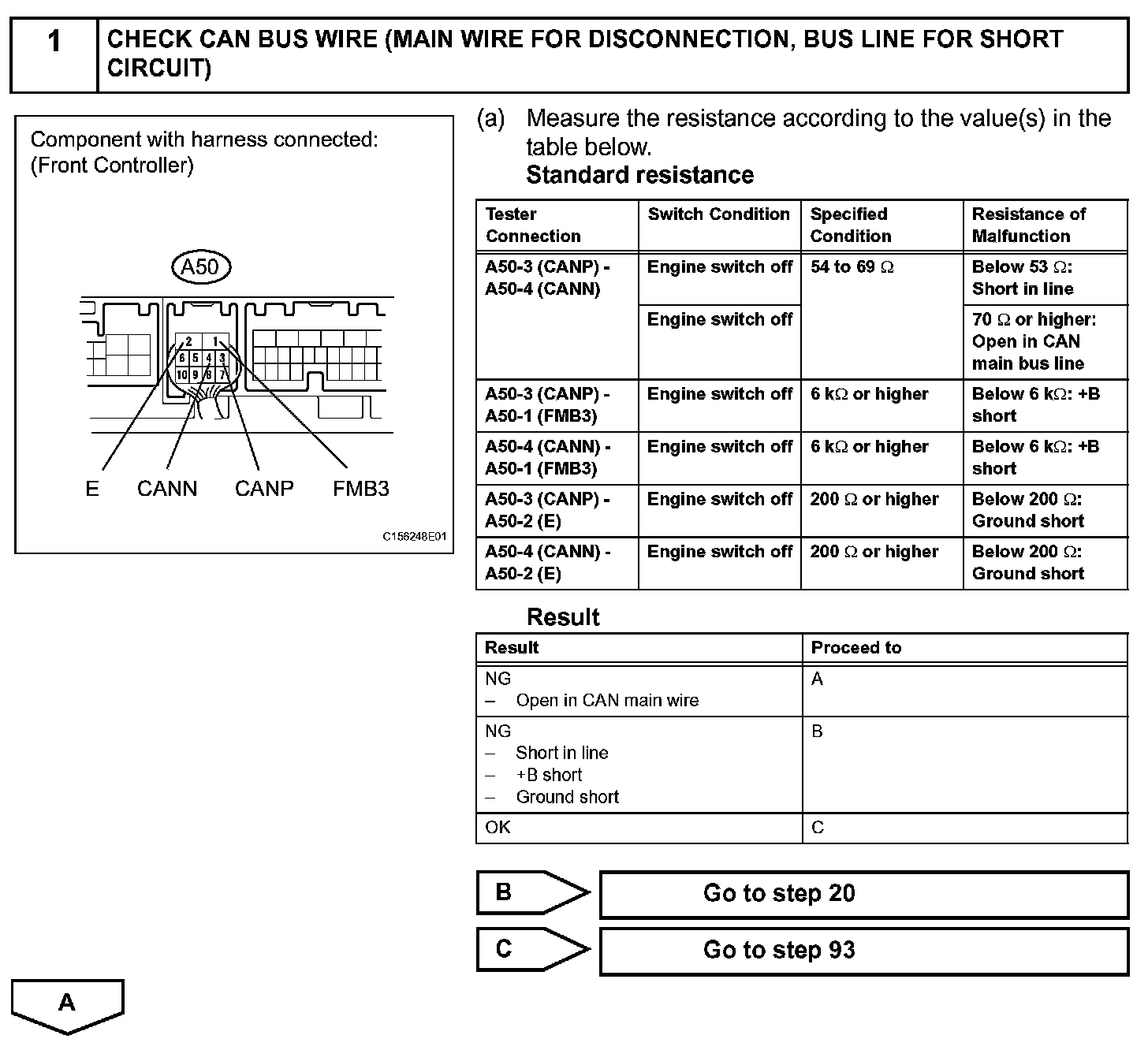

Step 1:

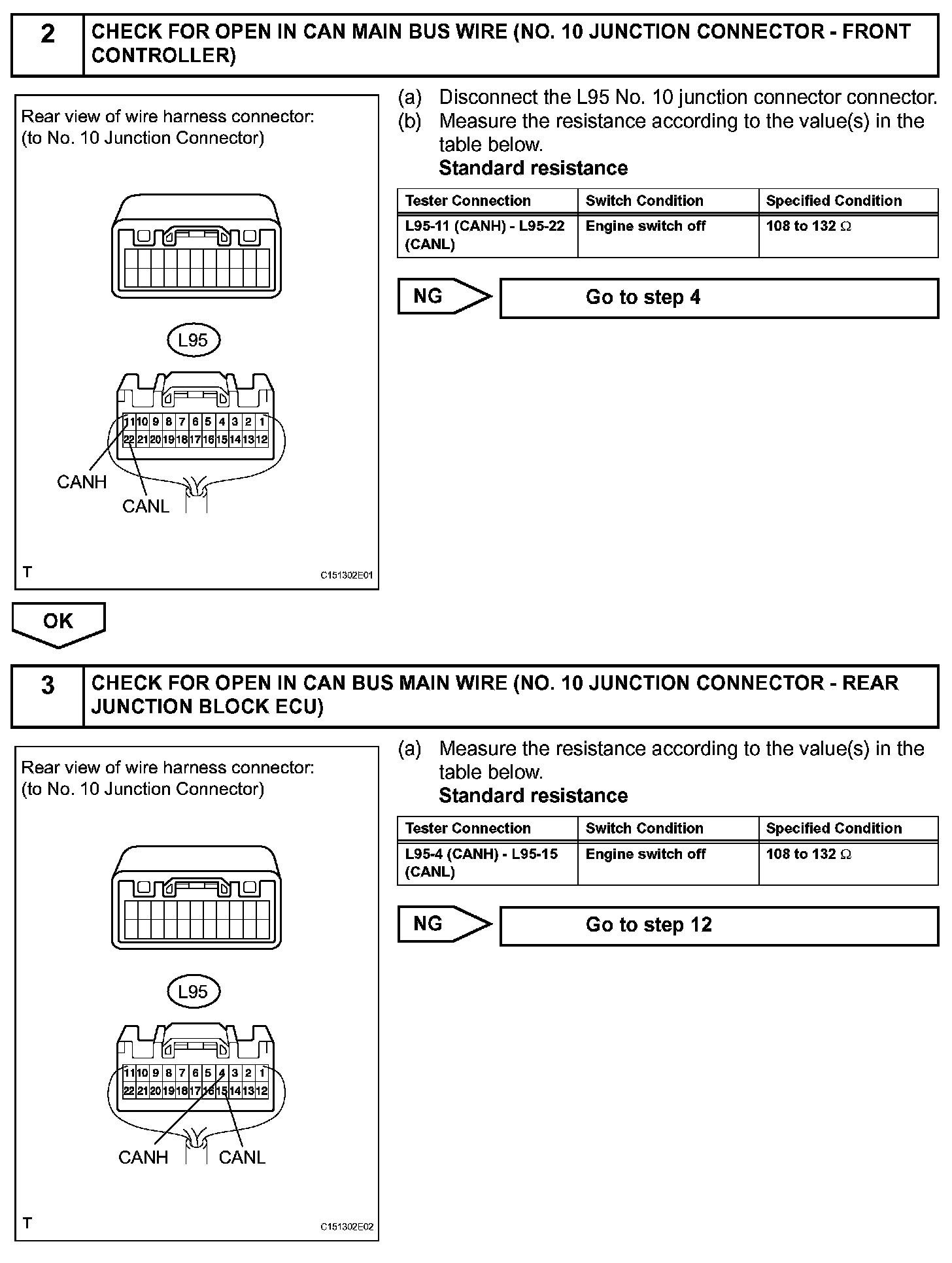

Step 2-3:

Step 3 (Continued)-5:

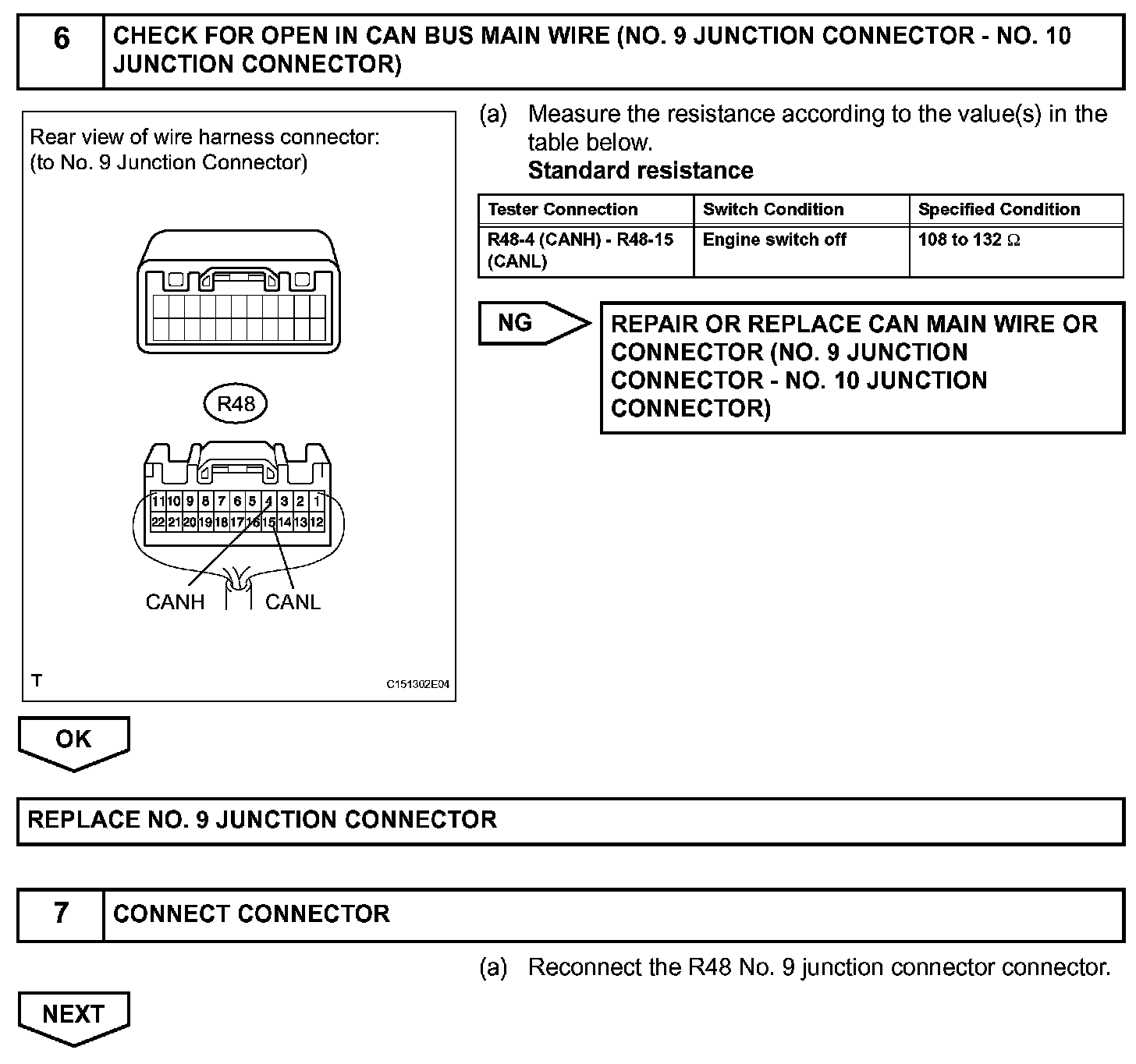

Step 6-7:

Step 8-9:

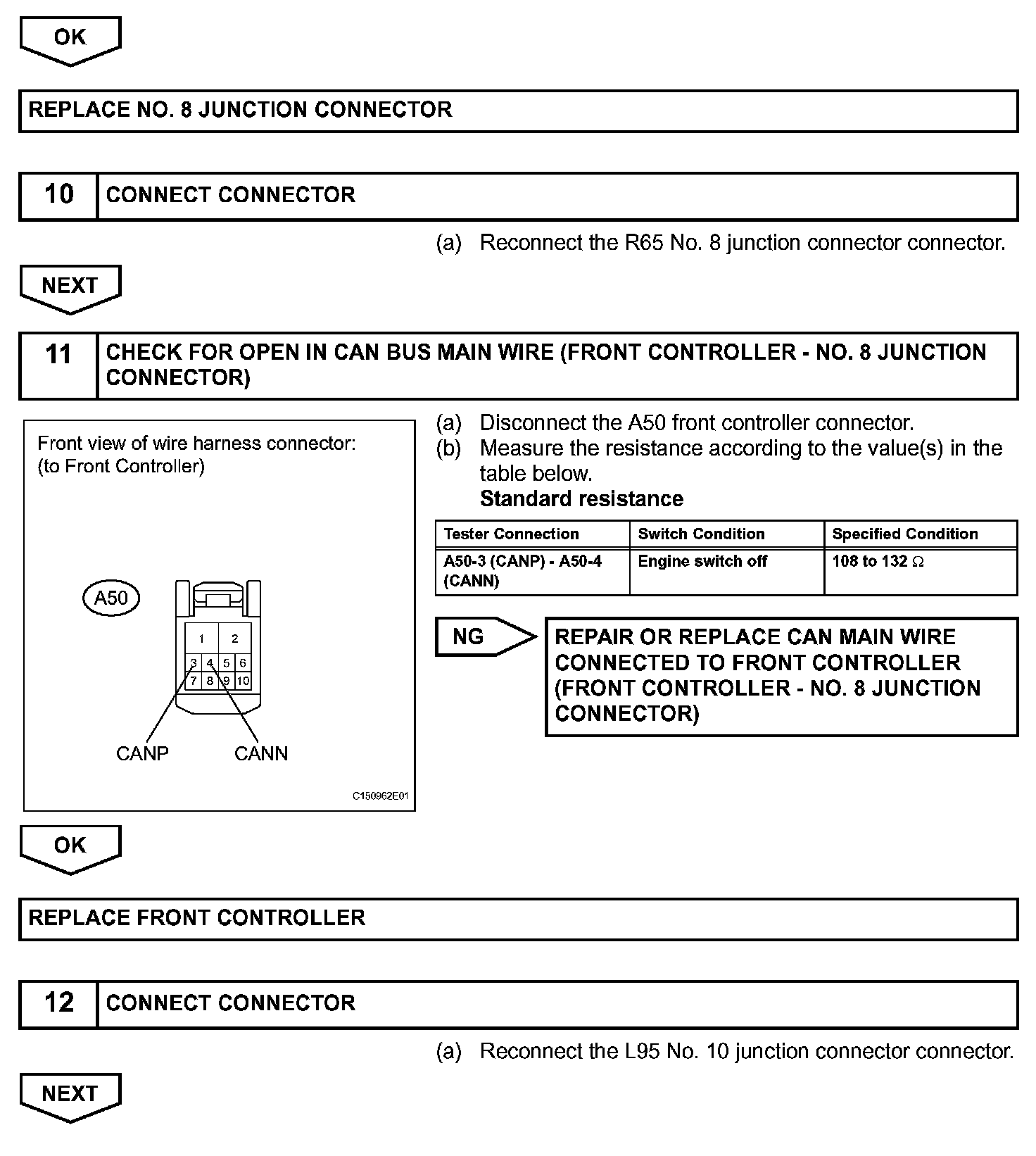

Step 9 (Continued)-12:

Step 13-14:

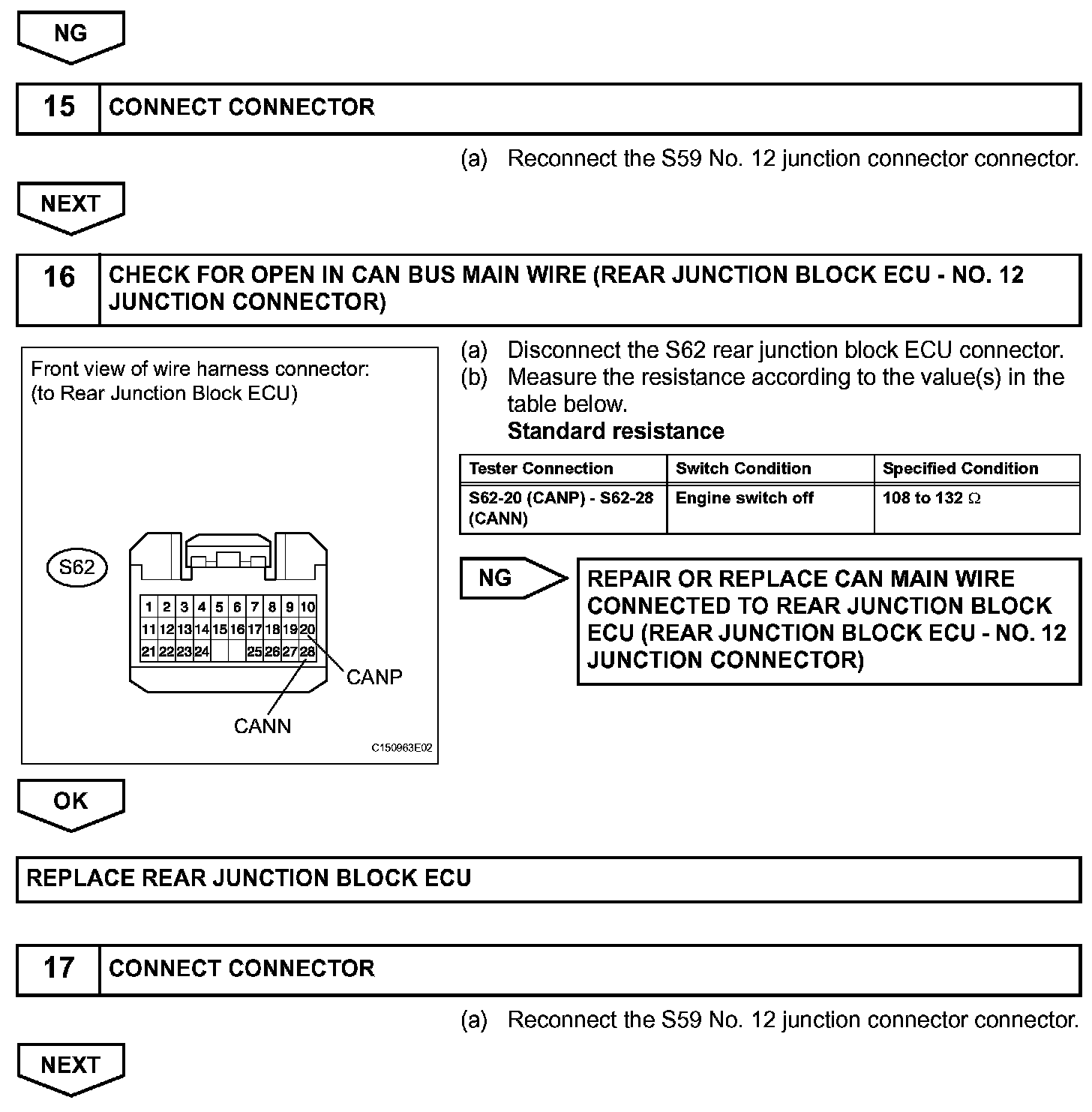

Step 14 (Continued)-17:

Step 18-19:

Step 19 (Continued)-21:

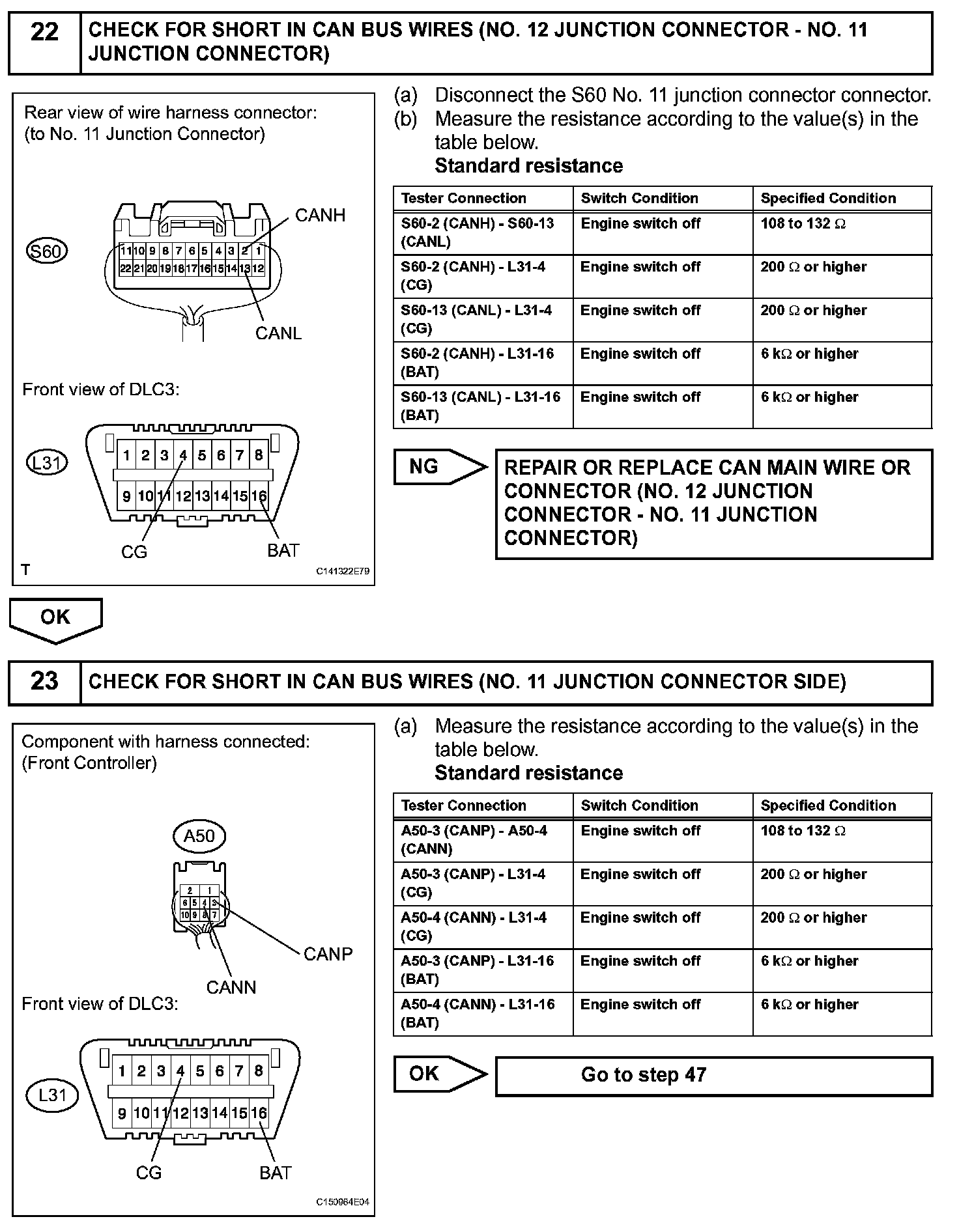

Step 22-23:

Step 23 (Continued)-25:

Step 26-27:

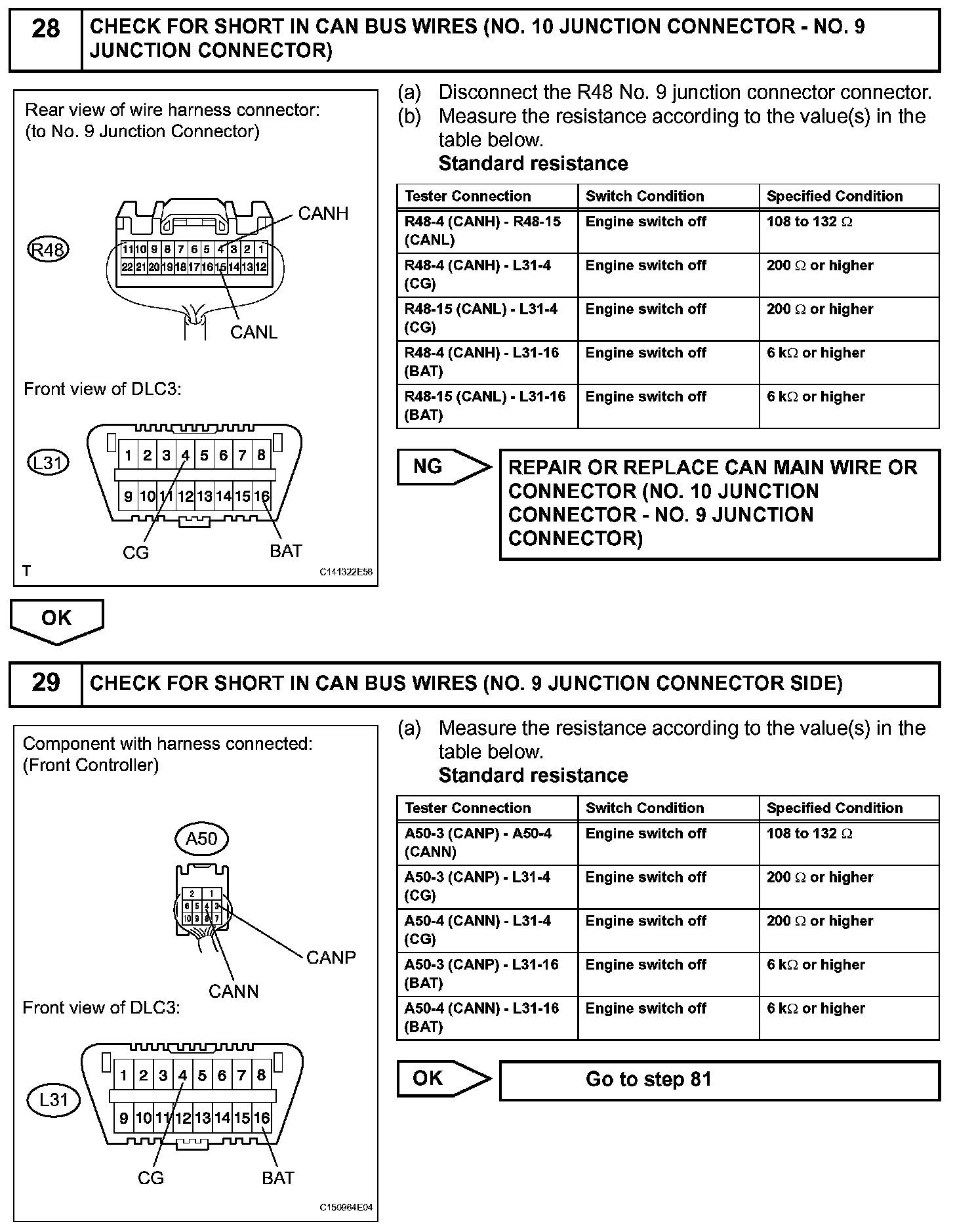

Step 28-29:

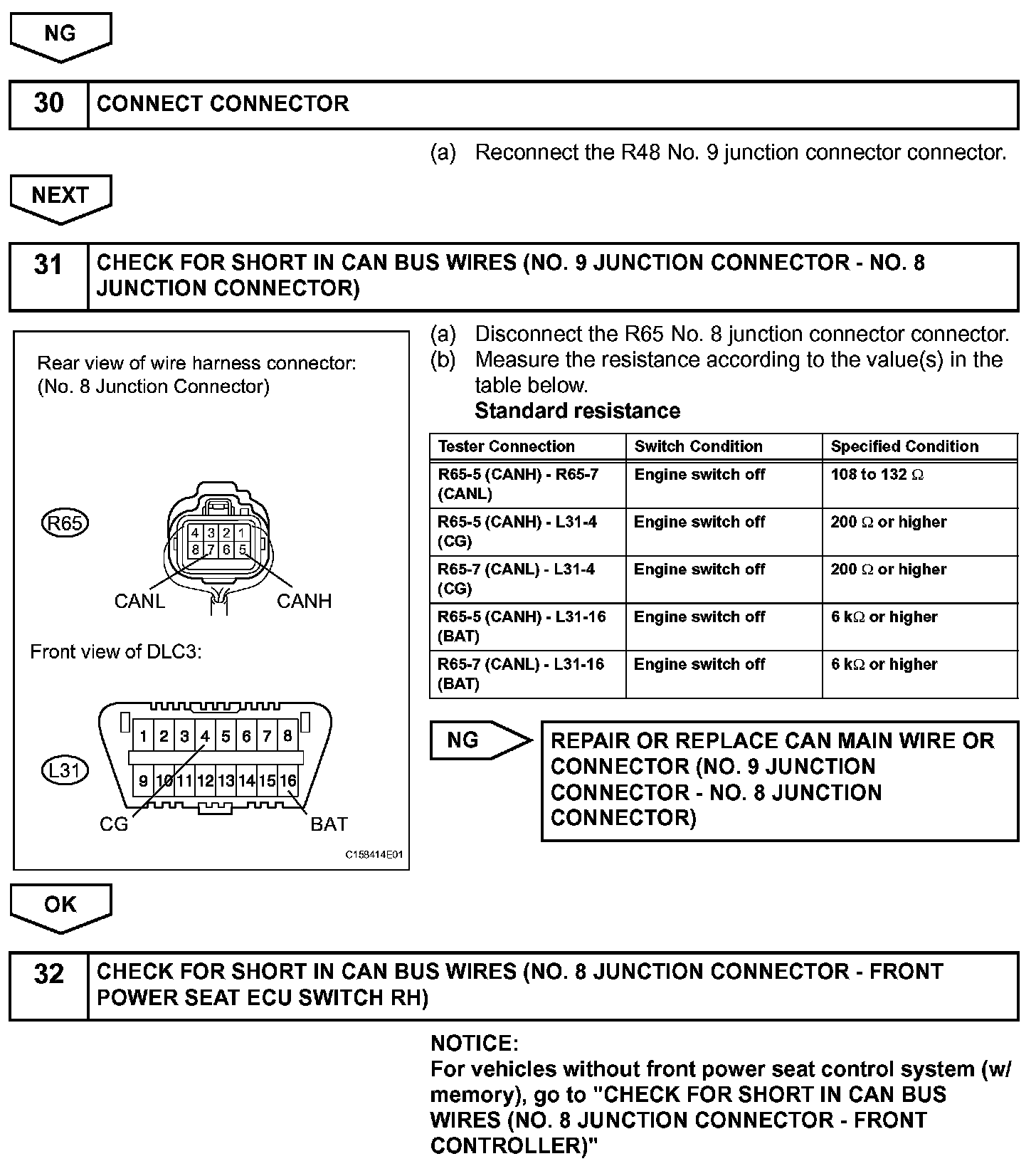

Step 29 (Continued)-32:

Step 32 (Continued)-33:

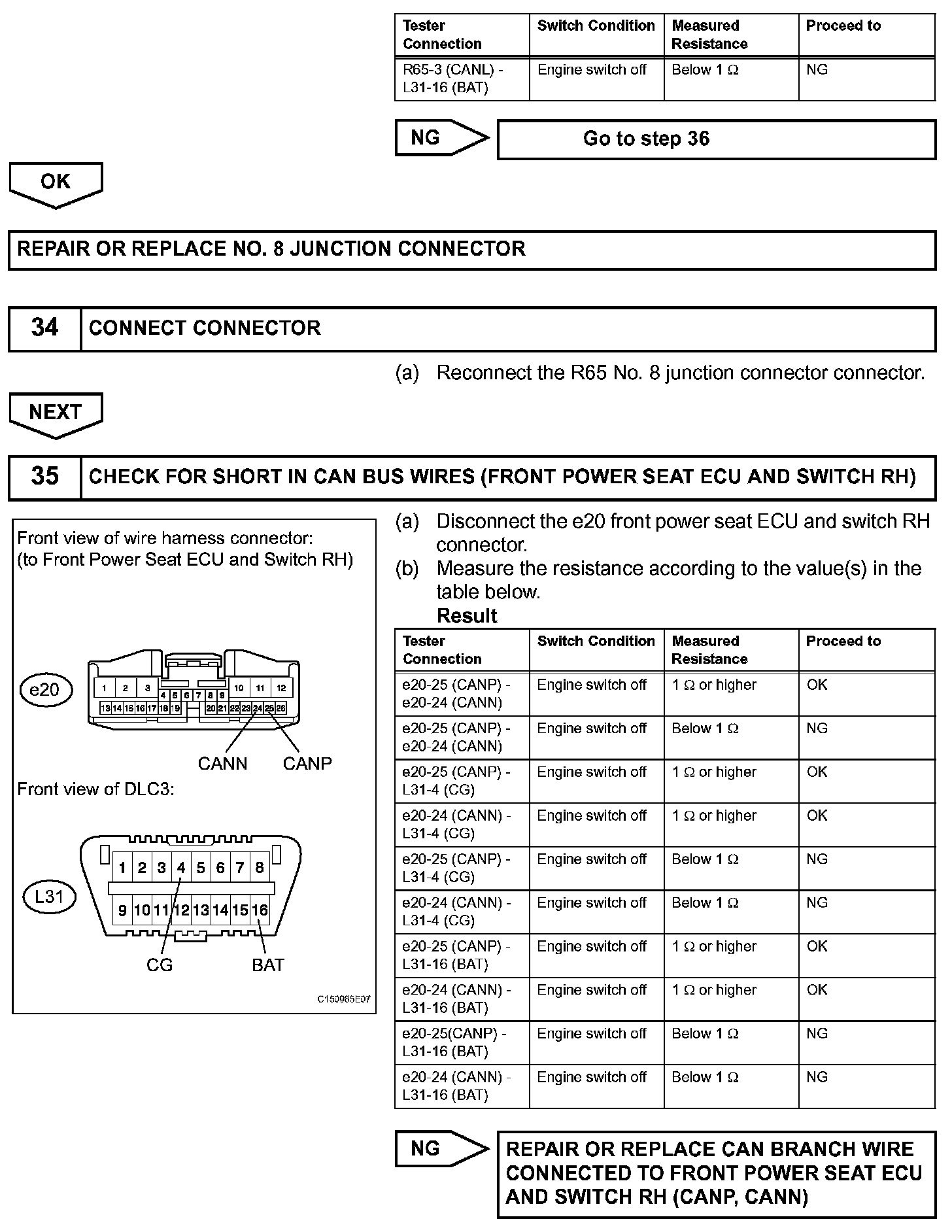

Step 33 (Continued)-35:

Step 35 (Continued)-37:

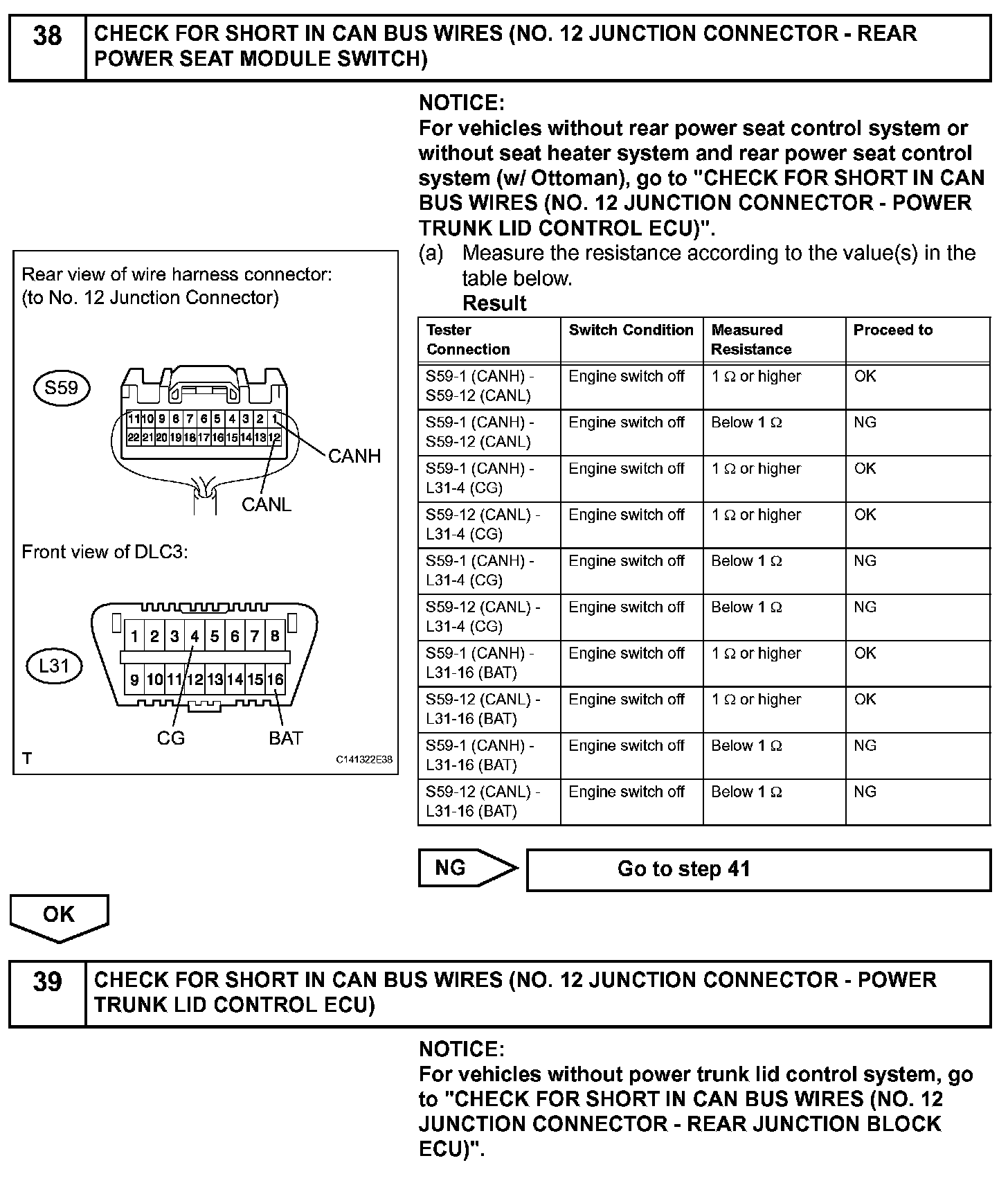

Step 38-39:

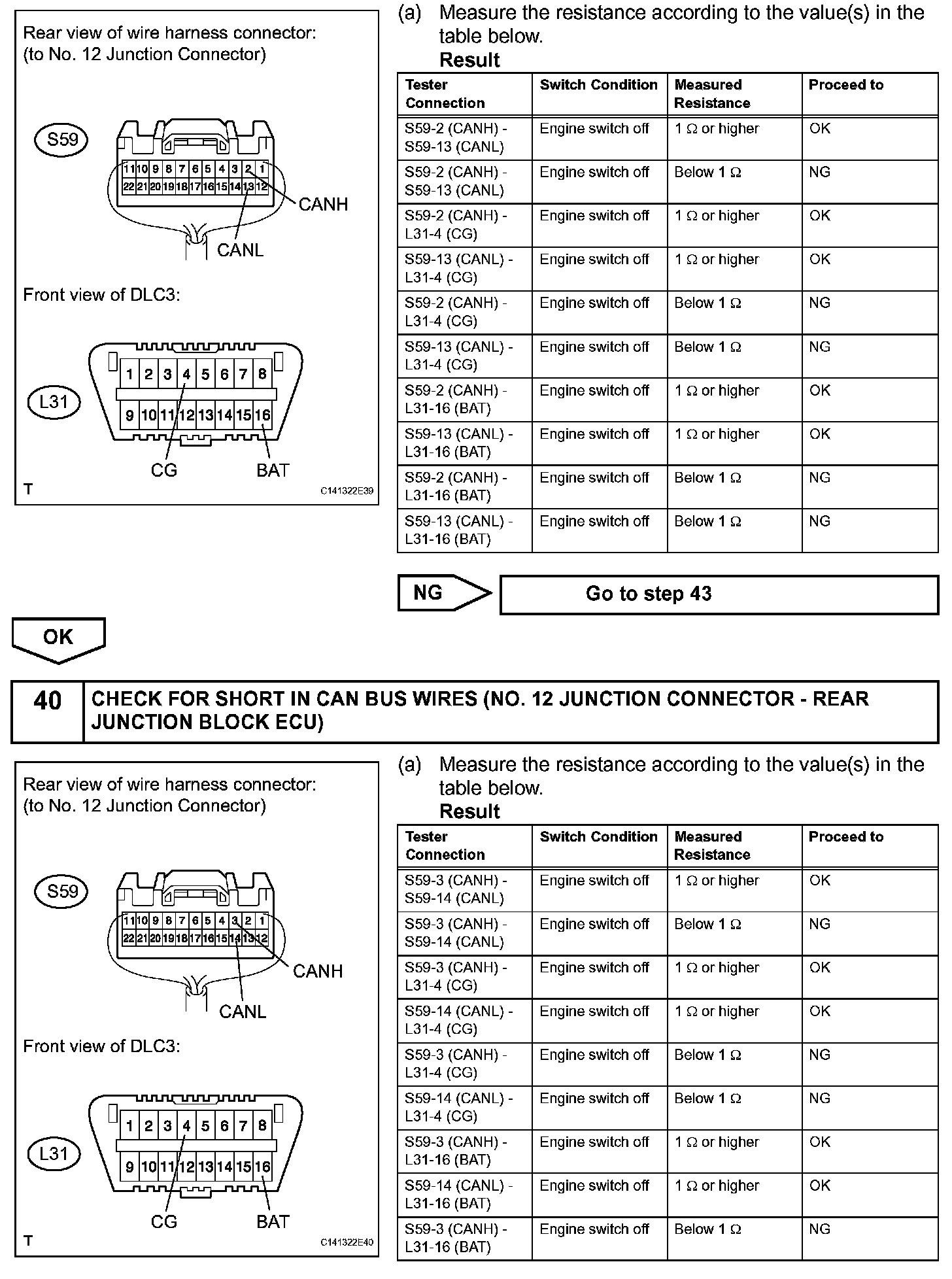

Step 39 (Continued)-40:

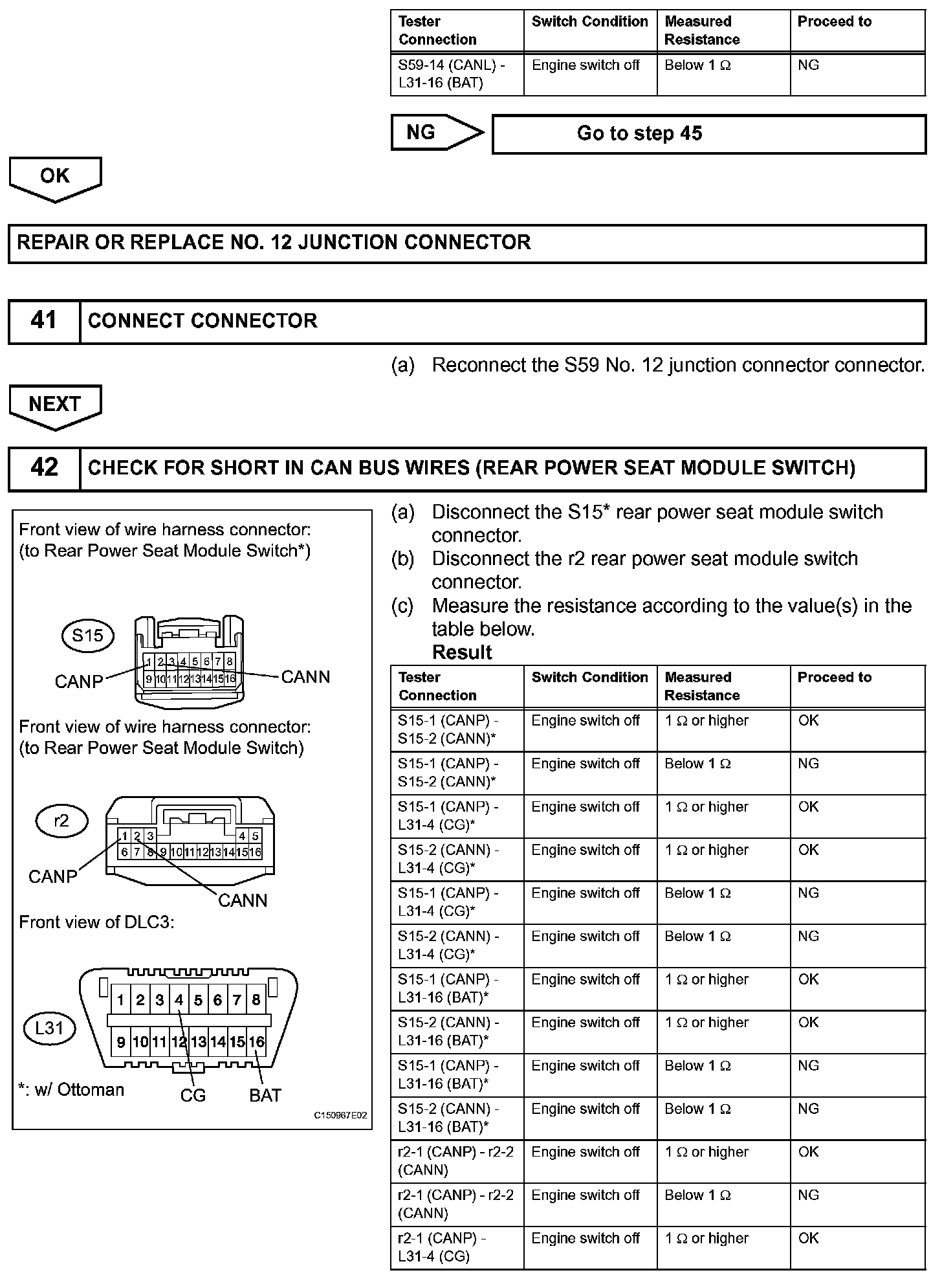

Step 40 (Continued)-42:

Step 42 (Continued)-43:

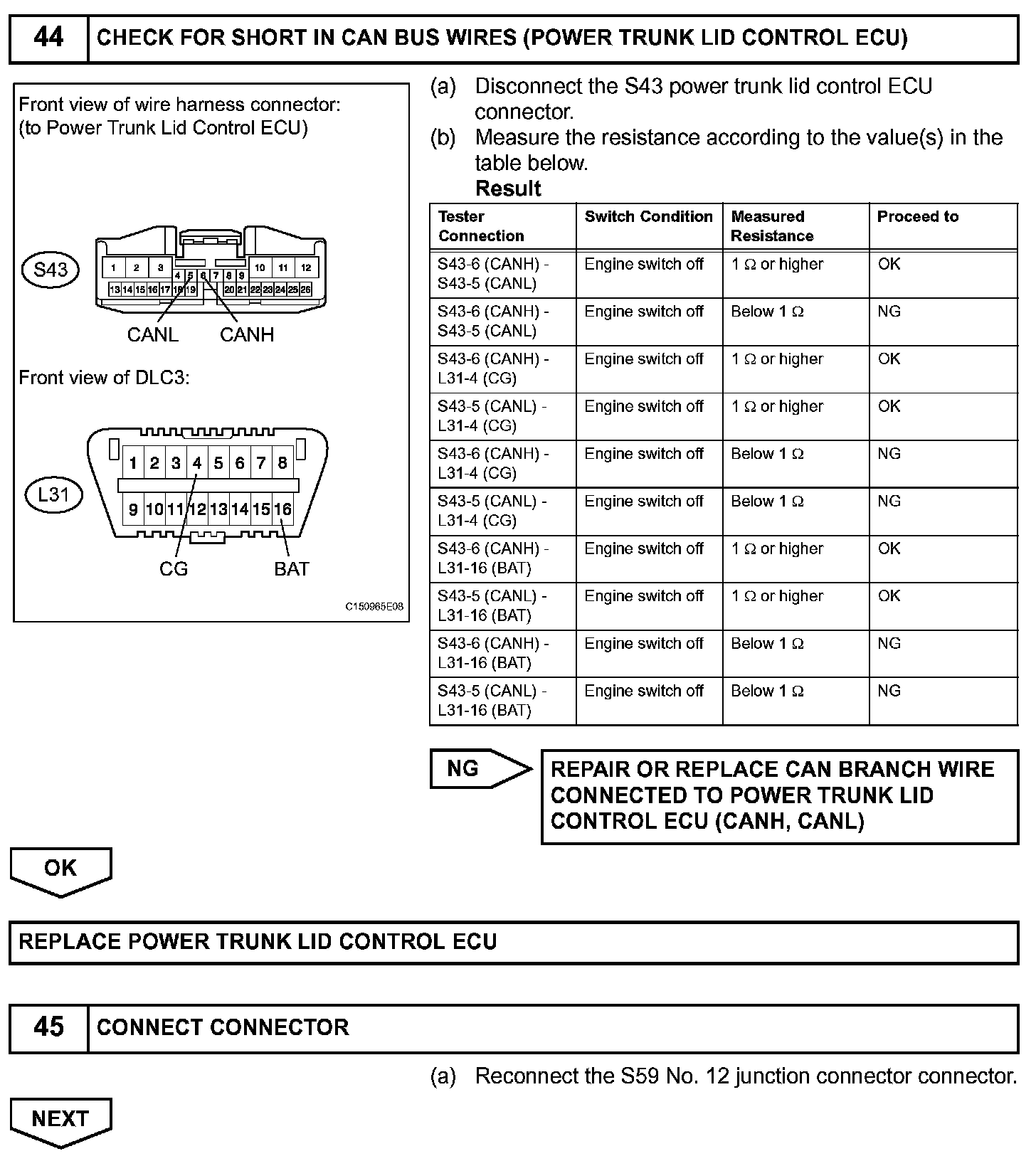

Step 44-45:

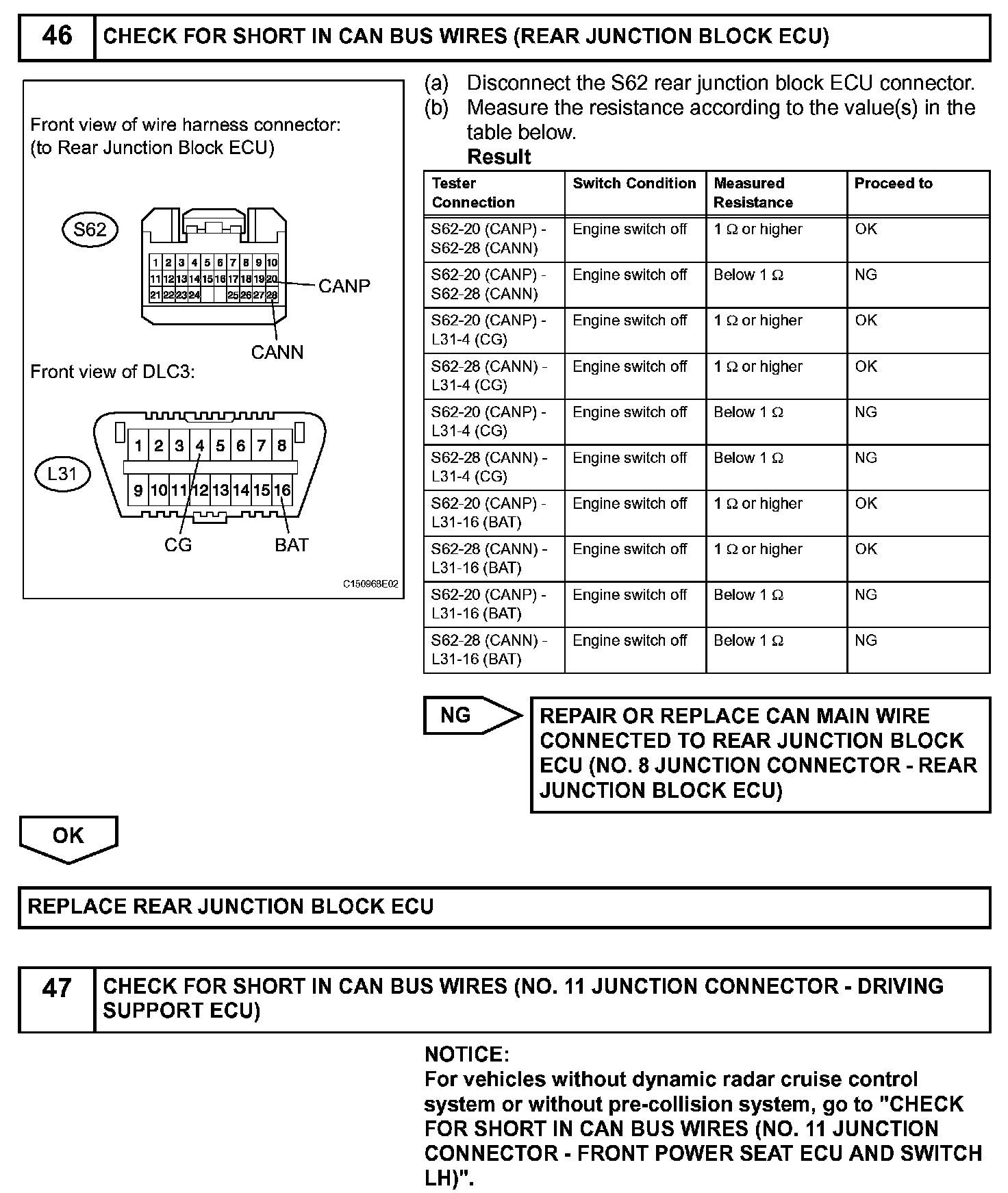

Step 46-47:

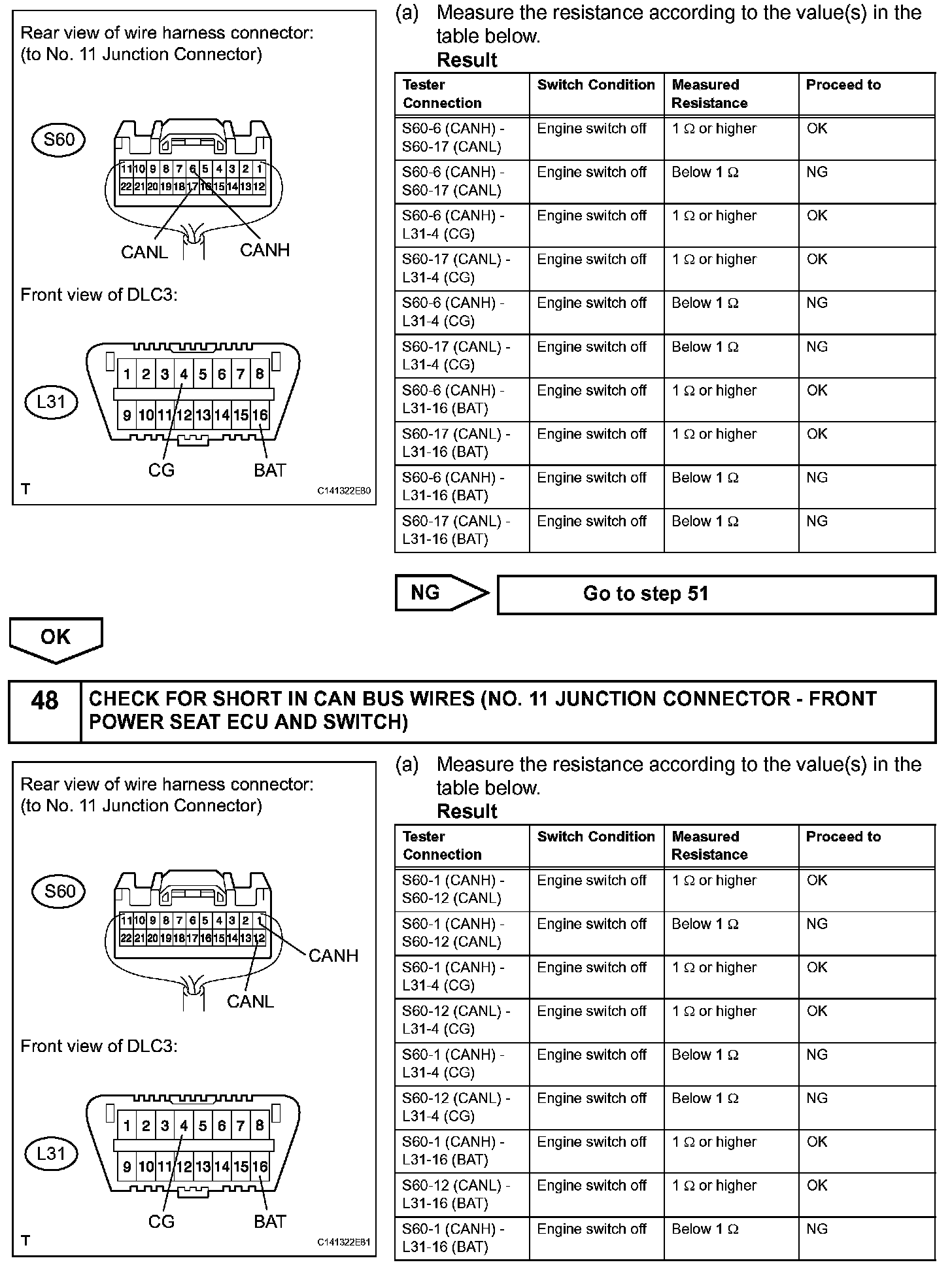

Step 47 (Continued)-48:

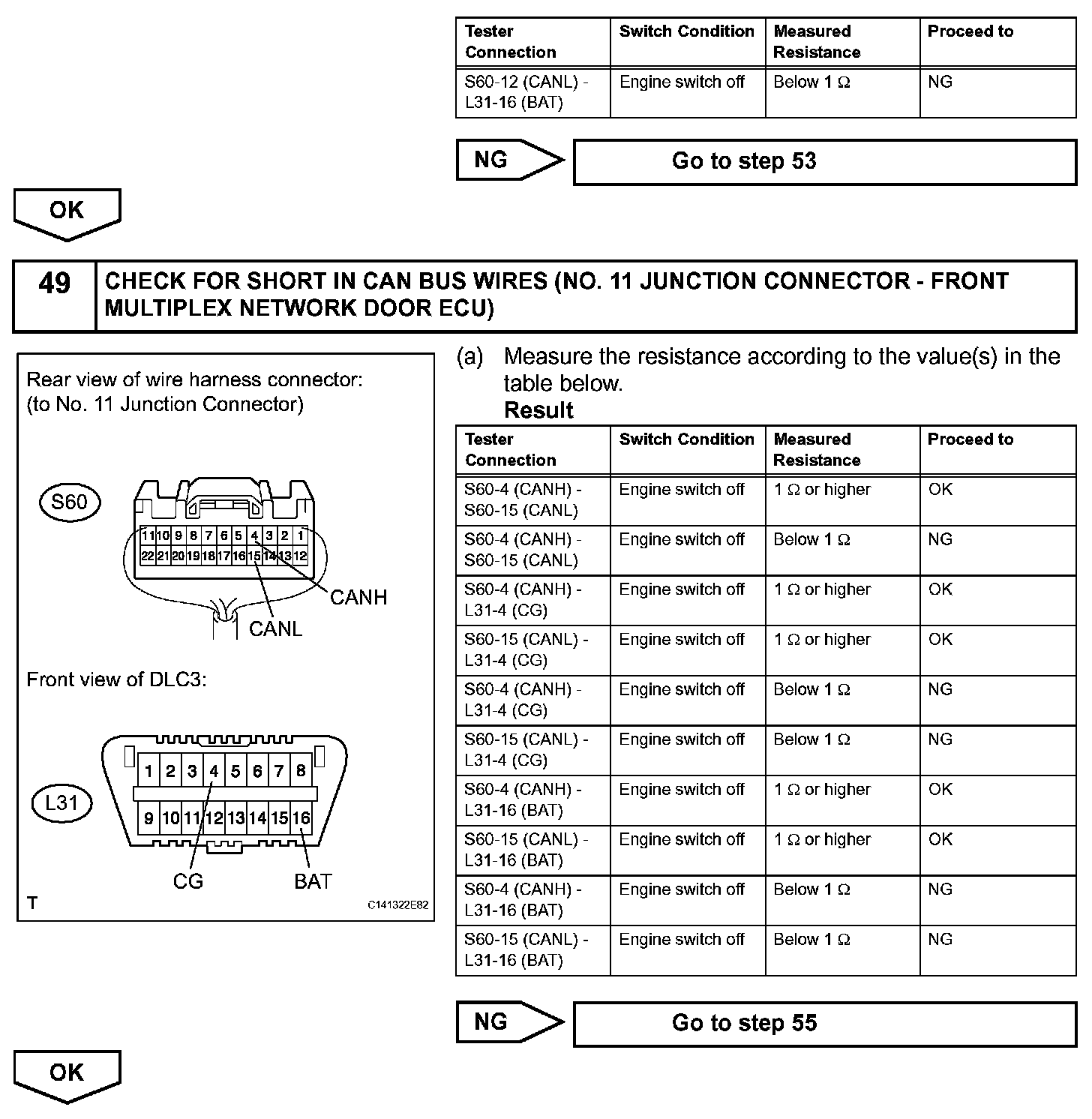

Step 48 (Continued)-49:

Step 50-51:

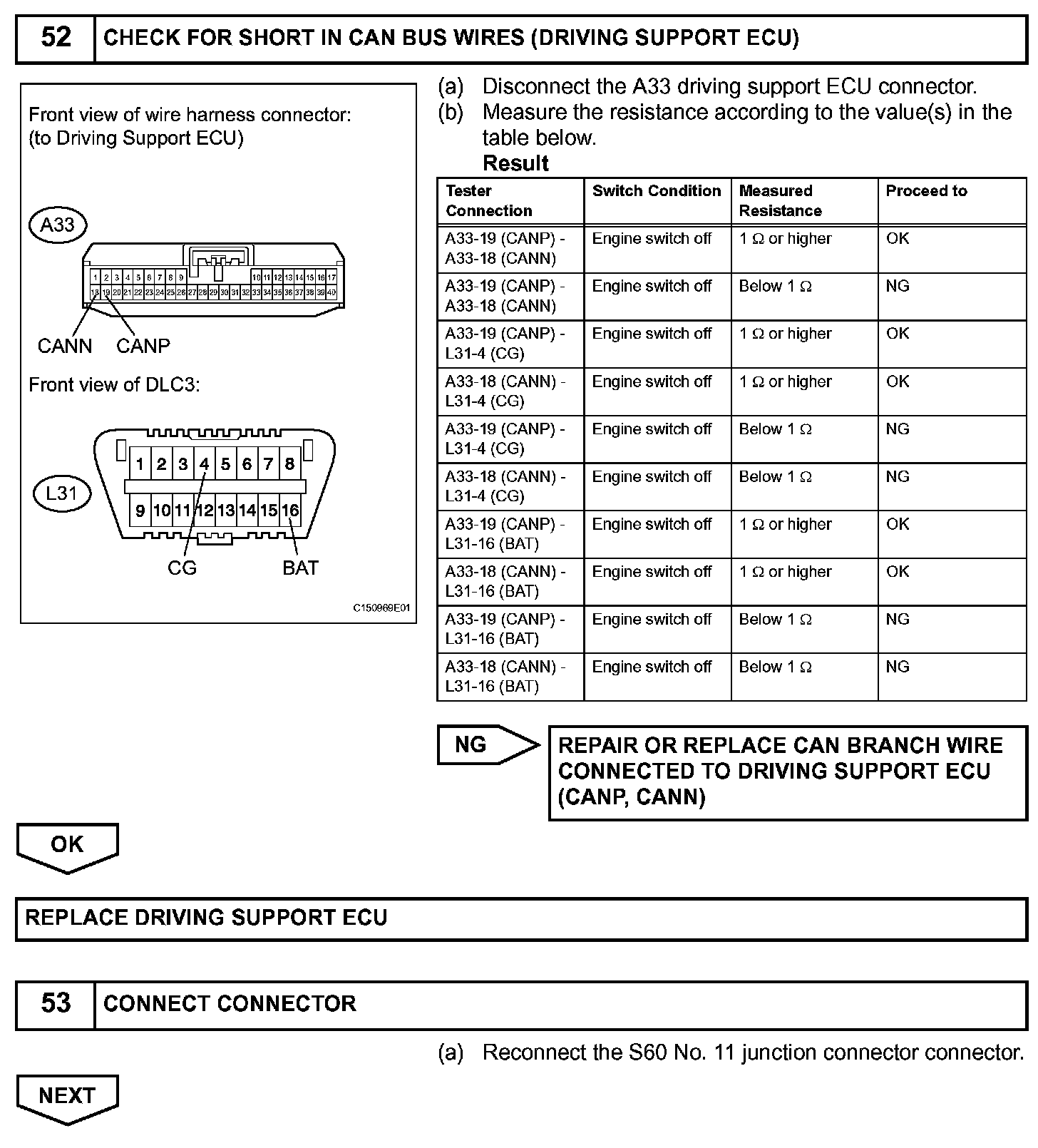

Step 52-53:

Step 54-55:

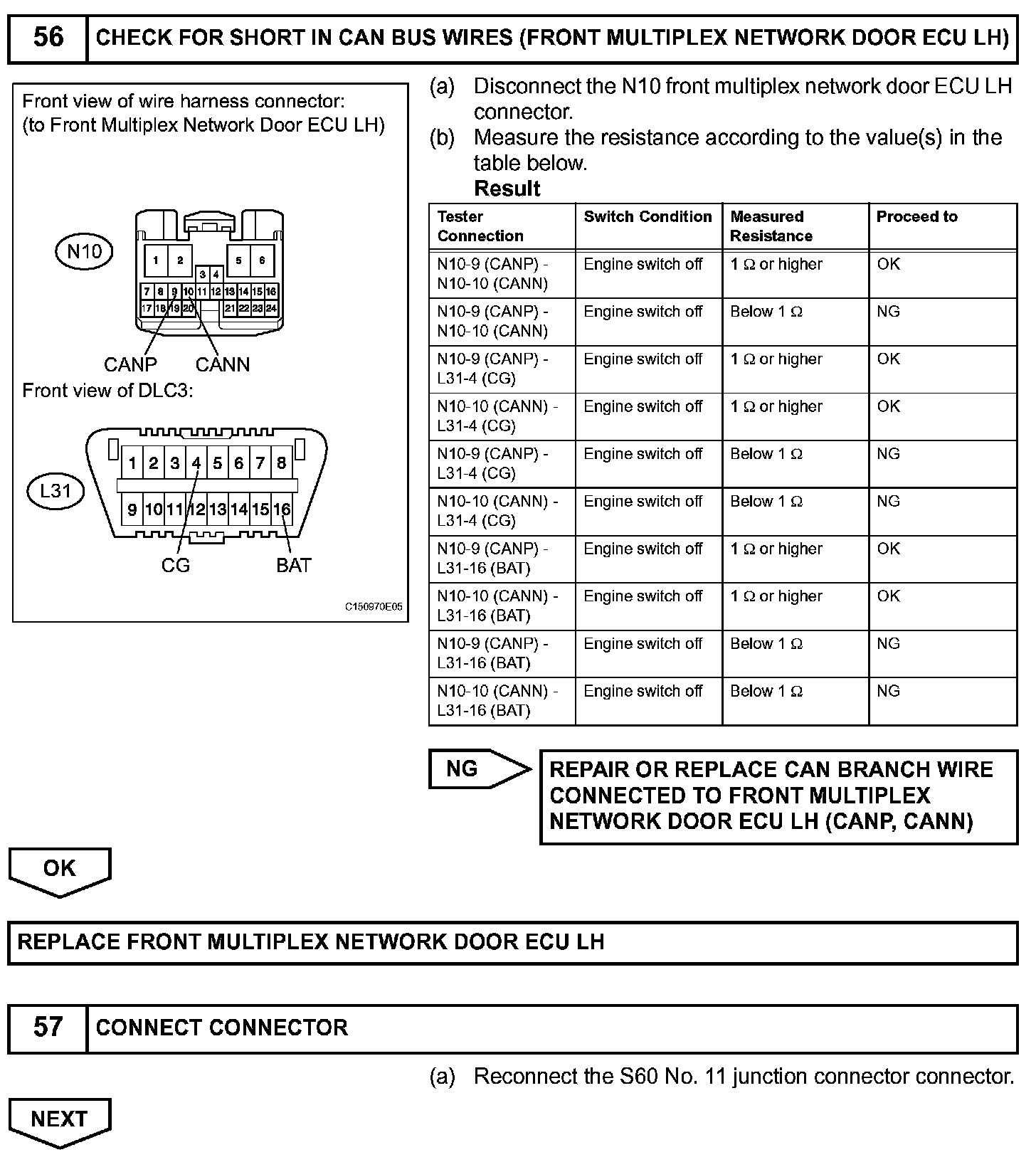

Step 56-57:

Step 58:

Step 59:

Step 60:

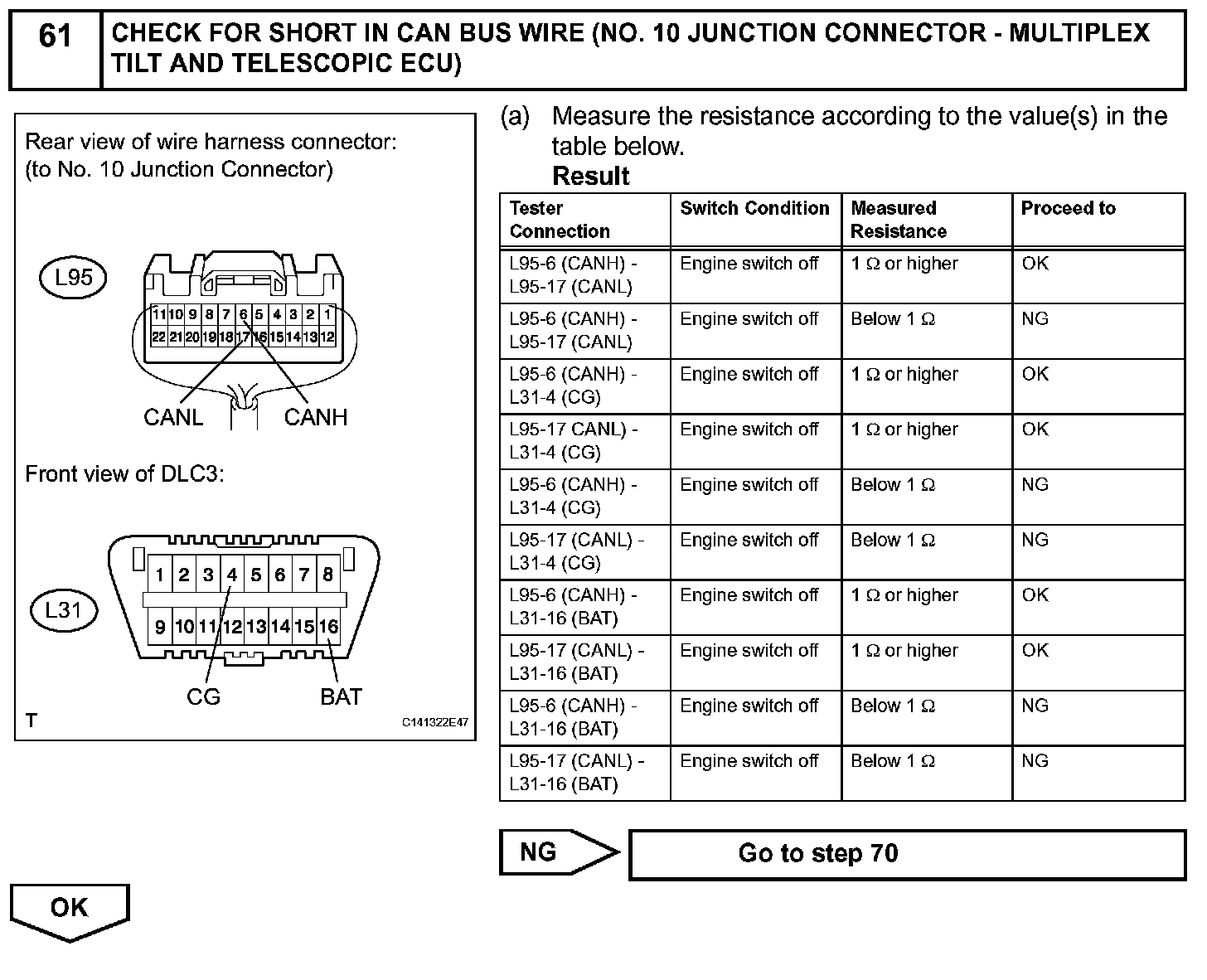

Step 61:

Step 62:

Step 63:

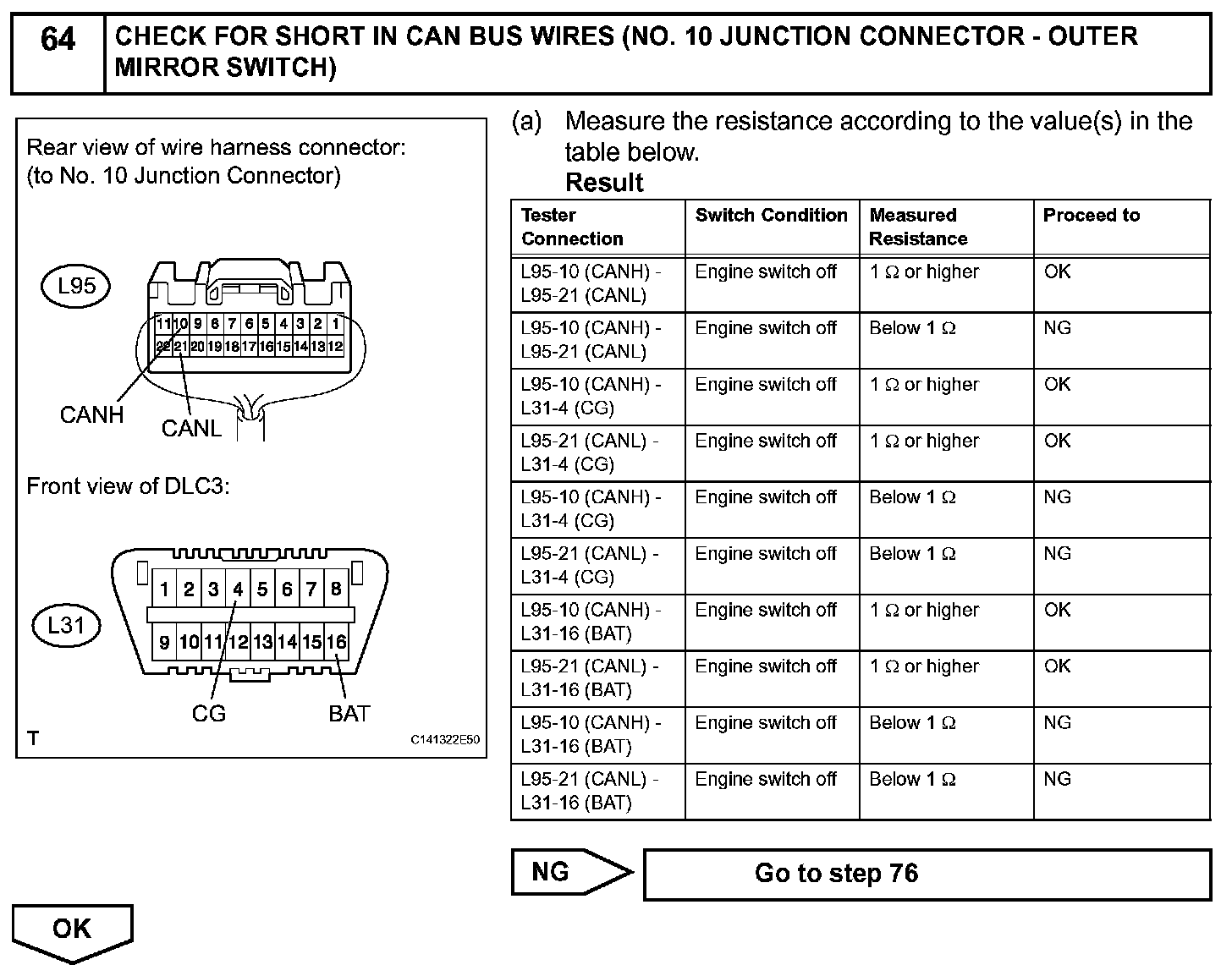

Step 64:

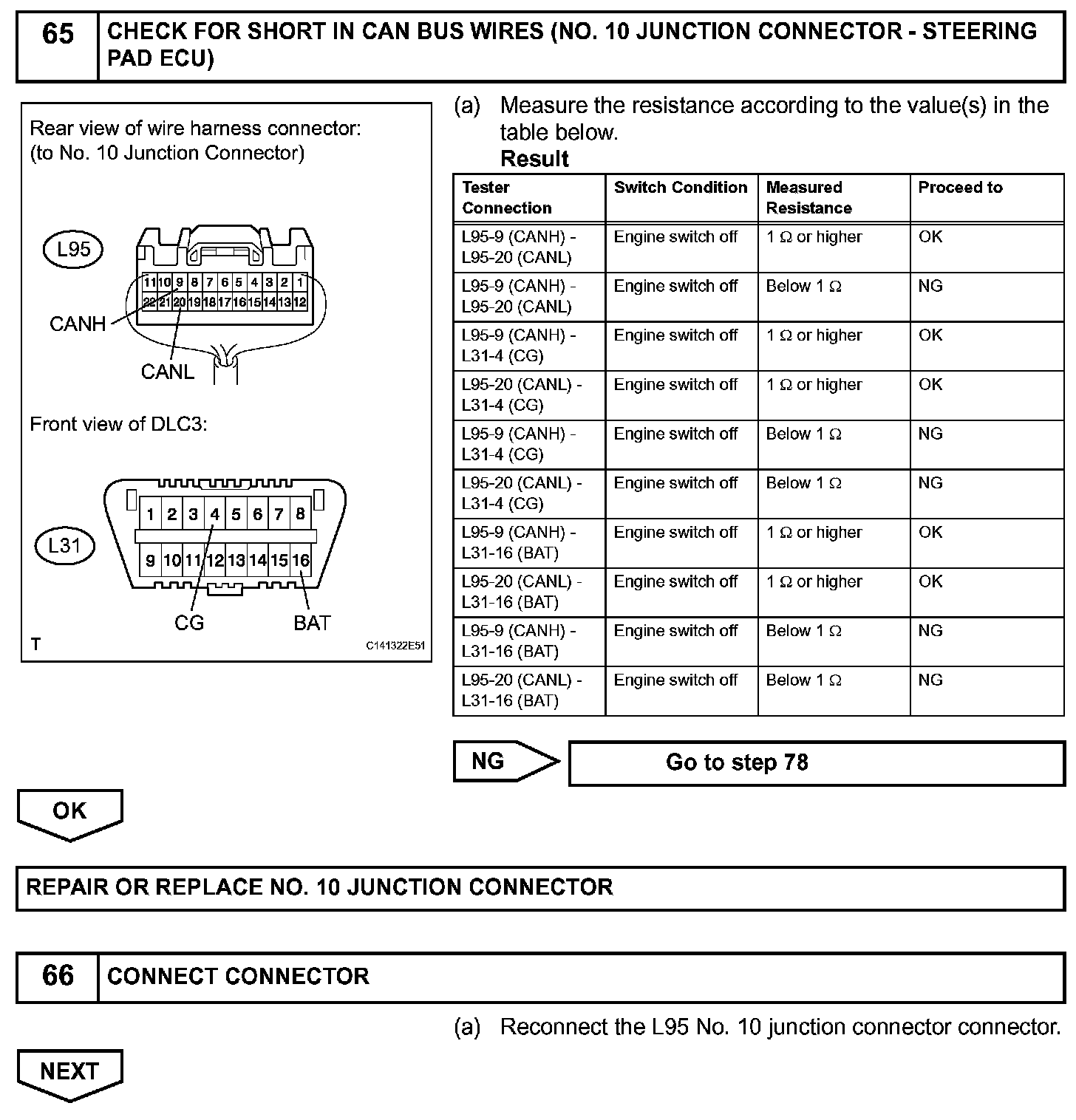

Step 65-66:

Step 67-68:

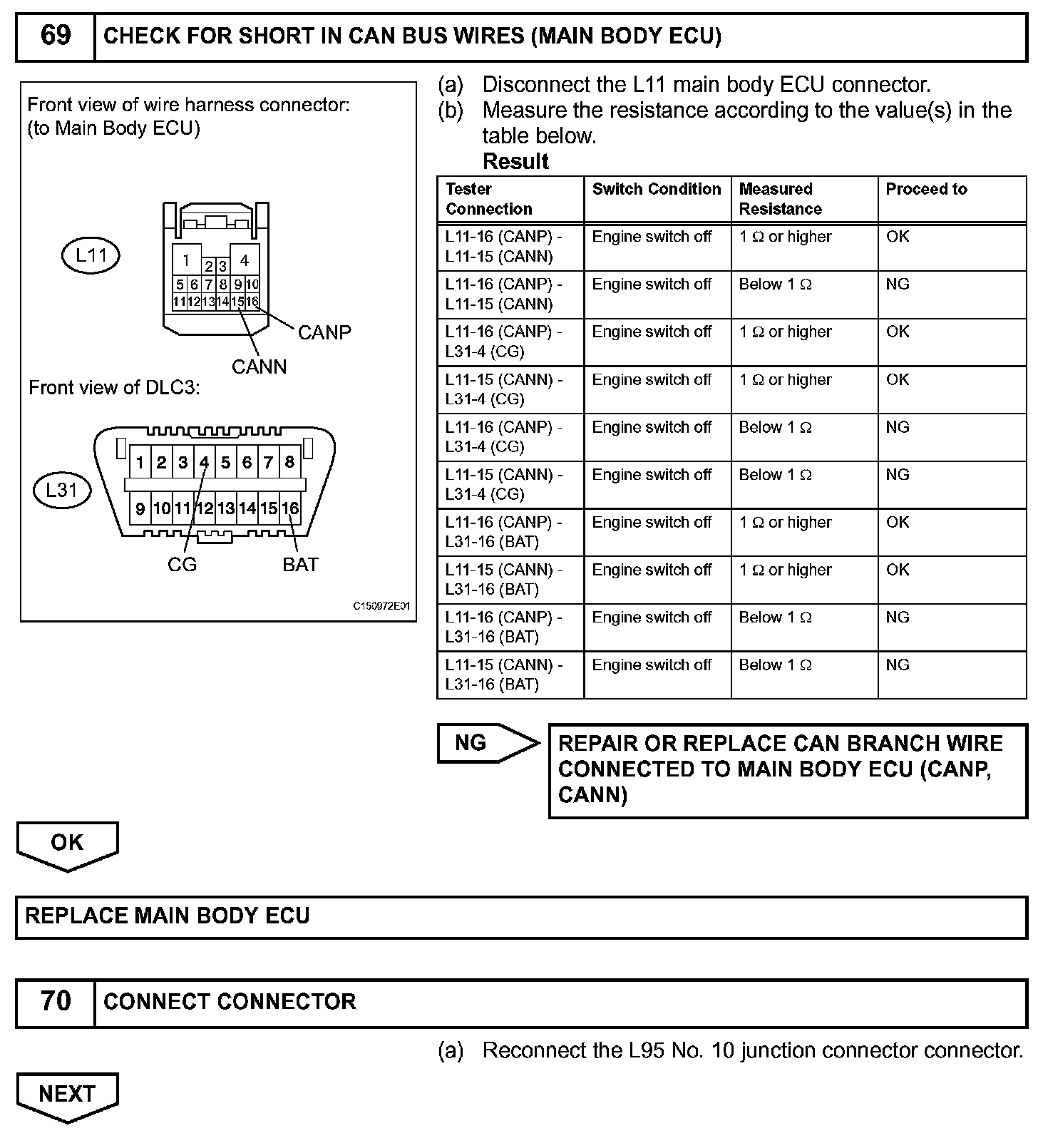

Step 69-70:

Step 71-72:

Step 73-74:

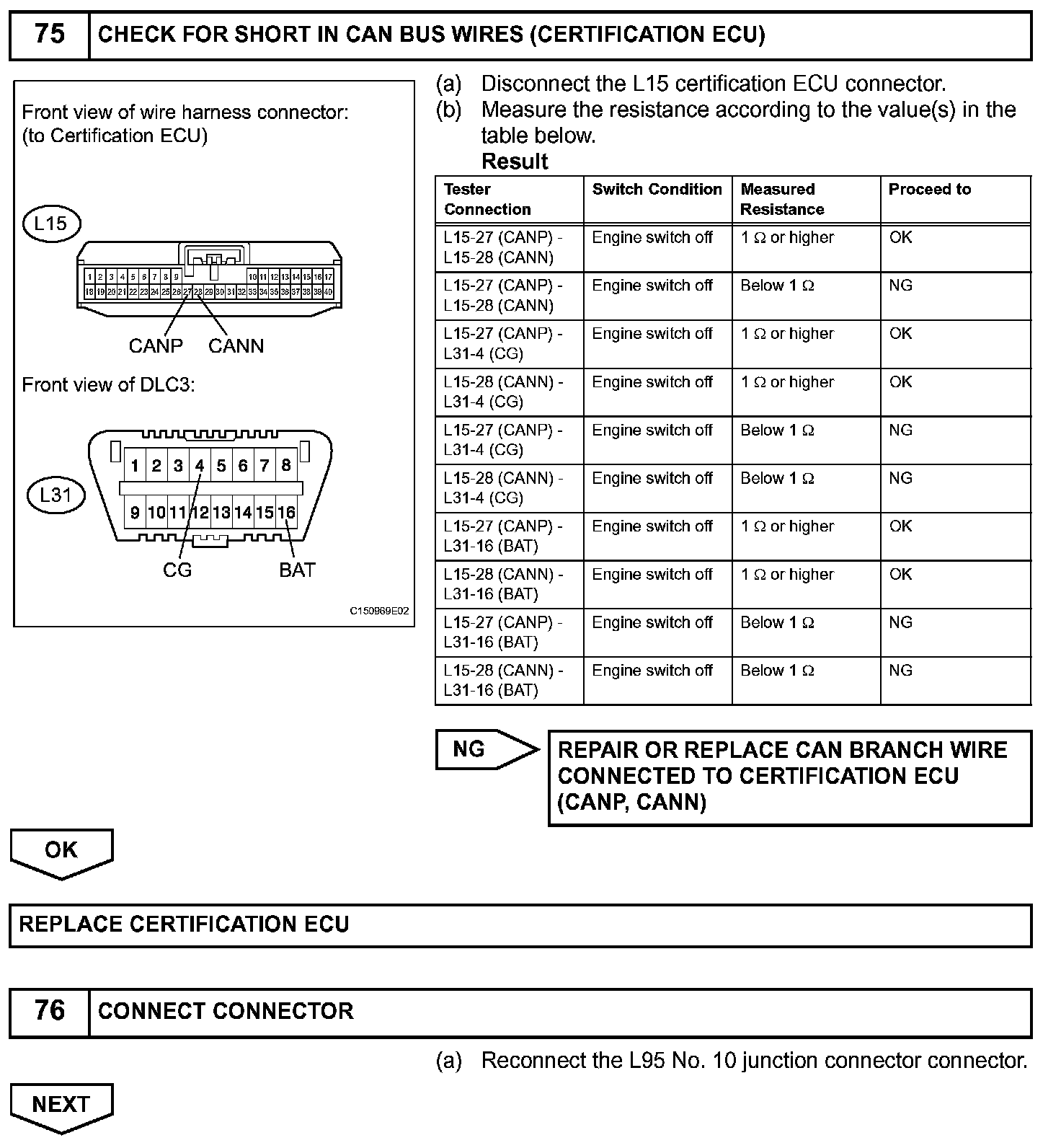

Step 75-76:

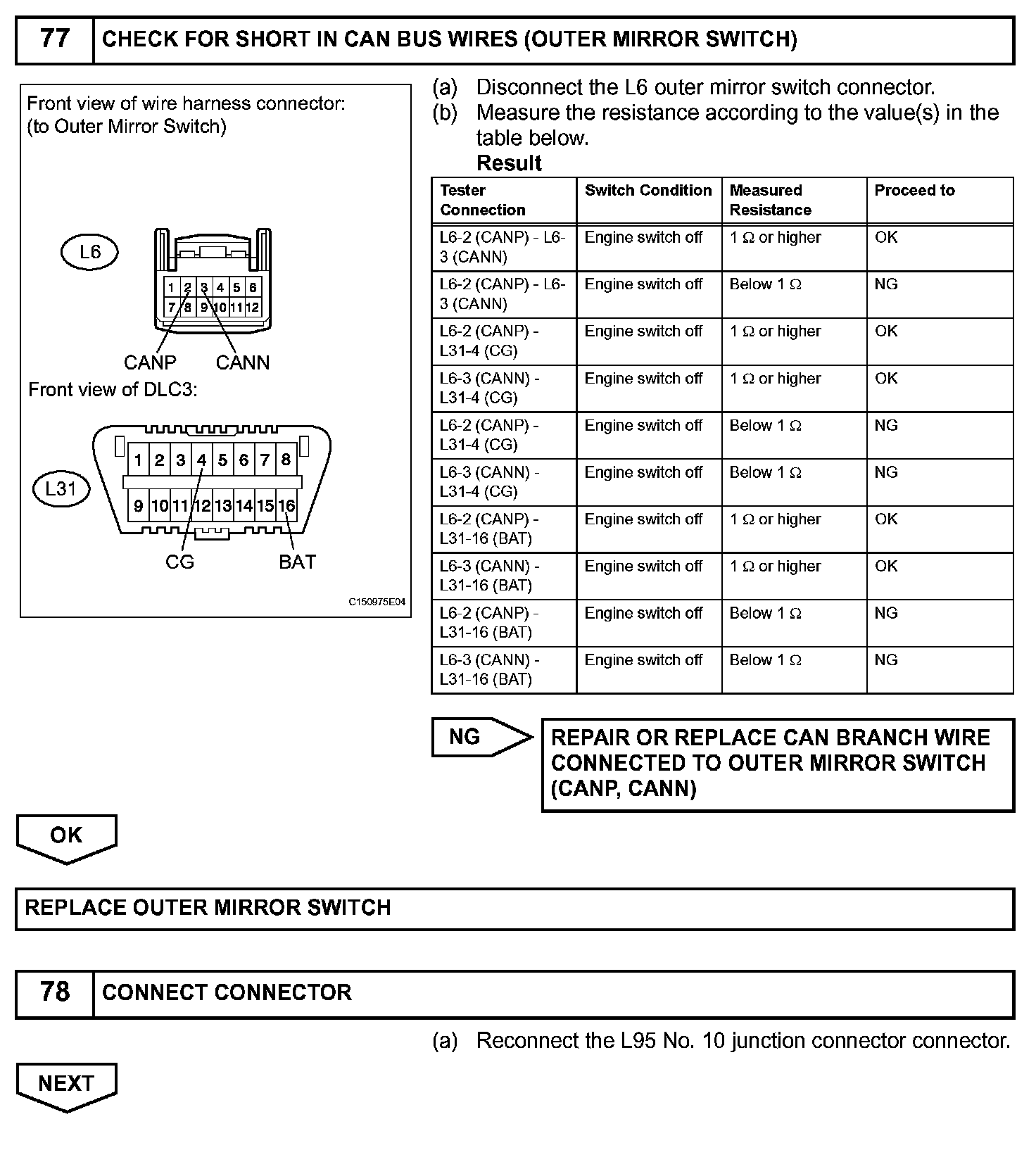

Step 77-78:

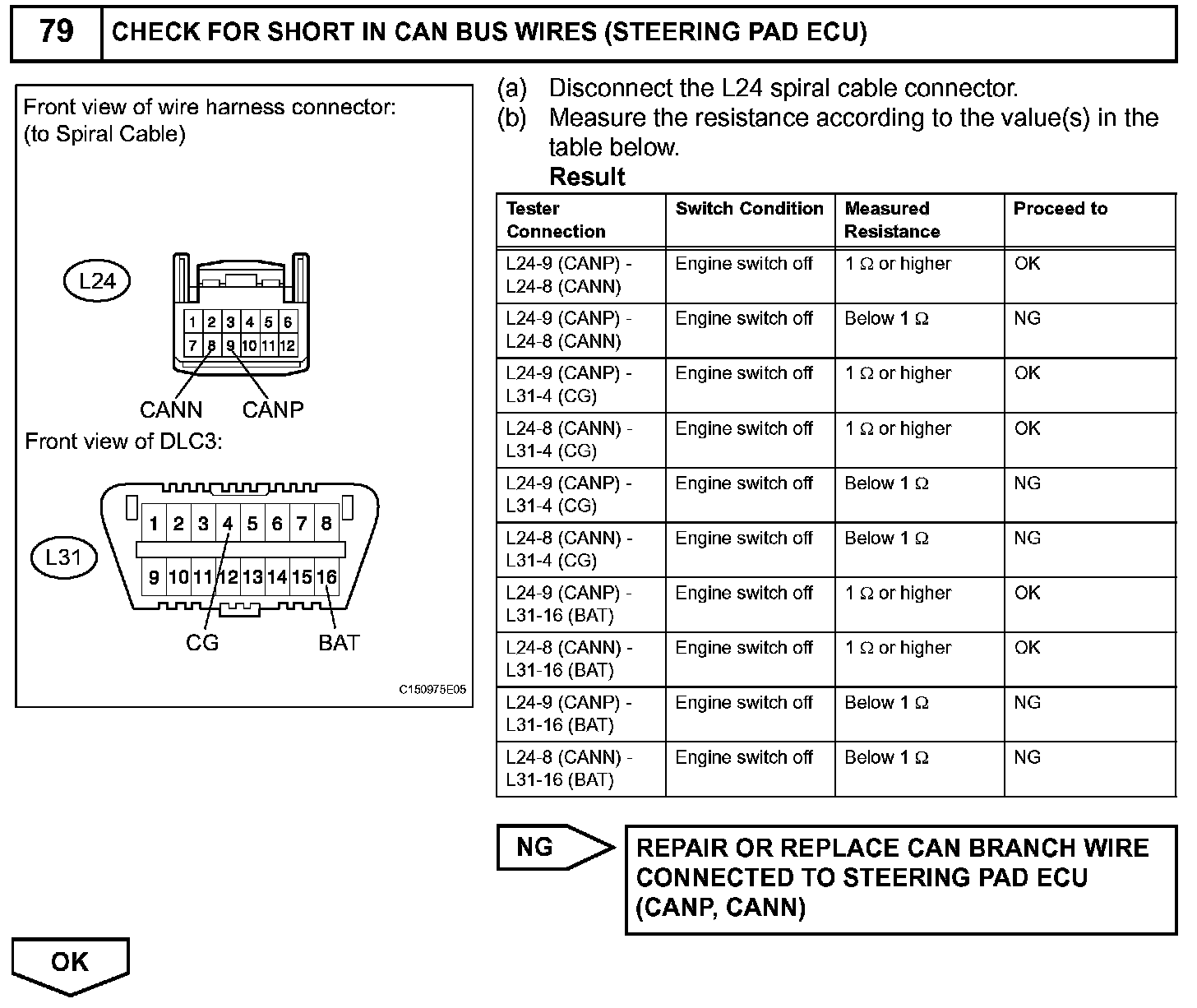

Step 79:

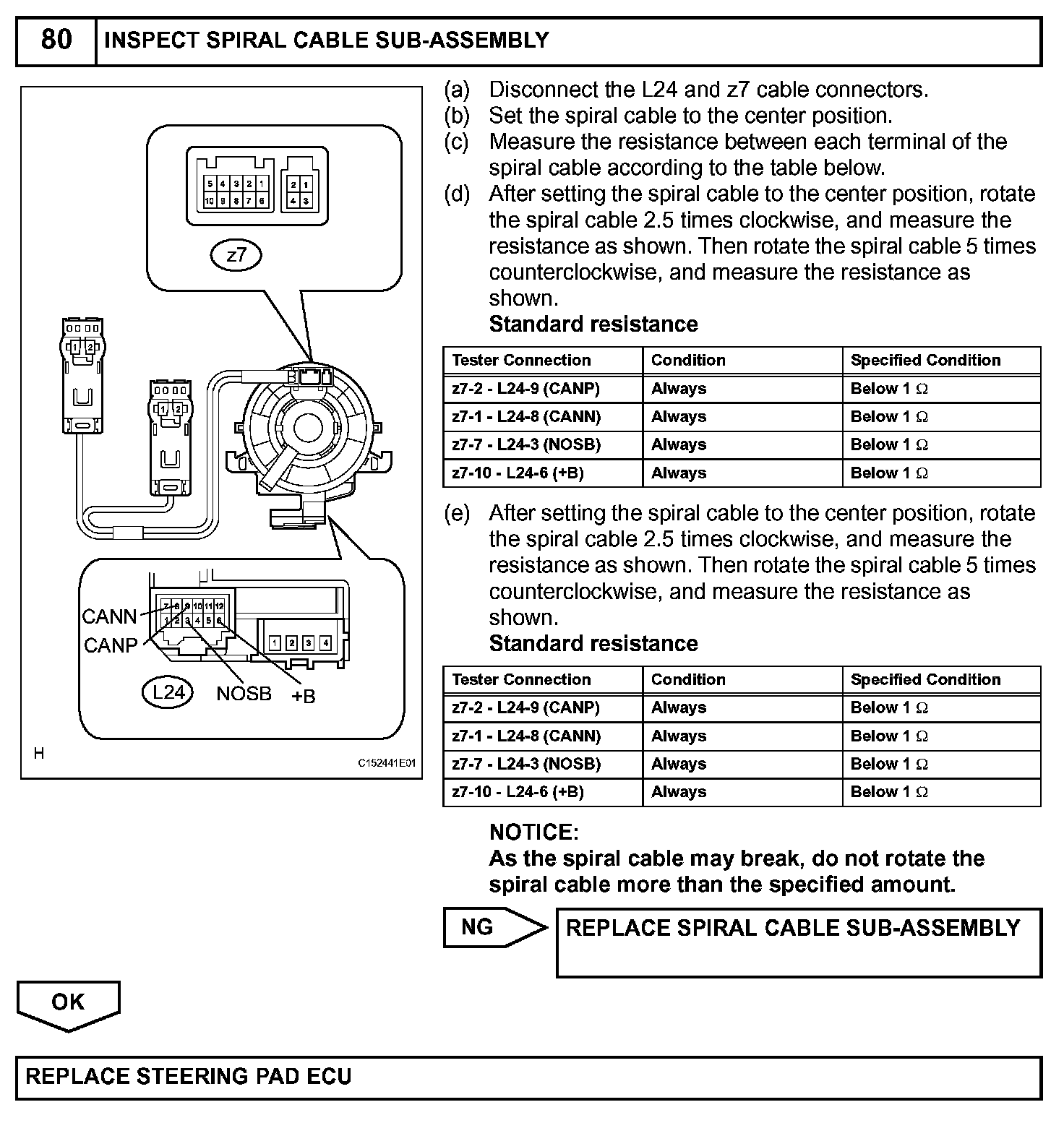

Step 80:

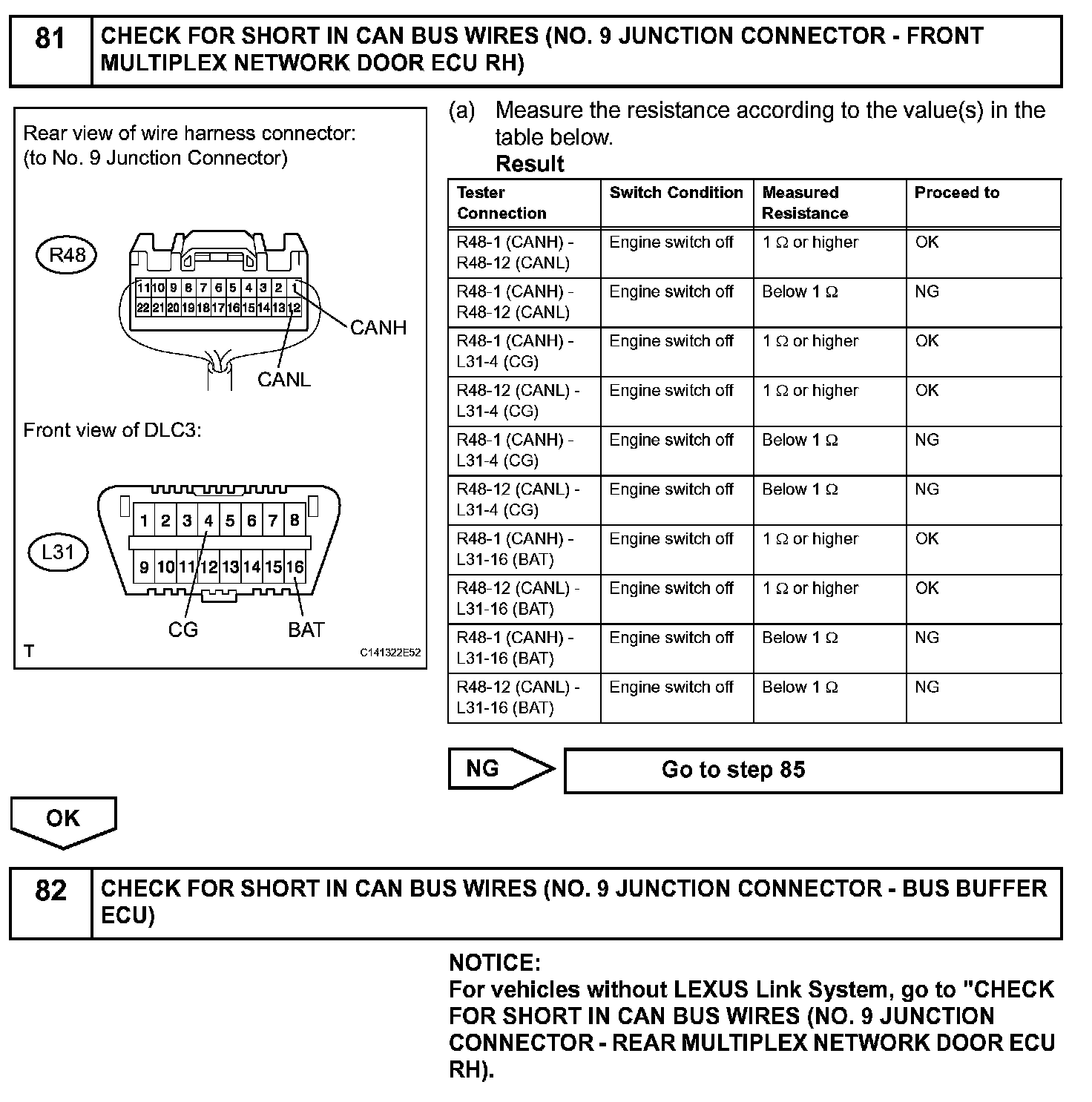

Step 81-82:

Step 82 (Continued)-83:

Step 83 (Continued)-85:

Step 86-87:

Step 88-89:

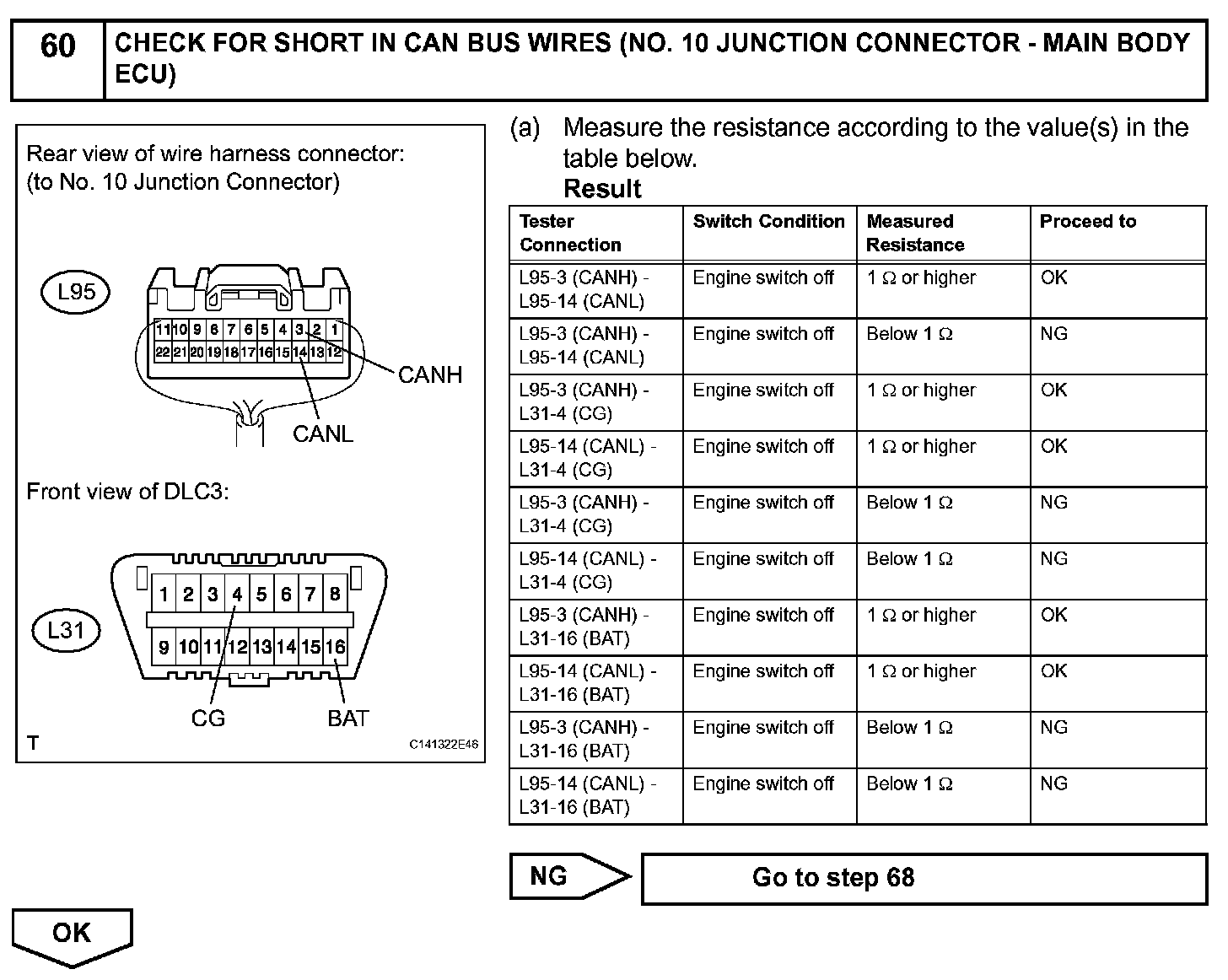

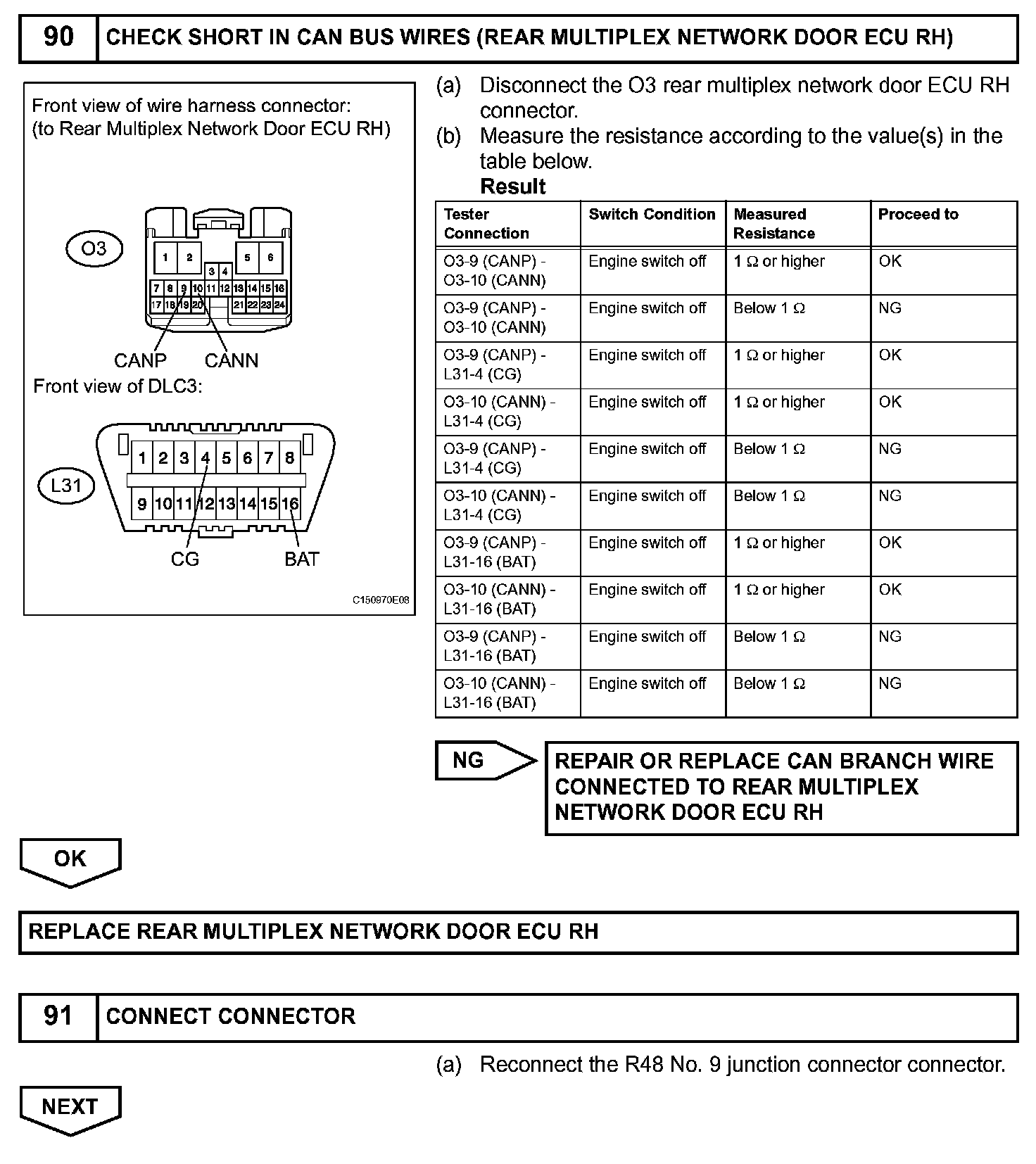

Step 90-91:

Step 92-93:

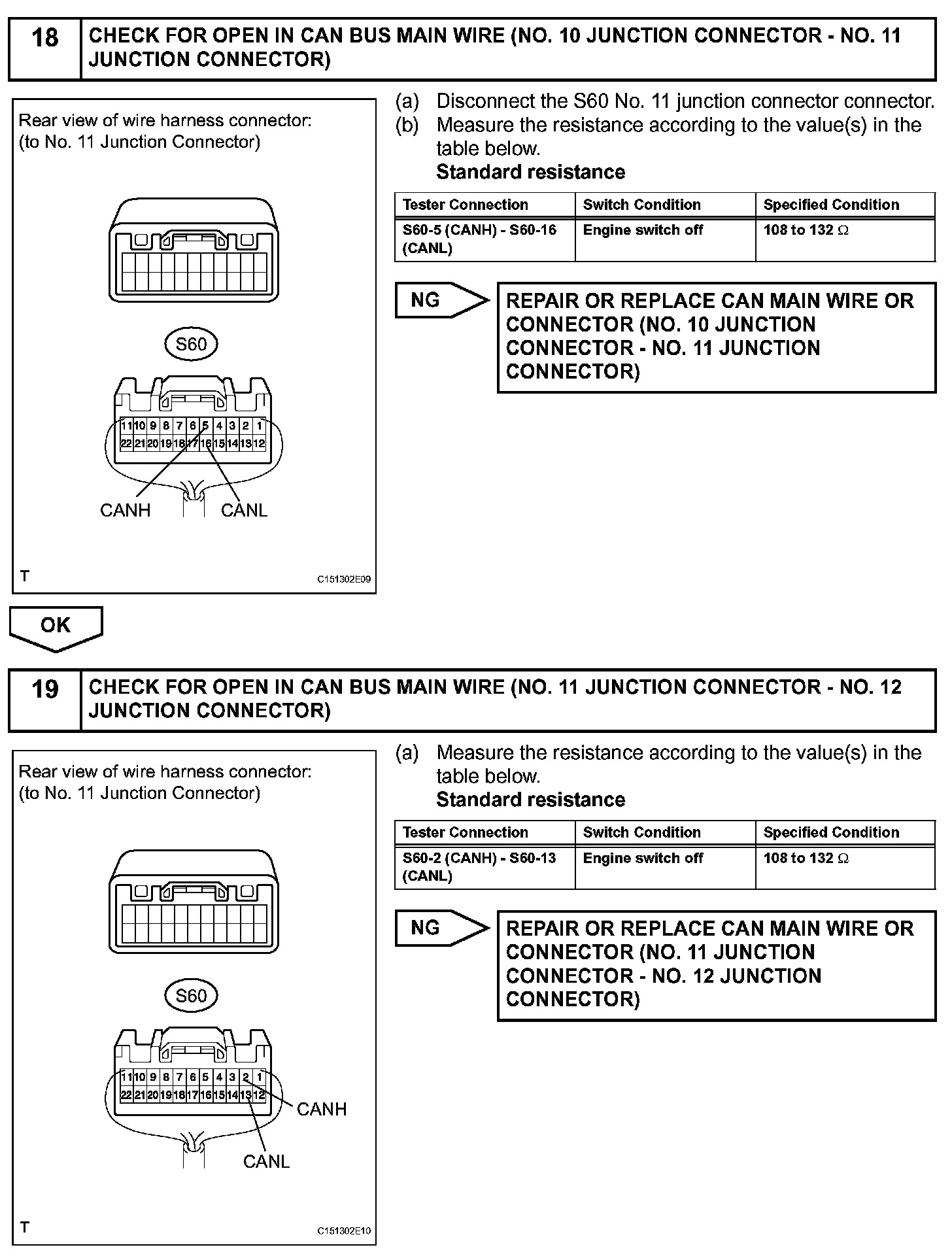

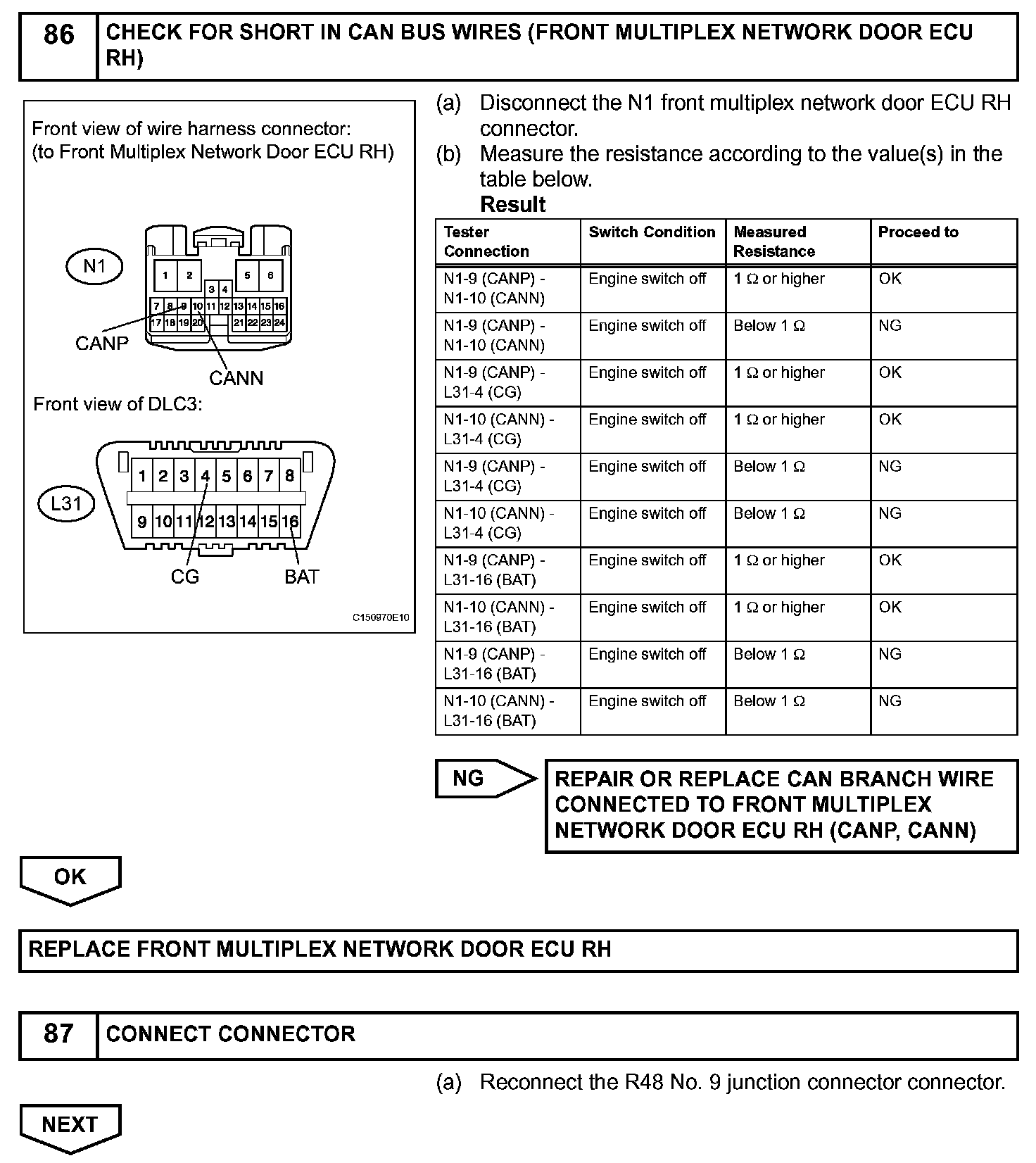

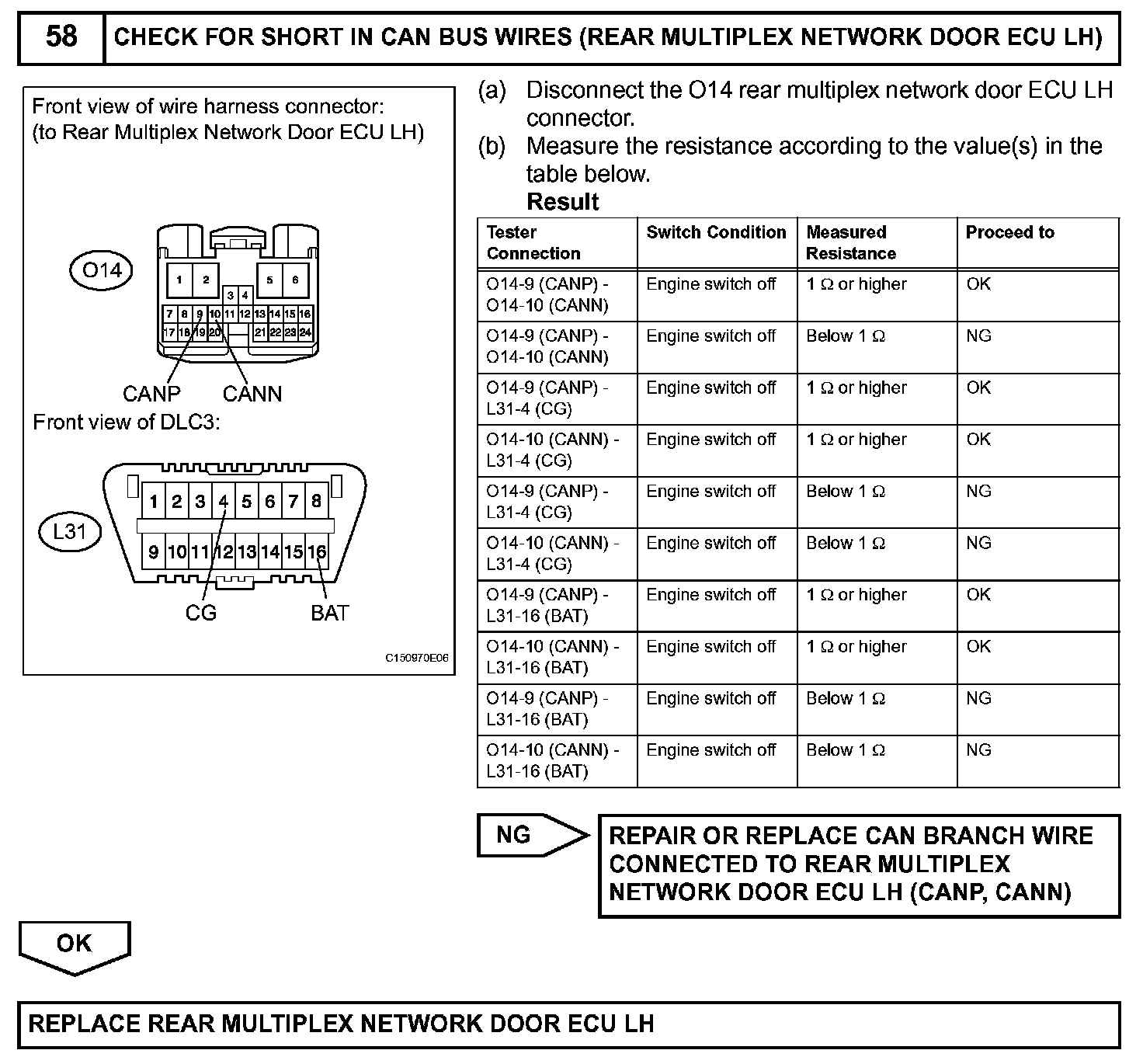

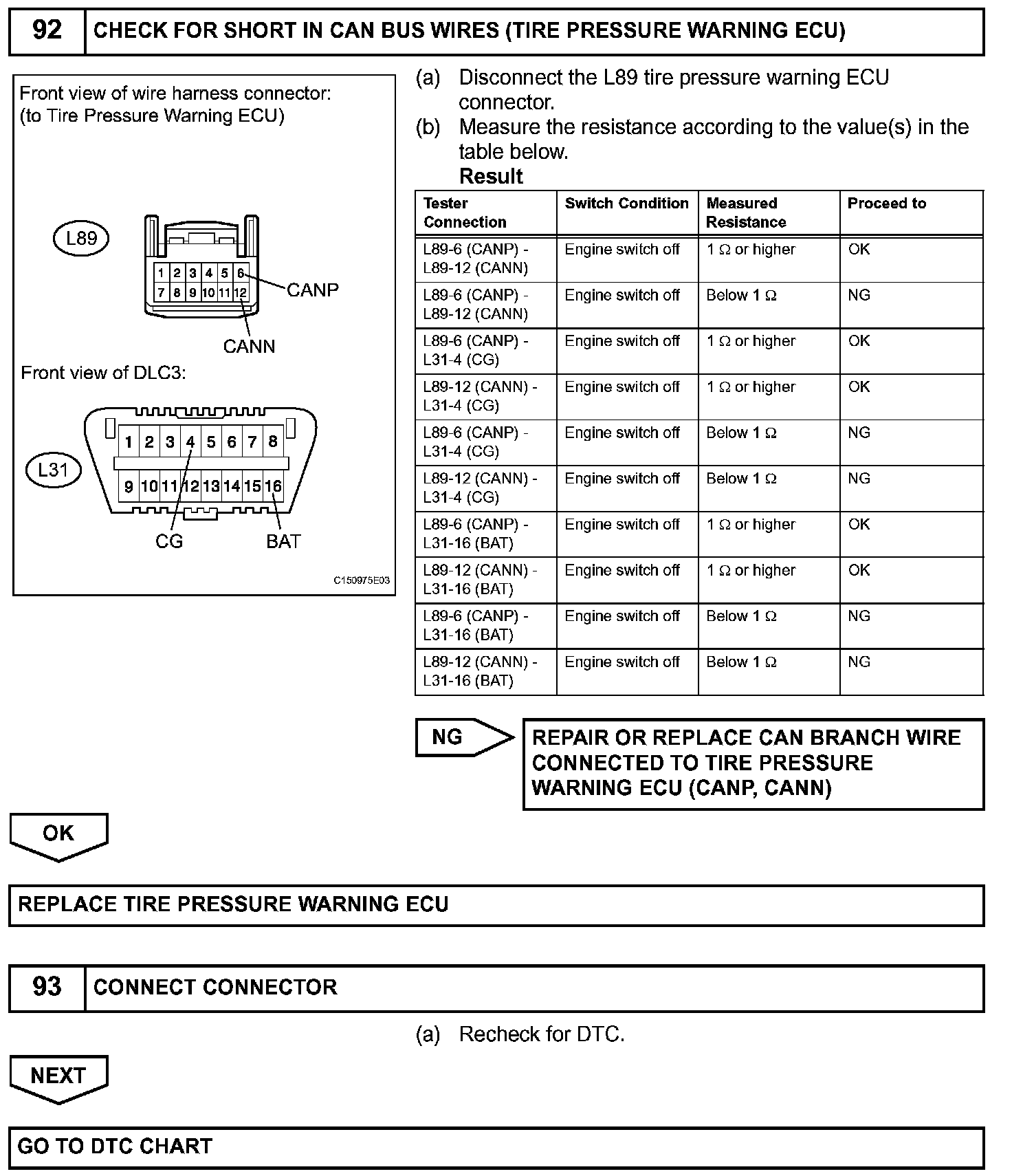

INSPECTION PROCEDURE
