Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U0235 >> Lost Communication With Cruise Control Sensor

Lost Communication With Cruise Control Sensor

DTC U0235 Lost Communication with Cruise Control Front Distance Range Sensor

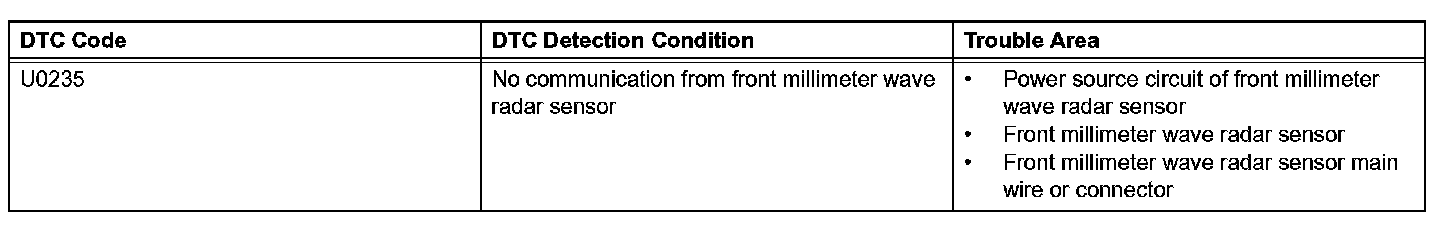

DTC Detection Condition:




DESCRIPTION

HINT: For vehicles with dynamic radar cruise control system or pre-collision system

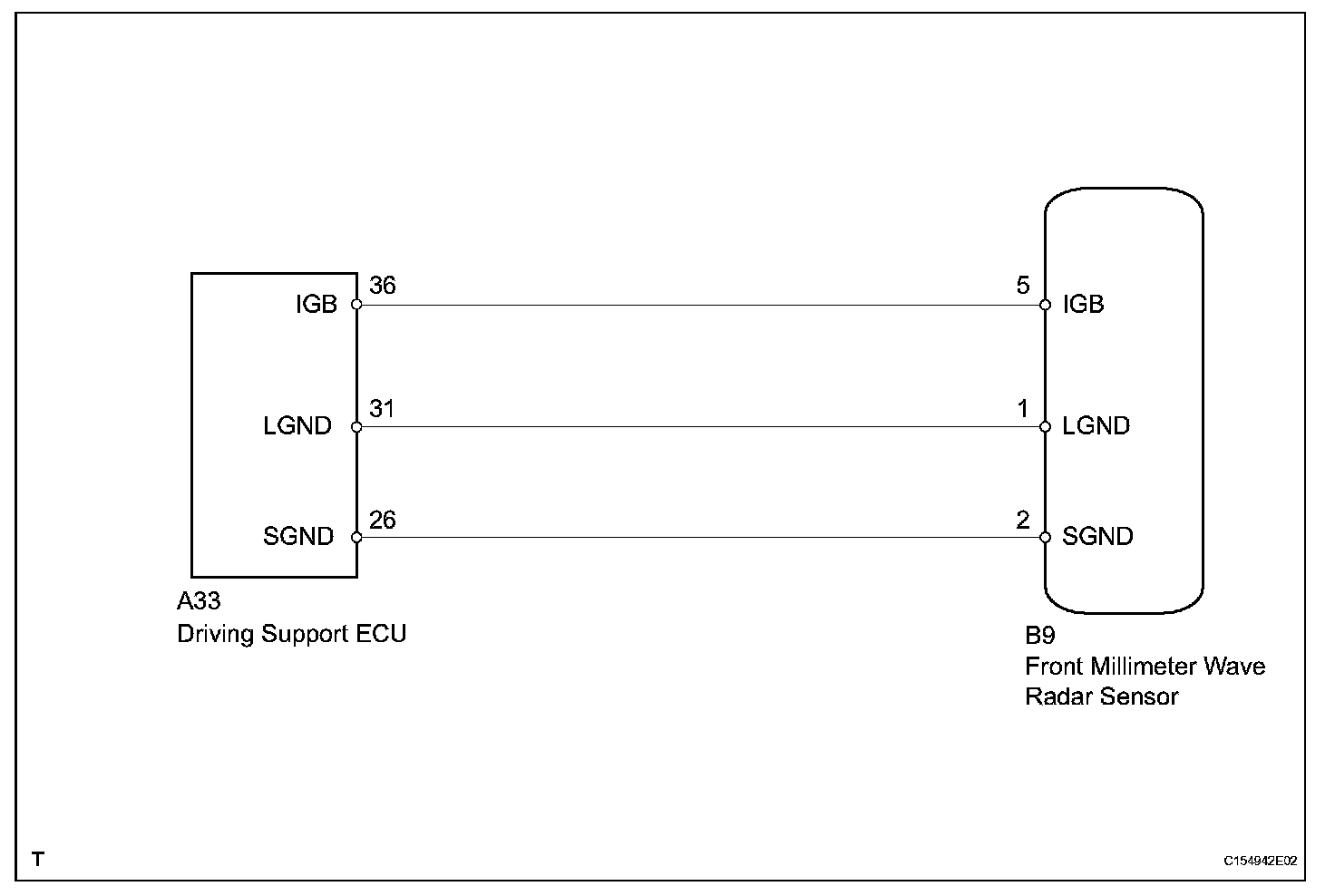

Wiring Diagram:

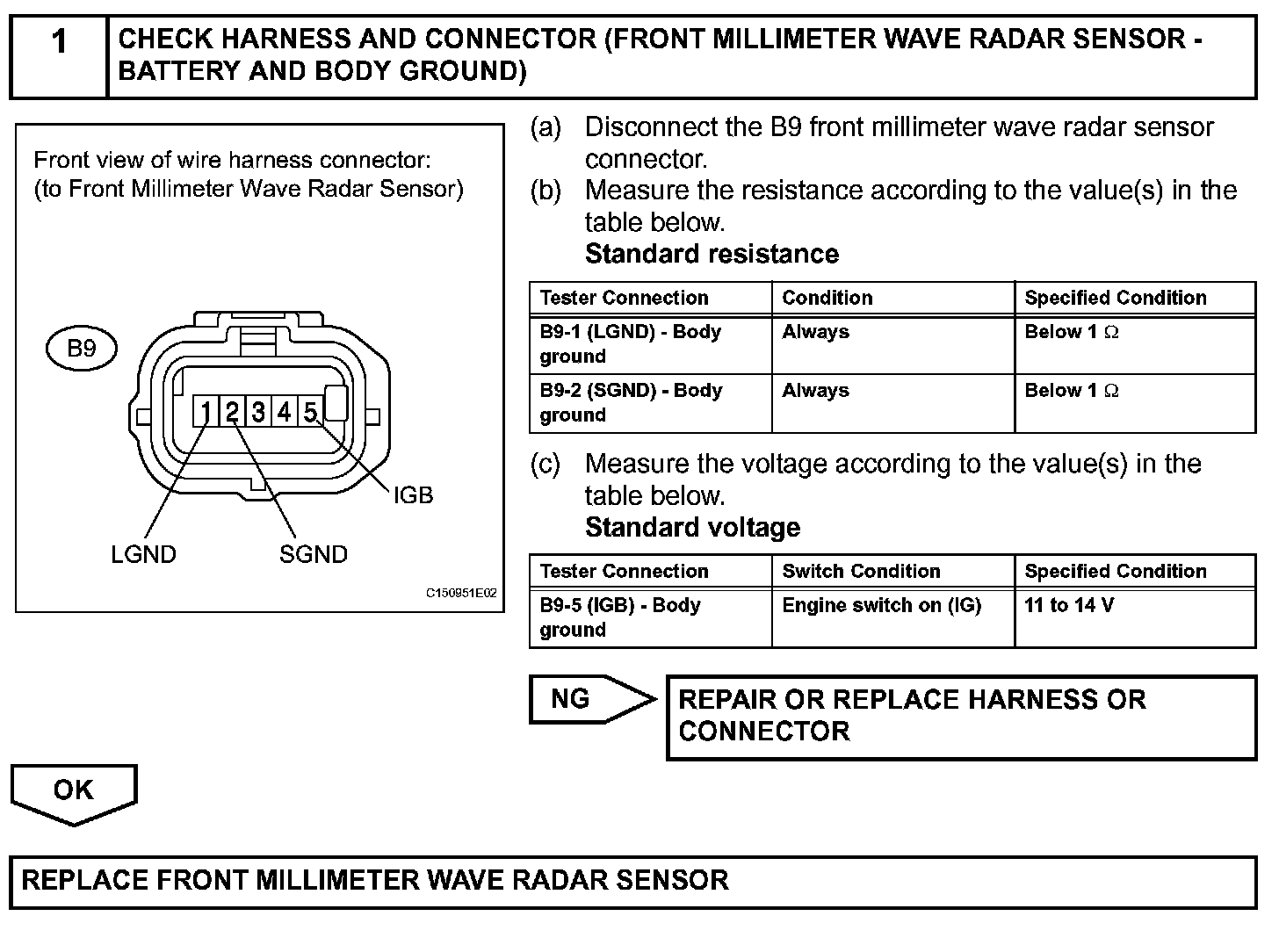

Step 1:




INSPECTION PROCEDURE
