CAN Communication System

DTC U0210 Lost Communication with "Seat Control Module C"

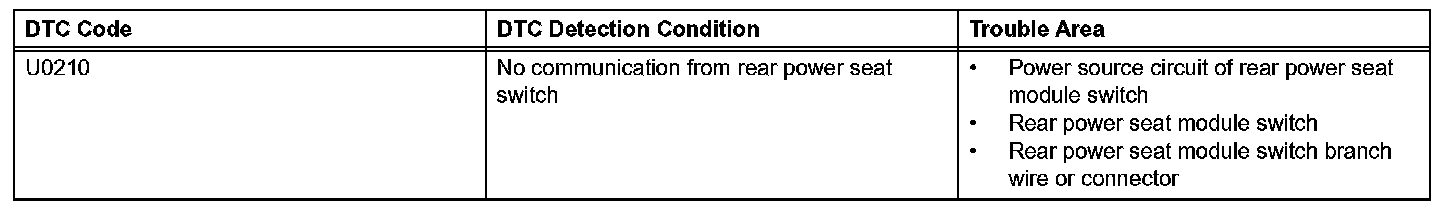

DTC Detection Condition:

DESCRIPTION

HINT: For vehicles with rear power seat control system or with seat heater system and rear power seat control system (w/ Ottoman).

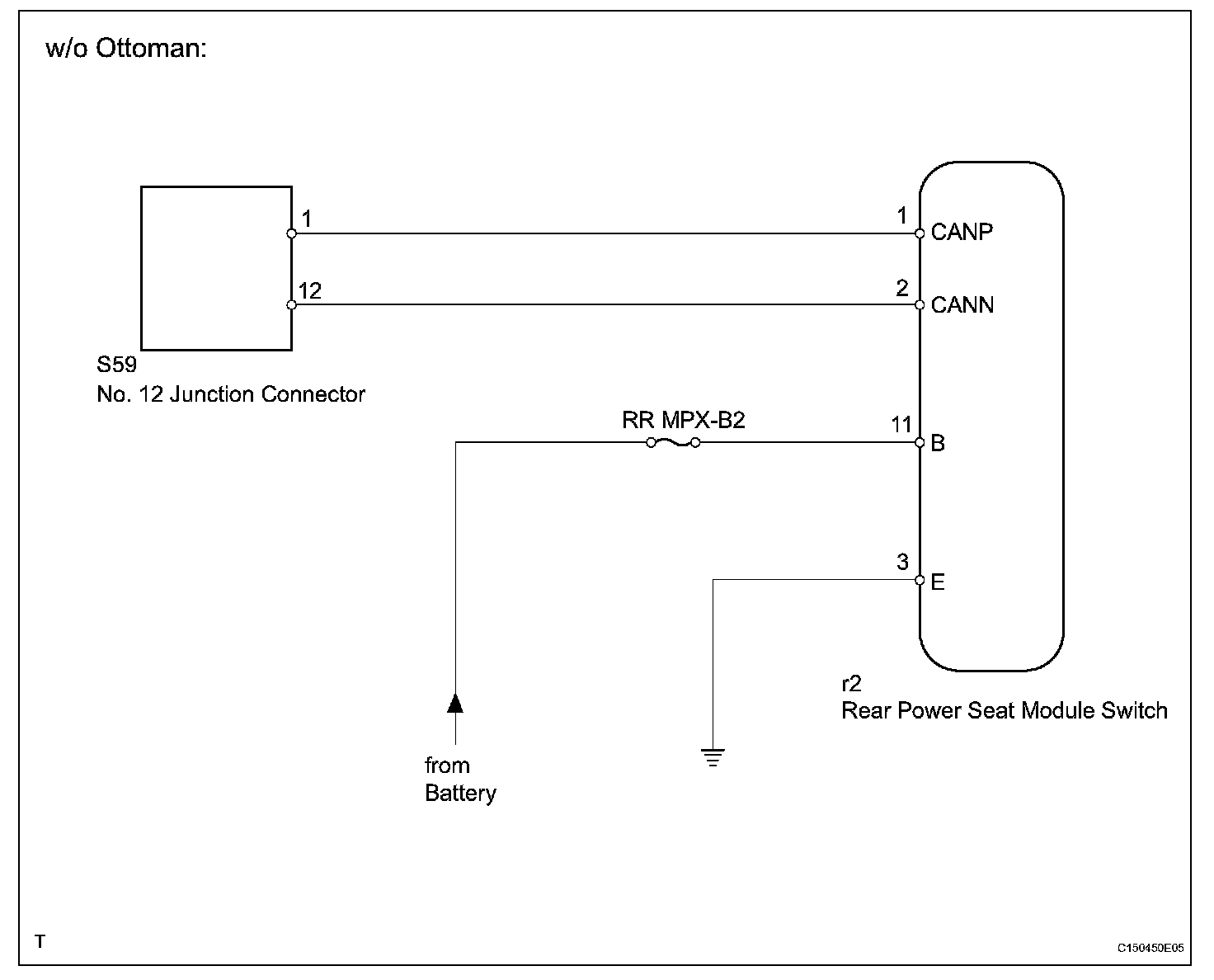

Wiring Diagram (Part 1):

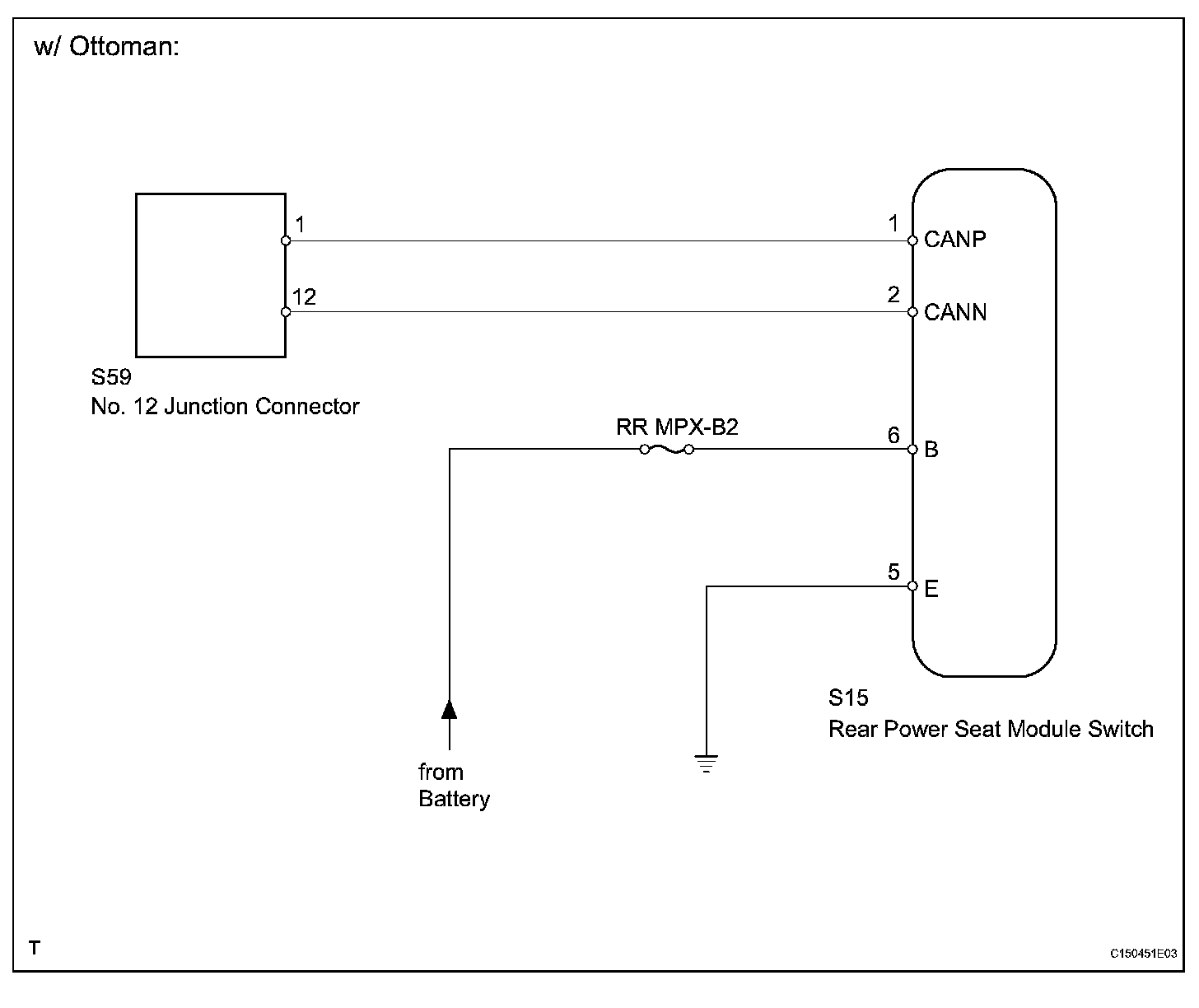

Wiring Diagram (Part 2):

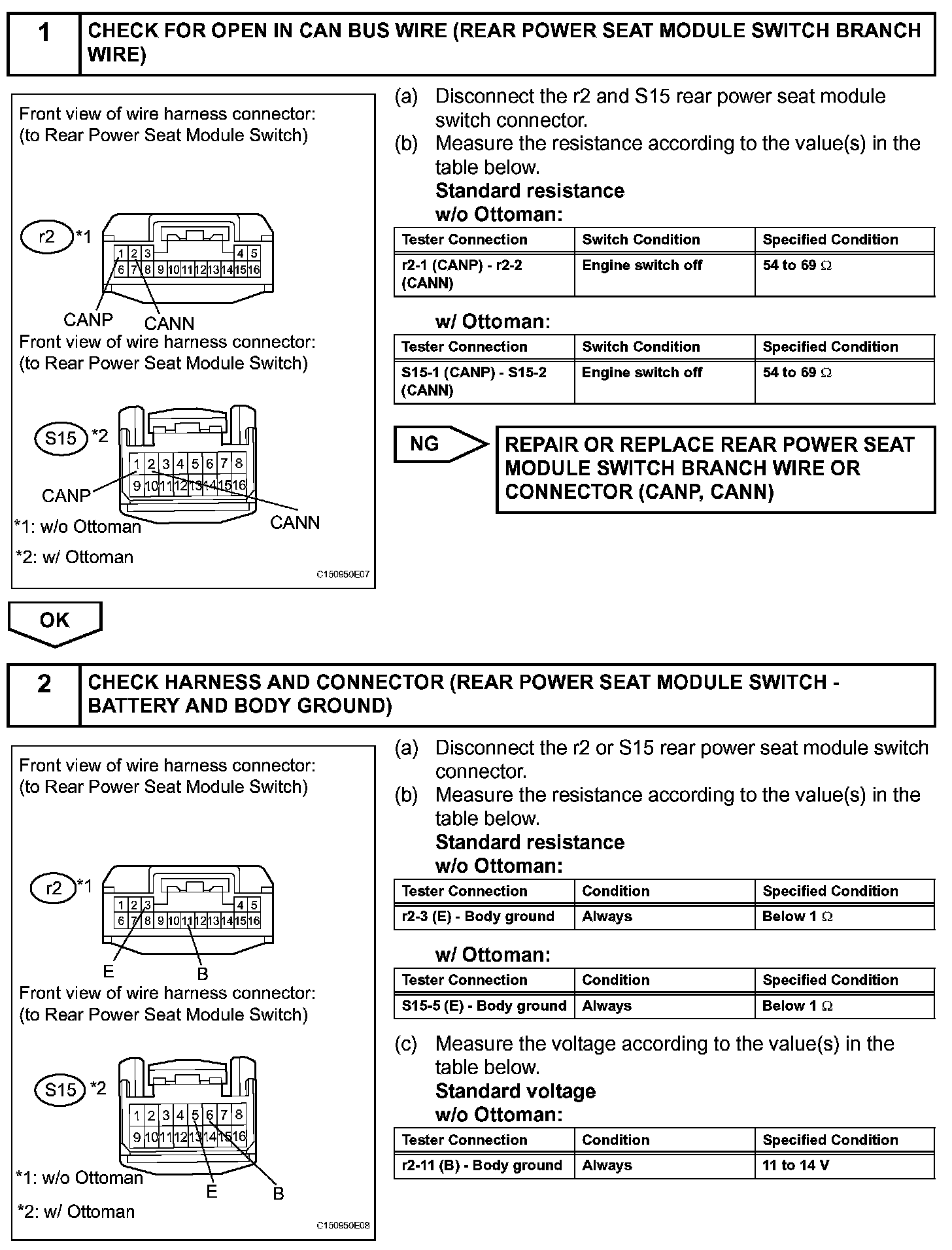

Step 1-2:

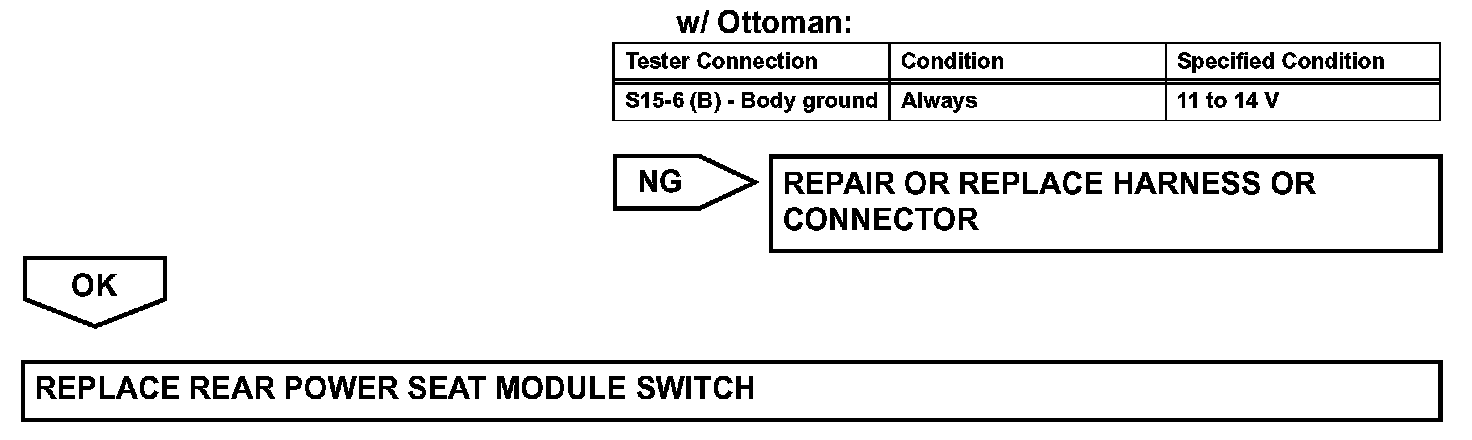

Step 2 (Continued):

INSPECTION PROCEDURE
