U0208

DTC U0208 Lost Communication with "Seat Control Module A"

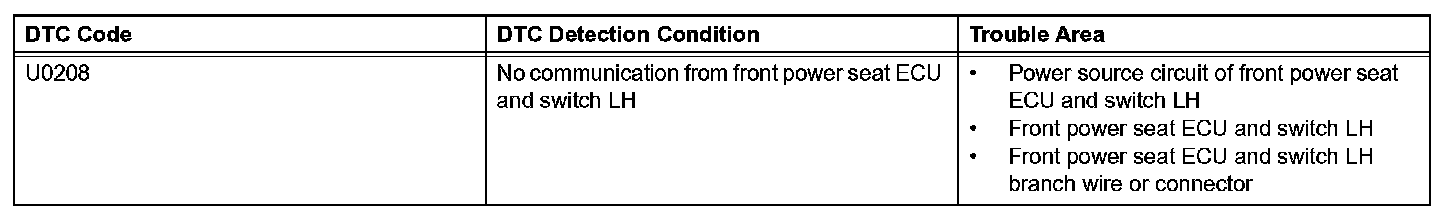

DTC Detection Condition:




DESCRIPTION

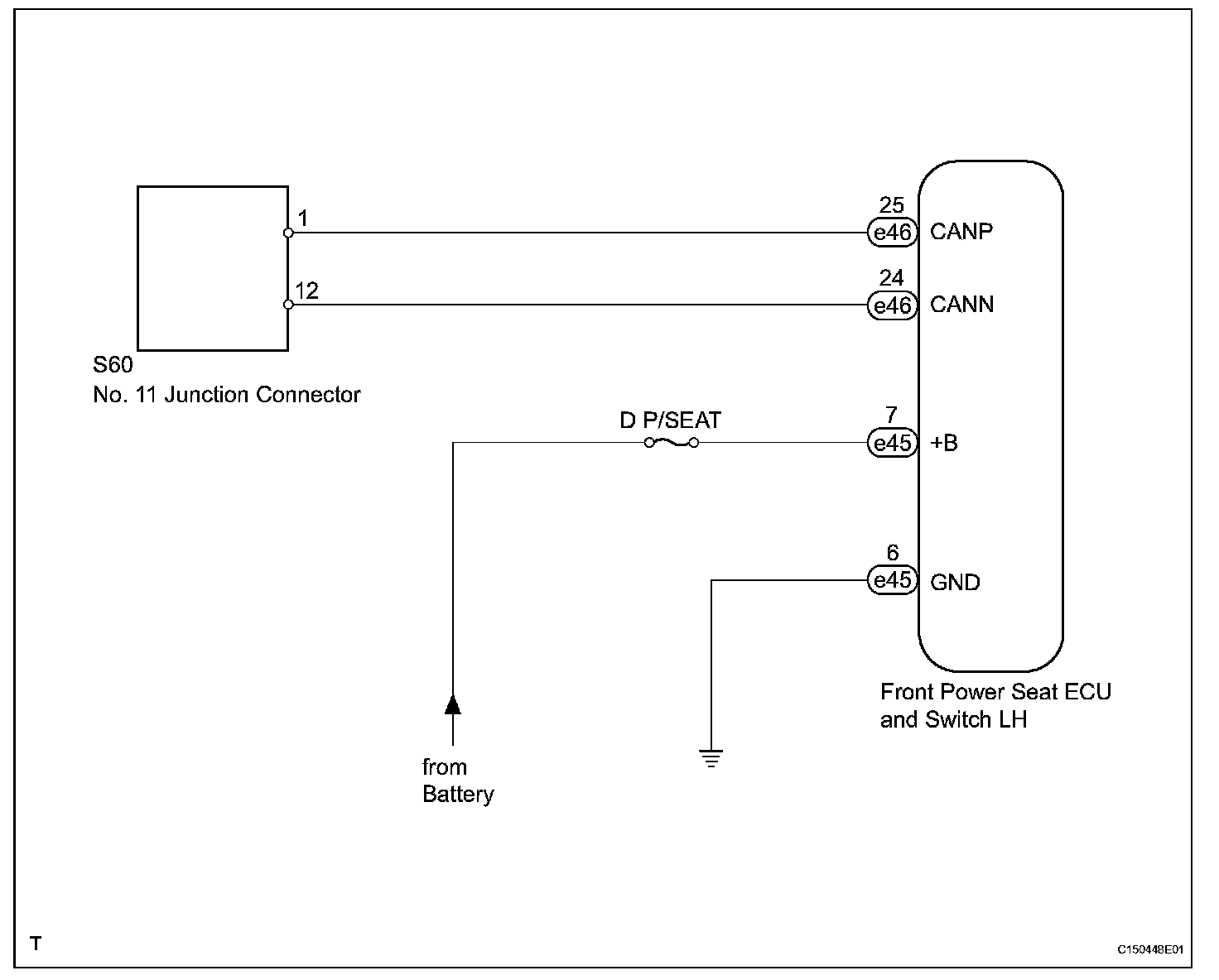

Wiring Diagram:

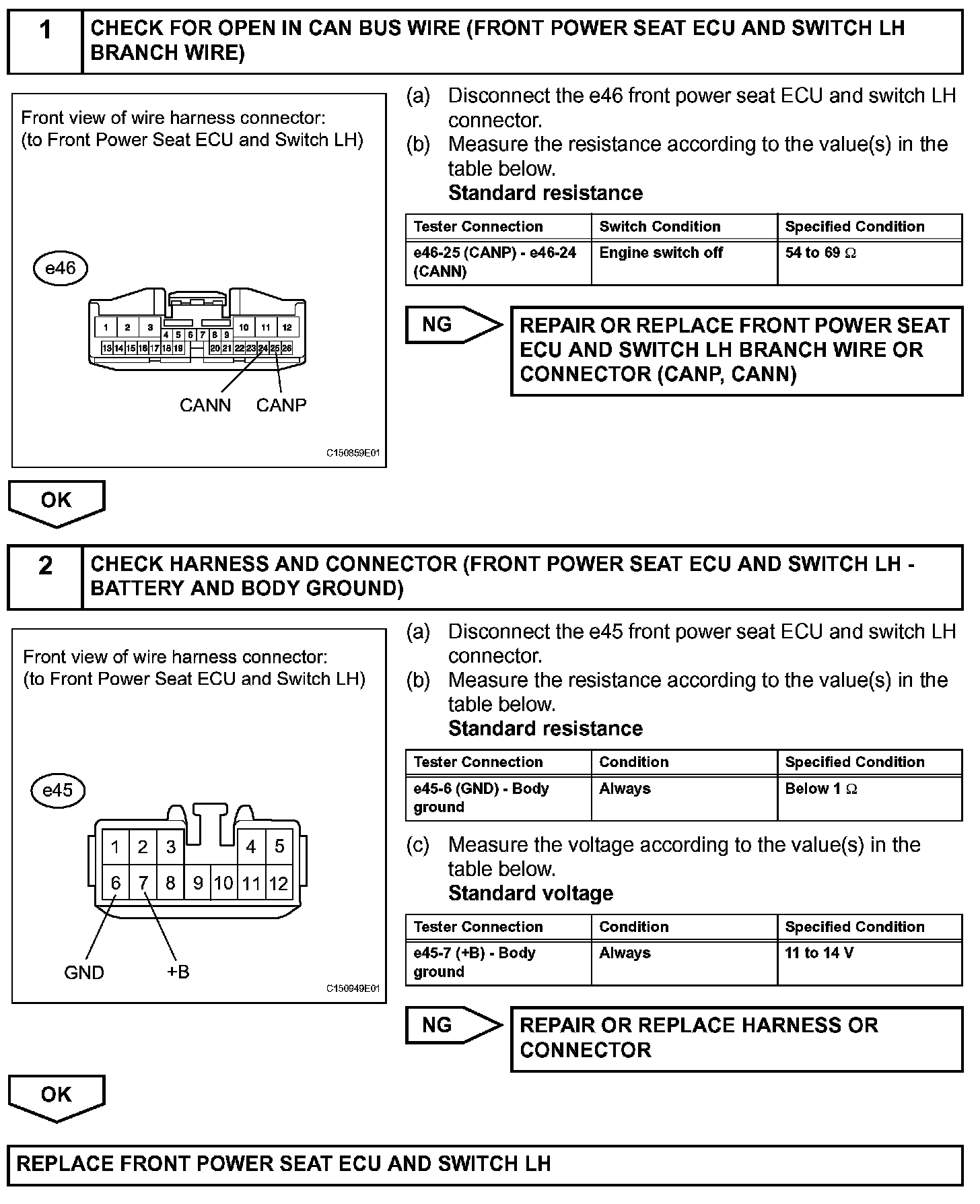

Step 1-2:




INSPECTION PROCEDURE
