U0201

DTC U0201 Lost Communication with "Door Control Module C"

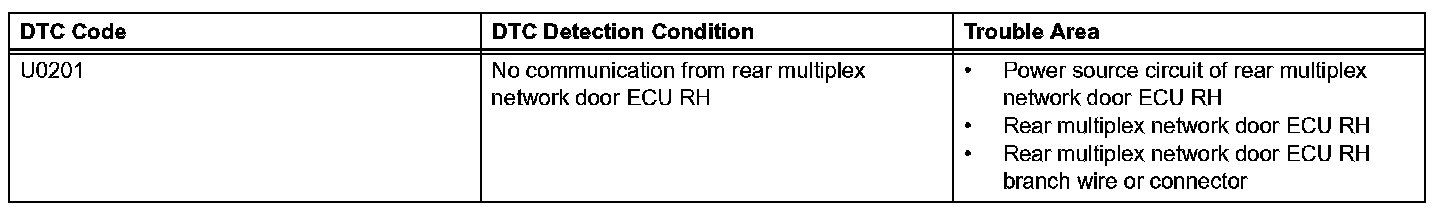

DTC Detection Condition:




DESCRIPTION

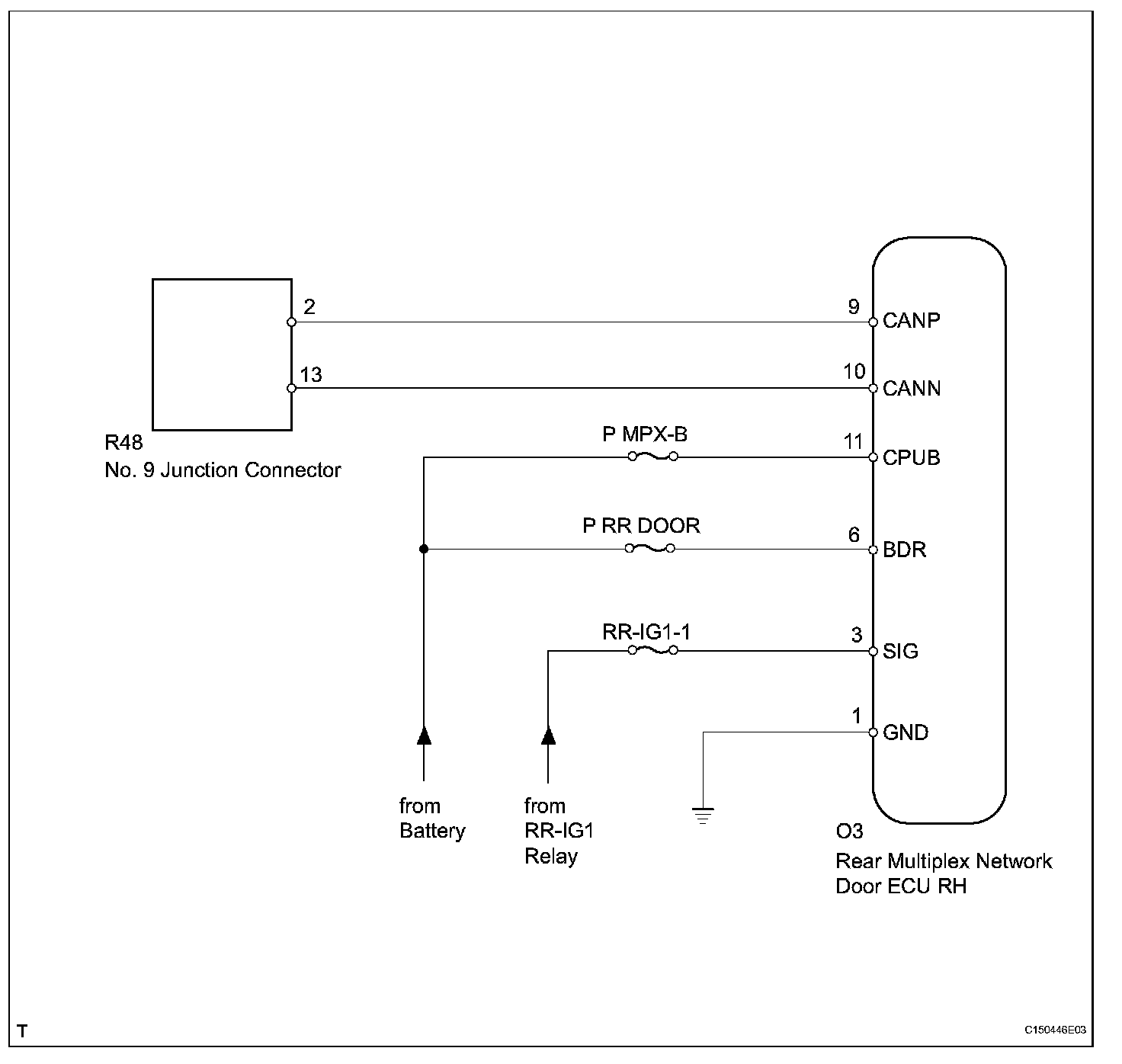

Wiring Diagram:

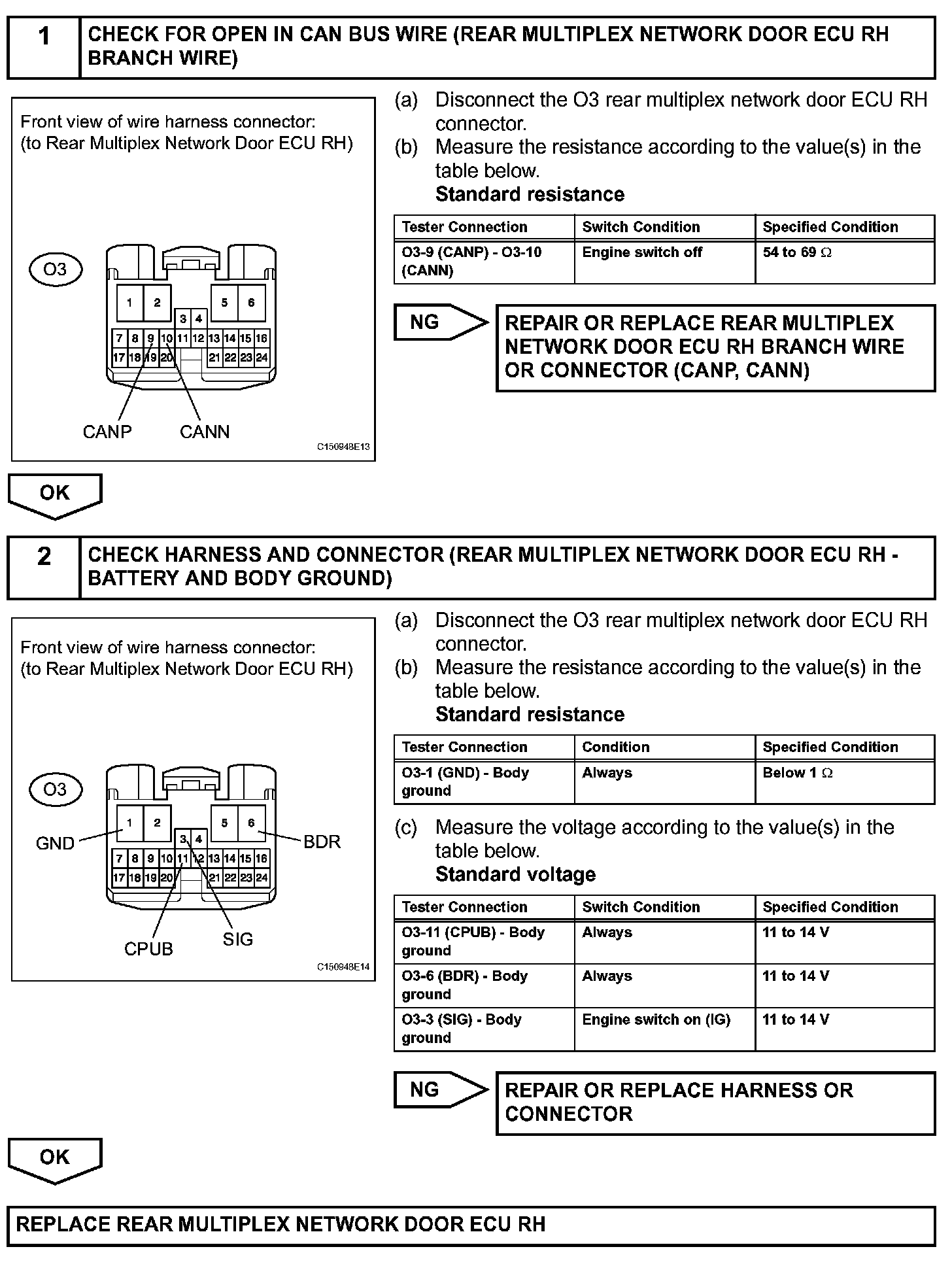

Step 1-2:




INSPECTION PROCEDURE
