DTC U0200 Lost Communication with "Door Control Module B"

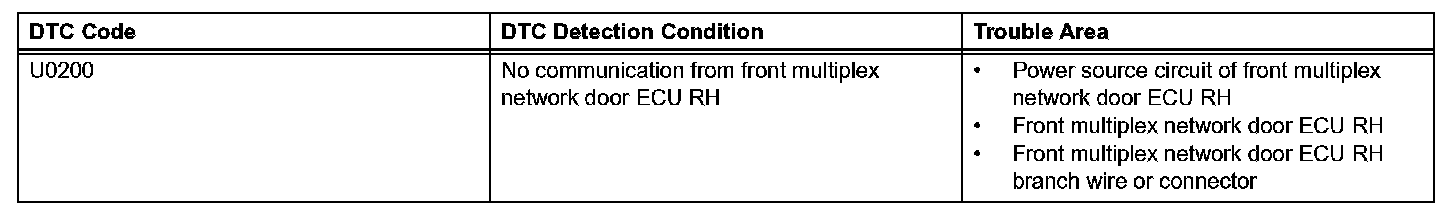

DTC Detection Condition:
DESCRIPTION

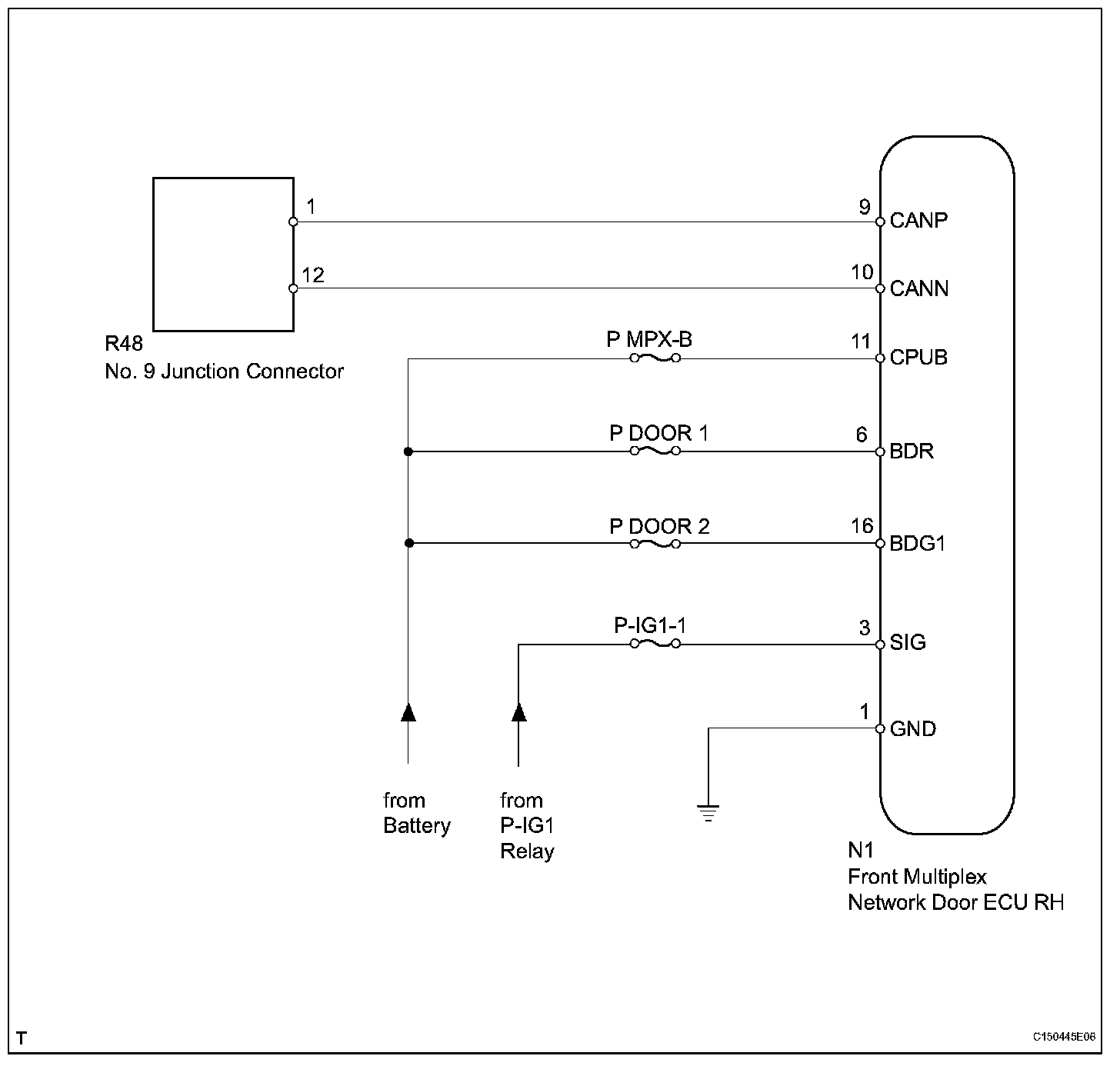

Wiring Diagram:

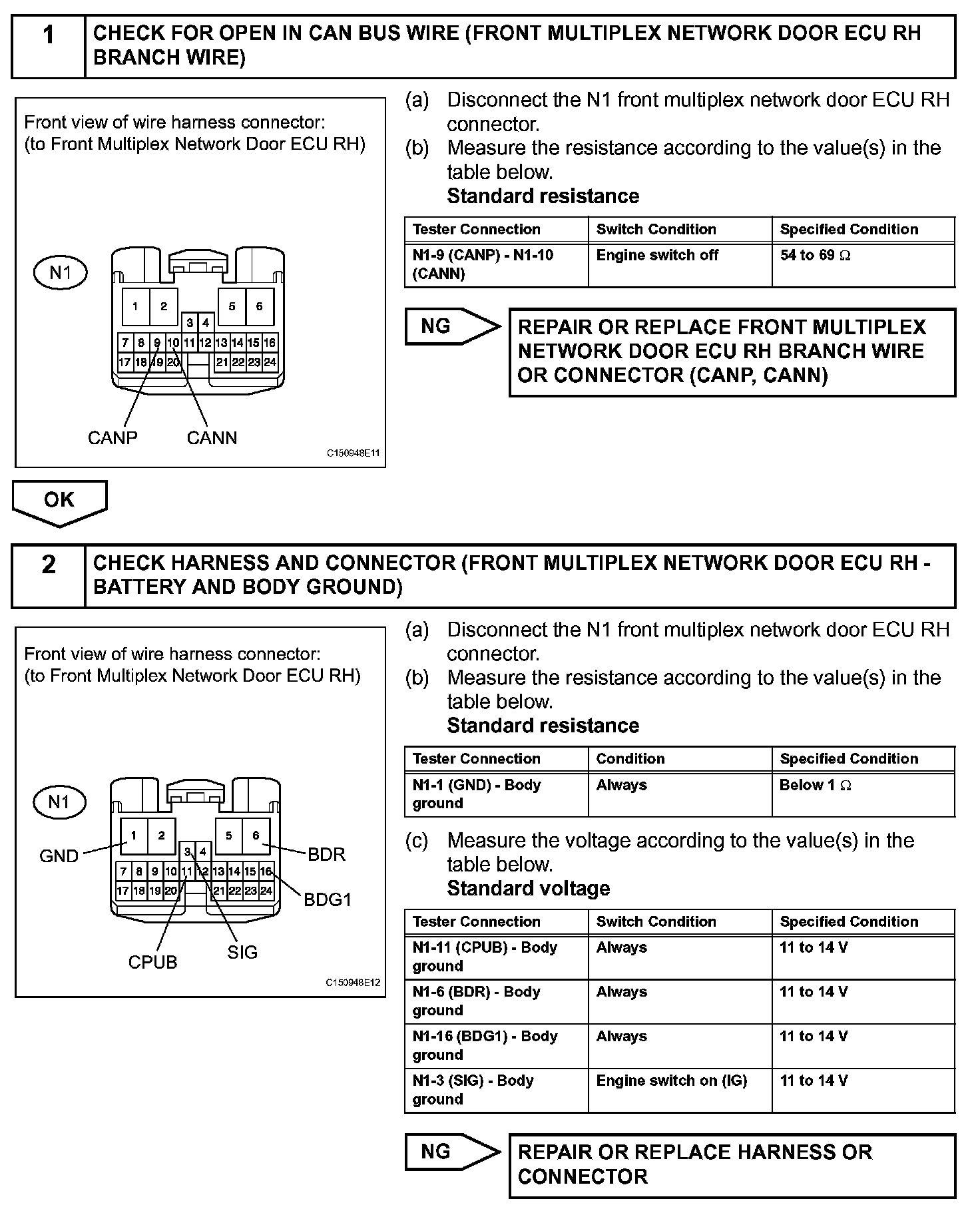

Step 1-2:

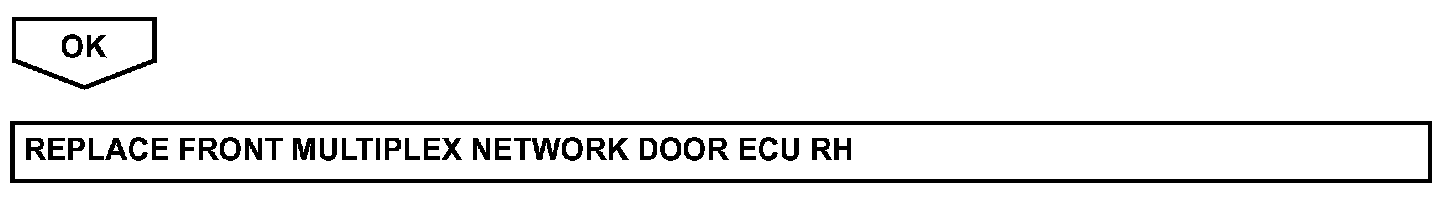

Step 2 (Continued):
INSPECTION PROCEDURE
