U0199
U0199
DTC U0199 Lost Communication with "Door Control Module A"

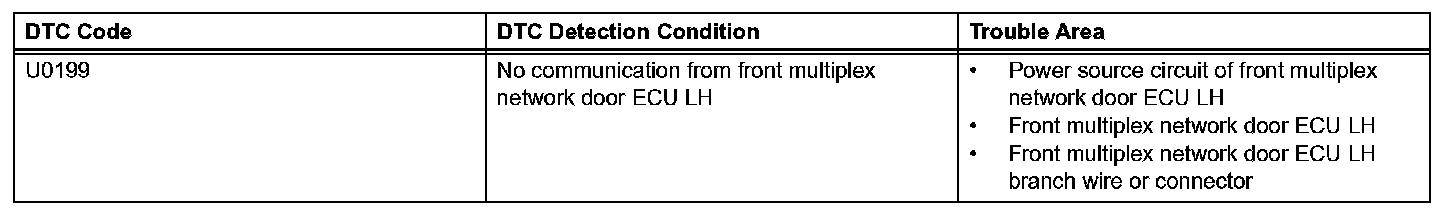

DTC Detection Condition:
DESCRIPTION
Wiring Diagram:

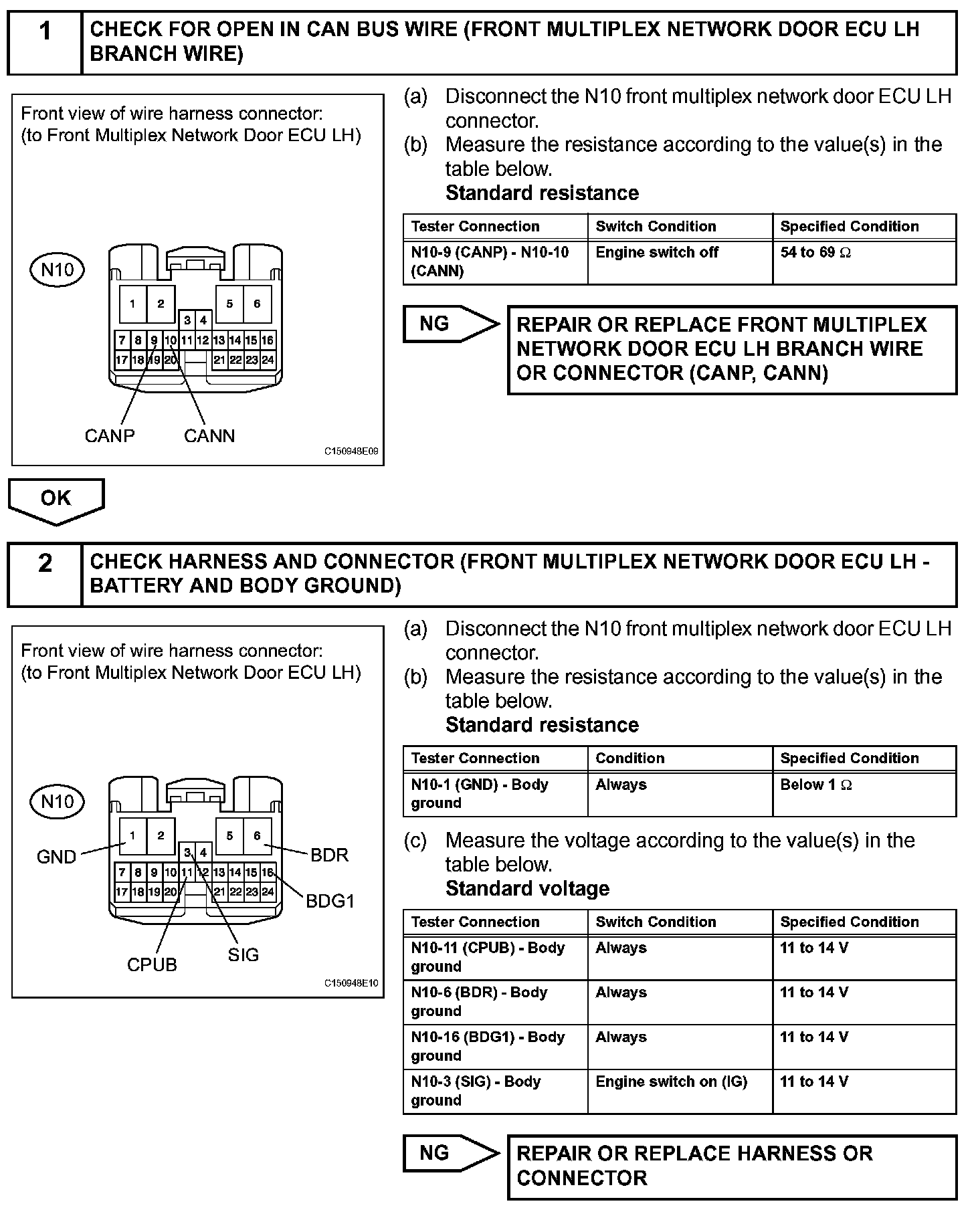

Step 1-2:

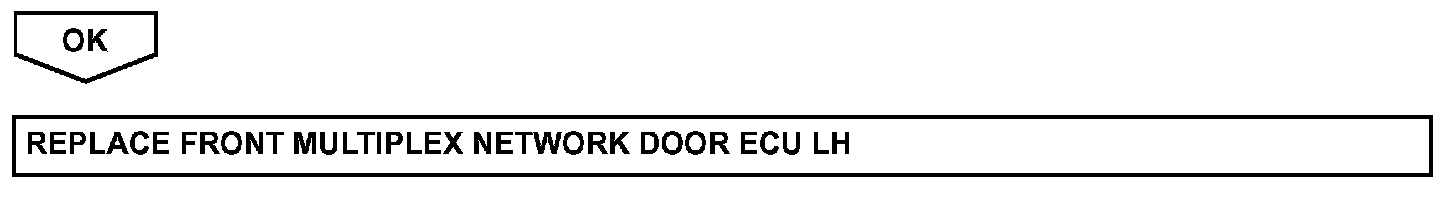

Step 2 (Continued):
INSPECTION PROCEDURE
