U0155

DTC U0155 Lost Communication with Instrument Panel Cluster Control Module (Combination Meter)

DESCRIPTION

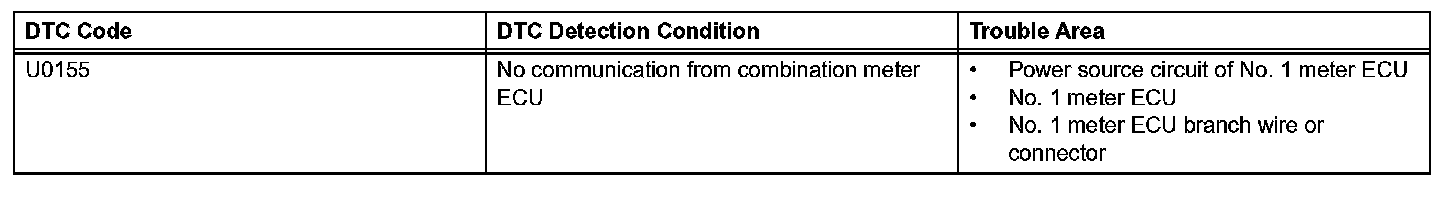

DTC Detection Condition:

If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire] /CANL [branch wire] of the ECU and/or sensor is open.)

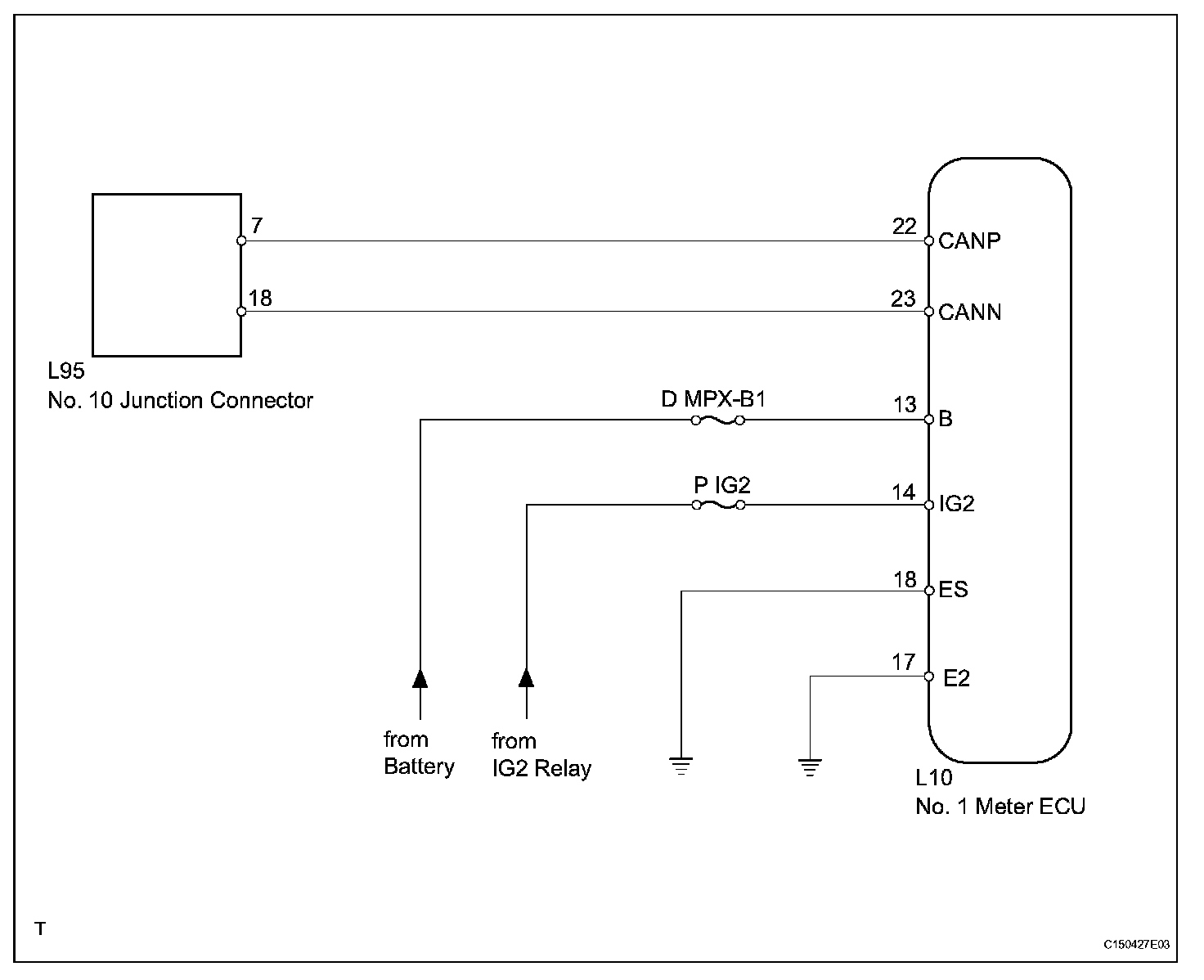

Wiring Diagram:

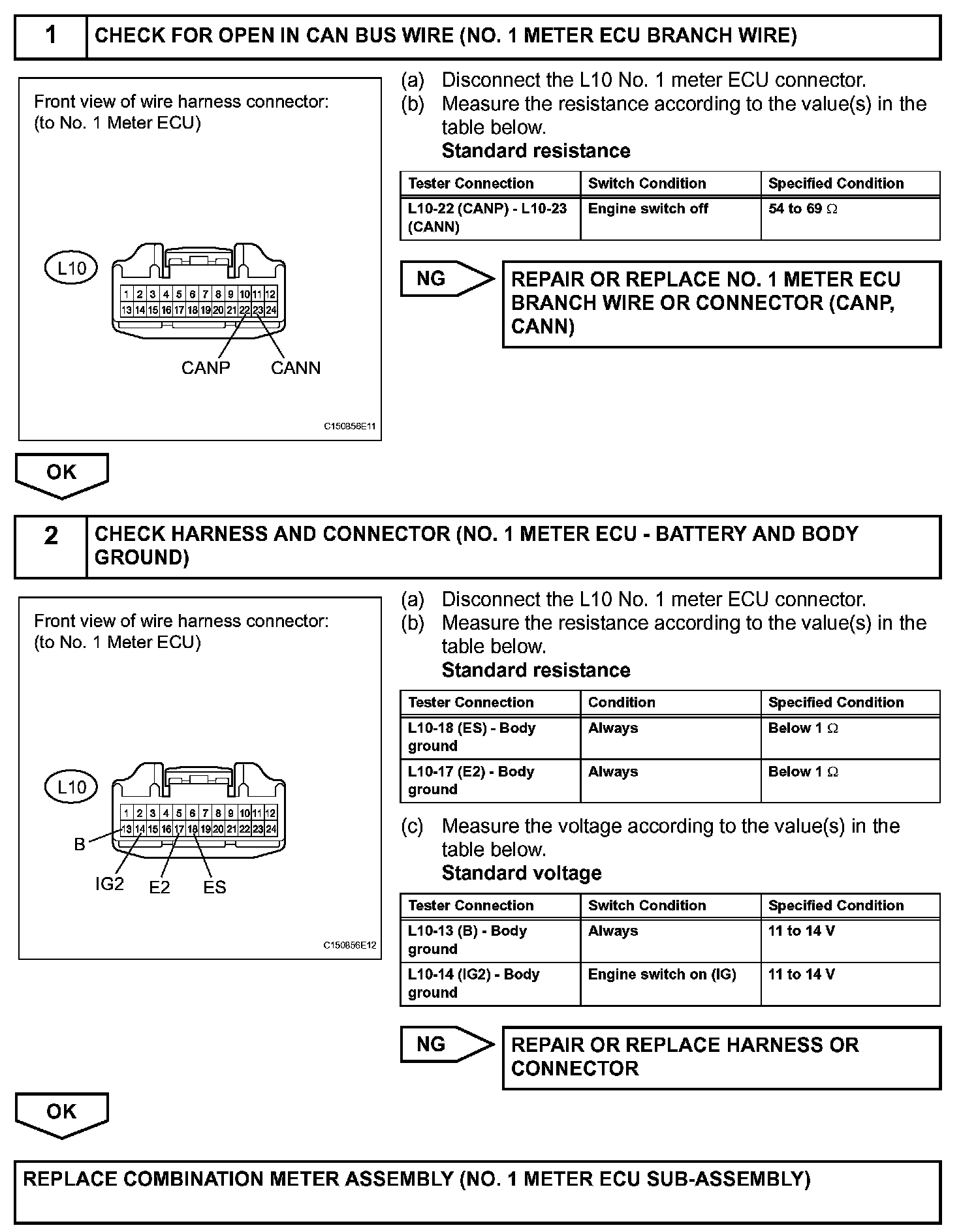

Step 1-2:

INSPECTION PROCEDURE
