Suspension Control HCU

DTC U0132 Lost Communication with Ride Level Control Module

DESCRIPTION

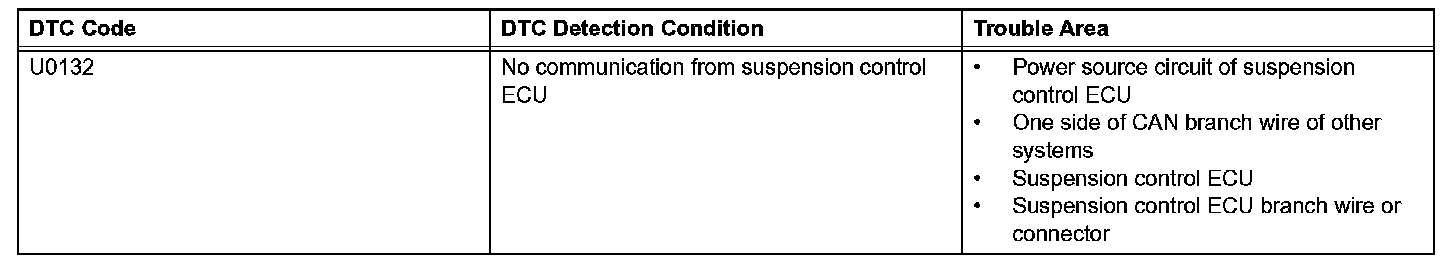

DTC Detection Condition:

If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire] /CANL [branch wire] of the ECU and/or sensor is open.)

HINT: For vehicles with air suspension system only.

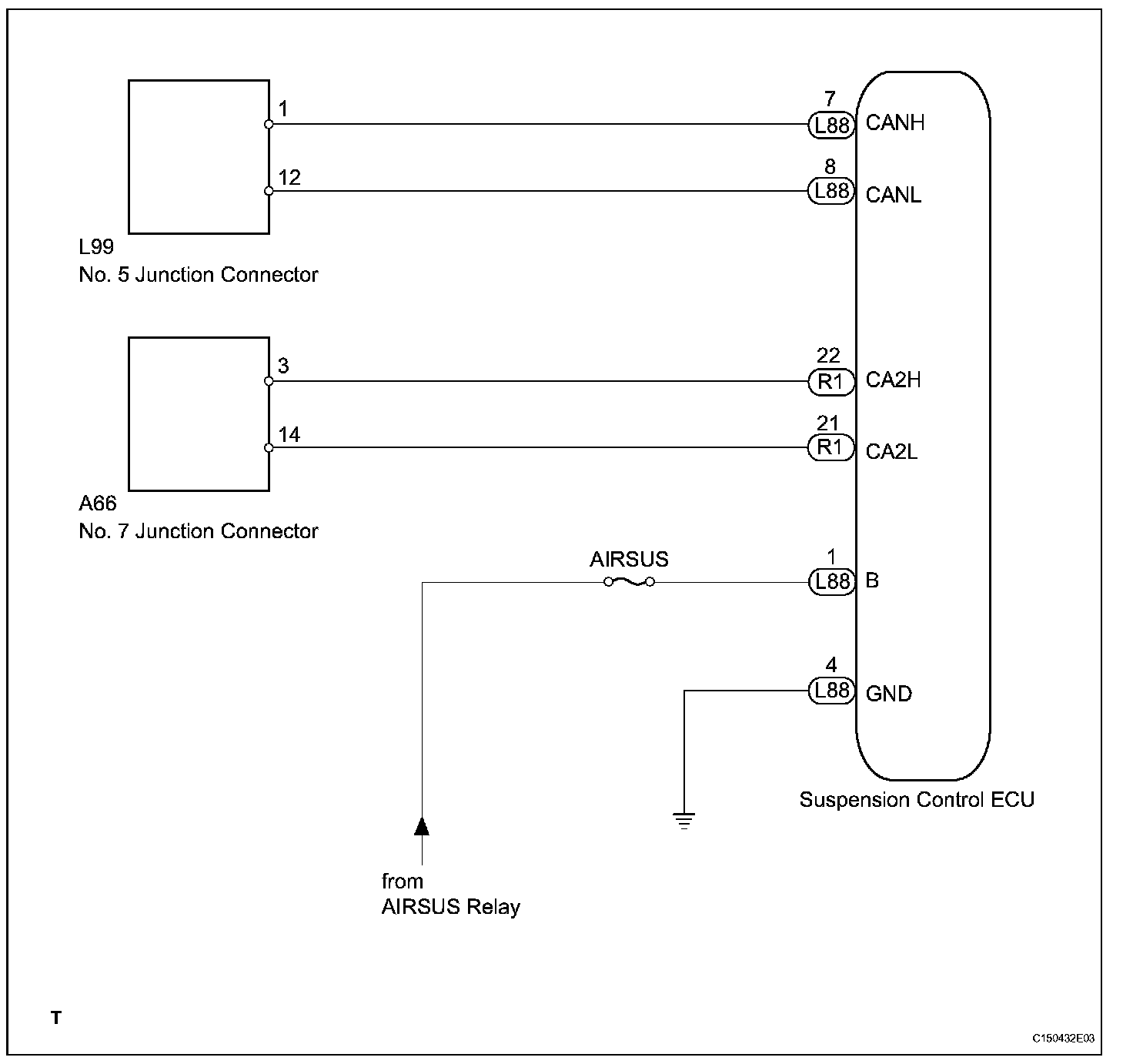

Wiring Diagram:

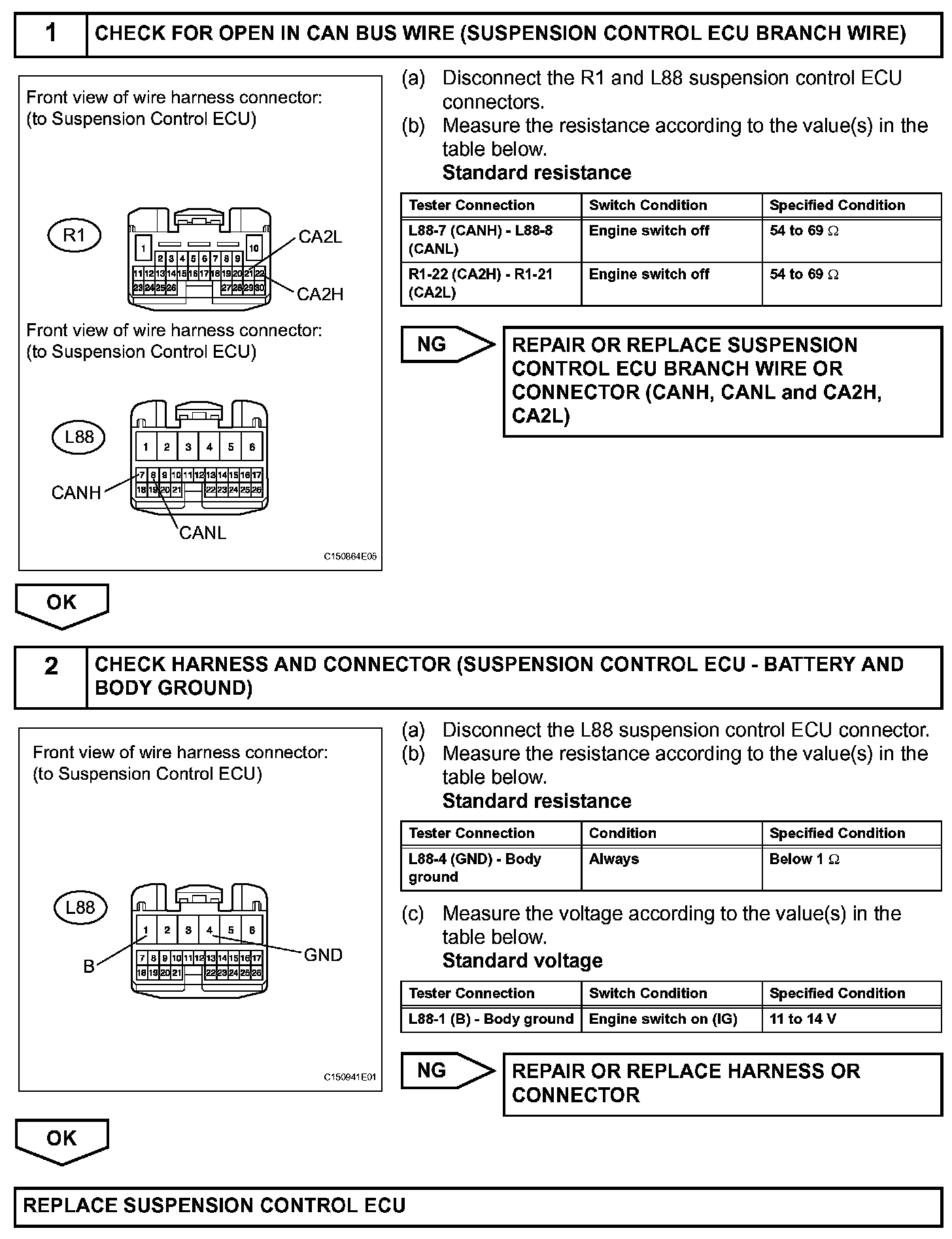

Step 1-2:

INSPECTION PROCEDURE
