DTC U0127 Lost Communication with Tire Pressure Monitor Module

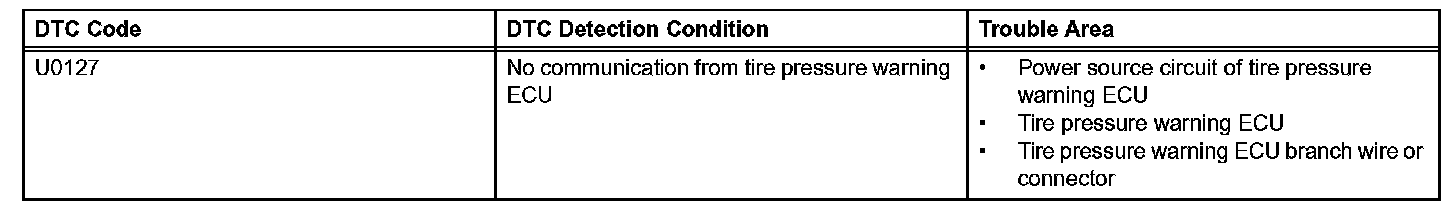

DTC Detection Condition:
DESCRIPTION

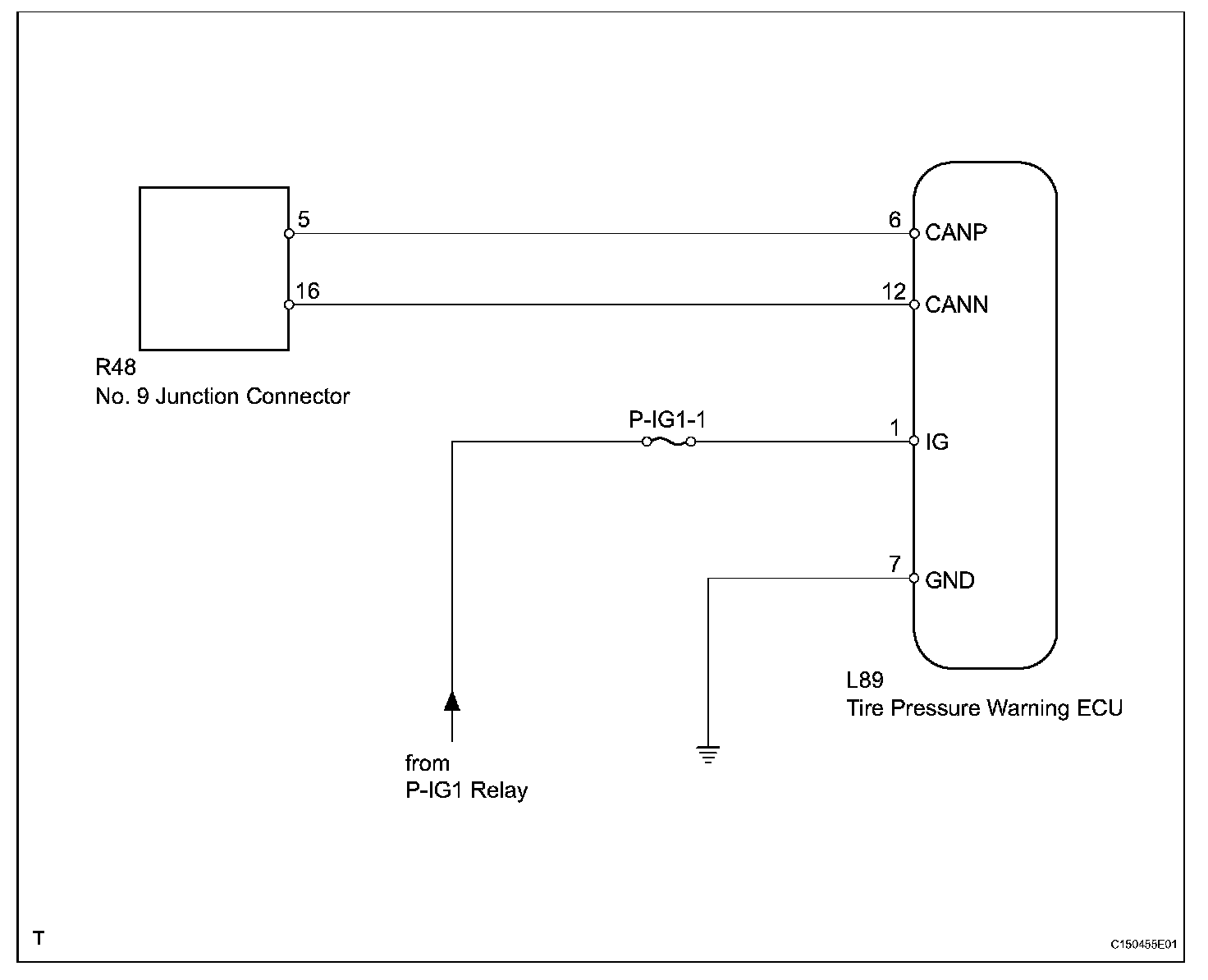

Wiring Diagram:

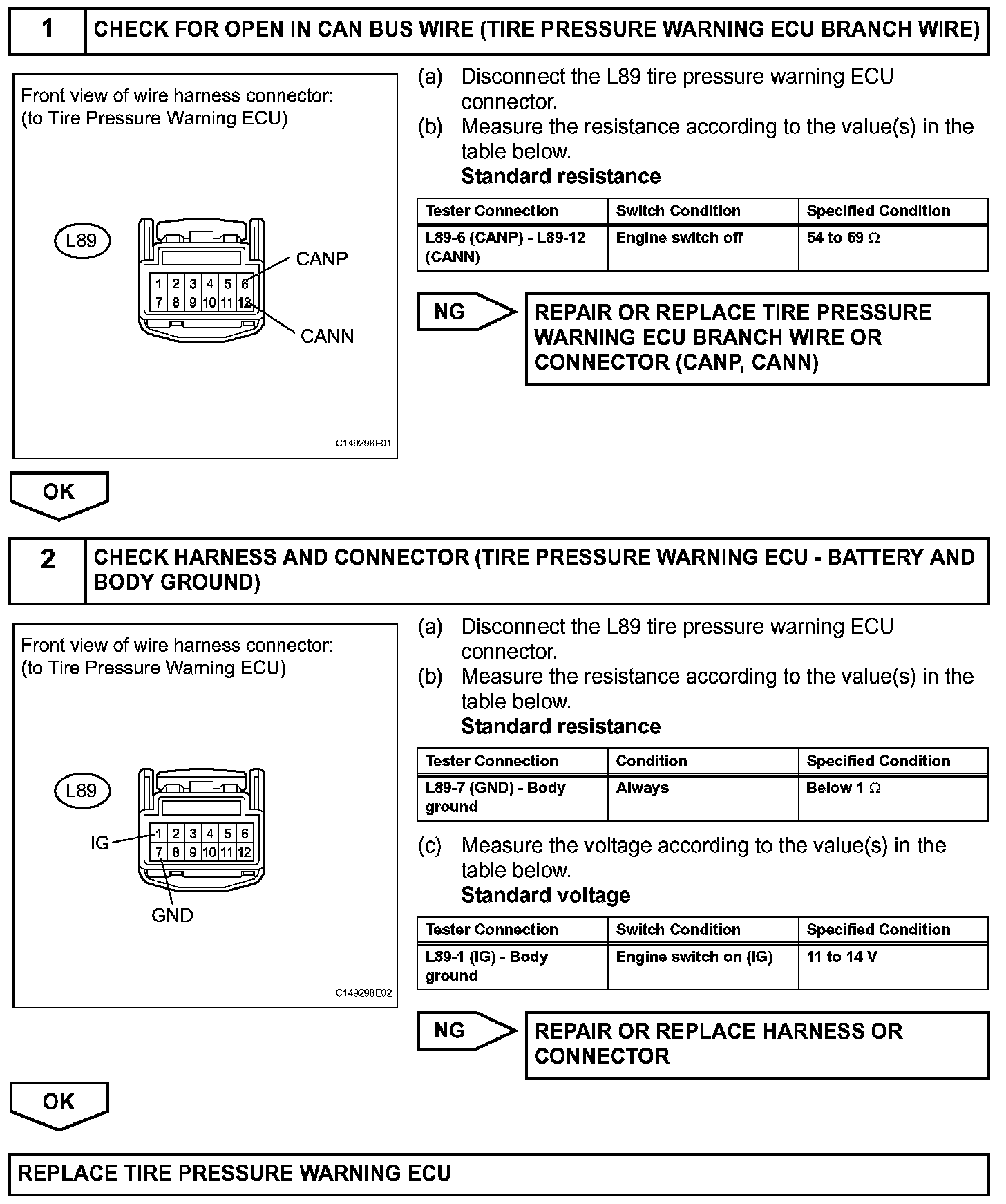

Step 1-2:
INSPECTION PROCEDURE
