No Communication From Steering Angle Sensor.

DTC U0126 Lost Communication with Steering Angle Sensor Module

DESCRIPTION

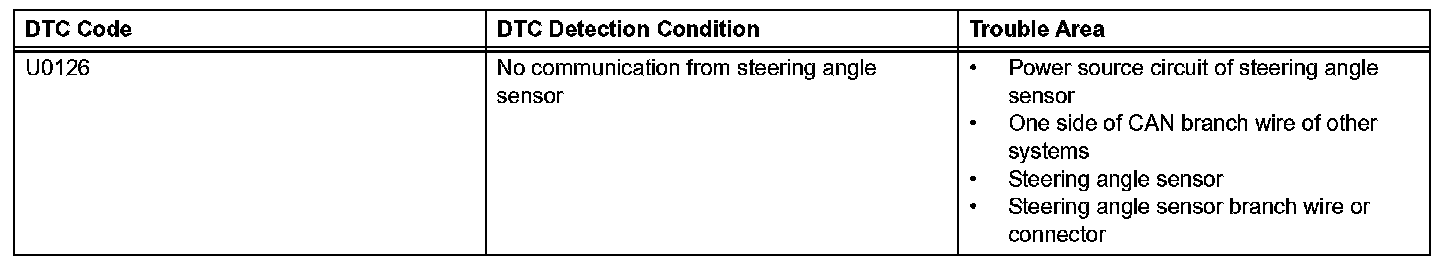

DTC Detection Condition:

If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire] /CANL [branch wire] of the ECU and/or sensor is open.)

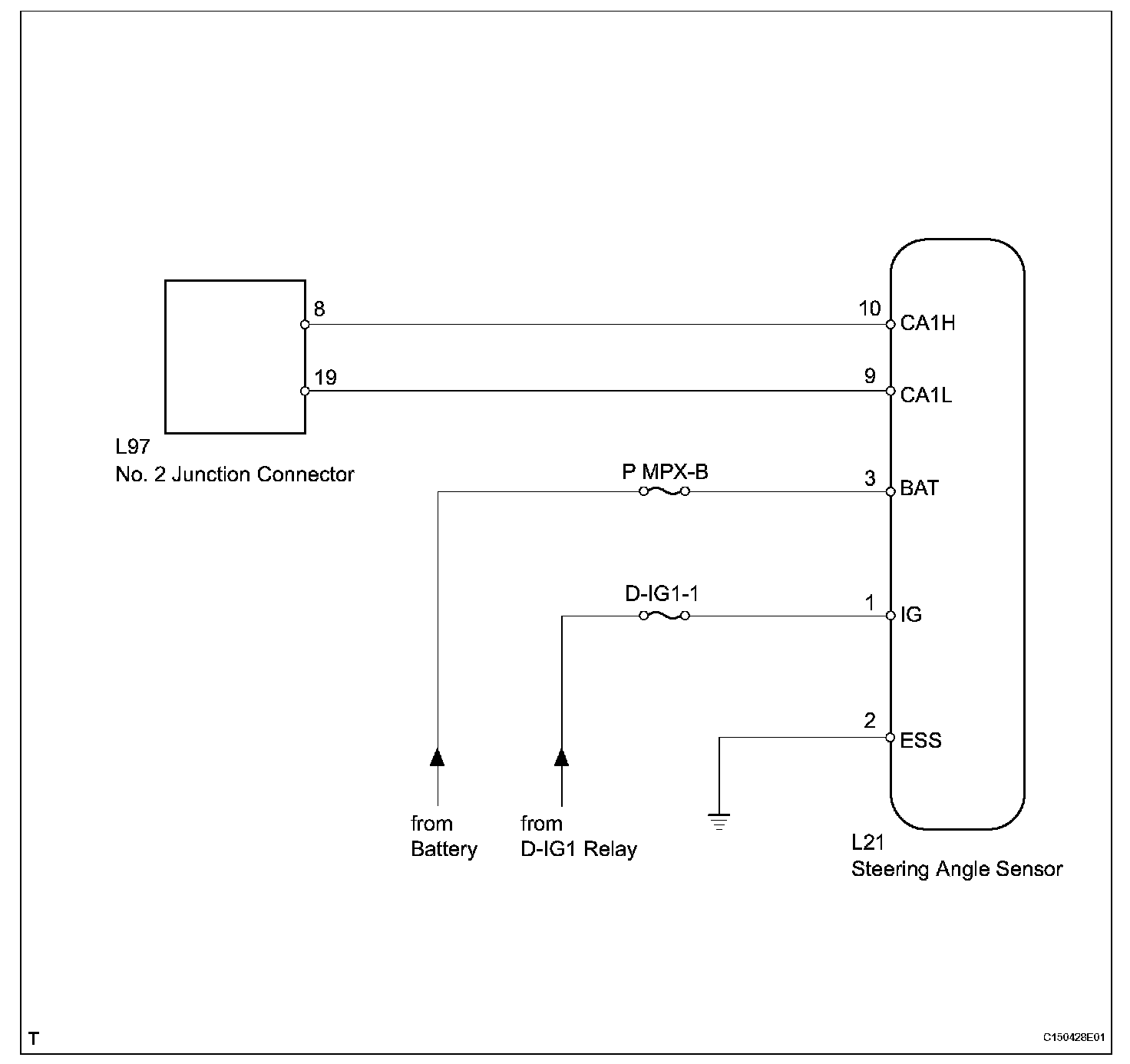

Wiring Diagram:

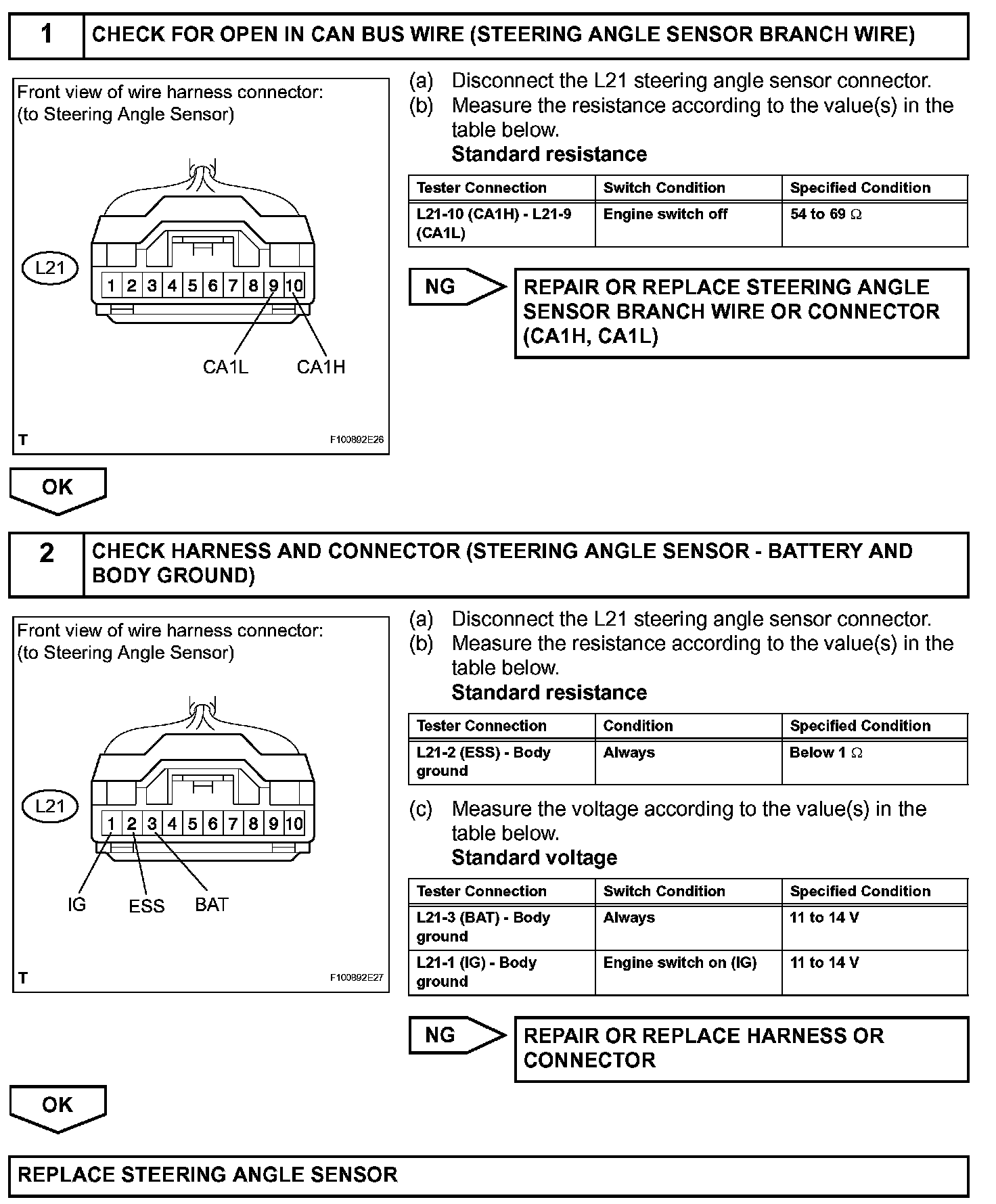

Step 1-2:

INSPECTION PROCEDURE
