P2769

DTC P2769 Short in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL)

DTC P2770 Open in Torque Converter Clutch Solenoid Circuit (Shift Solenoid Valve SL)

DESCRIPTION
Based on the ON/OFF condition of solenoid valve SL, the TCM controls the fluid pressure to the lock-up relay valve, and performs lock-up control.

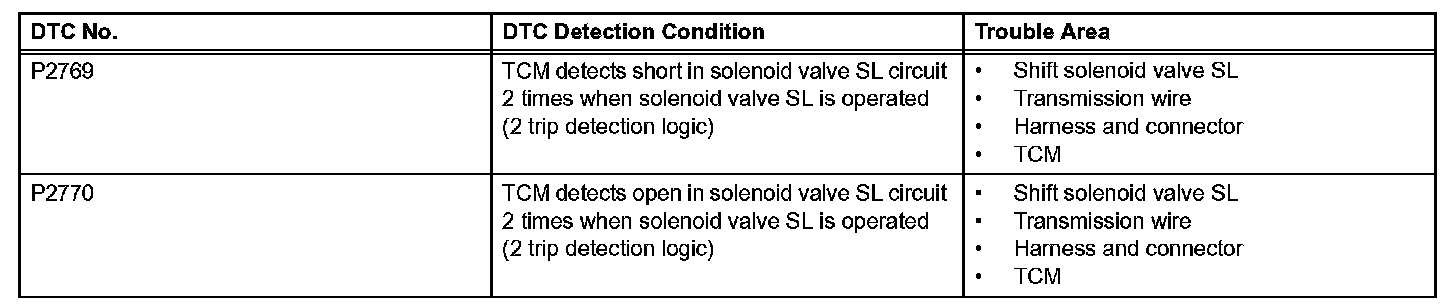

P2769-P2770:

Fail-safe function:
If the TCM detects a malfunction, it turns the shift solenoid valve SL OFF.

MONITOR DESCRIPTION
Based on the signals from the throttle position sensor, the air flow meter and the crankshaft position sensor, the TCM sends a signal to the solenoid valve SL to regulate the hydraulic pressure and provide smoother torque converter clutch engagement. The shift solenoid valve SL responds to commands from the TCM. The valve controls the lock-up relay valve to perform the torque-converter lock-up function. If the TCM detects an open or short circuit for shift solenoid valve SL, it will illuminate the MIL.

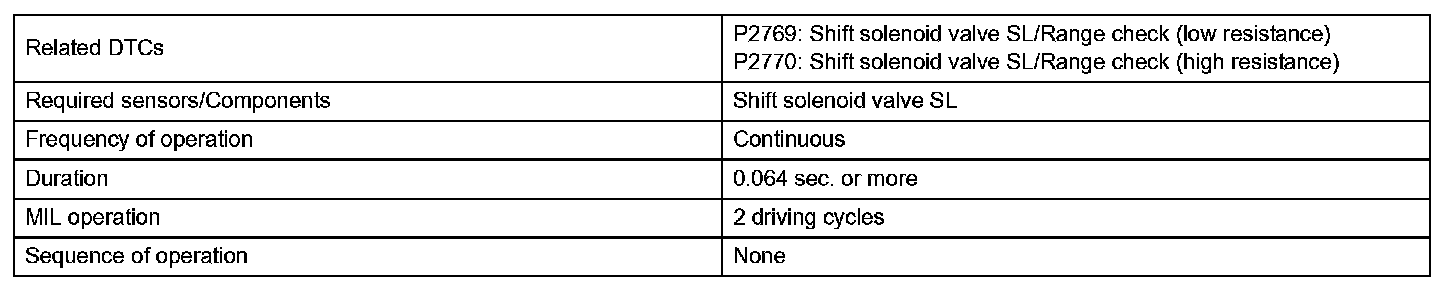

MONITOR STRATEGY

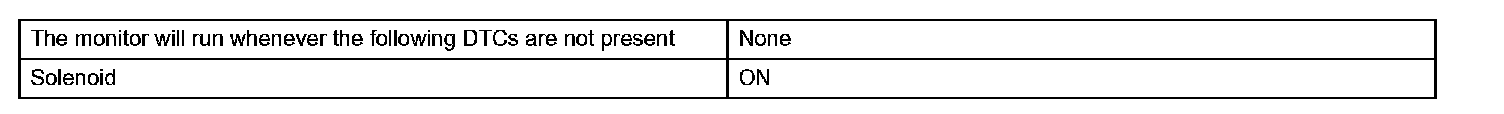

TYPICAL ENABLING CONDITIONS

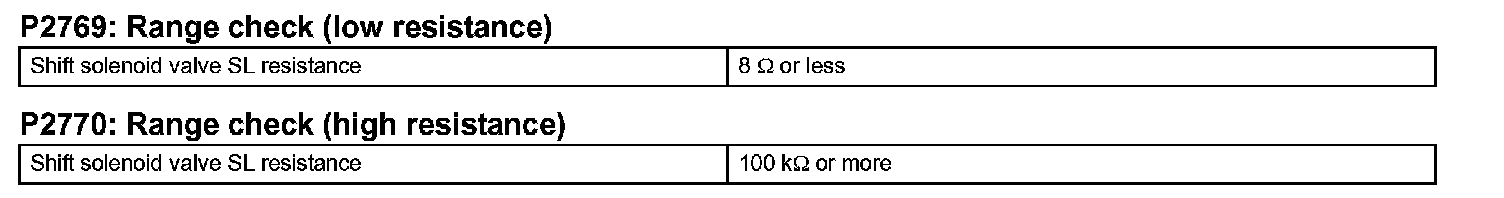

TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

WIRING DIAGRAM:

INSPECTION PROCEDURE

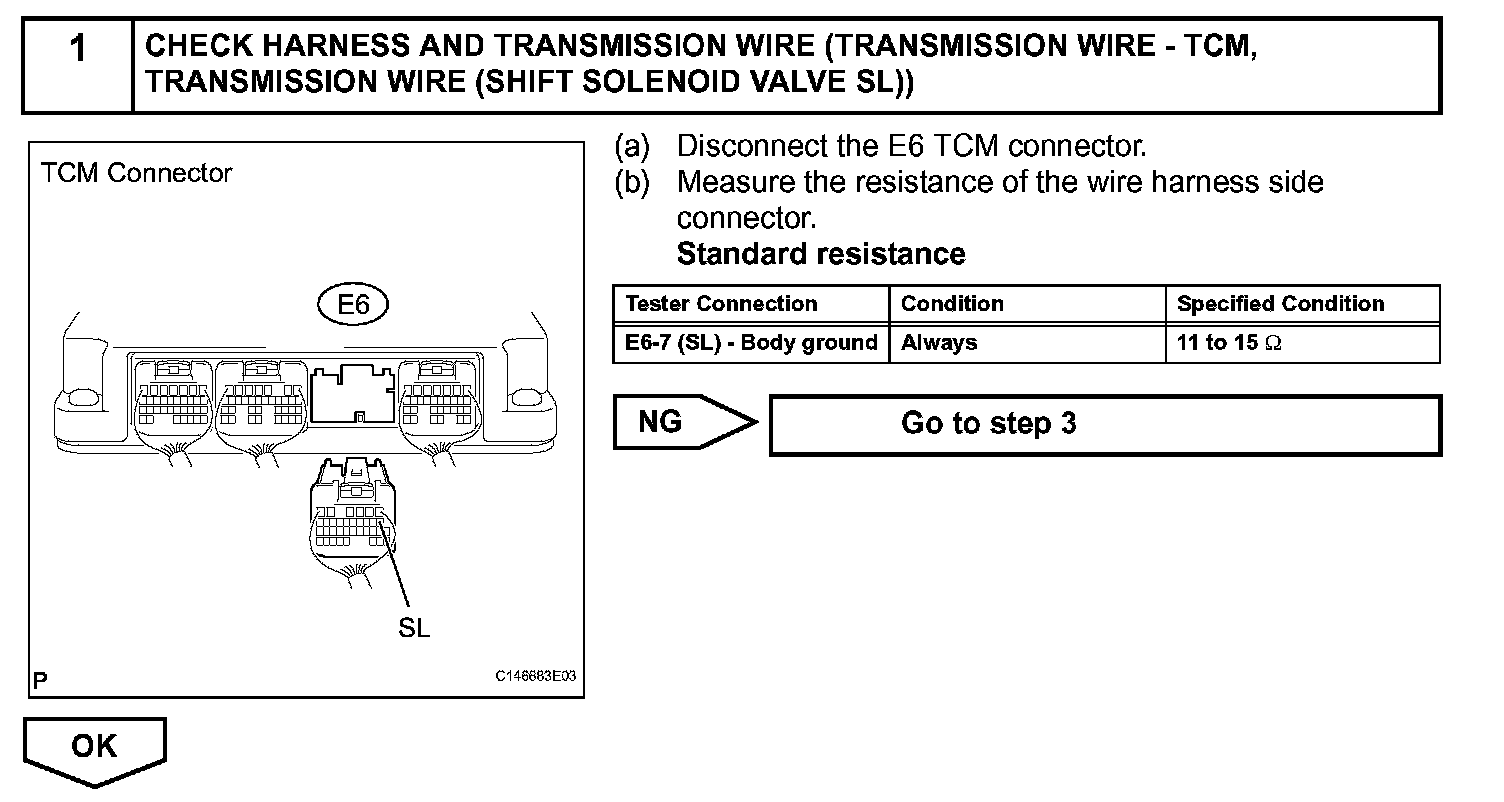

Step 1:

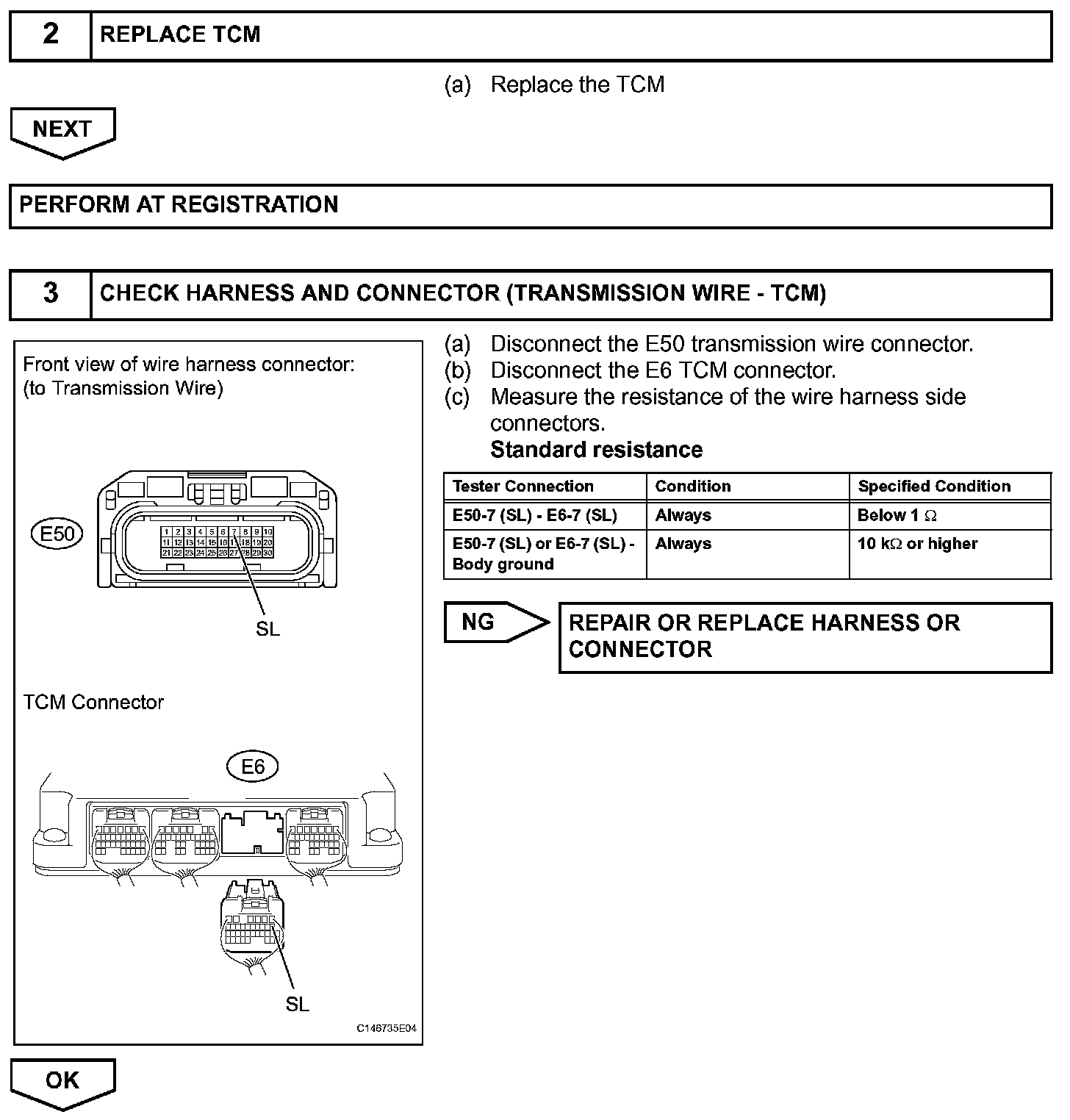

Steps 2-3:

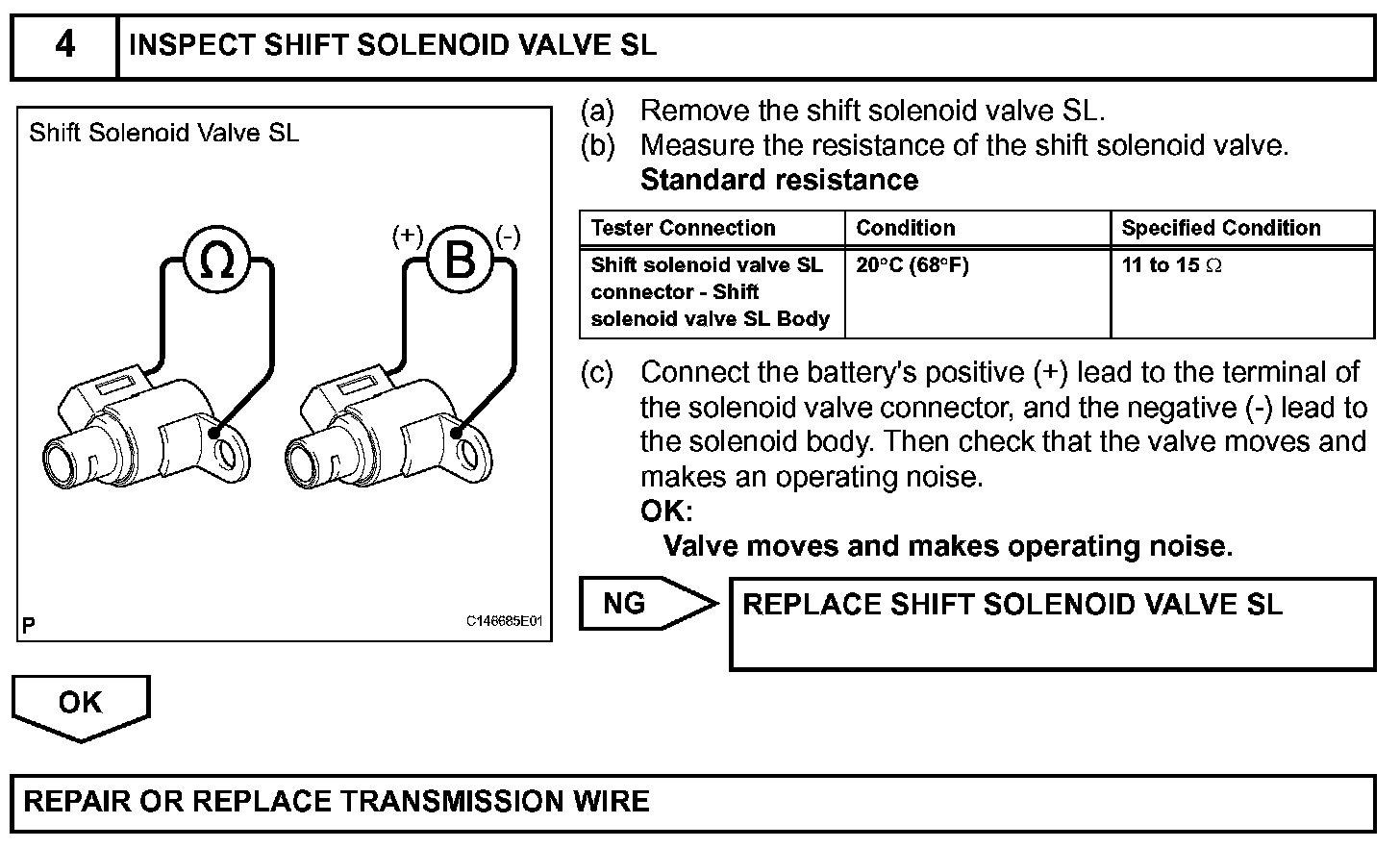

Step 4:
