P1602

DTC P1602 Deterioration of Battery

DESCRIPTION

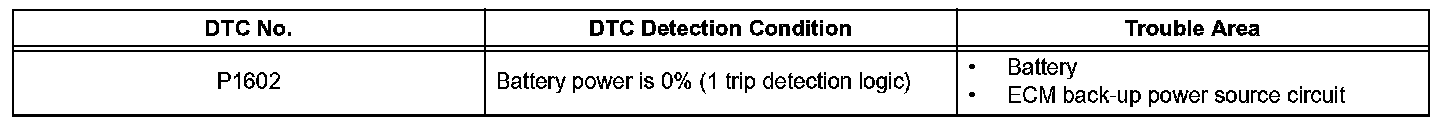

DTC Detection Condition:




The ECM determines the battery power according to the voltage of the BATT terminal while the engine is running (not cranking).

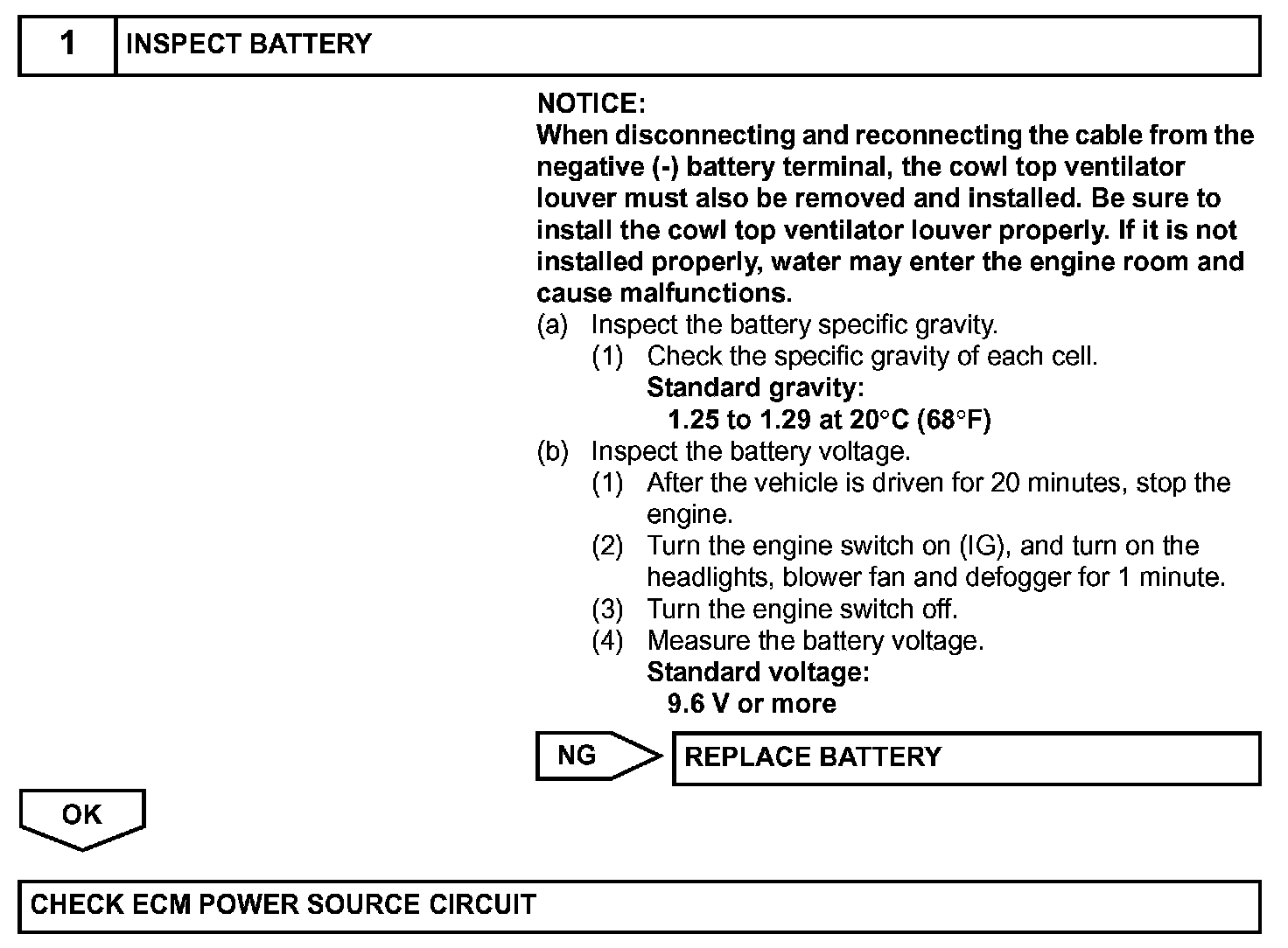

Step 1:




INSPECTION PROCEDURE
