DTC P1364 "C" Camshaft Position Actuator Circuit Open, Low, High Bank1
DTC P1365 "C" Camshaft Position Actuator Circuit Open, Low, High Bank2

DESCRIPTION

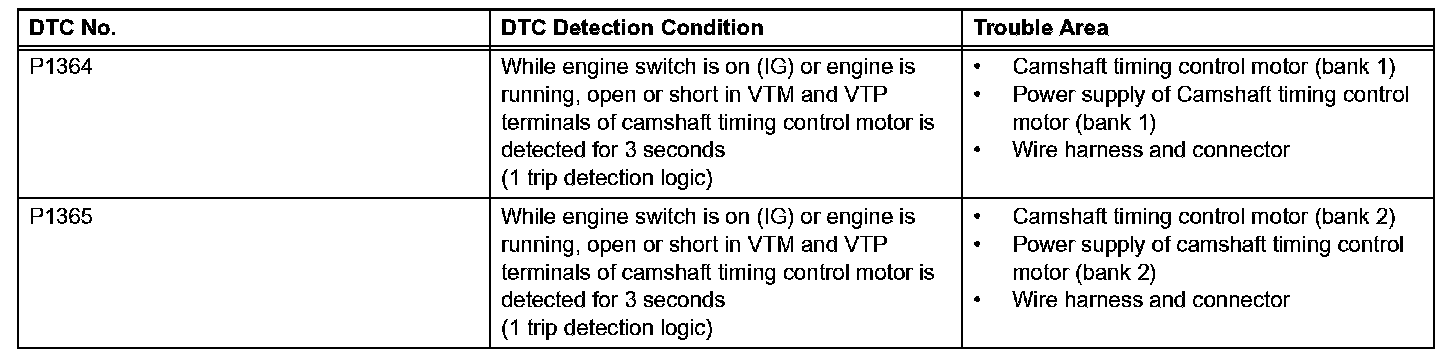

DTC Detection Condition:

The electric VVT changes the valve timing according to the motor. In comparison to a conventional hydraulic VVT, the valve timing range is greater and the VVT operates even when the engine rpm is low or the engine is cold. As a result, it is possible to increase engine output and mileage.

The camshaft control timing motor is equipped with a self diagnostic function, which is used to output diagnosis signals (VTM) to the ECM.

MONITOR DESCRIPTION

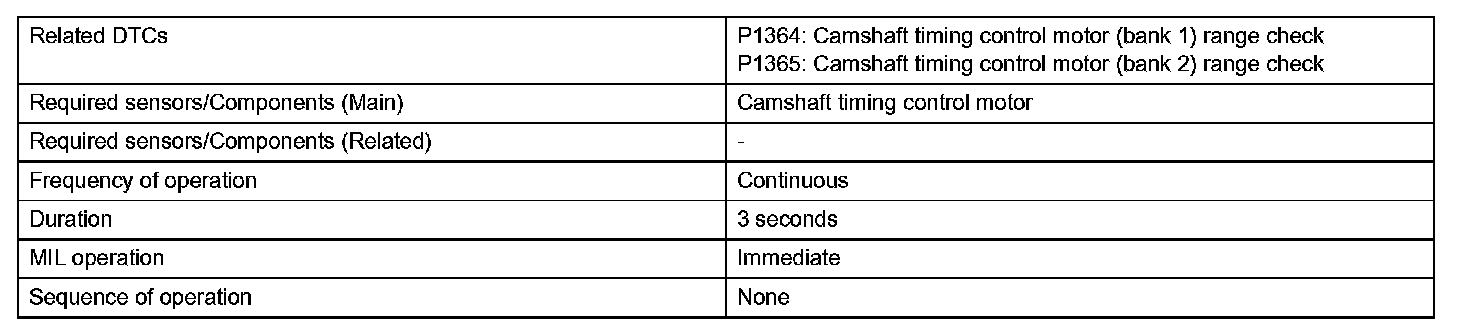

Monitor Strategy:

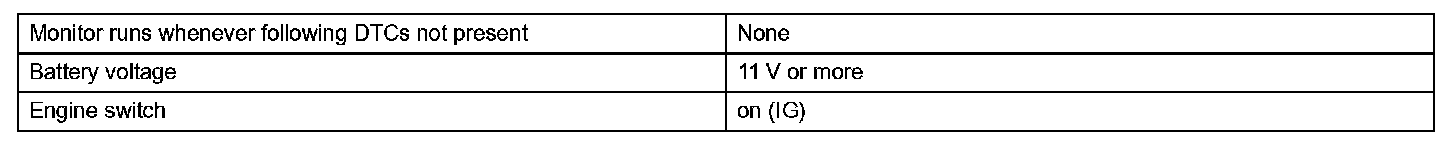

Typical Enabling Conditions:

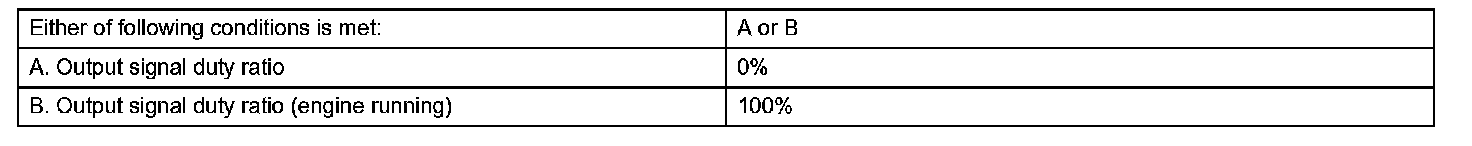

Typical Malfunction Thresholds:

This DTC is output when a power supply malfunction, diagnostic signal malfunction or motor operation signal malfunction is detected in the intake side camshaft timing control motor. The camshaft timing control motor is equipped with a self diagnostic function, which is used to send diagnostic a signal (VTM) to the ECM. If the ECM receives a VTP or VTM open signal, a DTC is output immediately (1 trip detection logic).

If the engine is idled for 10 seconds, a DTC is detected.

Wiring Diagram:

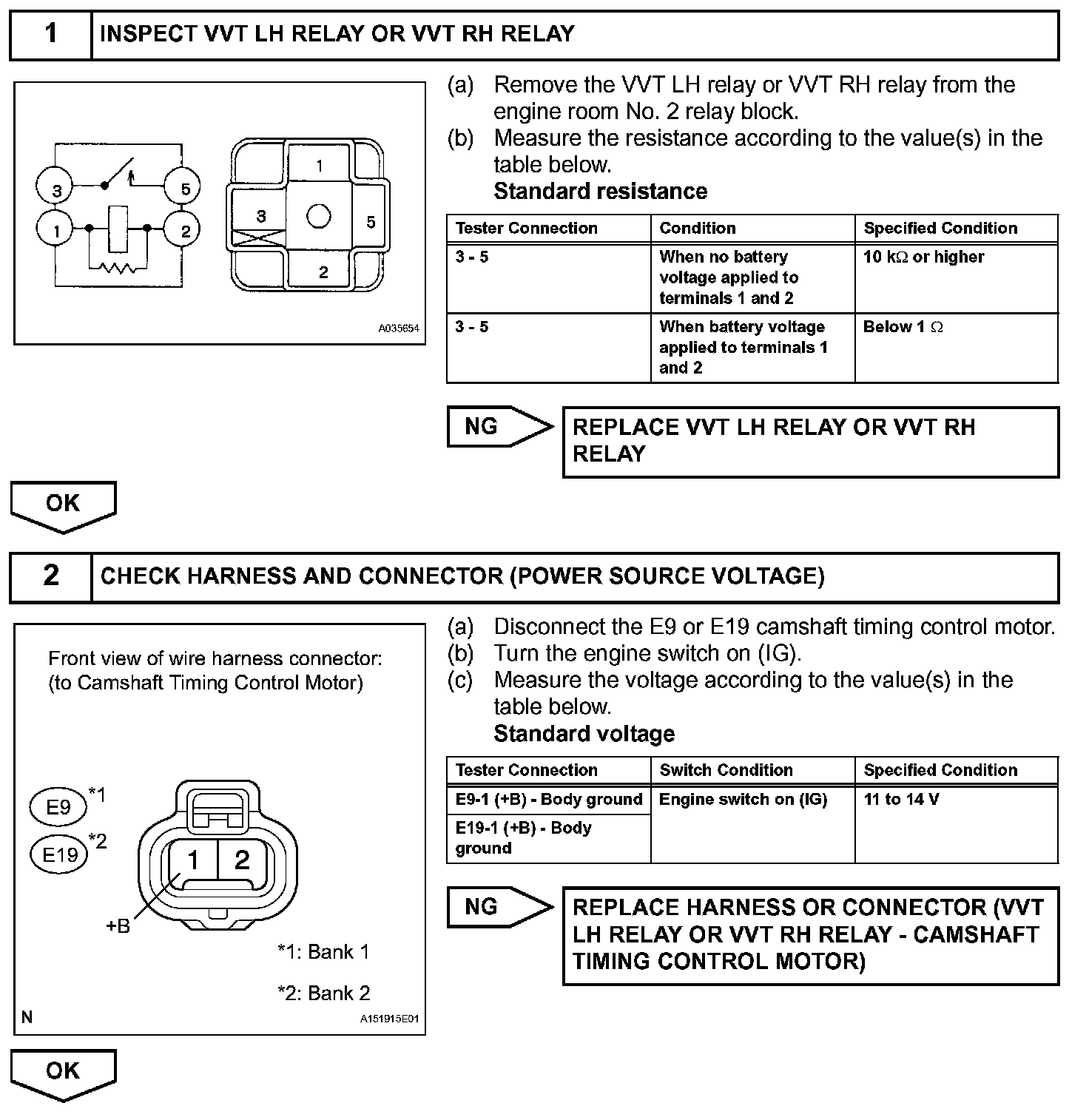

Step 1-2:

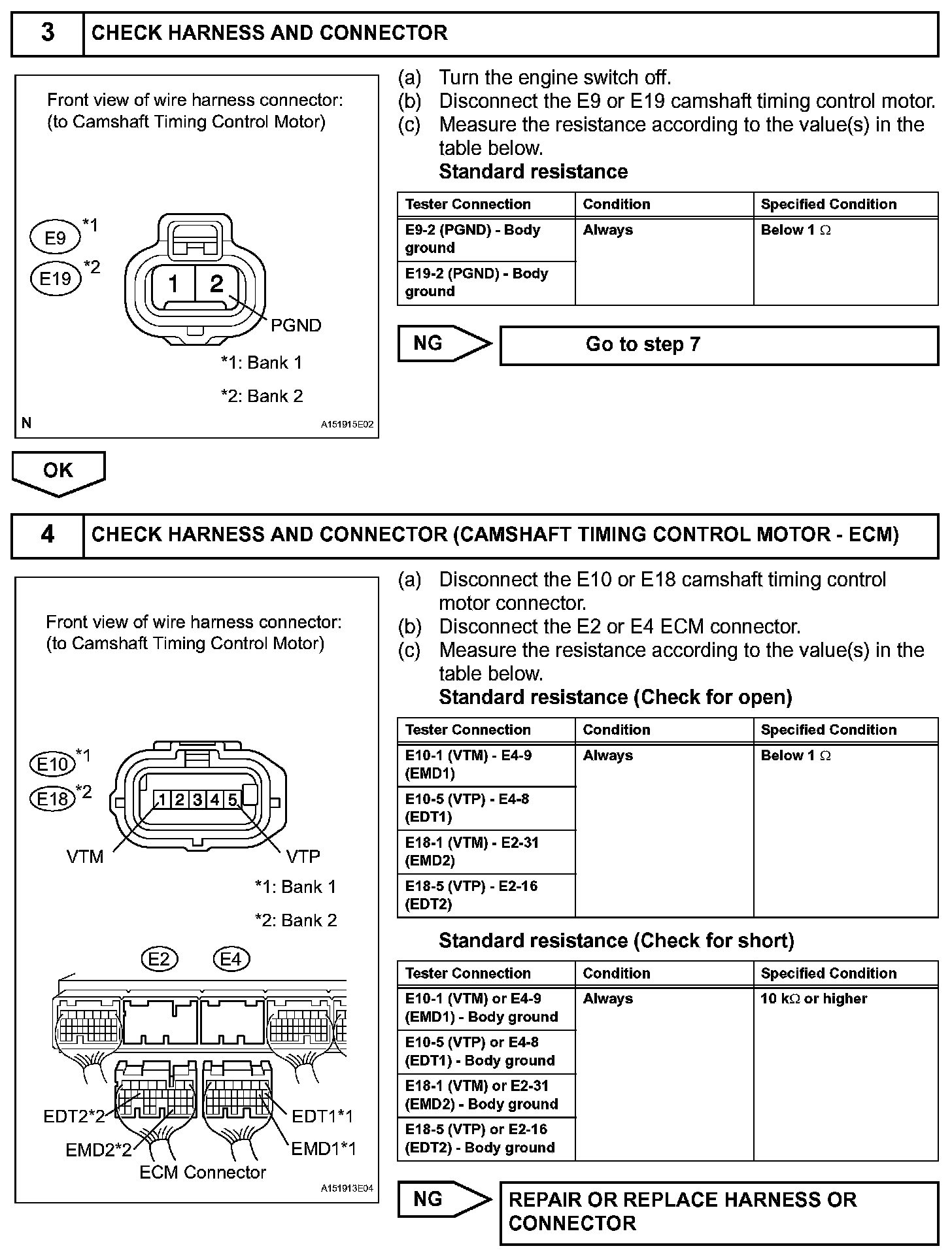

Step 3-4:

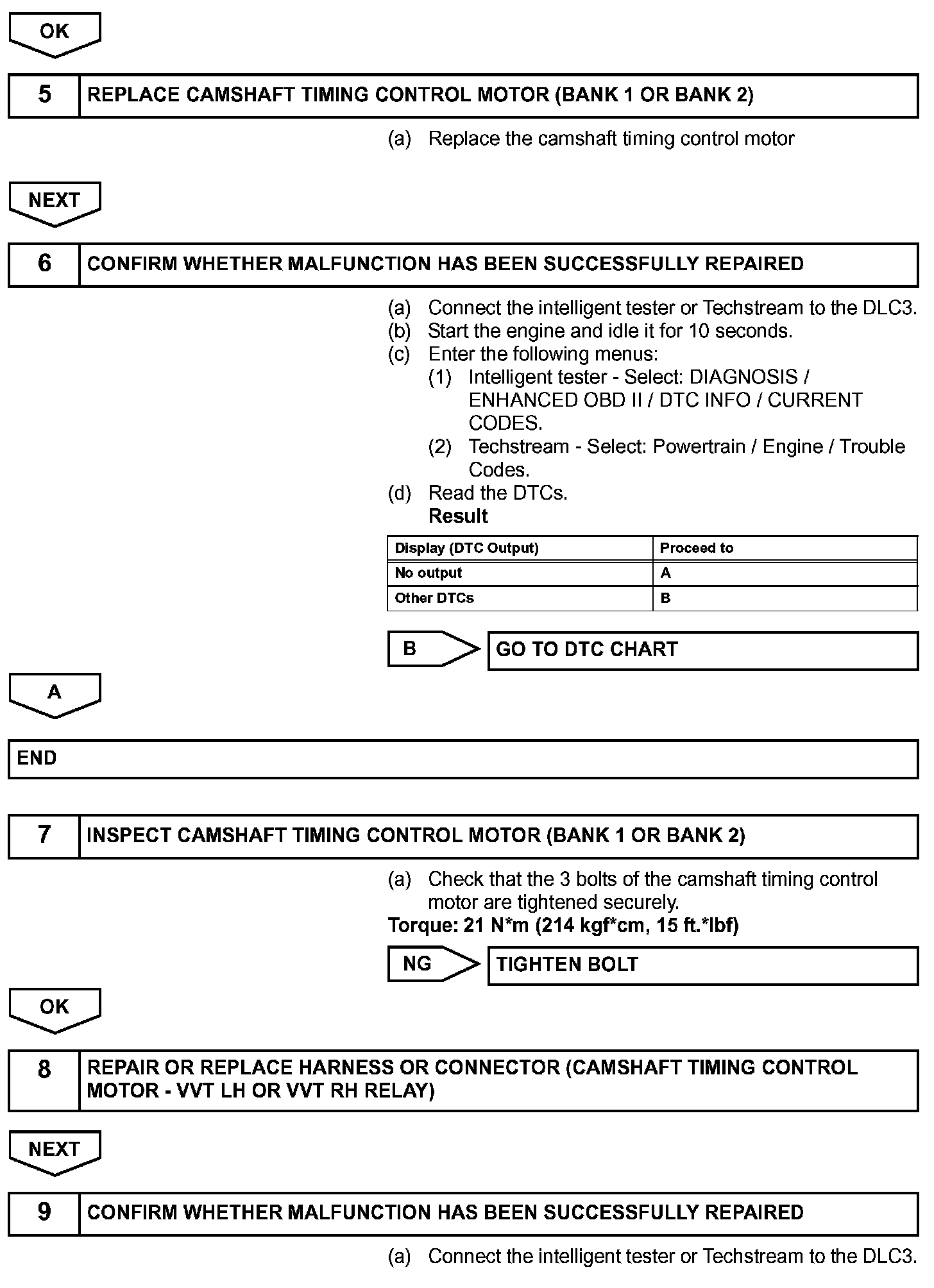

Step 4(Continued)-9:

Step 9(Continued):

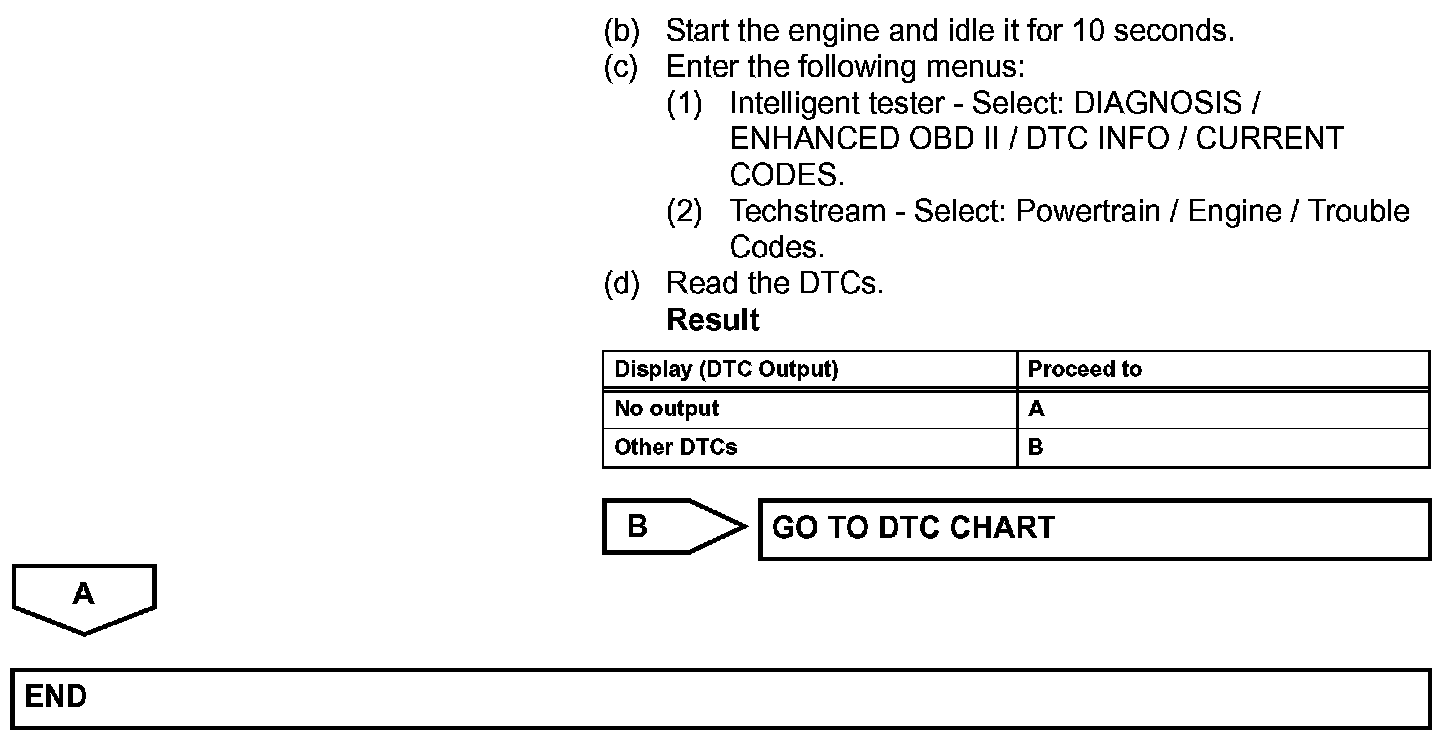

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester or Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
