P1363

DTC P1362 "B" Camshaft Position Actuator Circuit Open, Low, High Bank1
DTC P1363 "B" Camshaft Position Actuator Circuit Open, Low, High Bank2

DESCRIPTION

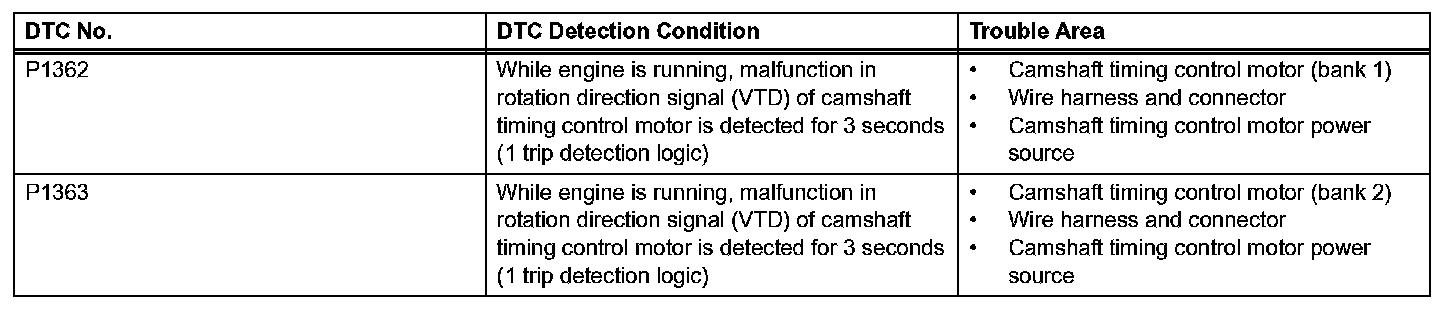

DTC Detection Condition:

The electric VVT changes the valve timing according to the motor. In comparison to a conventional hydraulic VVT, the valve timing range is greater and the VVT operates even when the engine rpm is low or the engine is cold. As a result, it is possible to increase engine output and mileage.

The camshaft control timing motor is equipped with a self diagnostic function, which is used to output diagnosis signals (VTM) to the ECM.

MONITOR DESCRIPTION

Monitor Strategy:

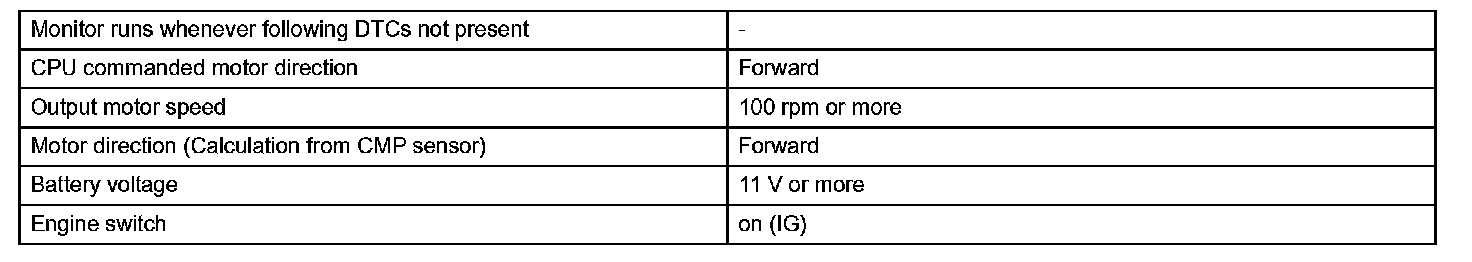

Typical Enabling Conditions:

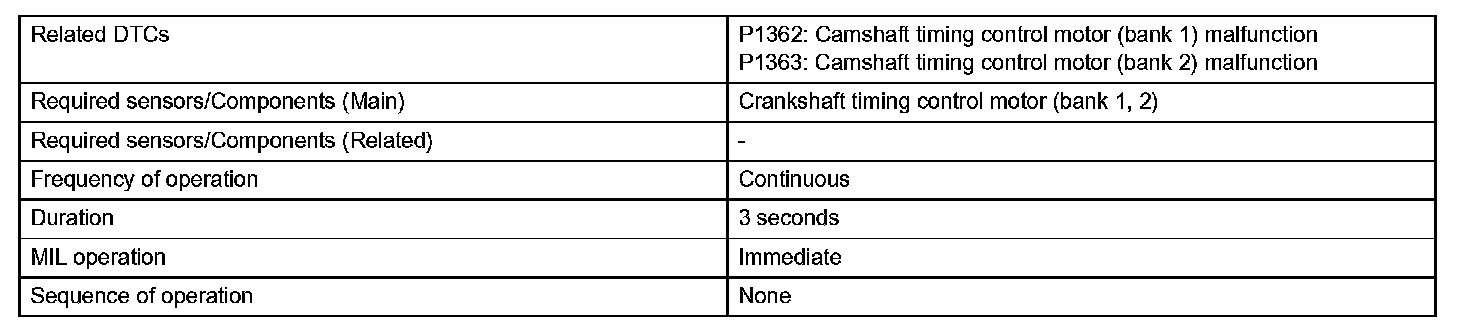

Typical Malfunction Thresholds:

This DTC is output when a rotation direction signal malfunction is detected in the intake side camshaft timing control motor. While the engine is running, if a rotation direction signal (VTD) malfunction is detected, a DTC is output (1 trip detection logic).

When there is a malfunction, if the engine is idled for 30 seconds or the vehicle is driven in an urban area for 5 minutes, a DTC is output.

Wiring Diagram:

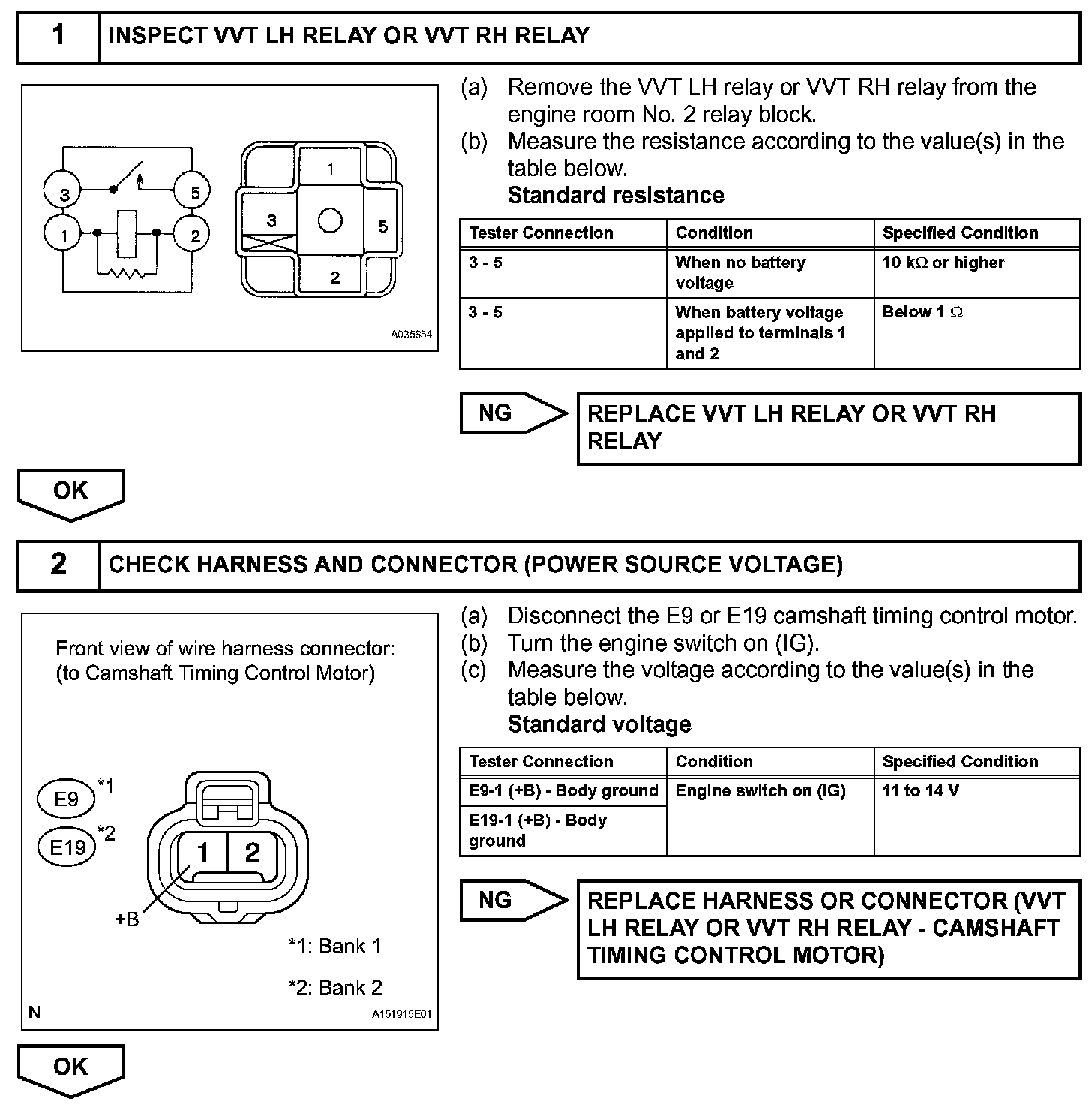

Step 1-2:

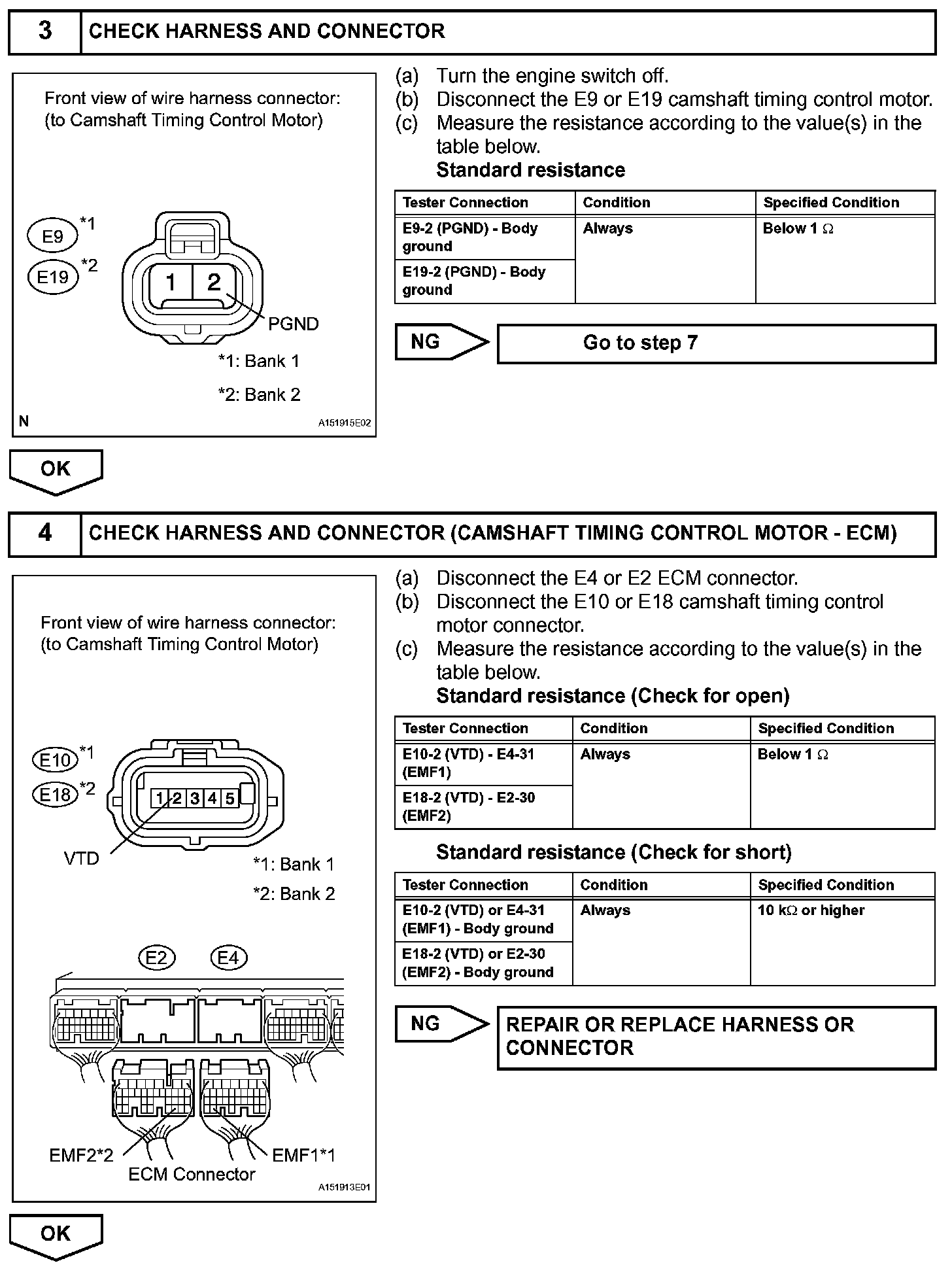

Step 3-4:

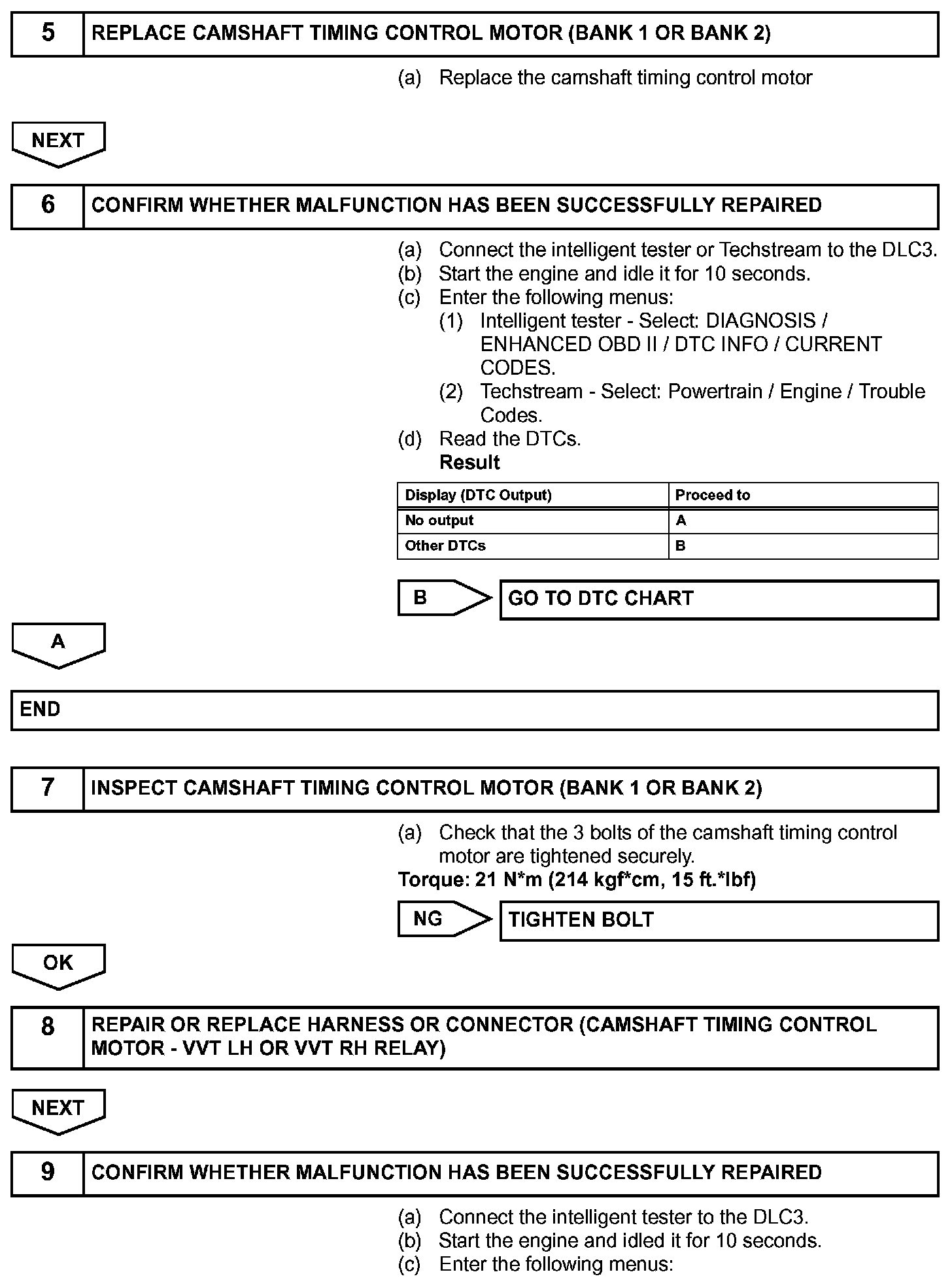

Step 5-9:

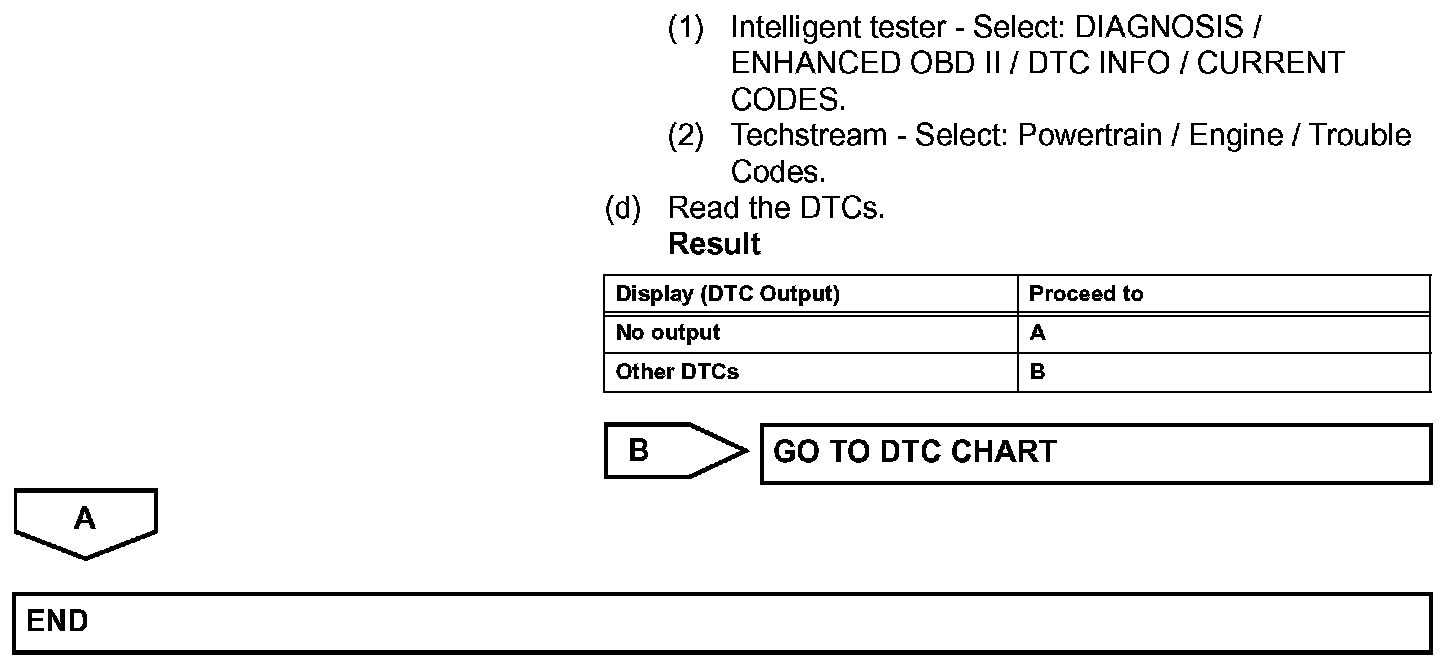

Step 9(Continued):

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester or Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
