P0771

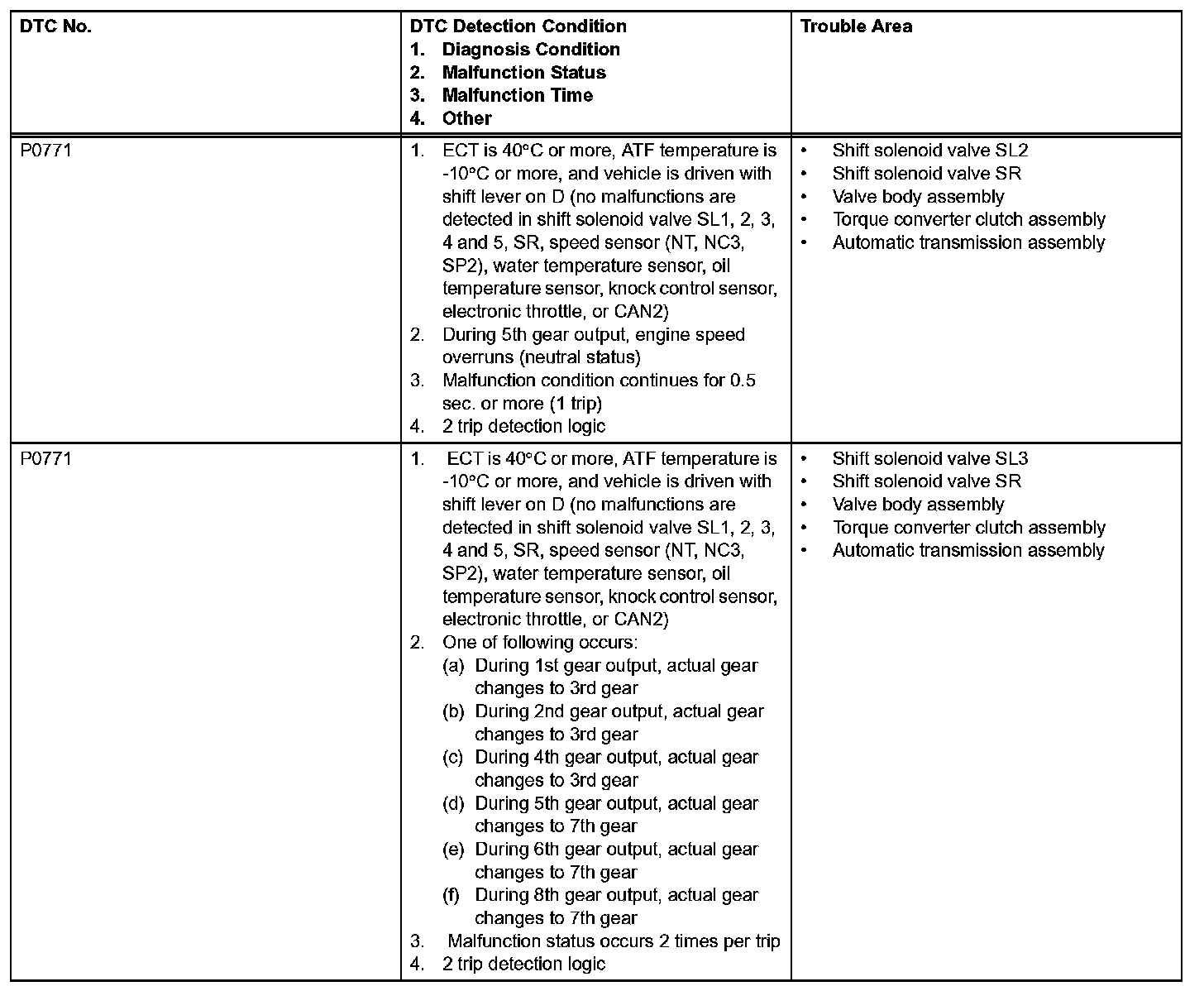

DTC P0771 Shift Solenoid "E" Performance (Shift Solenoid Valve SR)DESCRIPTION

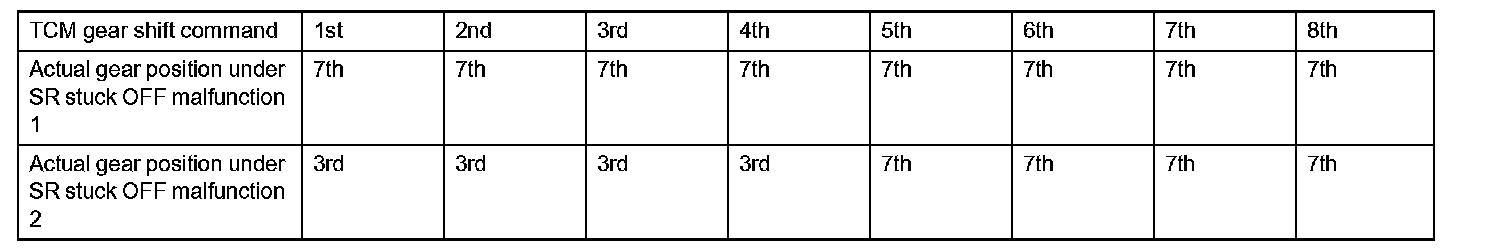

HINT: Gear shift position when a problem occurs in shift solenoid valve SR:
P0771:
MONITOR DESCRIPTION
This DTC indicates a stuck ON malfunction or stuck OFF malfunction of the shift solenoid valve SR.
The TCM commands gear shifts by turning the shift solenoid valves ON/OFF. When the gear position commanded by the TCM and the actual gear position are not the same, the TCM illuminates the MIL and stores the DTC.

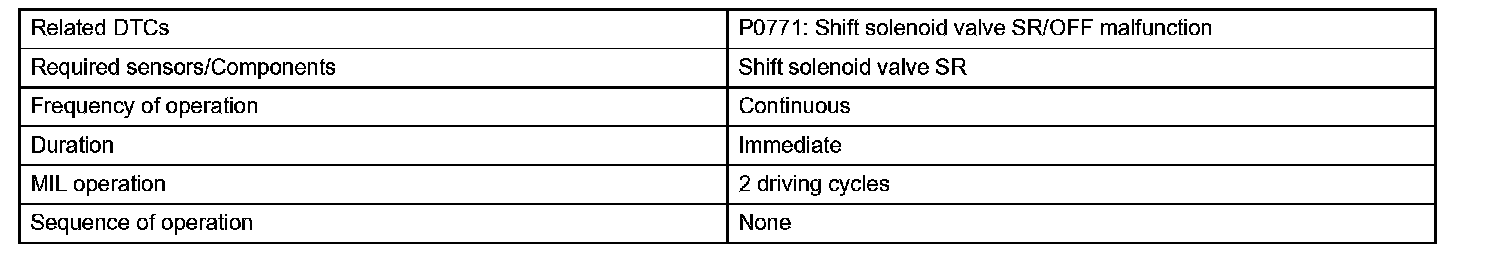

MONITOR STRATEGY

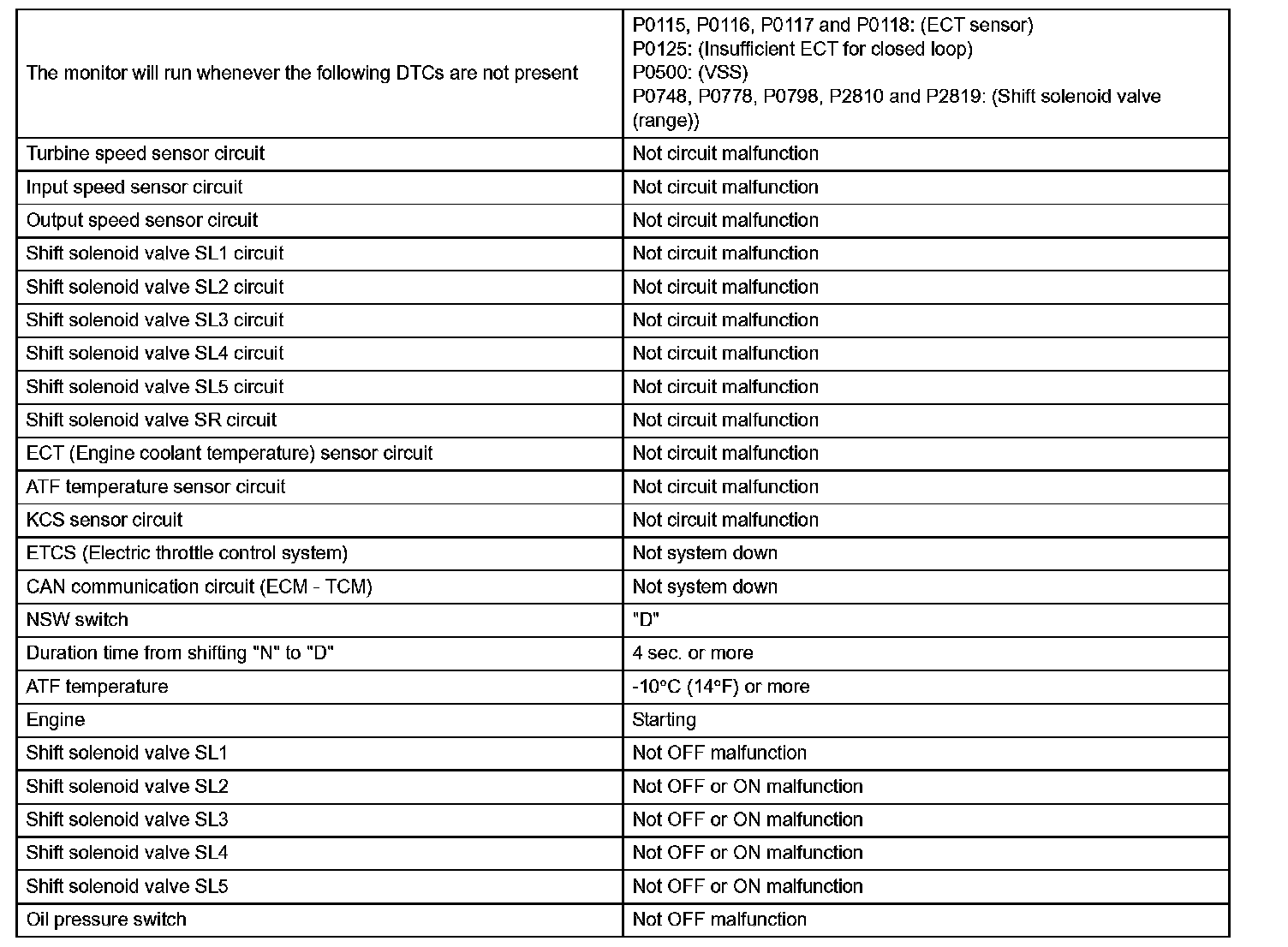

TYPICAL ENABLING CONDITIONS

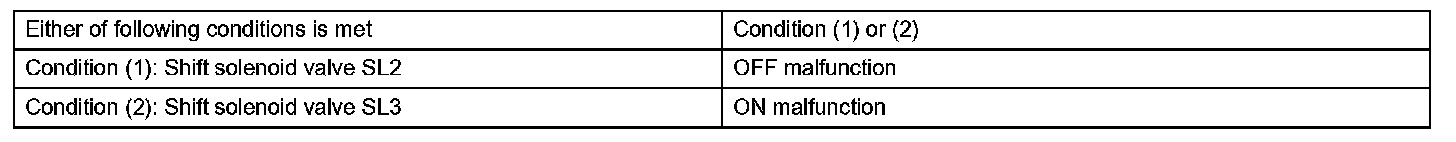

TYPICAL MALFUNCTION THRESHOLDS

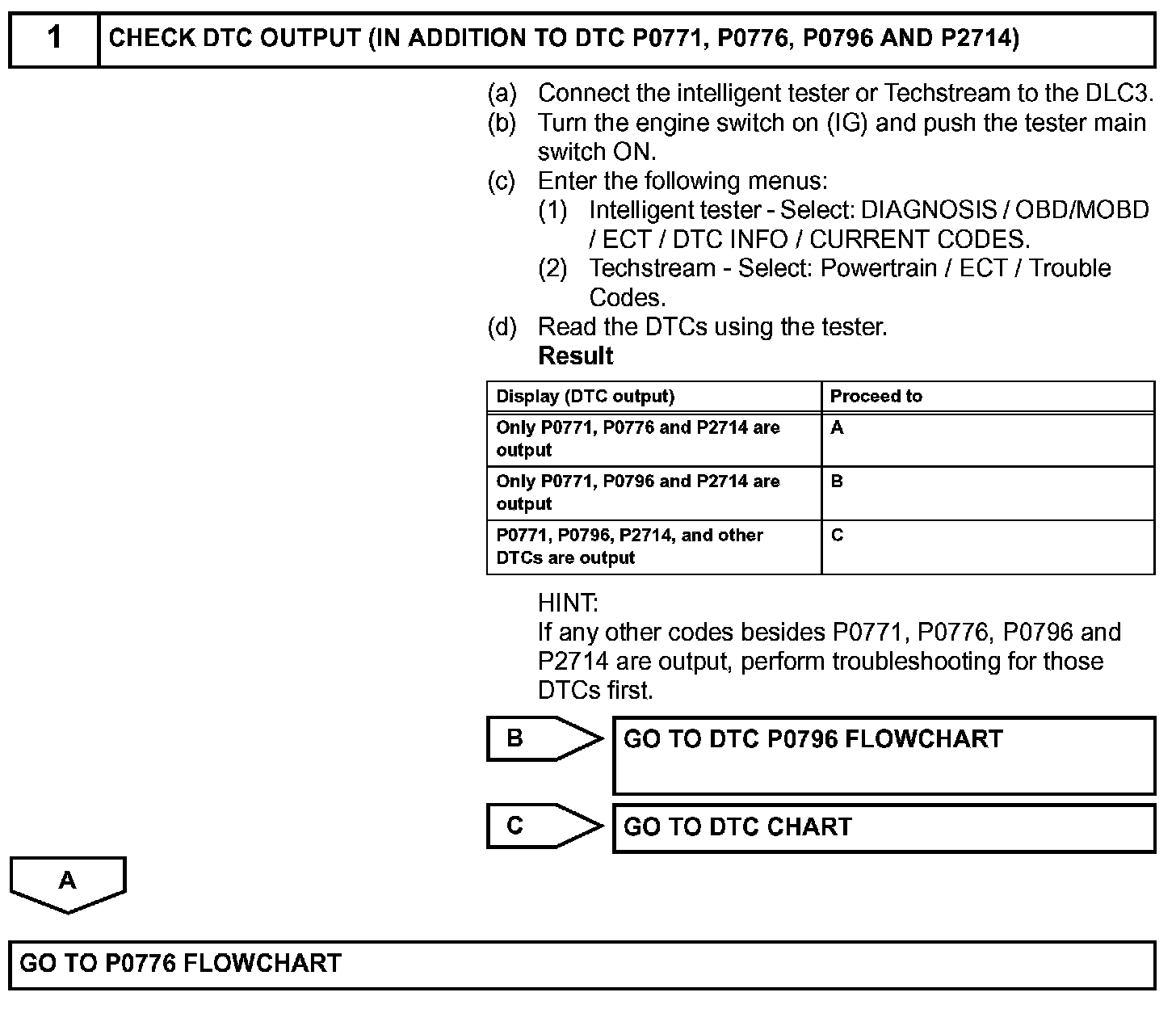

INSPECTION PROCEDURE
