DTC P0724 Brake Switch "B" Circuit HighDESCRIPTION

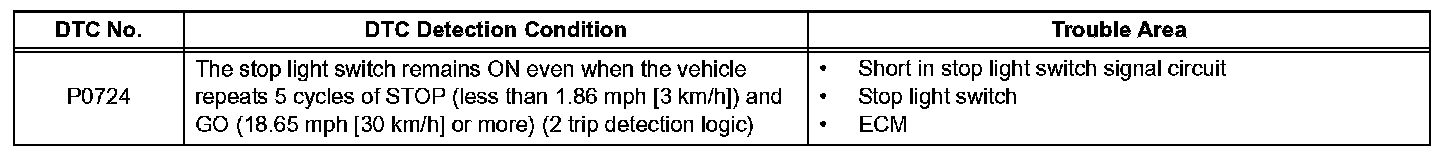

DTC Detection Condition:
The purpose of this circuit is to prevent the engine from stalling, while driving in lock-up condition, when brakes are suddenly applied.
When the brake pedal is depressed, this switch sends a signal to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in progress.
MONITOR DESCRIPTION
Monitor Strategy:

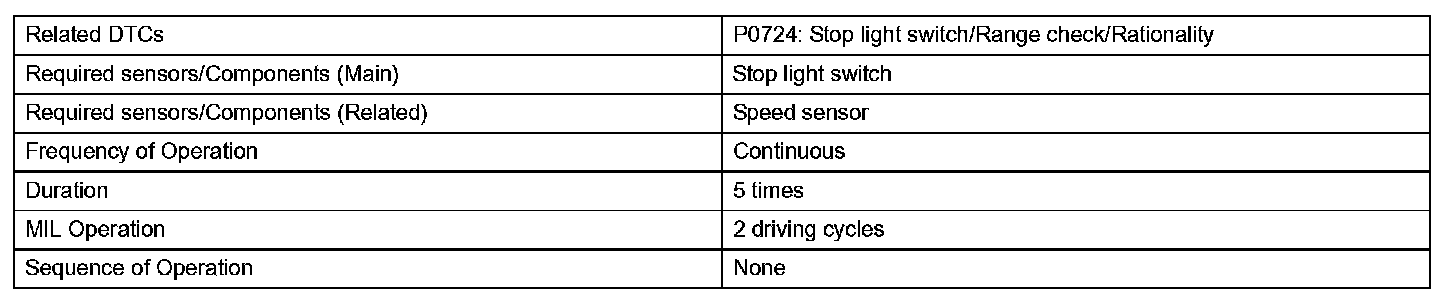

Typical Enabling Conditions:
Typical Malfunction Thresholds:

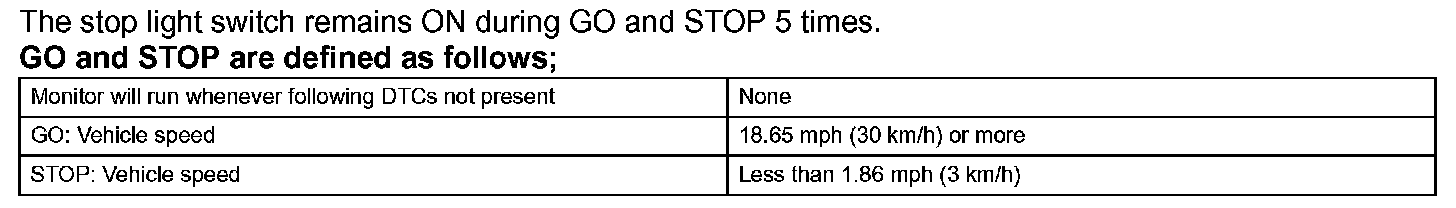

This DTC indicates that the stop light switch remains ON. When the stop light switch remains ON during "stop and go" driving, the ECM interprets this as a fault in the stop light switch and the MIL comes on and the ECM stores the DTC. The vehicle must stop (less than 1.86 mph [3 km/h]) and go (18.65 mph [30 km/ h] or more) 5 times during 2 driving cycles, in order to detect a malfunction.

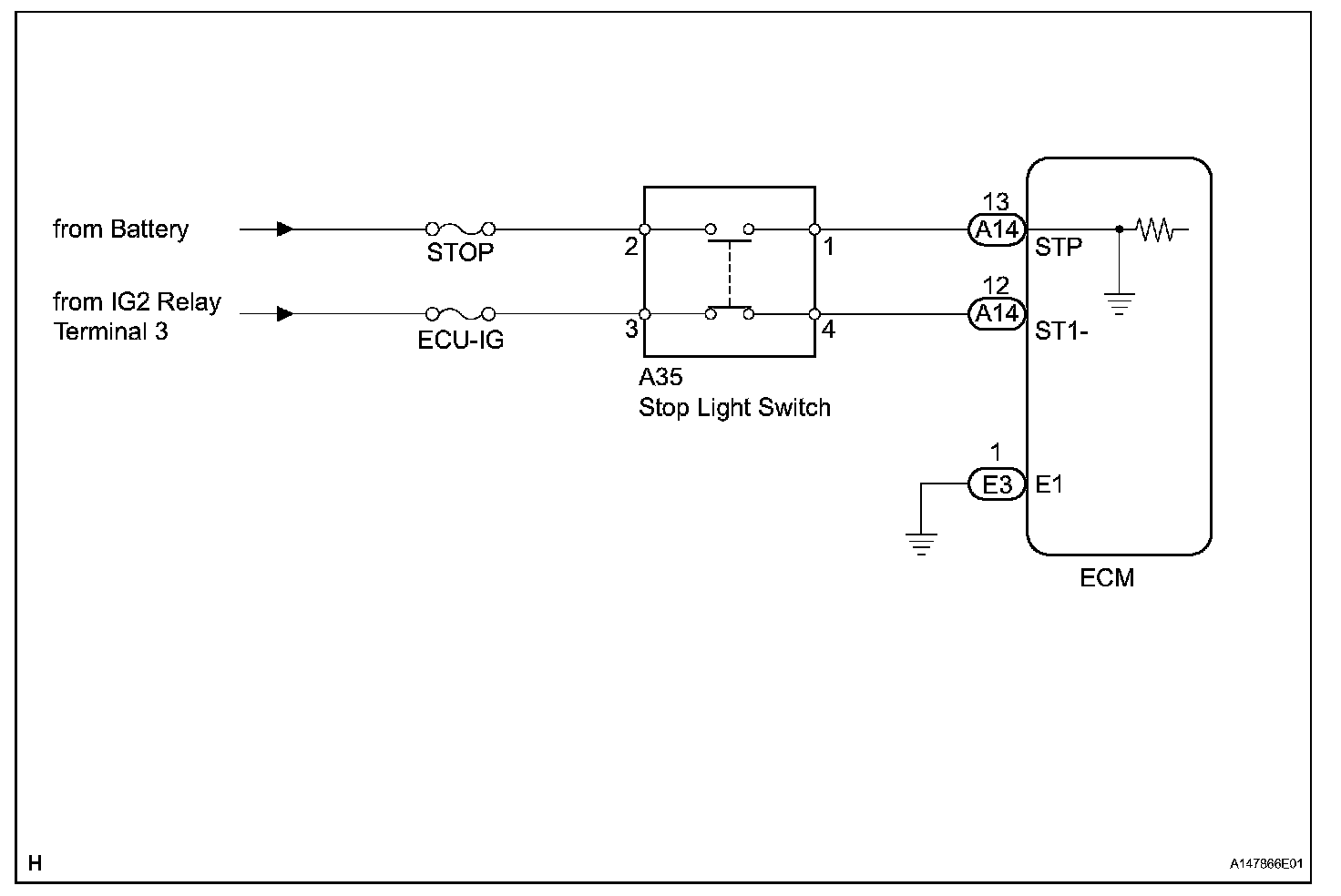

Wiring Diagram:

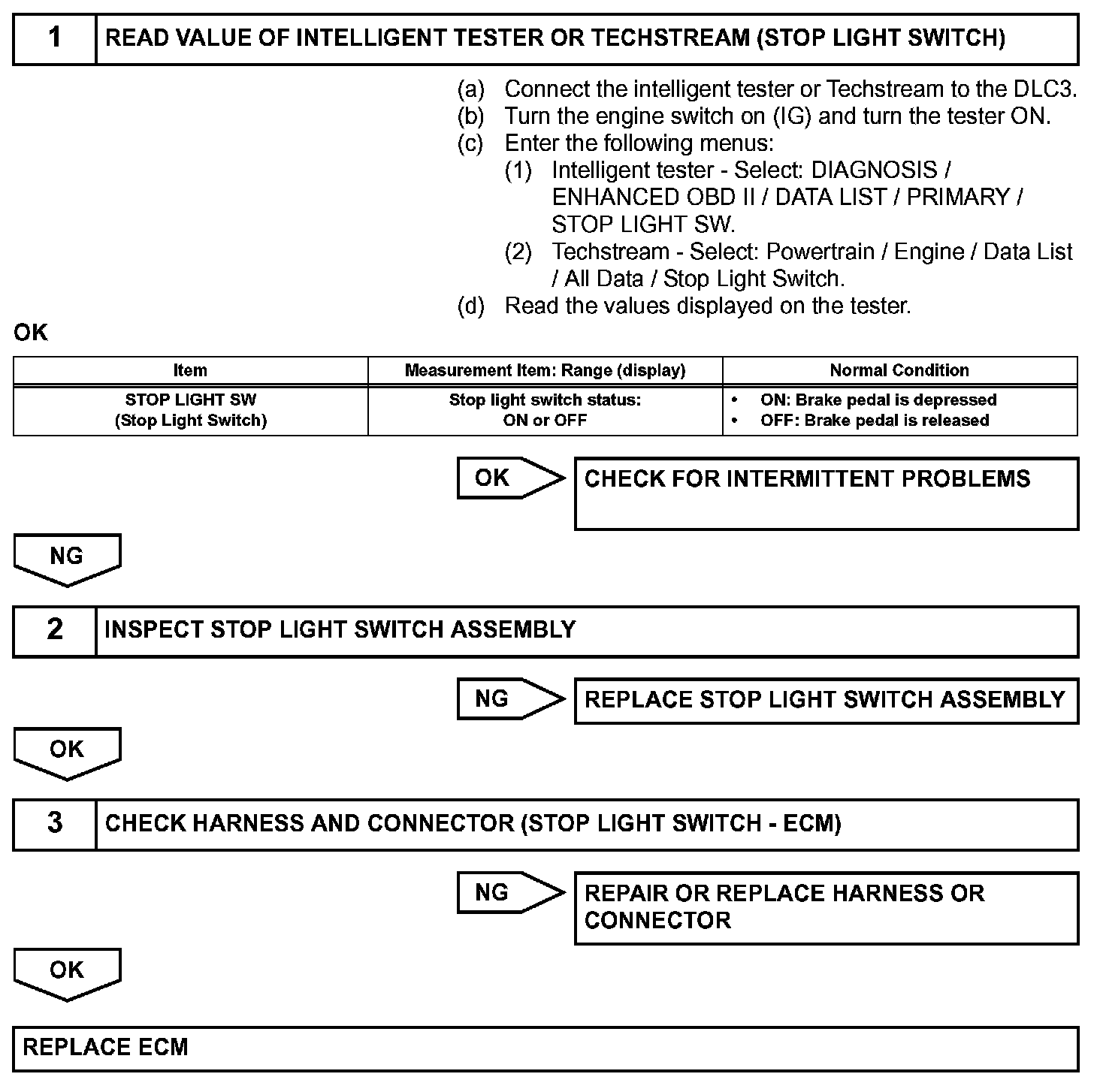

Step 1-3:
INSPECTION PROCEDURE
HINT: Read freeze frame data using the intelligent tester or Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
