P0657

DTC P0657 Actuator Supply Voltage Circuit / Open

DESCRIPTION

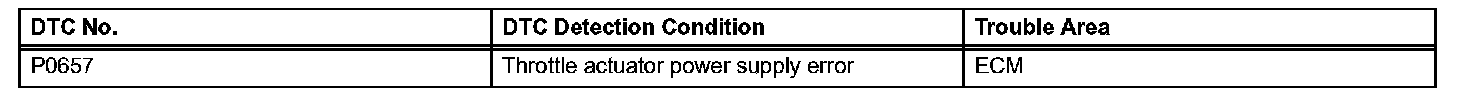

DTC Detection Condition:

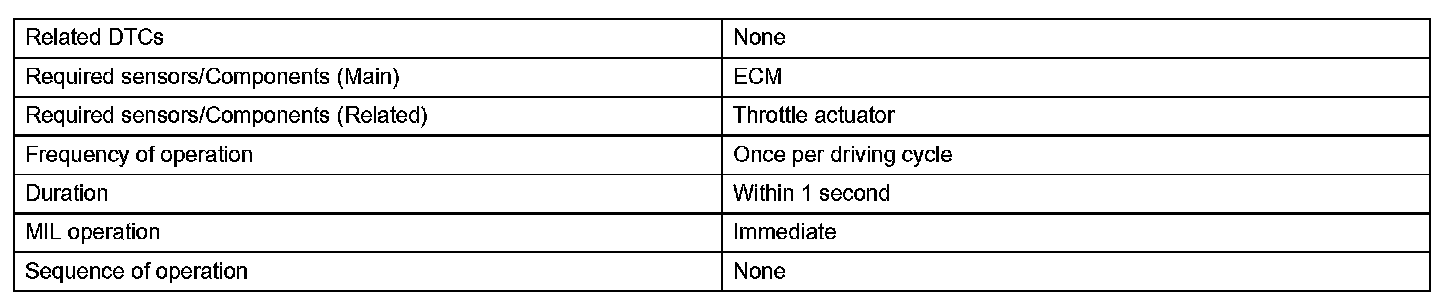

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

The ECM monitors the output voltage to the throttle actuator. This self-check ensures that the ECM is functioning properly. The output voltage usually is 0 V when the engine switch is turned off. If the output voltage is higher than 7 volts when the engine switch is turned off, the ECM will illuminate the MIL and set a DTC when the engine switch is turned on (IG).

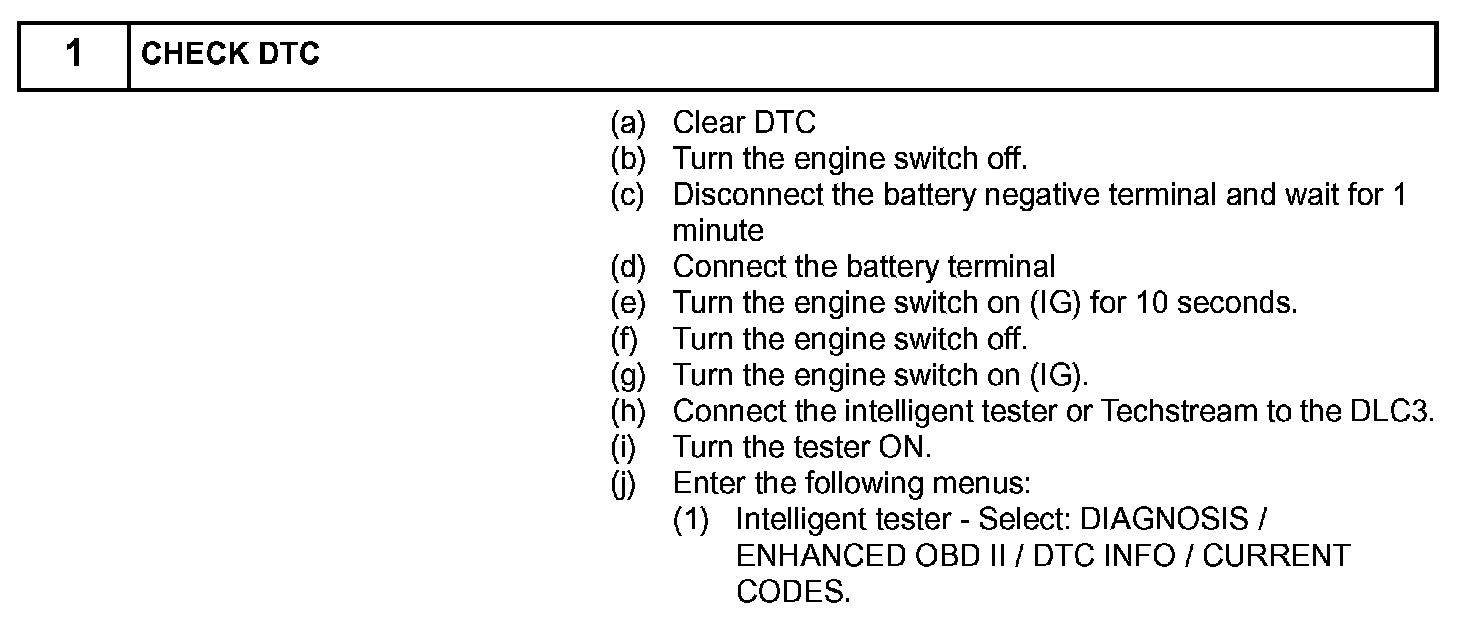

Step 1:

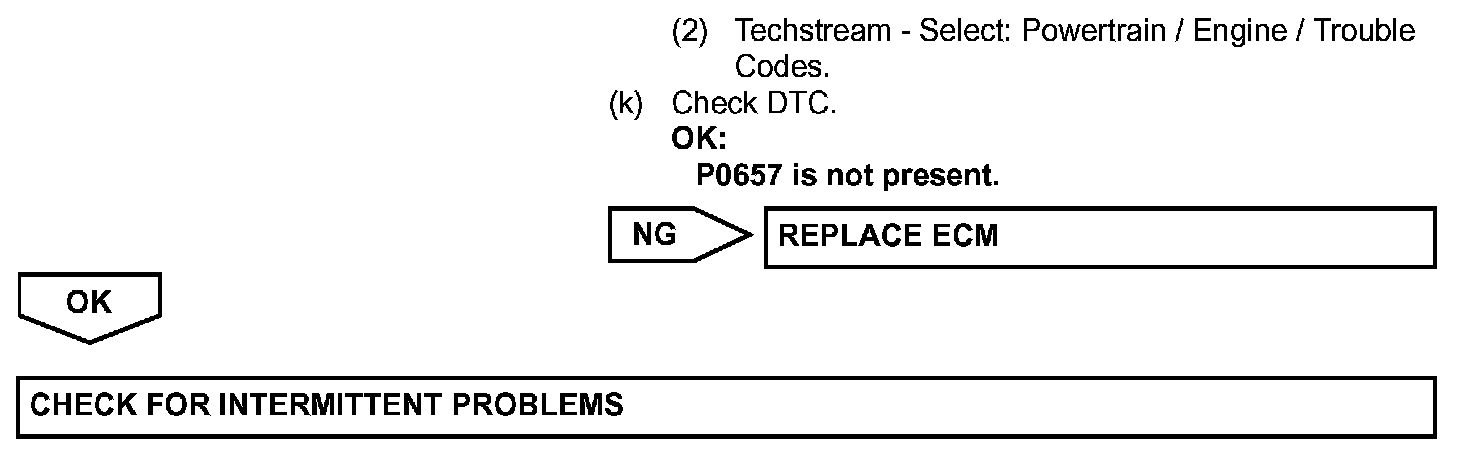

Step 1(Continued):

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester or Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
