DTC P0617 Starter Relay Circuit HighDESCRIPTION
While the engine is being cranked, the positive battery voltage is applied to terminal STA of the TCM.
If the TCM detects the Starter Control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The TCM then illuminates the MIL and sets the DTC.
This monitor runs when the vehicle is driven at 12.4 mph (20 km/h) for over 20 seconds.

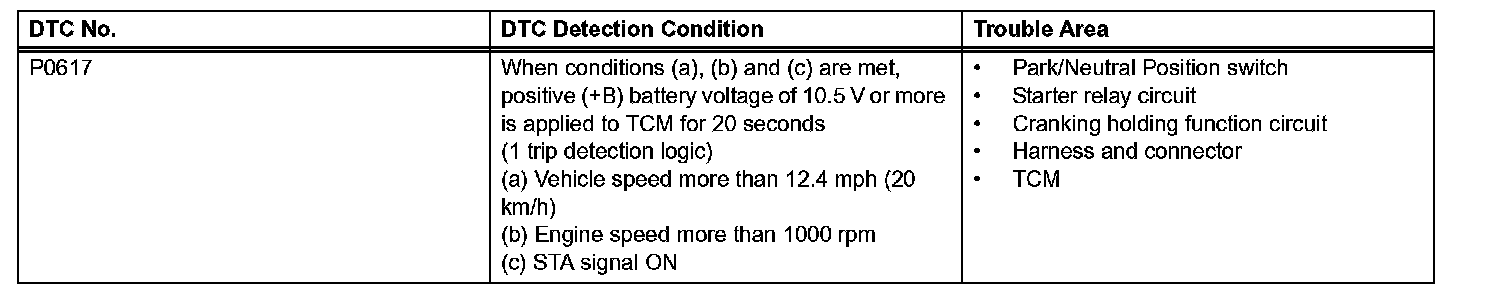

P0617:

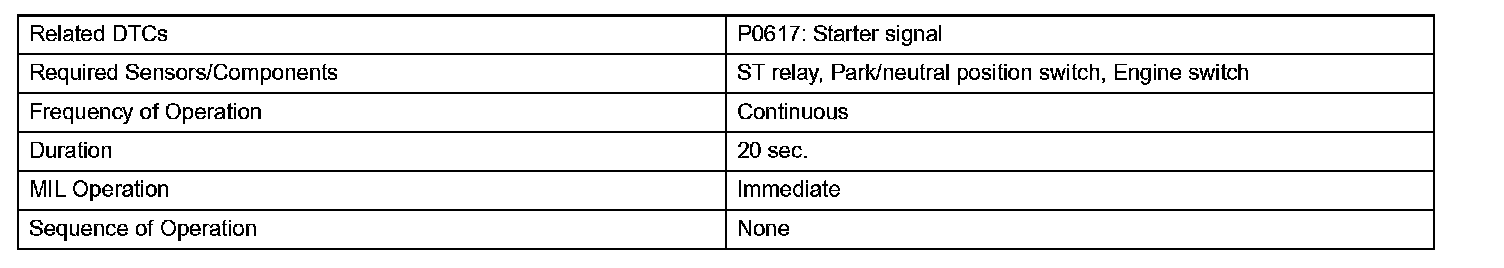

MONITOR STRATEGY

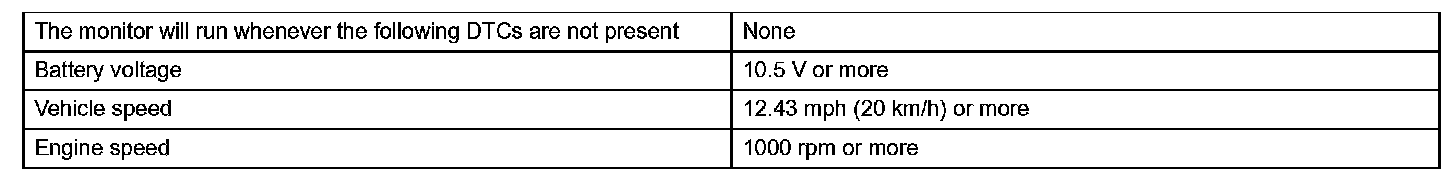

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS

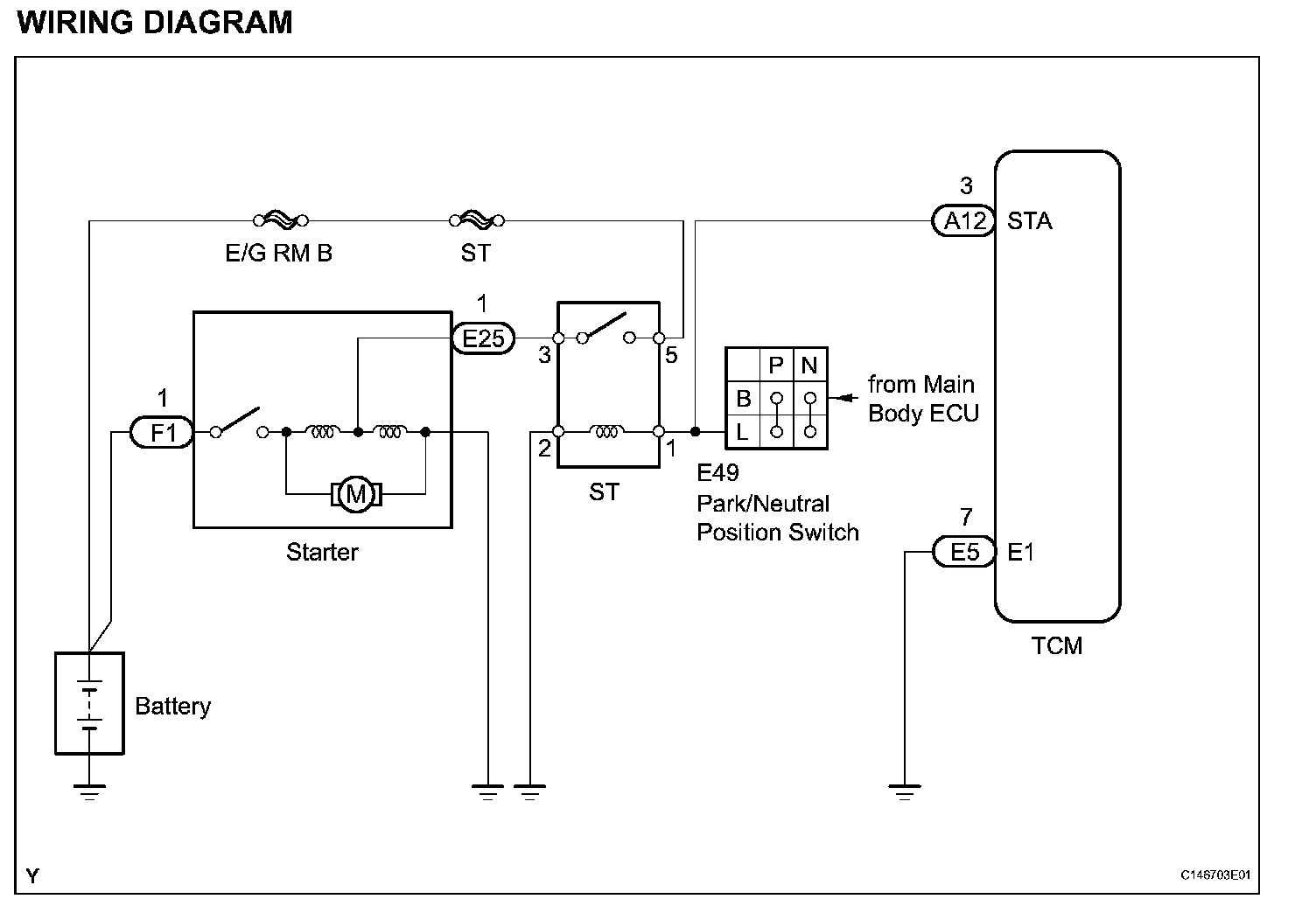

WIRING DIAGRAM:
INSPECTION PROCEDURE

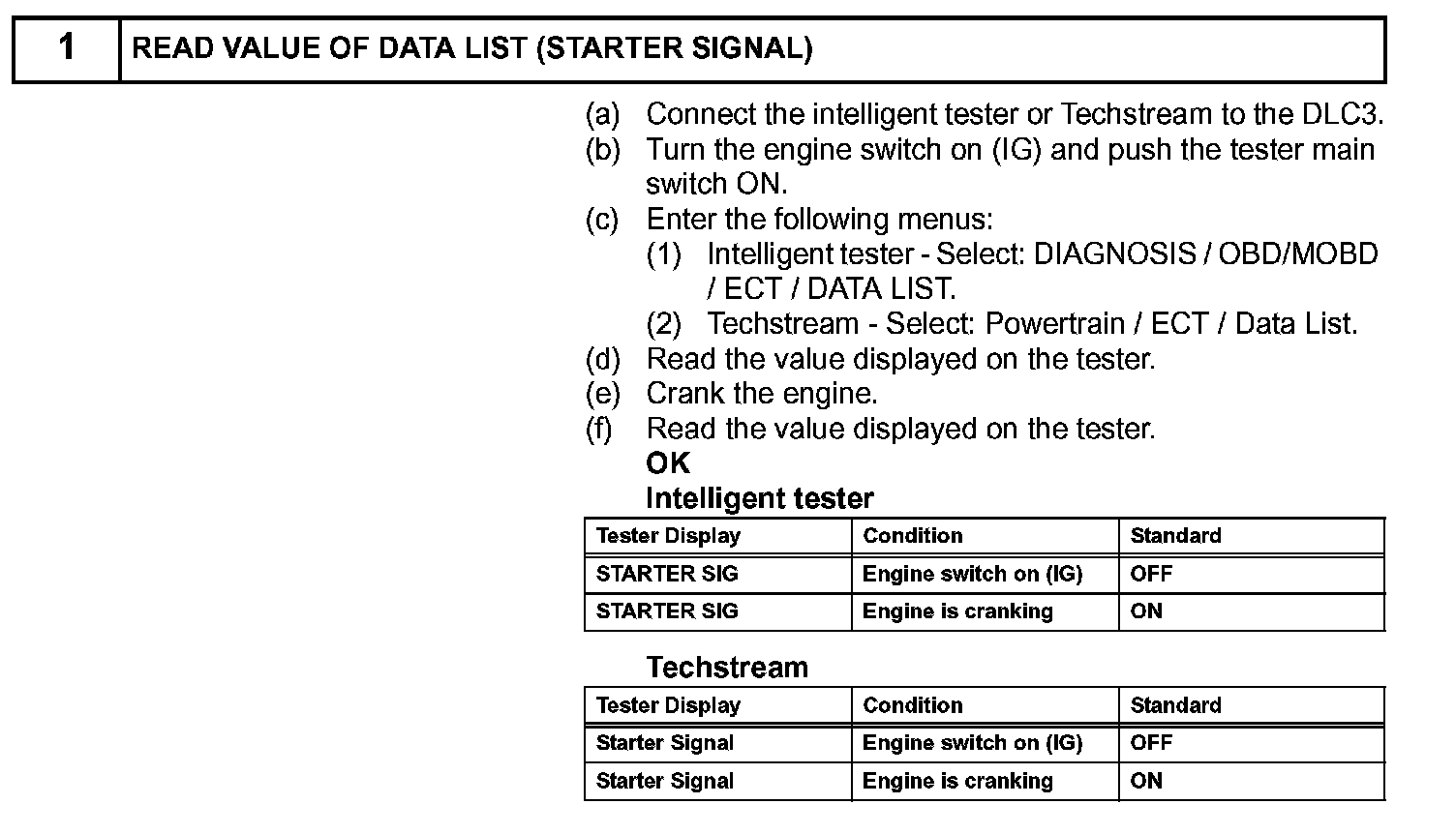

Step 1(Part 1):

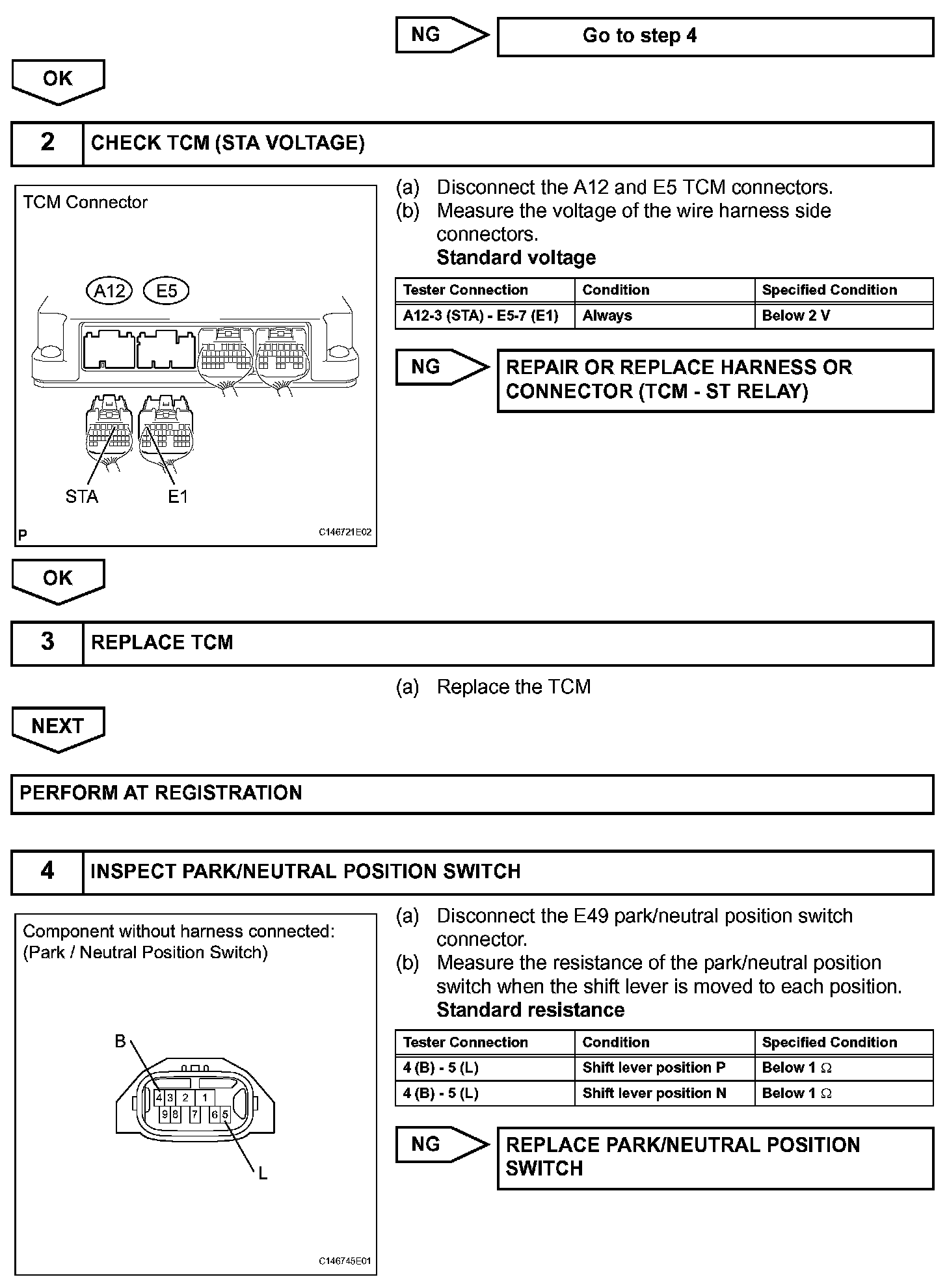

Steps 1(Part 2)-4(Part 1):

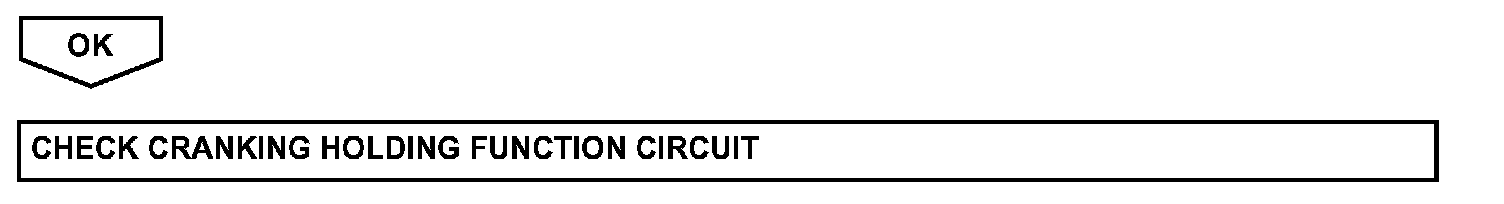

Step 4(Part 2):
