P0607

DTC P0607 Control Module Performance

DESCRIPTION

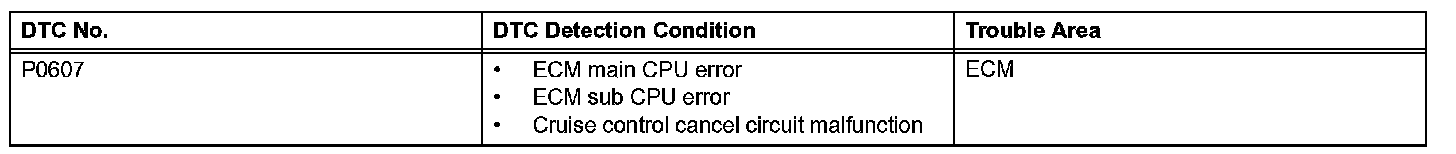

DTC Detection Condition:

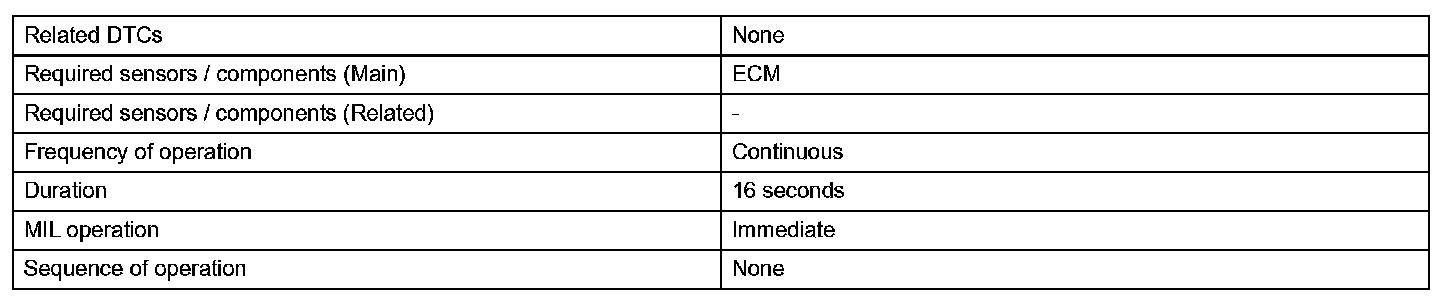

Monitor Strategy:

Typical Enabling Conditions:

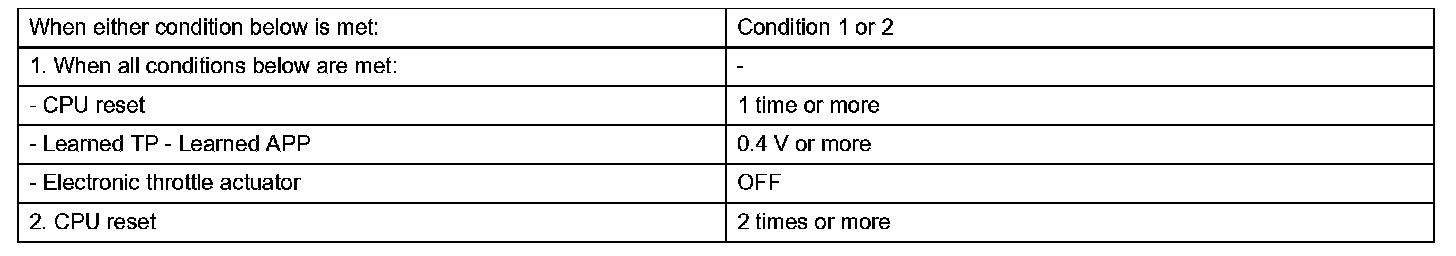

Typical Malfunction Thresholds:

The ECM continuously monitors its main and sub CPUs. This self-check ensures that the ECM is functioning properly. If outputs from the CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.

The ECM also monitors the cruise control cancel circuit. If this circuit malfunctions, the ECM will set a DTC immediately (MIL is not illuminated).

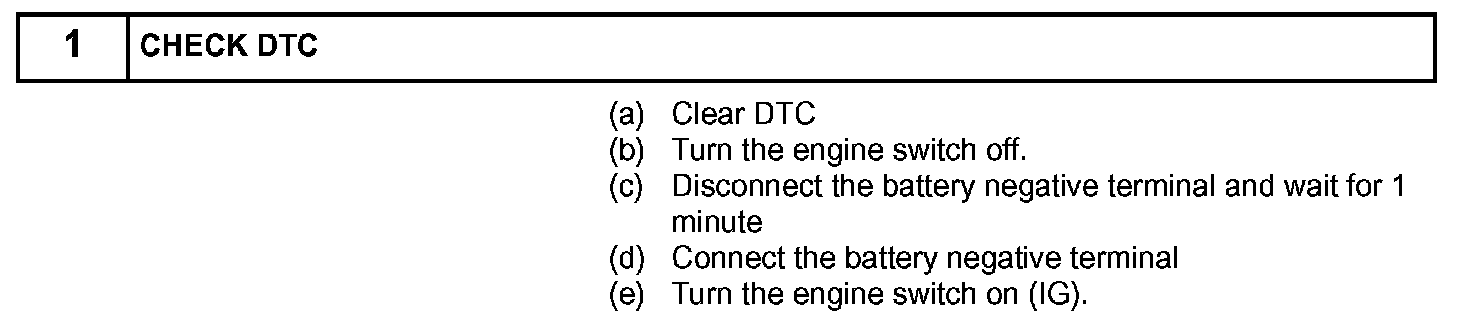

Step 1:

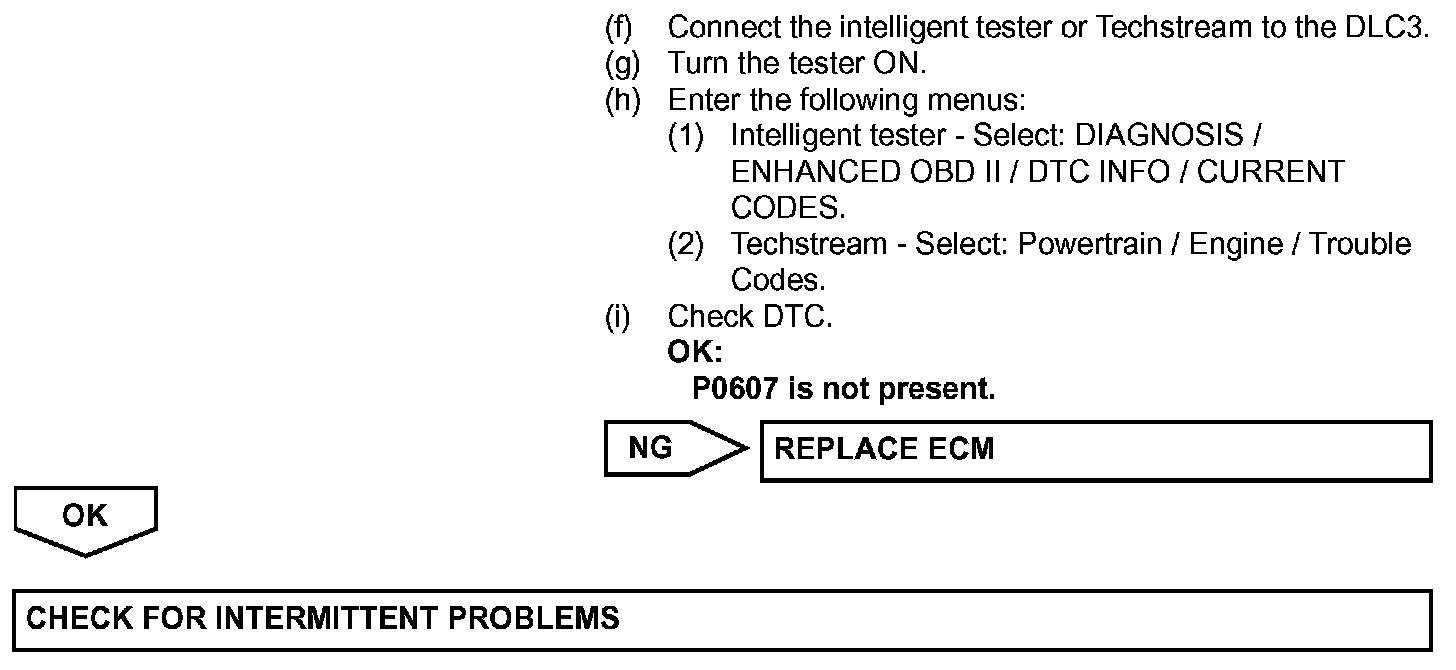

Step 1(Continued):

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester or Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
