P0604

DTC P0604 Random Access Memory (RAM)

DESCRIPTION

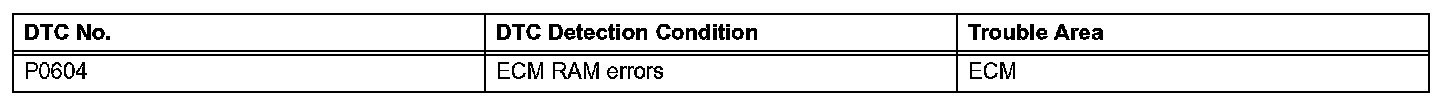

DTC Detection Condition:

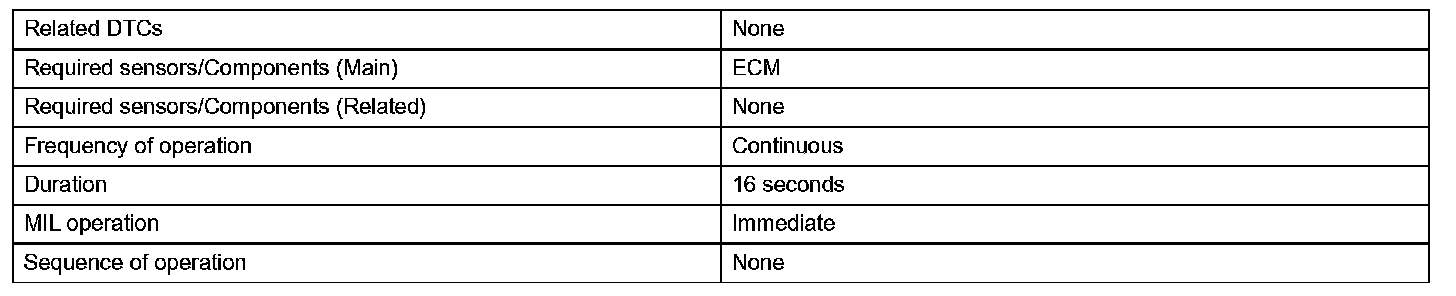

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

The ECM continuously monitors its internal memory status. This self-check ensures that the ECM is functioning properly. It is diagnosed by internal "mirroring" of the main CPU and sub CPU to detect the Random Access Memory (RAM) errors. If outputs from these CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.

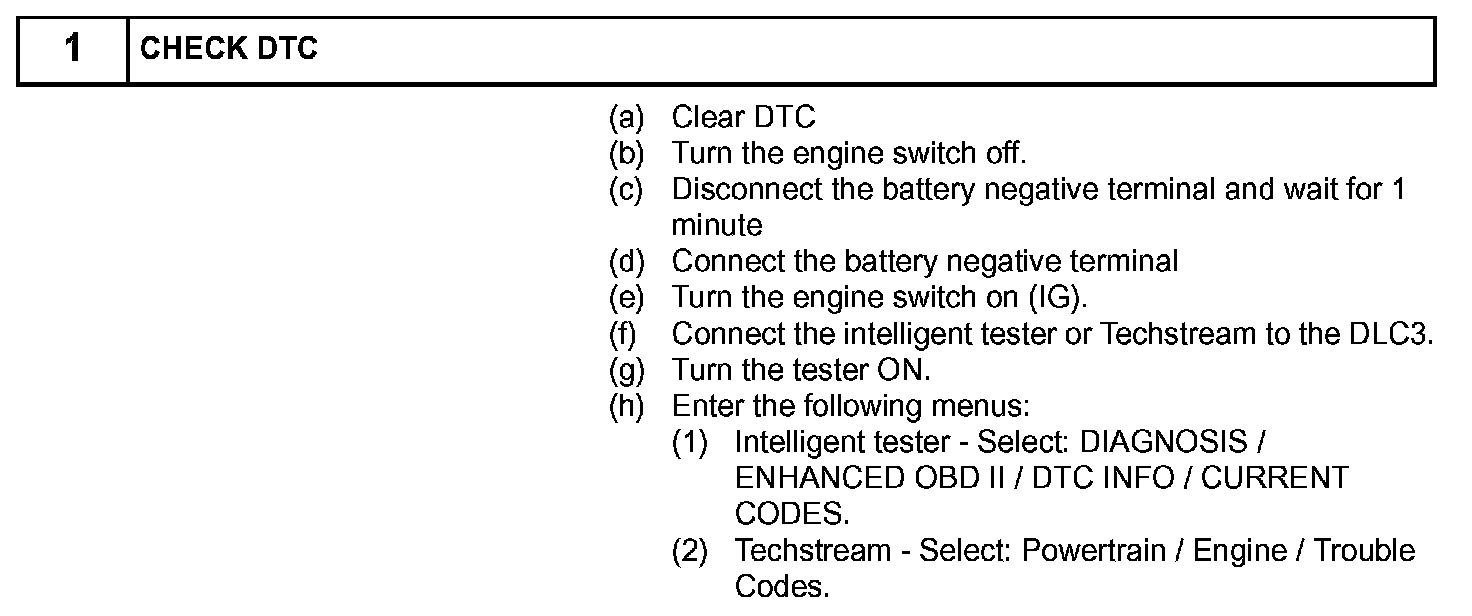

Step 1:

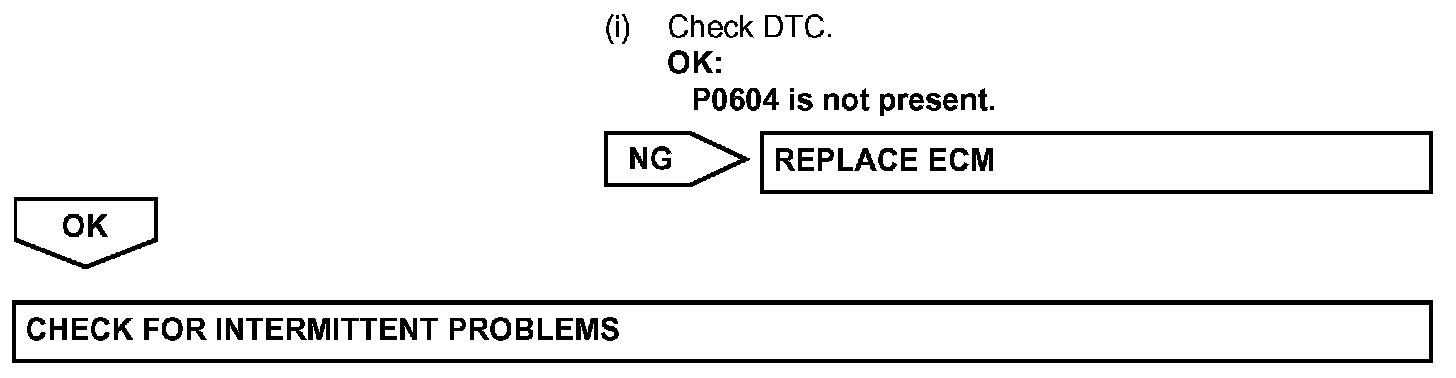

Step 1(Continued):

INSPECTION PROCEDURE

HINT: Read freeze frame data using the intelligent tester or Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
