Steering Angle Signal (Test Mode DTC)
DTC C1595/55 Lost Communication with Steering Angle Sensor ModuleDTC C15C4/68 Steering Angle Signal (Test Mode DTC)
DESCRIPTION
Signal transmission between the steering control ECU and steering angle sensor is performed via serial communication.
If an error occurs between them in the serial communication, the ECU will store DTC C1595/55.

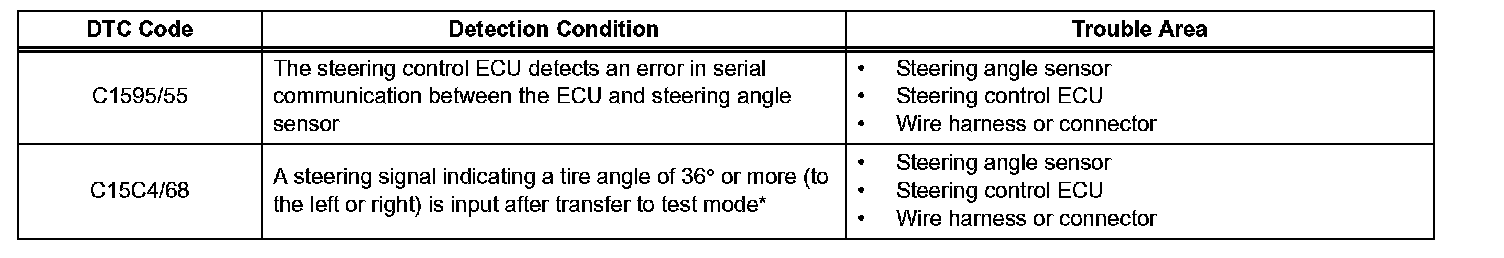

C1595/55 / C15C4/68:
HINT: *: A tire angle of 36° and a motor rotation angle of 36° correspond to the steering wheel angle. The amount of change in tire angle and motor rotation angle is from when the mode is changed to test mode.

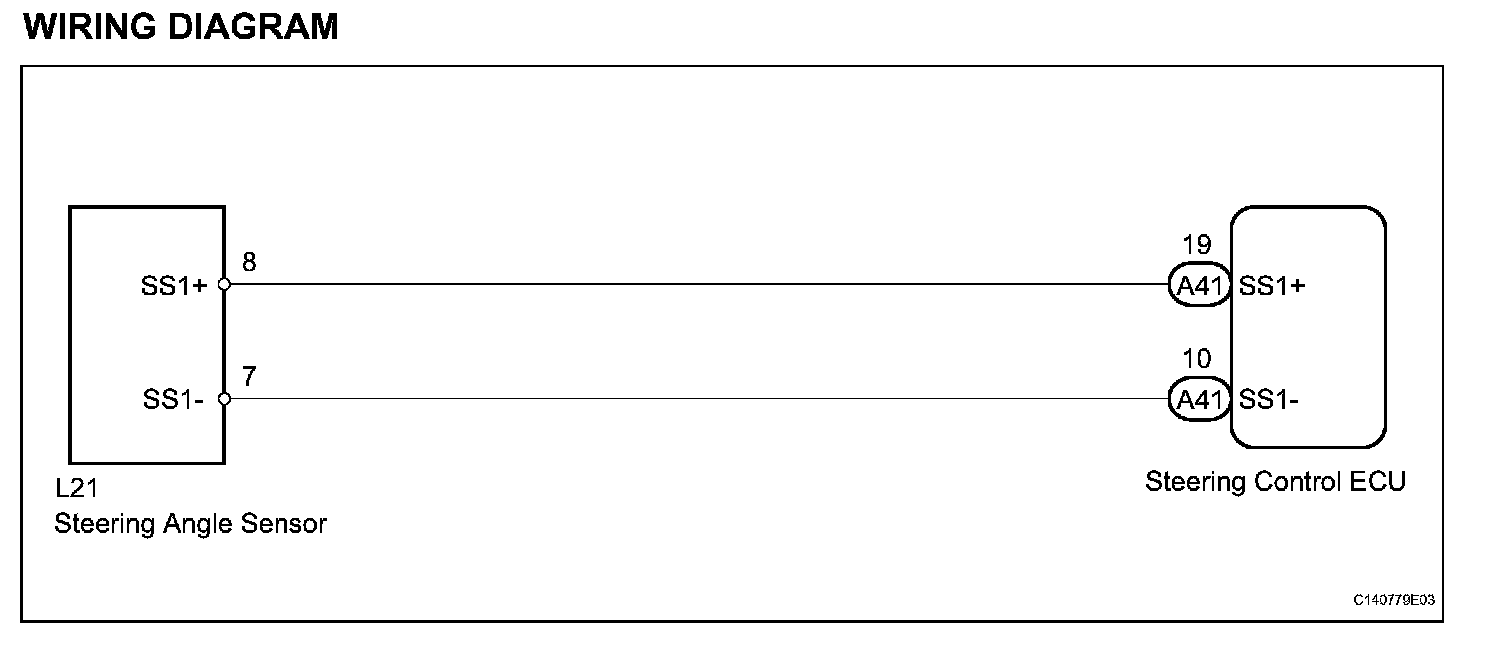

WIRING DIAGRAM:
INSPECTION PROCEDURE

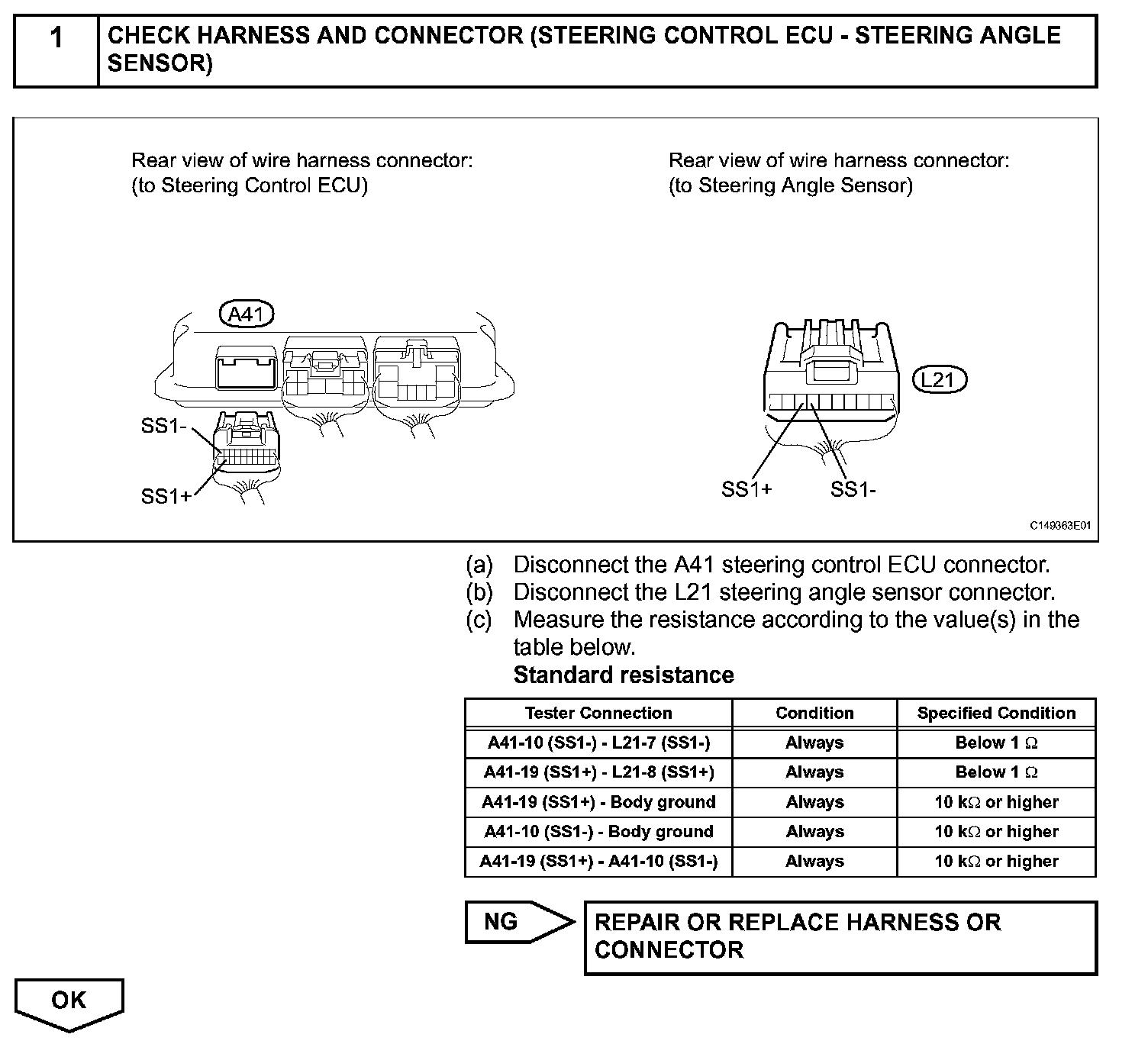

Step 1:

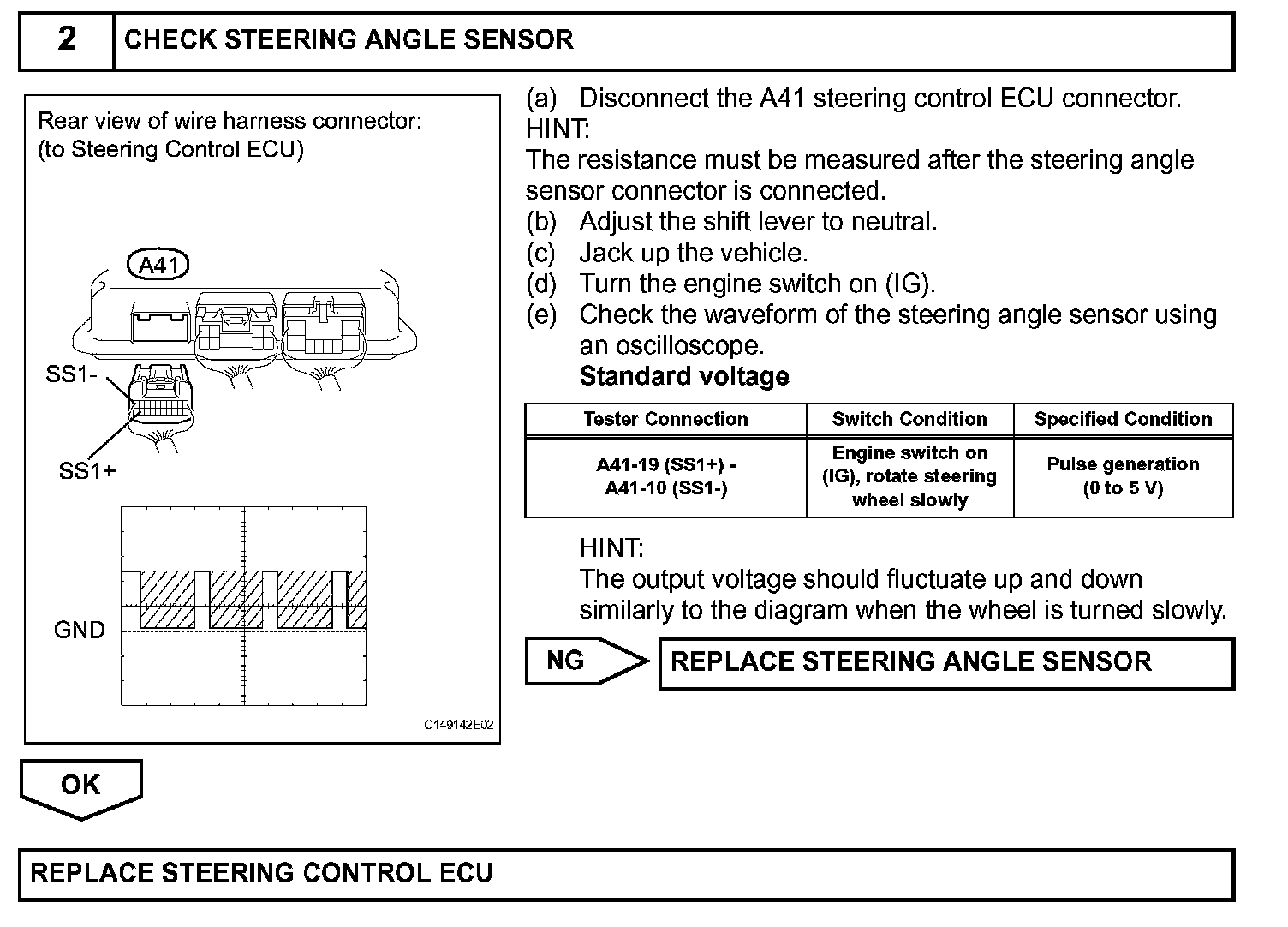

Step 2:
