DTC 69

DTC C1391/69 Accumulator Leak Malfunction

DESCRIPTION

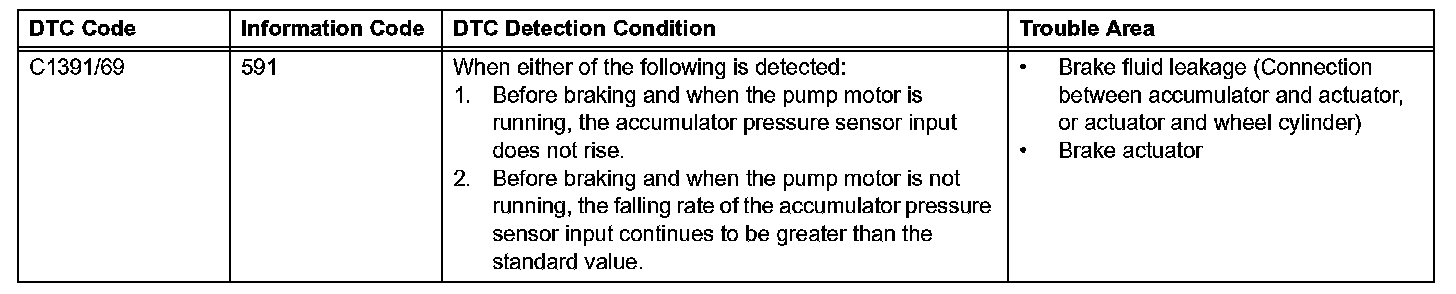

DTC Detection Condition:

The DTC is stored if a brake fluid, internal or other leak is detected due to improper sealing in the brake actuator or brake accumulator pump. Internal leakage is suspected if the pump motor operates frequently without braking.

Step 1-2:

Step 2(Continued):

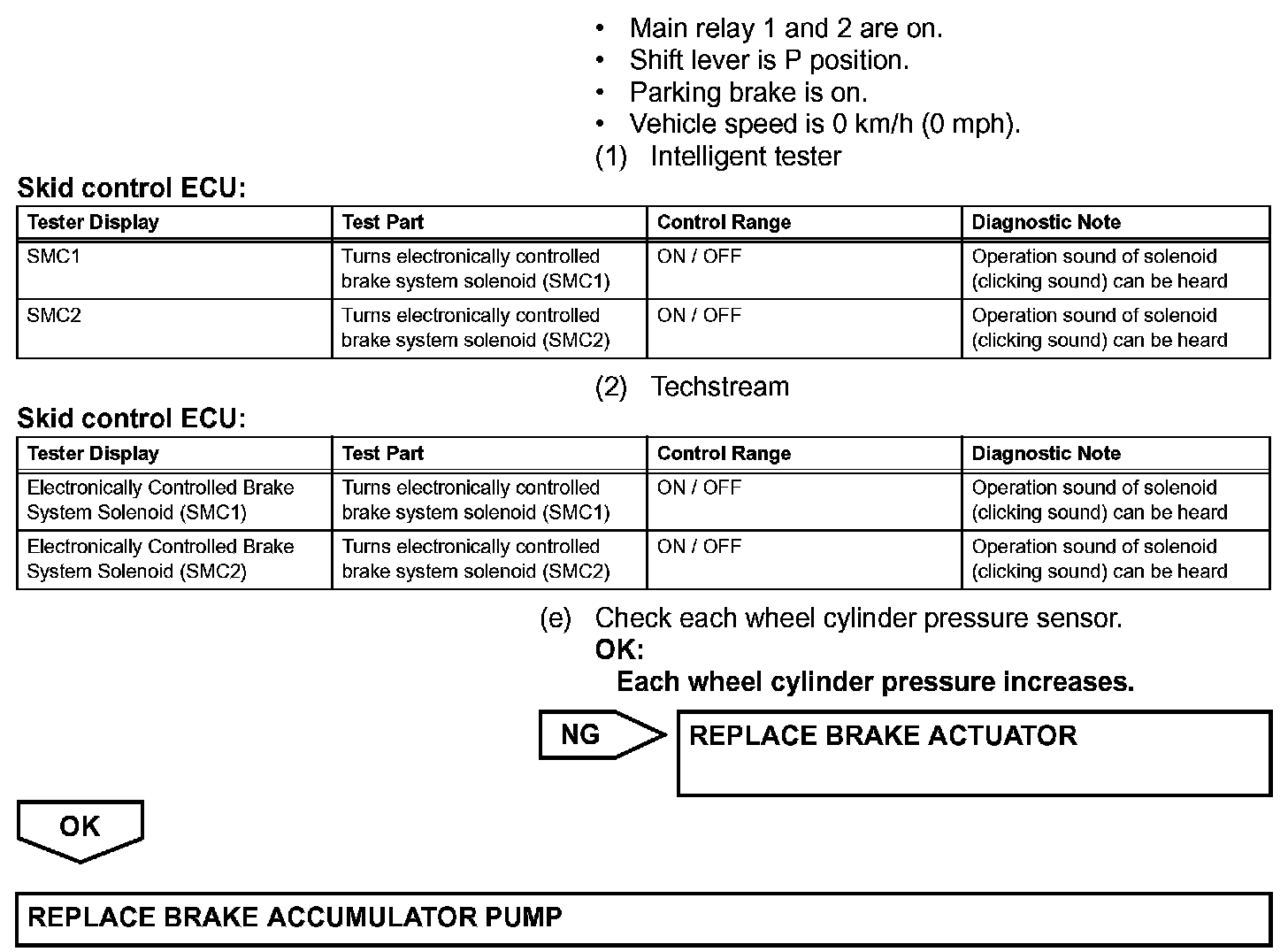

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU or brake actuator, perform initialization of linear solenoid valve and calibration. Initialization
