Engine Control System Malfunction

DTC C1201/51 Engine Control System Malfunction
DTC C1201/14 Engine Control System Malfunction

DESCRIPTION

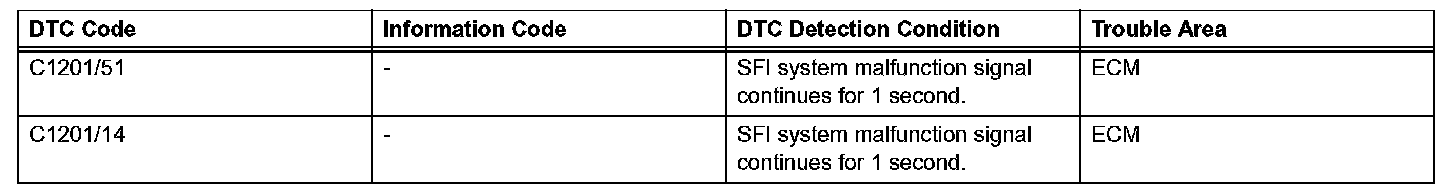

DTC Detection Condition:

The skid control ECU is connected to the ECM via CAN communication. When the signals from the engine are input normally, the fail-safe is canceled and the DTC is not stored.

HINT: When a code for the VSC is output, VSC code "51"will be displayed. When a code for the brake hold is output, the brake hold standby indicator code "14"will be displayed.

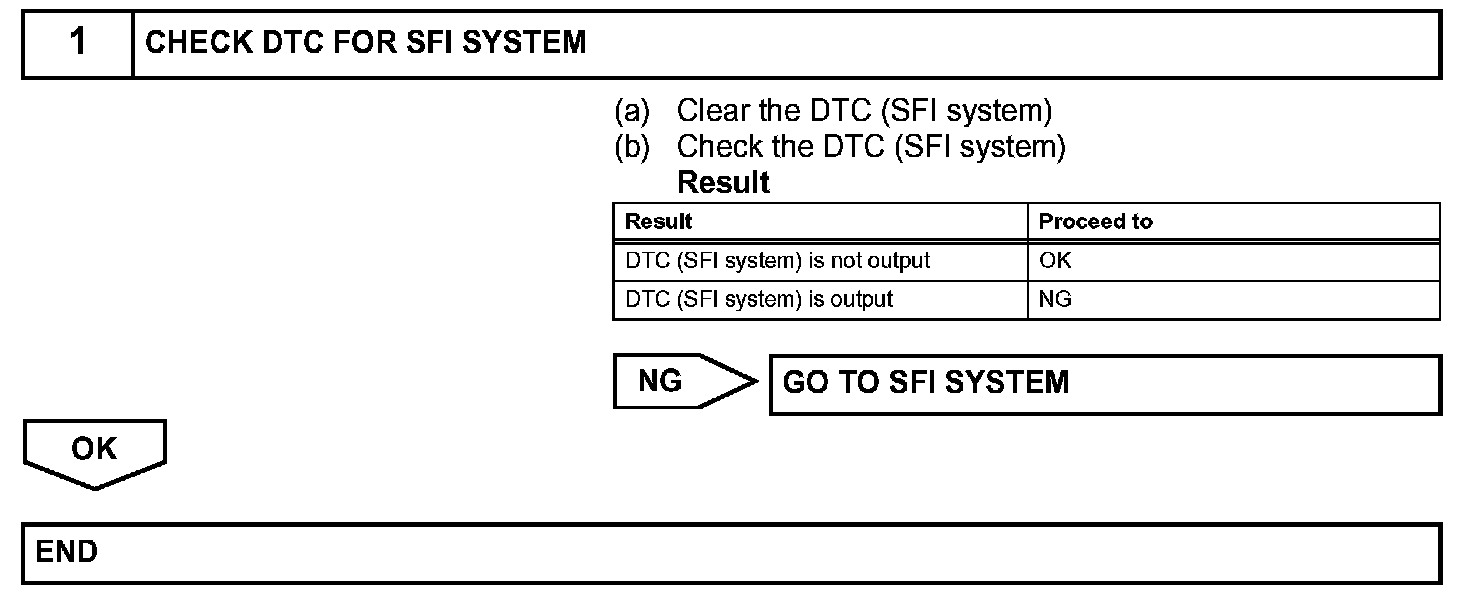

Step 1:

INSPECTION PROCEDURE
